LTM4686-1 Datasheet

LTM4686-1 Datasheet

Ultrathin Dual 10A or Single 20A μModule Regulator with Digital Power System Management
Part No.: LTM4686-1
Page: 132 Pages
Size: 17447 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-26 15:58:29
DataSheet: Download

LTM4686-1 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4686EV-1#PBF Tray 112 LTM4686V-1 4 108 -40°C ~125°C 108-Lead LGA (16mm x 11.9mm x 1.82mm)
LTM4686IV-1#PBF Tray 112 LTM4686V-1 4 108 -40°C ~125°C 108-Lead LGA (16mm x 11.9mm x 1.82mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4686-1 Datasheet(PDF)

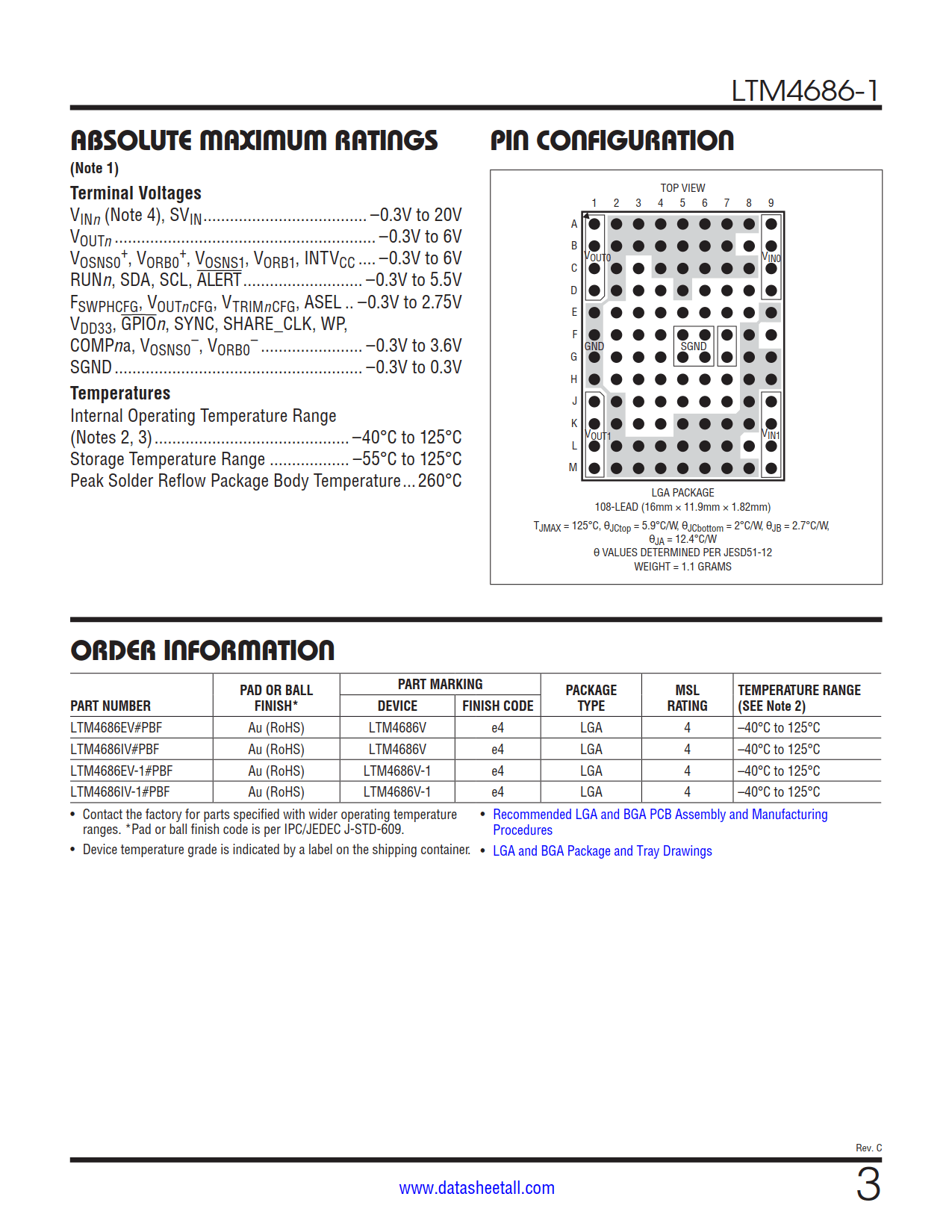

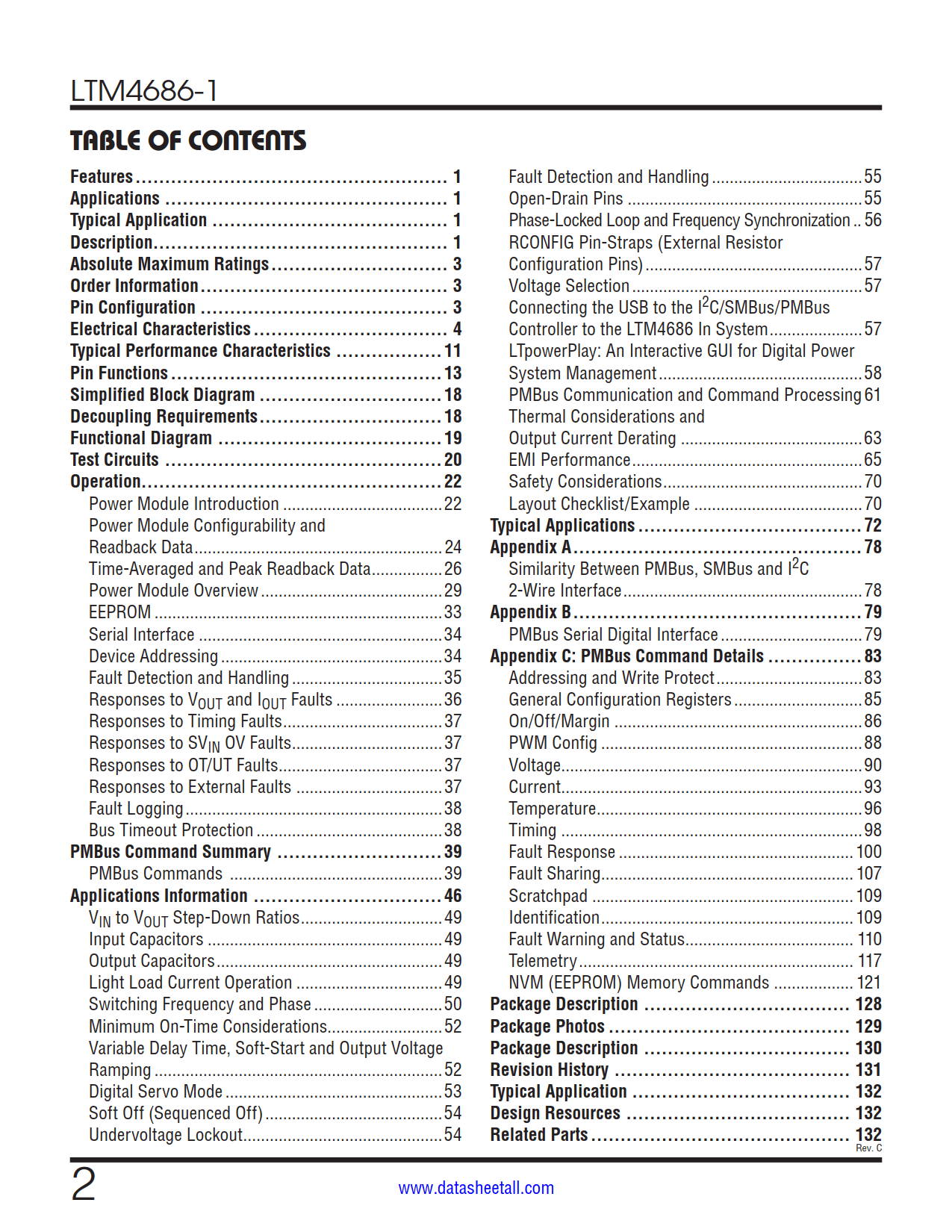

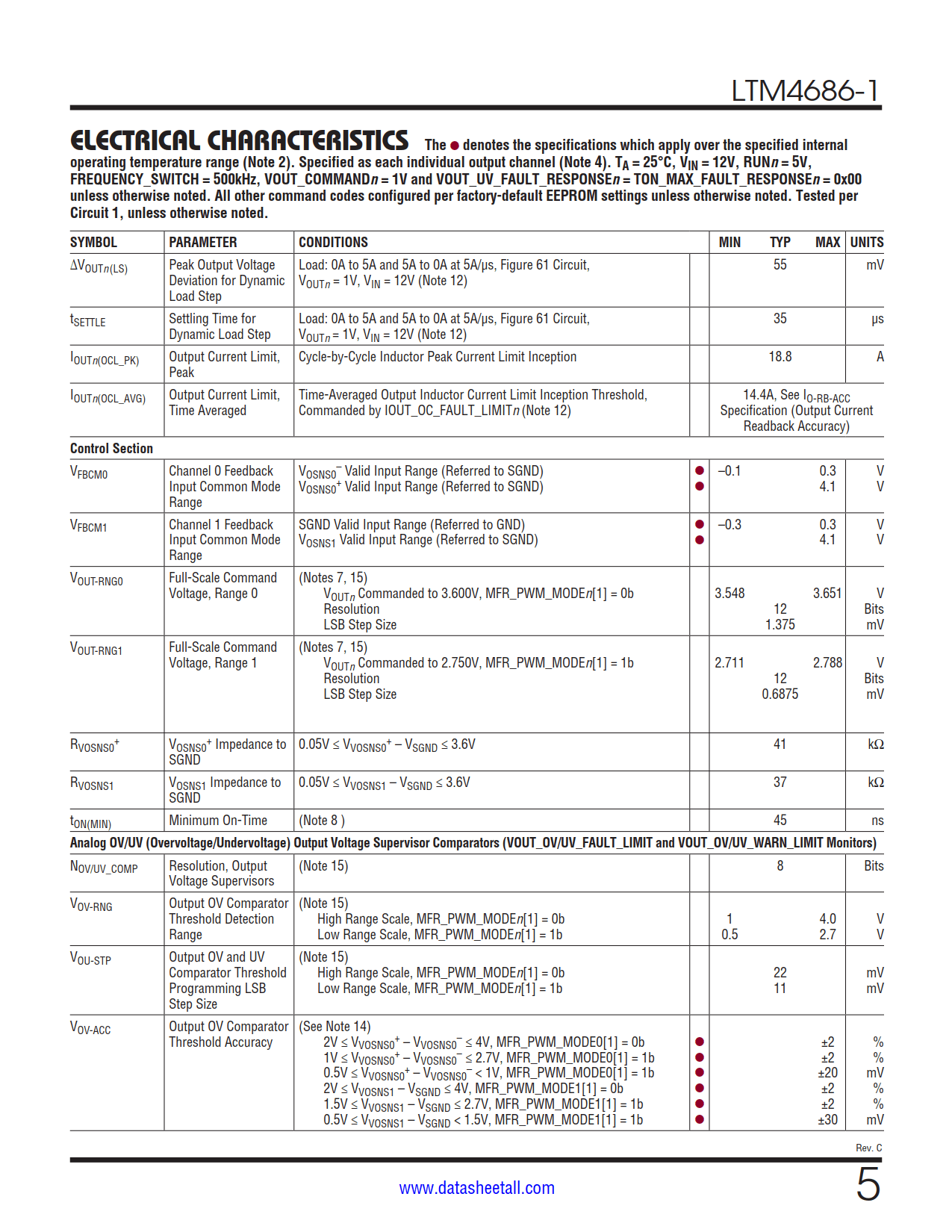

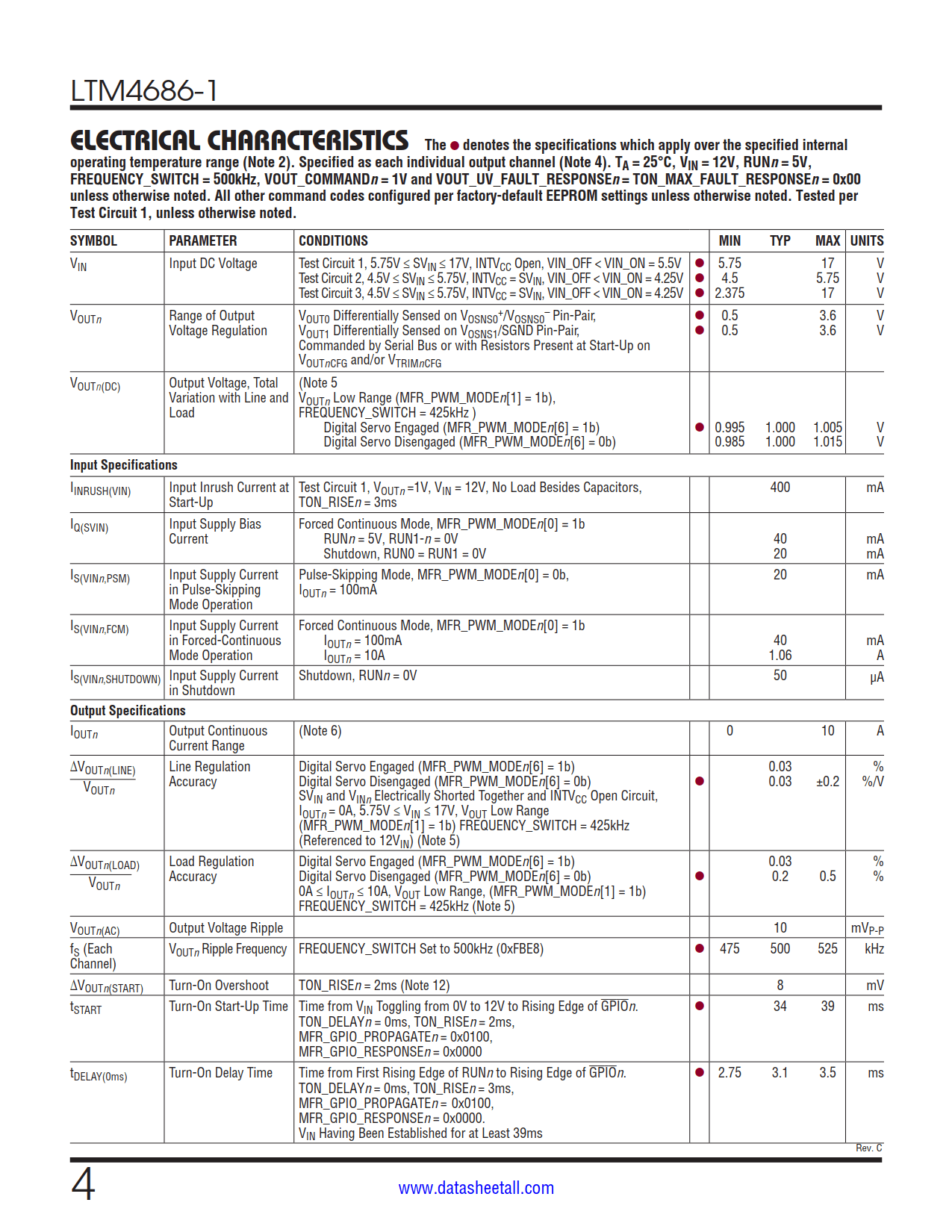

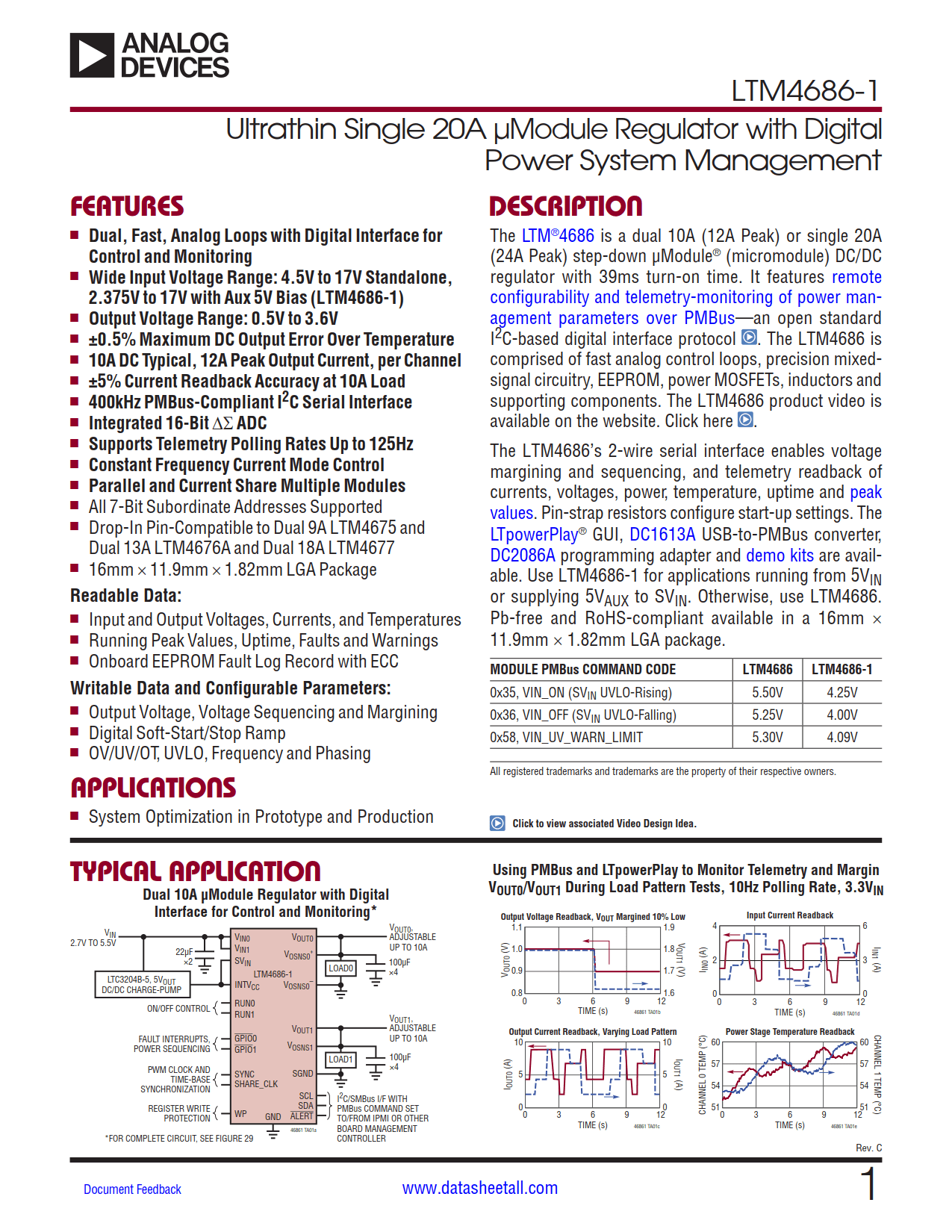

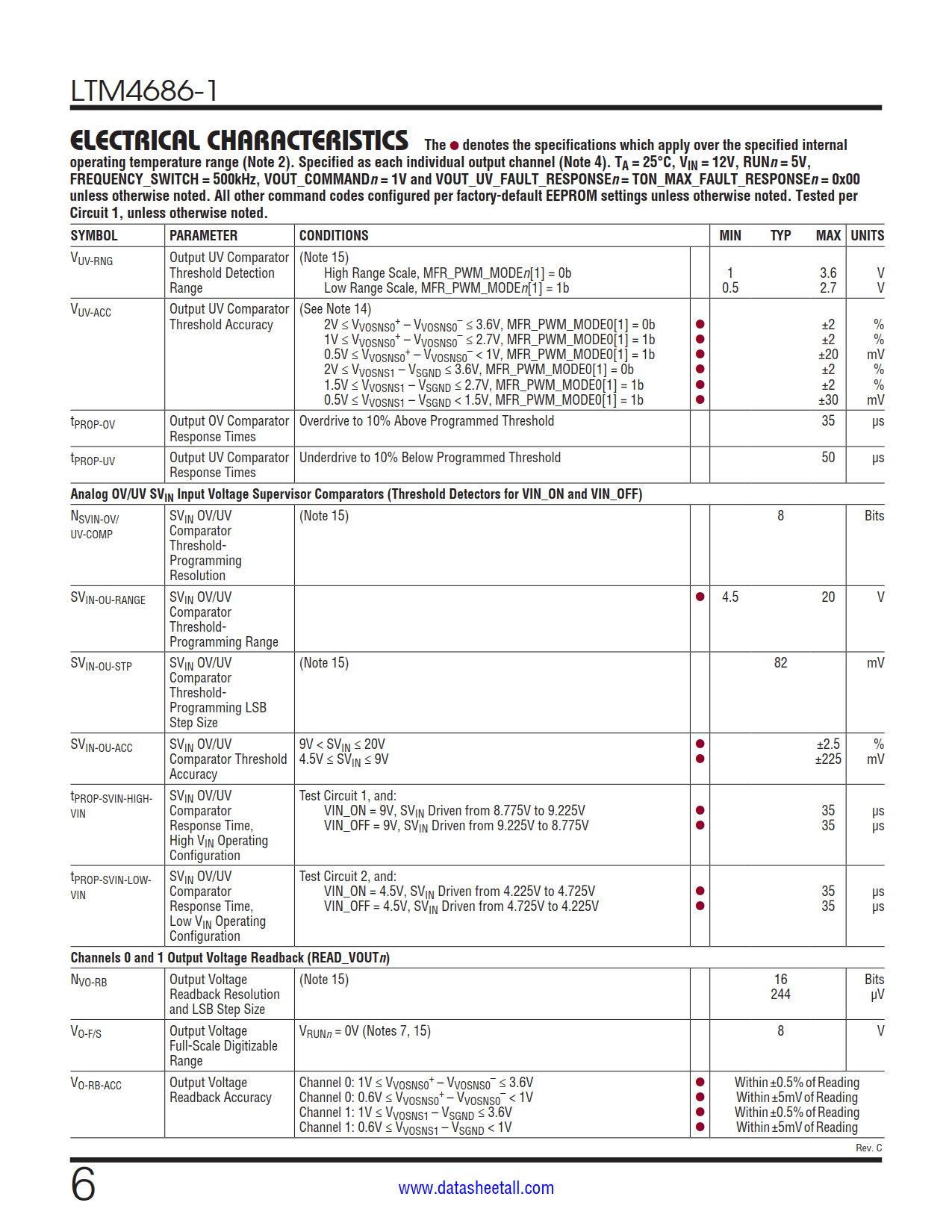

LTM4686-1 Datasheet(Picture)

LTM4686-1 Features

  • Dual, Fast, Analog Loops with Digital Interface for Control and Monitoring
  • Wide Input Voltage Range: 4.5V to 17V Standalone, 2.375V to 17V with Aux 5V Bias
  • Output Voltage Range: 0.5V to 3.6V
  • ±0.5% Maximum DC Output Error Over Temperature
  • 10A DC Typical, 12A Peak Output Current, per Channel
  • ±5% Current Readback Accuracy at 10A Load
  • 400kHz PMBus-Compliant I2C Serial Interface
  • Integrated 16-Bit ∆Σ ADC
  • Supports Telemetry Polling Rates Up to 125Hz
  • Constant Frequency Current Mode Control
  • Parallel and Current Share Multiple Modules
  • All 7-Bit Slave Addresses Supported
  • Drop-In Pin-Compatible to Dual 9A LTM4675 and Dual 13A LTM4676A and Dual 18A LTM4677
  • 16mm × 11.9mm × 1.82mm LGA Package

LTM4686-1 Applications

  • System Optimization in Prototype and Production

LTM4686-1 Description

The LTM4686 is a dual 10A (12A Peak) or single 20A (24A Peak) step-down µModule® (micromodule) DC/DC regulator with 39ms turn-on time. It features remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol . The LTM4686 is comprised of fast analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.

The LTM4686’s 2-wire serial interface enables voltage margining and sequencing, and telemetry readback of currents, voltages, power, temperature, uptime and peak values. Pin-strap resistors configure start-up settings. The LTpowerPlay GUI, DC1613 USB-to-PMBus converter, DC2086 programming adapter and demo kits are available. Applications running from 5VIN or supplying 5VAUX to SVIN should use LTM4686-1. Otherwise, use LTM4686.

Pb-free and RoHS compliant, the LTM4686 is available in a 16mm × 11.9mm × 1.82mm LGA package.
