LTM4683 Datasheet

LTM4683 Datasheet

Low VOUT Quad 31.25A or Single 125A μModule Regulator with Digital Power System Management
Part No.: LTM4683
Page: 132 Pages
Size: 17510 KB
Manufacturer: Linear Technology
Logo:
Views: 0
Update Time: 2024-12-14 21:44:33
DataSheet: Download

LTM4683 Datasheet Applicable Part

SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4683 Datasheet(PDF)

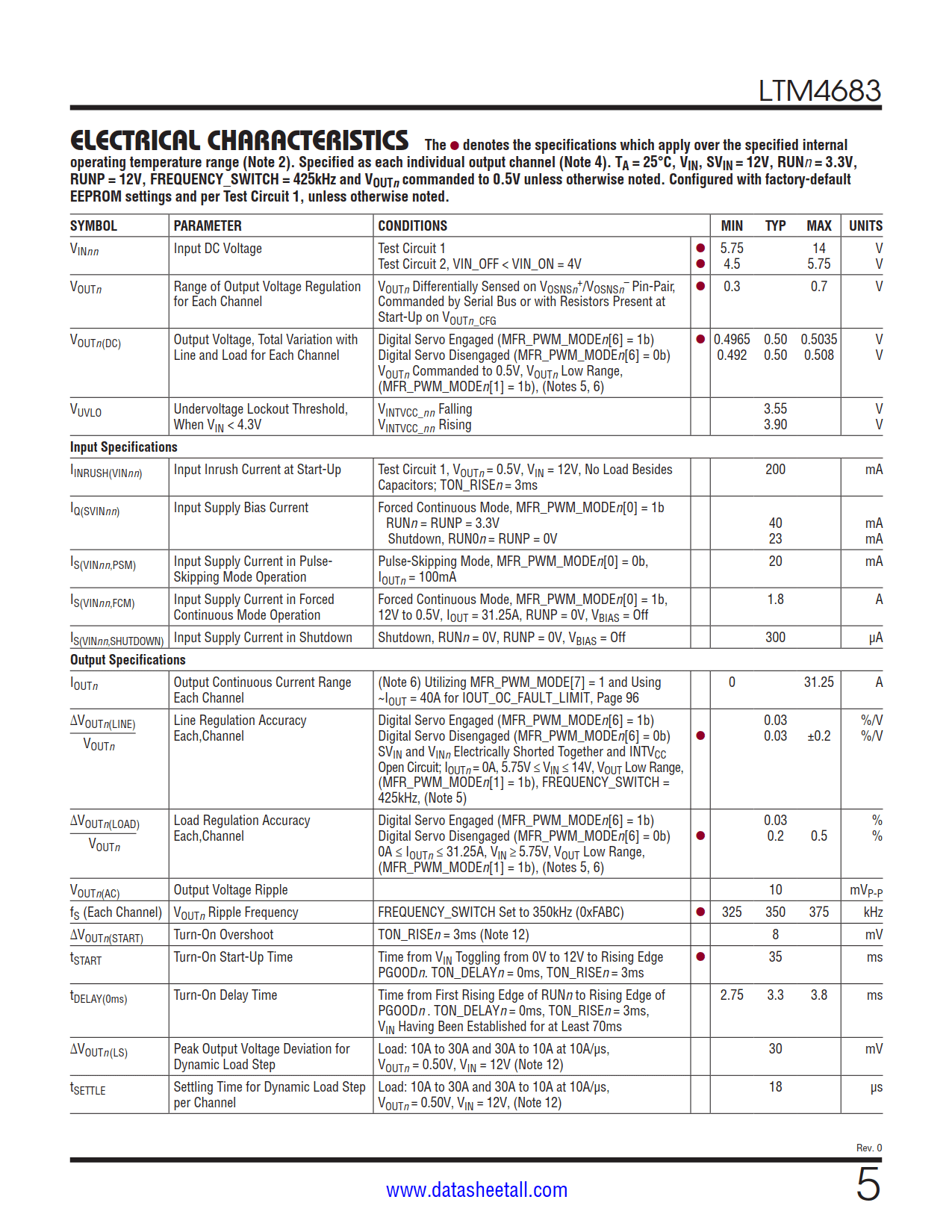

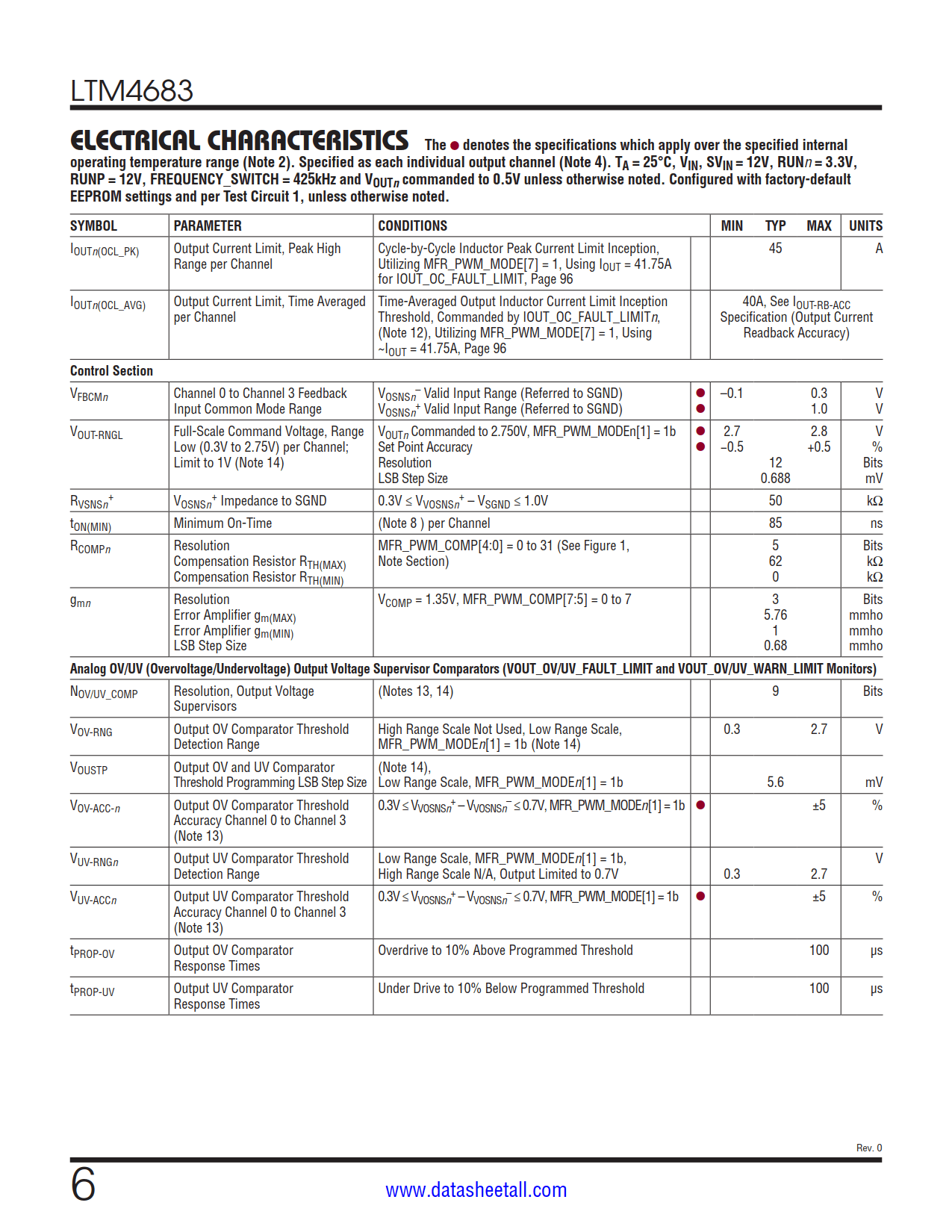

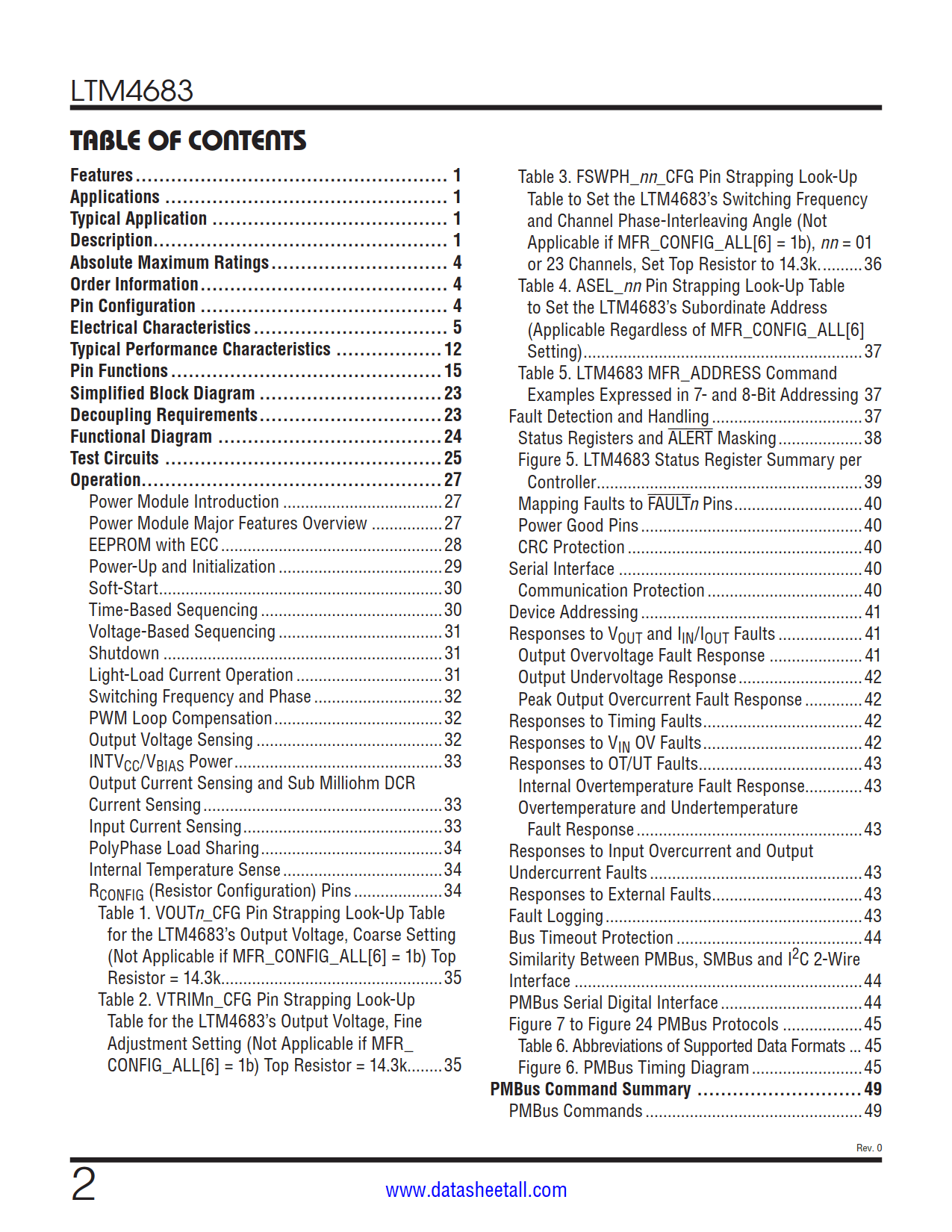

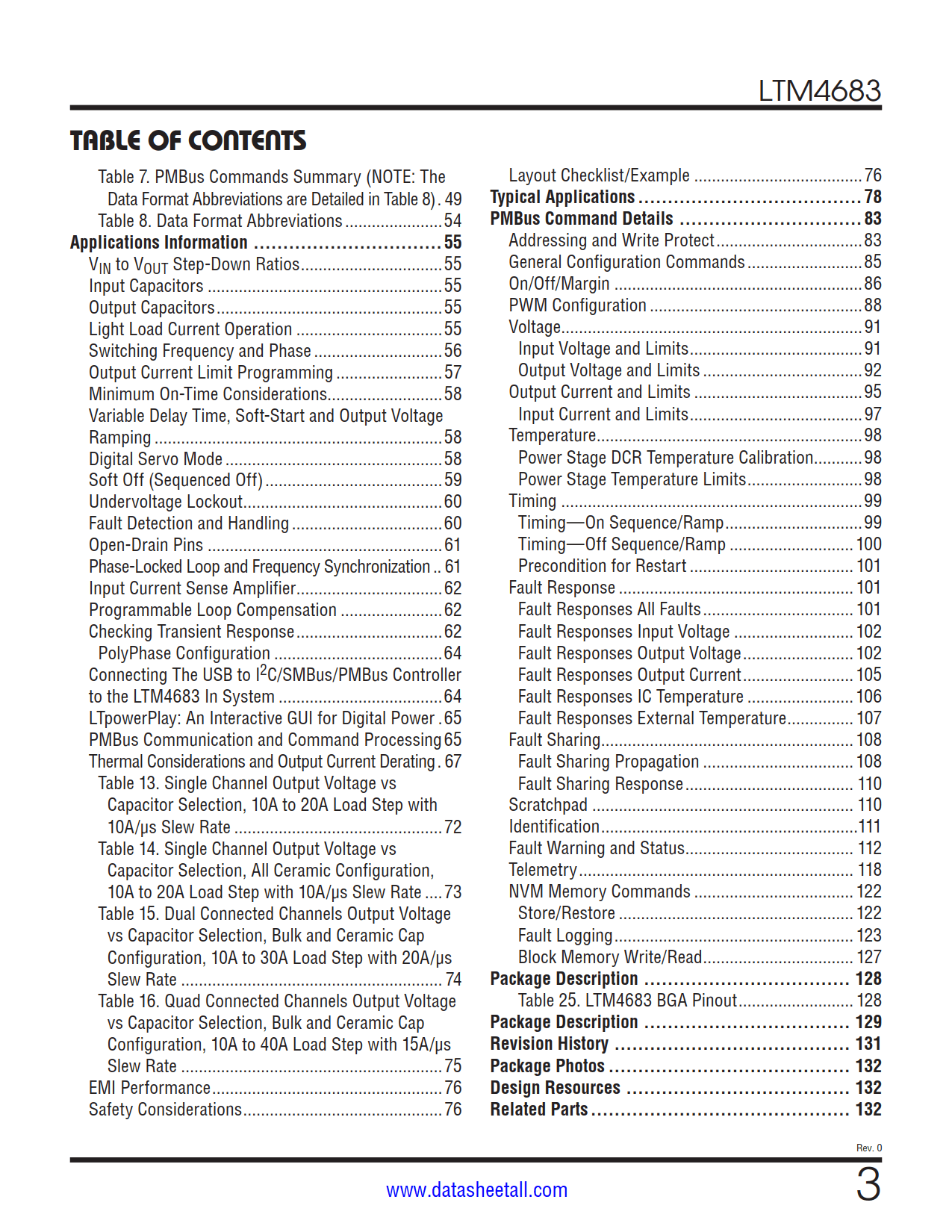

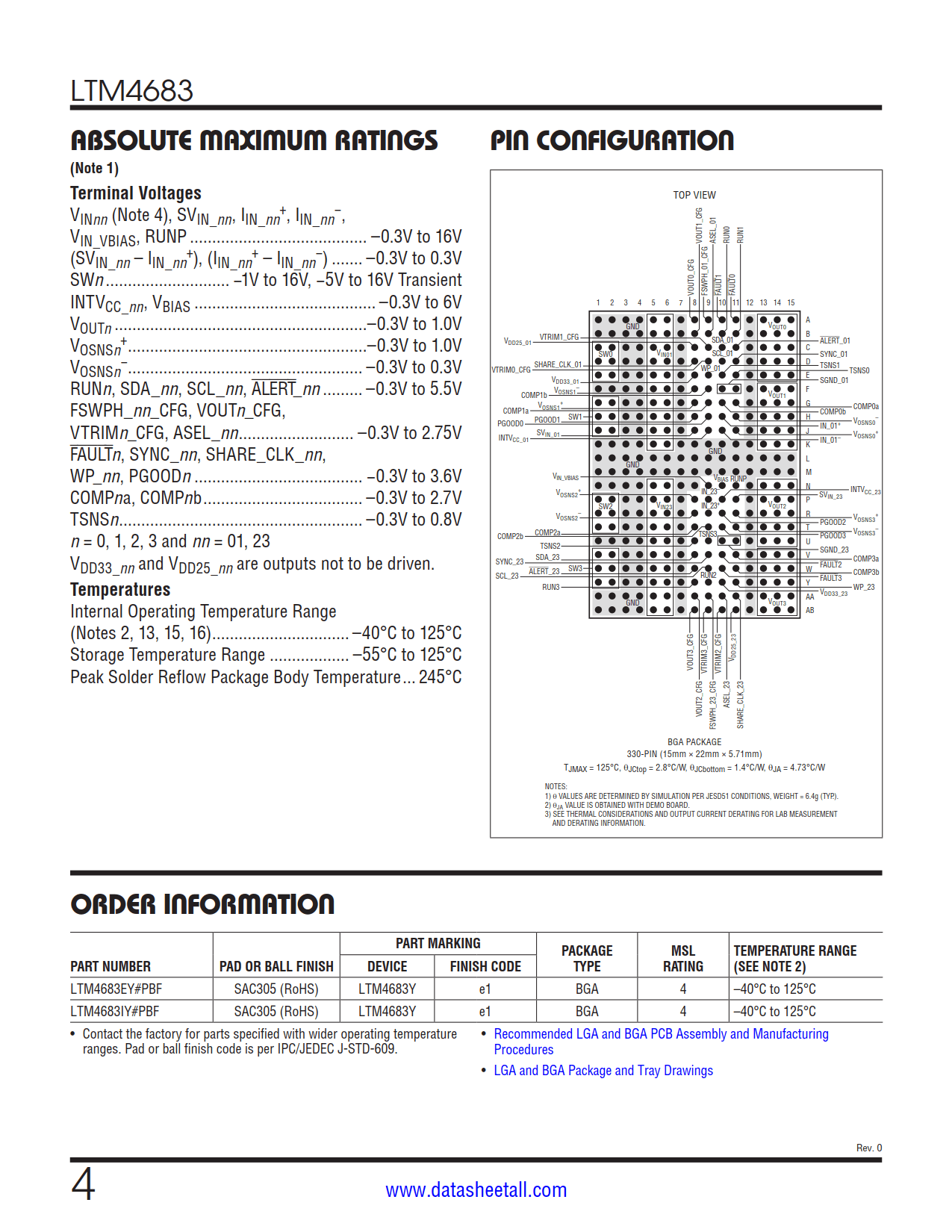

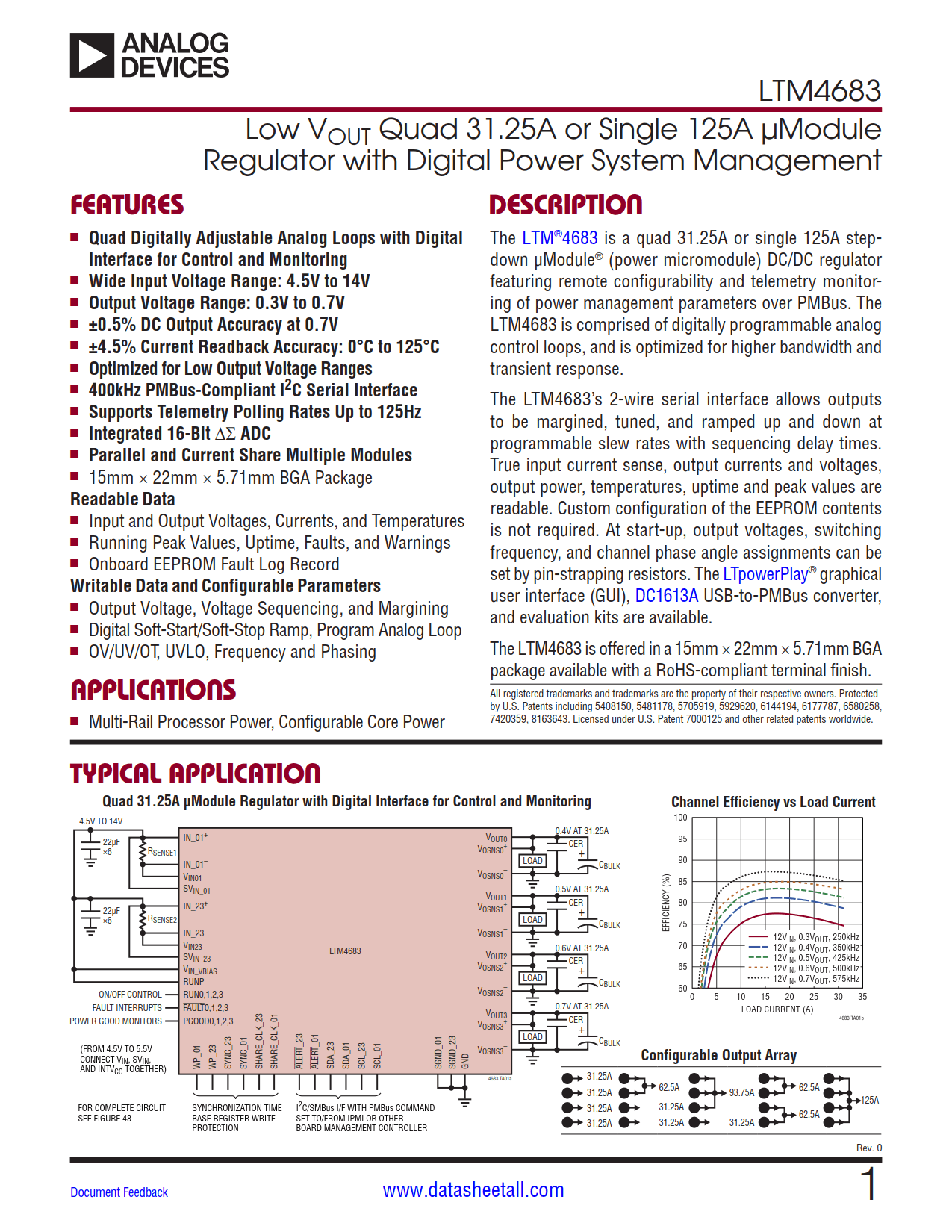

LTM4683 Datasheet(Picture)

LTM4683 Features

  • Quad Digitally Adjustable Analog Loops with Digital Interface for Control and Monitoring
  • Wide Input Voltage Range: 4.5V to 14V
  • Output Voltage Range: 0.3V to 0.7V
  • ±0.5% DC Output Accuracy at 0.7V
  • ±4.5% Current Readback Accuracy: 0°C to 125°C
  • Optimized for Low Output Voltage Ranges
  • 400kHz PMBus-Compliant I2C Serial Interface
  • Supports Telemetry Polling Rates Up to 125Hz
  • Integrated 16-Bit ΔΣ ADC
  • Parallel and Current Share Multiple Modules
  • 15mm × 22mm × 5.71mm BGA Package

LTM4683 Applications

  • Multi-Rail Processor Power, Configurable Core Power

LTM4683 Description

The LTM4683 is a quad 31.25A or single 125A stepdown μModule® (power micromodule) DC/DC regulator featuring remote configurability and telemetry monitoring of power management parameters over PMBus. The LTM4683 is comprised of digitally programmable analog control loops, and is optimized for higher bandwidth and transient response.

The LTM4683's 2-wire serial interface allows outputs to be margined, tuned, and ramped up and down at programmable slew rates with sequencing delay times. True input current sense, output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay® graphical user interface (GUI), DC1613A USB-to-PMBus converter, and evaluation kits are available.

The LTM4683 is offered in a 15mm × 22mm × 5.71mm BGA package available with a RoHS-compliant terminal finish.
