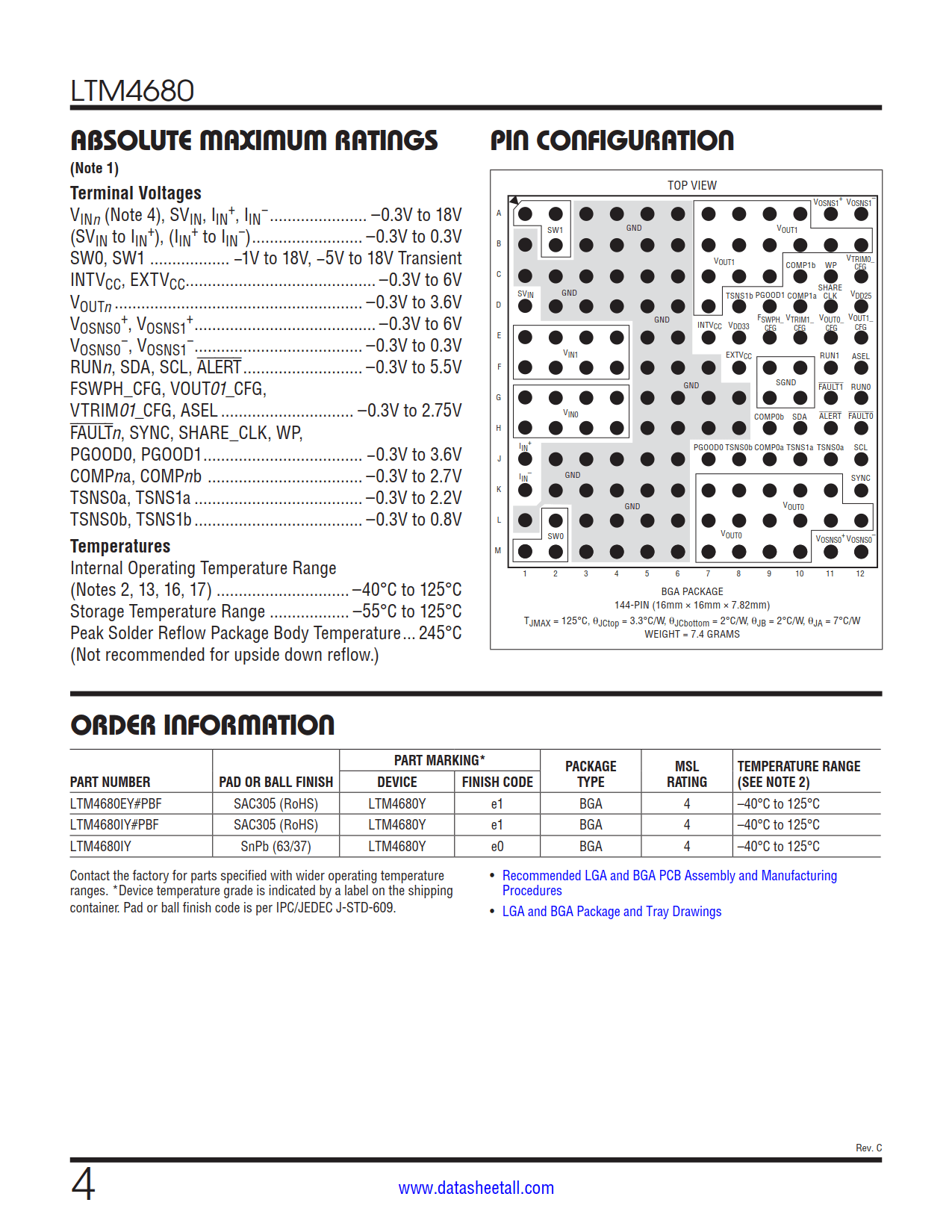

| Part No.： | LTM4680 |
| Page： | 126 Pages |
| Size： | 17064 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-11-26 16:10:39 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTM4680EY#PBF | Tray | 84 | LTM4680Y | 4 | 144 | -40°C ~125°C | 144-Lead BGA (16mm x 16mm x 7.82mm) | |
| LTM4680IY#PBF | Tray | 84 | LTM4680Y | 4 | 144 | -40°C ~125°C | 144-Lead BGA (16mm x 16mm x 7.82mm) | |
| LTM4680IY | Tray | 84 | LTM4680Y | 4 | 144 | -40°C ~125°C | 144-Lead BGA (16mm x 16mm x 7.82mm) |

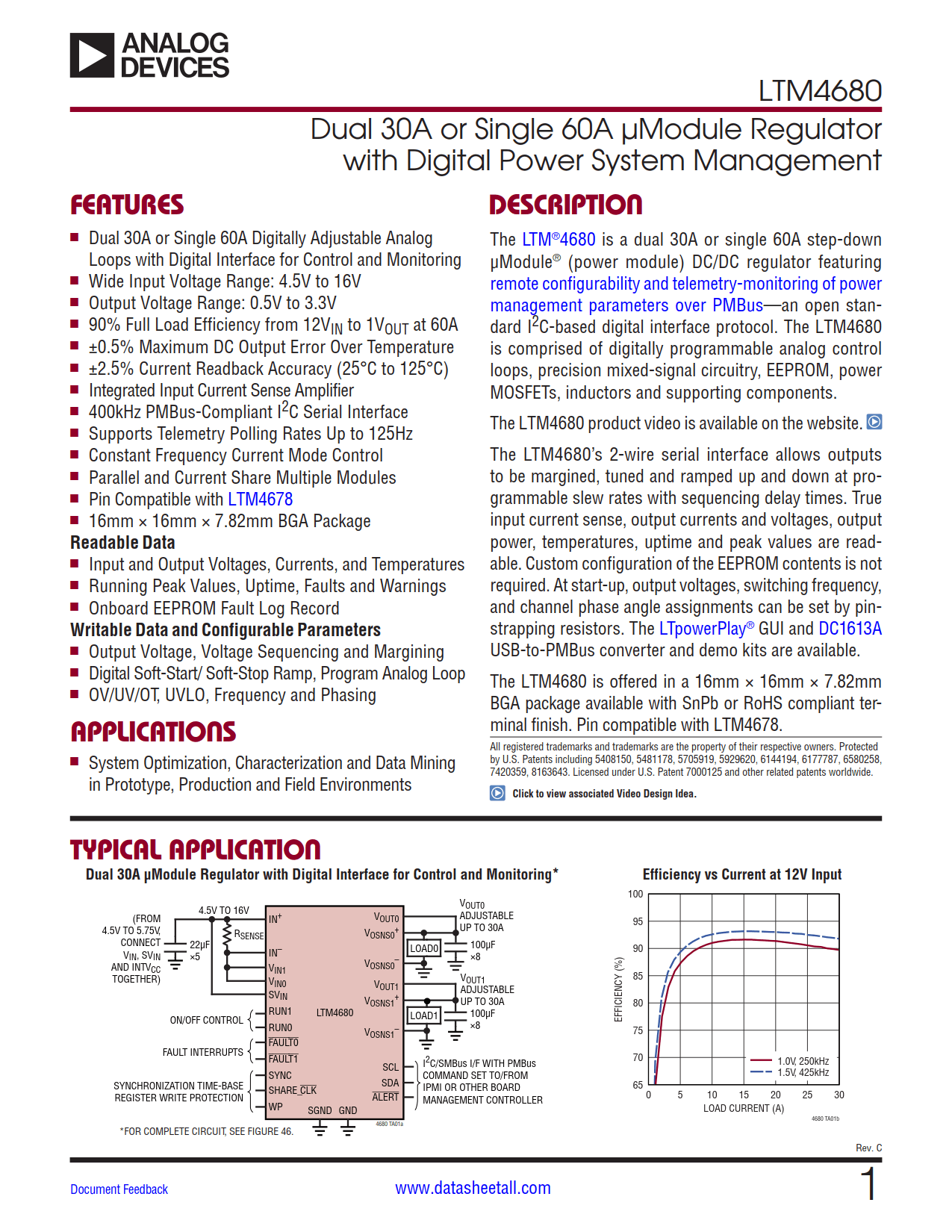

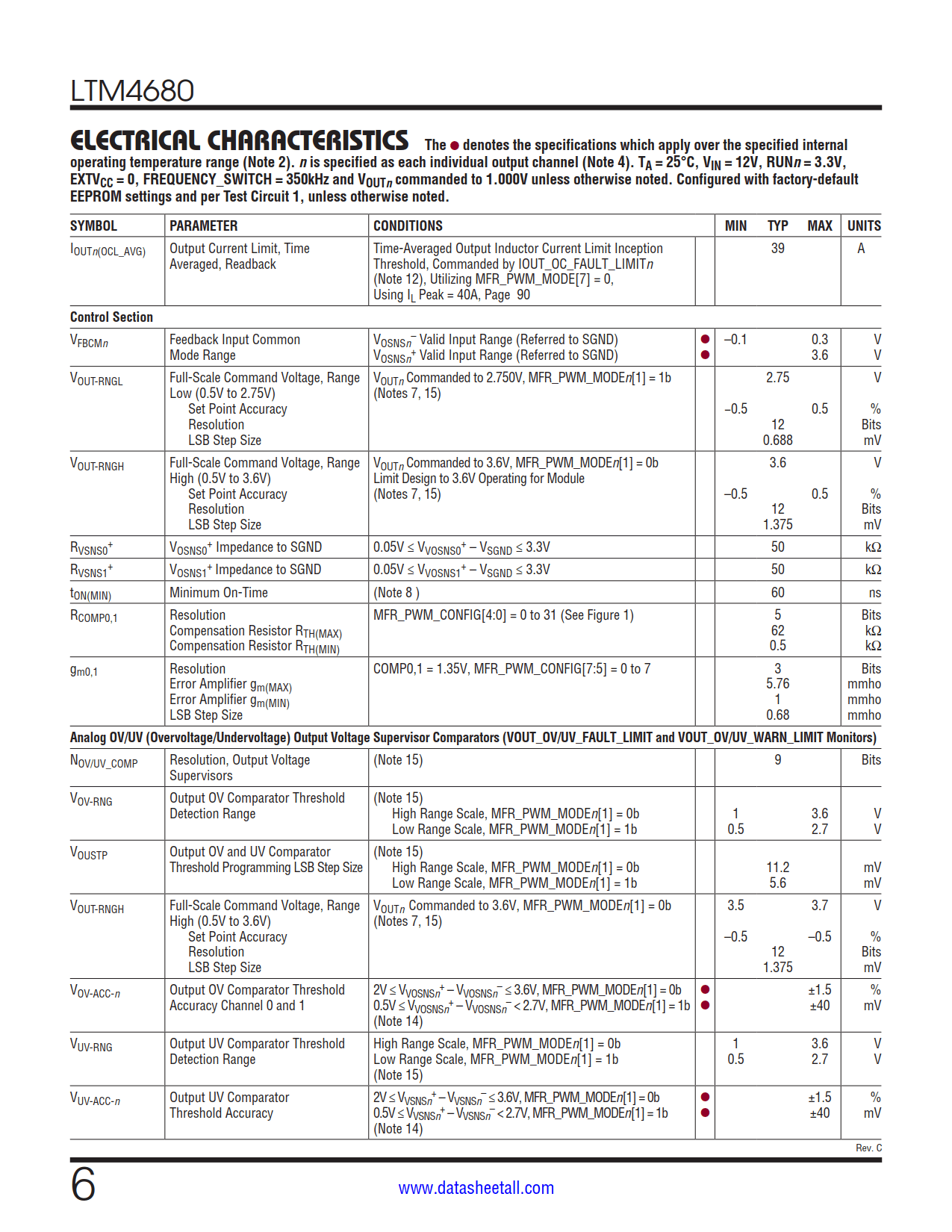

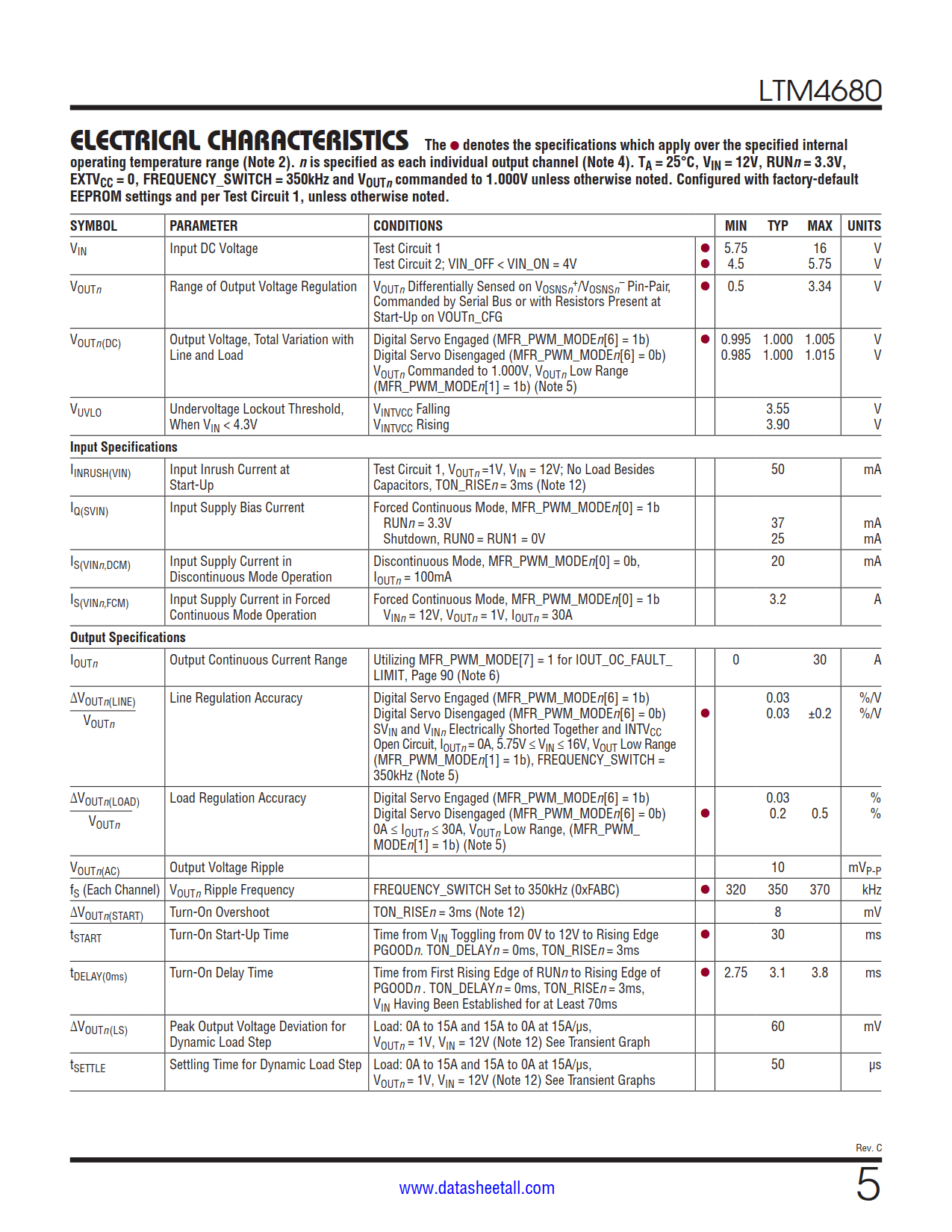

The LTM4680 is a dual 30A or single 60A step-down µModule® (power module) DC/DC regulator featuring remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol. The LTM4680 is comprised of digitally programmable analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.
The LTM4680’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. True input current sense, output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay® GUI and DC1613 USB-to-PMBus converter and demo kits are available.
The LTM4680 is offered in a 16mm × 16mm × 7.82mm BGA package available with SnPb or RoHS compliant terminal finish. Pin compatible with LTM4678.
