LTM4678 Datasheet

LTM4678 Datasheet

Dual 25A or Single 50A µModule Regulator with Digital Power System Management
Part No.: LTM4678
Page: 124 Pages
Size: 16965 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2023-12-14 14:30:57
DataSheet: Download

LTM4678 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4678EY#PBF Tray 160 LTM4678Y 4 144 -40°C ~ 125°C 144-Lead BGA (16mm × 16mm × 5.86mm)
LTM4678IY#PBF Tray 160 LTM4678Y 4 144 -40°C ~ 125°C 144-Lead BGA (16mm × 16mm × 5.86mm)
LTM4678IY Tray 160 LTM4678Y 4 144 -40°C ~ 125°C 144-Lead BGA (16mm × 16mm × 5.86mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4678 Datasheet(PDF)

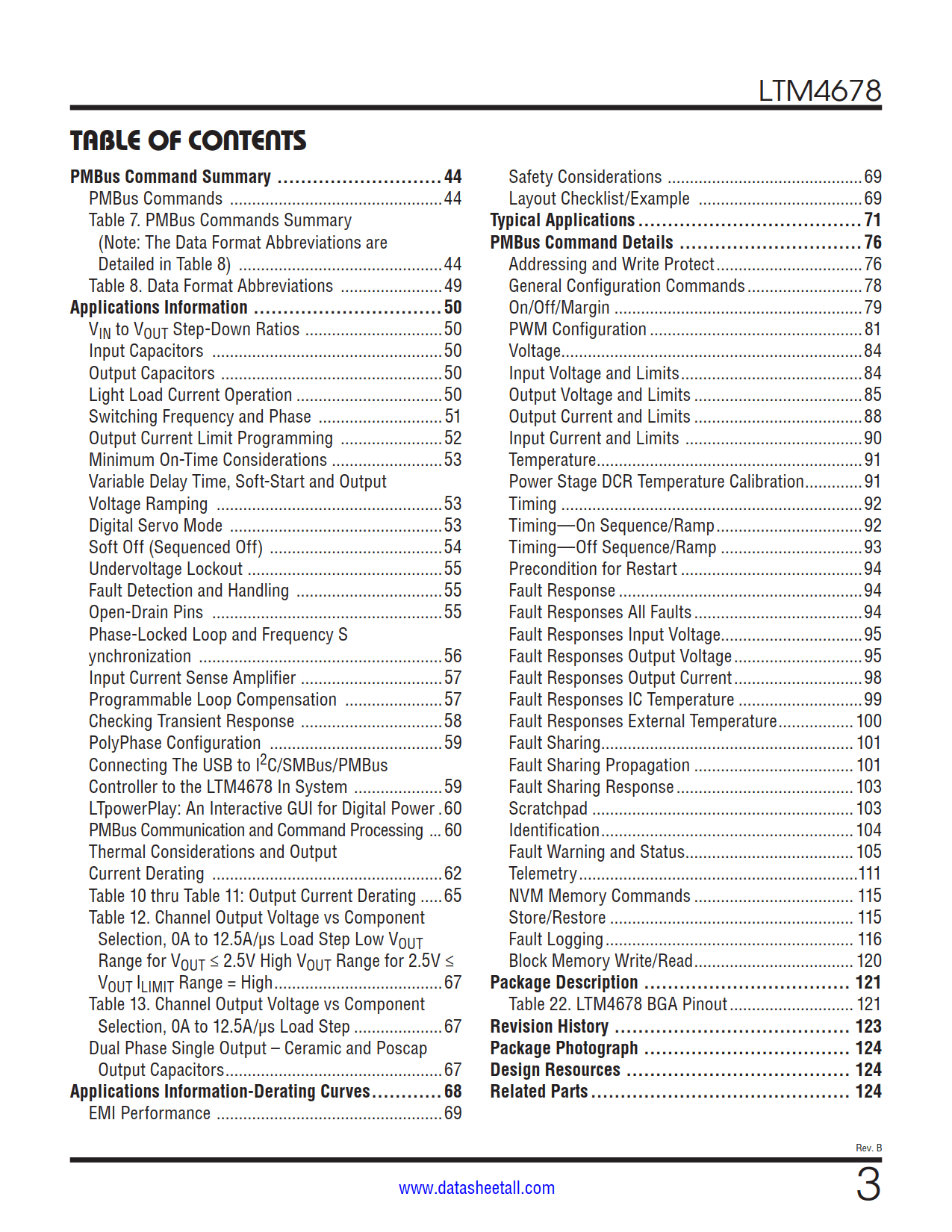

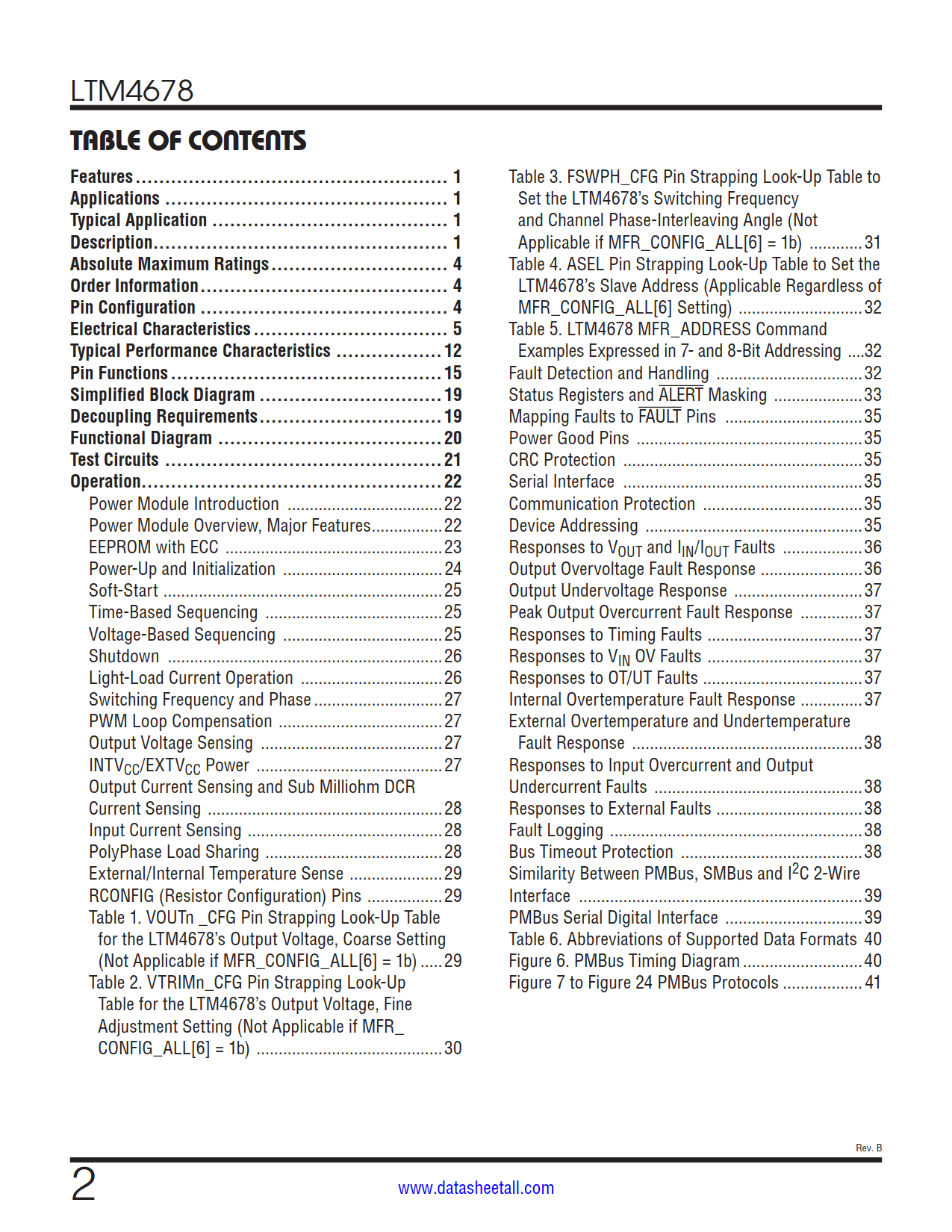

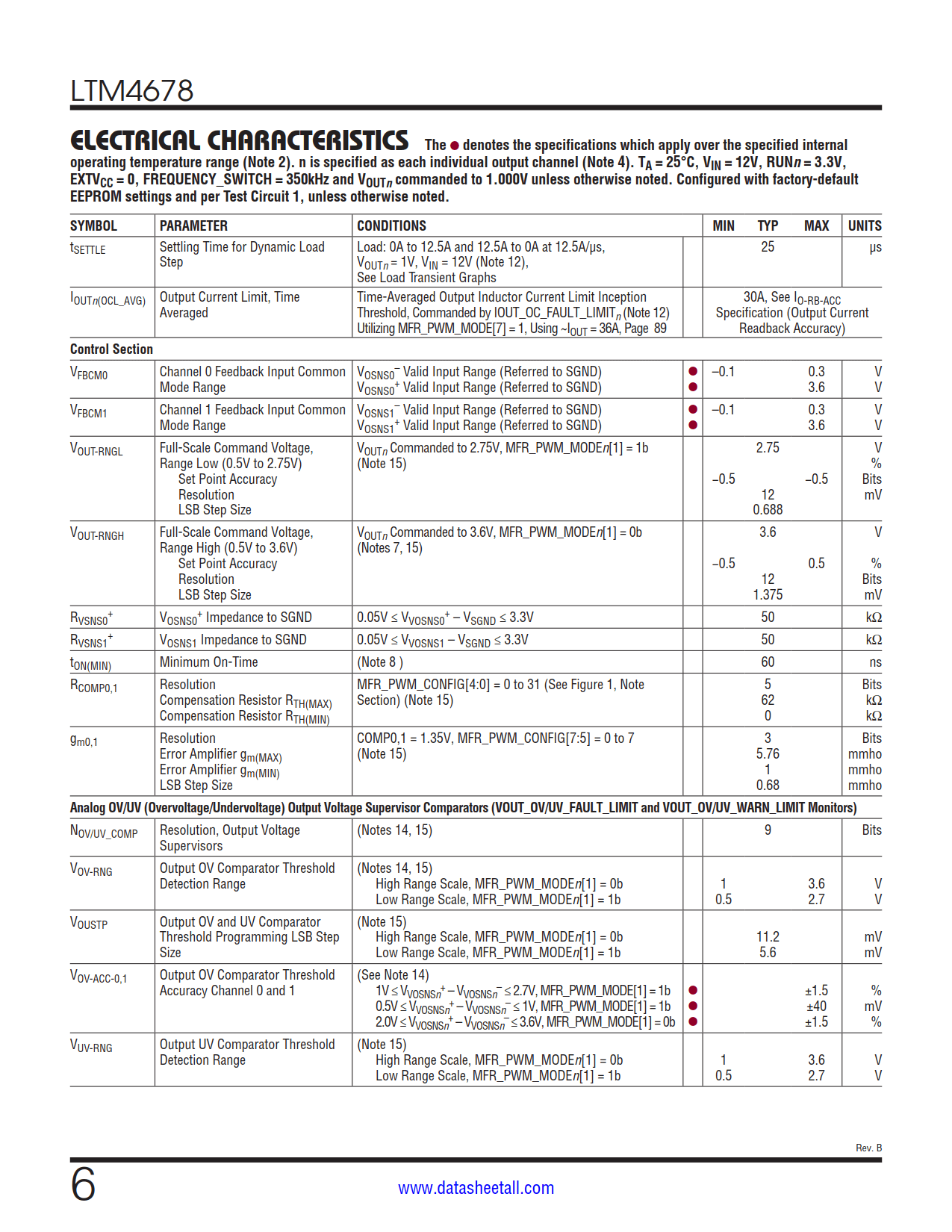

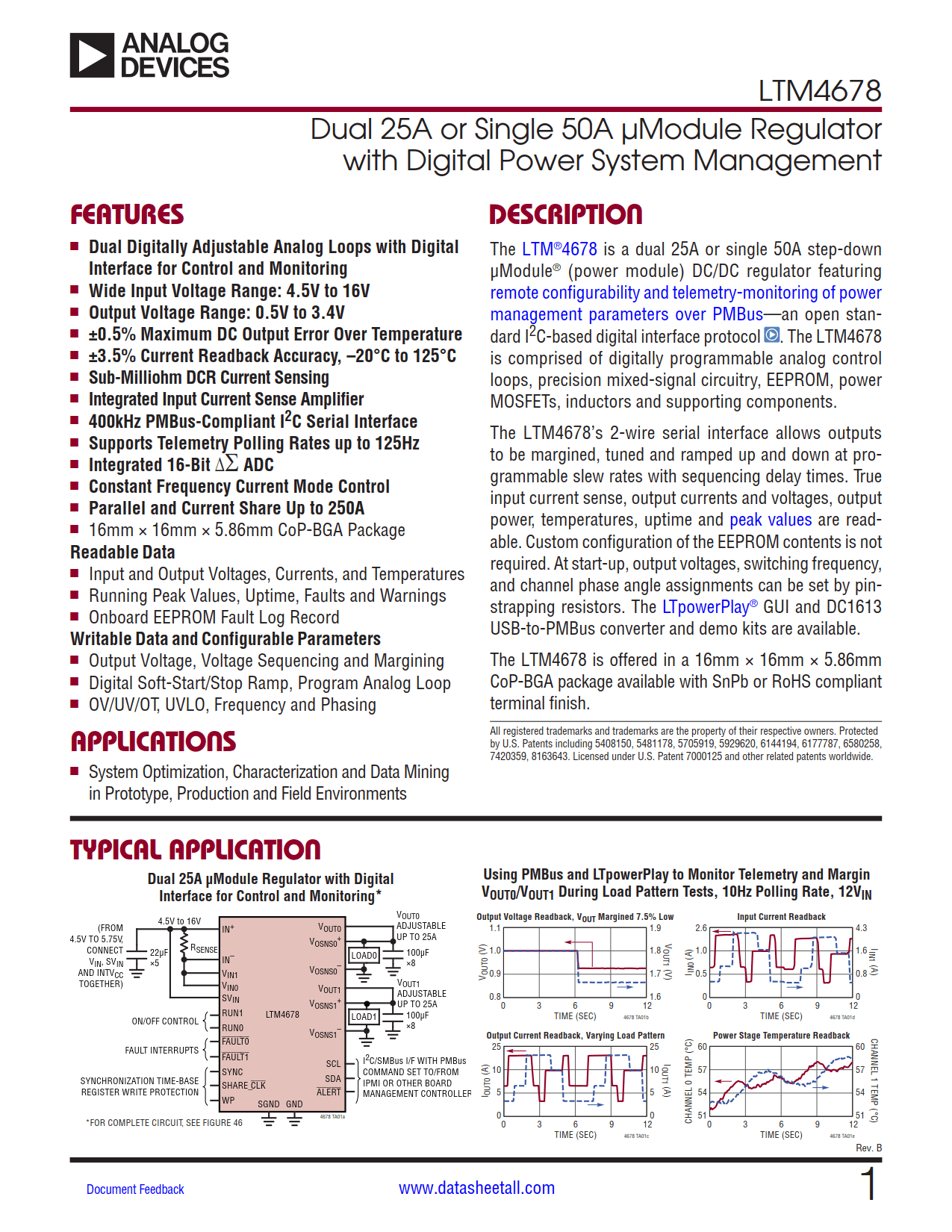

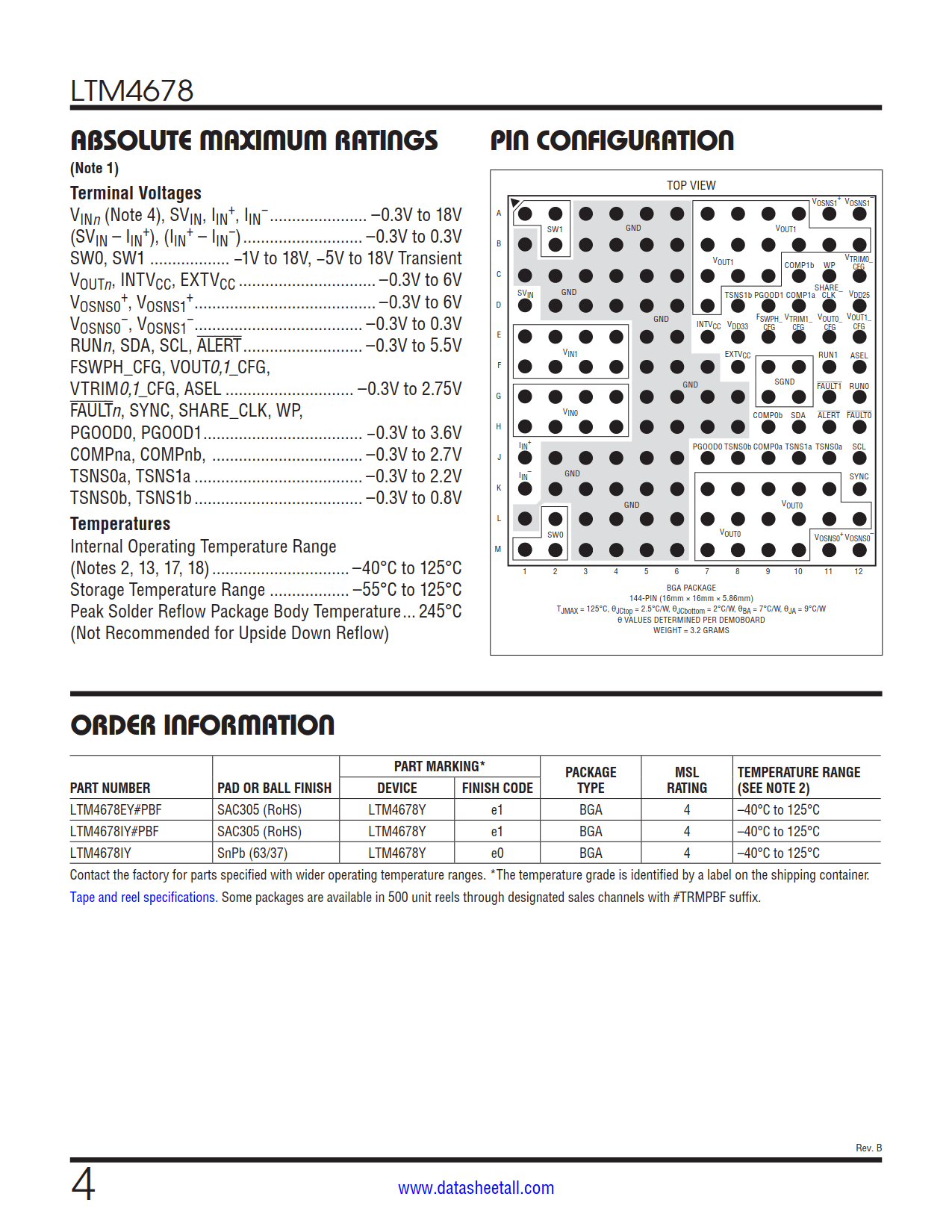

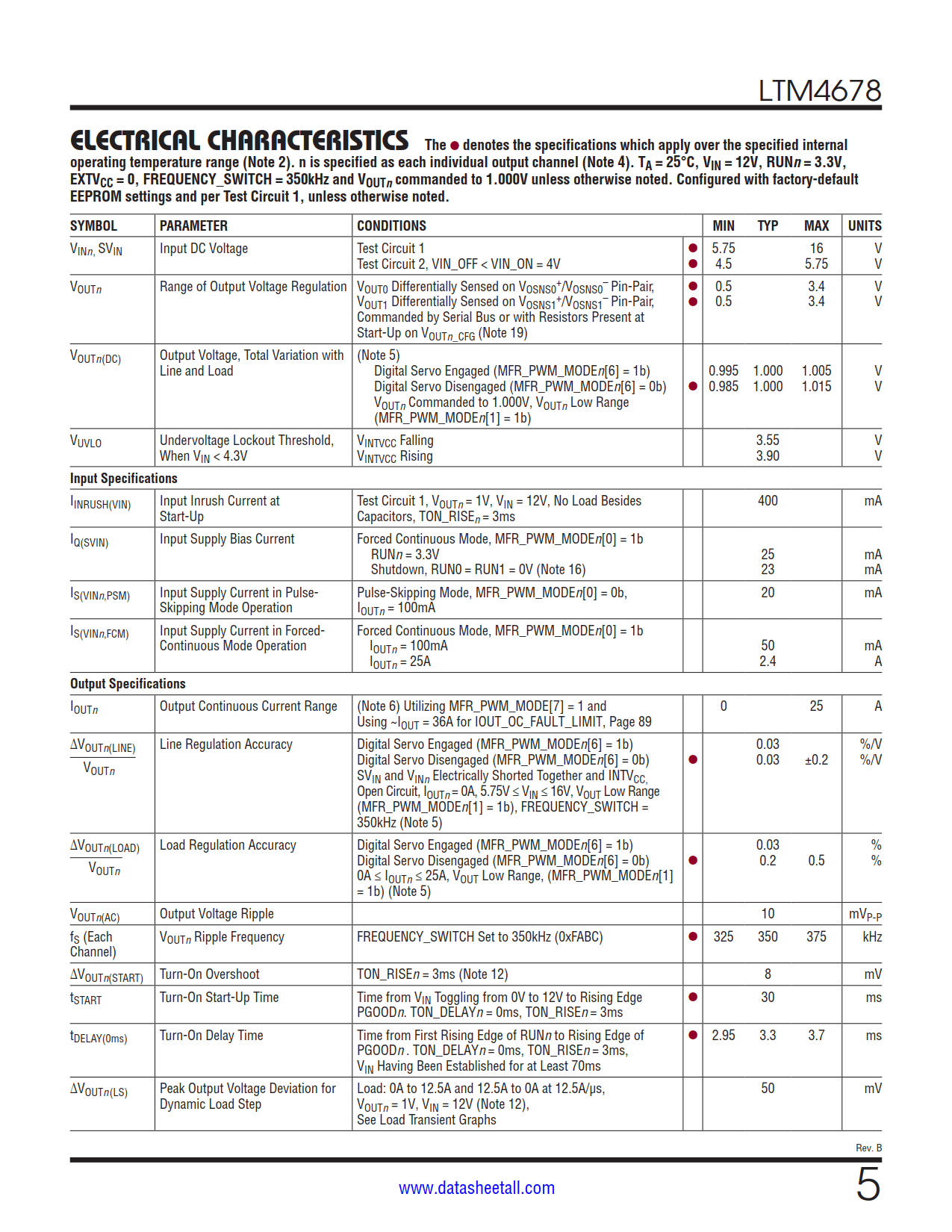

LTM4678 Datasheet(Picture)

LTM4678 Features

  • Dual Digitally Adjustable Analog Loops with Digital Interface for Control and Monitoring
  • Wide Input Voltage Range: 4.5V to 16V
  • Output Voltage Range: 0.5V to 3.4V
  • ±0.5% Maximum DC Output Error Over Temperature
  • ±3.5% Current Readback Accuracy, –20°C to 125°C
  • Sub-Milliohm DCR Current Sensing
  • Integrated Input Current Sense Amplifier
  • 400kHz PMBus-Compliant I2C Serial Interface
  • Supports Telemetry Polling Rates up to 125Hz
  • Integrated 16-Bit ∆Σ ADC
  • Constant Frequency Current Mode Control
  • Parallel and Current Share Up to 250A
  • 16mm × 16mm × 5.86mm CoP-BGA Package

LTM4678 Applications

  • System Optimization, Characterization and Data Mining in Prototype, Production and Field Environments

LTM4678 Description

The LTM4678 is a dual 25A or single 50A step-down µModule® (power module) DC/DC regulator featuring remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol . The LTM4678 is comprised of digitally programmable analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.

The LTM4678’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. True input current sense, output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay® GUI and DC1613 USB-to-PMBus converter and demo kits are available.

The LTM4678 is offered in a 16mm × 16mm × 5.86mm CoP-BGA package available with SnPb or RoHS compliant terminal finish.
