| Part No.： | LTM4675 |
| Page： | 132 Pages |
| Size： | 3281 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2024-11-25 11:15:19 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |

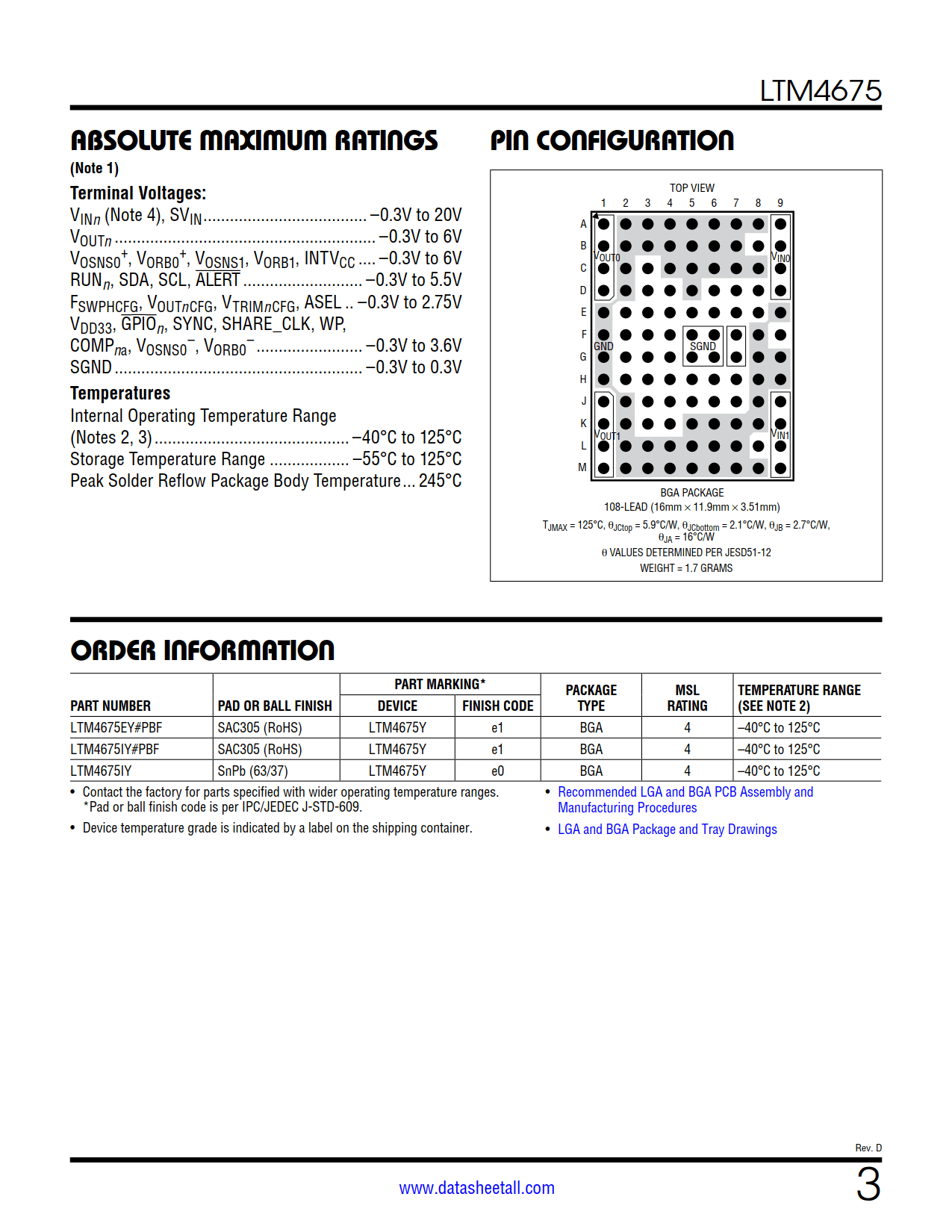

| LTM4675EY#PBF | Tray | 112 | LTM4675Y | 4 | 108 | -40°C ~125°C | 108-Lead BGA (16mm x 11.9mm x 3.51mm) | |
| LTM4675IY#PBF | Tray | 112 | LTM4675Y | 4 | 108 | -40°C ~125°C | 108-Lead BGA (16mm x 11.9mm x 3.51mm) | |
| LTM4675IY | Tray | 112 | LTM4675Y | 4 | 108 | -40°C ~125°C | 108-Lead BGA (16mm x 11.9mm x 3.51mm) |

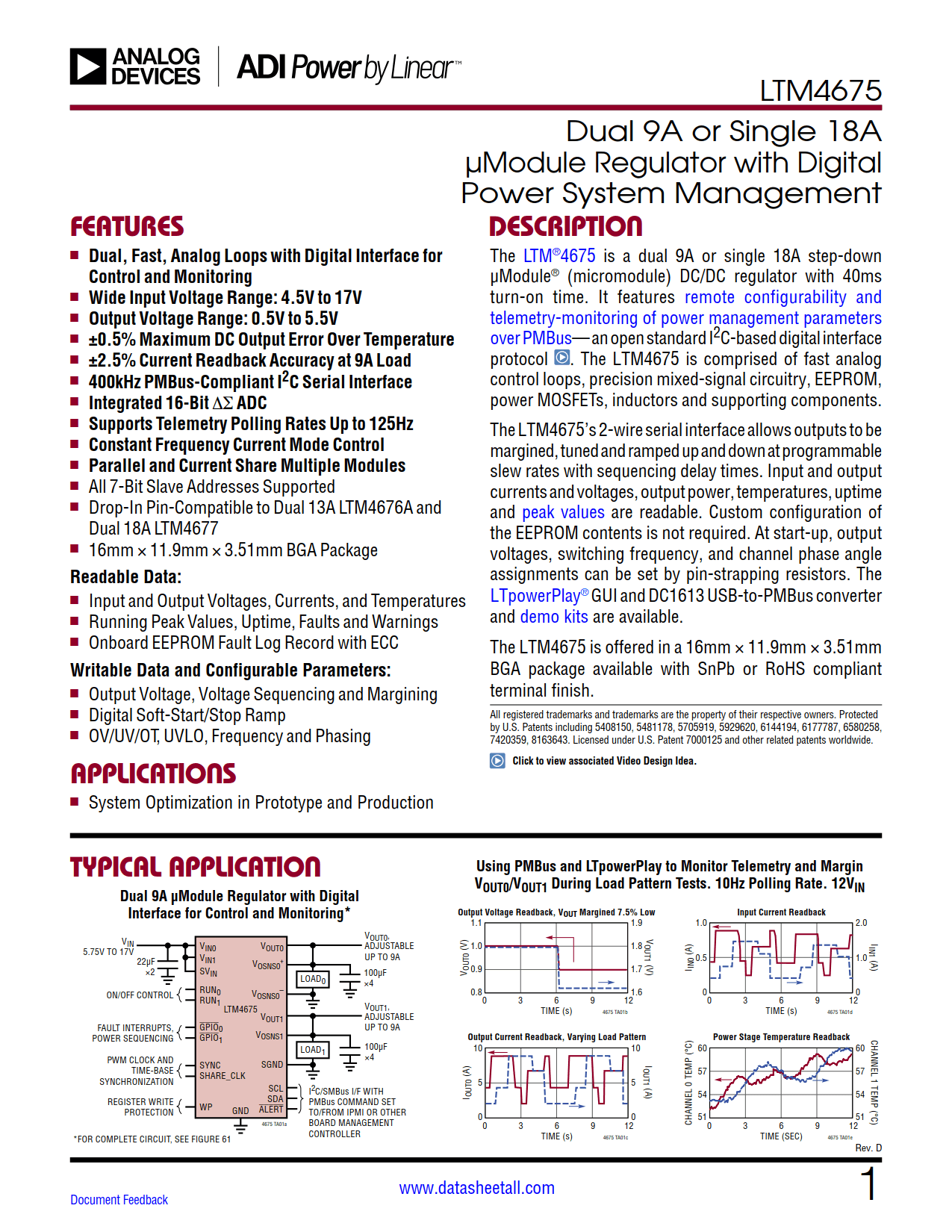

The LTM4675 is a dual 9A or single 18A step-down μModule® (micromodule) DC/DC regulator with 40ms turn-on time. It features remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol. The LTM4675 is comprised of fast analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.
The LTM4675’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. Input and output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay® GUI and DC1613 USB-to-PMBus converter and demo kits are available.
The LTM4675 is offered in a 16mm × 11.9mm × 3.51mm BGA package available with SnPb or RoHS compliant terminal finish.
