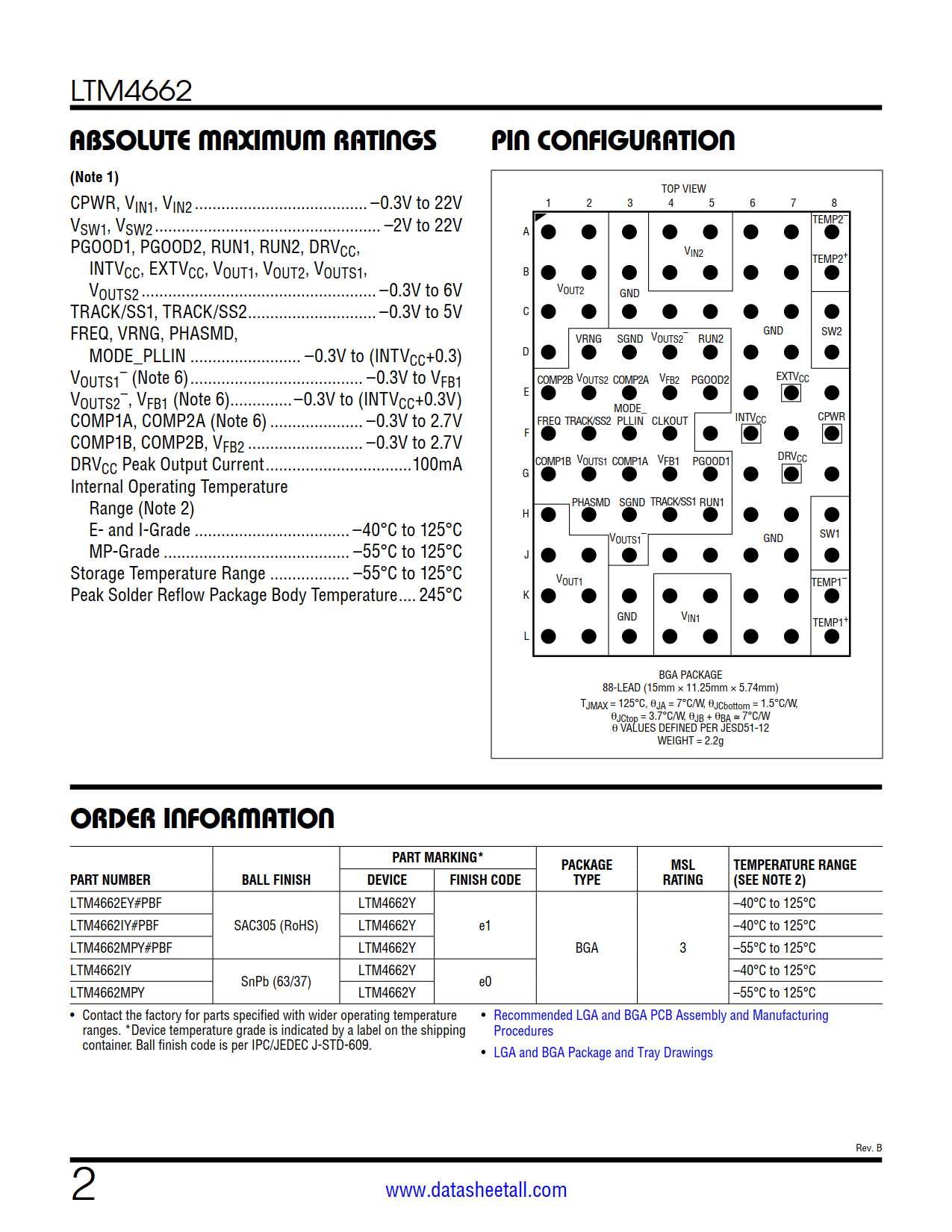

Part No.: | LTM4662 |
Page: | 36 Pages |
Size: | 1560 KB |
Manufacturer: | Linear Technology |
Logo: | |
Views: | 1 |
Update Time: | 2024-12-11 21:42:54 |
DataSheet: | Download |
Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
LTM4662EY#PBF | Tray | 112 | LTM4662Y | 3 | 88 | -40°C ~ 125°C | 88-Lead BGA (15mm x 11.25mm x 5.74mm) | |
LTM4662IY#PBF | Tray | 112 | LTM4662Y | 3 | 88 | -40°C ~ 125°C | 88-Lead BGA (15mm x 11.25mm x 5.74mm) | |
LTM4662MPY#PBF | Tray | 112 | LTM4662Y | 3 | 88 | -55°C ~ 125°C | 88-Lead BGA (15mm x 11.25mm x 5.74mm) | |
LTM4662IY | Tray | 112 | LTM4662Y | 3 | 88 | -40°C ~ 125°C | 88-Lead BGA (15mm x 11.25mm x 5.74mm) | |
LTM4662MPY | Tray | 112 | LTM4662Y | 3 | 88 | -55°C ~ 125°C | 88-Lead BGA (15mm x 11.25mm x 5.74mm) |

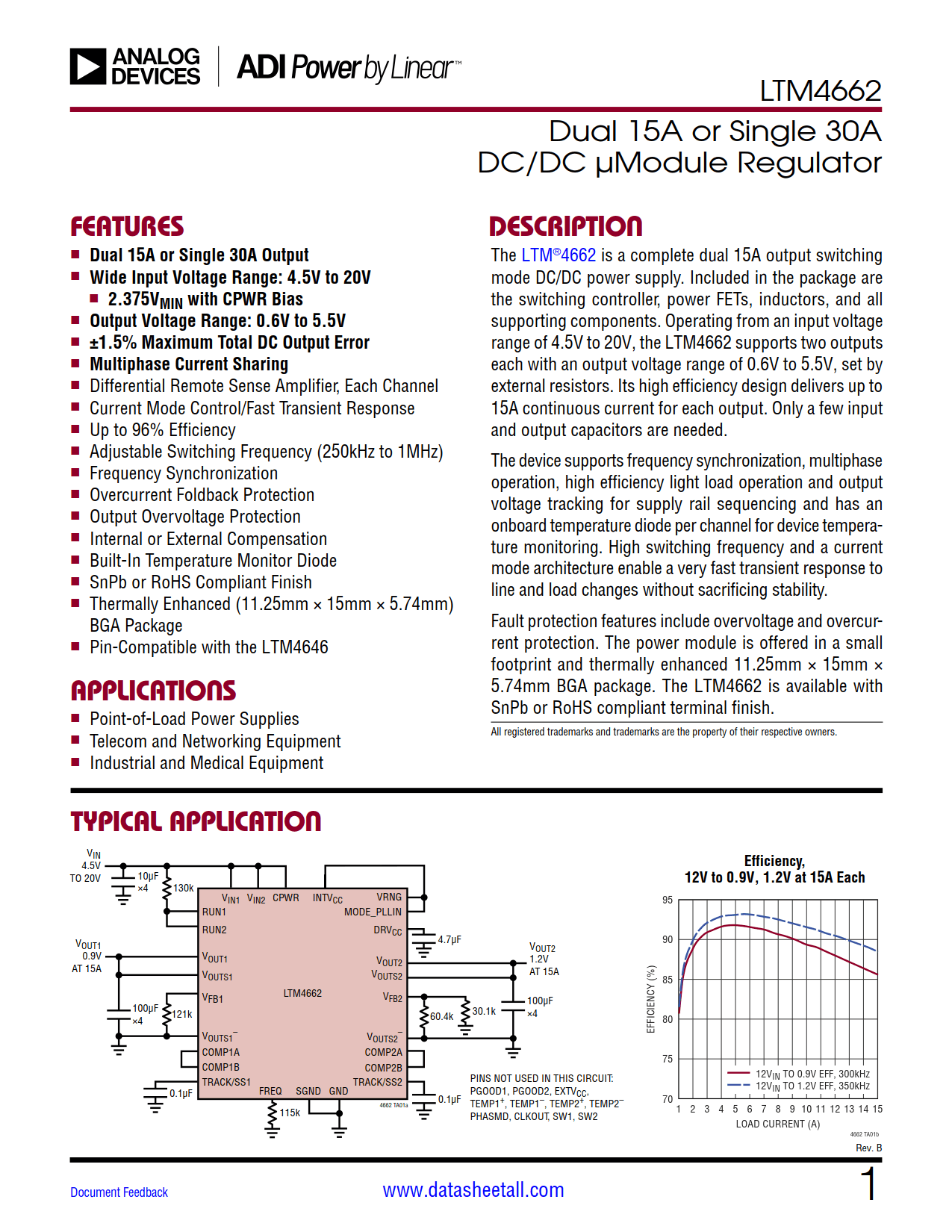

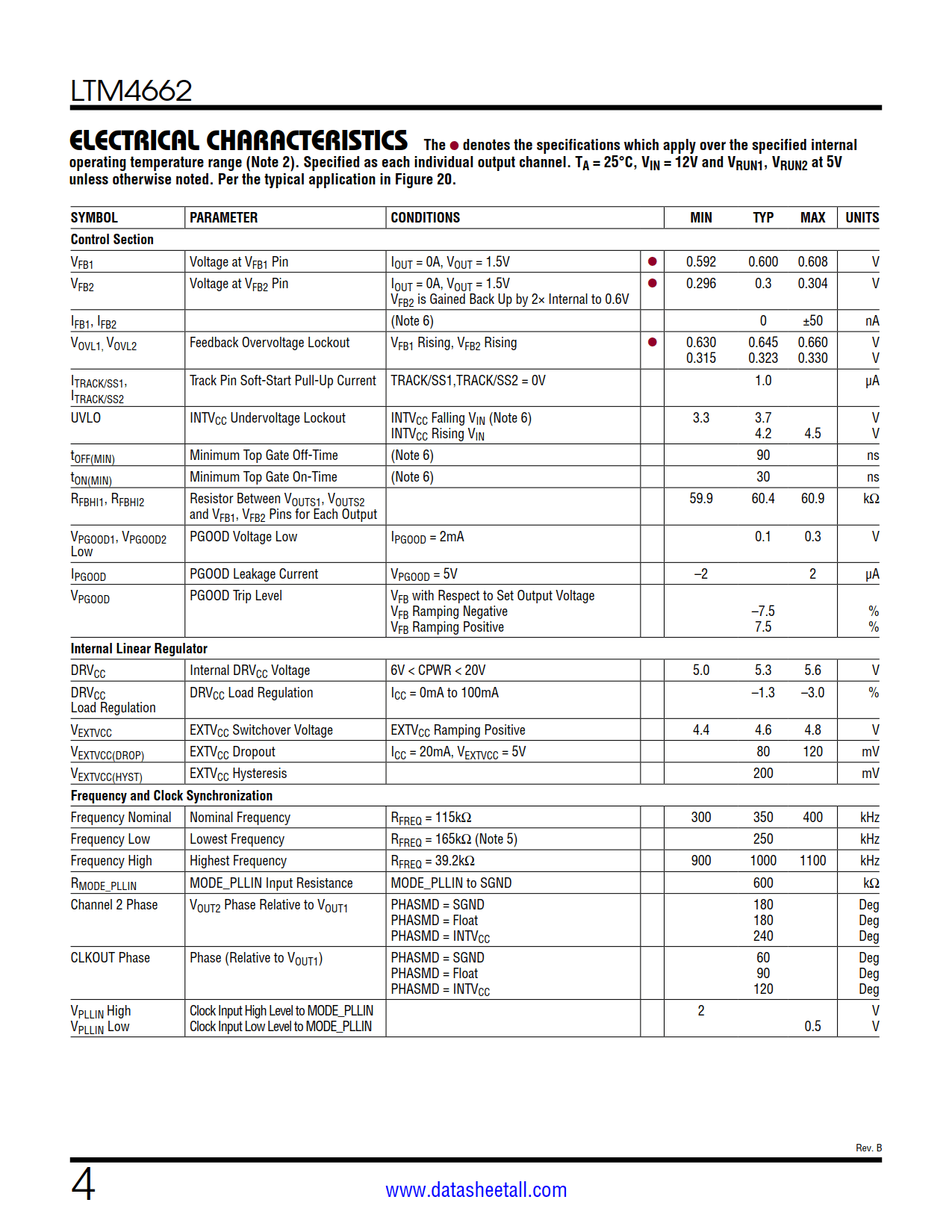

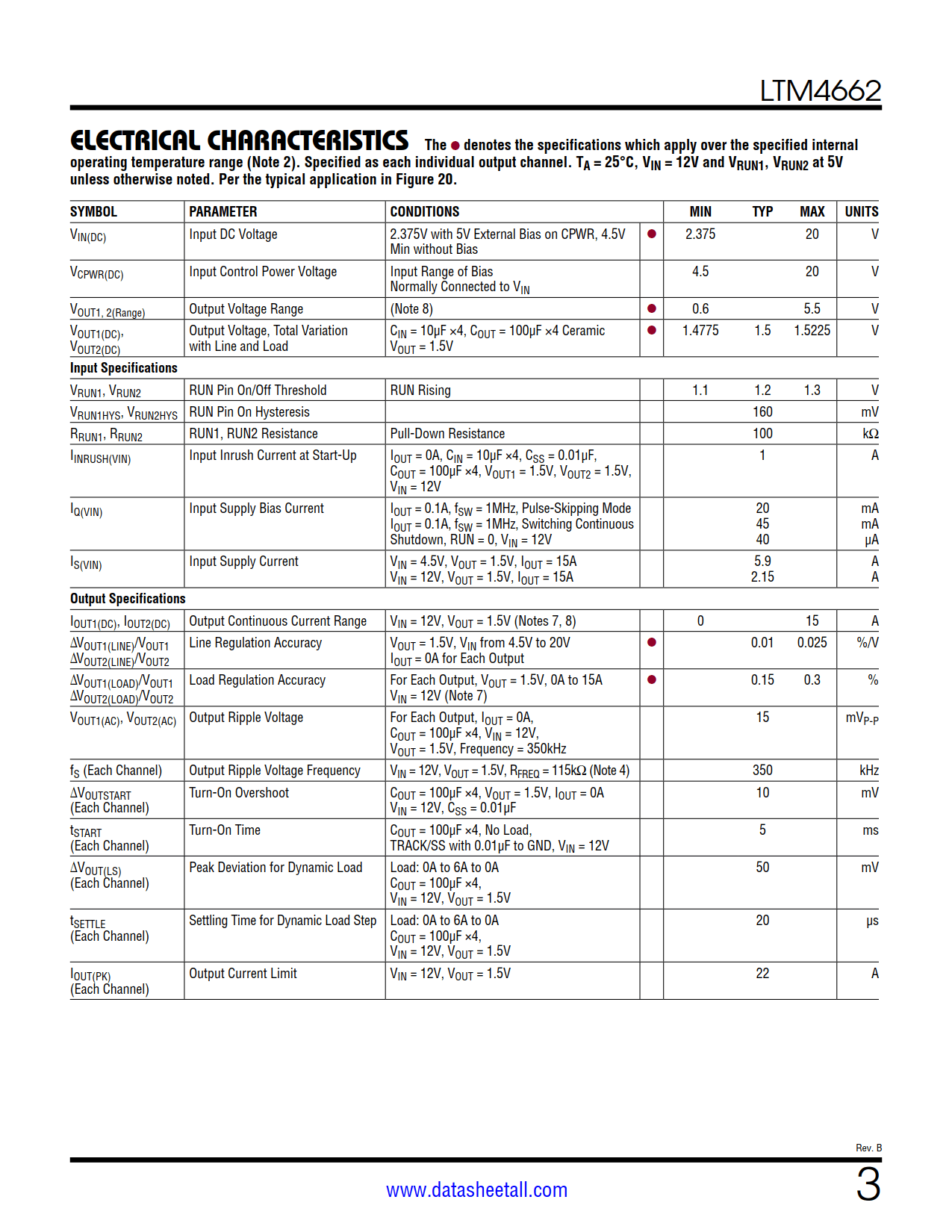

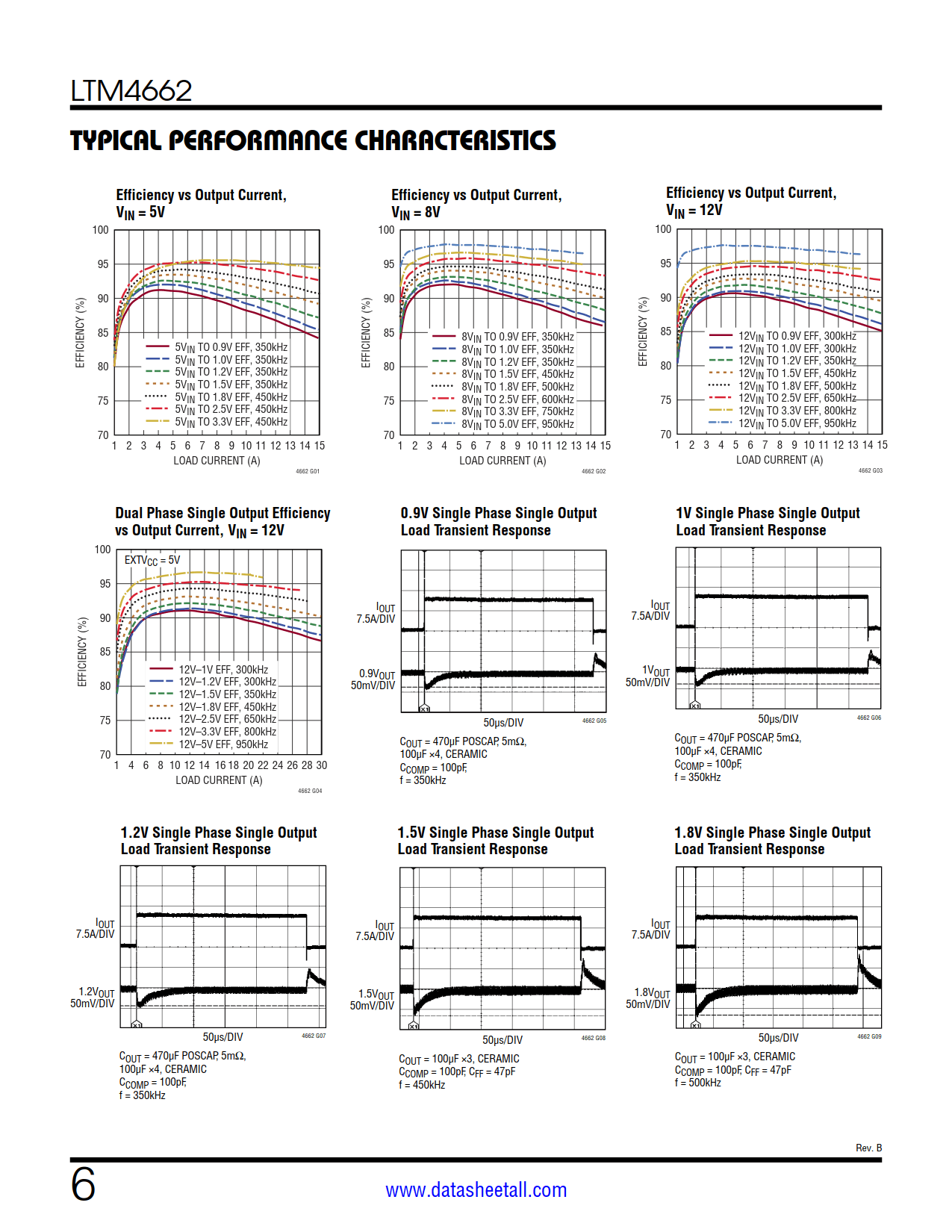

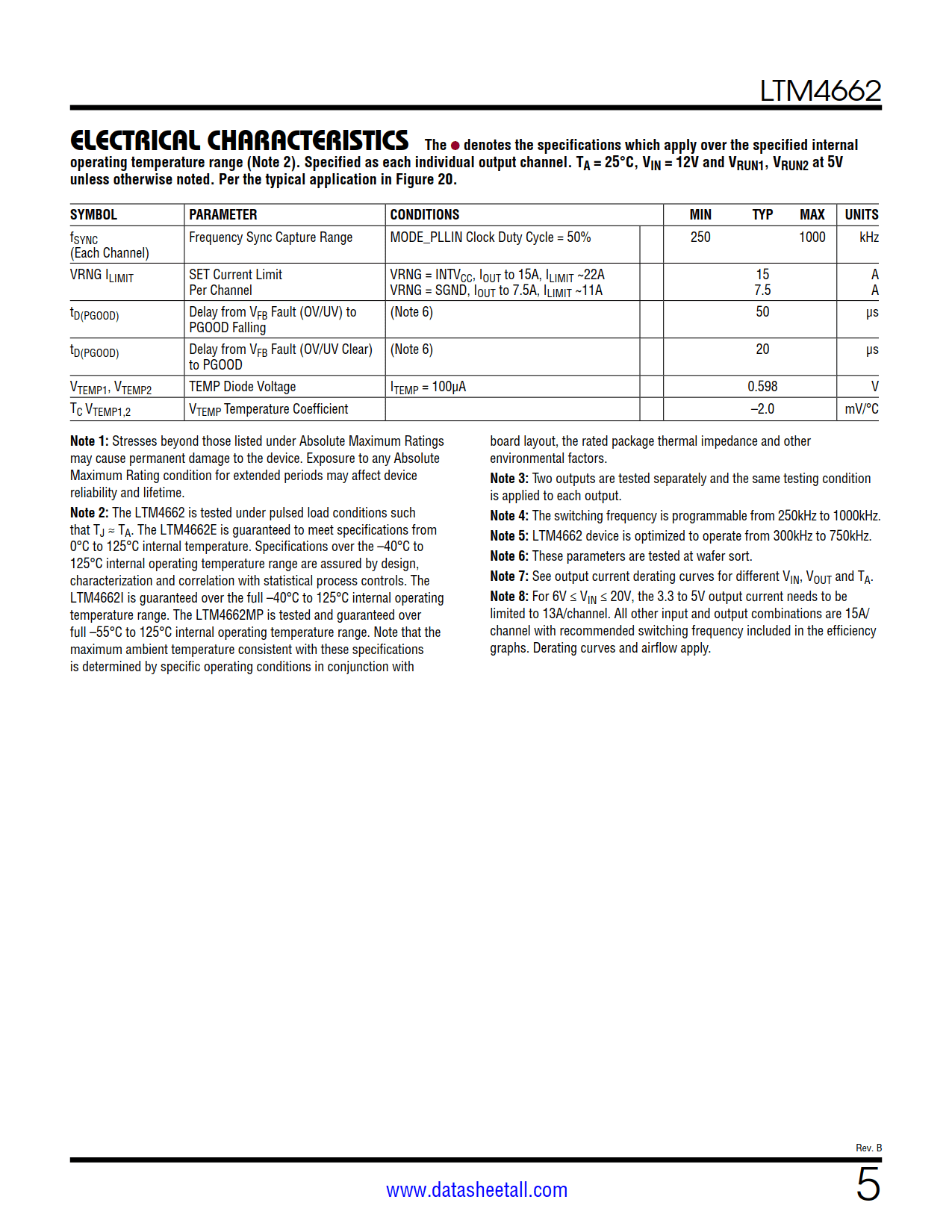

The LTM4662 is a complete dual 15A output switching mode DC/DC power supply. Included in the package are the switching controller, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 20V, the LTM4662 supports two outputs each with an output voltage range of 0.6V to 5.5V, set by external resistors. Its high efficiency design delivers up to 15A continuous current for each output. Only a few input and output capacitors are needed.
The device supports frequency synchronization, multiphase operation, high efficiency light load operation and output voltage tracking for supply rail sequencing and has an on-board temperature diode per channel for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.
Fault protection features include overvoltage and overcurrent protection. The power module is offered in a small footprint and thermally enhanced 11.25mm × 15mm × 5.74mm BGA package. The LTM4662 is available with SnPb or RoHS compliant terminal finish.
Part Number | Description |
LTM4646 Datasheet | Pin-Compatible, Lower Current version of the LTM4662 |
LTM4628 Datasheet | Dual 8A or Single 16A Step-Down µModule Regulator |
LTM4620A Datasheet | Dual 13A or Single 26A Step-Down µModule Regulator |
LTM4630A Datasheet | Dual 18A or Single 36A Step-Down µModule Regulator |
LTM4644 Datasheet | Quad 4A Step-Down µModule Regulator |
LTM4637 Datasheet | Single 20A Step-Down µModule Regulator |
LTM4645 Datasheet | Single 25A Step-Down µModule Regulator |
LTM4647 Datasheet | Single 30A Step-Down µModule Regulator |
LTM4636 Datasheet | Single 40A Step-Down µModule Regulator |
