LTM4661 Datasheet

LTM4661 Datasheet

15V, 4A Step-Up μModule Regulator
Part No.: LTM4661
Page: 22 Pages
Size: 2011 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-08 15:10:44
DataSheet: Download

LTM4661 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4661EY#PBF Tray 260 LTM4661Y 4 25 -40°C ~ 125°C 25-Lead BGA (6.25mm x 6.25mm x 2.42mm)
LTM4661IY#PBF Tray 260 LTM4661Y 4 25 -40°C ~ 125°C 25-Lead BGA (6.25mm x 6.25mm x 2.42mm)
LTM4661IY Tray 260 LTM4661Y 4 25 -40°C ~ 125°C 25-Lead BGA (6.25mm x 6.25mm x 2.42mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4661 Datasheet(PDF)

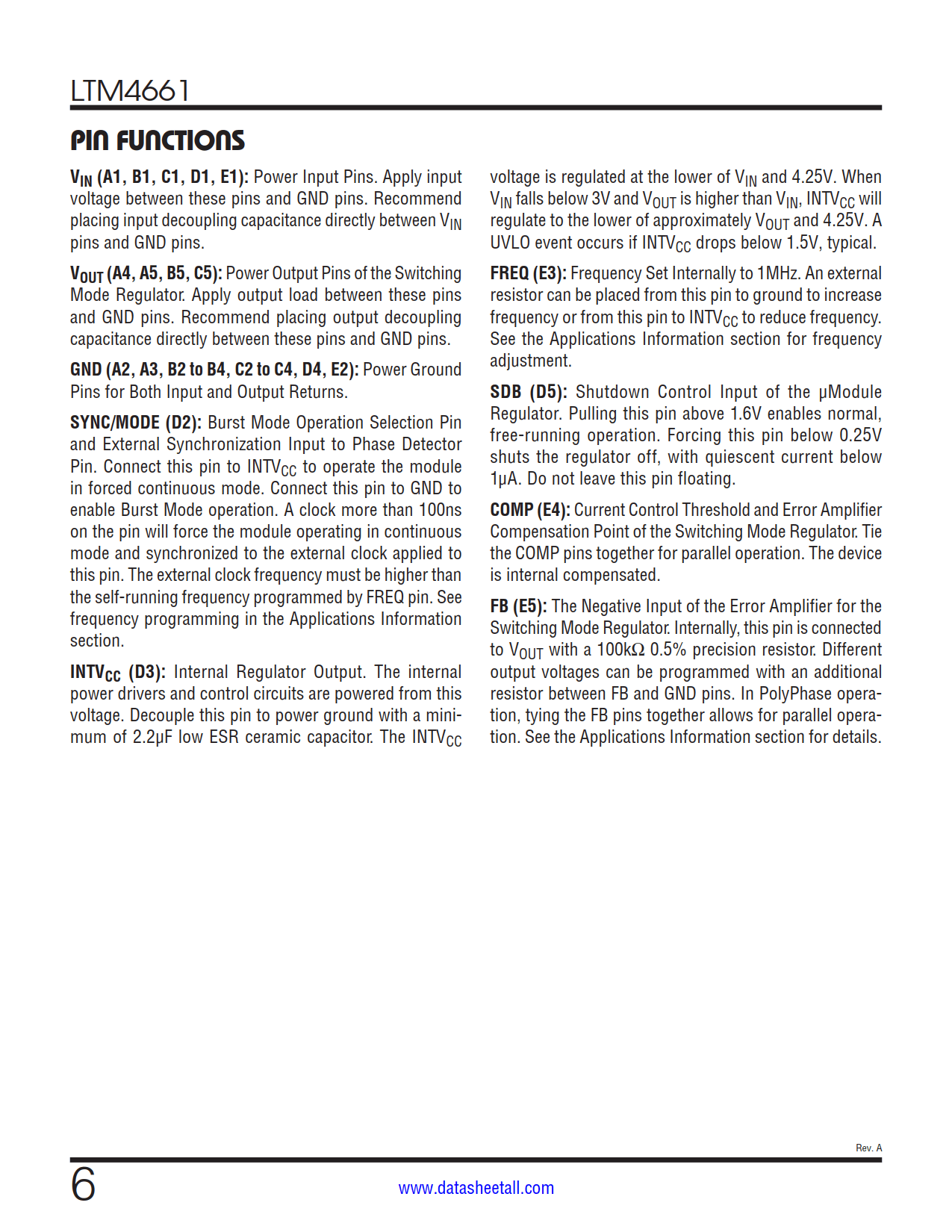

LTM4661 Datasheet(Picture)

LTM4661 Features

  • Complete Solution in <1cm2 (Single-Sided PCB) or 0.5cm2 (Dual-Sided PCB)
  • Input Voltage Range: 1.8V to 5.5V, Down to 0.7V After Start-Up
  • Output Voltage Range: 2.5V to 15V
  • 4A Switch Current
  • Dual Phase Operation
  • ±3% Maximum Total DC Output Voltage Regulation Over Load, Line and Temperature
  • Output Disconnect in Shut Down
  • Inrush Current Limit
  • External Frequency Synchronization
  • Selectable Burst Mode® Operation
  • Output Overvoltage and Overtemperature Protection
  • 6.25mm × 6.25mm × 2.42mm BGA package

LTM4661 Applications

  • RF Microwave Power Amplifiers
  • Battery Powered DC Motors
  • 3.3V Bus Telecom Transceivers

LTM4661 Description

The LTM4661 is a synchronous step-up switching mode μModule® (power module) regulator in a 6.25mm × 6.25mm × 2.42mm BGA package. Included in the package are the switching controller, power FETs, inductor and all support components. Operating over an input voltage of 1.8V to 5.5V, down to 0.7V after start-up, the LTM4661 regulates an output voltage of 2.5V to 15V set by an external resistor. It provides up to 4A switch current. Only bulk input and output capacitors are needed.

The LTM4661 1MHz switching frequency and dual phase single output architecture enable fast transient response to line and load changes and a significant reduction of output ripple voltage. It supports frequency synchronization, PolyPhase® operation and selectable Burst Mode operation. The LTM4661 features a true output disconnect during shutdown and inrush current limit at start-up. It also has short-circuit, overvoltage and overtemperature protection.

The LTM4661 is Pb-free and RoHS compliant.
