LTM4660 Datasheet

LTM4660 Datasheet

60V, 300W Hybrid Step-Down μModule Bus Converter
Part No.: LTM4660
Page: 28 Pages
Size: 2127 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-12-10 22:16:34
DataSheet: Download

LTM4660 Datasheet Applicable Part

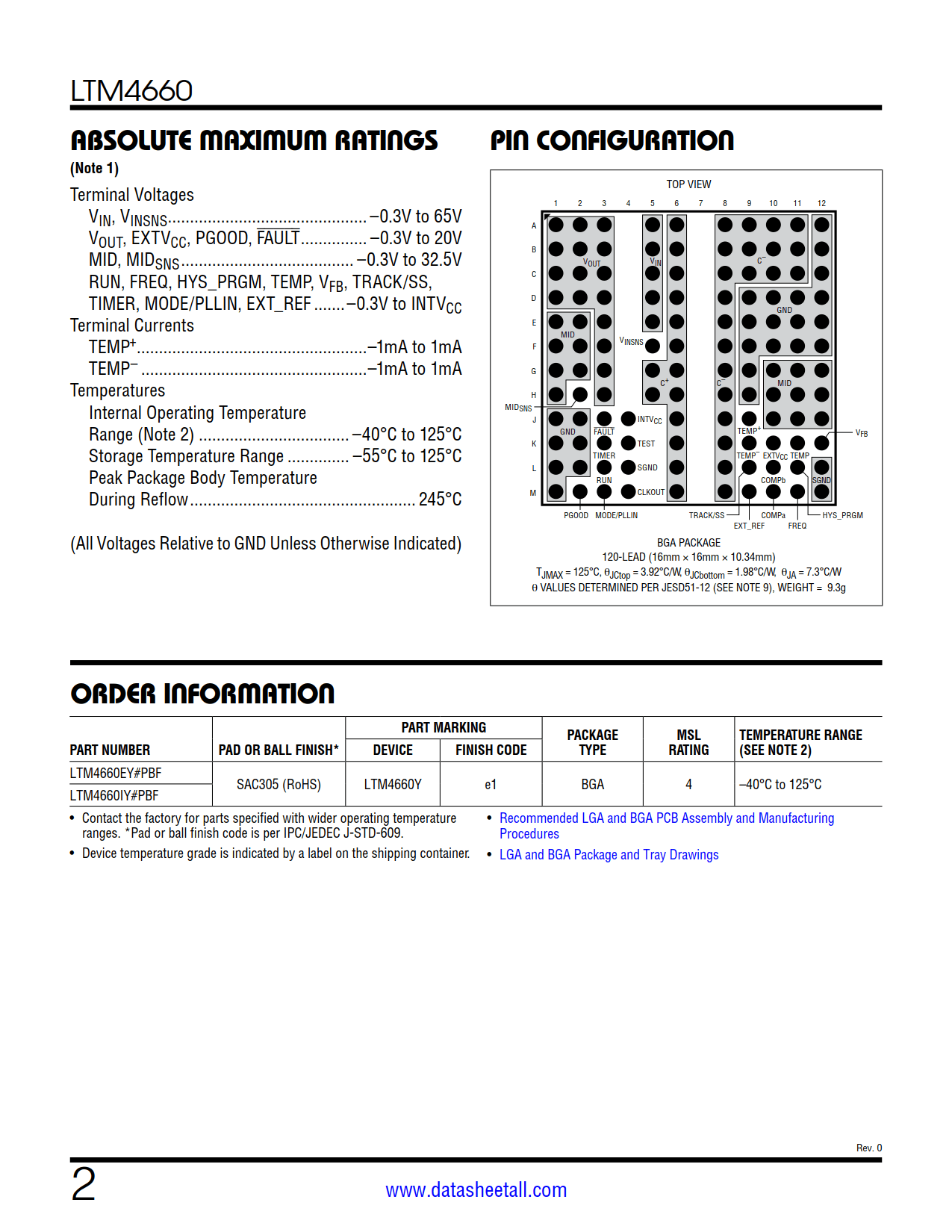

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4660EY#PBF Tray 55 LTM4660Y 4 120 -40°C ~ 125°C 120-Lead BGA (16mm x 16mm x 10.34mm)
LTM4660IY#PBF Tray 55 LTM4660Y 4 120 -40°C ~ 125°C 120-Lead BGA (16mm x 16mm x 10.34mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4660 Datasheet(PDF)

LTM4660 Datasheet(Picture)

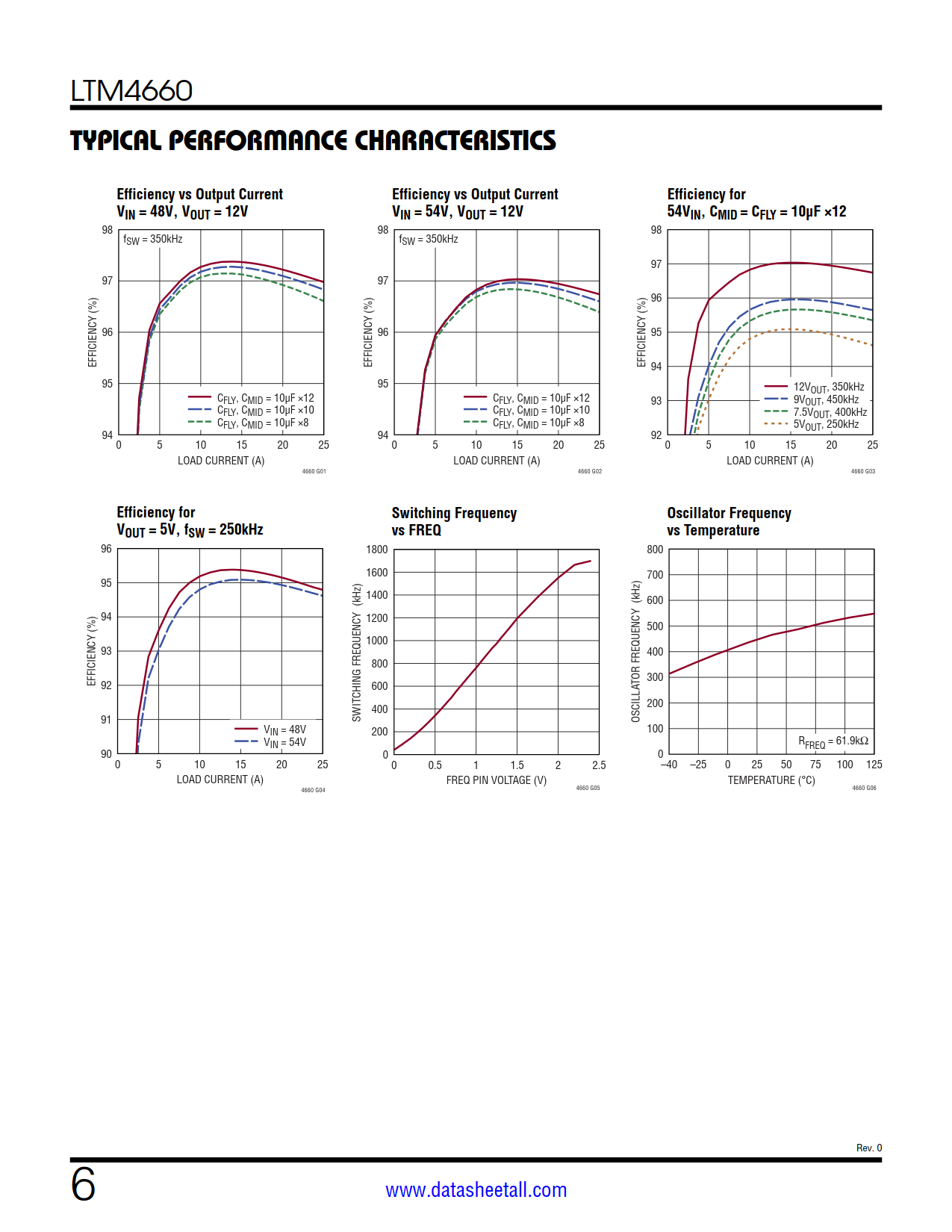

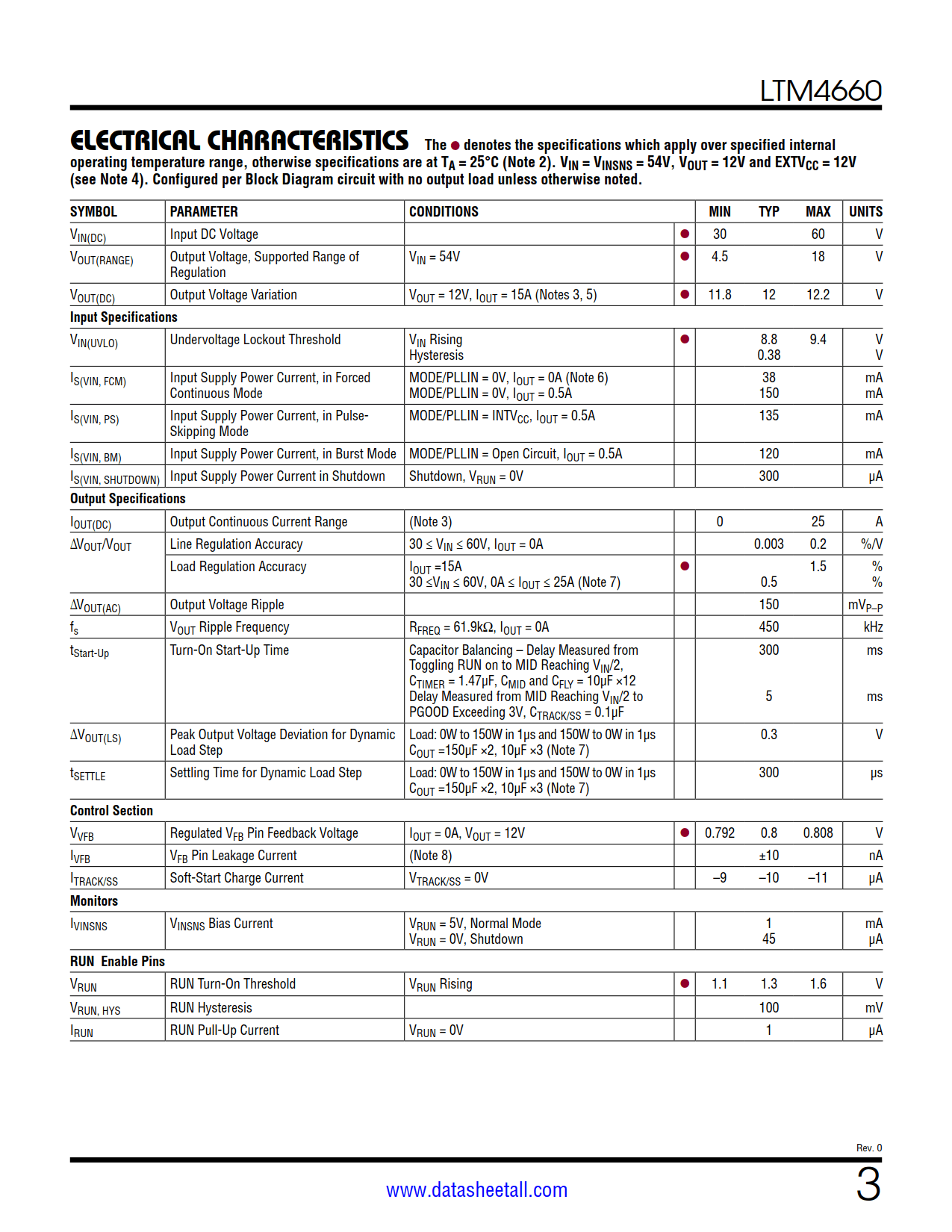

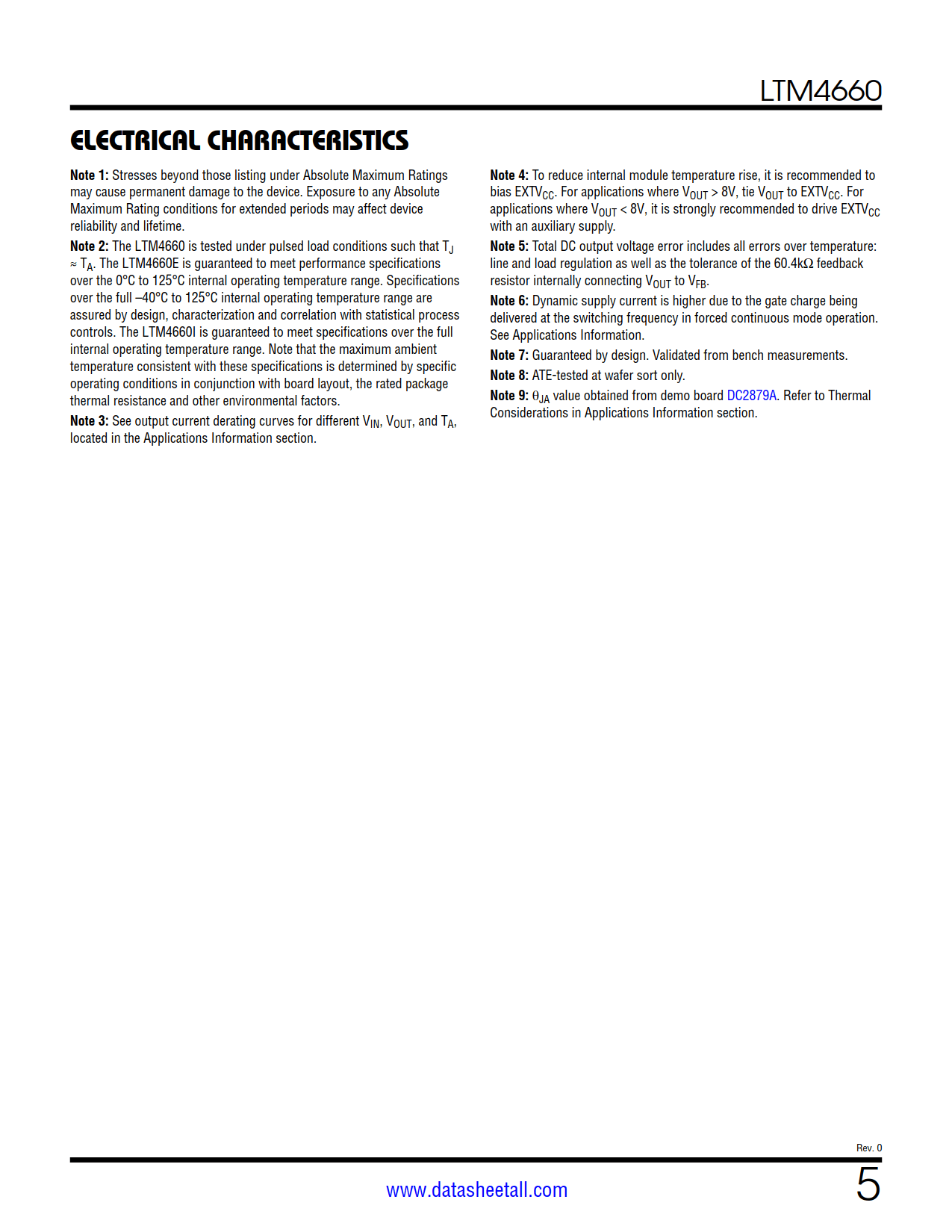

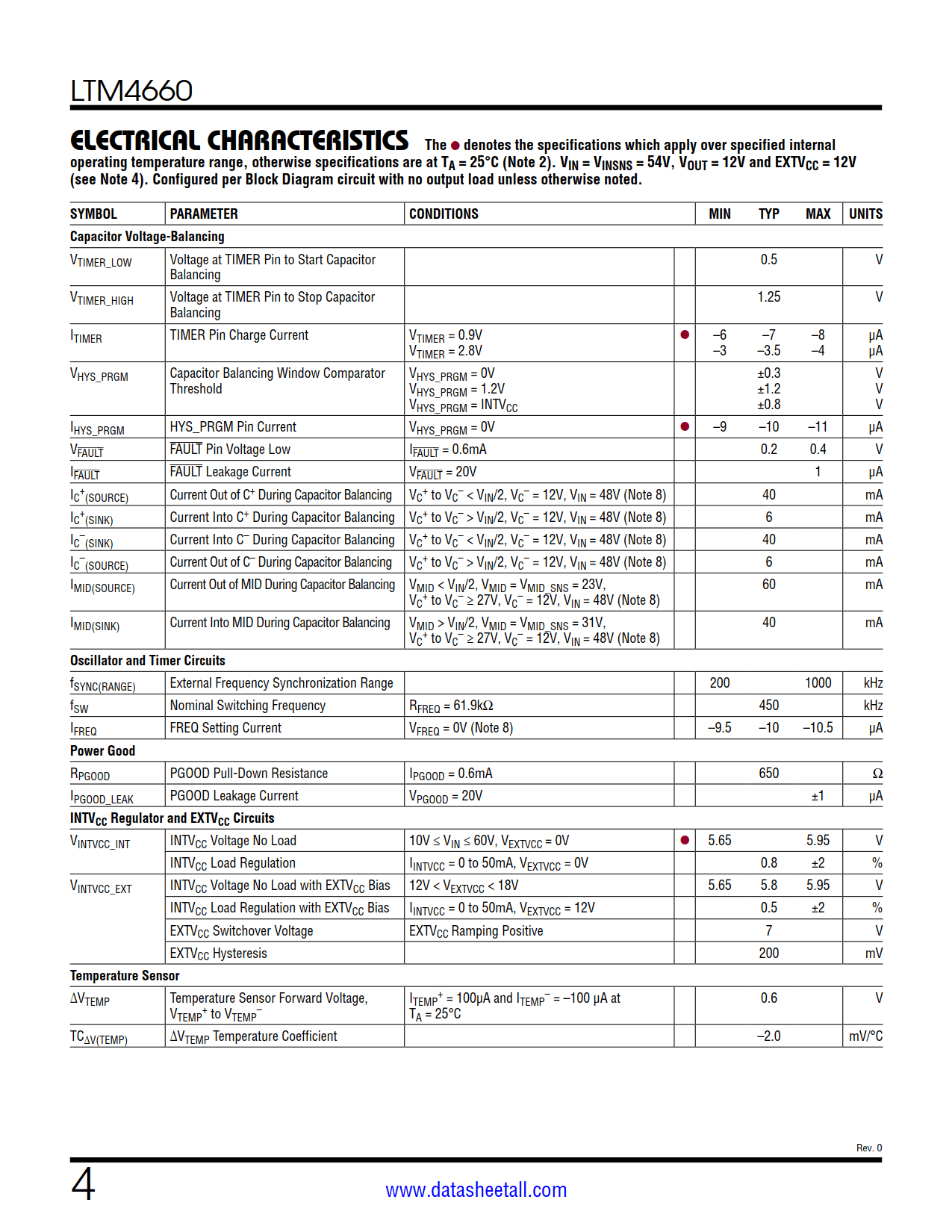

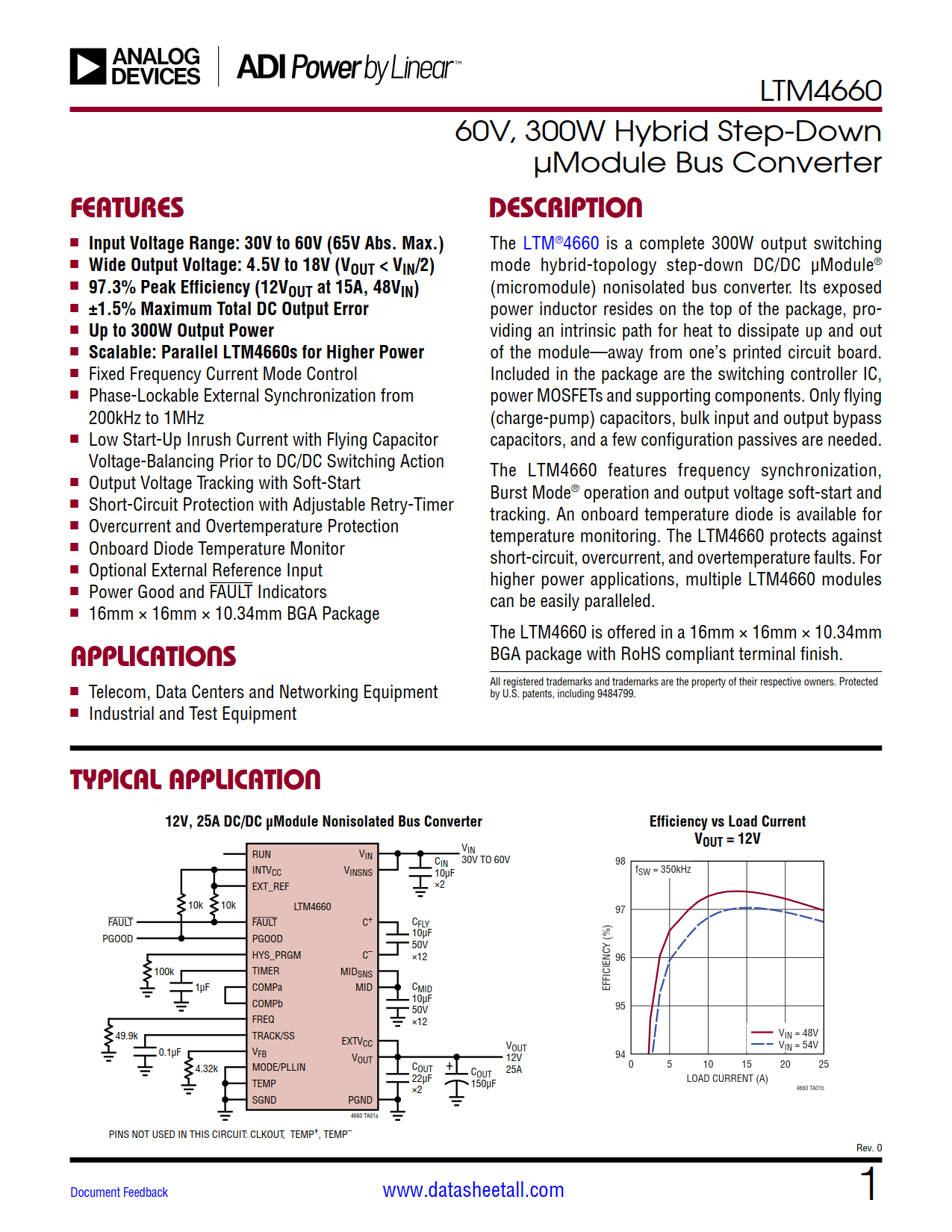

LTM4660 Features

  • Input Voltage Range: 30V to 60V (65V Abs. Max.)
  • Wide Output Voltage: 4.5V to 18V (VOUT < VIN/2)
  • 97.3% Peak Efficiency (12VOUT at 15A, 48VIN)
  • ±1.5% Maximum Total DC Output Error
  • Up to 300W Output Power
  • Scalable: Parallel LTM4660s for Higher Power
  • Fixed Frequency Current Mode Control
  • Phase-Lockable External Synchronization from 200kHz to 1MHz
  • Low Start-Up Inrush Current with Flying Capacitor Voltage-Balancing Prior to DC/DC Switching Action
  • Output Voltage Tracking with Soft-Start
  • Short-Circuit Protection with Adjustable Retry-Timer
  • Overcurrent and Overtemperature Protection
  • Onboard Diode Temperature Monitor
  • Optional External Reference Input
  • Power Good and FAULT Indicators
  • 16mm × 16mm × 10.34mm BGA Package

LTM4660 Applications

  • Telecom, Data Centers and Networking Equipment
  • Industrial and Test Equipment

LTM4660 Description

The LTM4660 is a complete 300W output switching mode hybrid-topology step-down DC/DC μModule® (micromodule) nonisolated bus converter. Its exposed power inductor resides on the top of the package, providing an intrinsic path for heat to dissipate up and out of the module—away from one’s printed circuit board. Included in the package are the switching controller IC, power MOSFETs and supporting components. Only flying (charge-pump) capacitors, bulk input and output bypass capacitors, and a few configuration passives are needed.

The LTM4660 features frequency synchronization, Burst Mode® operation and output voltage soft-start and tracking. An onboard temperature diode is available for temperature monitoring. The LTM4660 protects against short-circuit, overcurrent, and overtemperature faults. For higher power applications, multiple LTM4660 modules can be easily paralleled.

The LTM4660 is offered in a 16mm × 16mm × 10.34mm BGA package with RoHS compliant terminal finish.
