LTM4653 Datasheet

LTM4653 Datasheet

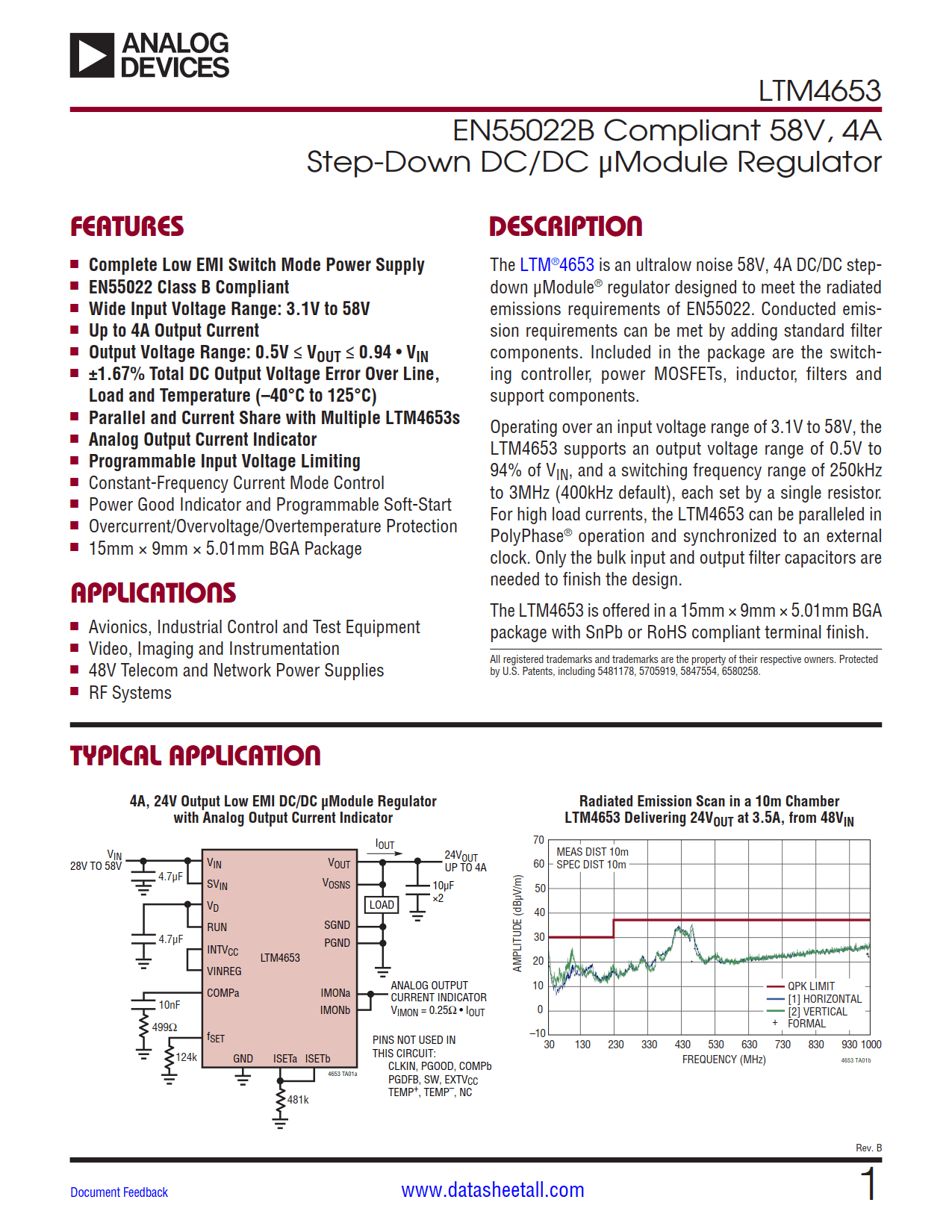

EN55022B Compliant 58V, 4A Step-Down DC/DC µModule Regulator
Part No.: LTM4653
Page: 34 Pages
Size: 4443 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-12-10 22:21:35
DataSheet: Download

LTM4653 Datasheet Applicable Part

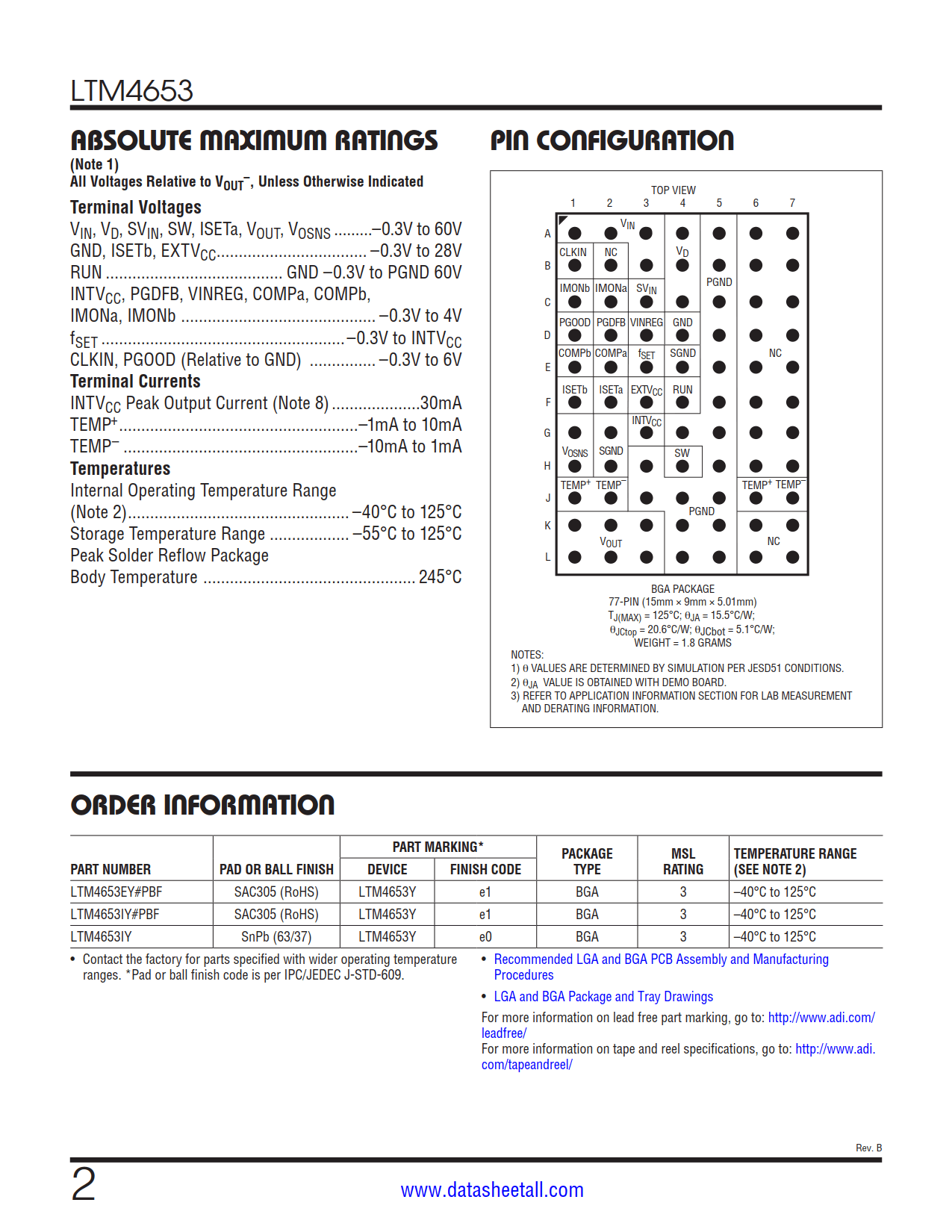

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4653EY#PBF Tray 170 LTM4653Y 3 77 -40°C ~ 125°C 77-Lead BGA (9mm x 15mm x 5.01mm)
LTM4653IY#PBF Tray 170 LTM4653Y 3 77 -40°C ~ 125°C 77-Lead BGA (9mm x 15mm x 5.01mm)
LTM4653IY Tray 170 LTM4653Y 3 77 -40°C ~ 125°C 77-Lead BGA (9mm x 15mm x 5.01mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4653 Datasheet(PDF)

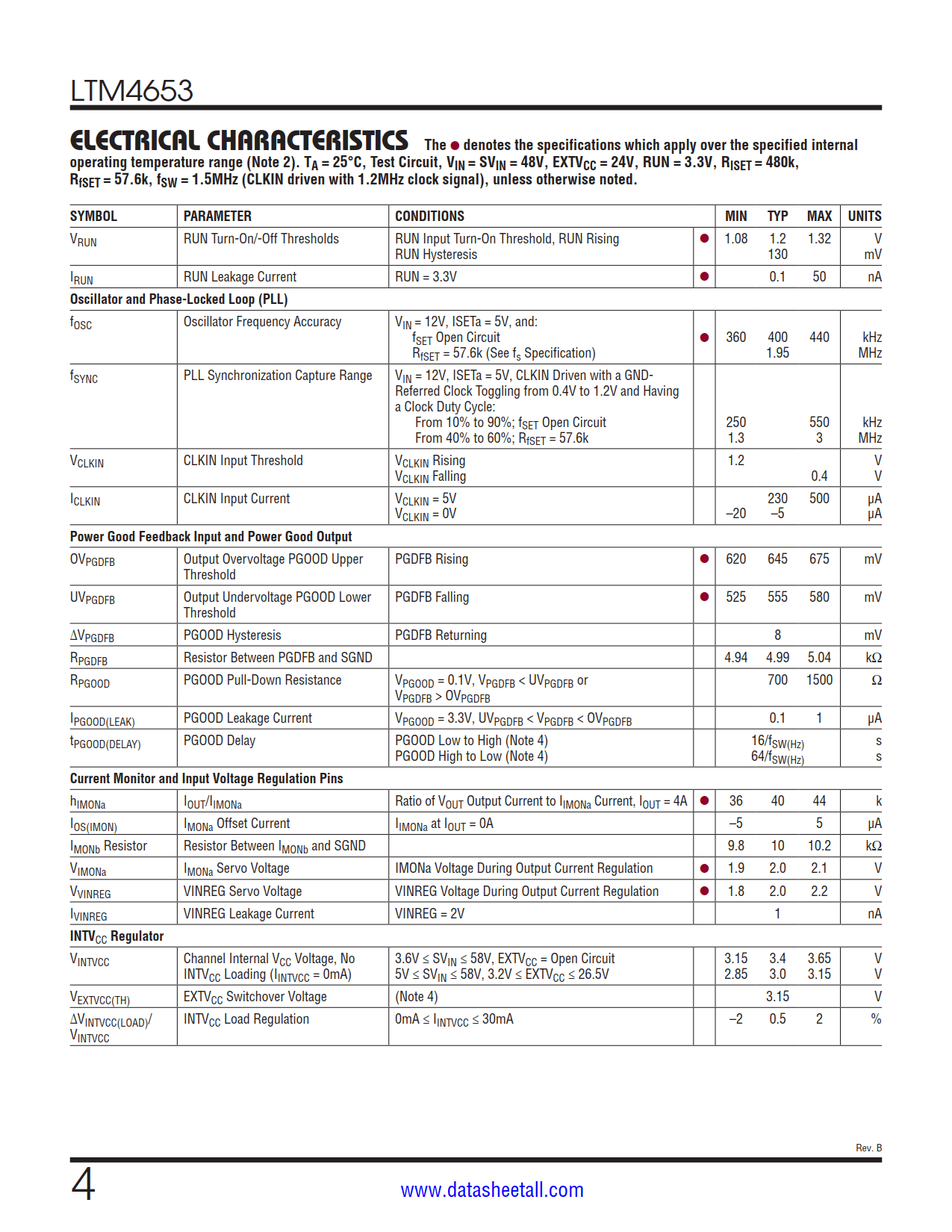

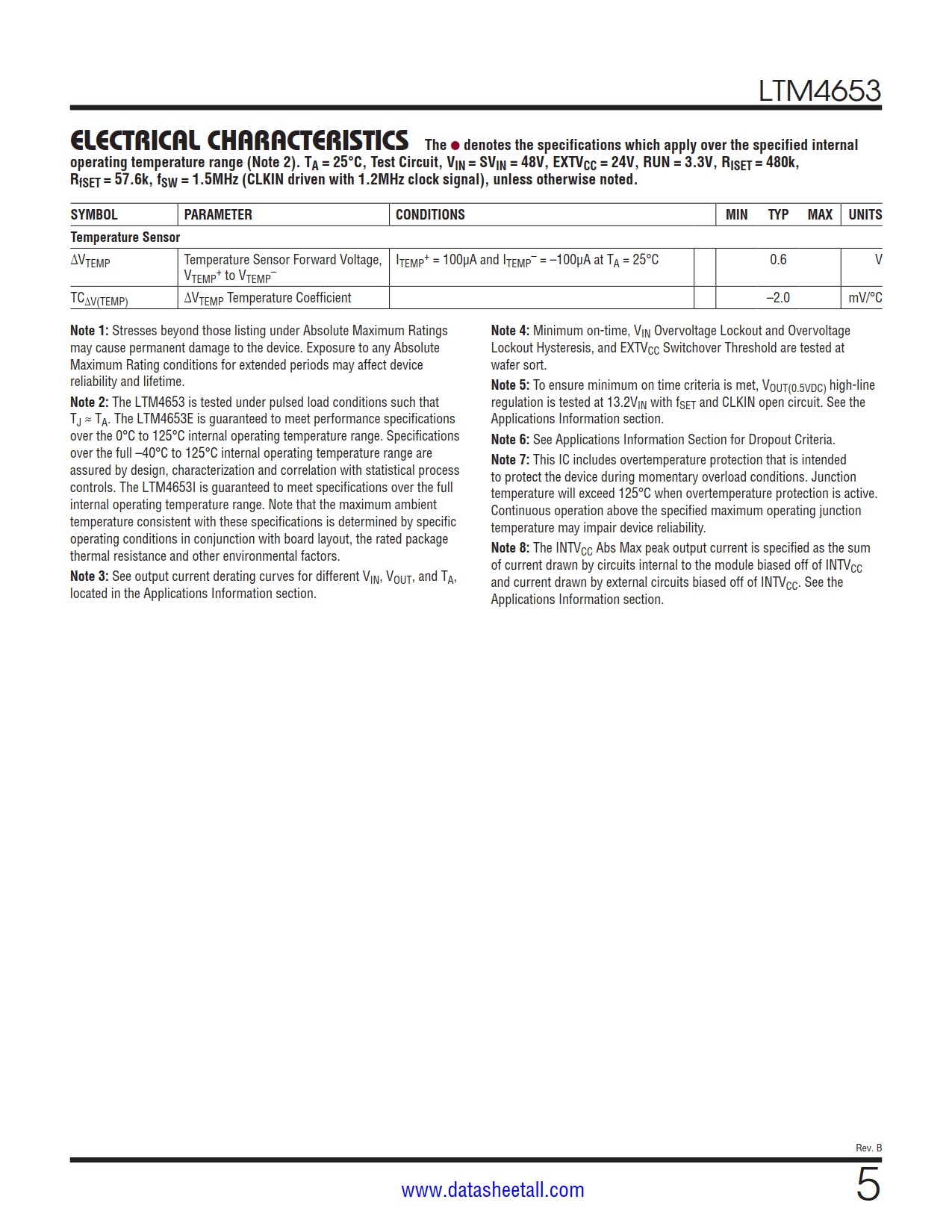

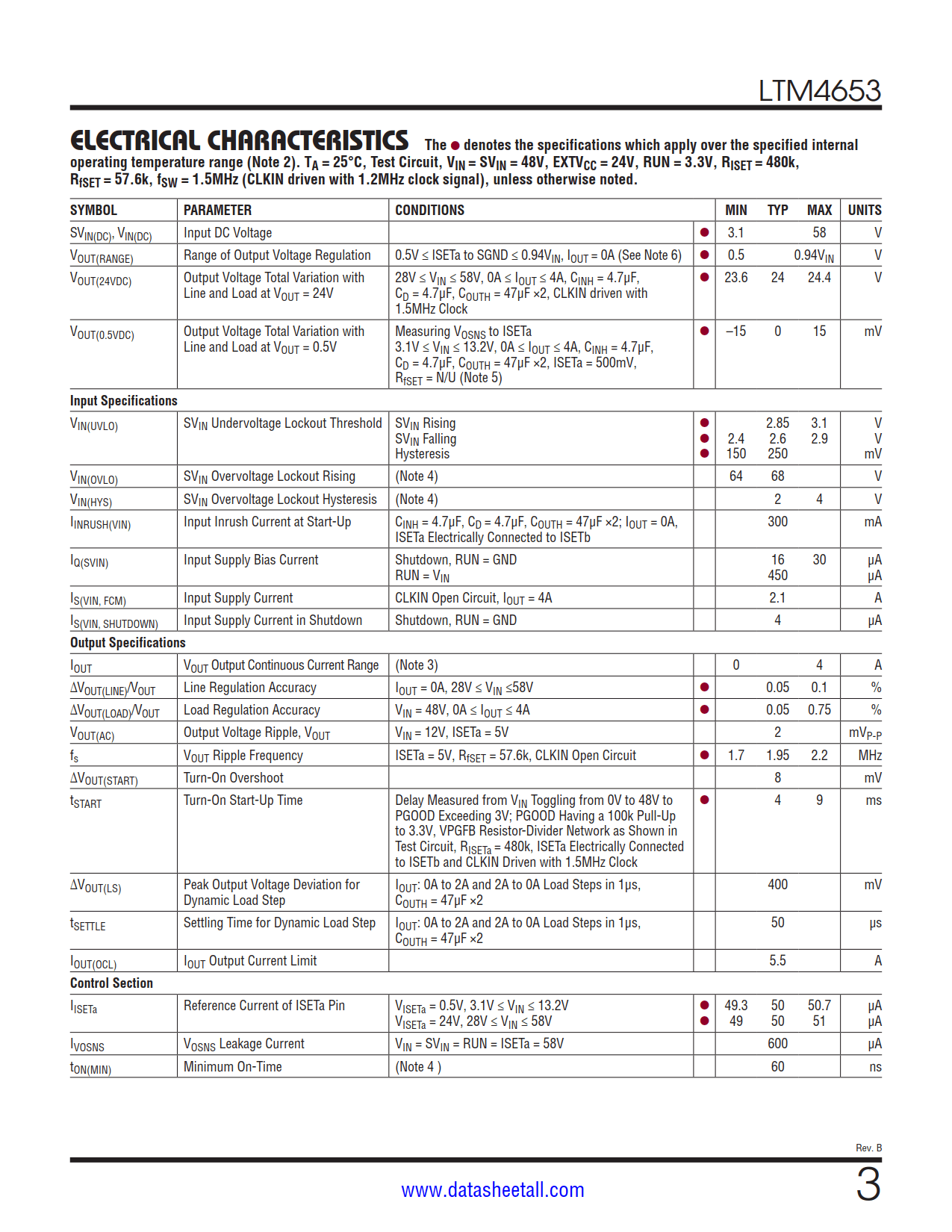

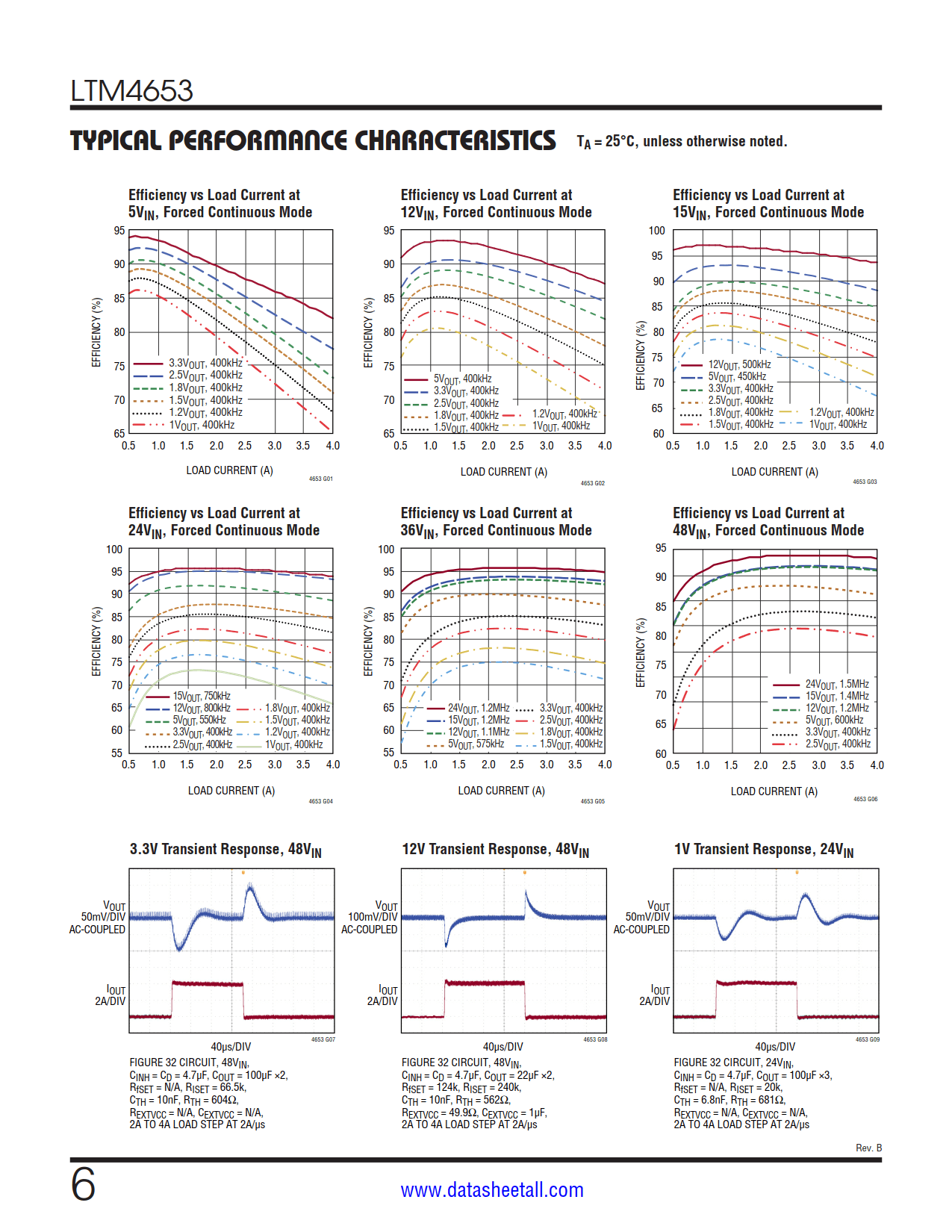

LTM4653 Datasheet(Picture)

LTM4653 Features

  • Complete Low EMI Switch Mode Power Supply
  • EN55022 Class B Compliant
  • Wide Input Voltage Range: 3.1V to 58V
  • Up to 4A Output Current
  • Output Voltage Range: 0.5V ≤ VOUT ≤ 0.94 • VIN
  • ±1.67% Total DC Output Voltage Error Over Line, Load and Temperature (–40°C to 125°C)
  • Parallel and Current Share with Multiple LTM4653s
  • Analog Output Current Indicator
  • Programmable Input Voltage Limiting
  • Constant-Frequency Current Mode Control
  • Power Good Indicator and Programmable Soft-Start
  • Overcurrent/Overvoltage/Overtemperature Protection
  • 15mm × 9mm × 5.01mm BGA Package

LTM4653 Applications

  • Avionics, Industrial Control and Test Equipment
  • Video, Imaging and Instrumentation
  • 48V Telecom and Network Power Supplies
  • RF Systems

LTM4653 Description

The LTM4653 is an ultralow noise 58V, 4A DC/DC stepdown μModule® regulator designed to meet the radiated emissions requirements of EN55022. Conducted emission requirements can be met by adding standard filter components. Included in the package are the switching controller, power MOSFETs, inductor, filters and support components.

Operating over an input voltage range of 3.1V to 58V, the LTM4653 supports an output voltage range of 0.5V to 94% of VIN, and a switching frequency range of 250kHz to 3MHz (400kHz default), each set by a single resistor. For high load currents, the LTM4653 can be paralleled in PolyPhase® operation and synchronized to an external clock. Only the bulk input and output filter capacitors are needed to finish the design.

The LTM4653 is offered in a 15mm × 9mm × 5.01mm BGA package with SnPb or RoHS compliant terminal finish.
