| Part No.： | LTM4649 |
| Page： | 30 Pages |
| Size： | 3456 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-11-22 11:42:27 |
| DataSheet： | Download |

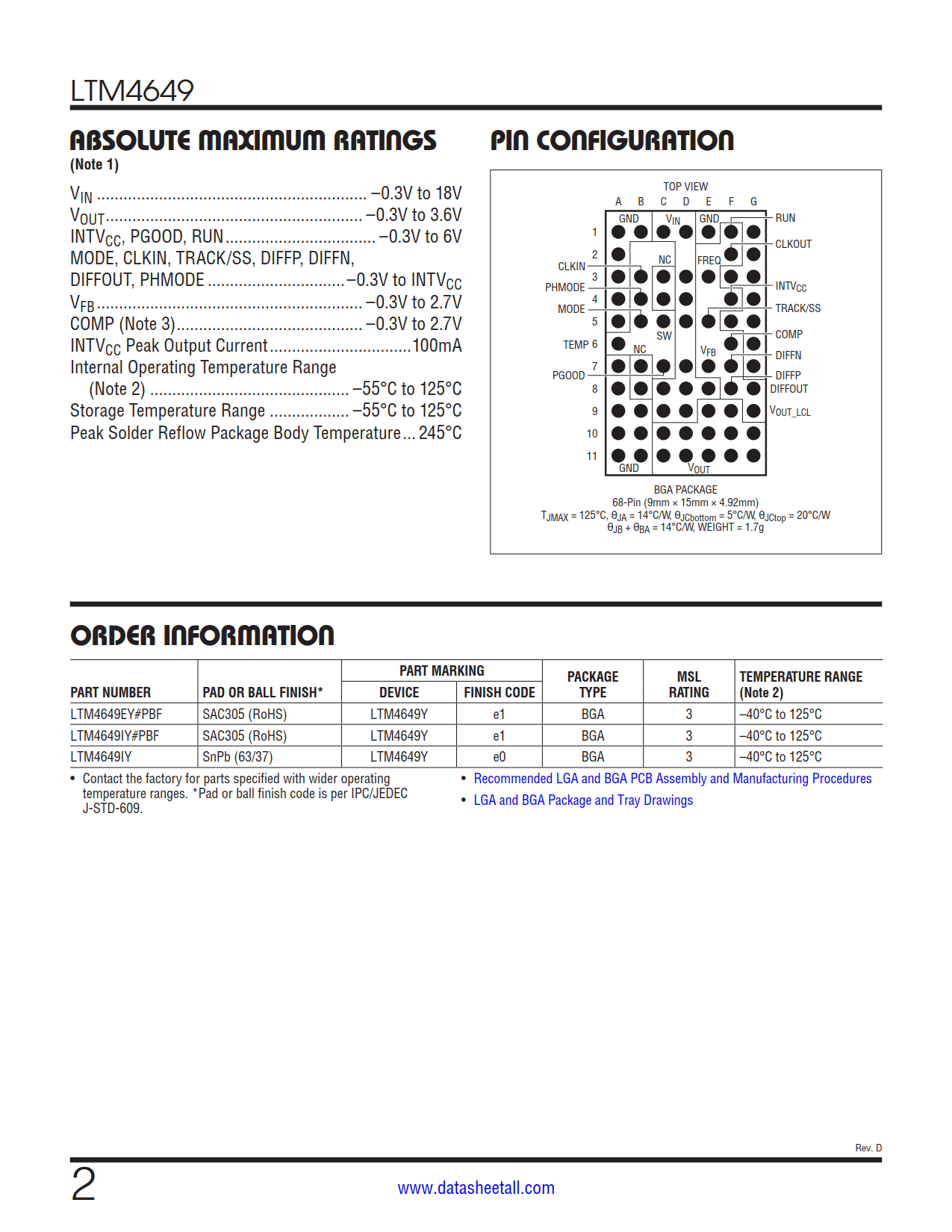

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTM4649EY#PBF | Tray | 170 | LTM4649Y | 3 | 68 | -40°C ~125°C | 68-Lead BGA (15mm x 9mm x 4.92mm) | |
| LTM4649IY#PBF | Tray | 170 | LTM4649Y | 3 | 68 | -40°C ~125°C | 68-Lead BGA (15mm x 9mm x 4.92mm) | |
| LTM4649IY | Tray | 170 | LTM4649Y | 3 | 68 | -40°C ~125°C | 68-Lead BGA (15mm x 9mm x 4.92mm) |

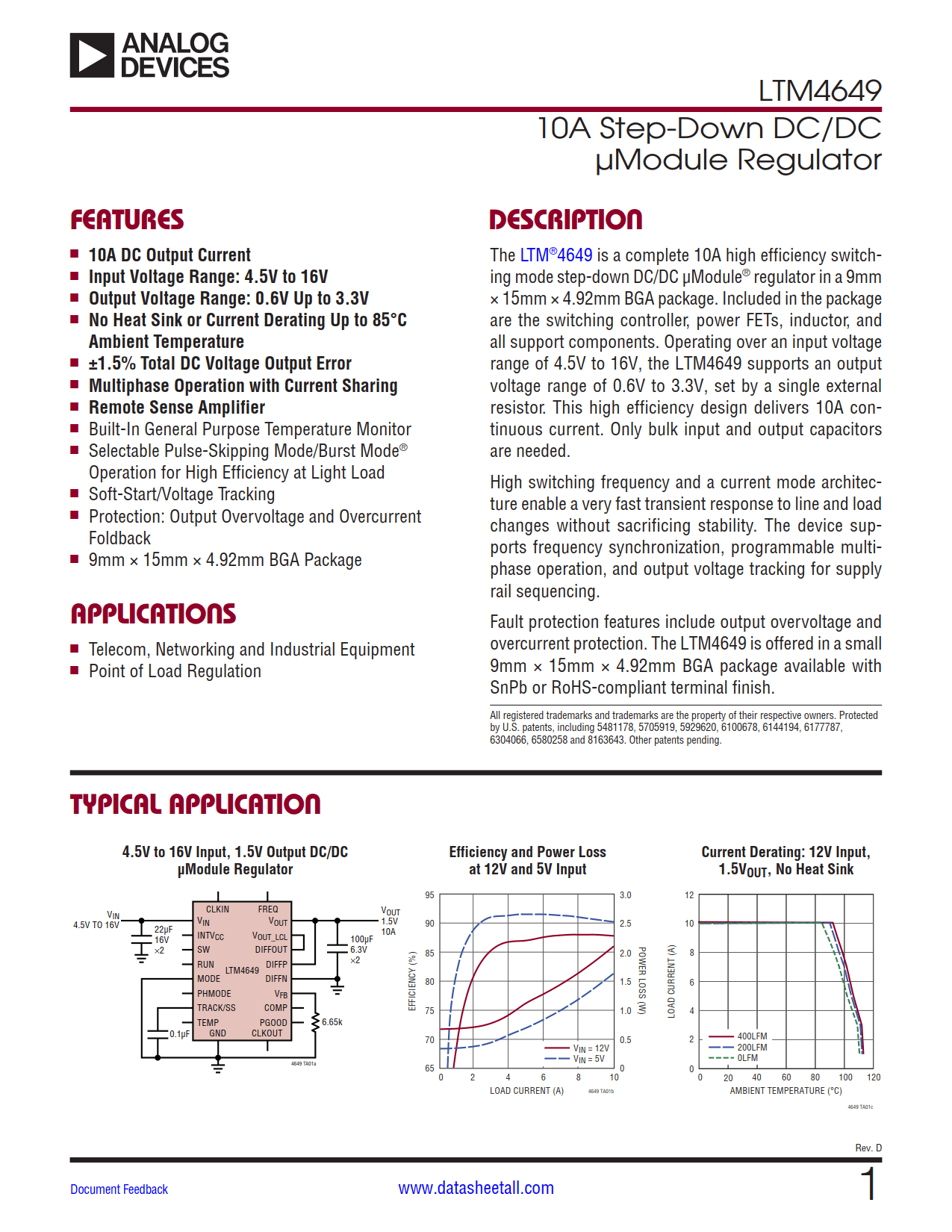

The LTM4649 is a complete 10A high efficiency switching mode step-down DC/DC μModule® regulator in a 9mm × 15mm × 4.92 BGA package. Included in the package are the switching controller, power FETs, inductor, and all support components. Operating over an input voltage range of 4.5V to 16V, the LTM4649 supports an output voltage range of 0.6V to 3.3V, set by a single external resistor. This high efficiency design delivers 10A continuous current. Only bulk input and output capacitors are needed.
High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, programmable multiphase operation, and output voltage tracking for supply rail sequencing.
Fault protection features include output overvoltage and overcurrent protection. The LTM4649 is offered in a small 9mm × 15mm × 4.92mm BGA package available with SnPb or RoHS compliant terminal finish.
