LTM4646 Datasheet

LTM4646 Datasheet

Dual 10A or Single 20A μModule Regulator
Part No.: LTM4646
Page: 36 Pages
Size: 975 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-08 15:24:29
DataSheet: Download

LTM4646 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4646EY#PBF Tray 119 LTM4646Y 3 88 -40°C ~ 125°C 88-Lead BGA (15mm x 11.25mm x 5.01mm)
LTM4646IY#PBF Tray 119 LTM4646Y 3 88 -40°C ~ 125°C 88-Lead BGA (15mm x 11.25mm x 5.01mm)
LTM4646IY Tray 119 LTM4646Y 3 88 -40°C ~ 125°C 88-Lead BGA (15mm x 11.25mm x 5.01mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4646 Datasheet(PDF)

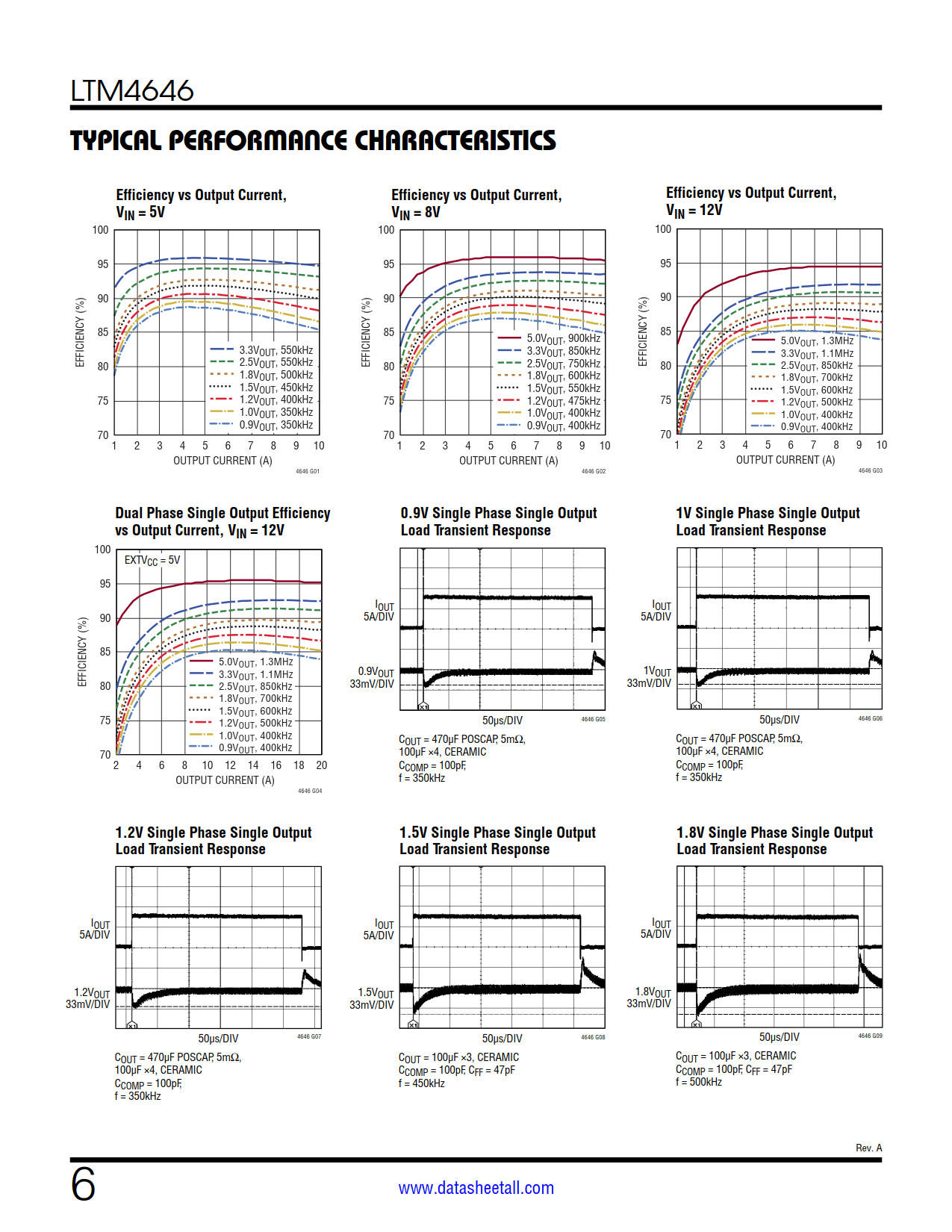

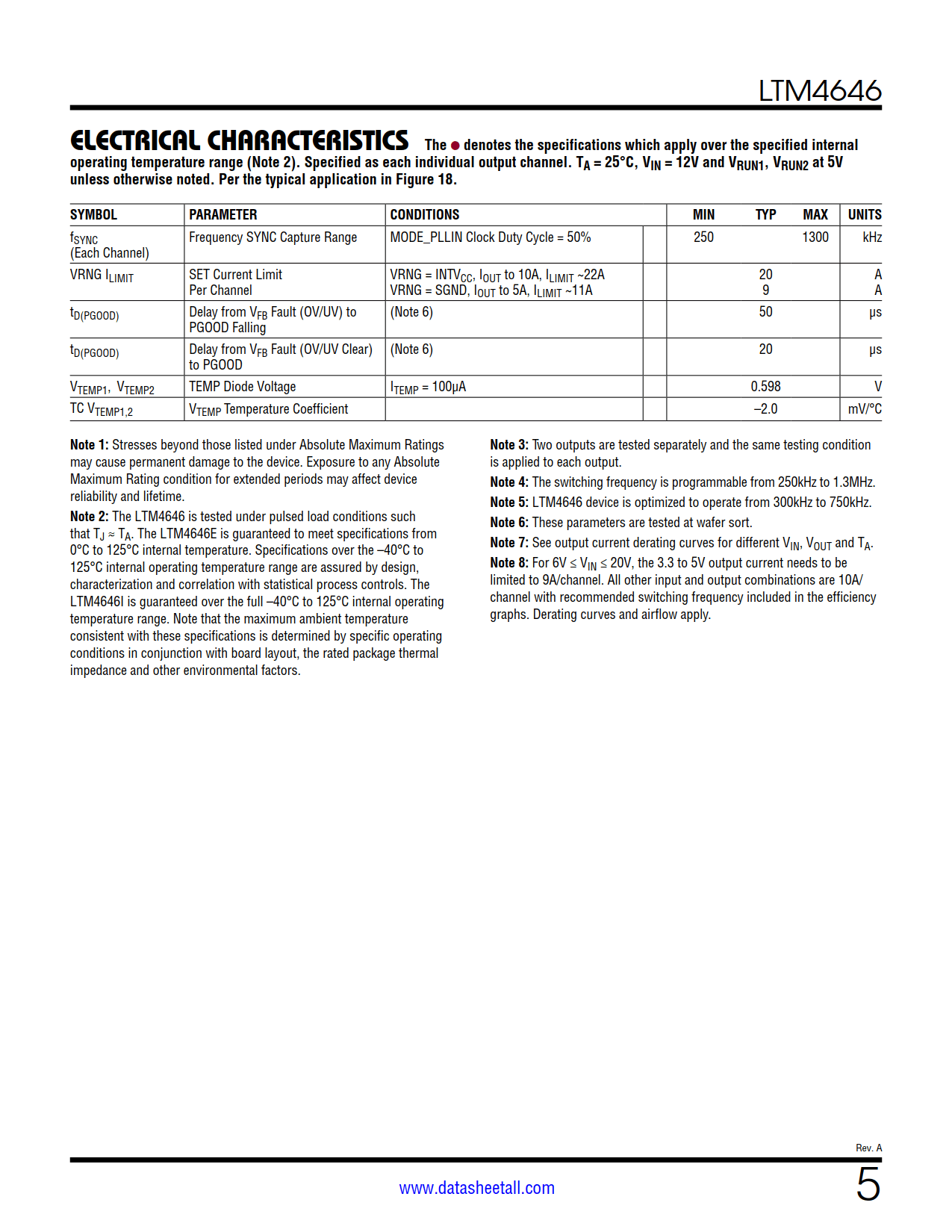

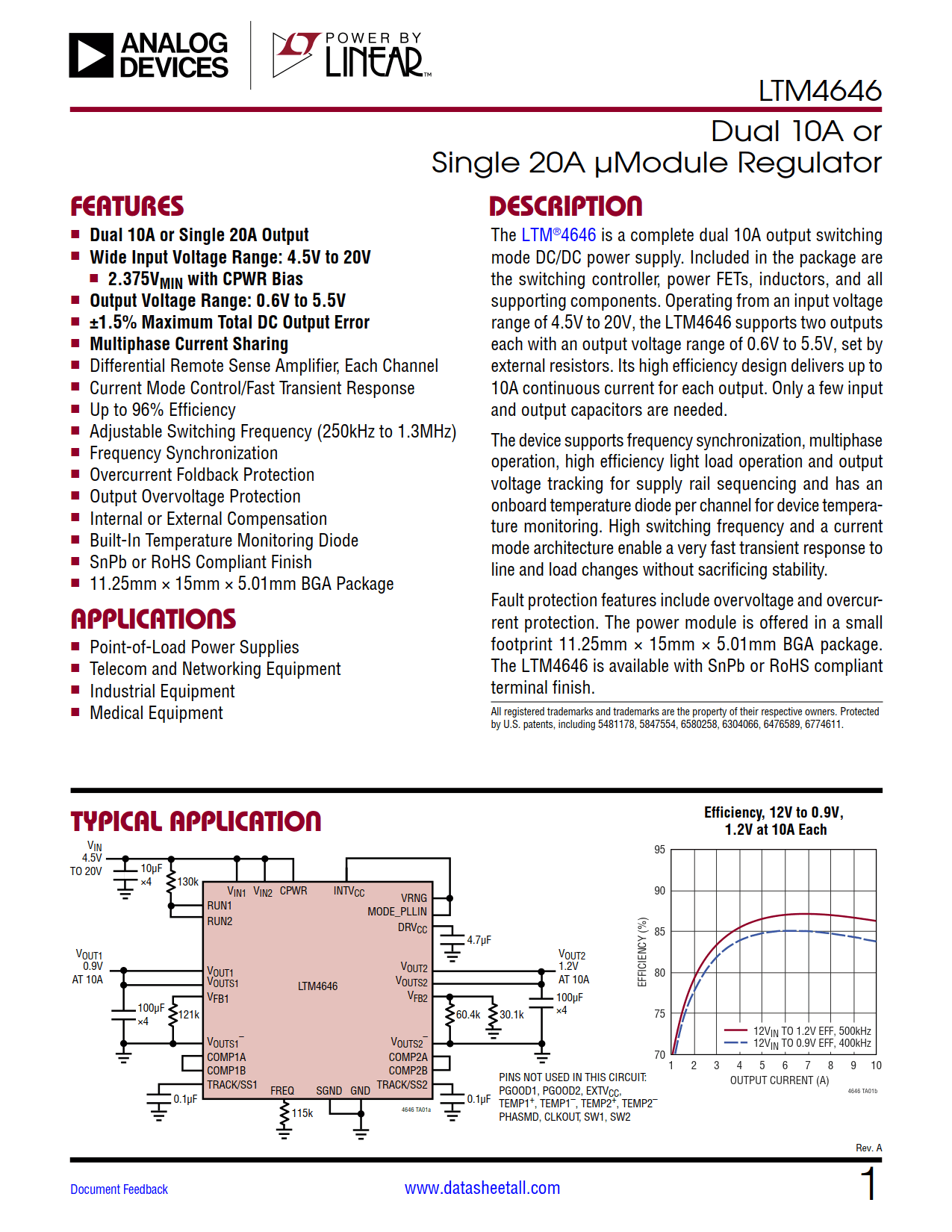

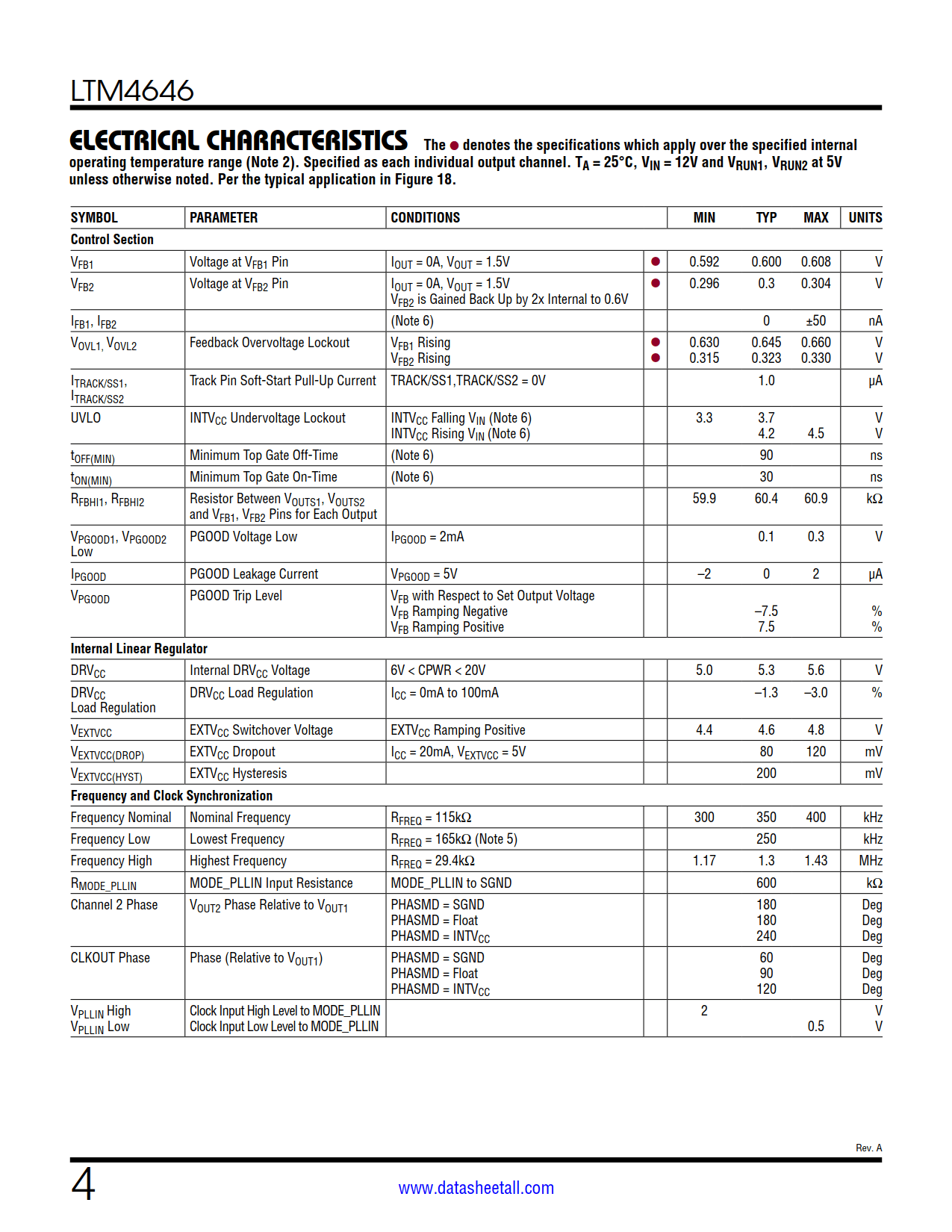

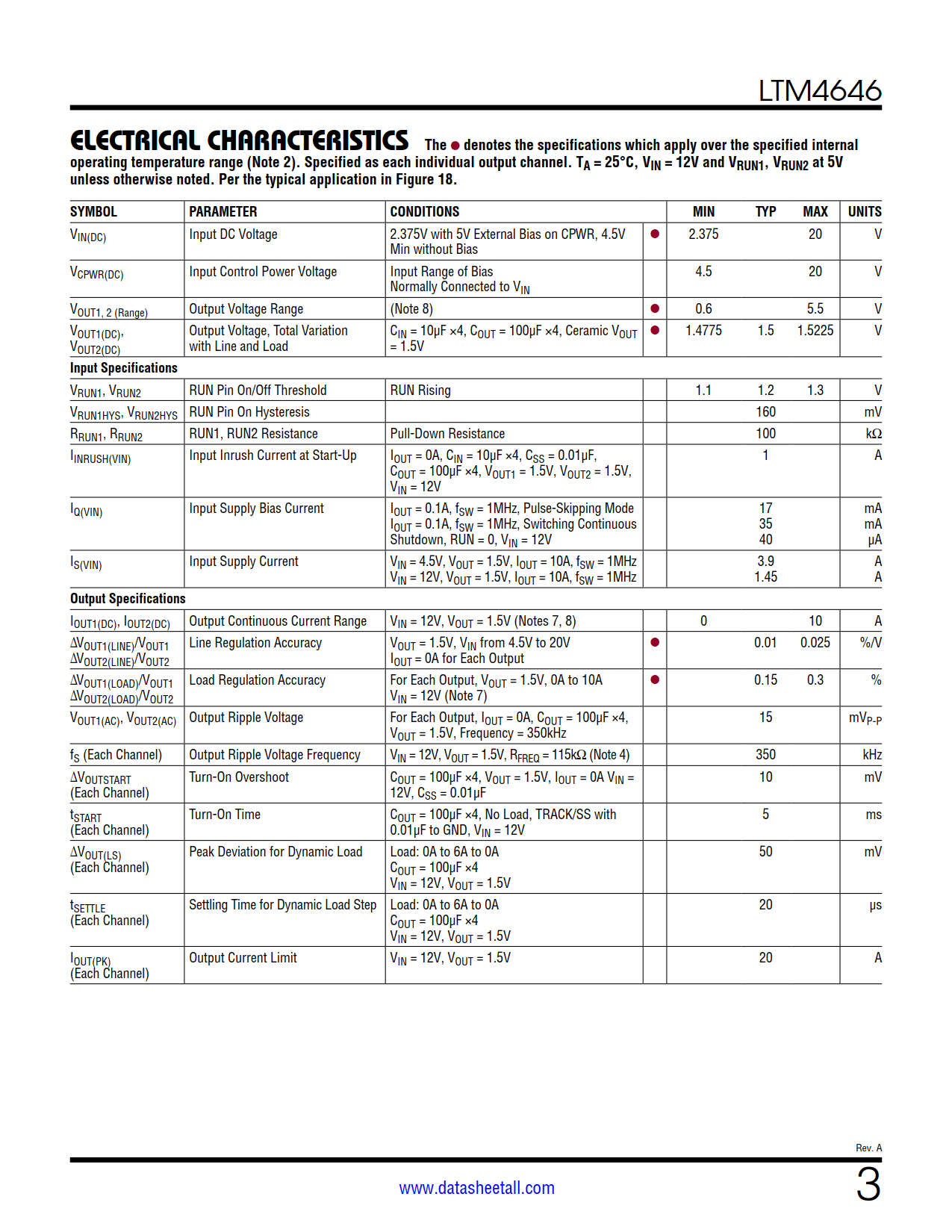

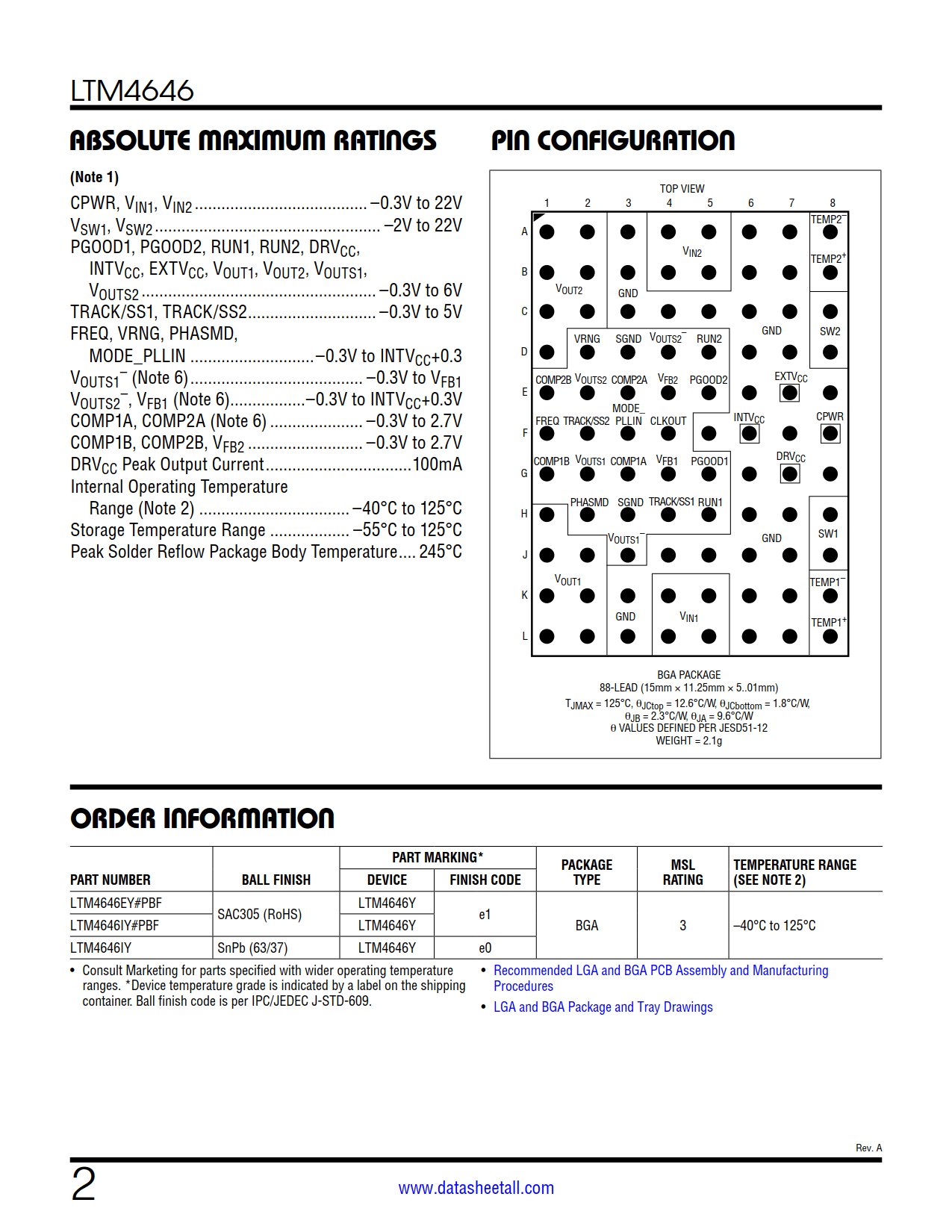

LTM4646 Datasheet(Picture)

LTM4646 Features

  • Dual 10A or Single 20A Output
  • Wide Input Voltage Range: 4.5V to 20V
    • 2.375VMIN with CPWR Bias
  • Output Voltage Range: 0.6V to 5.5V
  • ±1.5% Maximum Total DC Output Error
  • Multiphase Current Sharing
  • Differential Remote Sense Amplifier, Each Channel
  • Current Mode Control/Fast Transient Response
  • Up to 96% Efficiency
  • Adjustable Switching Frequency (250kHz to 1.3MHz)
  • Frequency Synchronization
  • Overcurrent Foldback Protection
  • Output Overvoltage Protection
  • Internal or External Compensation
  • Built-In Temperature Monitoring Diode
  • SnPb or RoHS Compliant Finish
  • 11.25mm × 15mm × 5.01mm BGA Package

LTM4646 Applications

  • Point-of-Load Power Supplies
  • Telecom and Networking Equipment
  • Industrial Equipment
  • Medical Equipment

LTM4646 Description

The LTM4646 is a complete dual 10A output switching mode DC/DC power supply. Included in the package are the switching controller, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 20V, the LTM4646 supports two outputs each with an output voltage range of 0.6V to 5.5V, set by external resistors. Its high efficiency design delivers up to 10A continuous current for each output. Only a few input and output capacitors are needed.

The device supports frequency synchronization, multiphase operation, high efficiency light load operation and output voltage tracking for supply rail sequencing and has an on-board temperature diode per channel for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include overvoltage and overcurrent protection. The power module is offered in a small footprint 11.25mm × 15mm × 5.01mm BGA package. The LTM4646 is available with SnPb or RoHS compliant terminal finish.
