| Part No.： | LTM4643 |
| Page： | 32 Pages |
| Size： | 2029 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-12-14 14:03:36 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTM4643EV#PBF | Tray | 170 | LTM4643V | 3 | 77 | -40°C ~ 125°C | 77-Lead LGA (15mm x 9mm x 1.82mm) | |
| LTM4643IV#PBF | Tray | 170 | LTM4643V | 3 | 77 | -40°C ~ 125°C | 77-Lead LGA (15mm x 9mm x 1.82mm) | |
| LTM4643MPV#PBF | Tray | 170 | LTM4643V | 3 | 77 | -55°C ~ 125°C | 77-Lead LGA (15mm x 9mm x 1.82mm) | |
| LTM4643EY#PBF | Tray | 170 | LTM4643Y | 3 | 77 | -40°C ~ 125°C | 77-Lead BGA (15mm x 9mm x 2.42mm) | |
| LTM4643IY#PBF | Tray | 170 | LTM4643Y | 3 | 77 | -40°C ~ 125°C | 77-Lead BGA (15mm x 9mm x 2.42mm) | |
| LTM4643MPY#PBF | Tray | 170 | LTM4643Y | 3 | 77 | -55°C ~ 125°C | 77-Lead BGA (15mm x 9mm x 2.42mm) | |
| LTM4643IY | Tray | 170 | LTM4643Y | 3 | 77 | -40°C ~ 125°C | 77-Lead BGA (15mm x 9mm x 2.42mm) | |
| LTM4643MPY | Tray | 170 | LTM4643Y | 3 | 77 | -55°C ~ 125°C | 77-Lead BGA (15mm x 9mm x 2.42mm) |

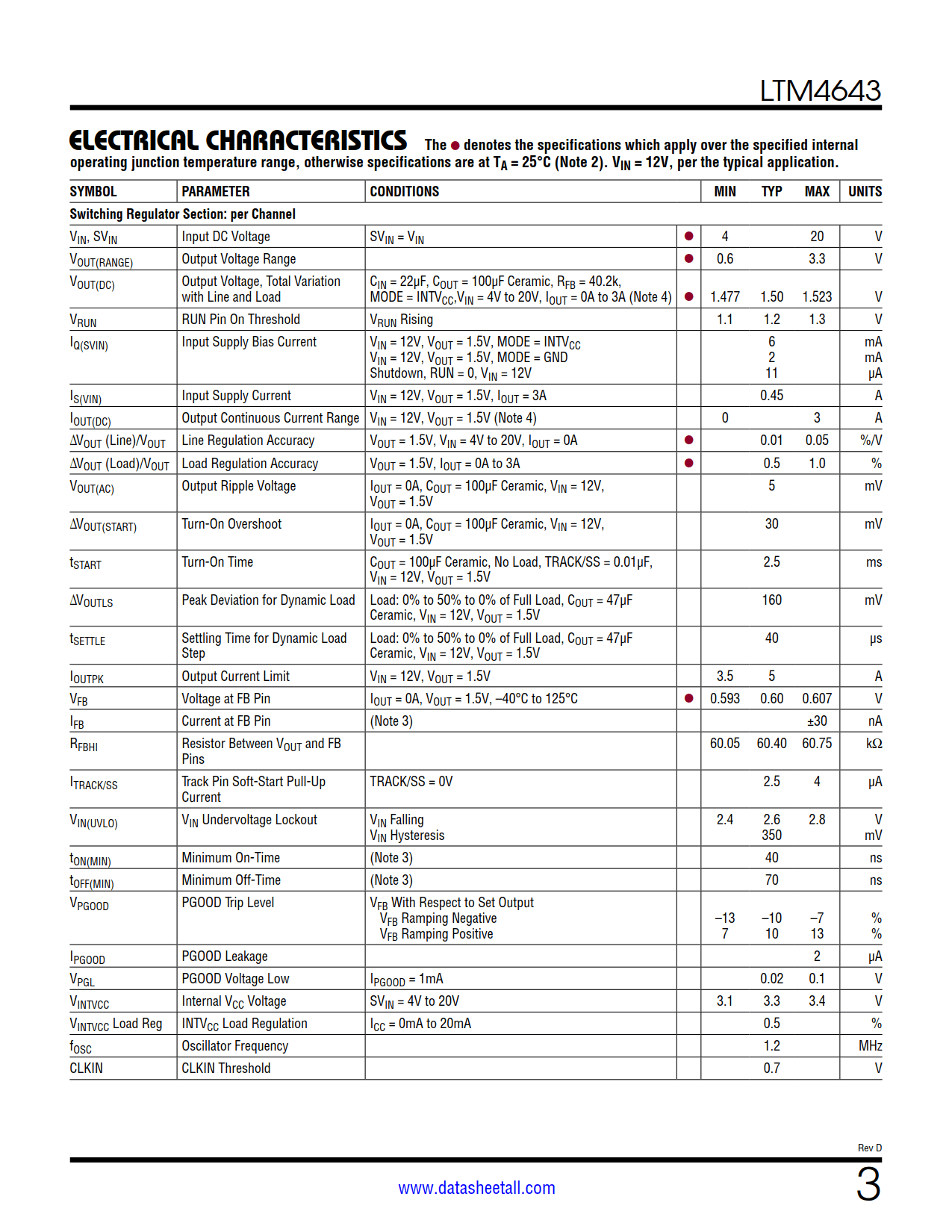

The LTM4643 is a quad DC/DC step-down µModule (power module) regulator with 3A per output. Outputs can be paralleled in an array for up to 12A capability. Included in the package are the switching controllers, power FETs, inductors and support components. Operating over an input voltage range of 4V to 20V or 2.375V to 20V with an external bias supply, the LTM4643 supports an output voltage range of 0.6V to 3.3V each set by a single external resistor. Its high efficiency design delivers 3A continuous output current per channel. Only bulk input and output capacitors are needed.
Fault protection features include overvoltage, overcurrent and overtemperature protection. The LTM4643 is offered in a 9mm ×15mm × 1.82mm LGA and 9mm × 15mm × 2.42mm BGA packages with SnPb (BGA) or RoHS compliant terminal finish.
