LTM4642 Datasheet

LTM4642 Datasheet

20VIN, Dual 4A or Single 8A DC/DC μModule Regulator
Part No.: LTM4642
Page: 32 Pages
Size: 1038 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-22 14:07:37
DataSheet: Download

LTM4642 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4642EY#PBF Tray 168 LTM4642Y 3 56 -40°C ~125°C 56-Lead BGA (11.25mm x 9mm x 4.92mm)
LTM4642IY#PBF Tray 168 LTM4642Y 3 56 -40°C ~125°C 56-Lead BGA (11.25mm x 9mm x 4.92mm)
LTM4642IY Tray 168 LTM4642Y 3 56 -40°C ~125°C 56-Lead BGA (11.25mm x 9mm x 4.92mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4642 Datasheet(PDF)

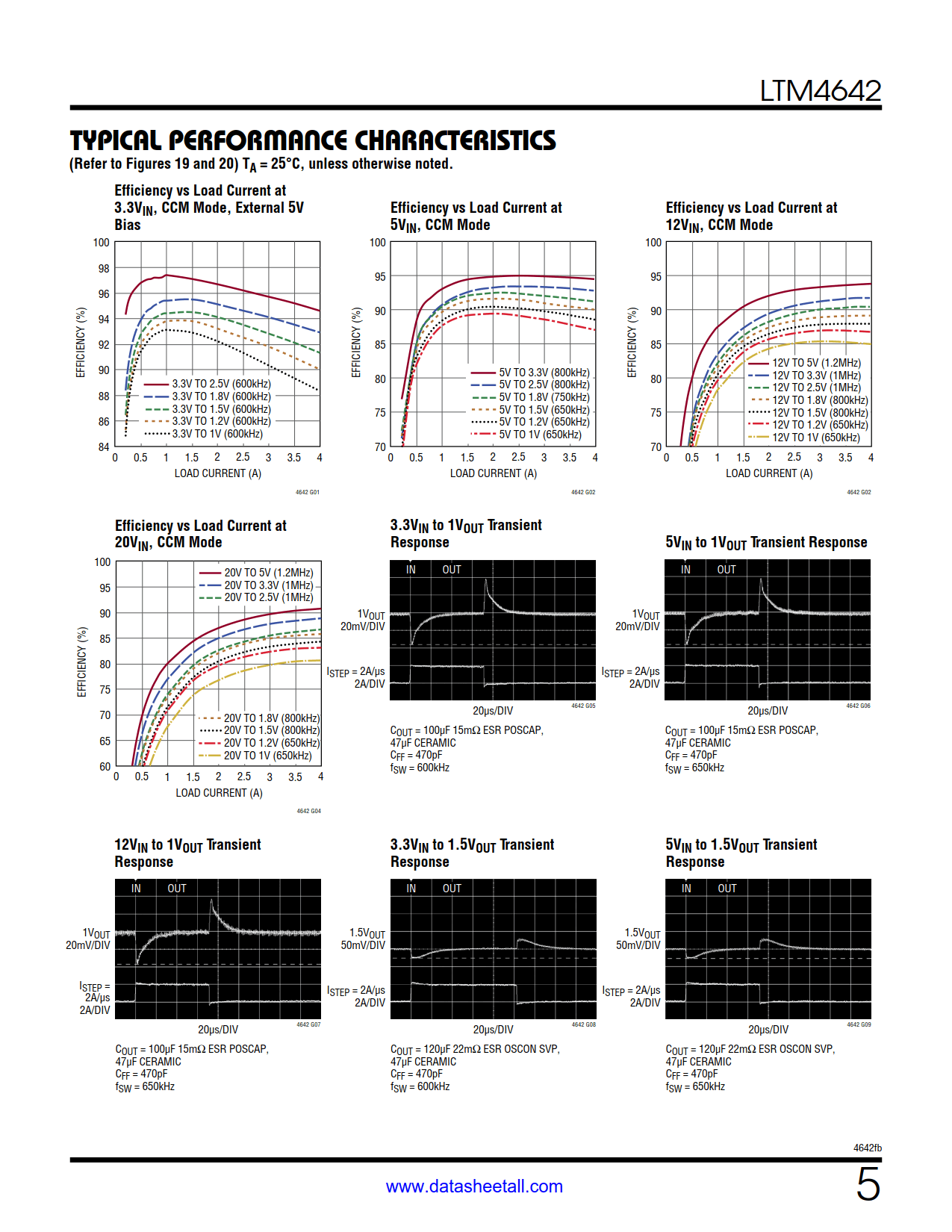

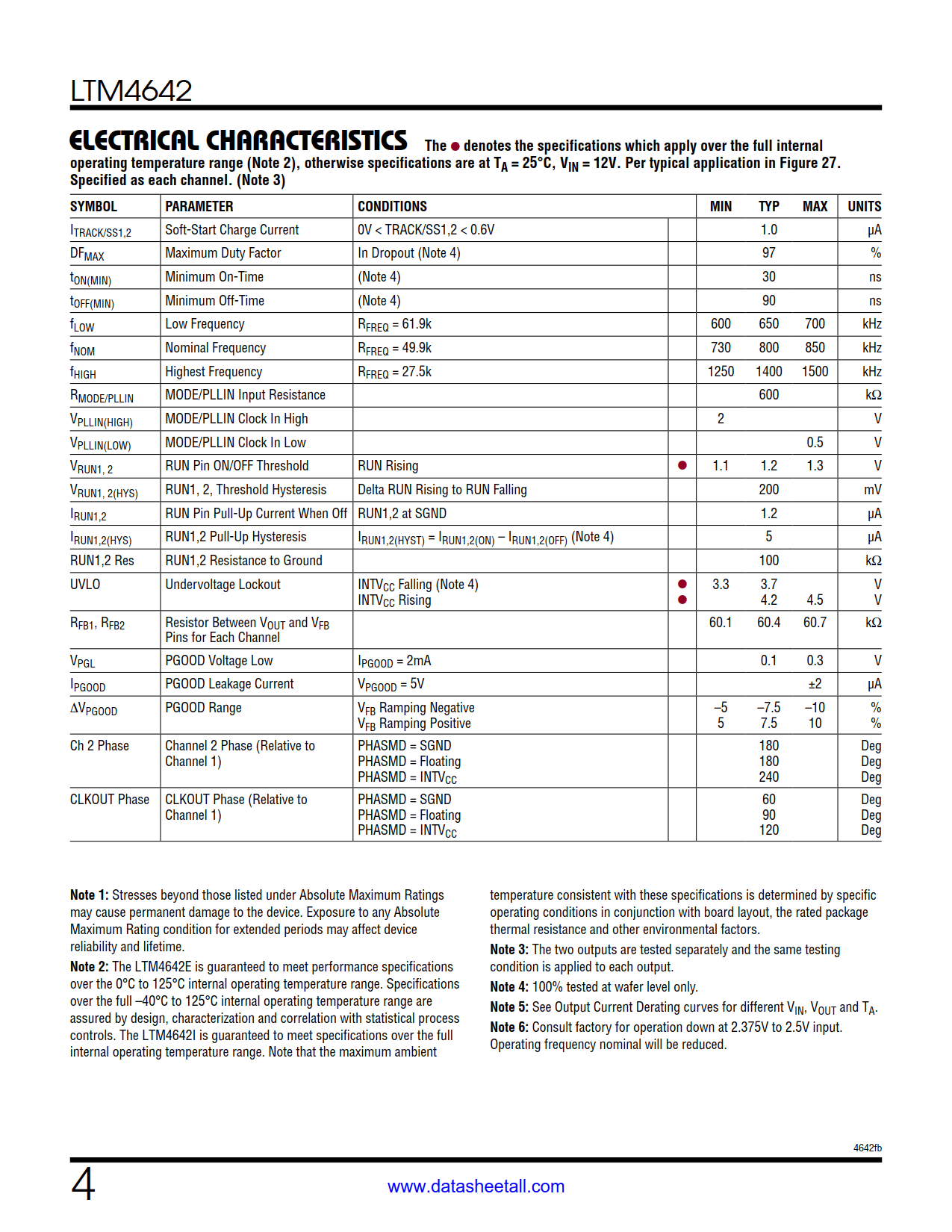

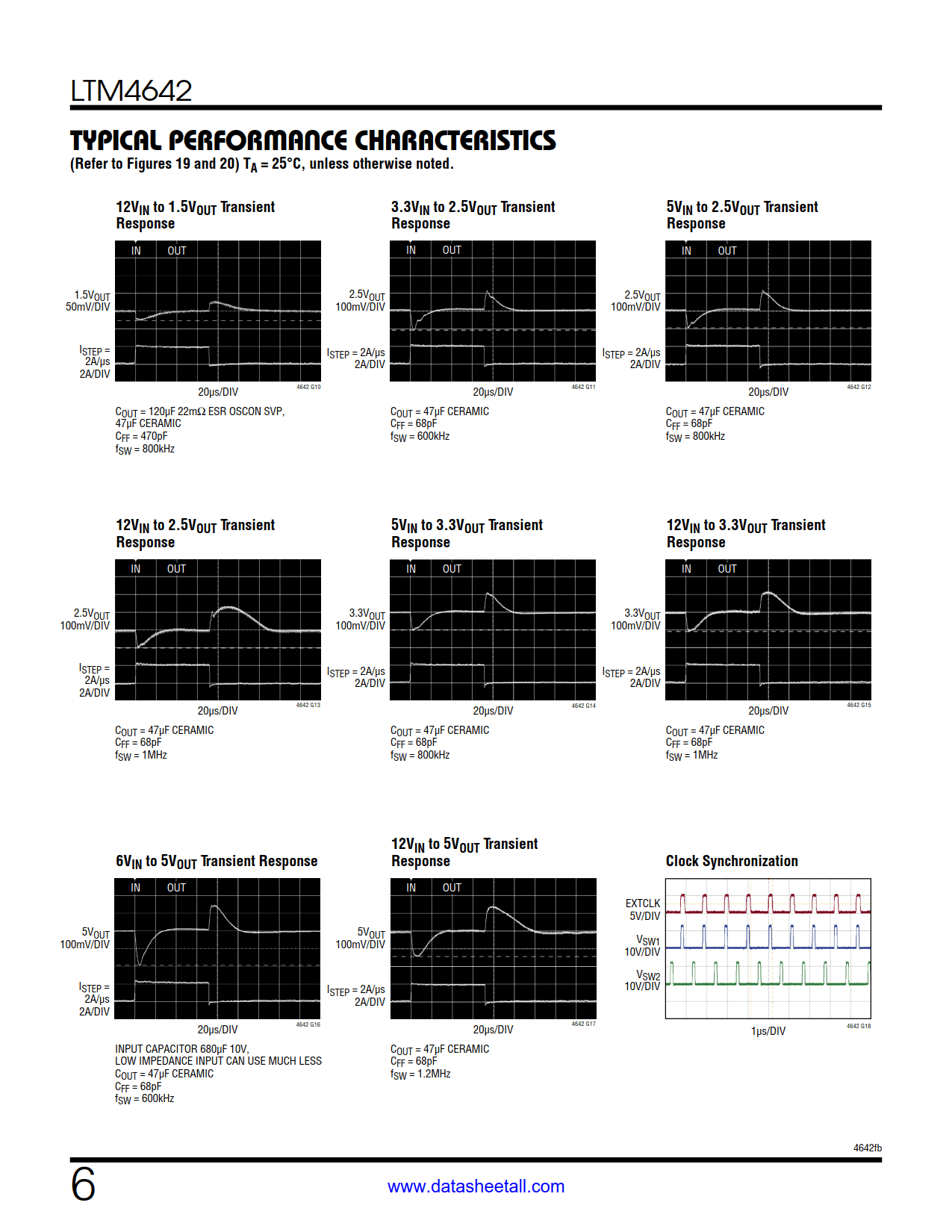

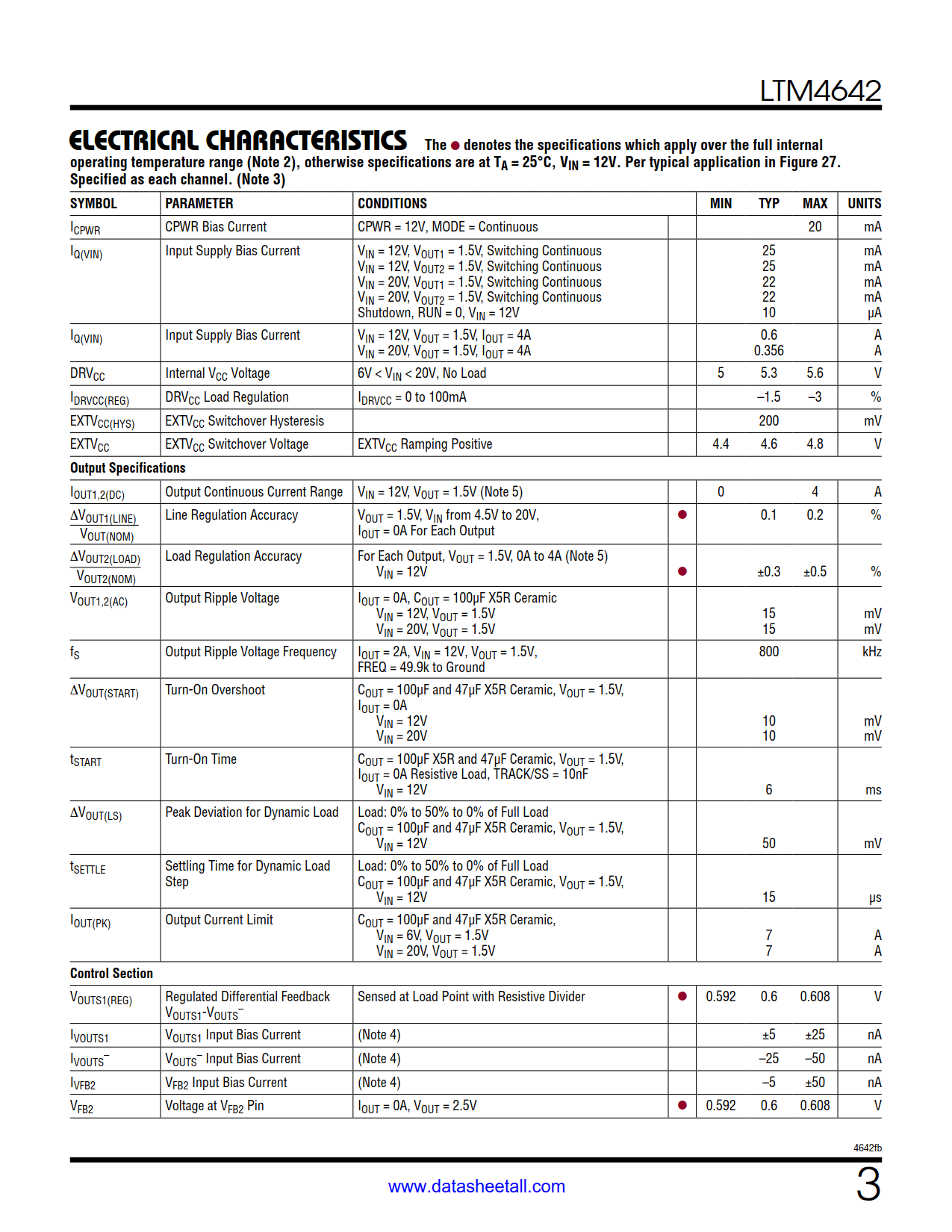

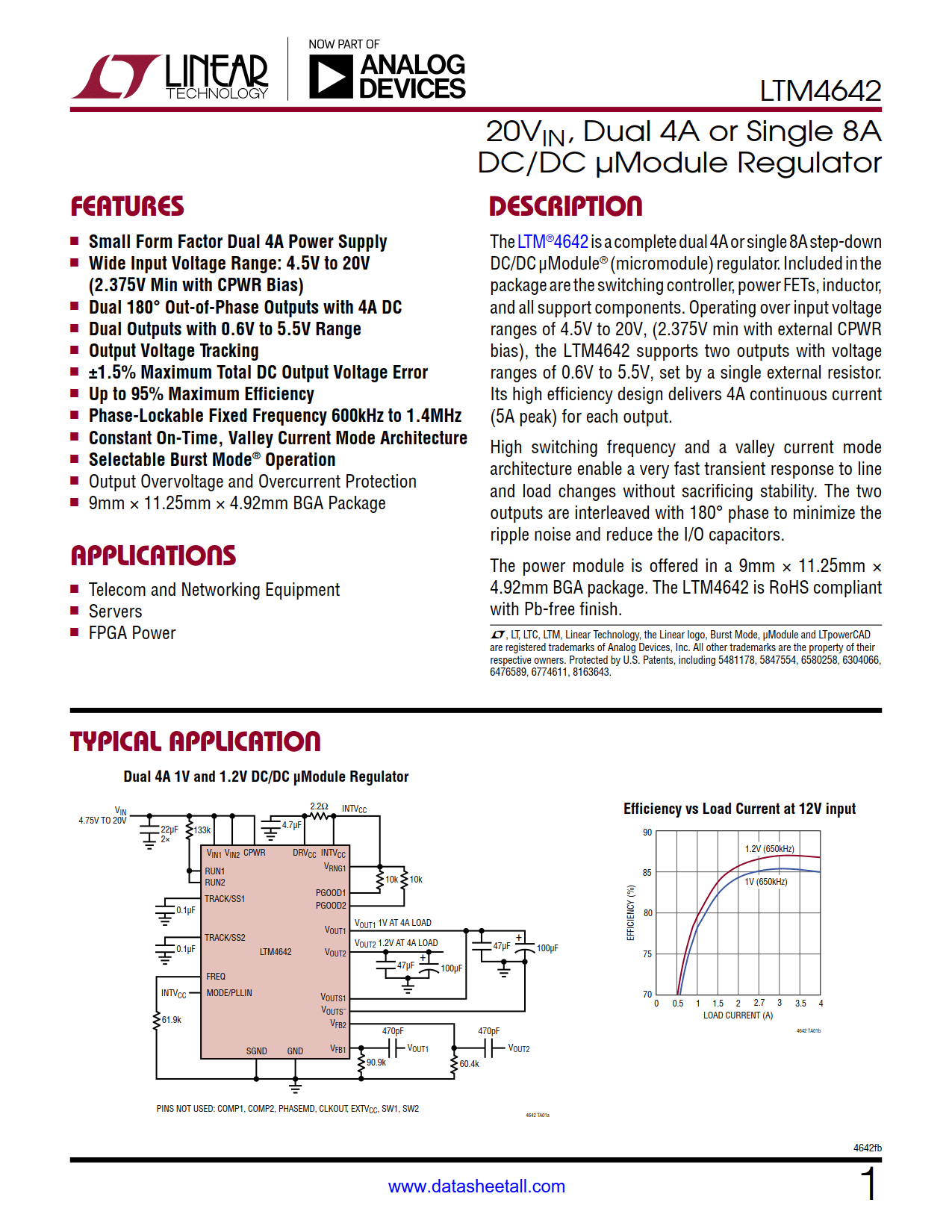

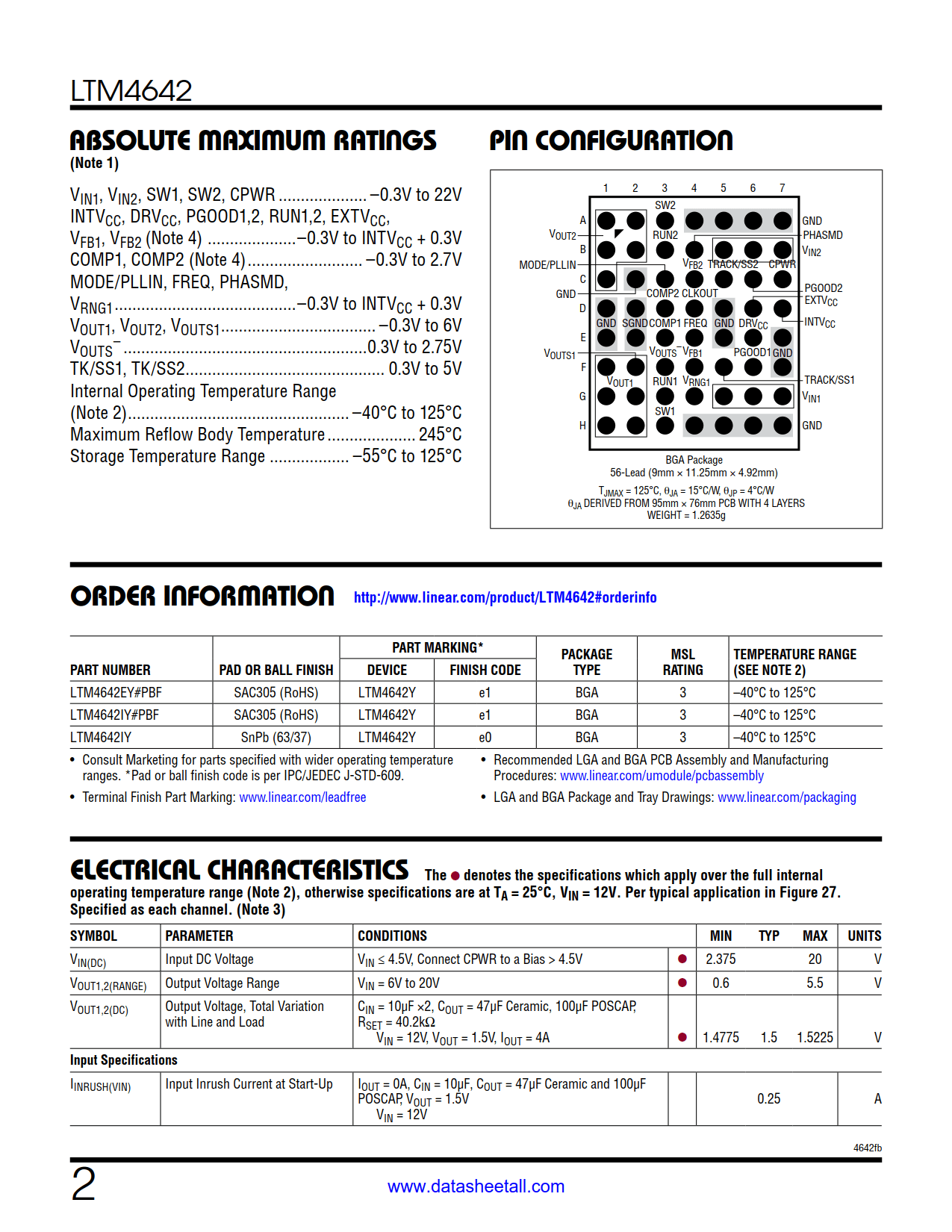

LTM4642 Datasheet(Picture)

LTM4642 Features

  • Small Form Factor Dual 4A Power Supply
  • Wide Input Voltage Range: 4.5V to 20V (2.375V Min with CPWR Bias)
  • Dual 180° Out-of-Phase Outputs with 4A DC
  • Dual Outputs with 0.6V to 5.5V Range
  • Output Voltage Tracking
  • ±1.5% Maximum Total DC Output Voltage Error
  • Up to 95% Maximum Efficiency
  • Phase-Lockable Fixed Frequency 600kHz to 1.4MHz
  • Constant On-Time, Valley Current Mode Architecture
  • Selectable Burst Mode® Operation
  • Output Overvoltage and Overcurrent Protection
  • 9mm × 11.25mm × 4.92mm BGA Package

LTM4642 Applications

  • Telecom and Networking Equipment
  • Servers
  • FPGA Power

LTM4642 Description

The LTM4642 is a complete dual 4A or single 8A step-down DC/DC μModule® (micromodule) regulator. Included in the package are the switching controller, power FETs, inductor, and all support components. Operating over input voltage ranges of 4.5V to 20V, (2.375V min with external CPWR bias), the LTM4642 supports two outputs with voltage ranges of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers 4A continuous current (5A peak) for each output.

High switching frequency and a valley current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The two outputs are interleaved with 180° phase to minimize the ripple noise and reduce the I/O capacitors.

The power module is offered in a 9mm × 11.25mm × 4.92mm BGA package. The LTM4642 is RoHS compliant with Pb-free finish.
