LTM4638 Datasheet

LTM4638 Datasheet

20VIN, 15A Step-Down DC/DC µModule Regulator
Part No.: LTM4638
Page: 30 Pages
Size: 3000 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-09 09:55:41
DataSheet: Download

LTM4638 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4638EY#PBF Tray 260 4638 3 49 -40°C ~ 125°C 49-Lead BGA (6.25mm x 6.25mm x 5.02mm)
LTM4638IY#PBF Tray 260 4638 3 49 -40°C ~ 125°C 49-Lead BGA (6.25mm x 6.25mm x 5.02mm)
LTM4638IY Tray 260 4638 3 49 -40°C ~ 125°C 49-Lead BGA (6.25mm x 6.25mm x 5.02mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4638 Datasheet(PDF)

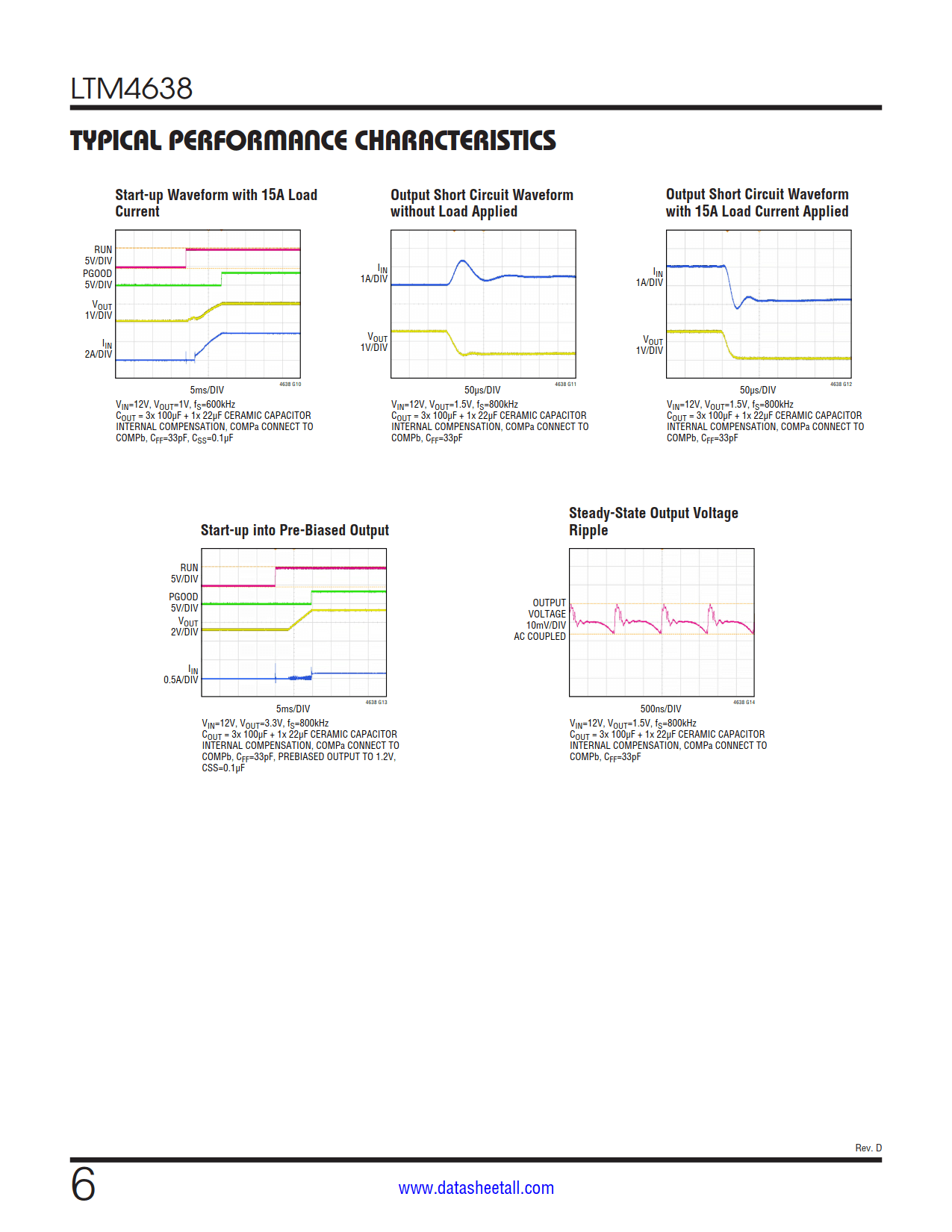

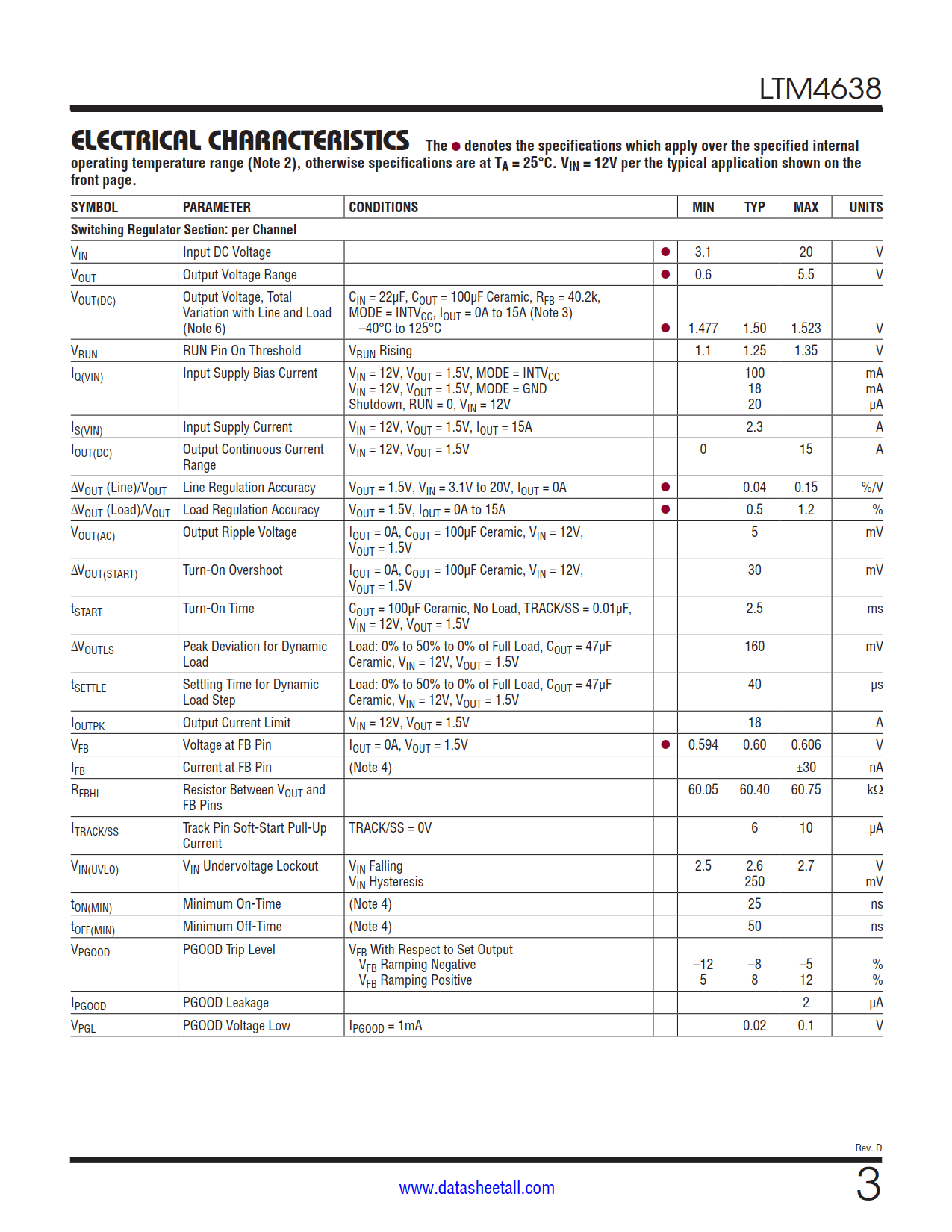

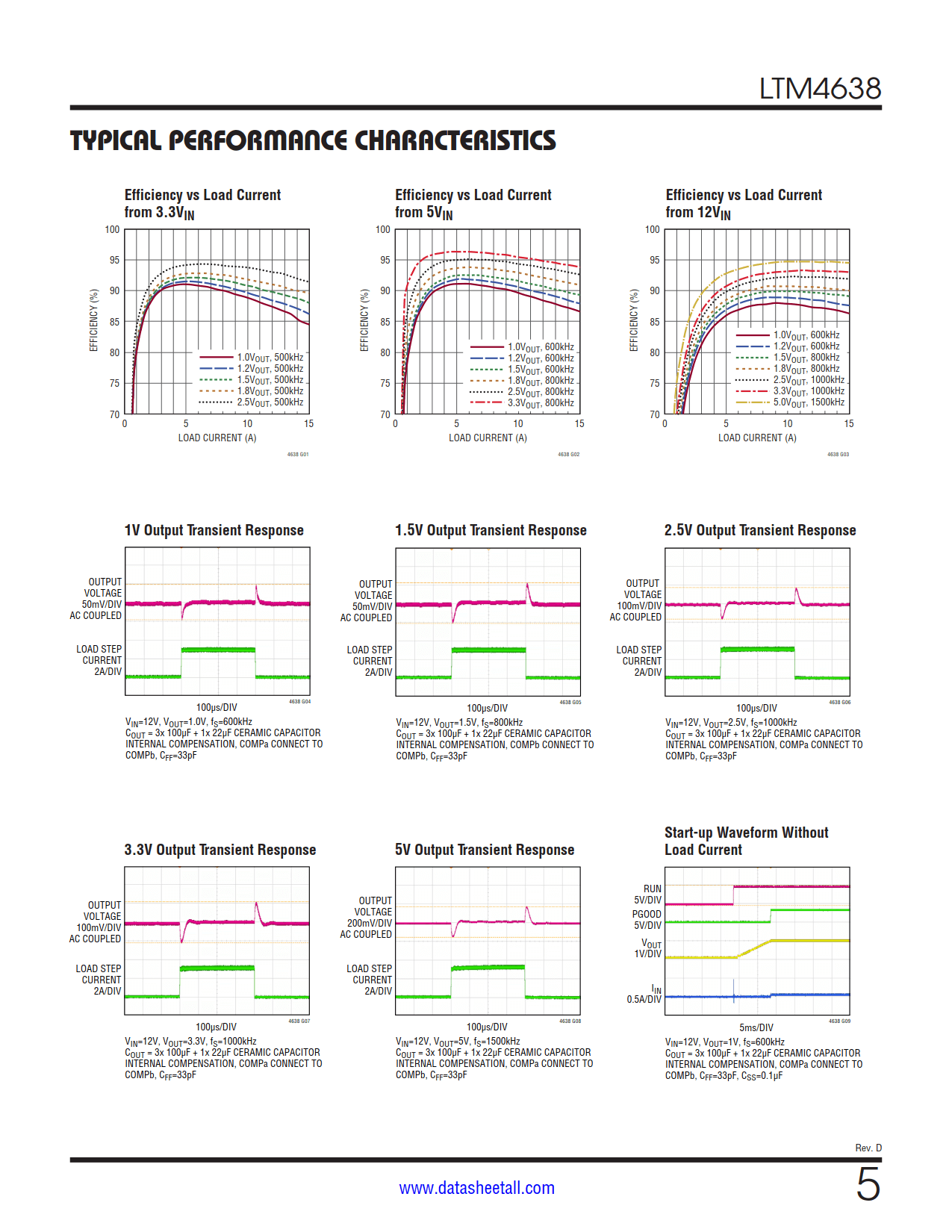

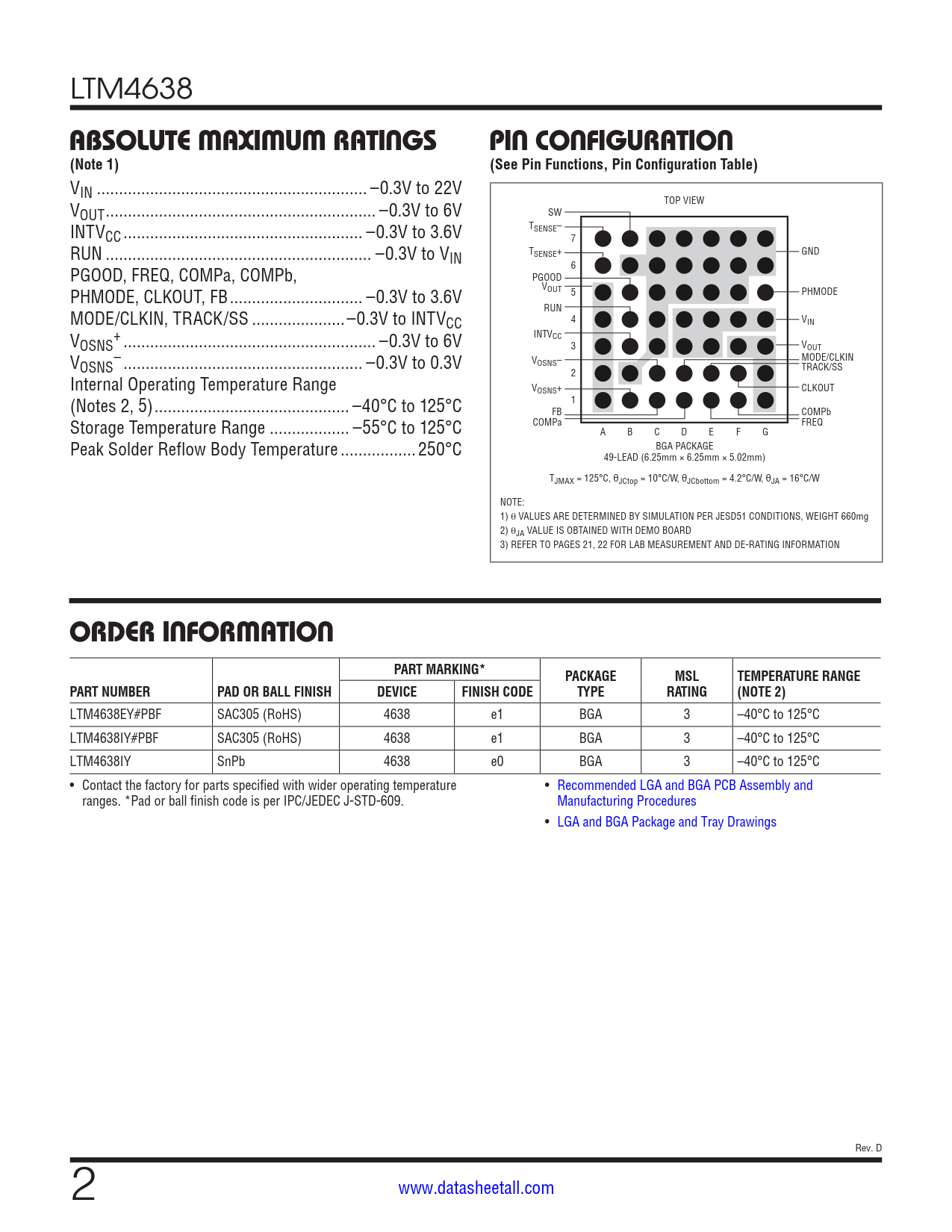

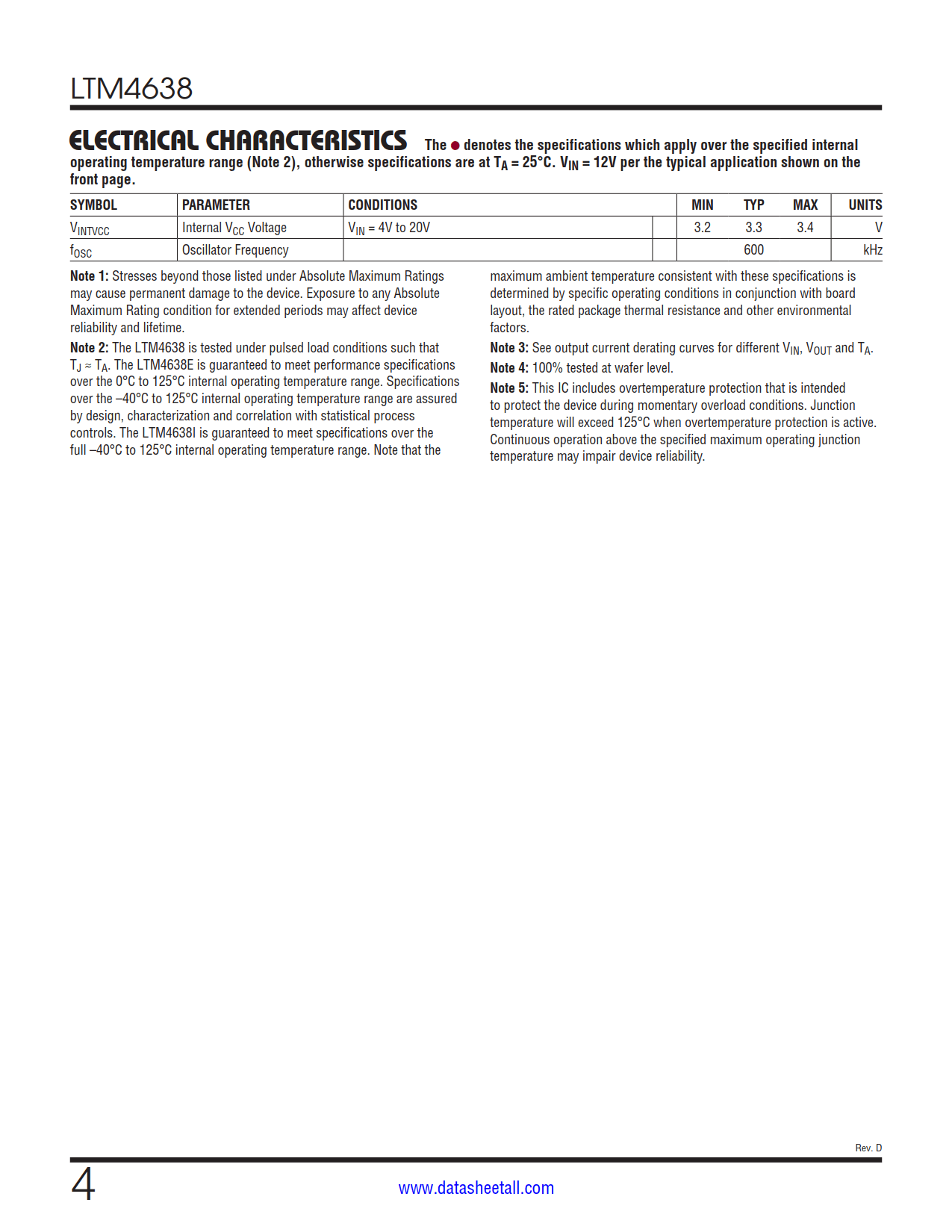

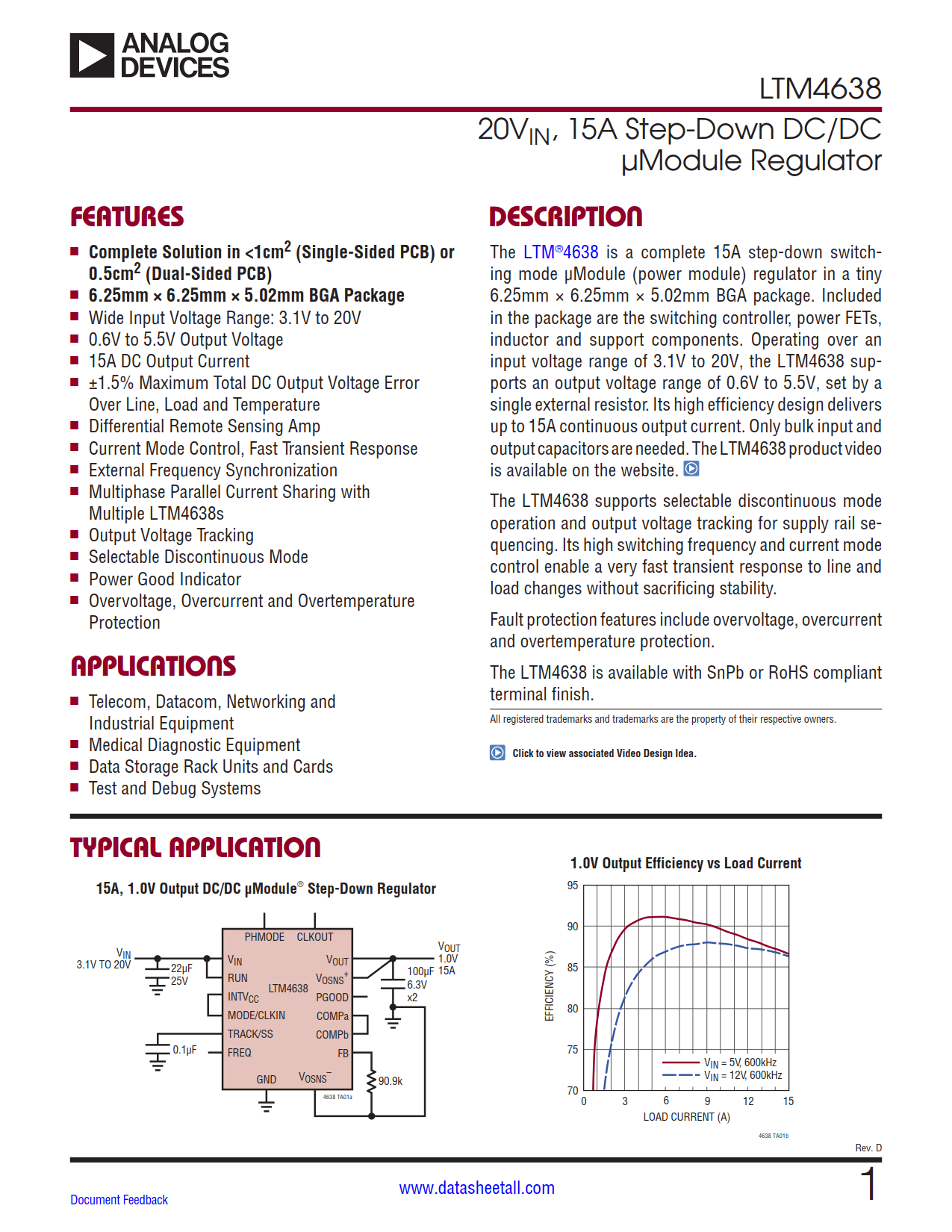

LTM4638 Datasheet(Picture)

LTM4638 Features

  • Complete Solution in <1cm2 (Single-Sided PCB) or 0.5cm2 (Dual-Sided PCB)
  • 6.25mm × 6.25mm × 5.02mm BGA Package
  • Wide Input Voltage Range: 3.1V to 20V
  • 0.6V to 5.5V Output Voltage
  • 15A DC Output Current
  • ±1.5% Maximum Total DC Output Voltage Error Over Line, Load and Temperature
  • Differential Remote Sensing Amp
  • Current Mode Control, Fast Transient Response
  • External Frequency Synchronization
  • Multiphase Parallel Current Sharing with Multiple LTM4638s
  • Output Voltage Tracking
  • Selectable Discontinuous Mode
  • Power Good Indicator
  • Overvoltage, Overcurrent and Overtemperature Protection

LTM4638 Applications

  • Telecom, Datacom, Networking and Industrial Equipment
  • Medical Diagnostic Equipment
  • Data Storage Rack Units and Cards
  • Test and Debug Systems

LTM4638 Description

The LTM4638 is a complete 15A step-down switching mode µModule (power module) regulator in a tiny 6.25mm × 6.25mm × 5.02mm BGA package. Included in the package are the switching controller, power FETs, inductor and support components. Operating over an input voltage range of 3.1V to 20V, the LTM4638 supports an output voltage range of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers up to 15A continuous output current. Only bulk input and output capacitors are needed.

The LTM4638 supports selectable discontinuous mode operation and output voltage tracking for supply rail sequencing. Its high switching frequency and current mode control enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include overvoltage, overcurrent and overtemperature protection.

The LTM4638 is available with SnPb or RoHS compliant terminal finish.
