LTM4636 Datasheet

LTM4636 Datasheet

40A DC/DC μModule Regulator
Part No.: LTM4636
Page: 36 Pages
Size: 1057 KB
Manufacturer: Linear Technology
Logo:
Views: 0
Update Time: 2024-12-11 21:58:38
DataSheet: Download

LTM4636 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4636EY#PBF Tray 90 LTM4636 3 144 -40°C ~ 125°C 144-Lead BGA (16mm x 16mm x 7.07mm)
LTM4636IY#PBF Tray 90 LTM4636 3 144 -40°C ~ 125°C 144-Lead BGA (16mm x 16mm x 7.07mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4636 Datasheet(PDF)

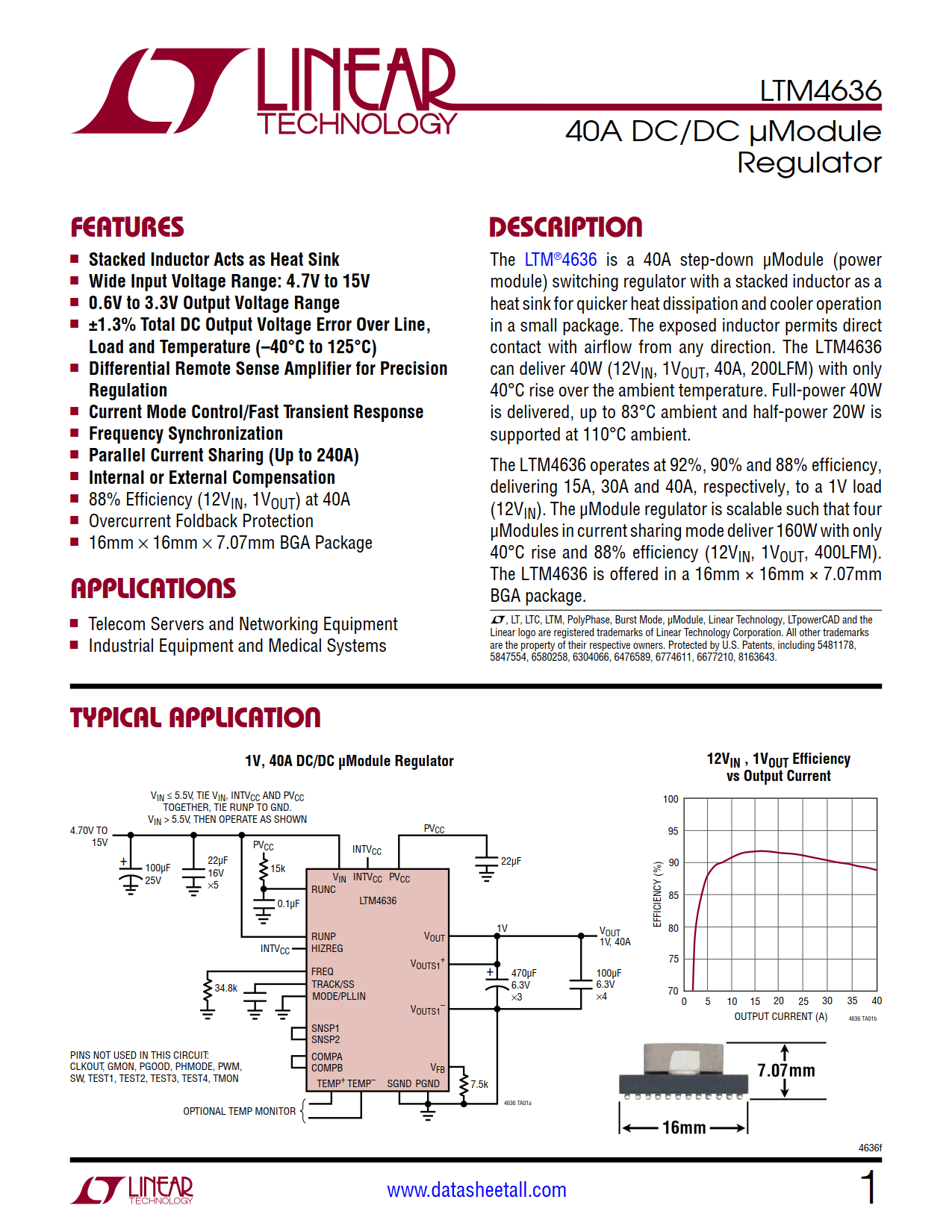

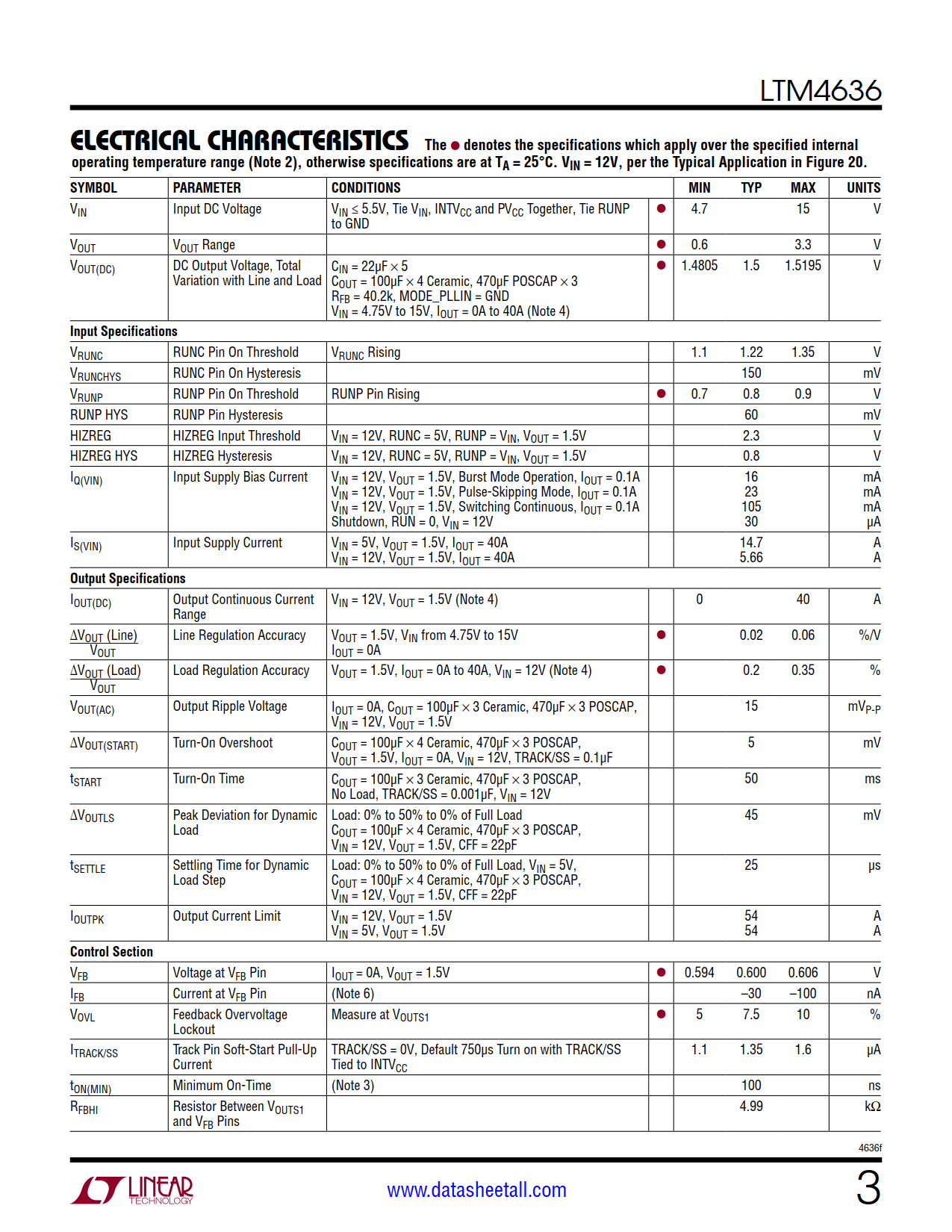

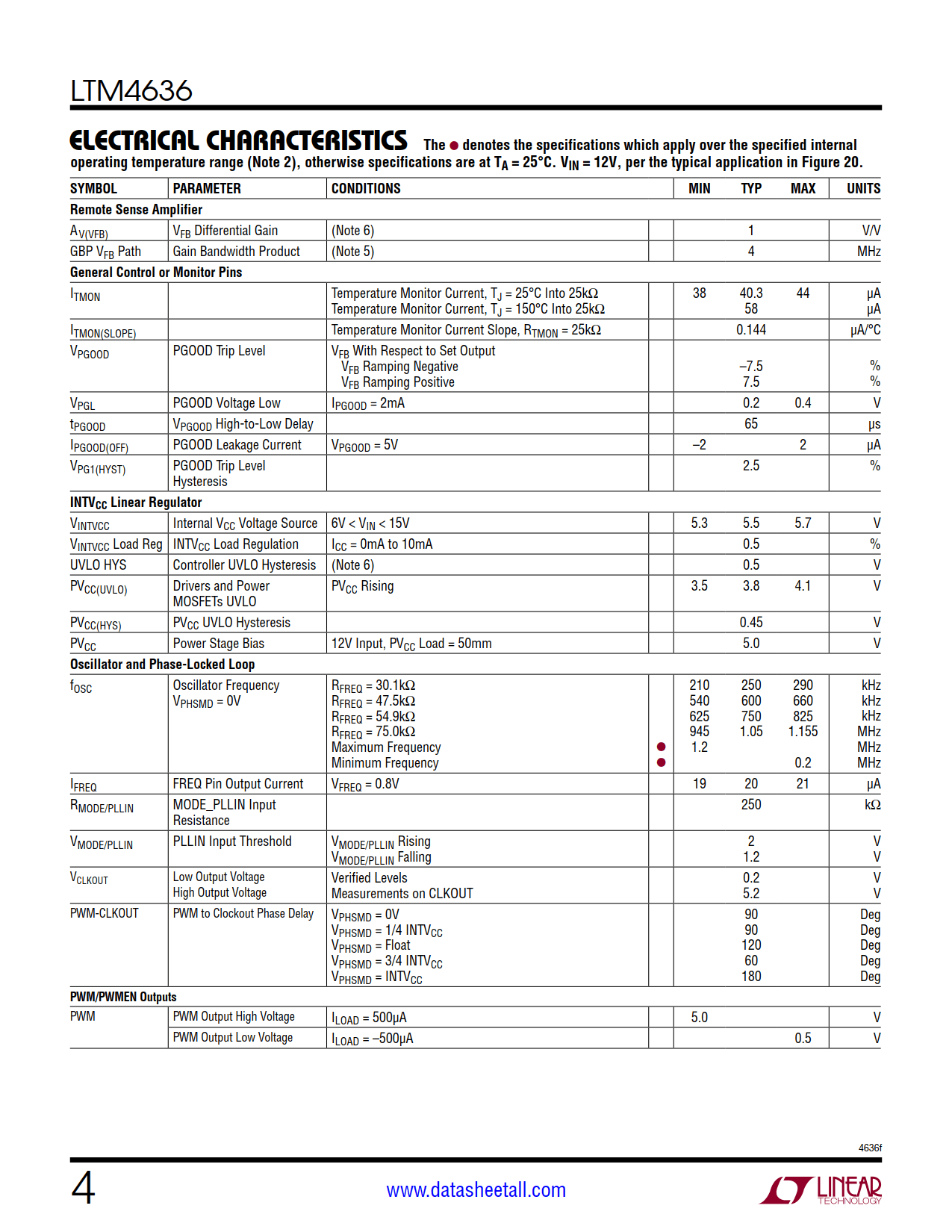

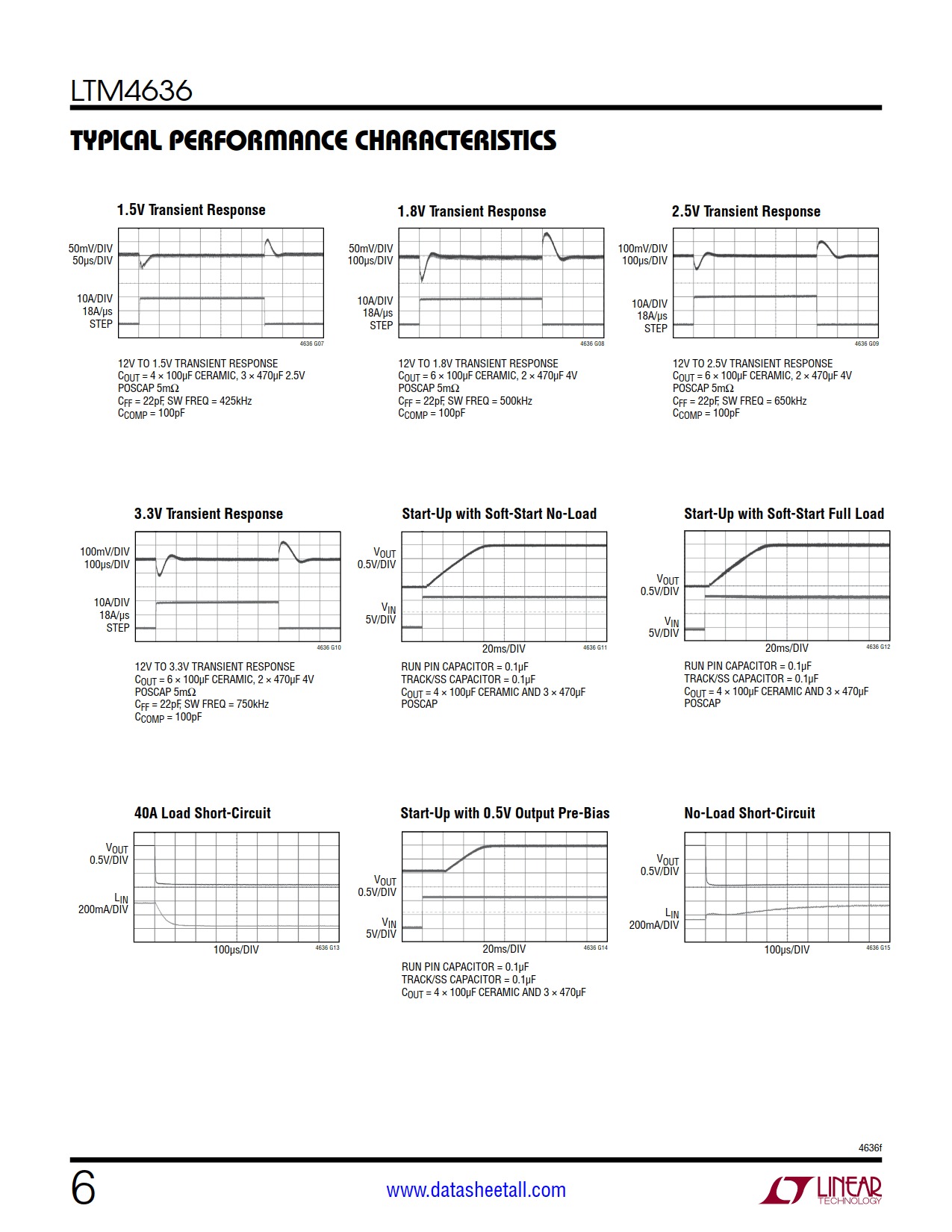

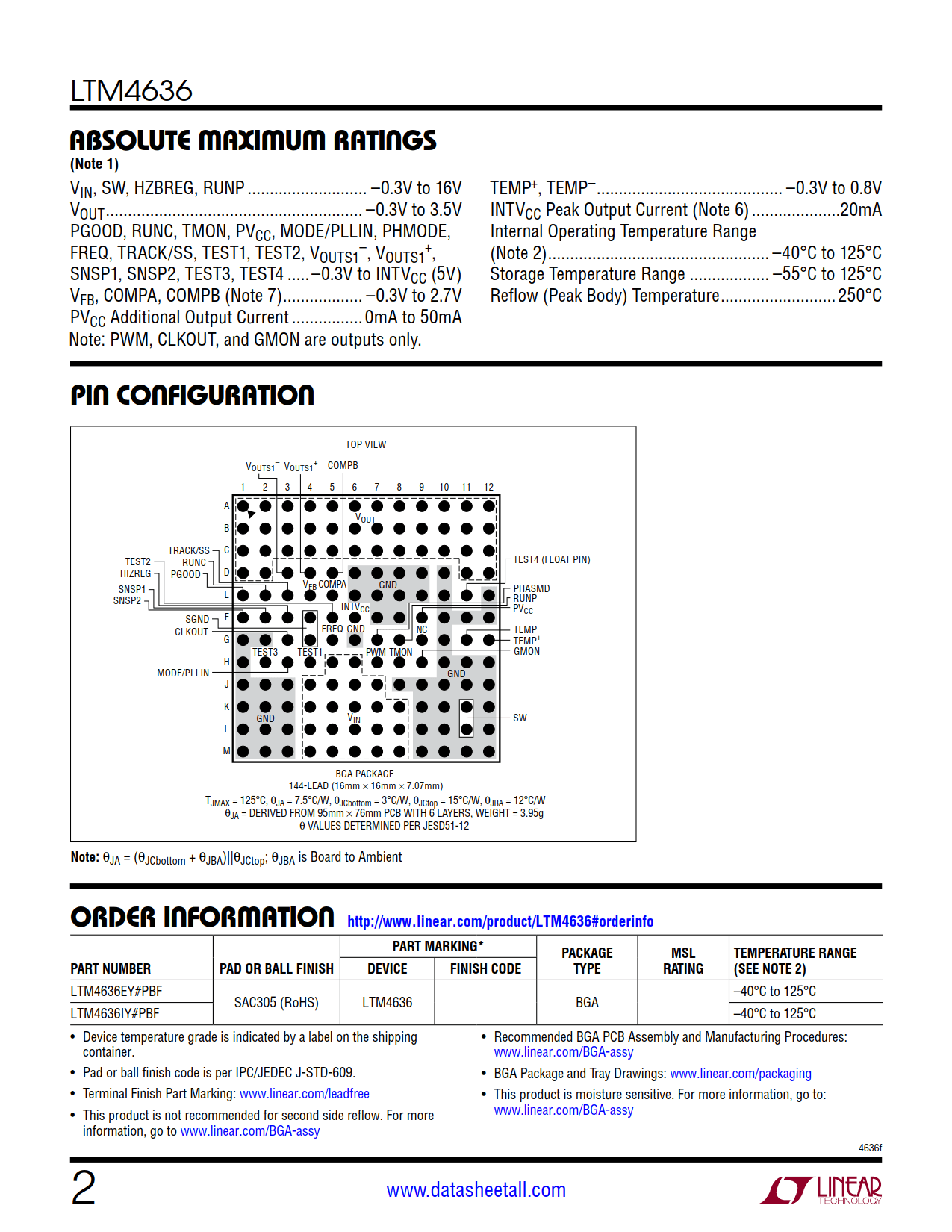

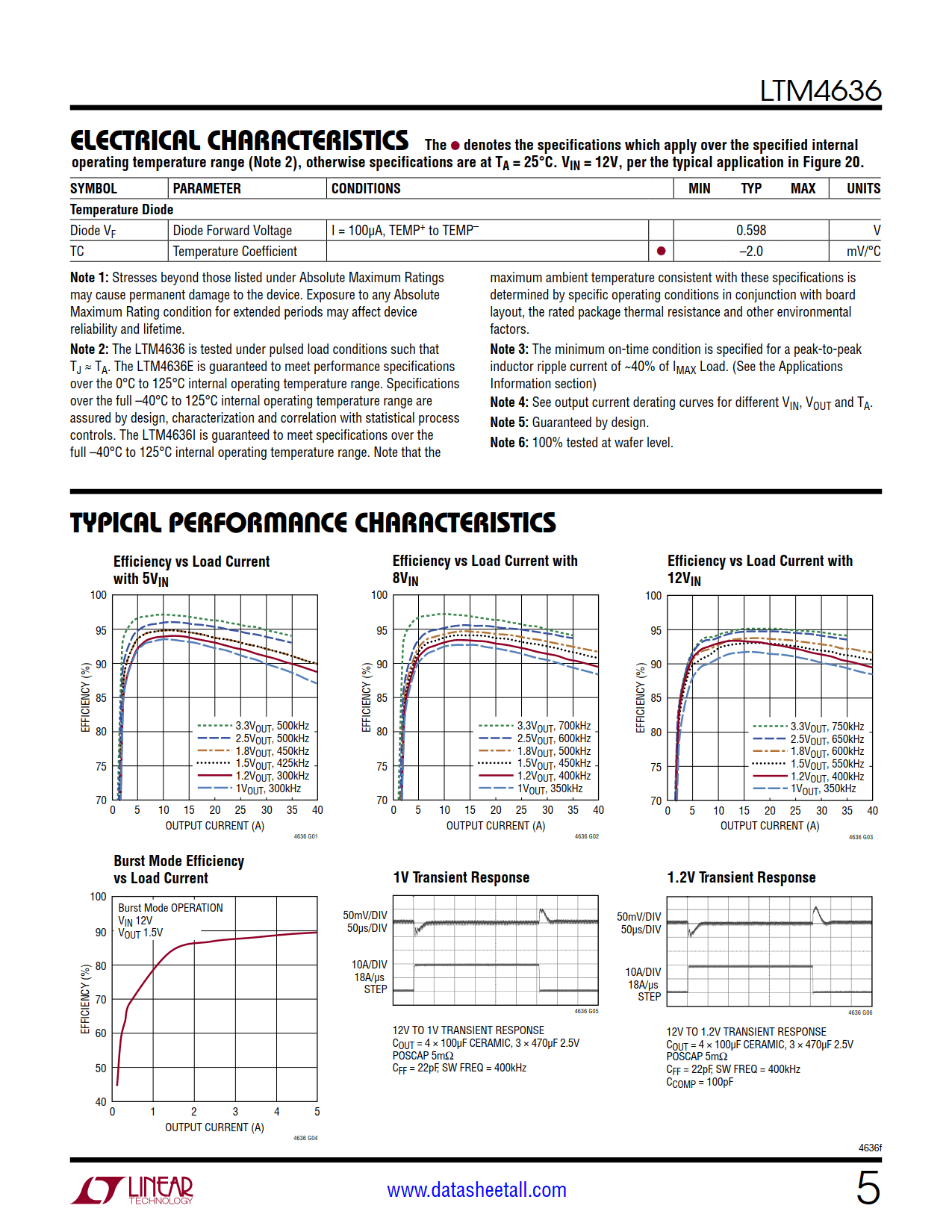

LTM4636 Datasheet(Picture)

LTM4636 Features

  • Stacked Inductor Acts as Heat Sink
  • Wide Input Voltage Range: 4.7V to 15V
  • 0.6V to 3.3V Output Voltage Range
  • ±1.3% Total DC Output Voltage Error Over Line, Load and Temperature (–40°C to 125°C)
  • Differential Remote Sense Amplifier for Precision Regulation
  • Current Mode Control/Fast Transient Response
  • Frequency Synchronization
  • Parallel Current Sharing (Up to 240A)
  • Internal or External Compensation
  • 88% Efficiency (12VIN, 1VOUT) at 40A
  • Overcurrent Foldback Protection
  • 16mm × 16mm × 7.07mm BGA Package

LTM4636 Applications

  • Telecom Servers and Networking Equipment
  • Industrial Equipment and Medical Systems

LTM4636 Description

The LTM4636 is a 40A step-down μModule (power module) switching regulator with a stacked inductor as a heat sink for quicker heat dissipation and cooler operation in a small package. The exposed inductor permits direct contact with airflow from any direction. The LTM4636 can deliver 40W (12VIN, 1VOUT, 40A, 200LFM) with only 40°C rise over the ambient temperature. Full-power 40W is delivered, up to 83°C ambient and half-power 20W is supported at 110°C ambient.

The LTM4636 operates at 92%, 90% and 88% efficiency, delivering 15A, 30A and 40A, respectively, to a 1V load (12VIN). The μModule regulator is scalable such that four μModules in current sharing mode deliver 160W with only 40°C rise and 88% efficiency (12VIN, 1VOUT, 400LFM). The LTM4636 is offered in a 16mm × 16mm × 7.07mm BGA package.
