Ultrathin Dual 10A or Single 20A DC/DC μModule Regulator
Part No.: LTM4631
Page: 34 Pages
Size: 869 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-08 15:29:28
DataSheet: Download

LTM4631 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4631EV#PBF Tray 90 LTM4631V 3 144 -40°C ~ 125°C 144-Lead LGA (16mm x 16mm x 1.91mm)
LTM4631IV#PBF Tray 90 LTM4631V 3 144 -40°C ~ 125°C 144-Lead LGA (16mm x 16mm x 1.91mm)
LTM4631EY#PBF Tray 90 LTM4631Y 3 144 -40°C ~ 125°C 144-Lead BGA (16mm x 16mm x 2.51mm)
LTM4631IY#PBF Tray 90 LTM4631Y 3 144 -40°C ~ 125°C 144-Lead BGA (16mm x 16mm x 2.51mm)
LTM4631IY Tray 90 LTM4631Y 3 144 -40°C ~ 125°C 144-Lead BGA (16mm x 16mm x 2.51mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4631 Datasheet(PDF)

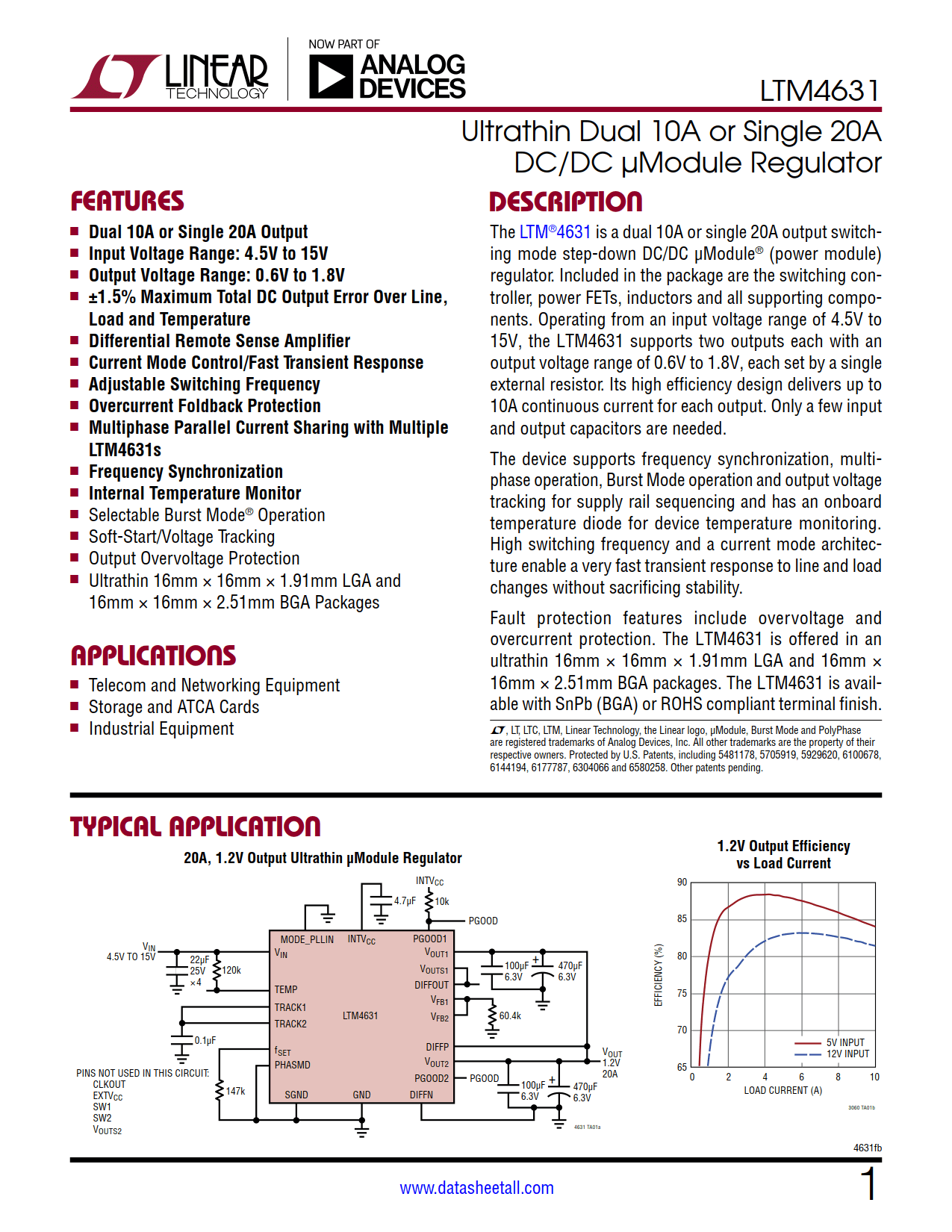

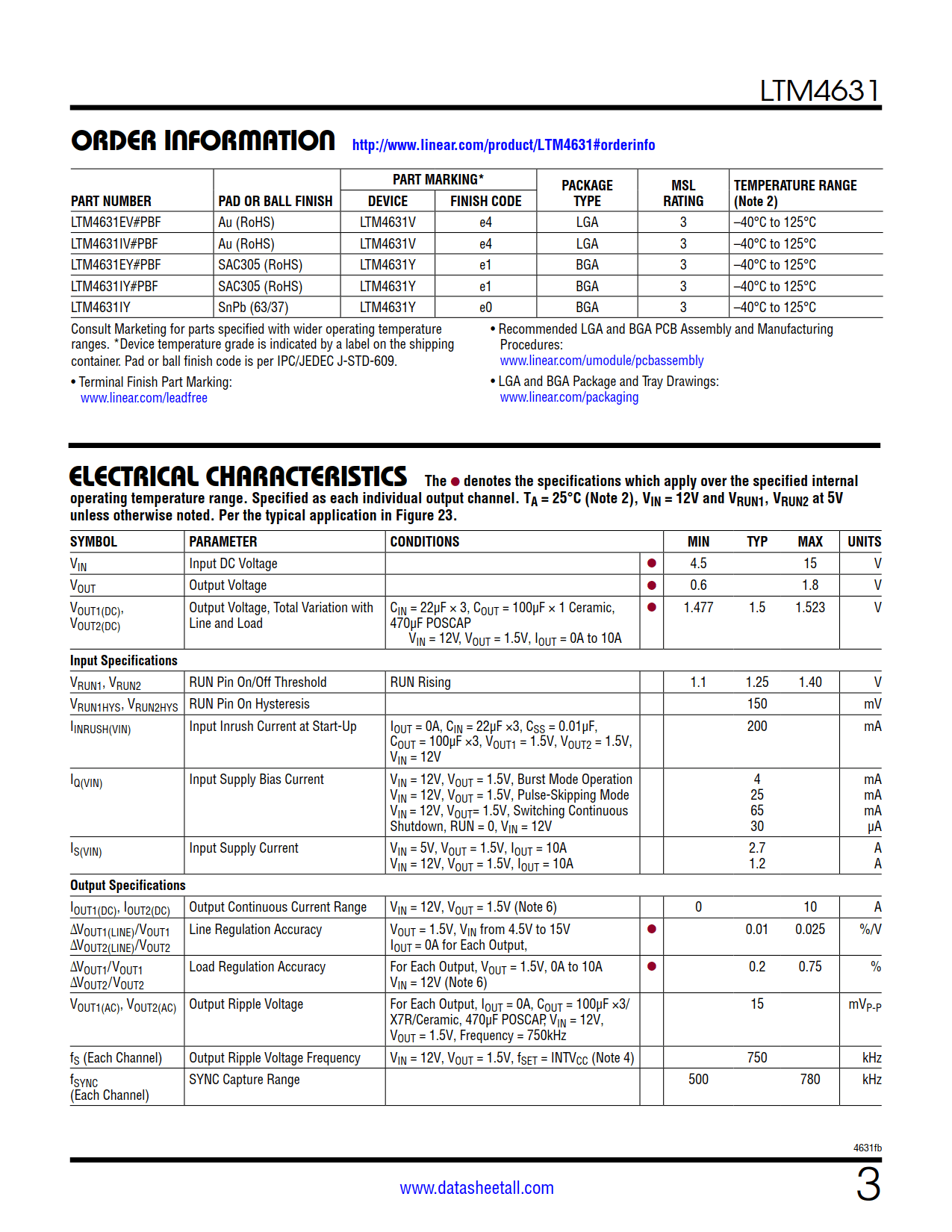

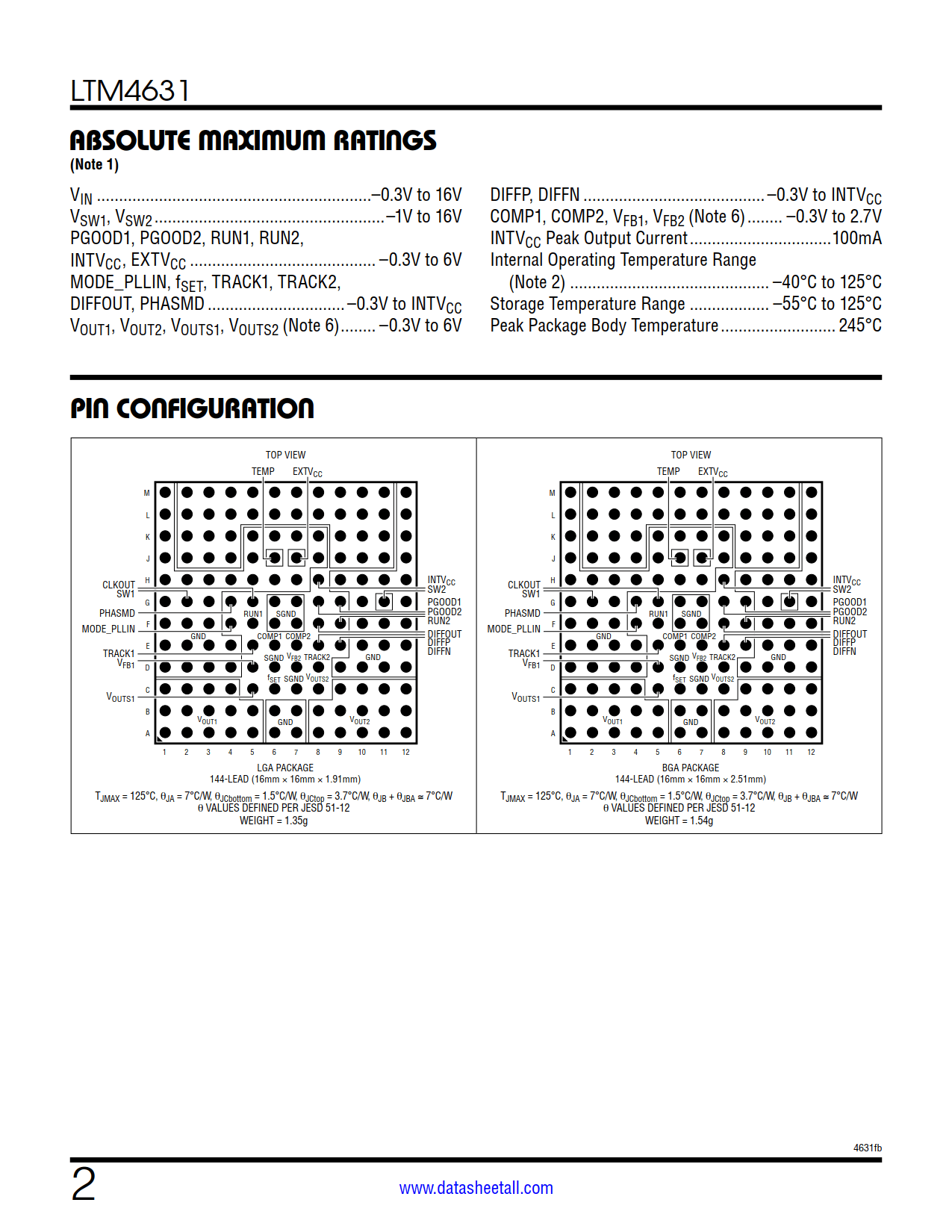

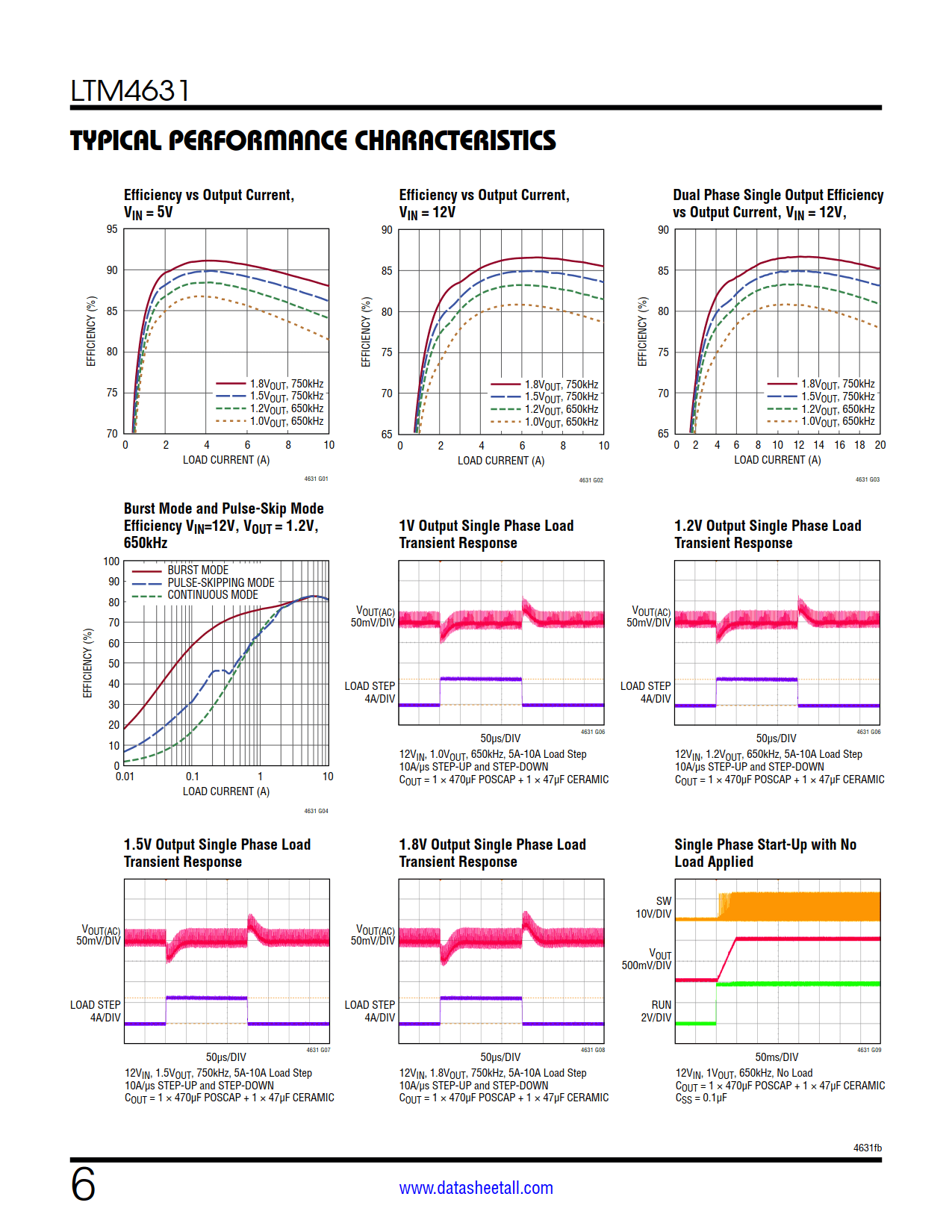

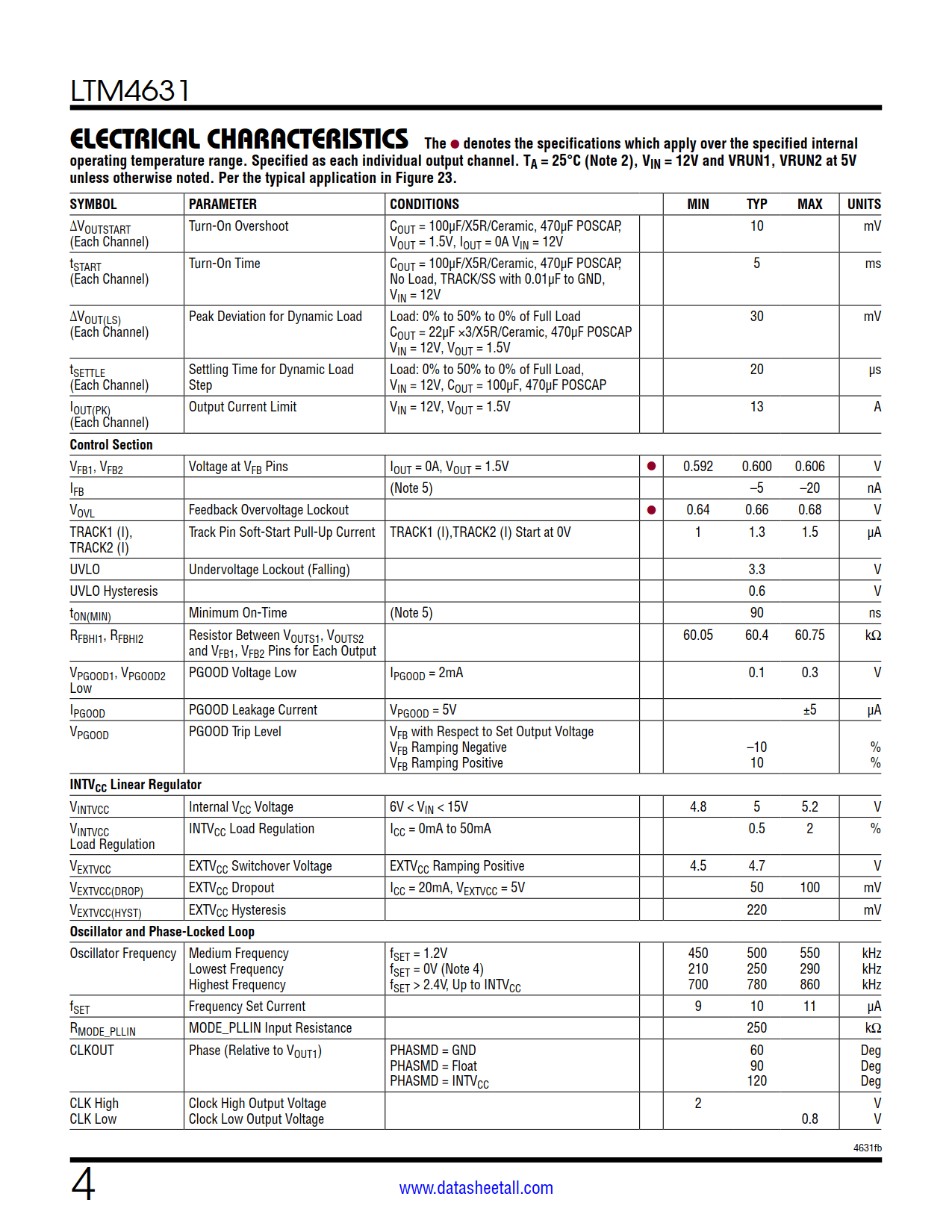

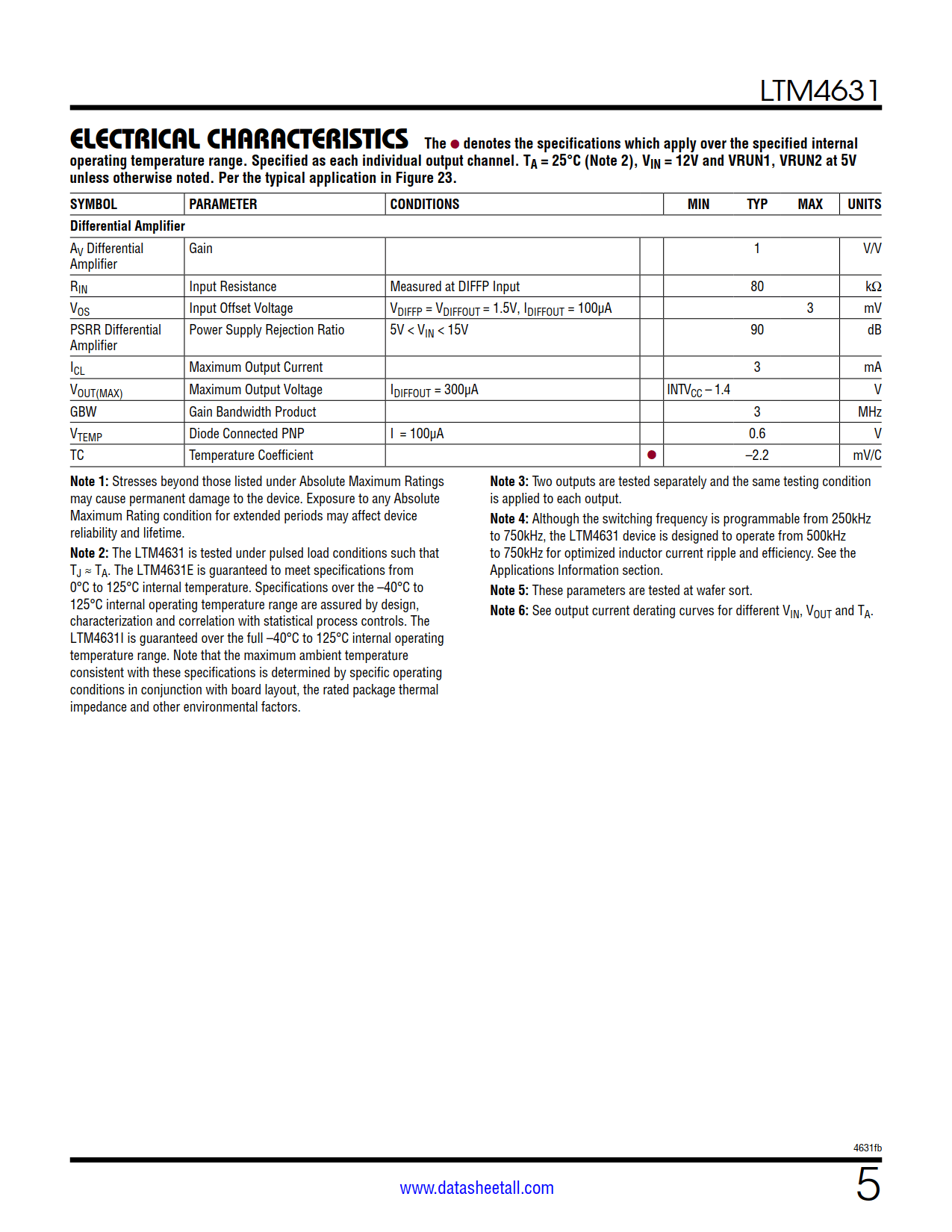

LTM4631 Datasheet(Picture)

LTM4631 Features

  • Dual 10A or Single 20A Output
  • Input Voltage Range: 4.5V to 15V
  • Output Voltage Range: 0.6V to 1.8V
  • ±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
  • Differential Remote Sense Amplifier
  • Current Mode Control/Fast Transient Response
  • Adjustable Switching Frequency
  • Overcurrent Foldback Protection
  • Multiphase Parallel Current Sharing with Multiple LTM4631s
  • Frequency Synchronization
  • Internal Temperature Monitor
  • Selectable Burst Mode® Operation
  • Soft-Start/Voltage Tracking
  • Output Overvoltage Protection
  • Ultrathin 16mm × 16mm × 1.91mm LGA and 16mm x 16mm x 2.51mm BGA Packages

LTM4631 Applications

  • Telecom and Networking Equipment
  • Storage and ATCA Cards
  • Industrial Equipment

LTM4631 Description

The LTM4631 is a dual 10A or single 20A output switching mode step-down DC/DC μModule® (power module) regulator. Included in the package are the switching controller, power FETs, inductors and all supporting components. Operating from an input voltage range of 4.5V to 15V, the LTM4631 supports two outputs each with an output voltage range of 0.6V to 1.8V, each set by a single external resistor. Its high efficiency design delivers up to 10A continuous current for each output. Only a few input and output capacitors are needed.

The device supports frequency synchronization, multiphase operation, Burst Mode operation and output voltage tracking for supply rail sequencing and has an onboard temperature diode for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include overvoltage and overcurrent protection. The LTM4631 is offered in an ultrathin 16mm × 16mm × 1.91mm LGA and 16mm x 16mm x 2.51mm BGA packages. The LTM4631 is available with SnPb (BGA) or ROHS compliant terminal finish.
