Dual 18A or Single 36A DC/DC μModule (Power Module) Regulator
Part No.: LTM4630
Page: 34 Pages
Size: 2830 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-07 15:03:47
DataSheet: Download

LTM4630 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4630EV#PBF Tray 90 LTM4630V 3 144 -40°C ~ 125°C 144-Lead LGA (16mm x 16mm x 4.41mm)
LTM4630IV#PBF Tray 90 LTM4630V 3 144 -40°C ~ 125°C 144-Lead LGA (16mm x 16mm x 4.41mm)
LTM4630EY#PBF Tray 90 LTM4630Y 3 144 -40°C ~ 125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
LTM4630IY#PBF Tray 90 LTM4630Y 3 144 -40°C ~ 125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
LTM4630IY Tray 90 LTM4630Y 3 144 -40°C ~ 125°C 144-Lead BGA (16mm x 16mm x 5.01mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4630 Datasheet(PDF)

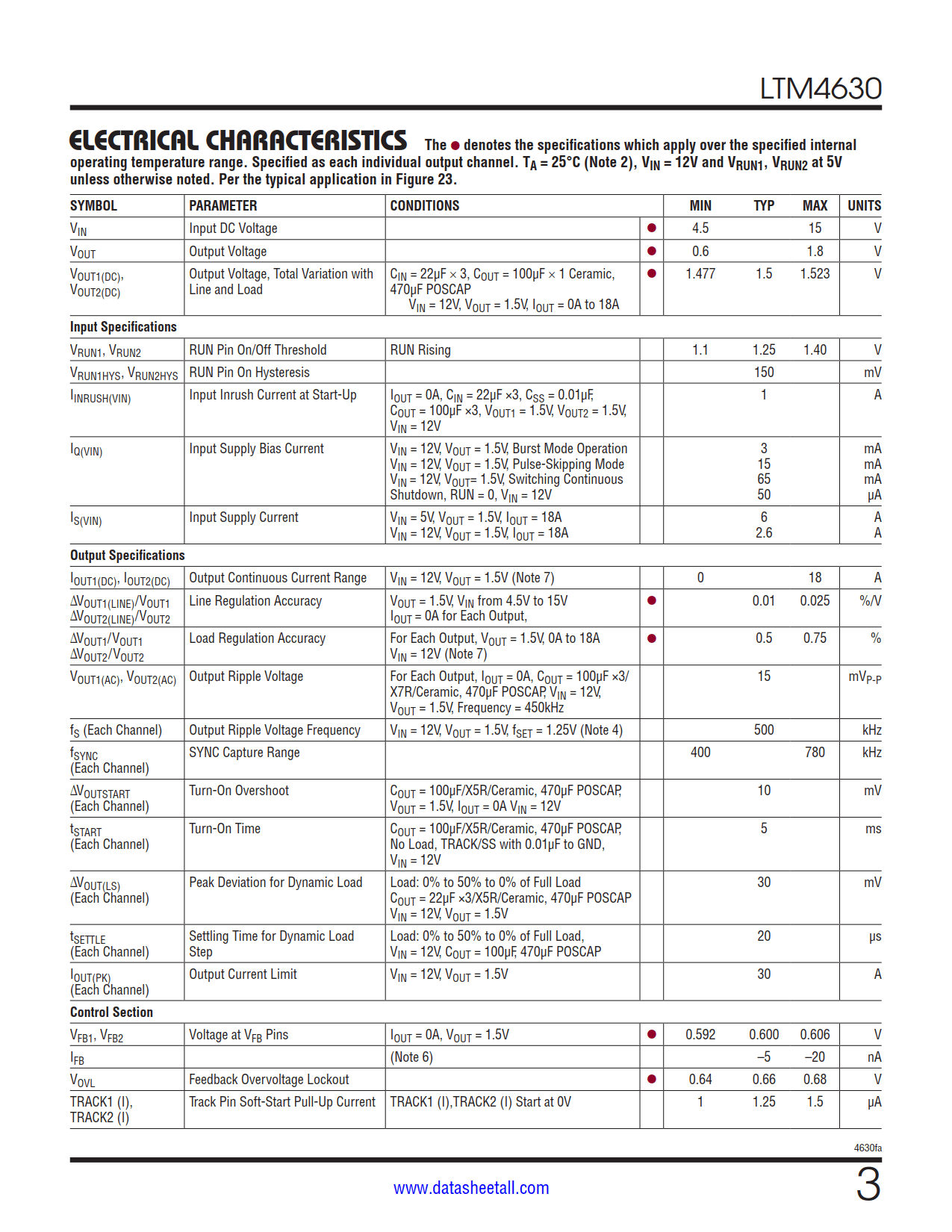

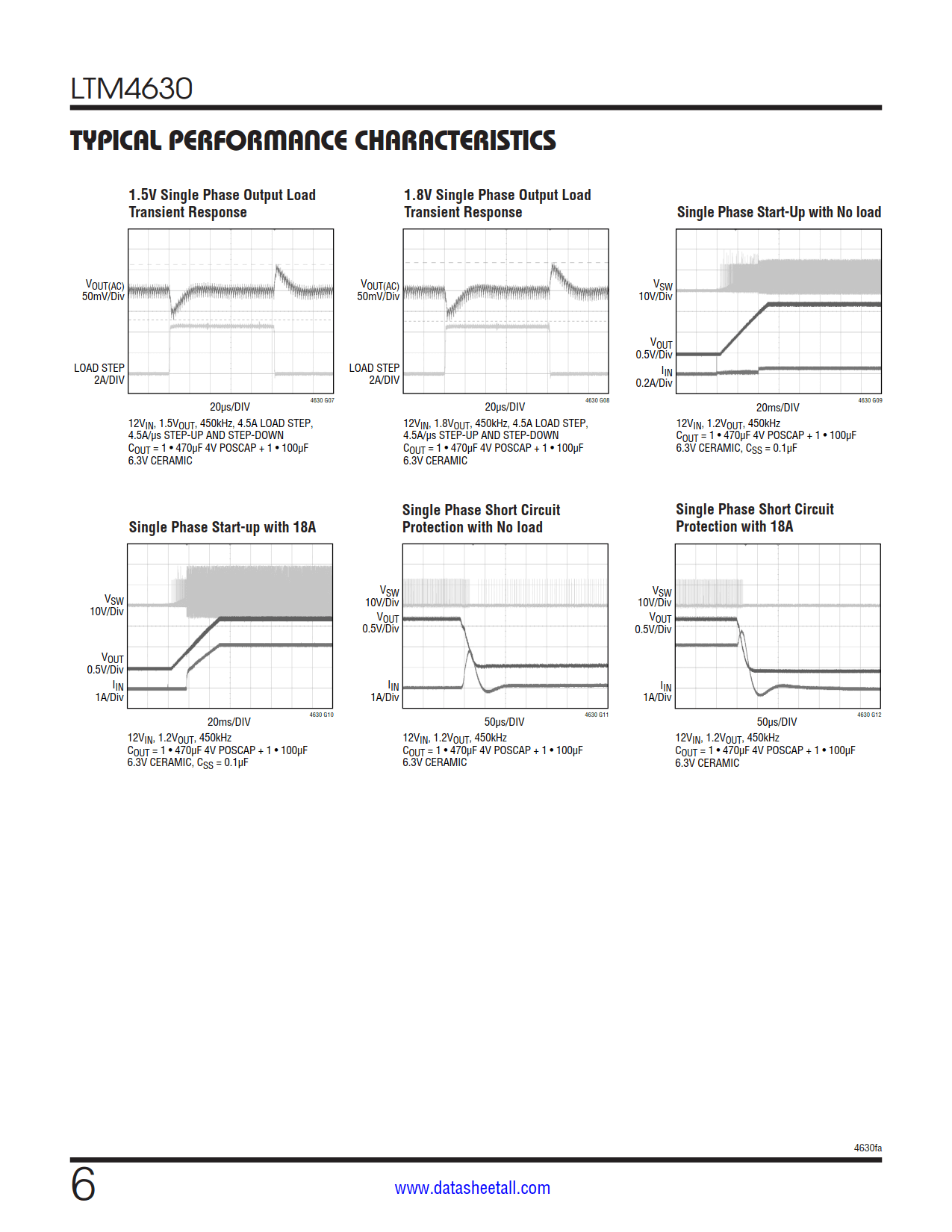

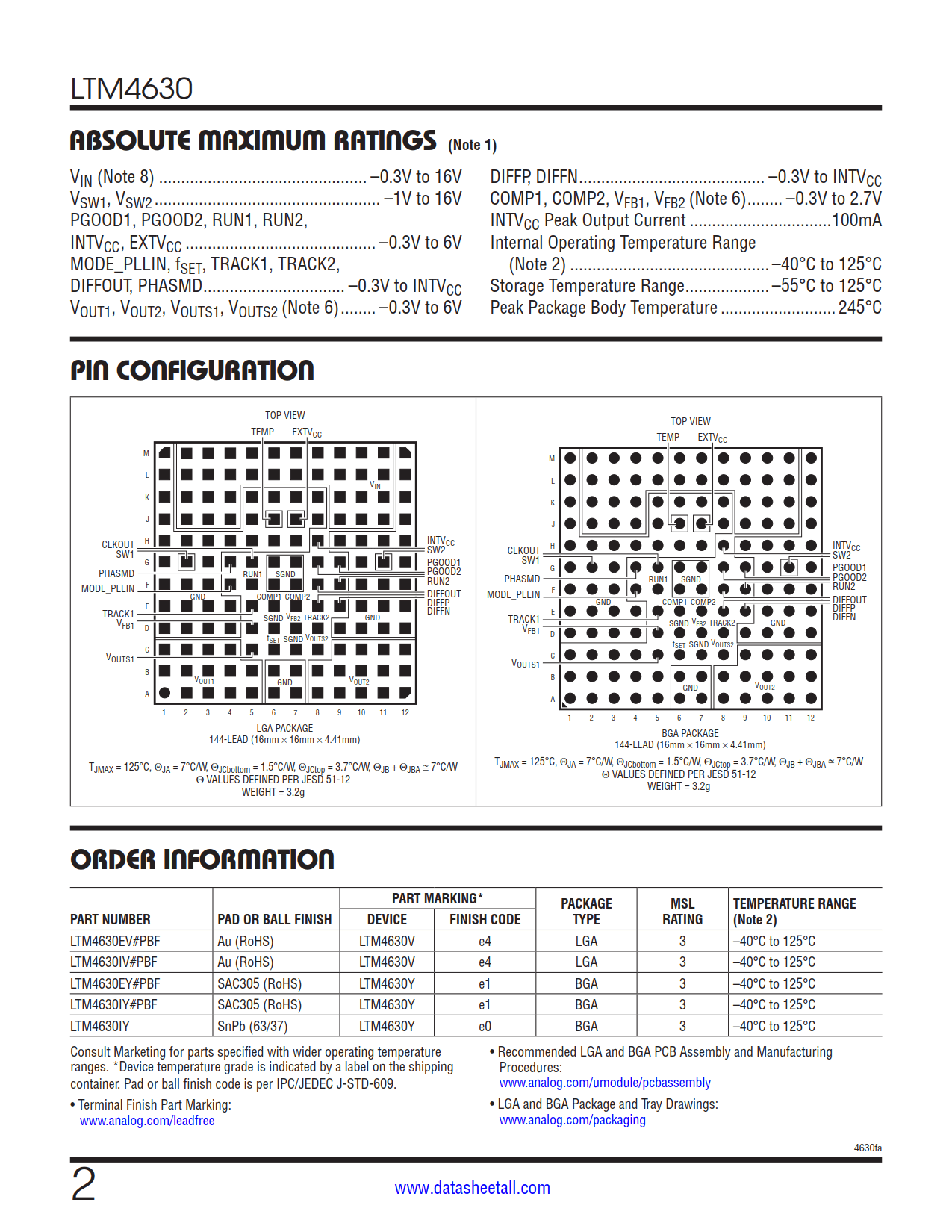

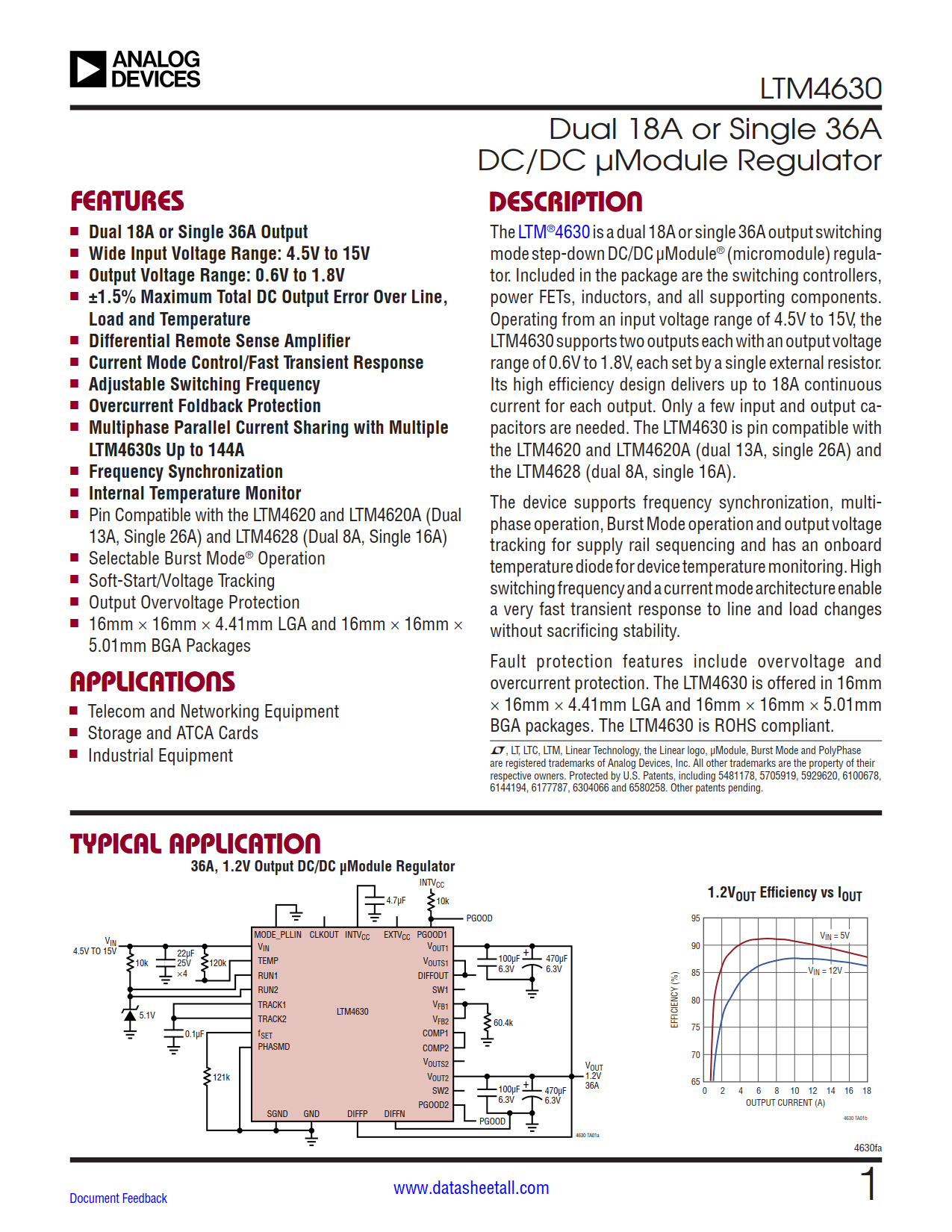

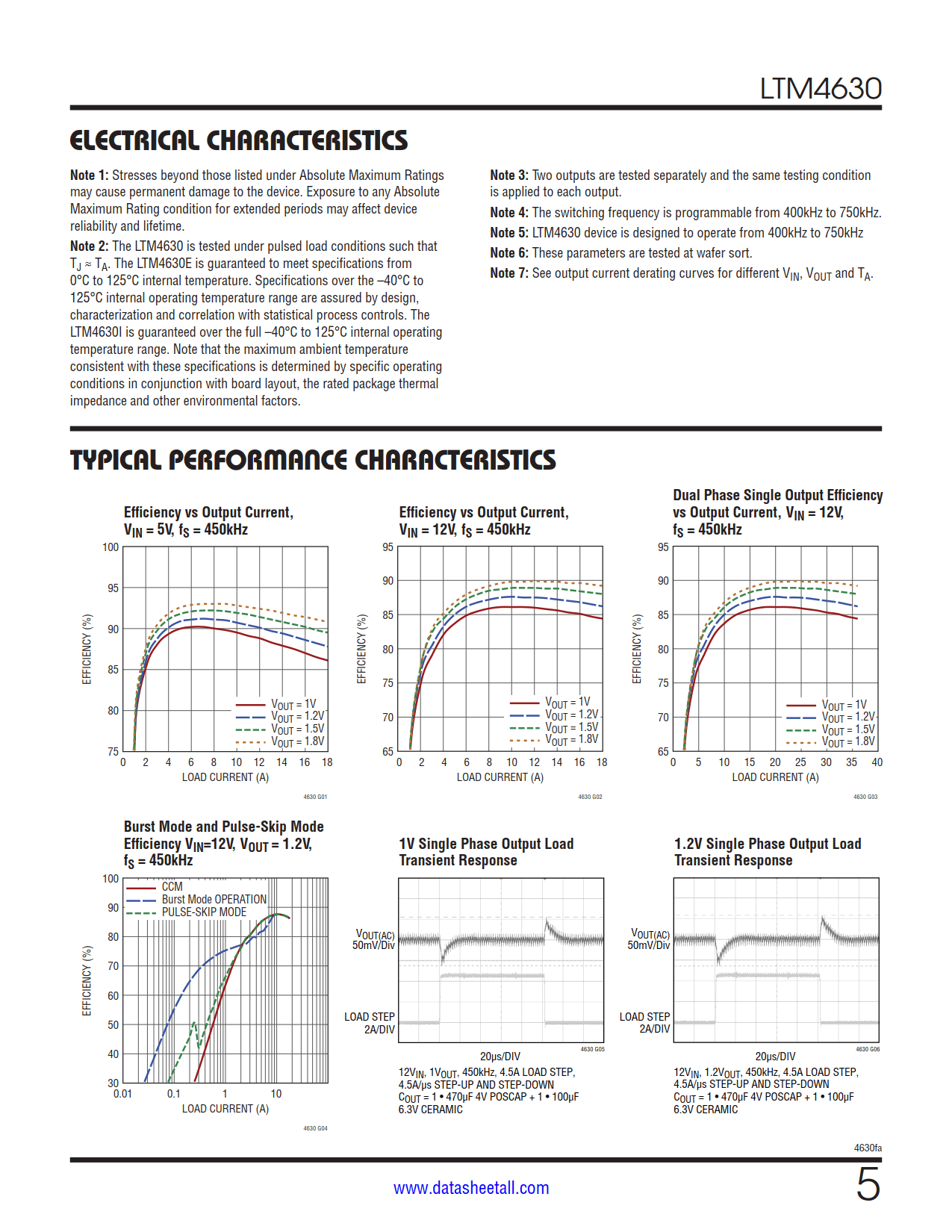

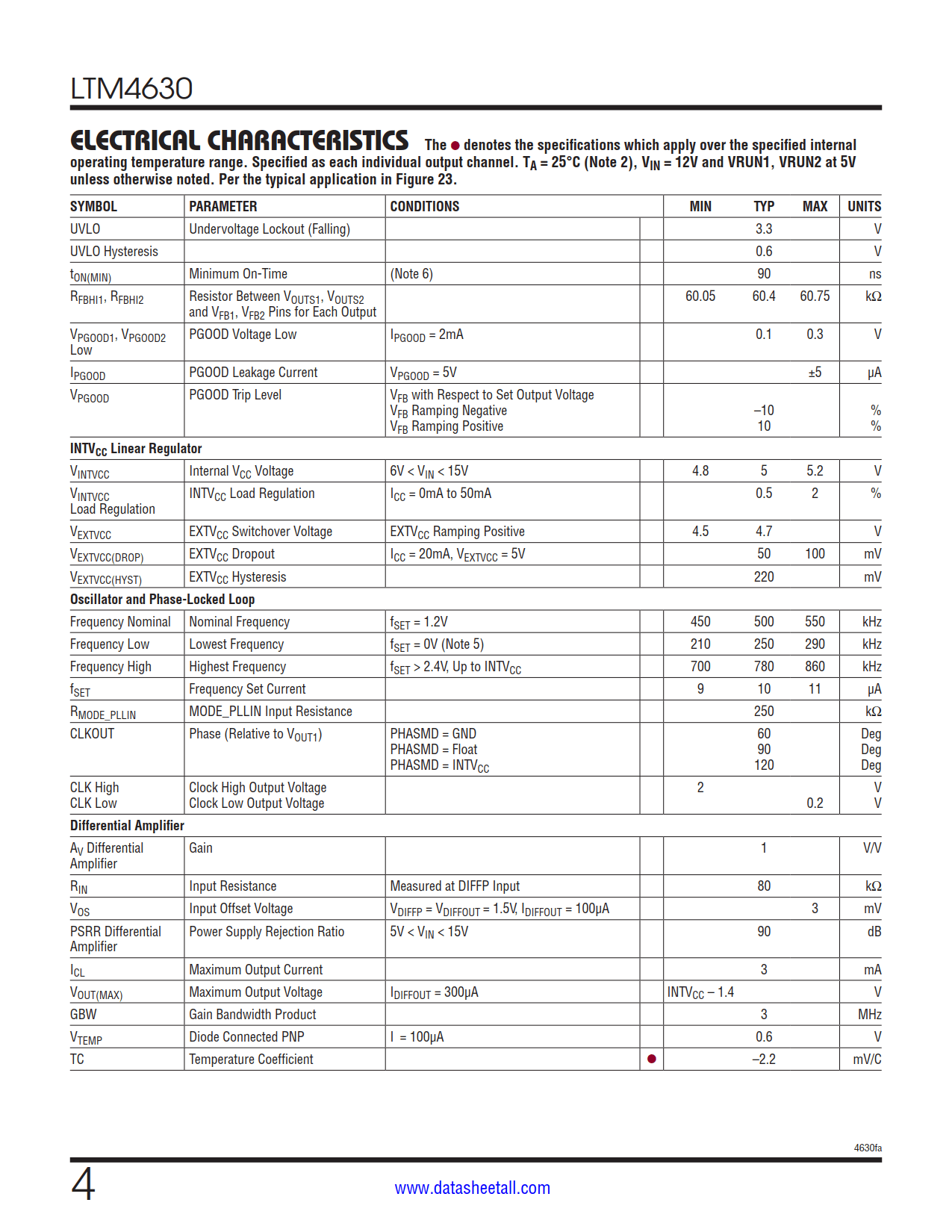

LTM4630 Datasheet(Picture)

LTM4630 Features

  • Dual 18A or Single 36A Output
  • Wide Input Voltage Range: 4.5V to 15V
  • Output Voltage Range: 0.6V to 1.8V
  • ±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
  • Differential Remote Sense Amplifier
  • Current Mode Control/Fast Transient Response
  • Adjustable Switching Frequency
  • Overcurrent Foldback Protection
  • Multiphase Parallel Current Sharing with Multiple LTM4630s Up to 144A
  • Frequency Synchronization
  • Internal Temperature Monitor
  • Pin Compatible with the LTM4620 and LTM4620A (Dual 13A, Single 26A) and LTM4628 (Dual 8A, Single 16A)
  • Selectable Burst Mode® Operation
  • Soft-Start/Voltage Tracking
  • Output Overvoltage Protection
  • 16mm × 16mm × 4.41mm LGA and 16mm × 16mm × 5.01mm BGA Packages

LTM4630 Applications

  • Telecom and Networking Equipment
  • Storage and ATCA Cards
  • Industrial Equipment

LTM4630 Description

The LTM4630 is a dual 18A or single 36A output switching mode step-down DC/DC μModule® (power module) regulator. Included in the package are the switching controllers, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 15V, the LTM4630 supports two outputs each with an output voltage range of 0.6V to 1.8V, each set by a single external resistor. Its high efficiency design delivers up to 18A continuous current for each output. Only a few input and output capacitors are needed. The LTM4630 is pin compatible with the LTM4620 and LTM4620A (dual 13A, single 26A) and the LTM4628 (dual 8A, single 16A).

The device supports frequency synchronization, multiphase operation, Burst Mode operation and output voltage tracking for supply rail sequencing and has an onboard temperature diode for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include overvoltage and overcurrent protection. The LTM4630 is offered in 16mm × 16mm × 4.41mm LGA and 16mm × 16mm × 5.01mm BGA packages. The LTM4630 is ROHS compliant.
