| Part No.： | LTM4624 |
| Page： | 26 Pages |
| Size： | 2282 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2024-12-09 10:15:26 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTM4624EY#PBF | Tray | 260 | LTM4624Y | 3 | 25 | -40°C ~ 125°C | 25-Lead BGA (6.25mm x 6.25mm x 5.01mm) | |
| LTM4624IY#PBF | Tray | 260 | LTM4624Y | 3 | 25 | -40°C ~ 125°C | 25-Lead BGA (6.25mm x 6.25mm x 5.01mm) | |
| LTM4624IY | Tray | 260 | LTM4624Y | 3 | 25 | -40°C ~ 125°C | 25-Lead BGA (6.25mm x 6.25mm x 5.01mm) |

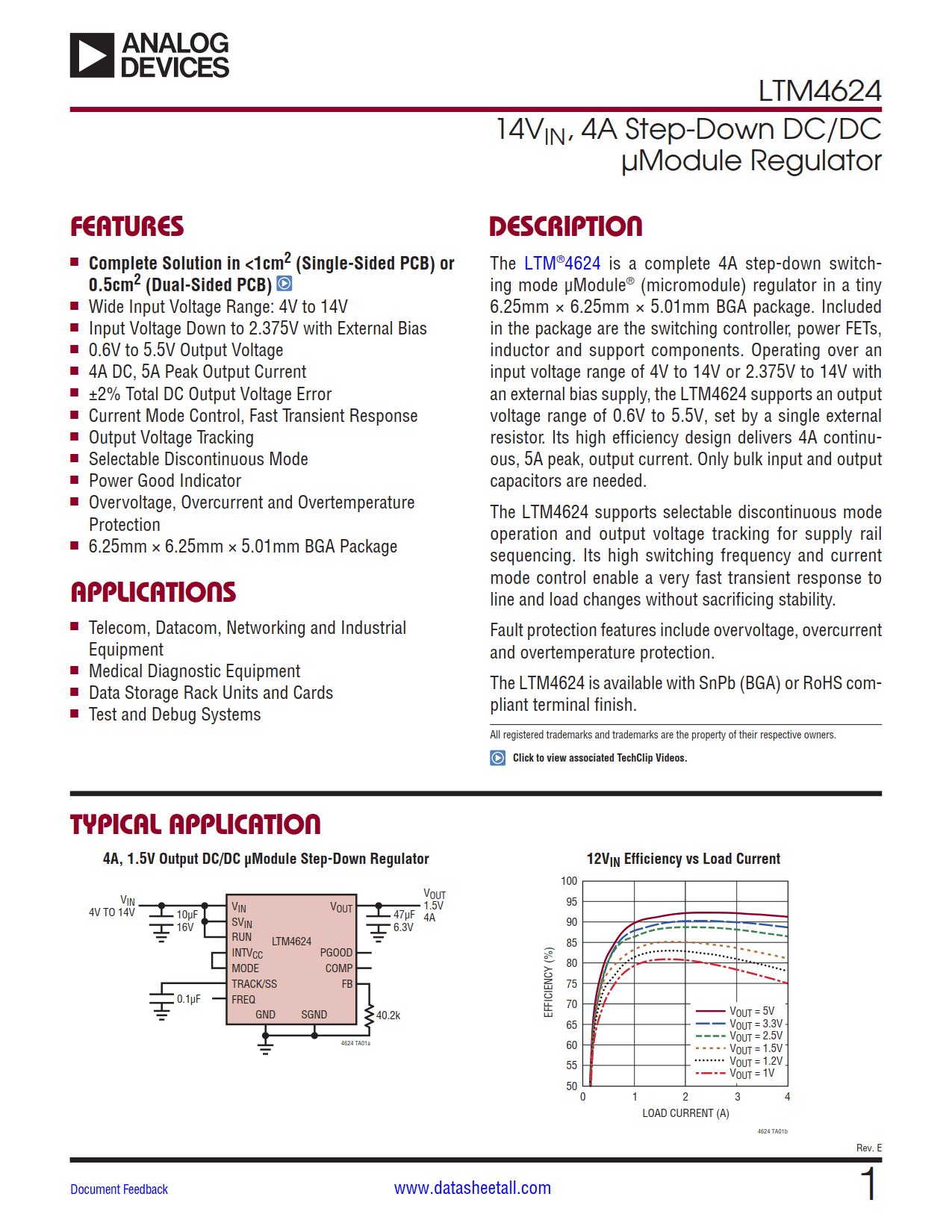

The LTM4624 is a complete 4A step-down switching mode μModule® (micromodule) regulator in a tiny 6.25mm × 6.25mm × 5.01mm BGA package. Included in the package are the switching controller, power FETs, inductor and support components. Operating over an input voltage range of 4V to 14V or 2.375V to 14V with an external bias supply, the LTM4624 supports an output voltage range of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers 4A continuous, 5A peak, output current. Only bulk input and output capacitors are needed.
The LTM4624 supports selectable discontinuous mode operation and output voltage tracking for supply rail sequencing. Its high switching frequency and current mode control enable a very fast transient response to line and load changes without sacrificing stability.
Fault protection features include overvoltage, overcurrent and overtemperature protection.
The LTM4624 is available with SnPb (BGA) or RoHS compliant terminal finish.
