LTM4622 Datasheet

LTM4622 Datasheet

Dual Ultrathin 2.5A or Single 5A Step-Down DC/DC μModule Regulator
Part No.: LTM4622
Page: 28 Pages
Size: 1735 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-12-18 16:47:51
DataSheet: Download

LTM4622 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4622EV#PBF Tray 260 LTM4622V 4 25 -40°C ~ 125°C 25-Lead LGA (6.25mm x 6.25mm x 1.82mm)
LTM4622IV#PBF Tray 260 LTM4622V 4 25 -40°C ~ 125°C 25-Lead LGA (6.25mm x 6.25mm x 1.82mm)
LTM4622EY#PBF Tray 260 LTM4622Y 4 25 -40°C ~ 125°C 25-Lead BGA (6.25mm x 6.25mm x 2.42mm)
LTM4622IY#PBF Tray 260 LTM4622Y 4 25 -40°C ~ 125°C 25-Lead BGA (6.25mm x 6.25mm x 2.42mm)
LTM4622IY Tray 260 LTM4622Y 4 25 -40°C ~ 125°C 25-Lead BGA (6.25mm x 6.25mm x 2.42mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4622 Datasheet(PDF)

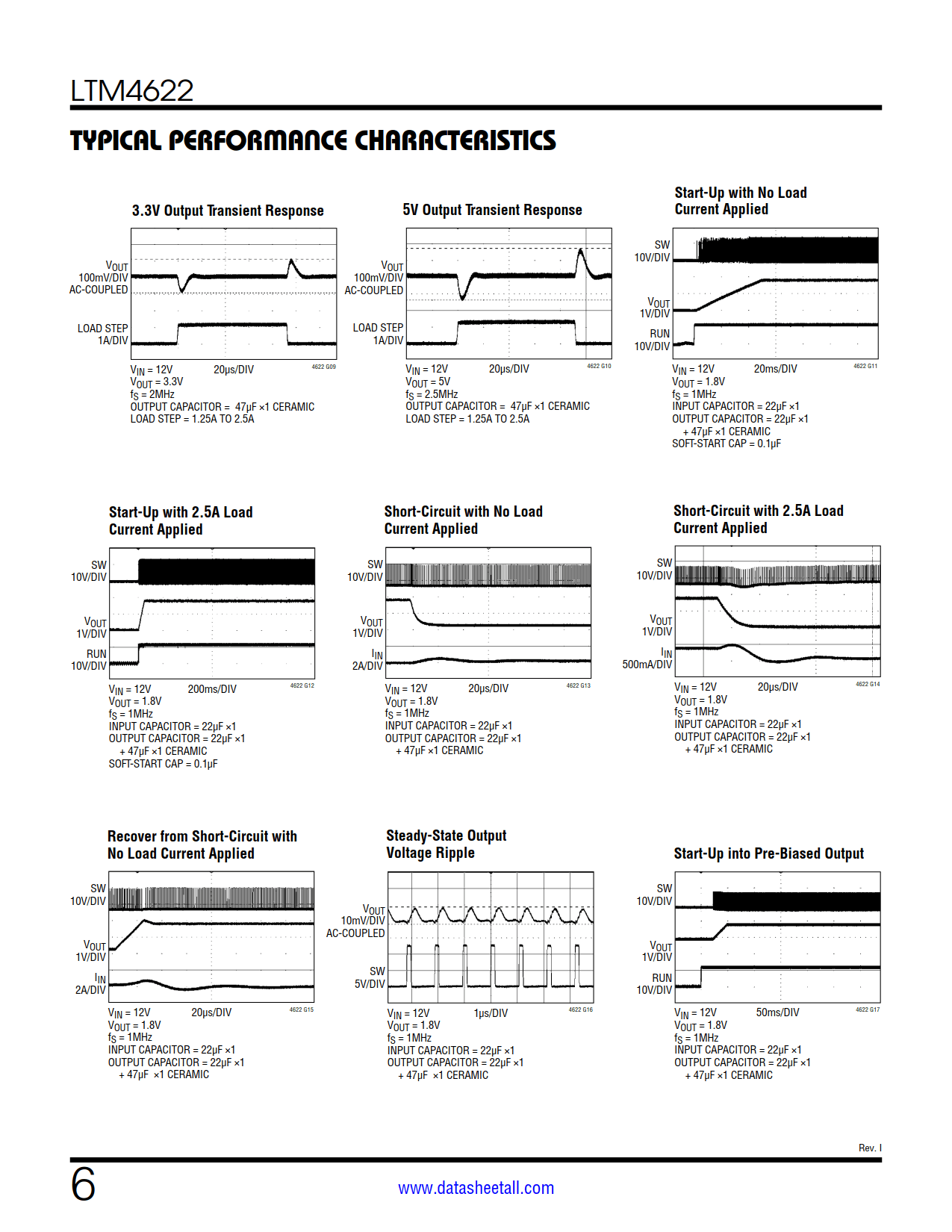

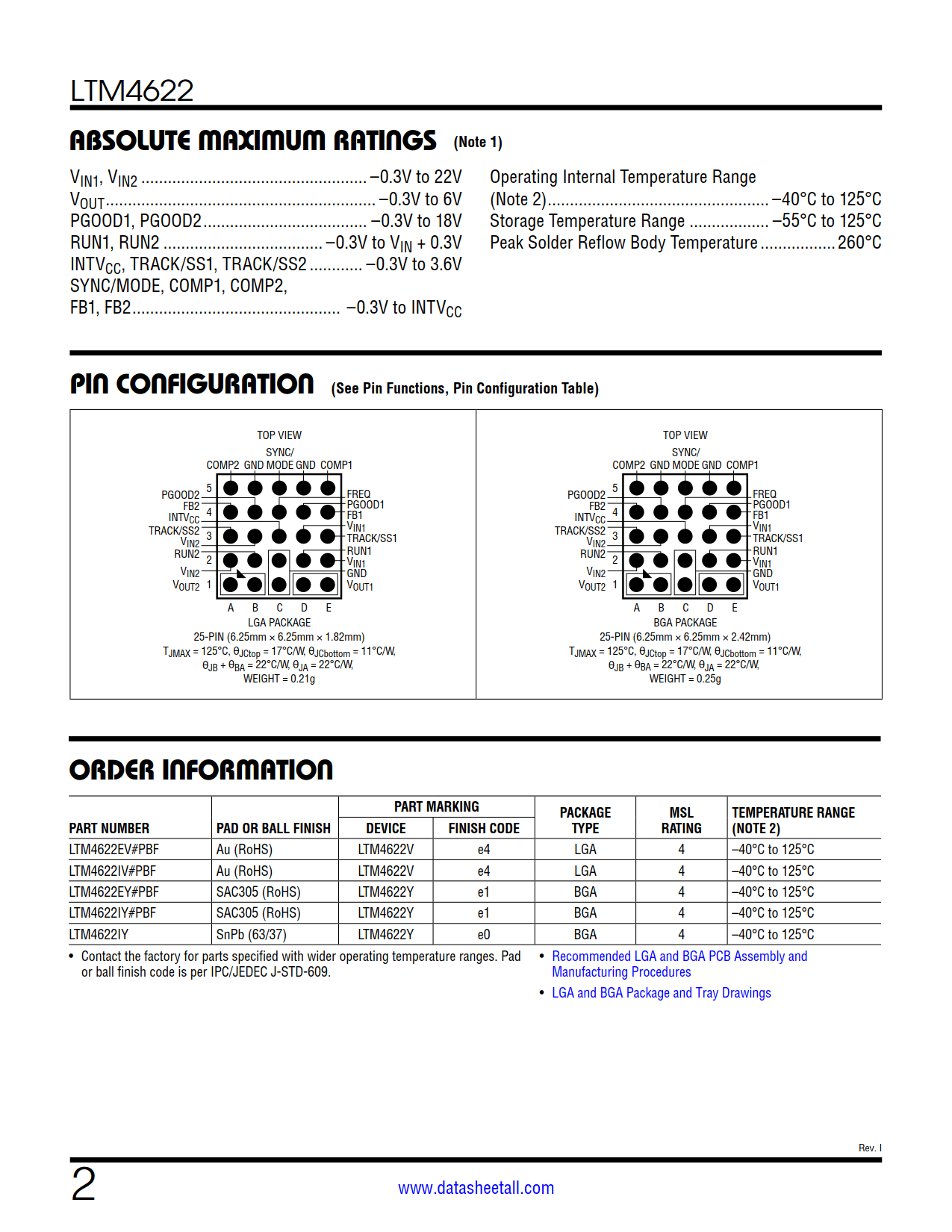

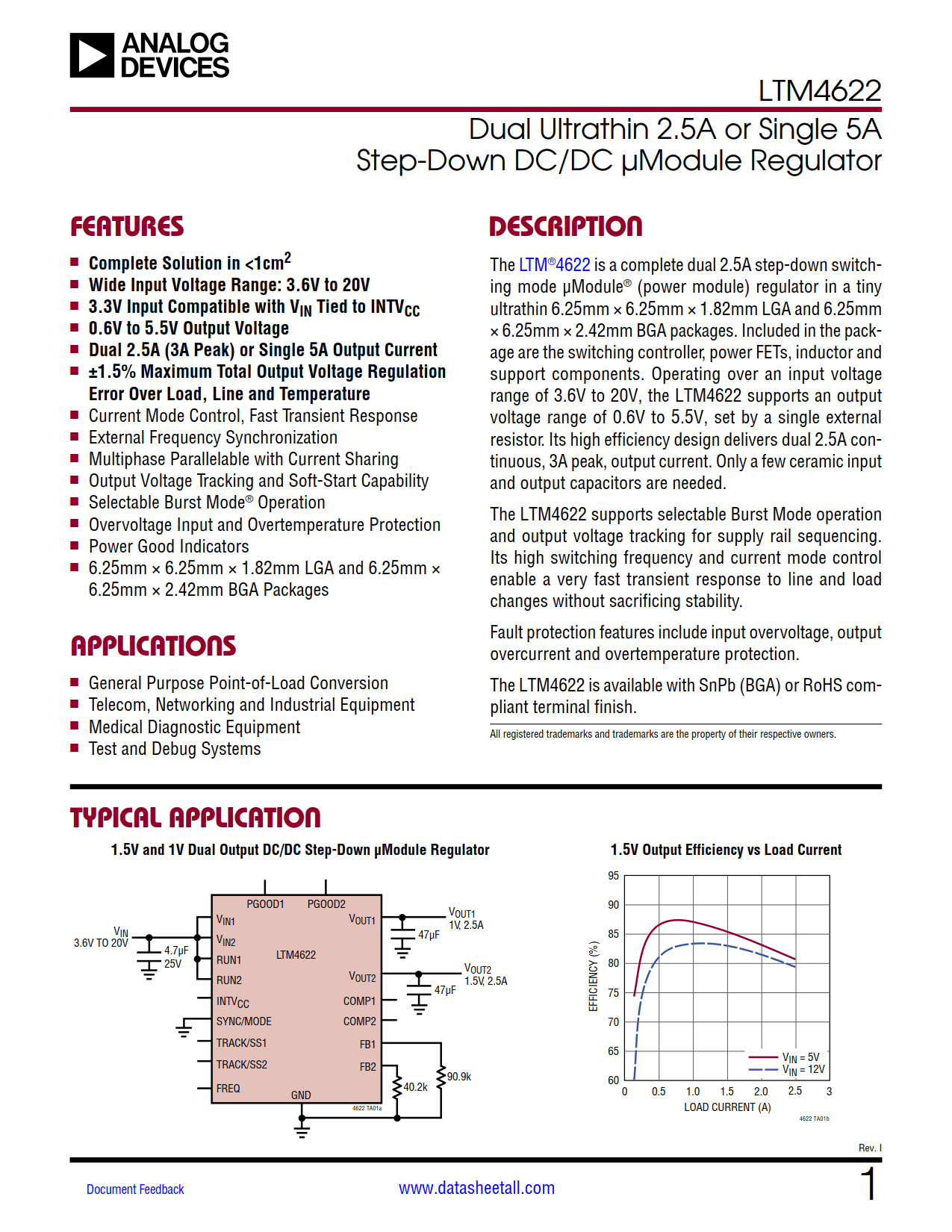

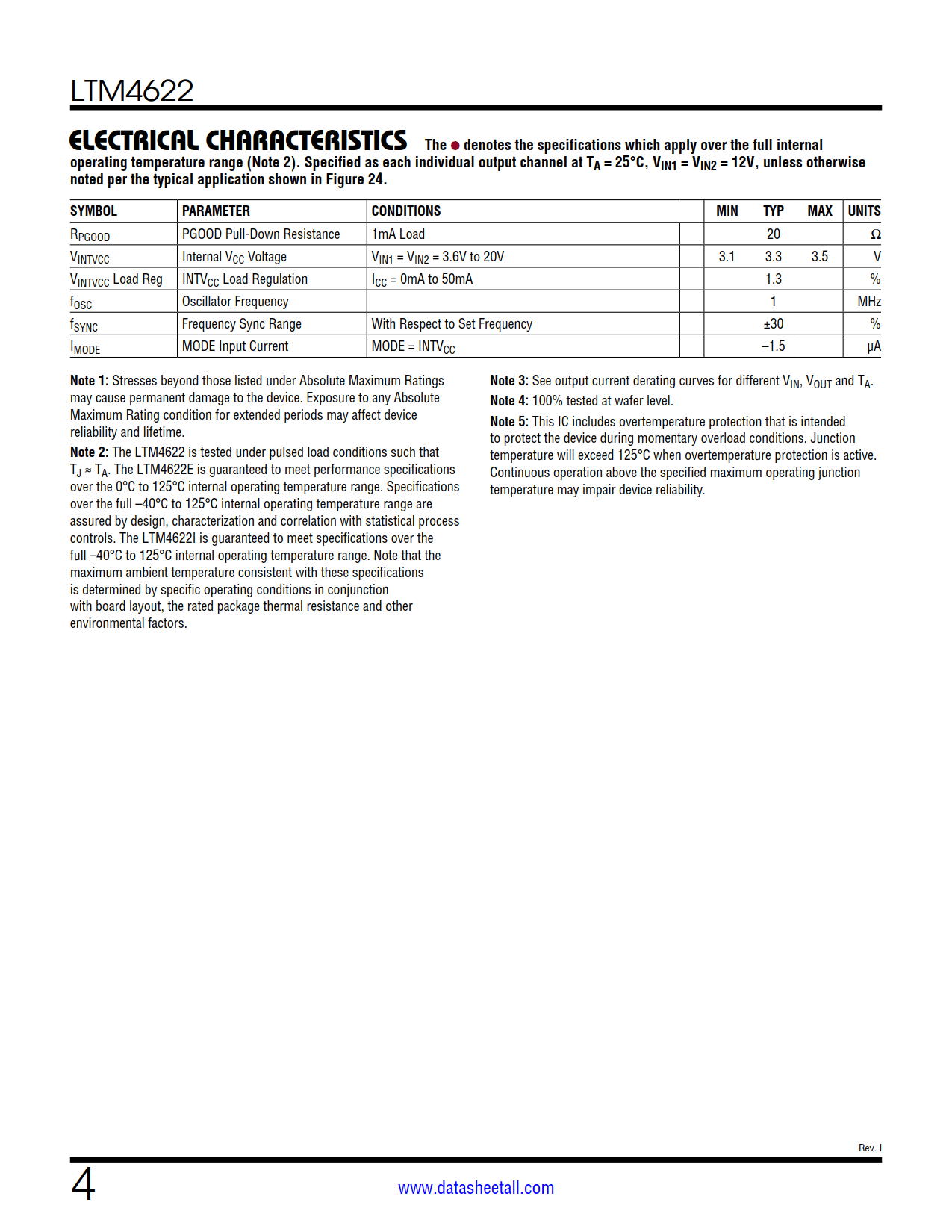

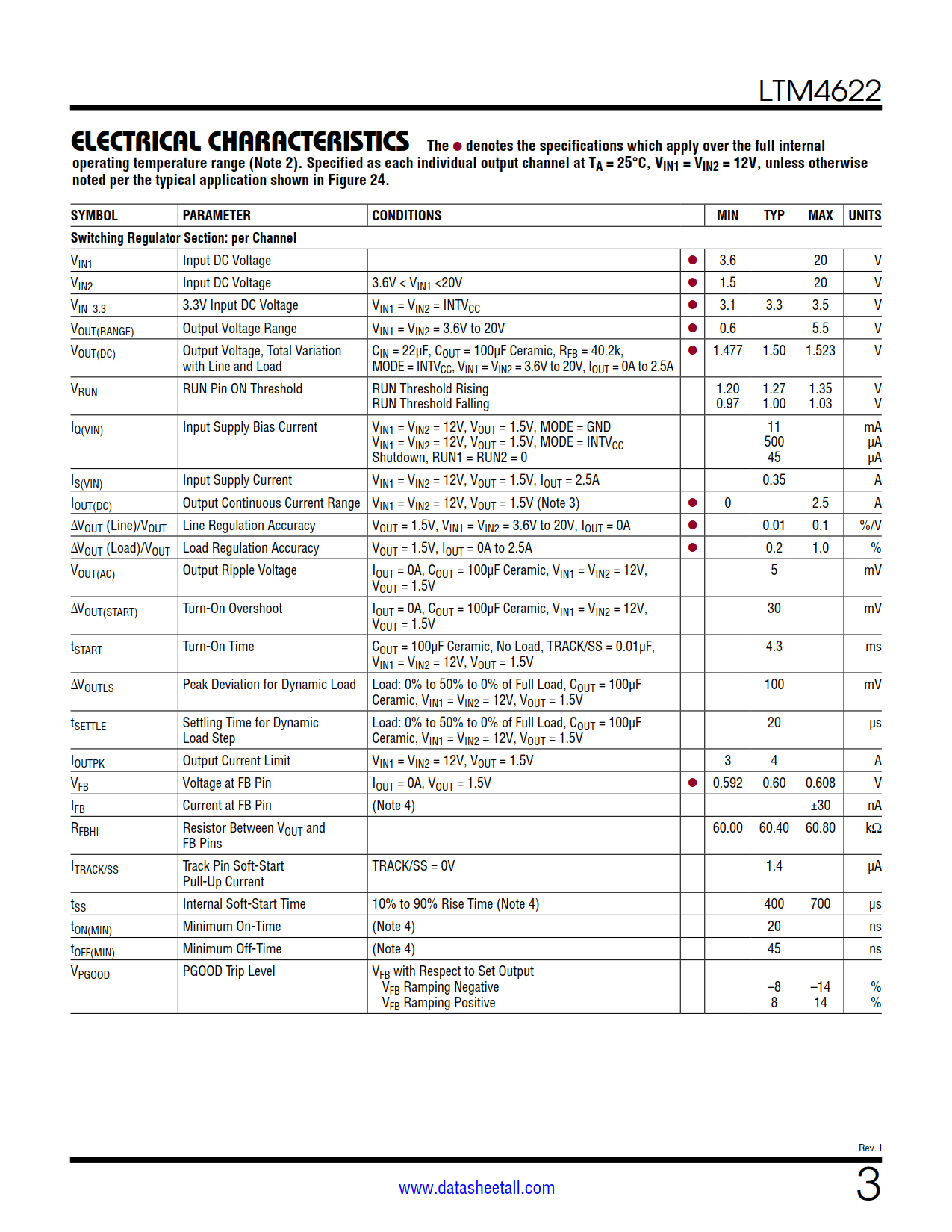

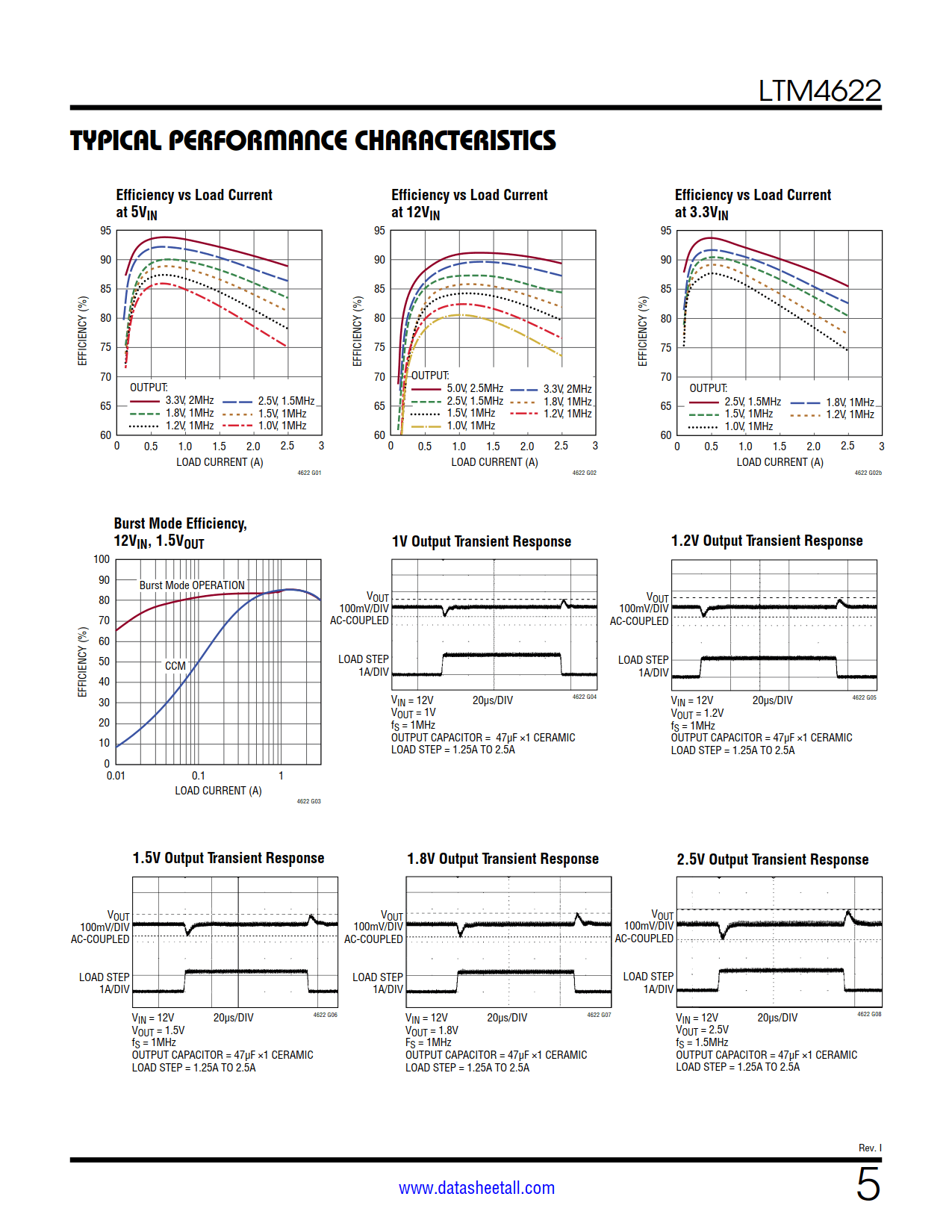

LTM4622 Datasheet(Picture)

LTM4622 Features

  • Complete Solution in <1cm2
  • Wide Input Voltage Range:3.6V to 20V
  • 3.3V Input Compatible with VIN Tied to INTVCC
  • 0.6V to 5.5V Output Voltage
  • Dual 2.5A (3A Peak) or Single 5A Output Current
  • ±1.5% Maximum Total Output Voltage Regulation Error Over Load, Line and Temperature
  • Current Mode Control, Fast Transient Response
  • External Frequency Synchronization
  • Multiphase Parallelable with Current Sharing
  • Output Voltage Tracking and Soft-Start Capability
  • Selectable Burst Mode® Operation
  • Overvoltage Input and Overtemperature Protection
  • Power Good Indicators
  • 6.25mm × 6.25mm × 1.82mm LGA and 6.25mm × 6.25mm × 2.42mm BGA Packages

LTM4622 Applications

  • General Purpose Point of Load Conversion
  • Telecom, Networking and Industrial Equipment
  • Medical Diagnostic Equipment
  • Test and Debug Systems

LTM4622 Description

The LTM4622 is a complete dual 2.5A step-down switching mode μModule® (powermodule) regulator in a tiny ultrathin 6.25mm × 6.25mm × 1.82mm LGA and 6.25mm × 6.25mm × 2.42mm BGA packages. Included in the package are the switching controller, power FETs, inductor and support components. Operating over an input voltage range of 3.6V to 20V, the LTM4622 supports an output voltage range of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers dual 2.5A continuous, 3A peak, output current. Only a few ceramic input and output capacitors are needed.

The LTM4622 supports selectable Burst Mode operation and output voltage tracking for supply rail sequencing. Its high switching frequency and current mode control enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include input overvoltage, output overcurrent and overtemperature protection.

The LTM4622 is available with SnPb (BGA) or RoHS compliant terminal finish.
