LTM4616 Datasheet

LTM4616 Datasheet

Dual 8A per Channel Low VIN DC/DC μModule (Power Module) Regulator
Part No.: LTM4616
Page: 30 Pages
Size: 696 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-03-18 15:24:38
DataSheet: Download

LTM4616 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4616EV#PBF Tray 119 LTM4616V 3 144 -40°C ~125°C 144-Lead LGA (15mm x 15mm x 2.82mm)
LTM4616IV#PBF Tray 119 LTM4616V 3 144 -40°C ~125°C 144-Lead LGA (15mm x 15mm x 2.82mm)
LTM4616MPV#PBF Tray 119 LTM4616V 3 144 -55°C ~125°C 144-Lead LGA (15mm x 15mm x 2.82mm)
TM4616EY#PBF Tray 119 LTM4616Y 3 144 -40°C ~125°C 144-Lead BGA (15mm x 15mm x 3.42mm)
TM4616IY#PBF Tray 119 LTM4616Y 3 144 -40°C ~125°C 144-Lead BGA (15mm x 15mm x 3.42mm)
LTM4616MPY#PBF Tray 119 LTM4616Y 3 144 -55°C ~125°C 144-Lead BGA (15mm x 15mm x 3.42mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4616 Datasheet(PDF)

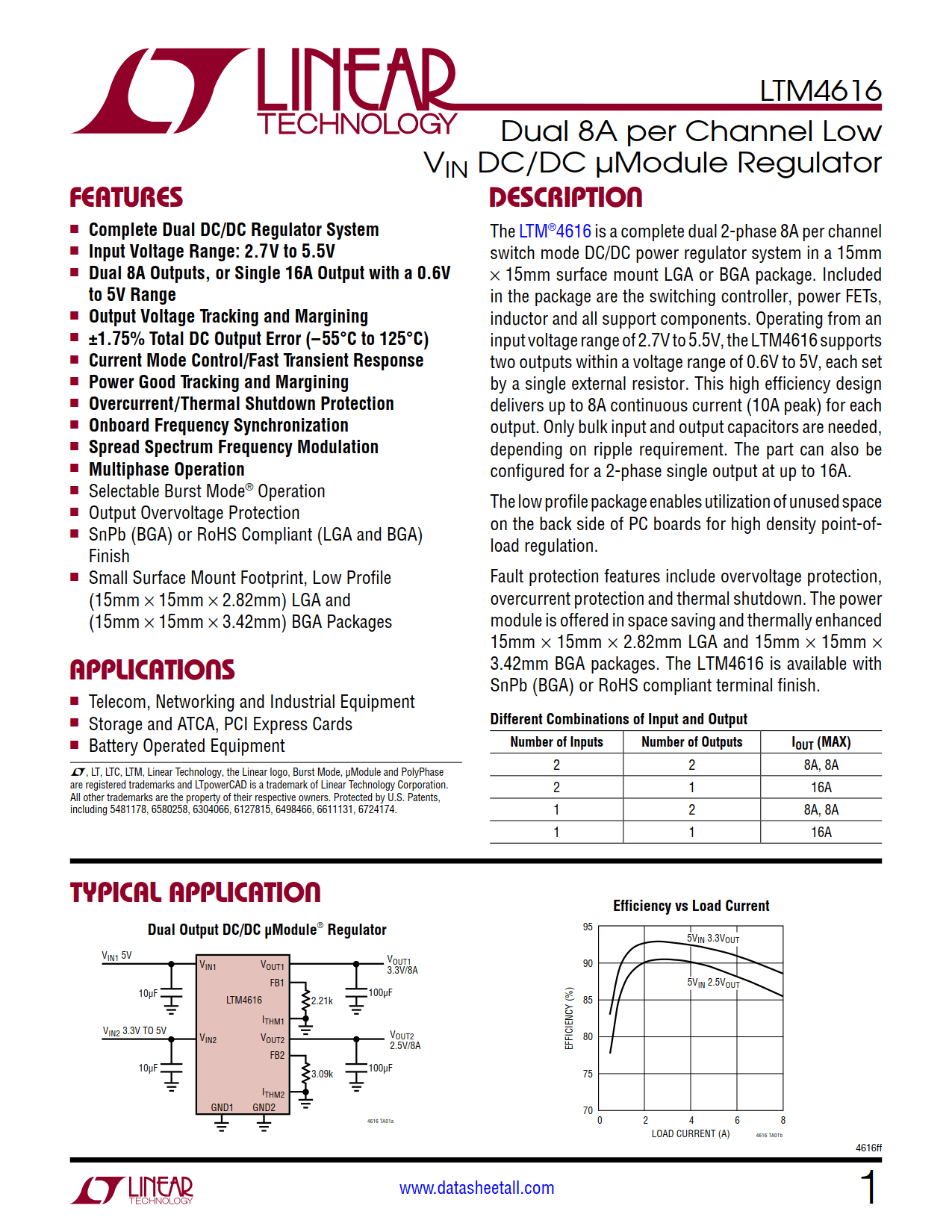

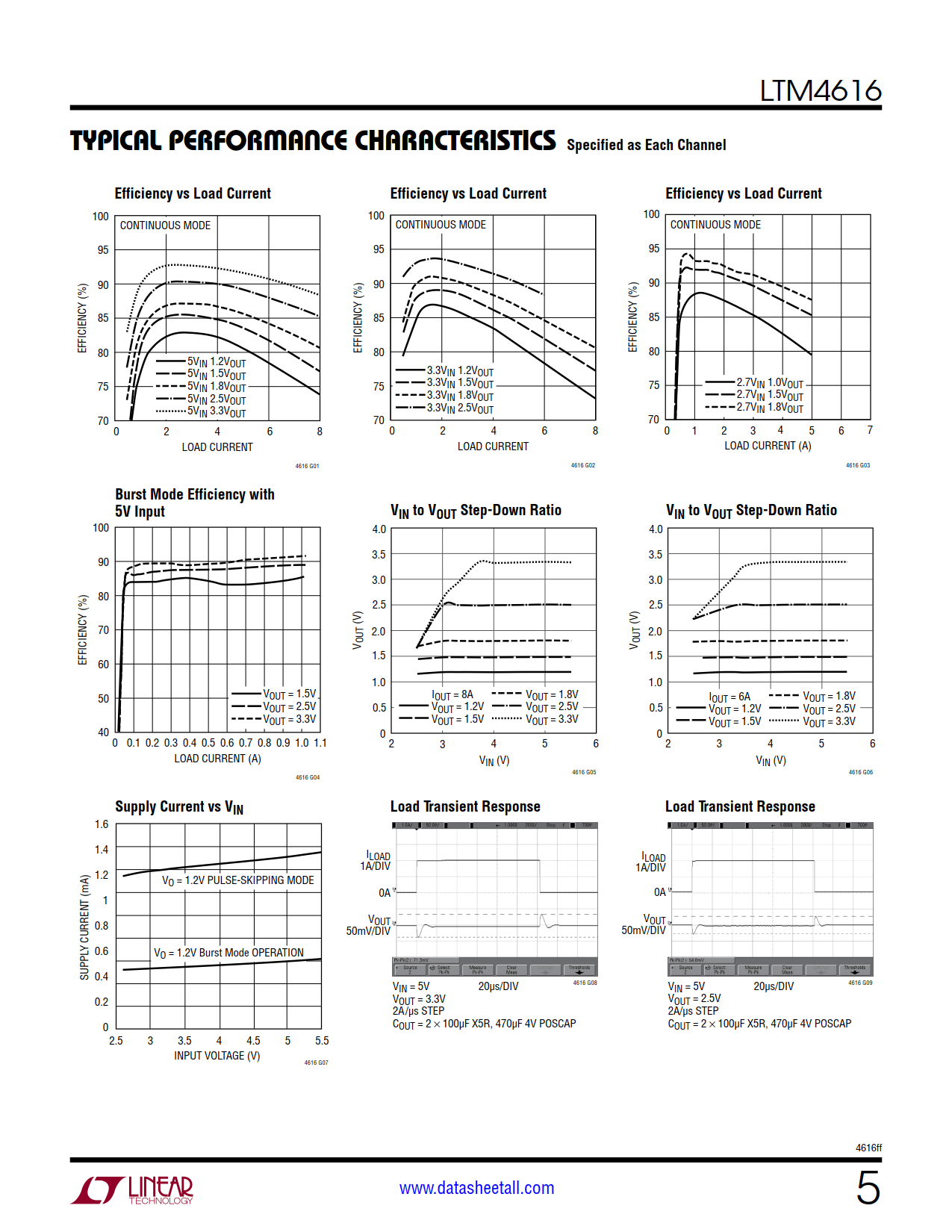

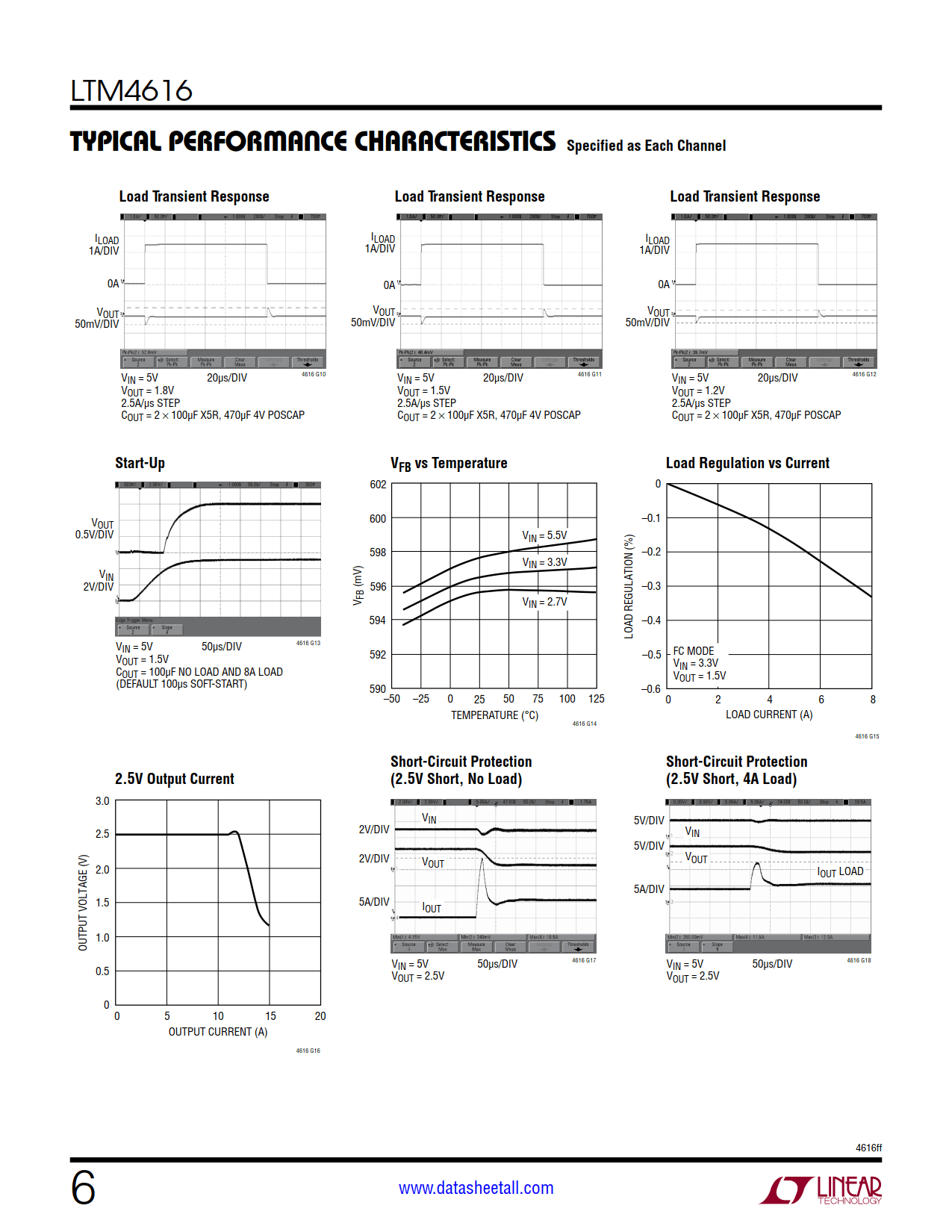

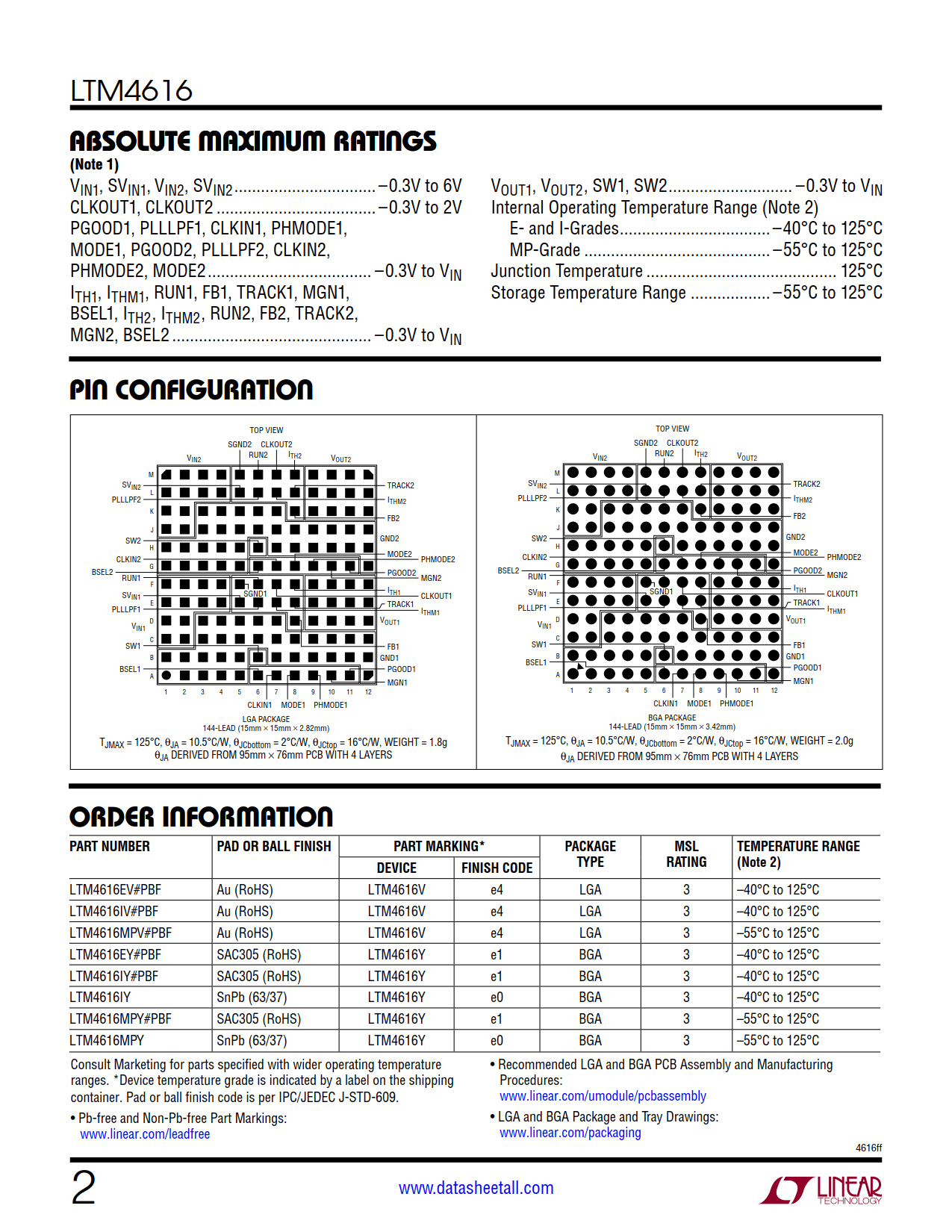

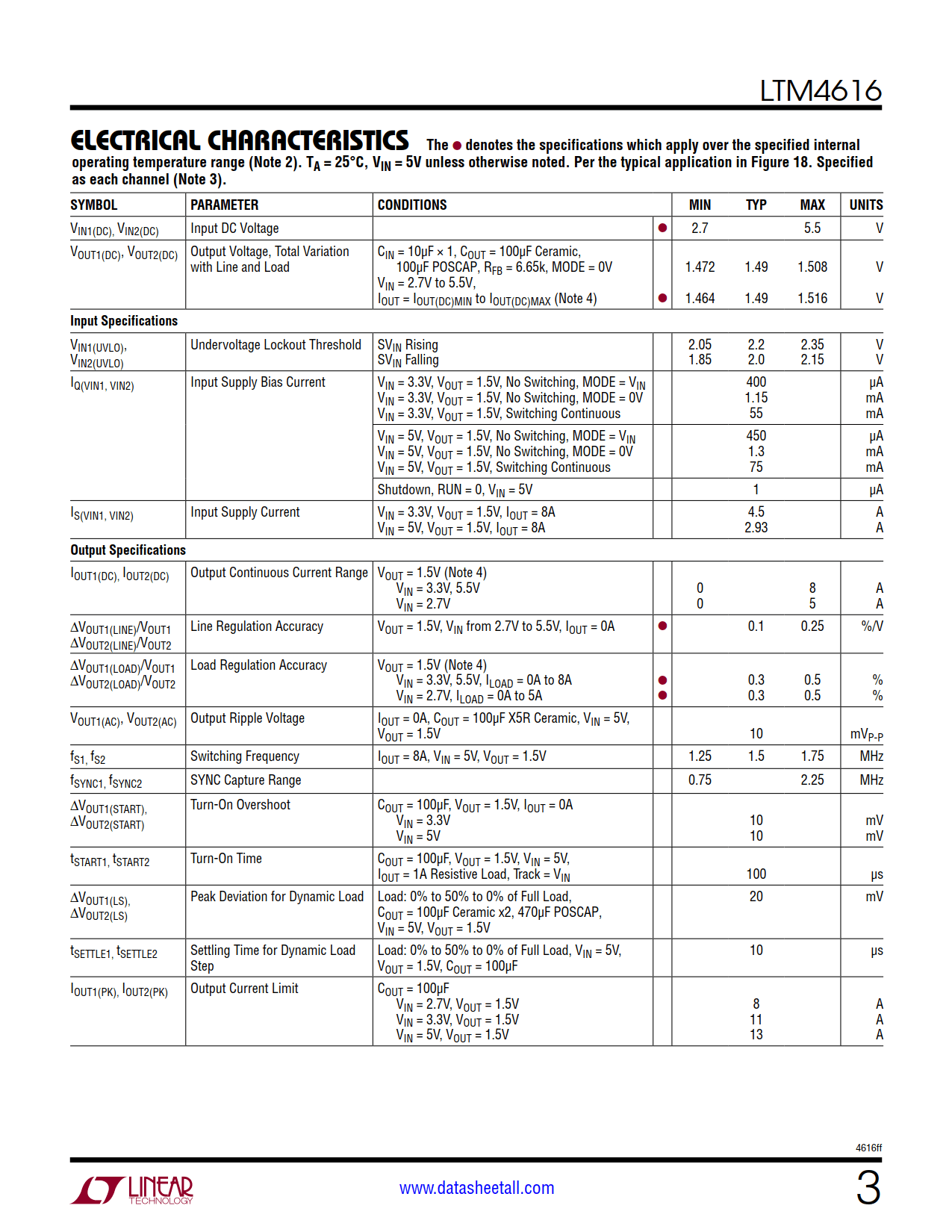

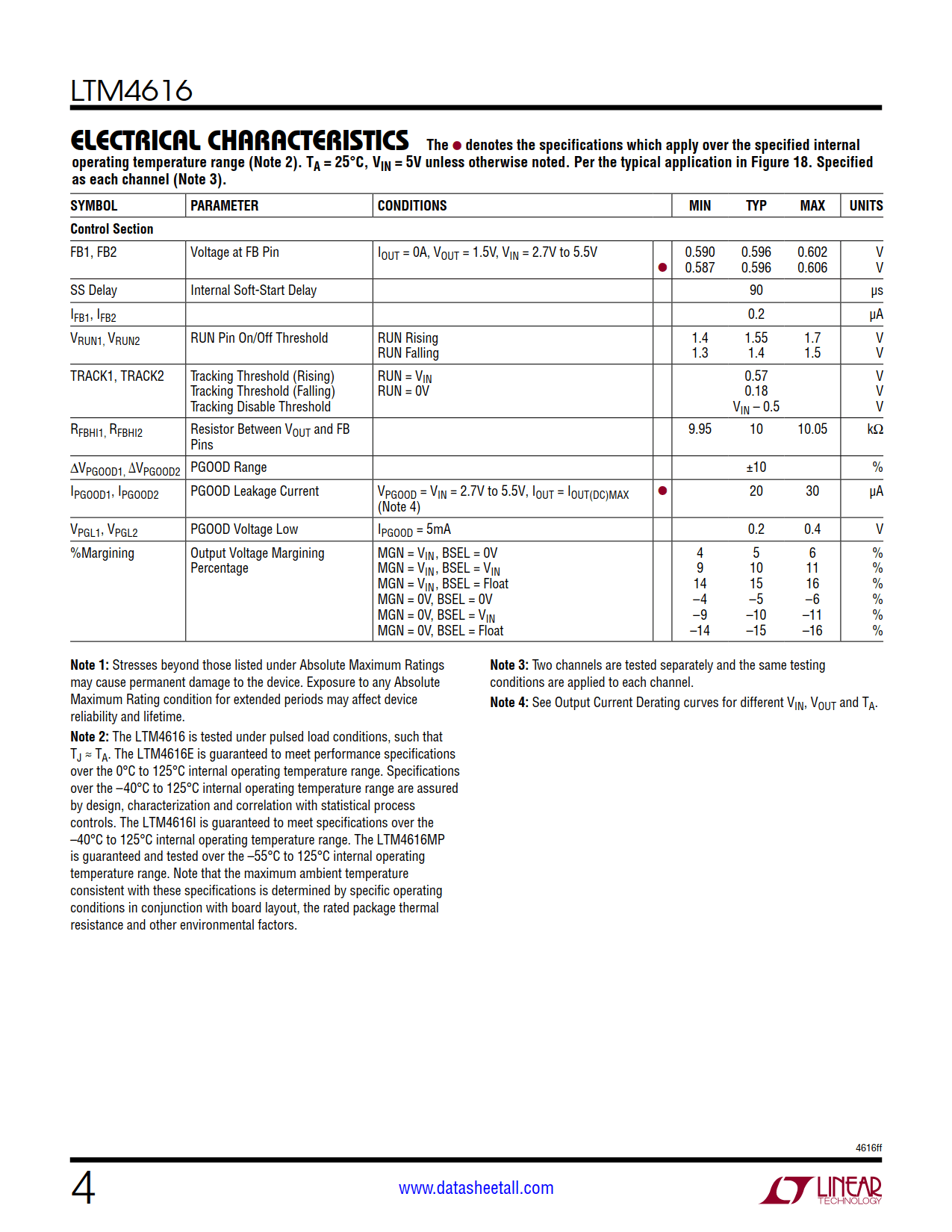

LTM4616 Datasheet(Picture)

LTM4616 Features

  • Complete Dual DC/DC Regulator System
  • Input Voltage Range: 2.7V to 5.5V
  • Dual 8A Outputs, or Single 16A Output with a 0.6V to 5V Range
  • Output Voltage Tracking and Margining
  • ±1.75% Total DC Output Error (–55°C to 125°C)
  • Current Mode Control/Fast Transient Response
  • Power Good Tracking and Margining
  • Overcurrent/Thermal Shutdown Protection
  • Onboard Frequency Synchronization
  • Spread Spectrum Frequency Modulation
  • Multiphase Operation
  • Selectable Burst Mode® Operation
  • Output Overvoltage Protection
  • SnPb (BGA) or RoHS Compliant (LGA and BGA) Finish
  • Small Surface Mount Footprint, Low Profile
    • (15mm × 15mm × 2.82mm) LGA and
    • (15mm × 15mm × 3.42mm) BGA Packages

LTM4616 Applications

  • Telecom, Networking and Industrial Equipment
  • Storage and ATCA, PCI Express Cards
  • Battery Operated Equipment

LTM4616 Description

The LTM4616 is a complete dual 2-phase 8A per channel switch mode DC/DC power regulator system in a 15mm × 15mm surface mount LGA or BGA package. Included in the package are the switching controller, power FETs, inductor and all support components. Operating from an input voltage range of 2.7V to 5.5V, the LTM4616 supports two outputs within a voltage range of 0.6V to 5V, each set by a single external resistor. This high efficiency design delivers up to 8A continuous current (10A peak) for each output. Only bulk input and output capacitors are needed, depending on ripple requirement. The part can also be configured for a 2-phase single output at up to 16A.

The low profile package enables utilization of unused space on the back side of PC boards for high density point-ofload regulation.

Fault protection features include overvoltage protection, overcurrent protection and thermal shutdown. The power module is offered in space saving and thermally enhanced 15mm × 15mm × 2.82mm LGA and 15mm × 15mm × 3.42mm BGA packages. The LTM4616 is available with SnPb (BGA) or RoHS compliant terminal finish.
