LTM4611 Datasheet

LTM4611 Datasheet

Ultralow VIN, 15A DC/DC μModule (Power Module) Regulator
Part No.: LTM4611
Page: 30 Pages
Size: 464 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-08 15:12:32
DataSheet: Download

LTM4611 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4611EV#PBF Tray 119 LTM4611V 3 133 -40°C ~ 125°C 133-Lead (15mm × 15mm × 4.32mm) LGA
LTM4611IV#PBF Tray 119 LTM4611V 3 133 -40°C ~ 125°C 133-Lead (15mm × 15mm × 4.32mm) LGA
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4611 Datasheet(PDF)

LTM4611 Datasheet(Picture)

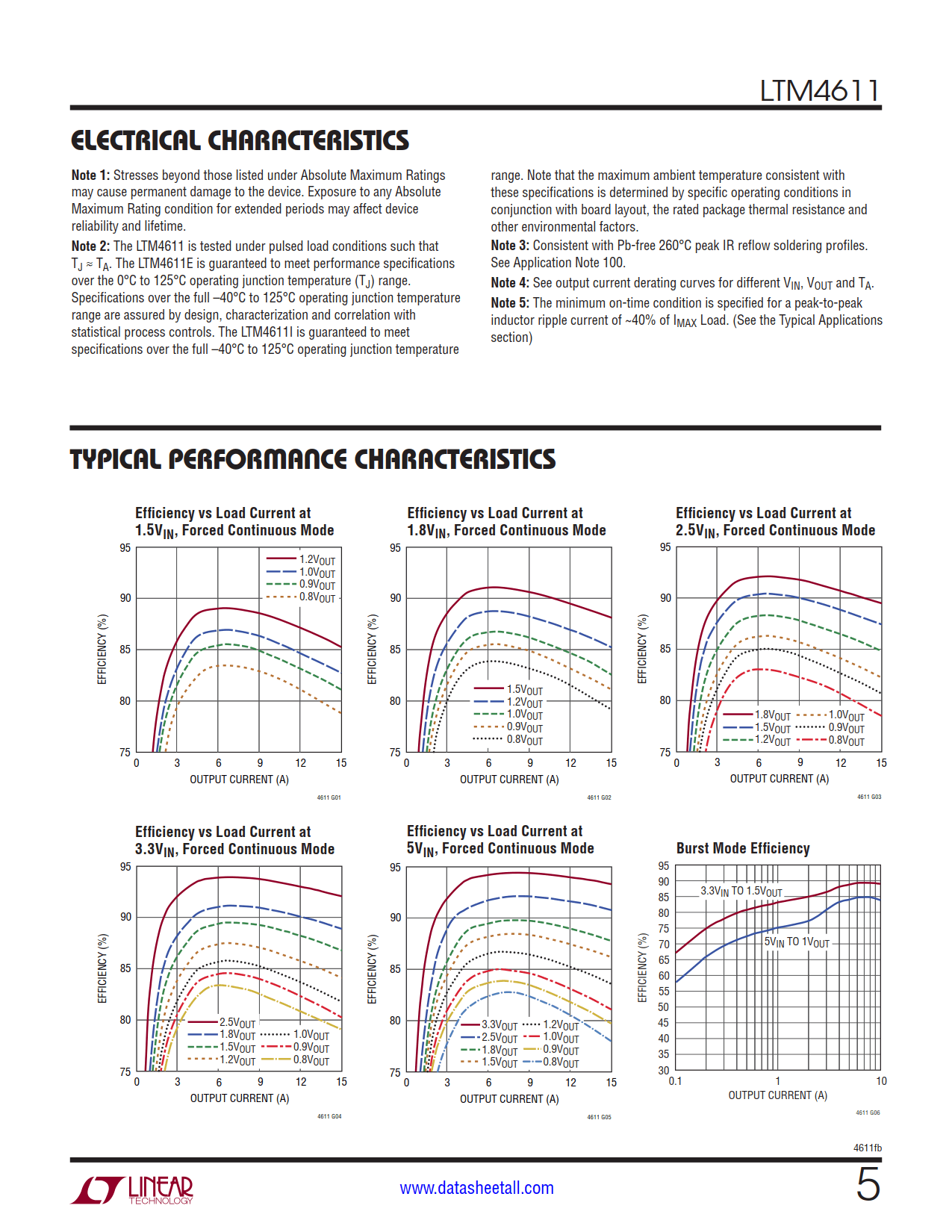

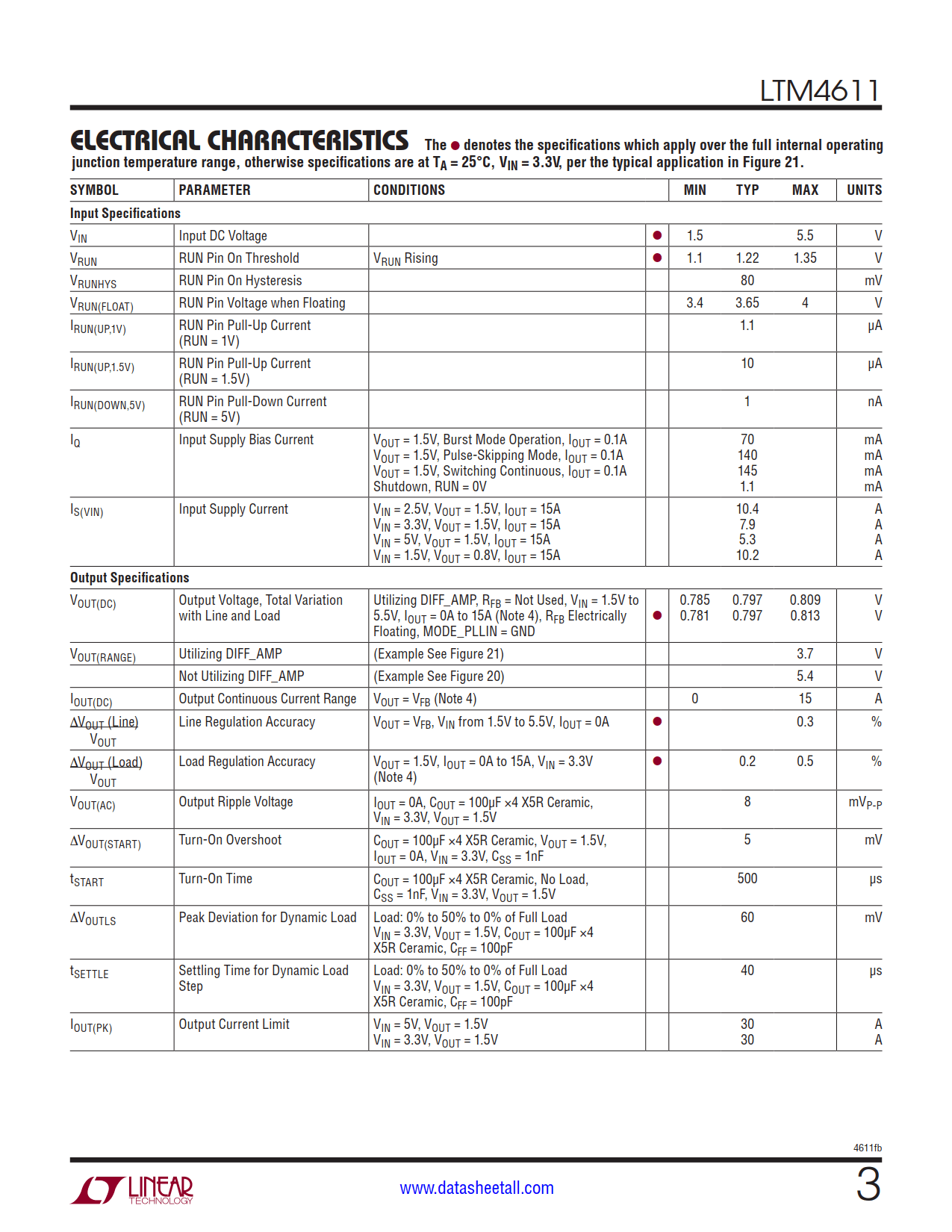

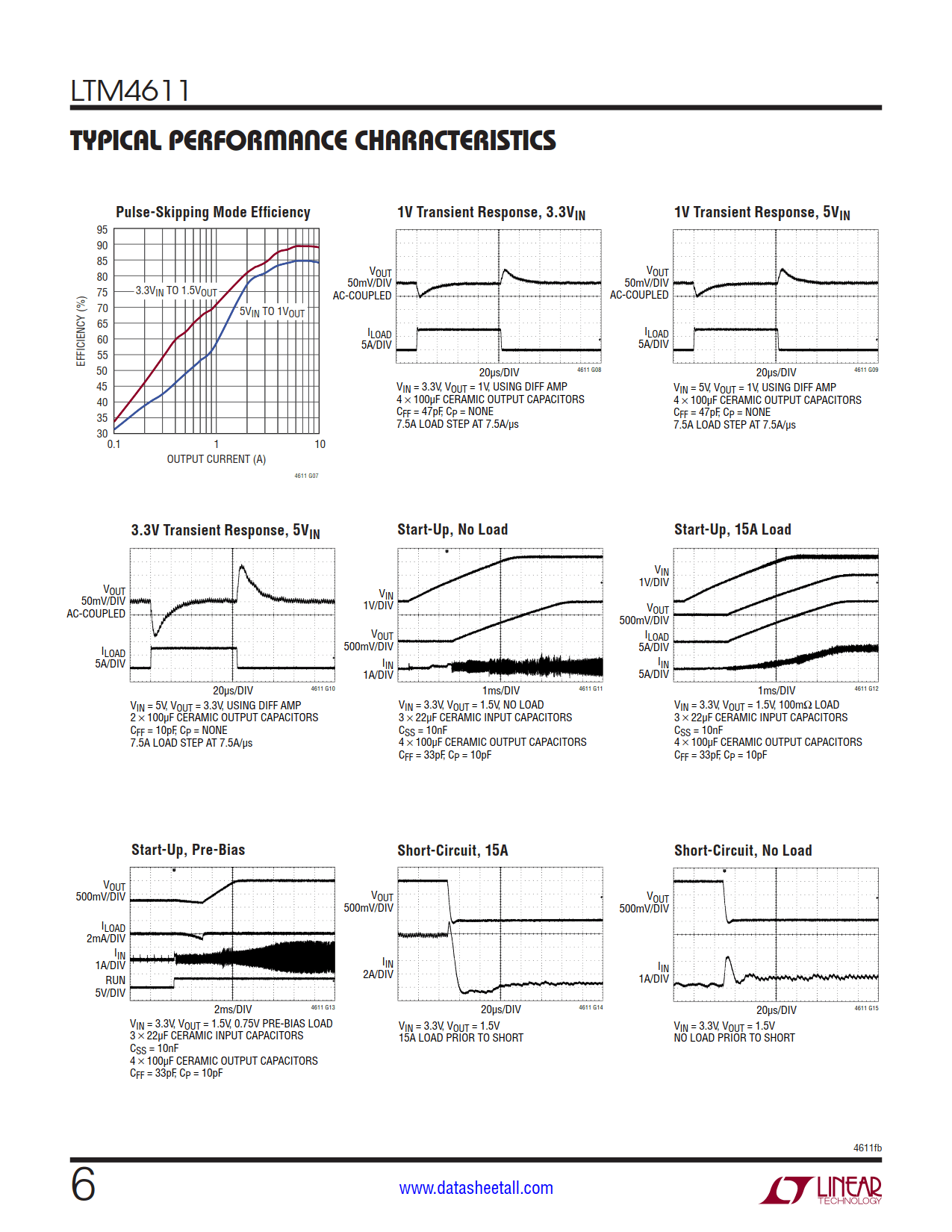

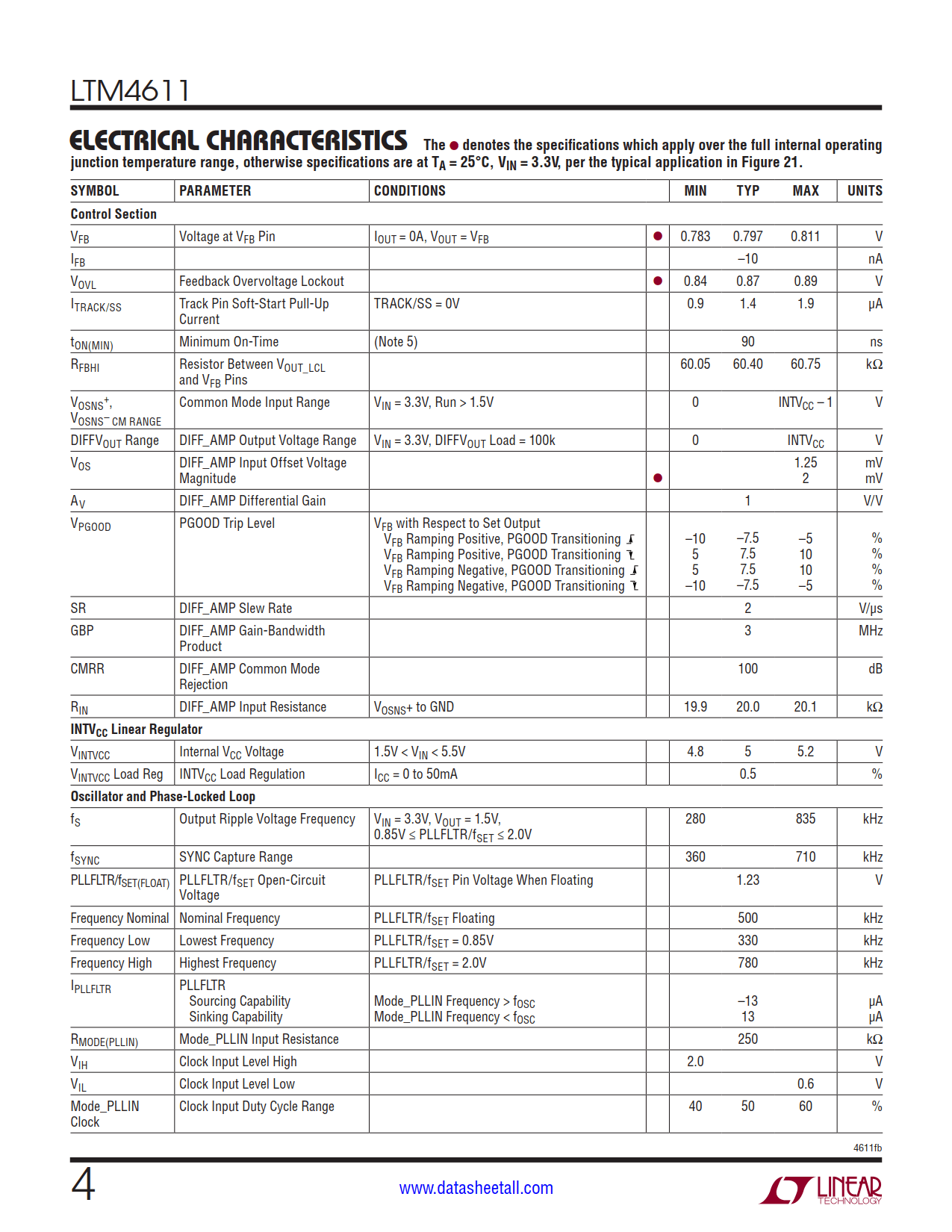

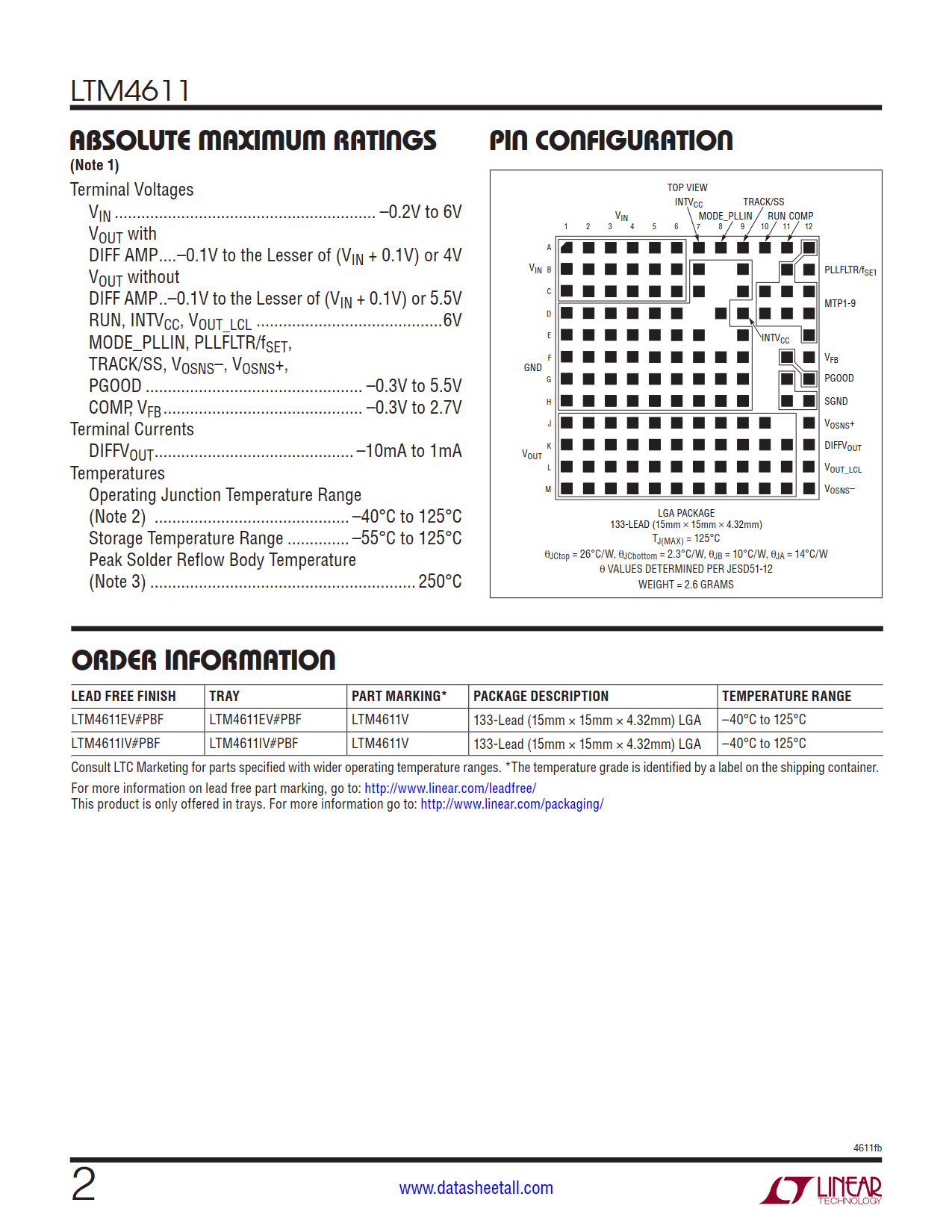

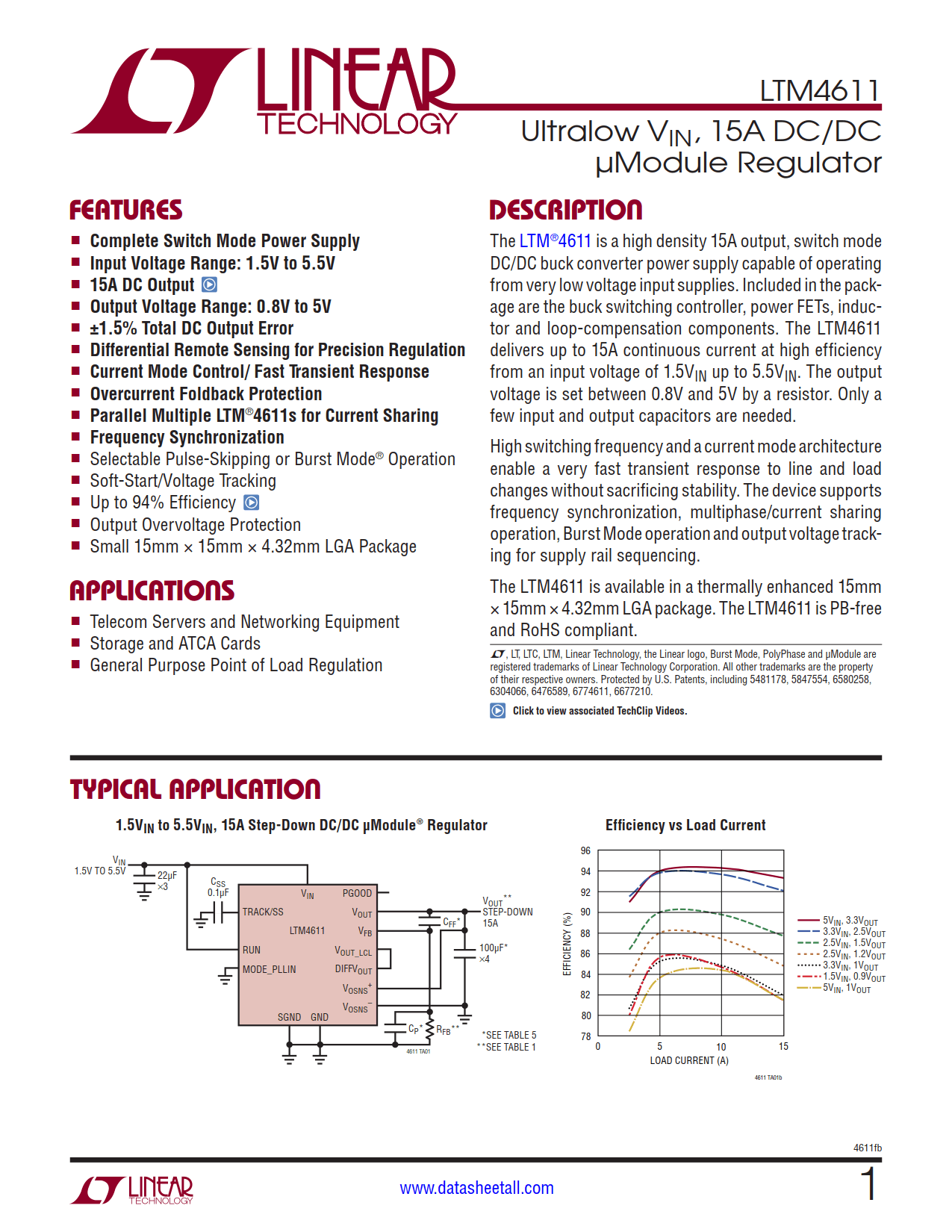

LTM4611 Features

  • Complete Switch Mode Power Supply
  • Input Voltage Range: 1.5V to 5.5V
  • 15A DC Output
  • Output Voltage Range: 0.8V to 5V
  • ±1.5% Total DC Output Error
  • Differential Remote Sensing for Precision Regulation
  • Current Mode Control/ Fast Transient Response
  • Overcurrent Foldback Protection
  • Parallel Multiple LTM4611s for Current Sharing
  • Frequency Synchronization
  • Selectable Pulse-Skipping or Burst Mode® Operation
  • Soft-Start/Voltage Tracking
  • Up to 94% Efficiency
  • Output Overvoltage Protection
  • Small 15mm × 15mm × 4.32mm LGA Package

LTM4611 Applications

  • Telecom Servers and Networking Equipment
  • Storage and ATCA Cards
  • General Purpose Point of Load Regulation

LTM4611 Description

The LTM4611 is a high density 15A output, switch mode DC/DC buck converter power supply capable of operating from very low voltage input supplies. Included in the package are the buck switching controller, power FETs, inductor and loop-compensation components. The LTM4611 delivers up to 15A continuous current at high efficiency from an input voltage of 1.5VIN up to 5.5VIN. The output voltage is set between 0.8V and 5V by a resistor. Only a few input and output capacitors are needed.

High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, multiphase/current sharing operation, Burst Mode operation and output voltage tracking for supply rail sequencing.

The LTM4611 is available in a thermally enhanced 15mm × 15mm × 4.32mm LGA package. The LTM4611 is PB-free and RoHS compliant.
