LTM4608A Datasheet

LTM4608A Datasheet

Low VIN, 8A DC/DC μModule (Power Module) Regulator with Tracking, Margining, and Frequency Synchronization
Part No.: LTM4608A
Page: 28 Pages
Size: 684 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-12-07 14:13:27
DataSheet: Download

LTM4608A Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4608AEV#PBF Tray 170 LTM4608AV 3 68 -40°C ~ 125°C 68-Lead LGA (15mm x 9mm x 2.82mm)
LTM4608AIV#PBF Tray 170 LTM4608AV 3 68 -40°C ~ 125°C 68-Lead LGA (15mm x 9mm x 2.82mm)
LTM4608AMPV#PBF Tray 170 LTM4608AMPV 3 68 -55°C ~ 125°C 68-Lead LGA (15mm x 9mm x 2.82mm)
LTM4608AEY#PBF Tray 170 LTM4608AY 3 68 -40°C ~ 125°C 68-Lead BGA (15mm x 9mm x 3.42mm)
LTM4608AIY#PBF Tray 170 LTM4608AY 3 68 -40°C ~ 125°C 68-Lead BGA (15mm x 9mm x 3.42mm)
LTM4608AMPY#PBF Tray 170 LTM4608AY 3 68 -55°C ~ 125°C 68-Lead BGA (15mm x 9mm x 3.42mm)
LTM4608AMPY Tray 170 LTM4608AY 3 68 -55°C ~ 125°C 68-Lead BGA (15mm x 9mm x 3.42mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4608A Datasheet(PDF)

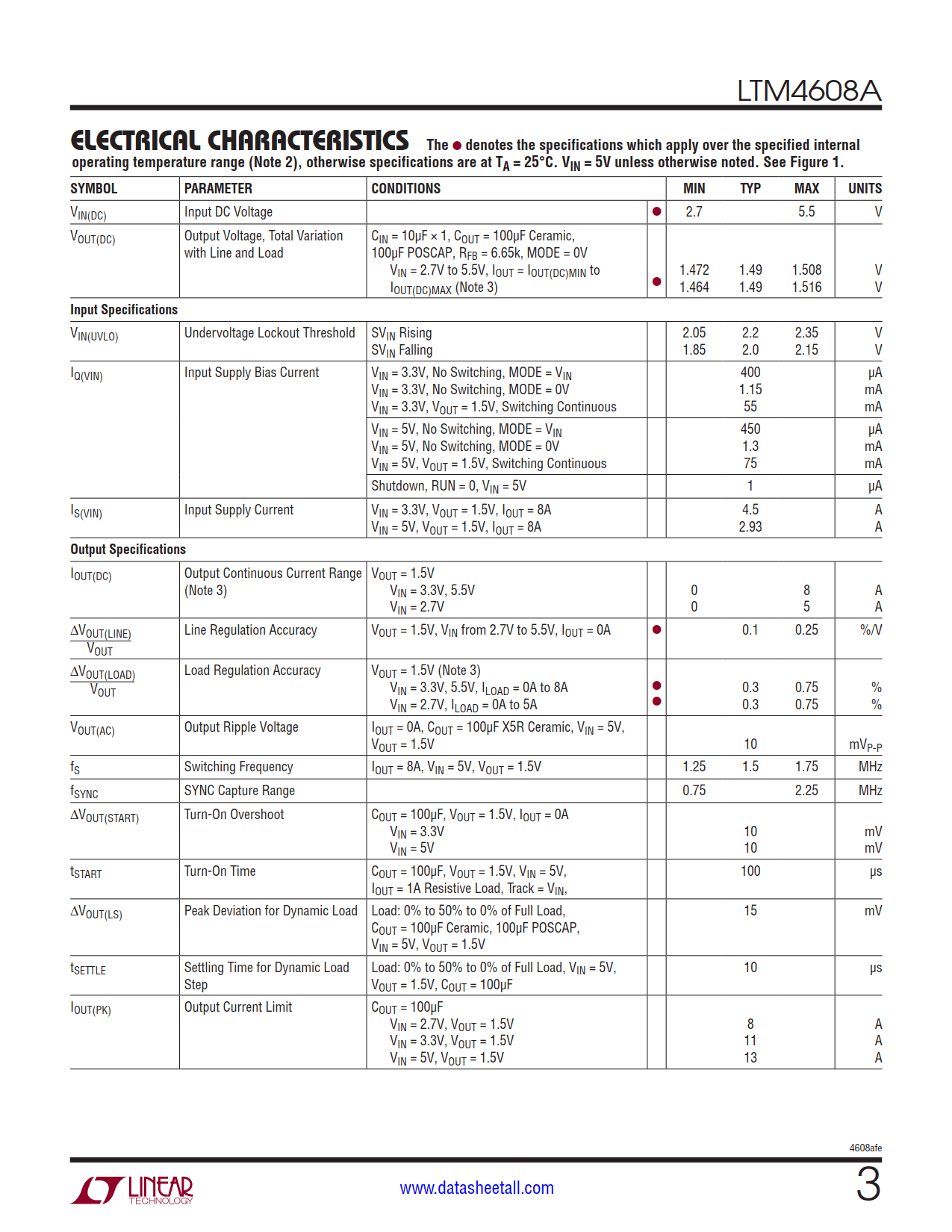

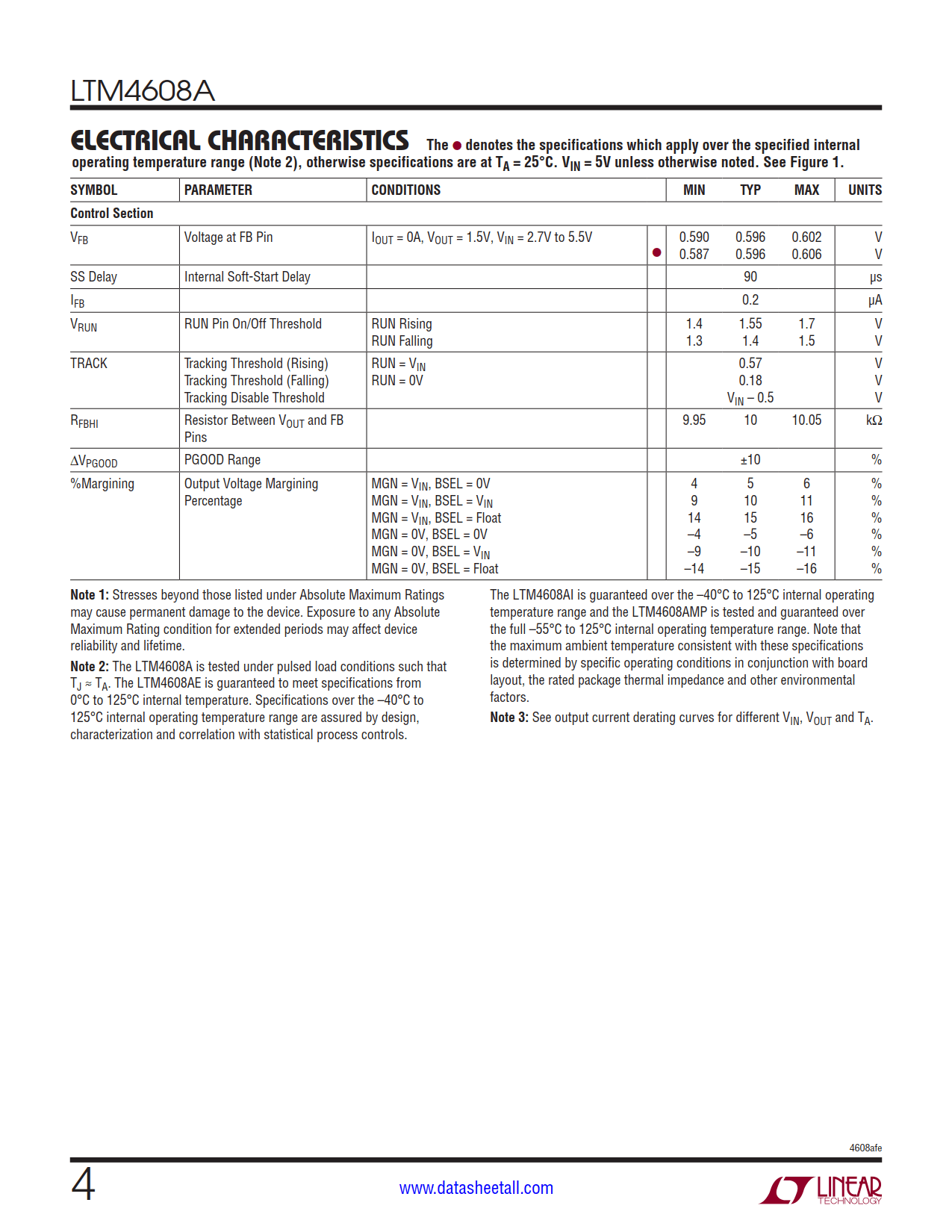

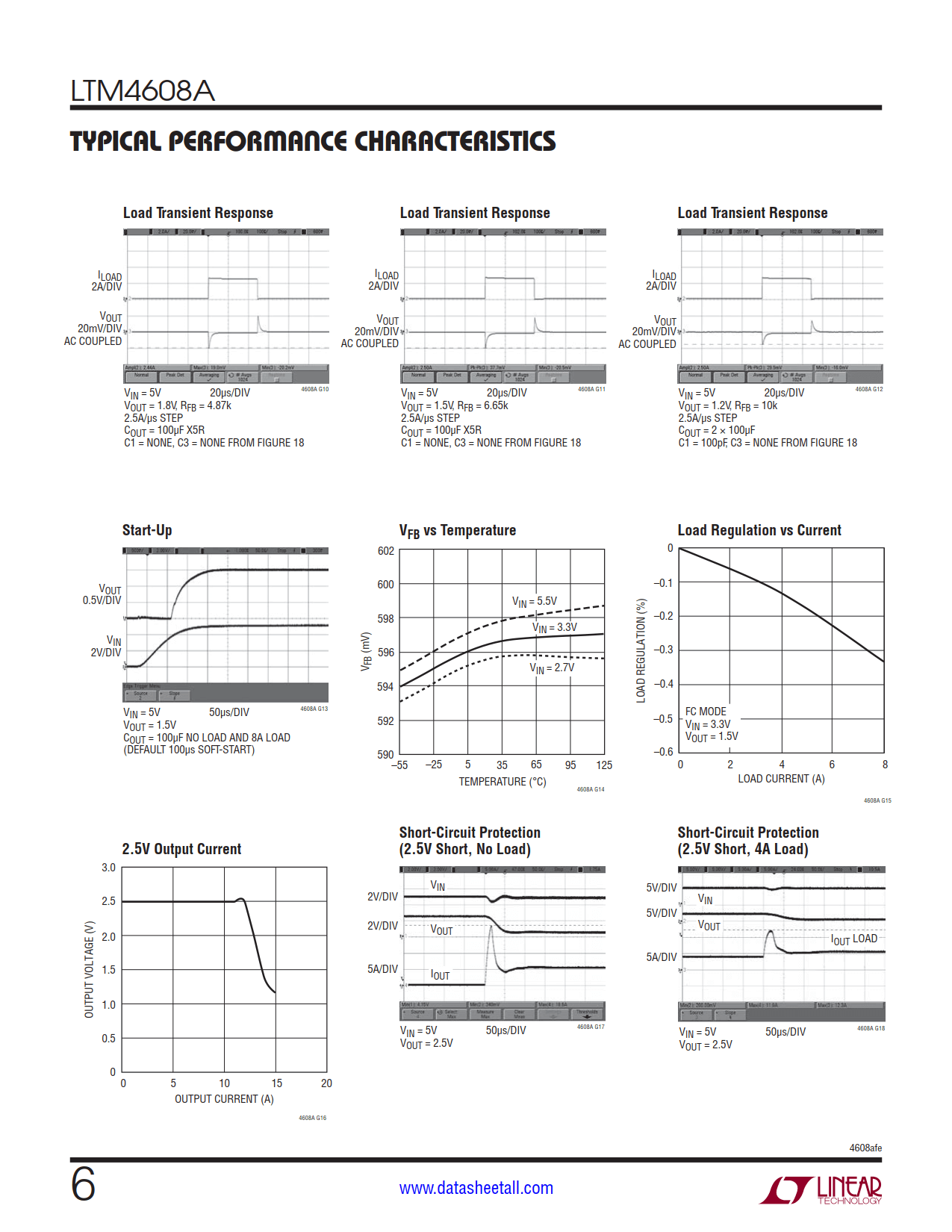

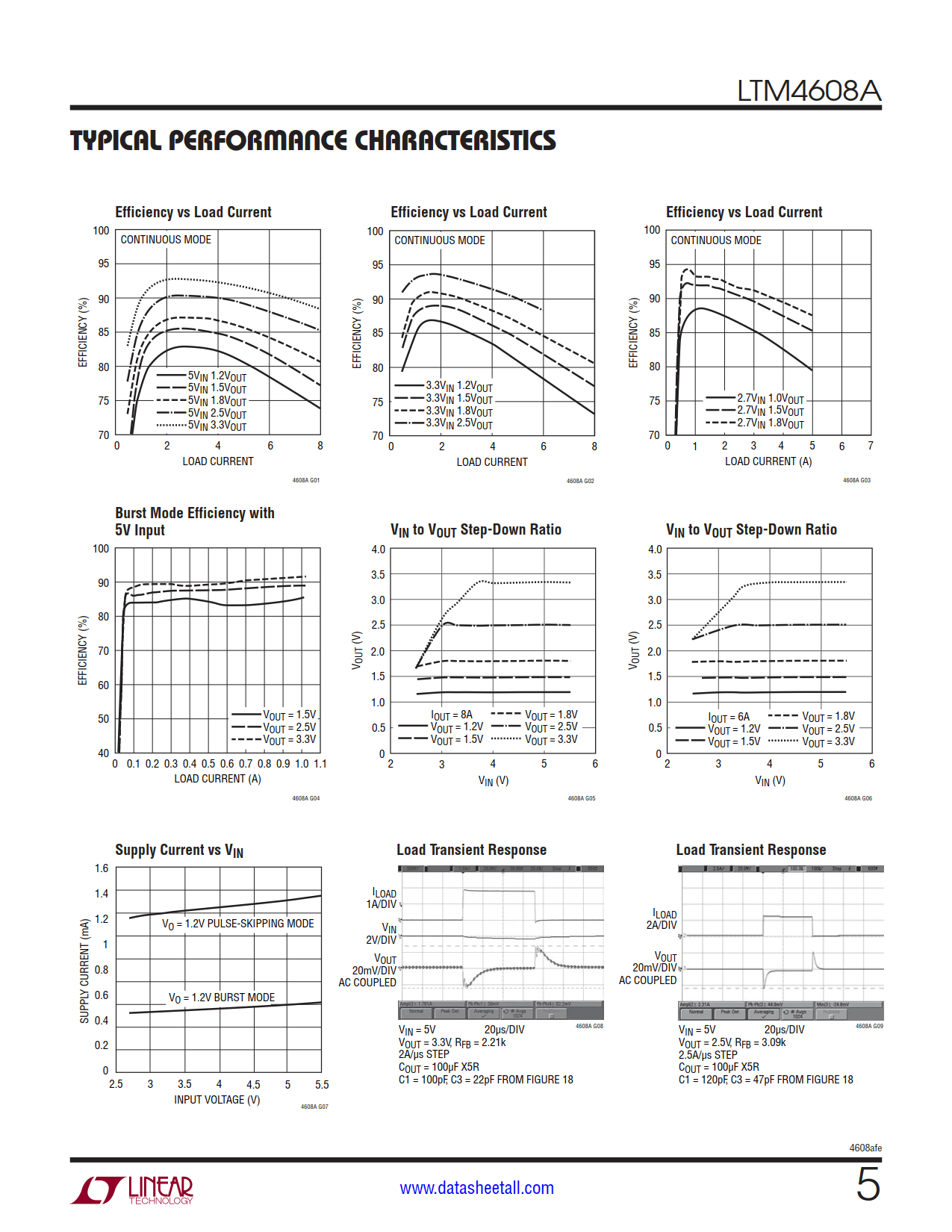

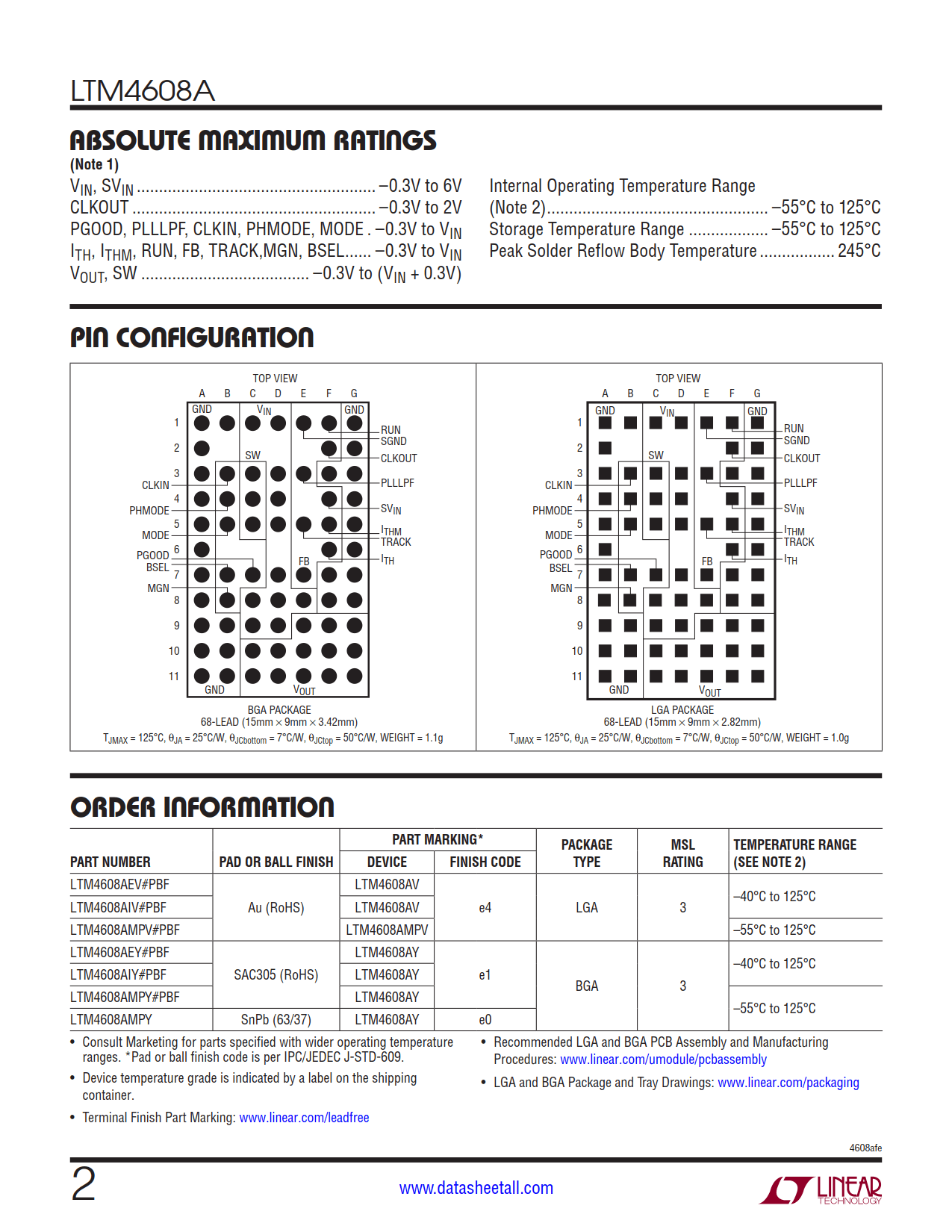

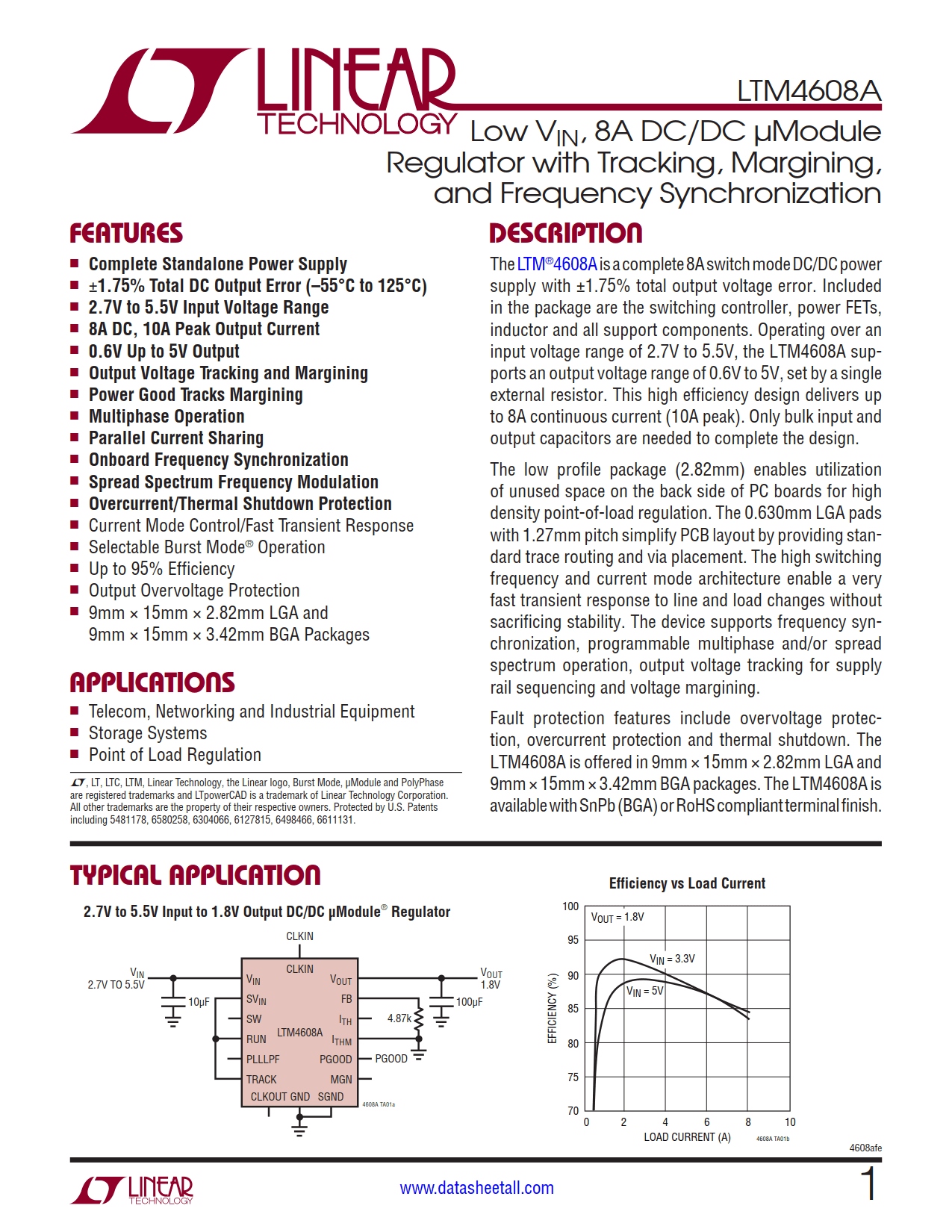

LTM4608A Datasheet(Picture)

LTM4608A Features

  • Complete Standalone Power Supply
  • ±1.75% Total DC Output Error (–55°C to 125°C)
  • 2.7V to 5.5V Input Voltage Range
  • 8A DC, 10A Peak Output Current
  • 0.6V Up to 5V Output
  • Output Voltage Tracking and Margining
  • Power Good Tracks Margining
  • Multiphase Operation
  • Parallel Current Sharing
  • On-board Frequency Synchronization
  • Spread Spectrum Frequency Modulation
  • Overcurrent/Thermal Shutdown Protection
  • Current Mode Control/Fast Transient Response
  • Selectable Burst Mode® Operation
  • Up to 95% Efficiency
  • Output Overvoltage Protection
  • 9mm × 15mm × 2.82mm LGA and 9mm × 15mm × 3.42mm BGA Packages

LTM4608A Applications

  • Telecom, Networking and Industrial Equipment
  • Storage Systems
  • Point of Load Regulation

LTM4608A Description

The LTM4608A is a complete 8A switch mode DC/DC power supply with ±1.75% total output voltage error. Included in the package are the switching controller, power FETs, inductor and all support components. Operating over an input voltage range of 2.7V to 5.5V, the LTM4608A supports an output voltage range of 0.6V to 5V, set by a single external resistor. This high efficiency design delivers up to 8A continuous current (10A peak). Only bulk input and output capacitors are needed to complete the design.

The low profile package (2.82mm) enables utilization of unused space on the back side of PC boards for high density point-of-load regulation. The 0.630mm LGA pads with 1.27mm pitch simplify PCB layout by providing standard trace routing and via placement. The high switching frequency and current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, programmable multiphase and/or spread spectrum operation, output voltage tracking for supply rail sequencing and voltage margining.

Fault protection features include overvoltage protection, overcurrent protection and thermal shutdown. The LTM4608A is offered in 9mm × 15mm × 2.82mm LGA and 9mm × 15mm × 3.42mm BGA packages. The LTM4608A is available with SnPb (BGA) or RoHS compliant terminal finish.
