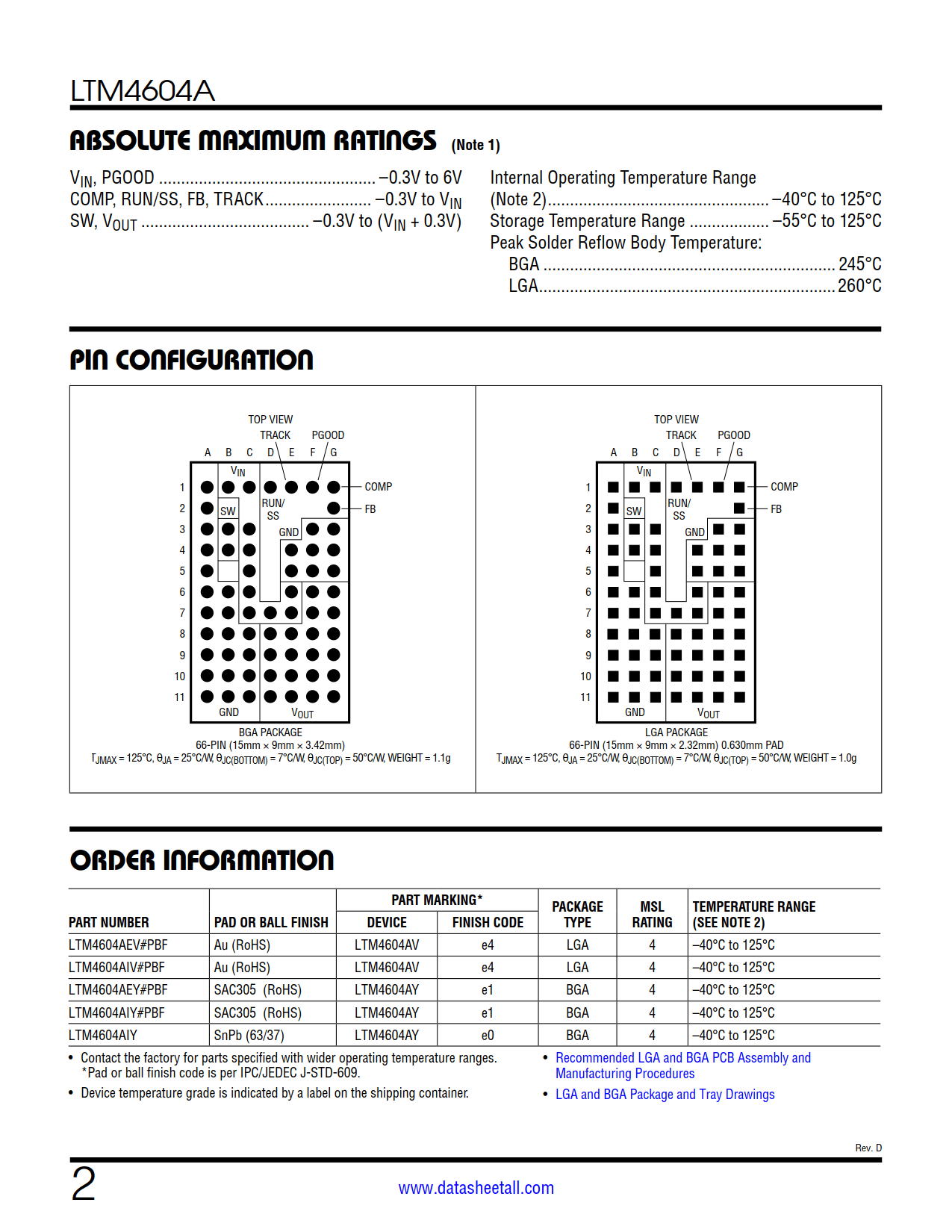

| Part No.： | LTM4604A |
| Page： | 22 Pages |
| Size： | 850 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-12-09 10:06:28 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTM4604AEV#PBF | Tray | 170 | LTM4604AV | 4 | 66 | -40°C ~ 85°C | 66-Lead LGA (15mm x 9mm x 2.32mm) | |
| LTM4604AIV#PBF | Tray | 170 | LTM4604AV | 4 | 66 | -40°C ~ 85°C | 66-Lead LGA (15mm x 9mm x 2.32mm) | |
| LTM4604AEY#PBF | Tray | 170 | LTM4604AY | 4 | 66 | -40°C ~ 125°C | 66-Lead BGA (15mm x 9mm x 3.42mm) | |
| LTM4604AIY#PBF | Tray | 170 | LTM4604AY | 4 | 66 | -40°C ~ 125°C | 66-Lead BGA (15mm x 9mm x 3.42mm) | |
| LTM4604AIY | Tray | 170 | LTM4604AY | 4 | 66 | -40°C ~ 125°C | 66-Lead BGA (15mm x 9mm x 3.42mm) |

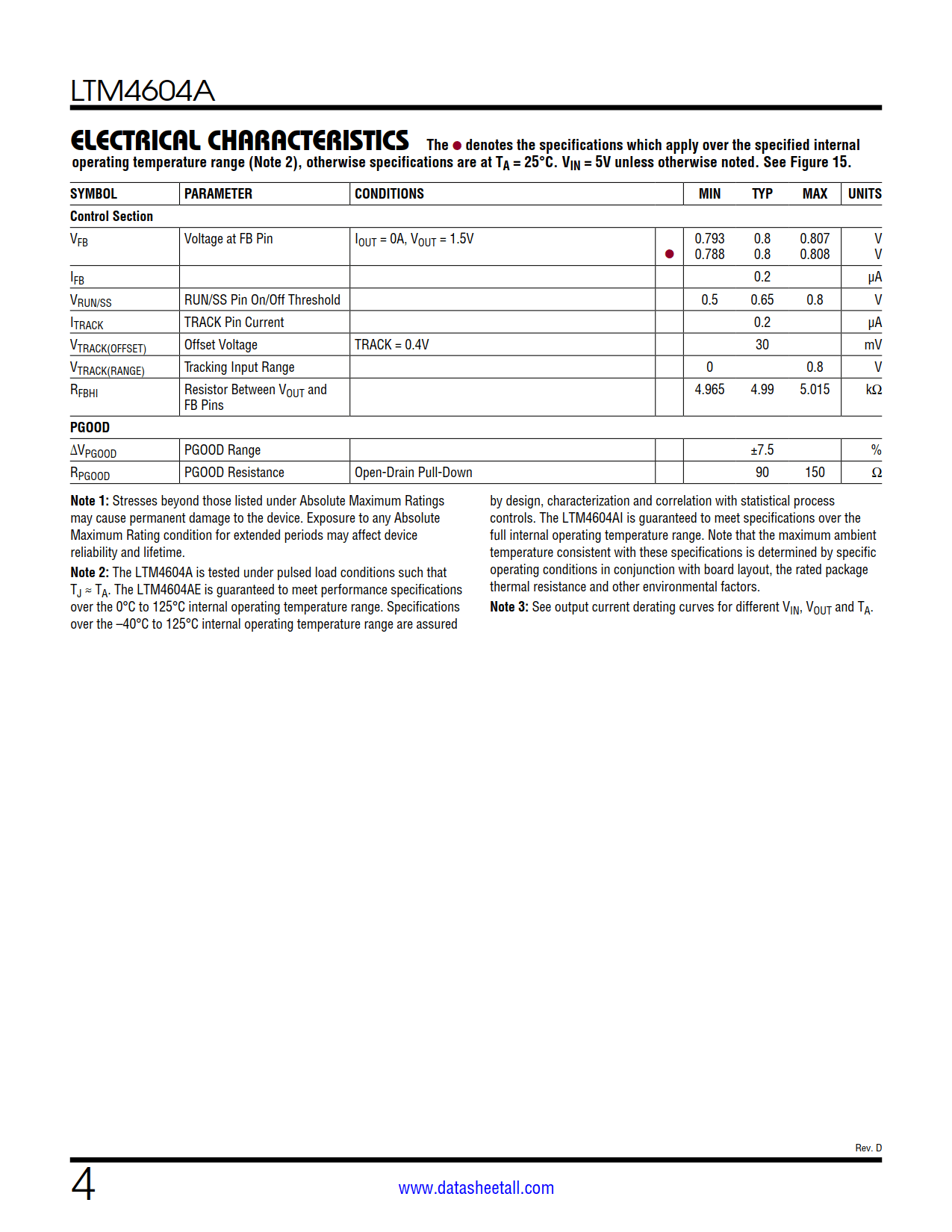

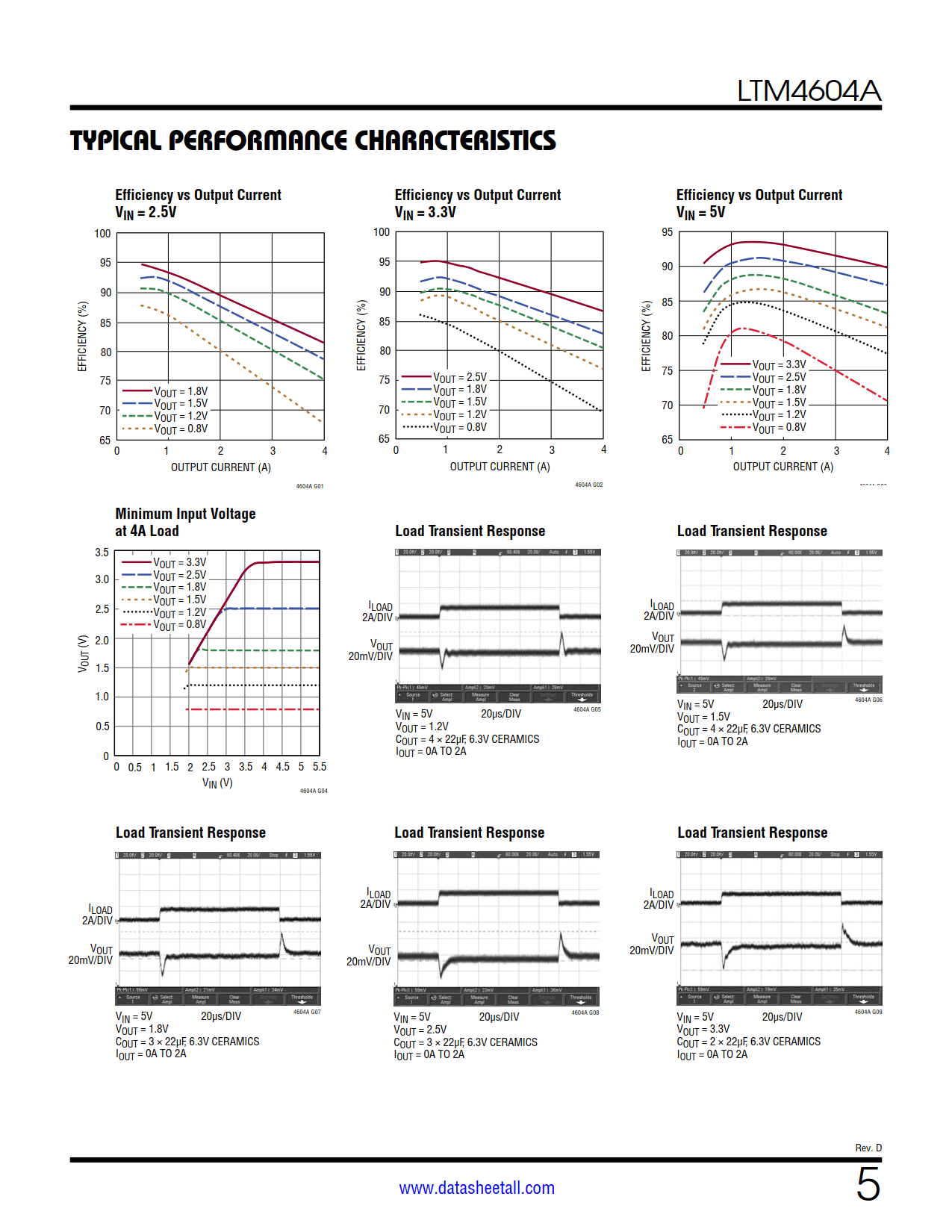

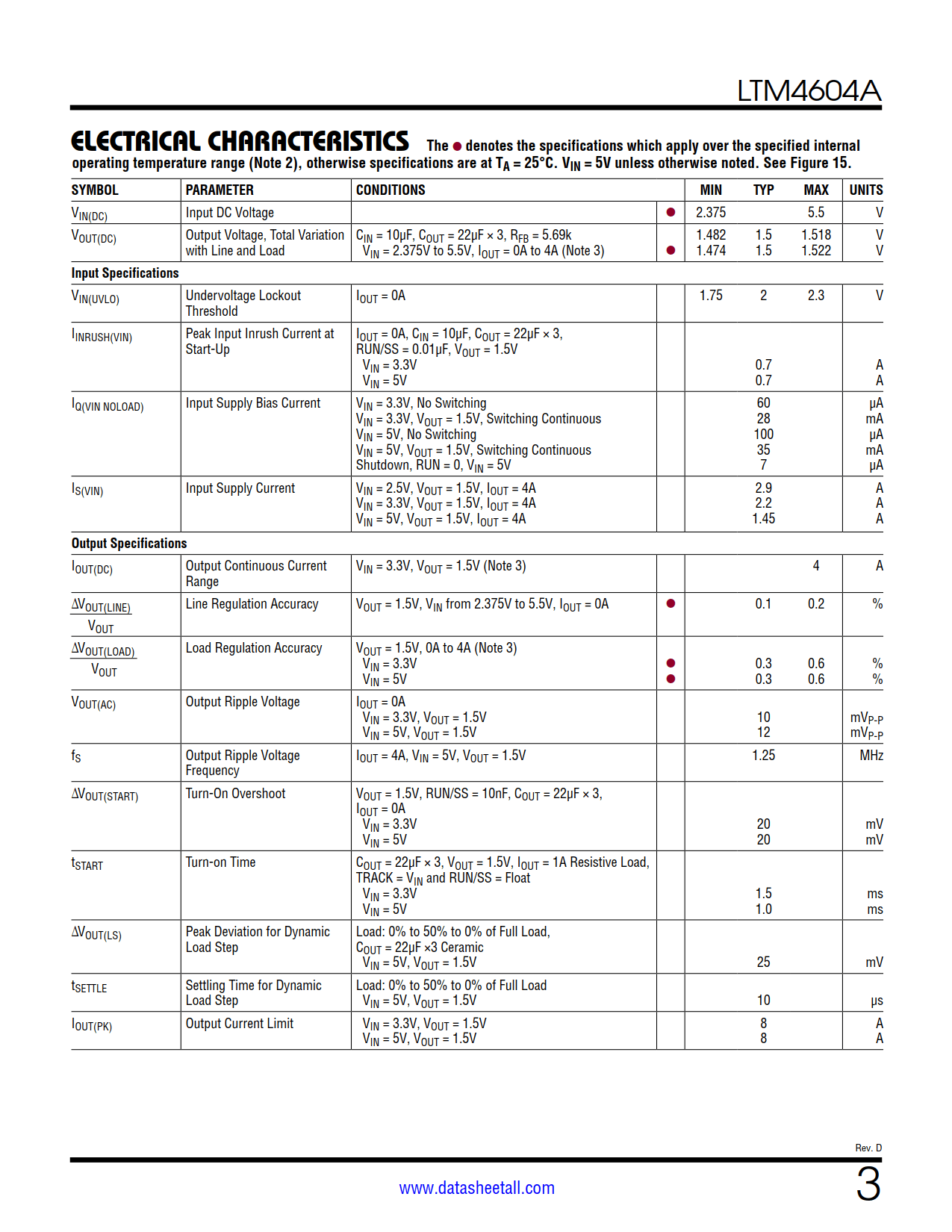

The LTM4604A is a complete 4A switch mode step-down μModule® (power module) regulator with ±1.75% maximum total output voltage error. Included in the package are the switching controller, power FETs, inductor and all support components. Operating over an input voltage range of 2.375V to 5.5V, the LTM4604A supports an output voltage range of 0.8V to 5V, set by a single resistor. This high efficiency design delivers up to 4A continuous current (5A peak). Only input and output capacitors are needed to complete the design.
The 0.630mm LGA pads with 1.27mm pitch simplify PCB layout by providing standard trace routing and via placement. (The LTM4604A has smaller pads than the LTM4604). The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.

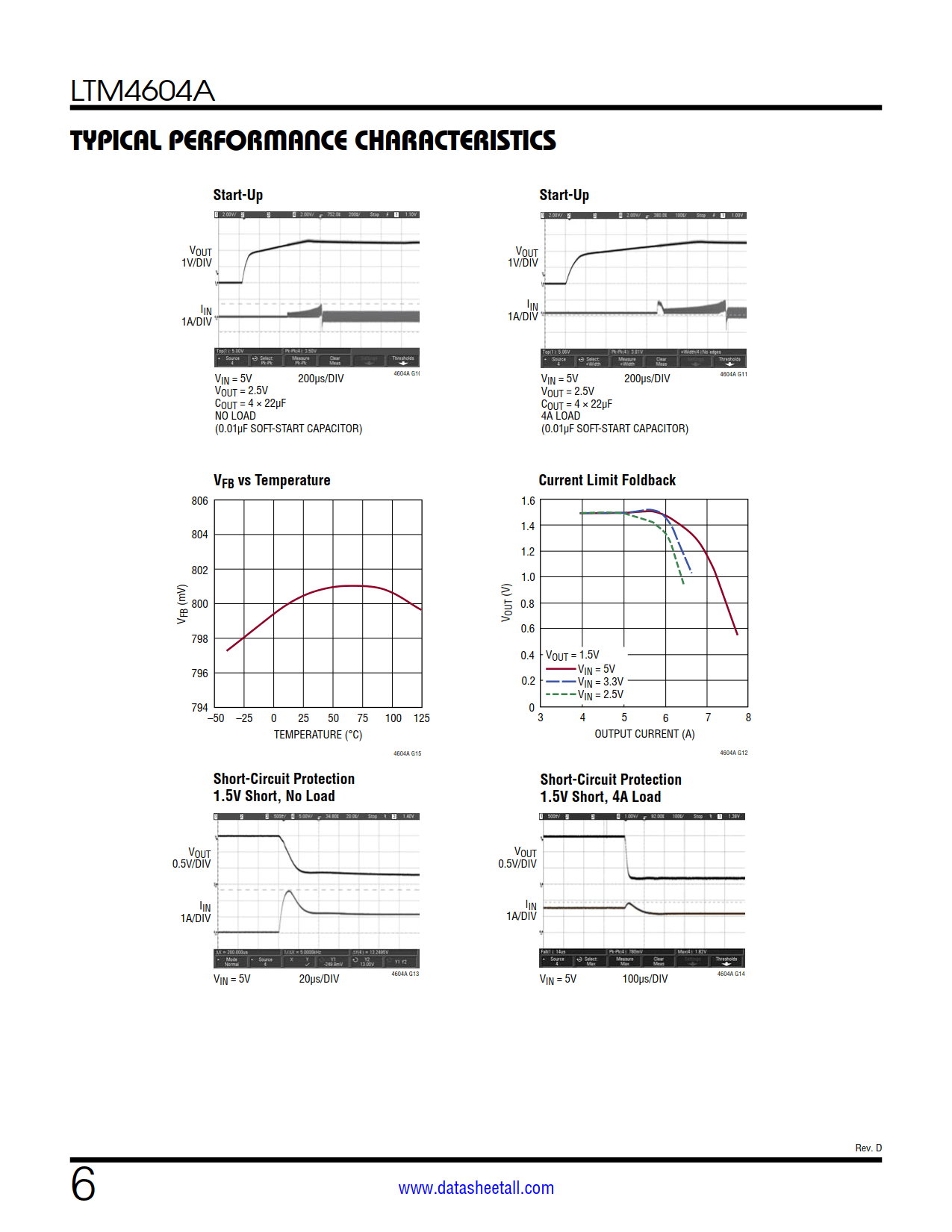

Fault protection features include foldback current protection, thermal shutdown and a programmable soft-start function. The LTM4604A is offered with SnPb (BGA) or RoHS-compliant terminal finish.
