LTM4601A-1 Datasheet

LTM4601A-1 Datasheet

12A μModule (Power Module) Regulators with PLL, Output Tracking and Margining
Part No.: LTM4601A-1
Page: 30 Pages
Size: 531 KB
Manufacturer: Linear Technology
Logo:
Views: 3
Update Time: 2024-11-24 15:35:49
DataSheet: Download

LTM4601A-1 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4601AEV-1#PBF Tray 119 LTM4601AV-1 3 133 -40°C ~85°C 133-Lead LGA (15mm x 15mm x 2.82mm)
LTM4601AIV-1#PBF Tray 119 LTM4601AV-1 3 133 -40°C ~85°C 133-Lead LGA (15mm x 15mm x 2.82mm)
LTM4601AEY-1#PBF Tray 119 LTM4601AY-1 3 133 -40°C ~85°C 133-Lead BGA (15mm x 15mm x 3.42mm)
LTM4601AIY-1#PBF Tray 119 LTM4601AY-1 3 133 -40°C ~85°C 133-Lead BGA (15mm x 15mm x 3.42mm)
LTM4601AIY-1 Tray 119 LTM4601AY-1 3 133 -40°C ~85°C 133-Lead BGA (15mm x 15mm x 3.42mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4601A-1 Datasheet(PDF)

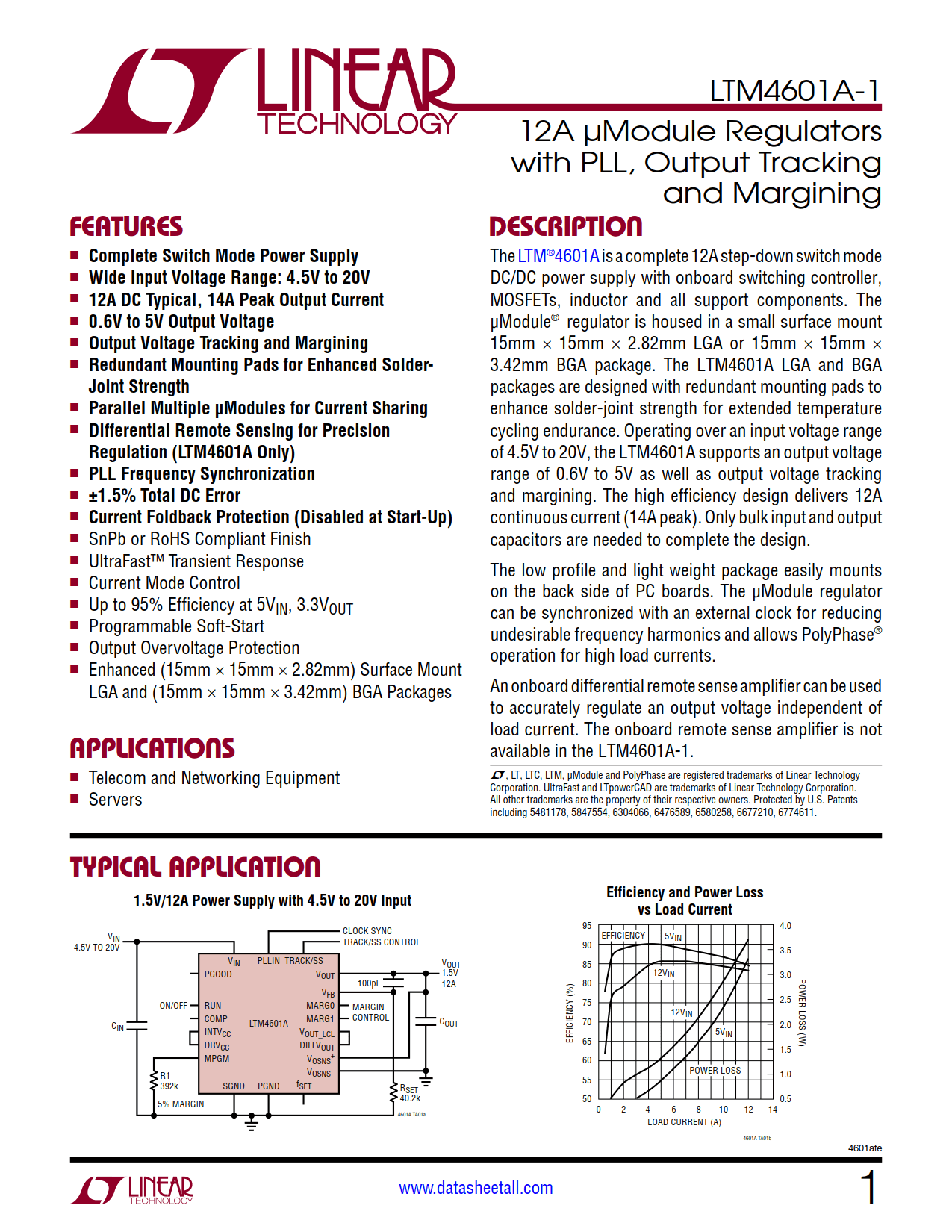

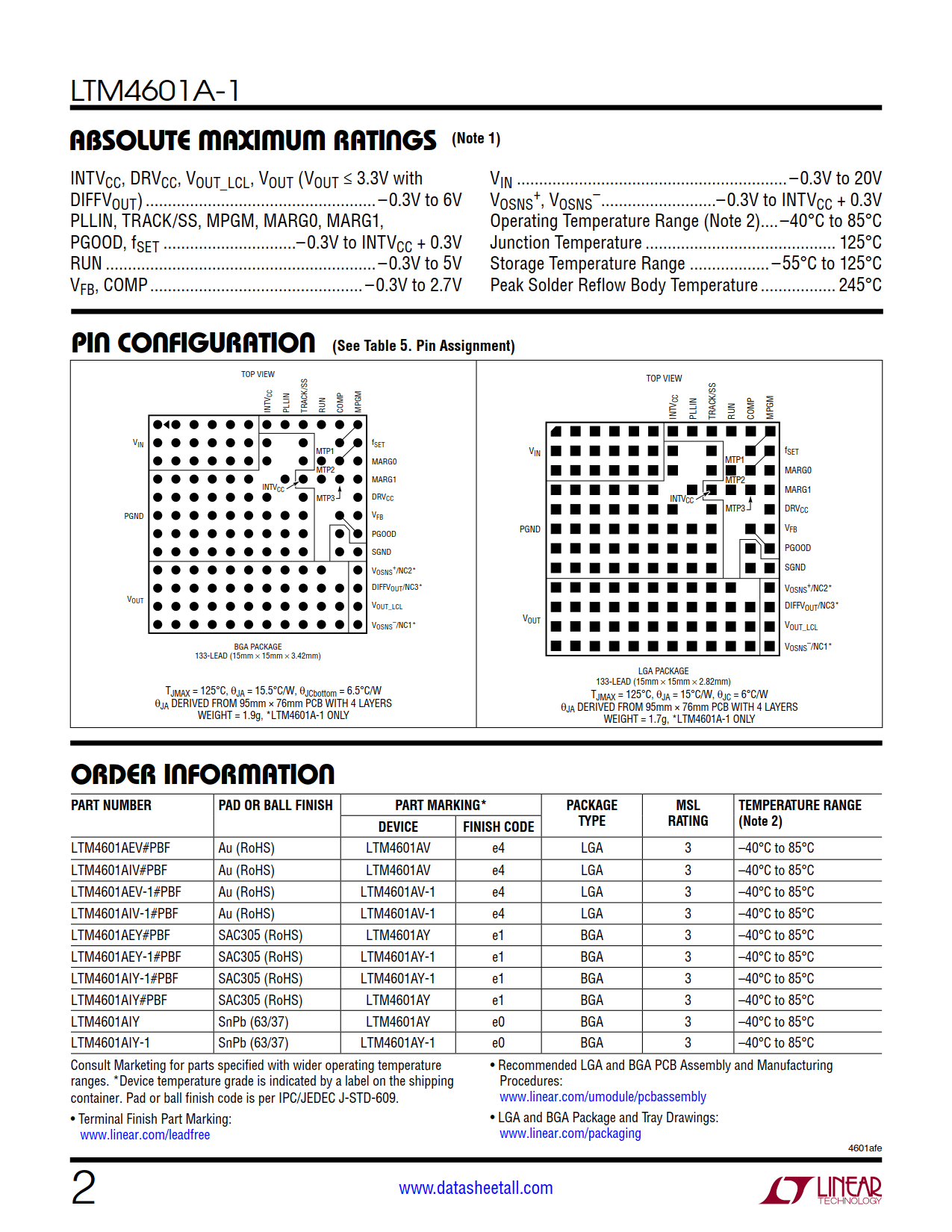

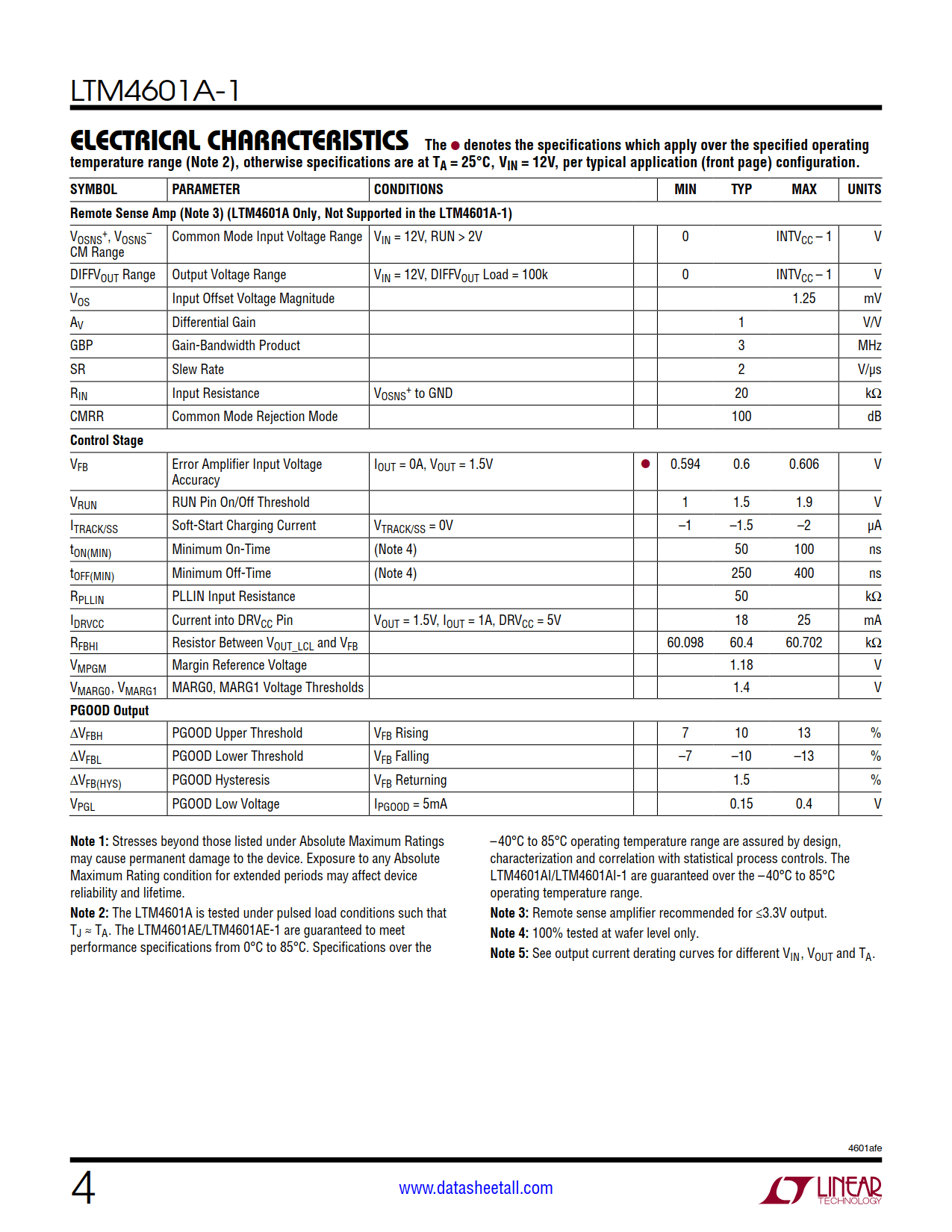

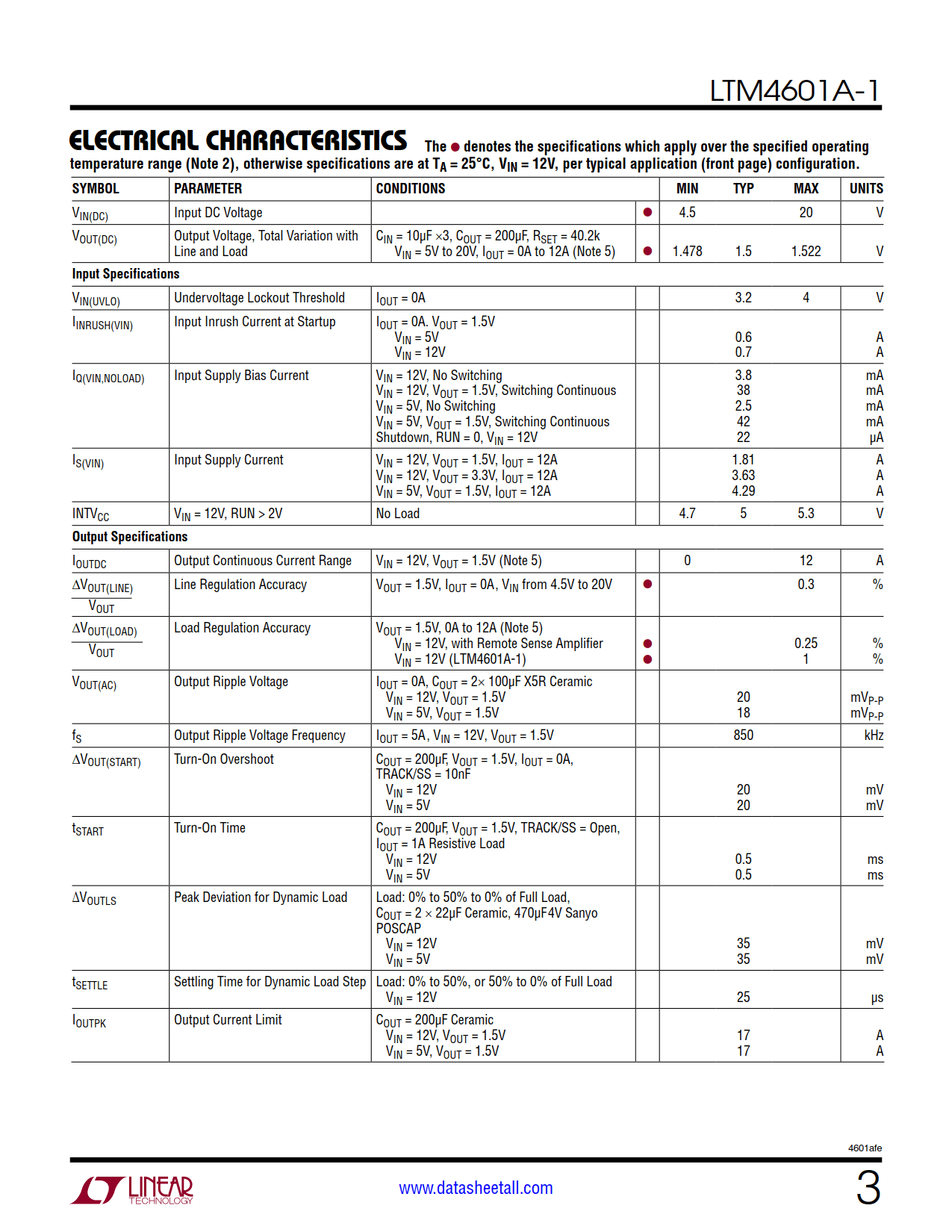

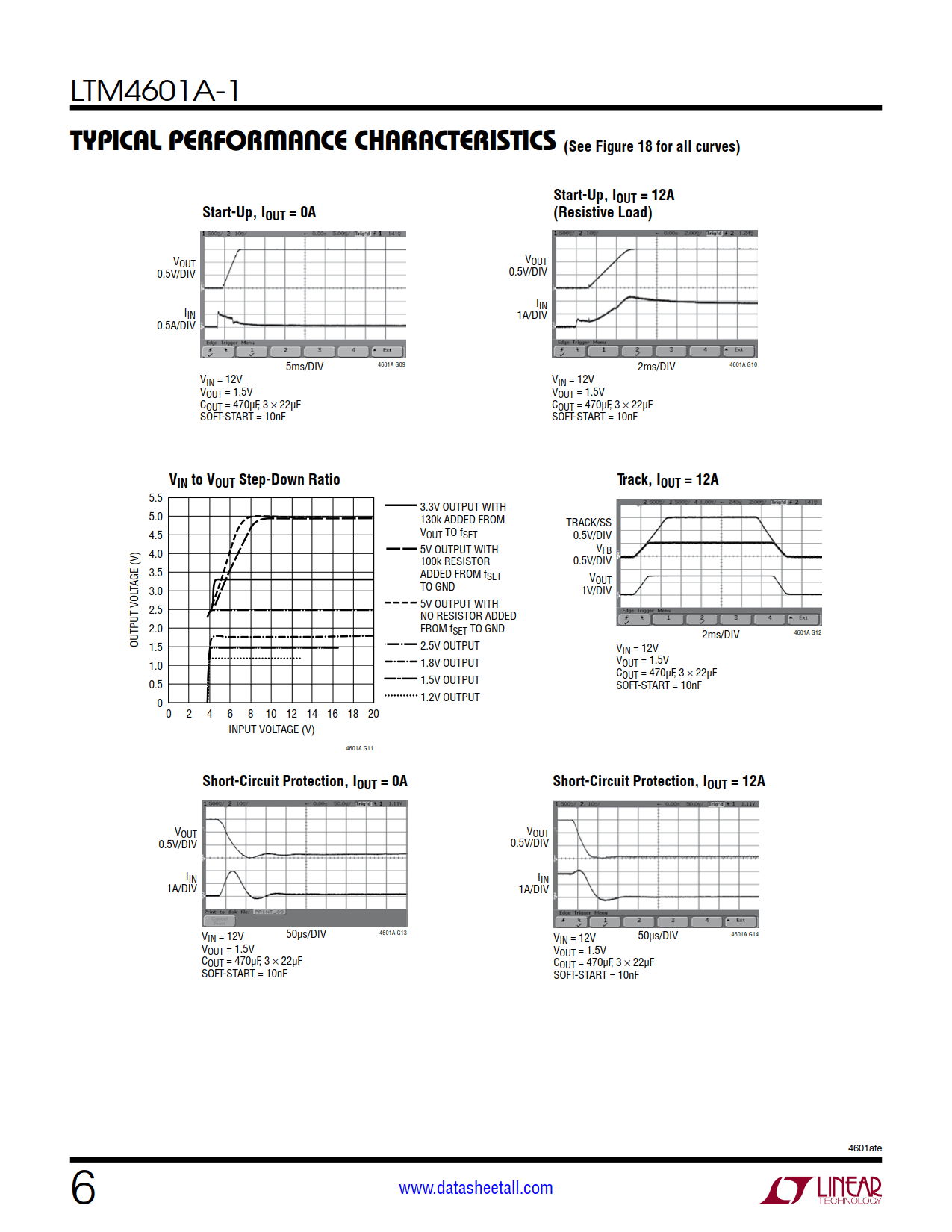

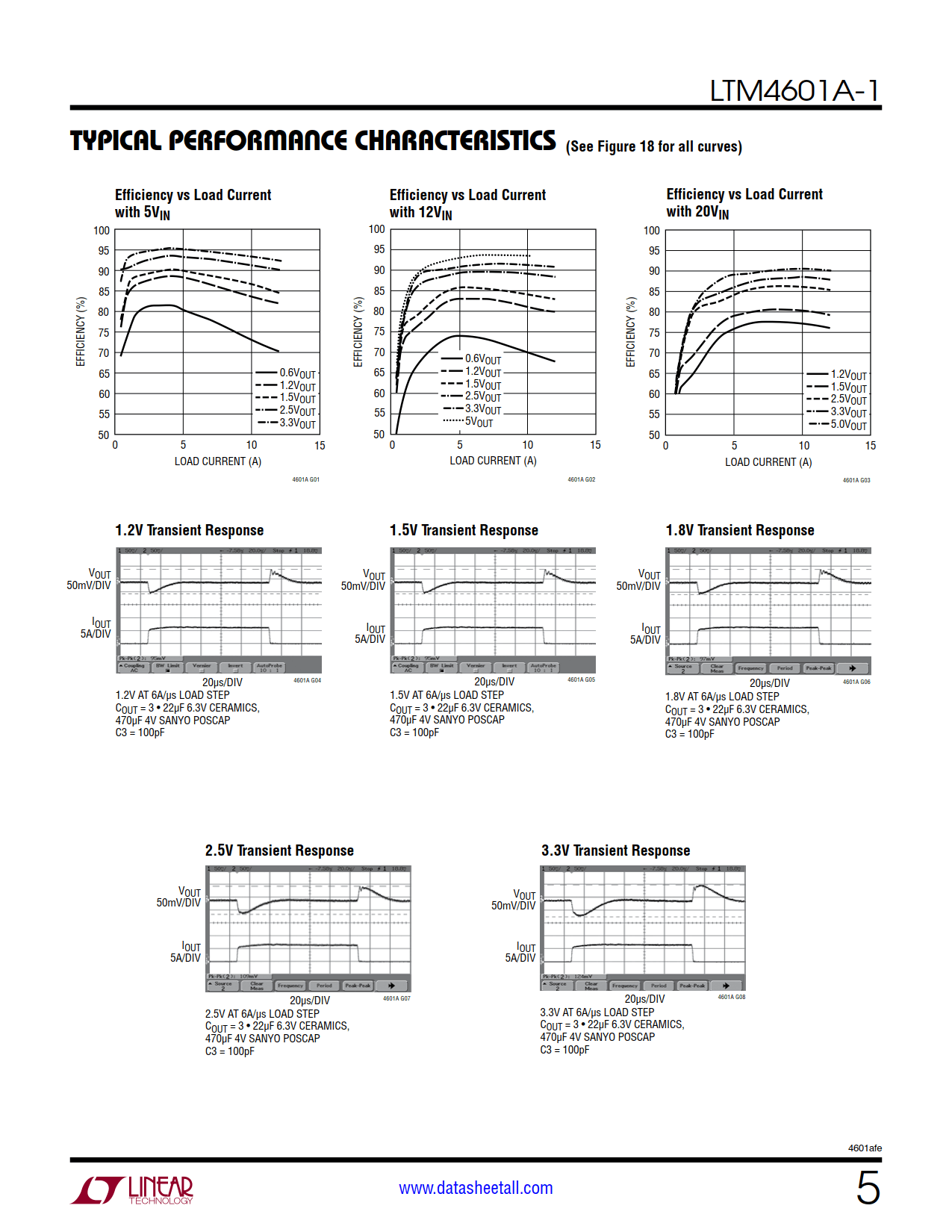

LTM4601A-1 Datasheet(Picture)

LTM4601A-1 Features

  • Complete Switch Mode Power Supply
  • Wide Input Voltage Range: 4.5V to 20V
  • 12A DC Typical, 14A Peak Output Current
  • 0.6V to 5V Output Voltage
  • Output Voltage Tracking and Margining
  • Redundant Mounting Pads for Enhanced Solder-Joint Strength
  • Parallel Multiple μModules for Current Sharing
  • PLL Frequency Synchronization
  • ±1.5% Total DC Error
  • Current Foldback Protection (Disabled at Start-Up)
  • SnPb or RoHS Compliant Finish
  • UltraFast Transient Response
  • Current Mode Control
  • Up to 95% Efficiency at 5VIN, 3.3VOUT
  • Programmable Soft-Start
  • Output Overvoltage Protection
  • Enhanced (15mm × 15mm × 2.82mm) Surface Mount LGA and (15mm × 15mm × 3.42mm) BGA Packages

LTM4601A-1 Applications

  • Telecom and Networking Equipment
  • Servers

LTM4601A-1 Description

The LTM4601A is a complete 12A step-down switch mode DC/DC power supply with onboard switching controller, MOSFETs, inductor and all support components. The μModule® regulator is housed in a small surface mount 15mm × 15mm × 2.82mm LGA or 15mm × 15mm × 3.42mm BGA package. The LTM4601A LGA and BGA packages are designed with redundant mounting pads to enhance solder-joint strength for extended temperature cycling endurance. Operating over an input voltage range of 4.5V to 20V, the LTM4601A supports an output voltage range of 0.6V to 5V as well as output voltage tracking and margining. The high efficiency design delivers 12A continuous current (14A peak). Only bulk input and output capacitors are needed to complete the design.

The low profile and light weight package easily mounts on the back side of PC boards. The μModule regulator can be synchronized with an external clock for reducing undesirable frequency harmonics and allows PolyPhase® operation for high load currents.

An onboard differential remote sense amplifier can be used to accurately regulate an output voltage independent of load current. The onboard remote sense amplifier is not available in the LTM4601A-1.
