10A, 28VIN High Efficiency DC/DC µModule (Power Module)
Part No.: LTM4600HV
Page: 26 Pages
Size: 445 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-11-24 16:04:22
DataSheet: Download

LTM4600HV Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4600HVEV#PBF Tray 119 LTM4600HVEV 3 104 -40°C ~85°C 104-Lead LGA (15mm x 15mm x 2.82mm)
LTM4600HVIV#PBF Tray 119 LTM4600HVIV 3 104 -40°C ~85°C 104-Lead LGA (15mm x 15mm x 2.82mm)
LTM4600HVMPV#PBF Tray 119 LTM4600HVMPV 3 104 -55°C ~125°C 104-Lead LGA (15mm x 15mm x 2.82mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4600HV Datasheet(PDF)

LTM4600HV Datasheet(Picture)

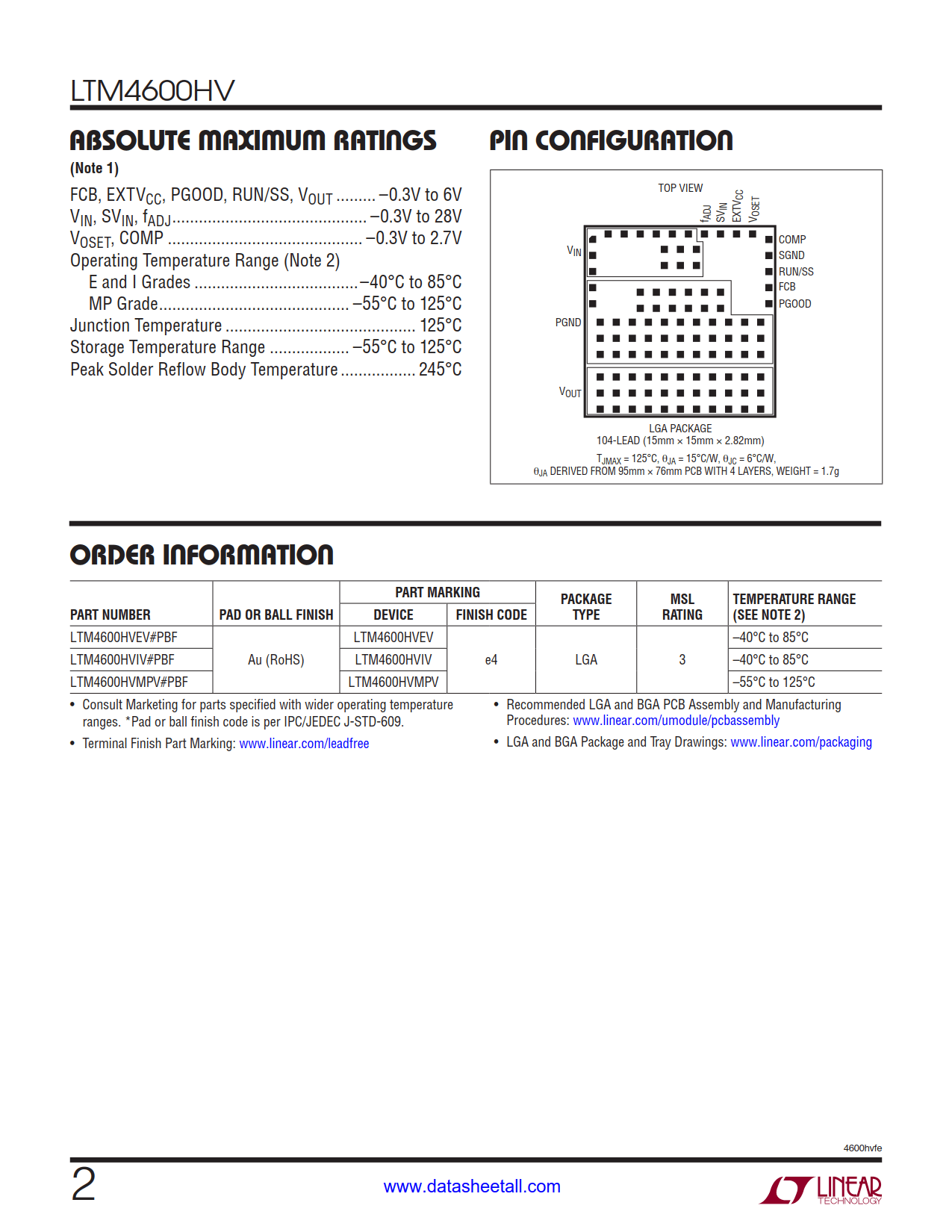

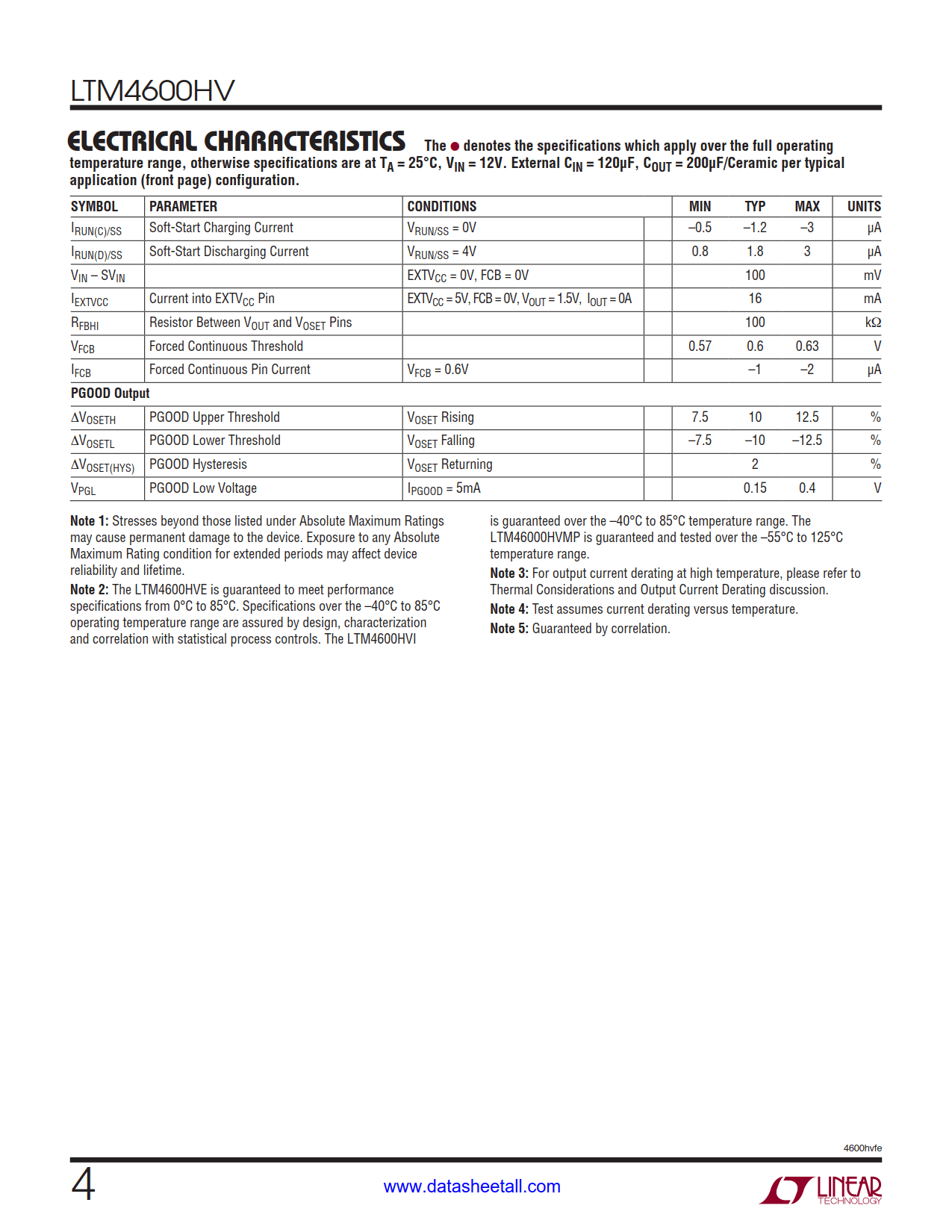

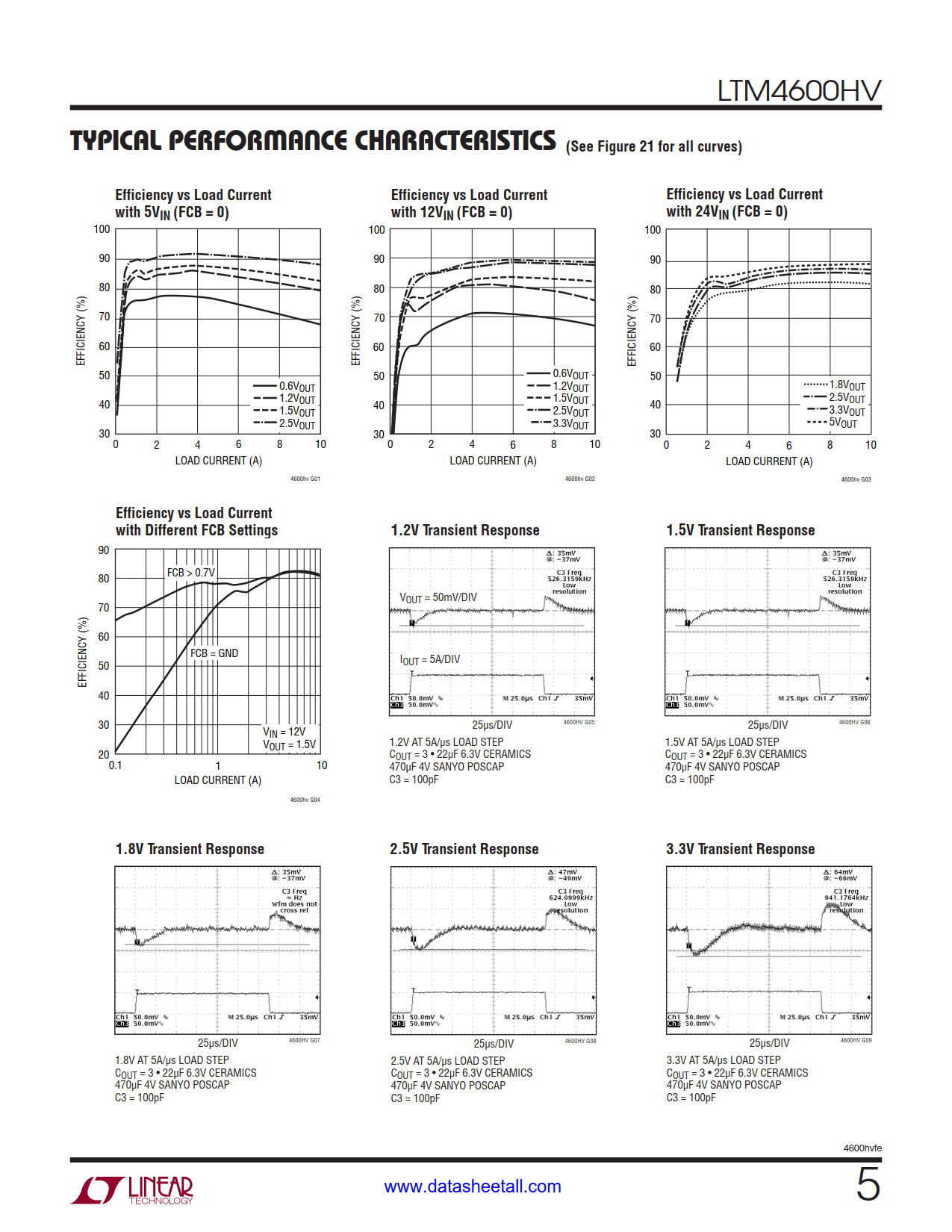

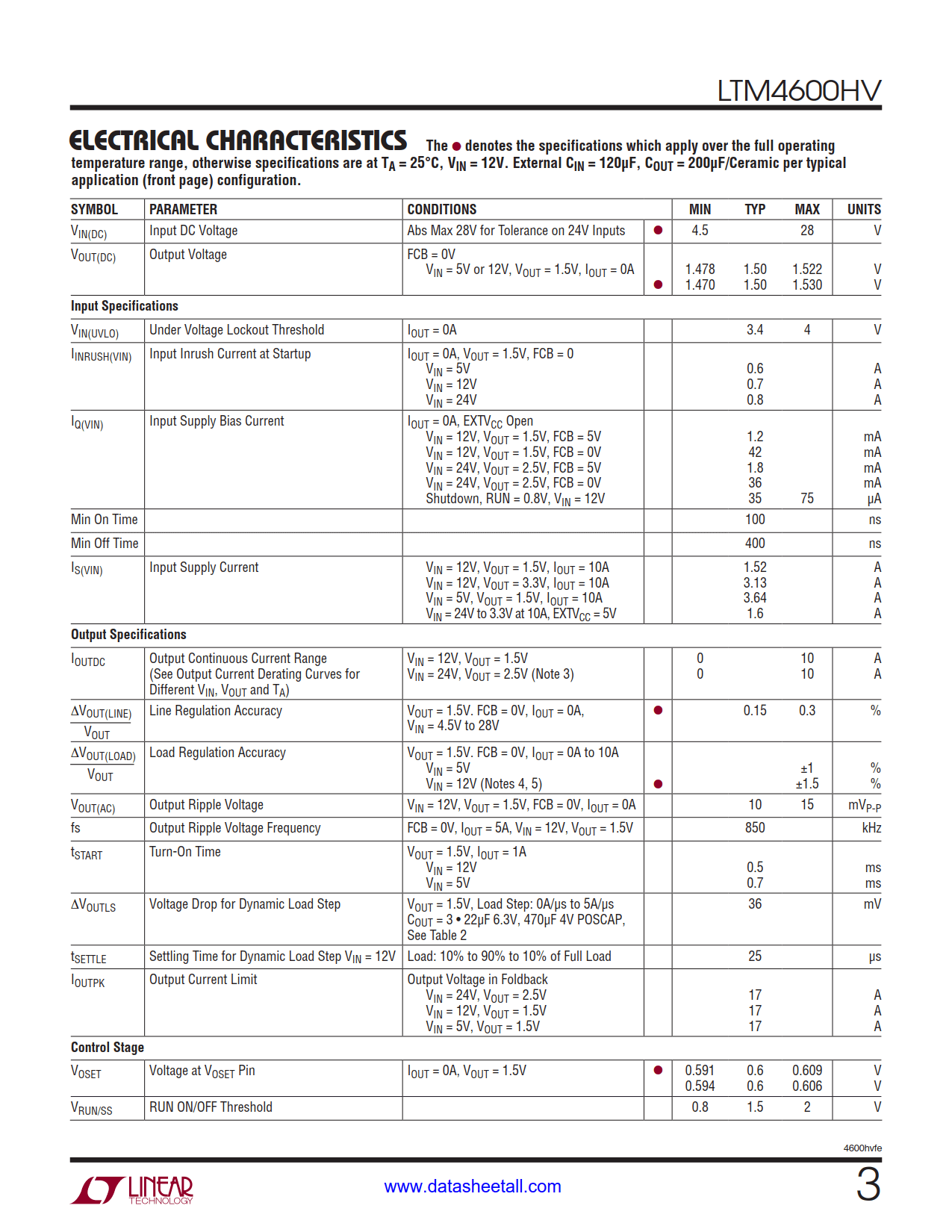

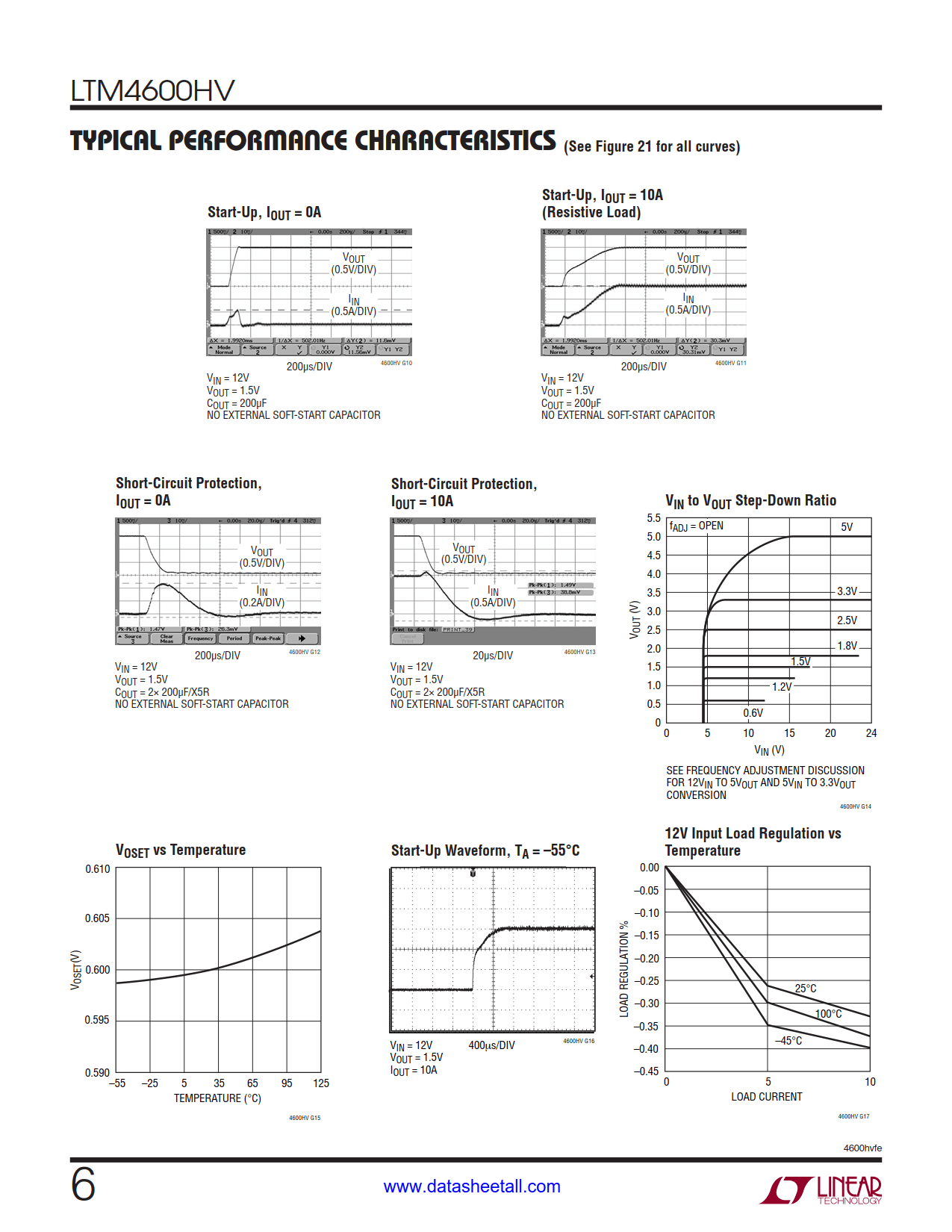

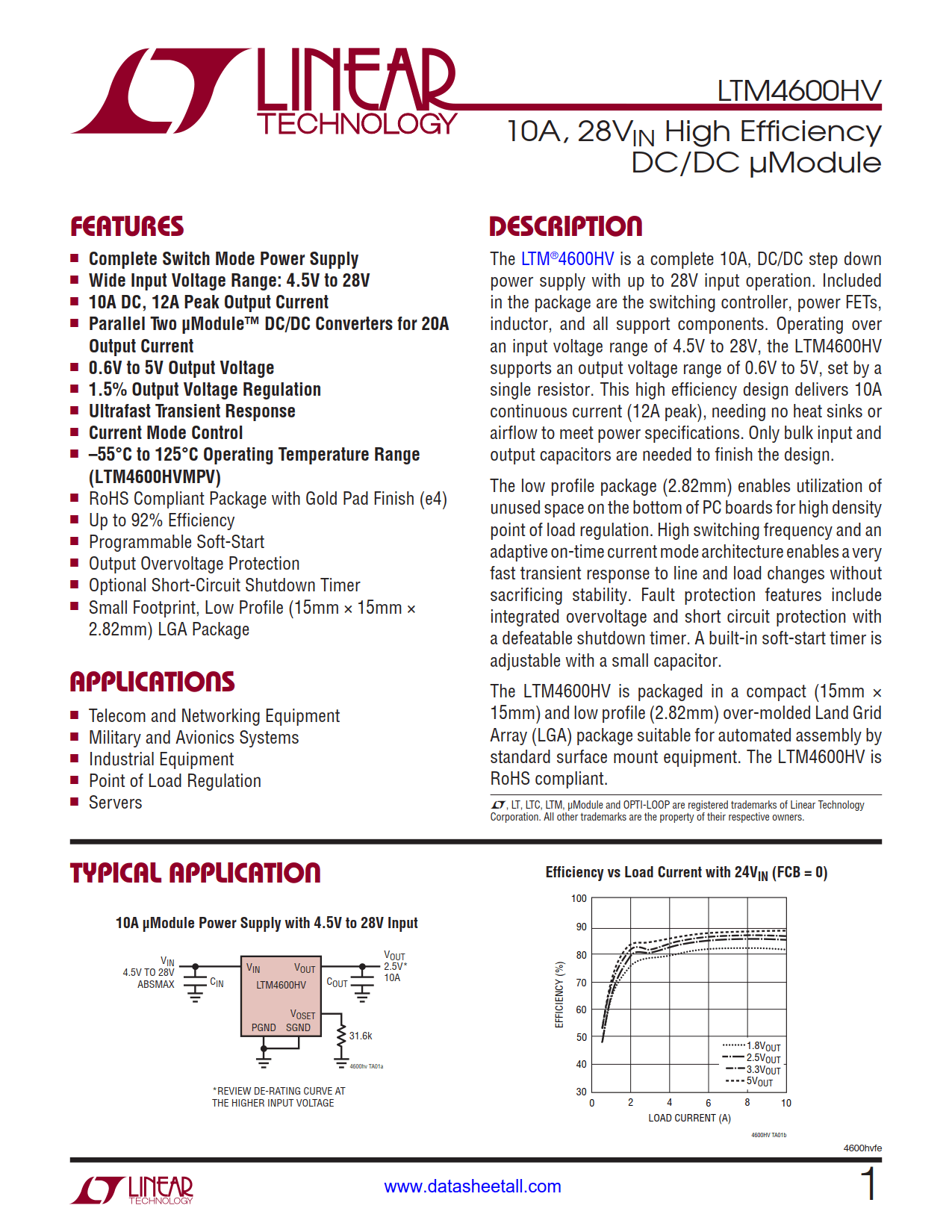

LTM4600HV Features

  • Complete Switch Mode Power Supply
  • Wide Input Voltage Range: 4.5V to 28V
  • 10A DC, 12A Peak Output Current
  • Parallel Two μModule DC/DC Converters for 20A Output Current
  • 0.6V to 5V Output Voltage
  • 1.5% Output Voltage Regulation
  • Ultrafast Transient Response
  • Current Mode Control
  • –55°C to 125°C Operating Temperature Range (LTM4600HVMPV)
  • RoHS Compliant Package with Gold Pad Finish (e4)
  • Up to 92% Efficiency
  • Programmable Soft-Start
  • Output Overvoltage Protection
  • Optional Short-Circuit Shutdown Timer
  • Small Footprint, Low Profile (15mm × 15mm × 2.82mm) LGA Package

LTM4600HV Applications

  • Telecom and Networking Equipment
  • Military and Avionics Systems
  • Industrial Equipment
  • Point of Load Regulation
  • Servers

LTM4600HV Description

The LTM4600HV is a complete 10A, DC/DC step down power supply with up to 28V input operation. Included in the package are the switching controller, power FETs, inductor, and all support components. Operating over an input voltage range of 4.5V to 28V, the LTM4600HV supports an output voltage range of 0.6V to 5V, set by a single resistor. This high efficiency design delivers 10A continuous current (12A peak), needing no heat sinks or airflow to meet power specifications. Only bulk input and output capacitors are needed to finish the design.

The low profile package (2.82mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation. High switching frequency and an adaptive on-time current mode architecture enables a very fast transient response to line and load changes without sacrificing stability. Fault protection features include integrated overvoltage and short circuit protection with a defeatable shutdown timer. A built-in soft-start timer is adjustable with a small capacitor.

The LTM4600HV is packaged in a compact (15mm × 15mm) and low profile (2.82mm) over-molded Land Grid Array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM4600HV is RoHS compliant.
