LTM4600 Datasheet

LTM4600 Datasheet

10A High Efficiency DC/DC µModule (Power Module)
Part No.: LTM4600
Page: 26 Pages
Size: 421 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-11-24 16:02:49
DataSheet: Download

LTM4600 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM4600EV#PBF Tray 119 LTM4600EV 3 104 -40°C ~85°C 104-Lead LGA (15mm x 15mm x 2.82mm)
LTM4600IV#PBF Tray 119 LTM4600IV 3 104 -40°C ~85°C 104-Lead LGA (15mm x 15mm x 2.82mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM4600 Datasheet(PDF)

LTM4600 Datasheet(Picture)

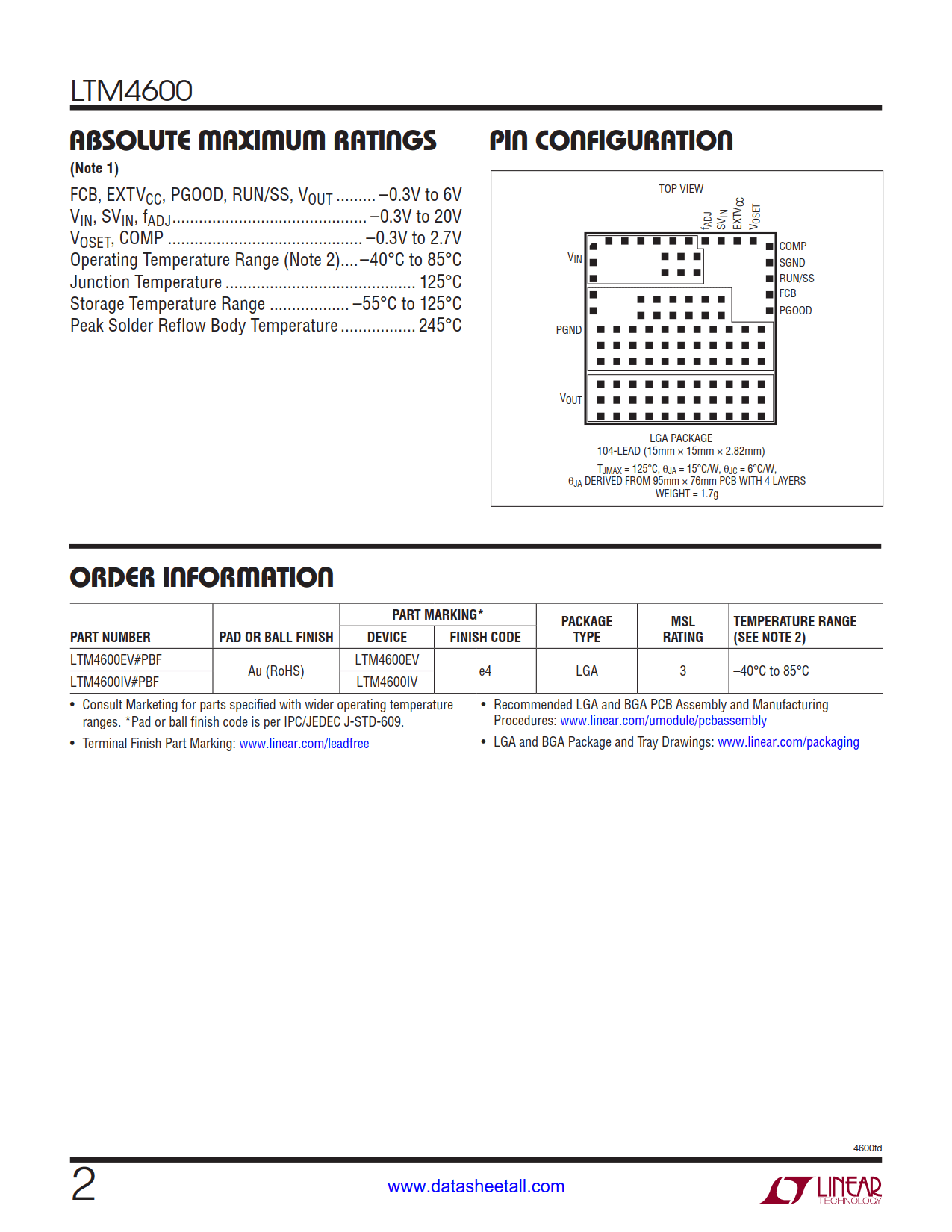

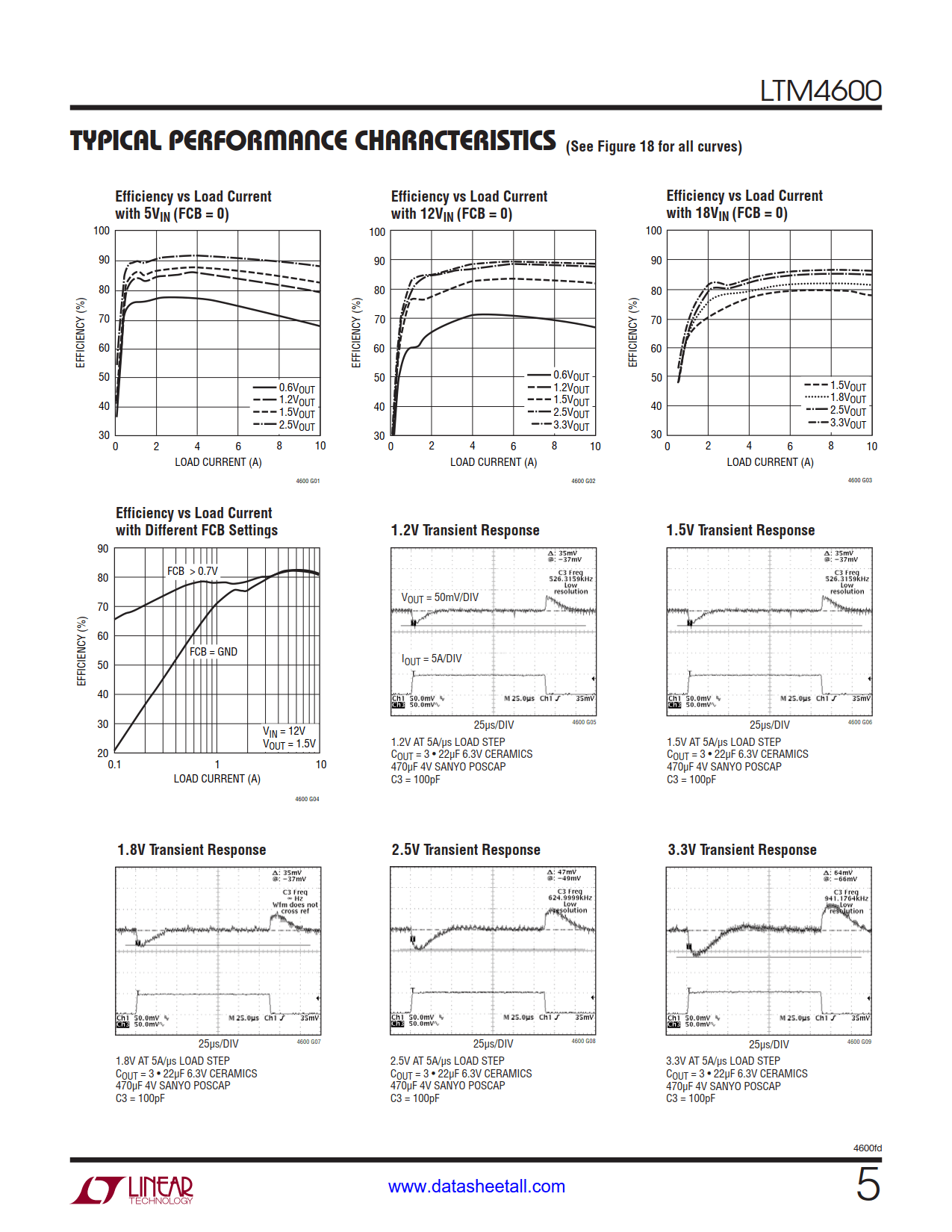

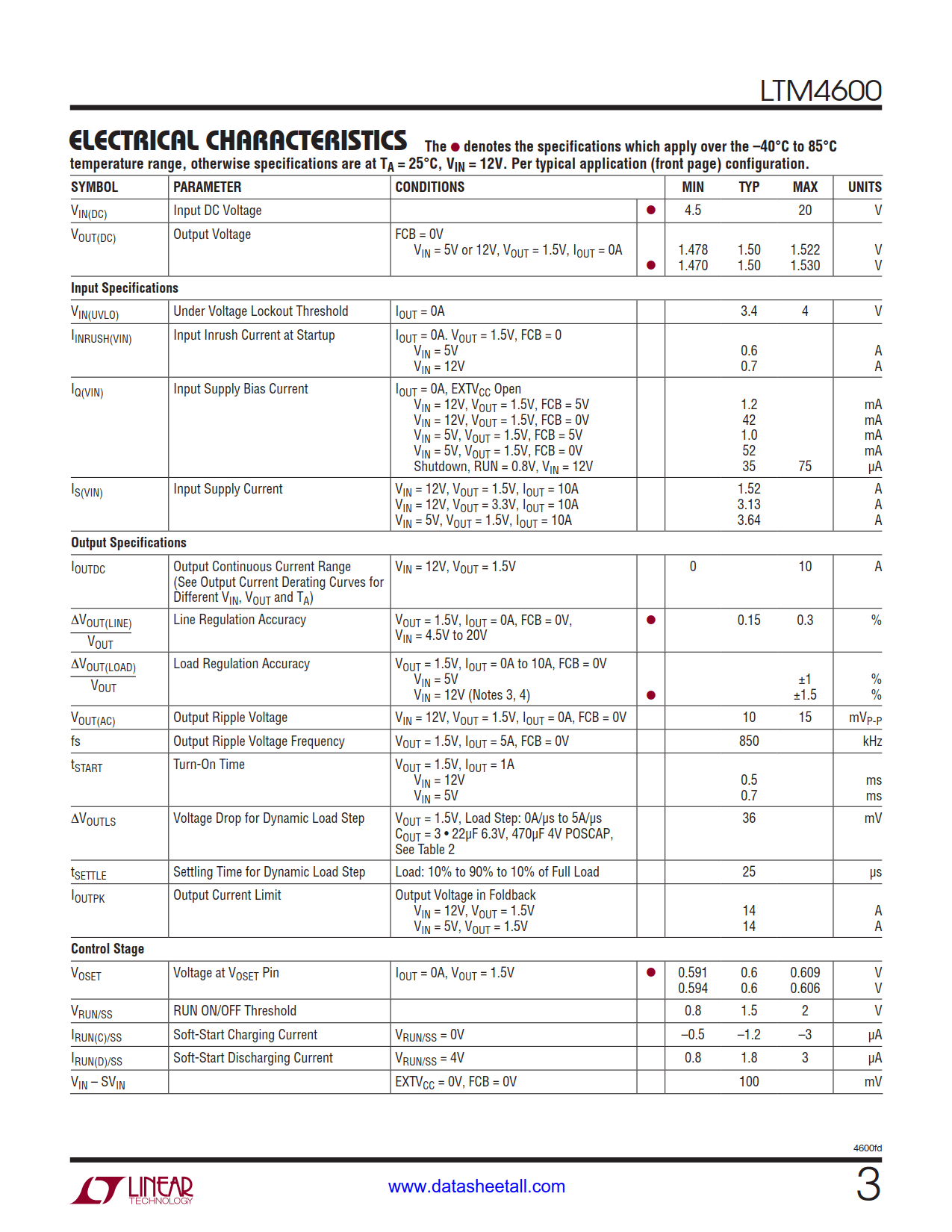

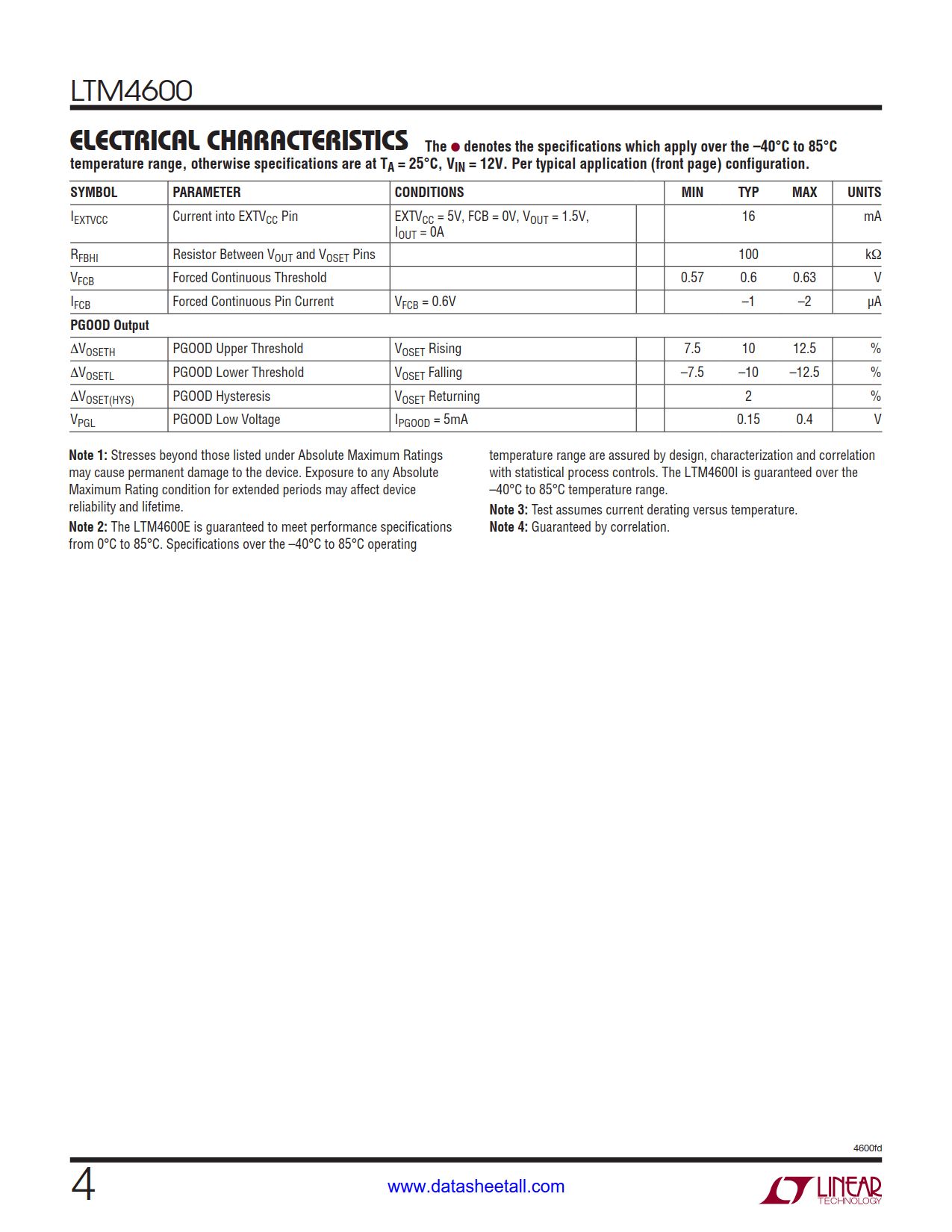

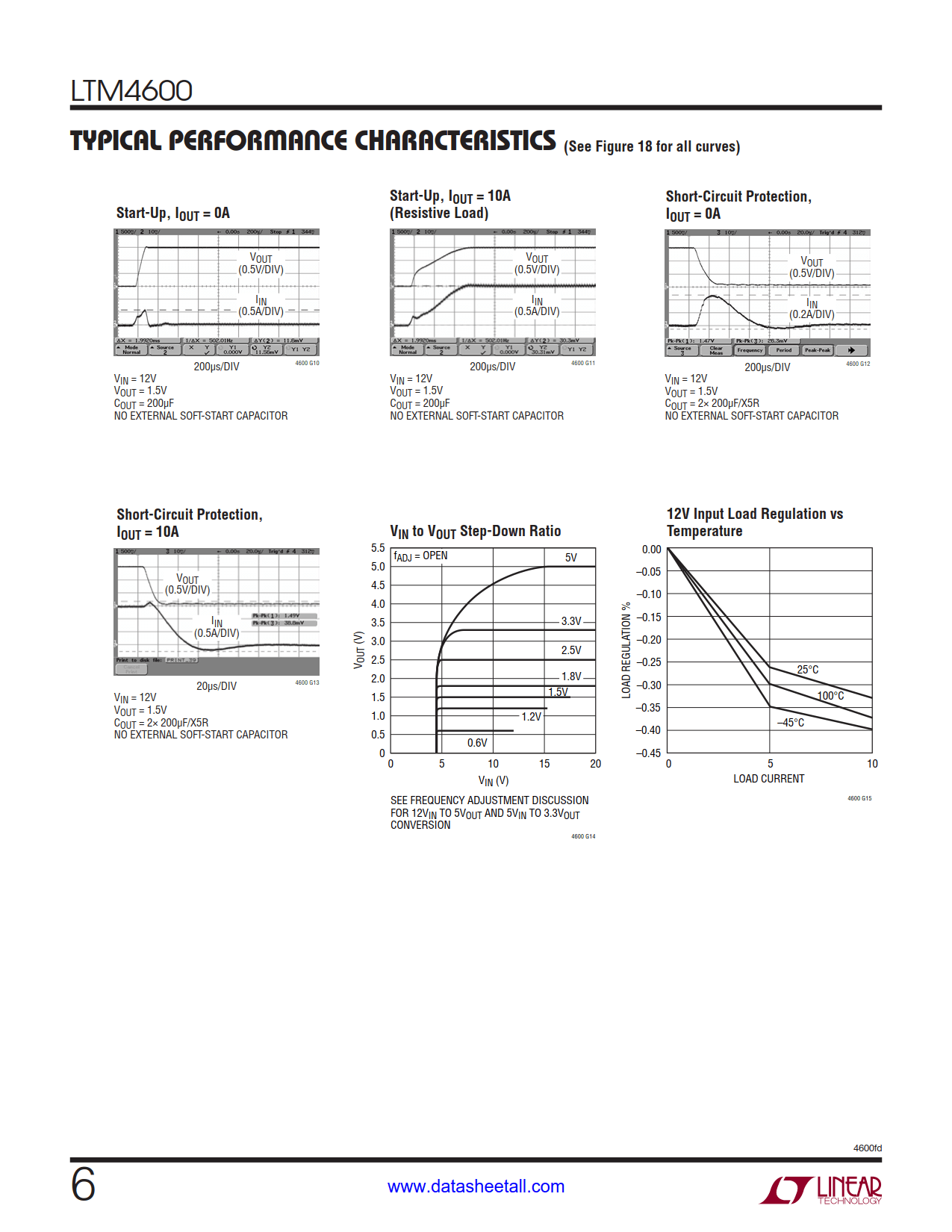

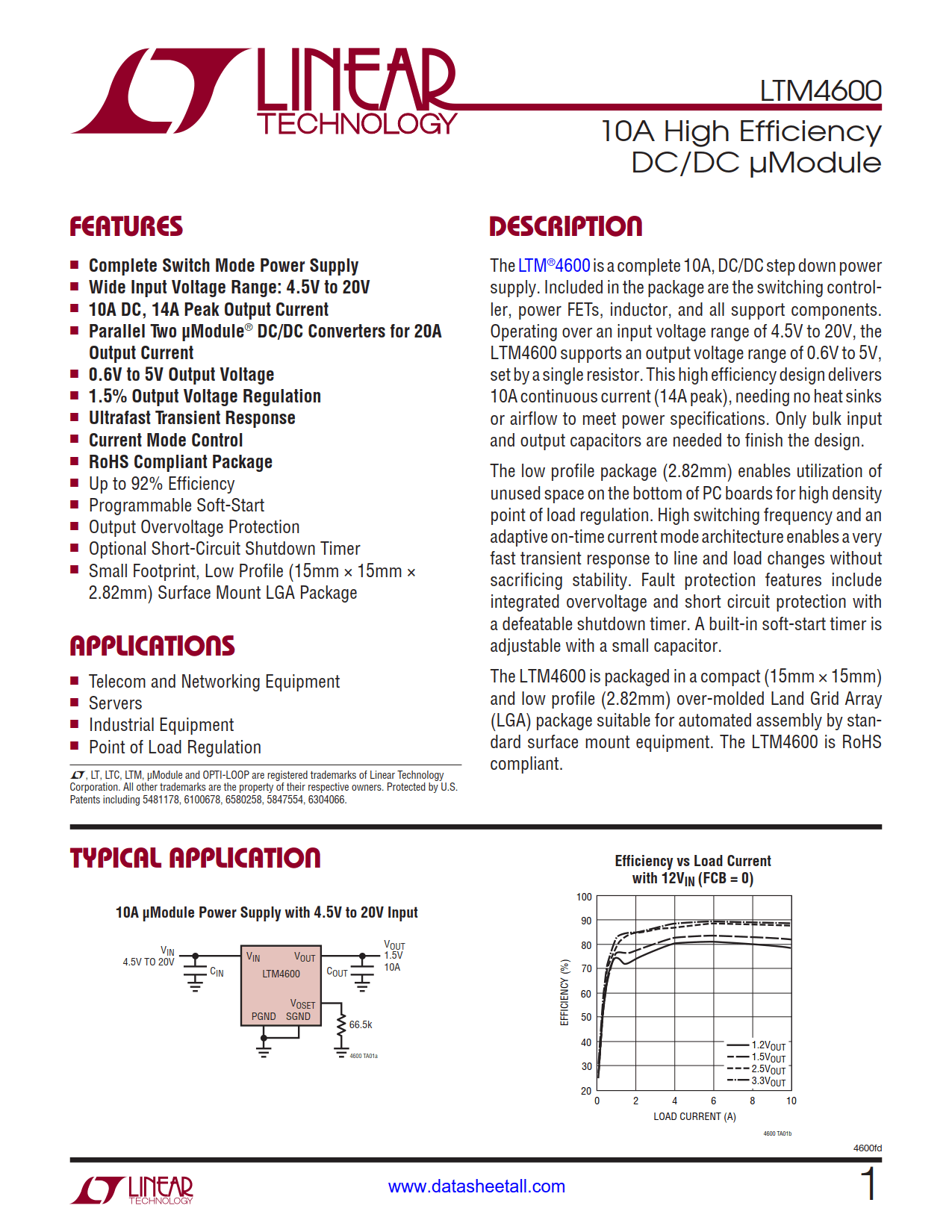

LTM4600 Features

  • Complete Switch Mode Power Supply
  • Wide Input Voltage Range: 4.5V to 20V
  • 10A DC, 14A Peak Output Current
  • Parallel Two μModule® DC/DC Converters for 20A Output Current
  • 0.6V to 5V Output Voltage
  • 1.5% Output Voltage Regulation
  • Ultrafast Transient Response
  • Current Mode Control
  • RoHS Compliant Package
  • Up to 92% Efficiency
  • Programmable Soft-Start
  • Output Overvoltage Protection
  • Optional Short-Circuit Shutdown Timer
  • Small Footprint, Low Profile (15mm × 15mm × 2.82mm) Surface Mount LGA Package

LTM4600 Applications

  • Telecom and Networking Equipment
  • Servers
  • Industrial Equipment
  • Point of Load Regulation

LTM4600 Description

The LTM4600 is a complete 10A, DC/DC step down power supply. Included in the package are the switching controller, power FETs, inductor, and all support components. Operating over an input voltage range of 4.5V to 20V, the LTM4600 supports an output voltage range of 0.6V to 5V, set by a single resistor. This high efficiency design delivers 10A continuous current (14A peak), needing no heat sinks or airflow to meet power specifications. Only bulk input and output capacitors are needed to finish the design.

The low profile package (2.82mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation. High switching frequency and an adaptive on-time current mode architecture enables a very fast transient response to line and load changes without sacrificing stability. Fault protection features include integrated overvoltage and short circuit protection with a defeatable shutdown timer. A built-in soft-start timer is adjustable with a small capacitor.

The LTM4600 is packaged in a compact (15mm × 15mm) and low profile (2.82mm) over-molded Land Grid Array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM4600 is RoHS compliant.
