LTM2889 Datasheet

LTM2889 Datasheet

Isolated CAN FD µModule Transceiver and Power
Part No.: LTM2889
Page: 30 Pages
Size: 700 KB
Manufacturer: Linear Technology
Logo:
Views: 0
Update Time: 2024-12-11 21:21:37
DataSheet: Download

LTM2889 Datasheet Applicable Part

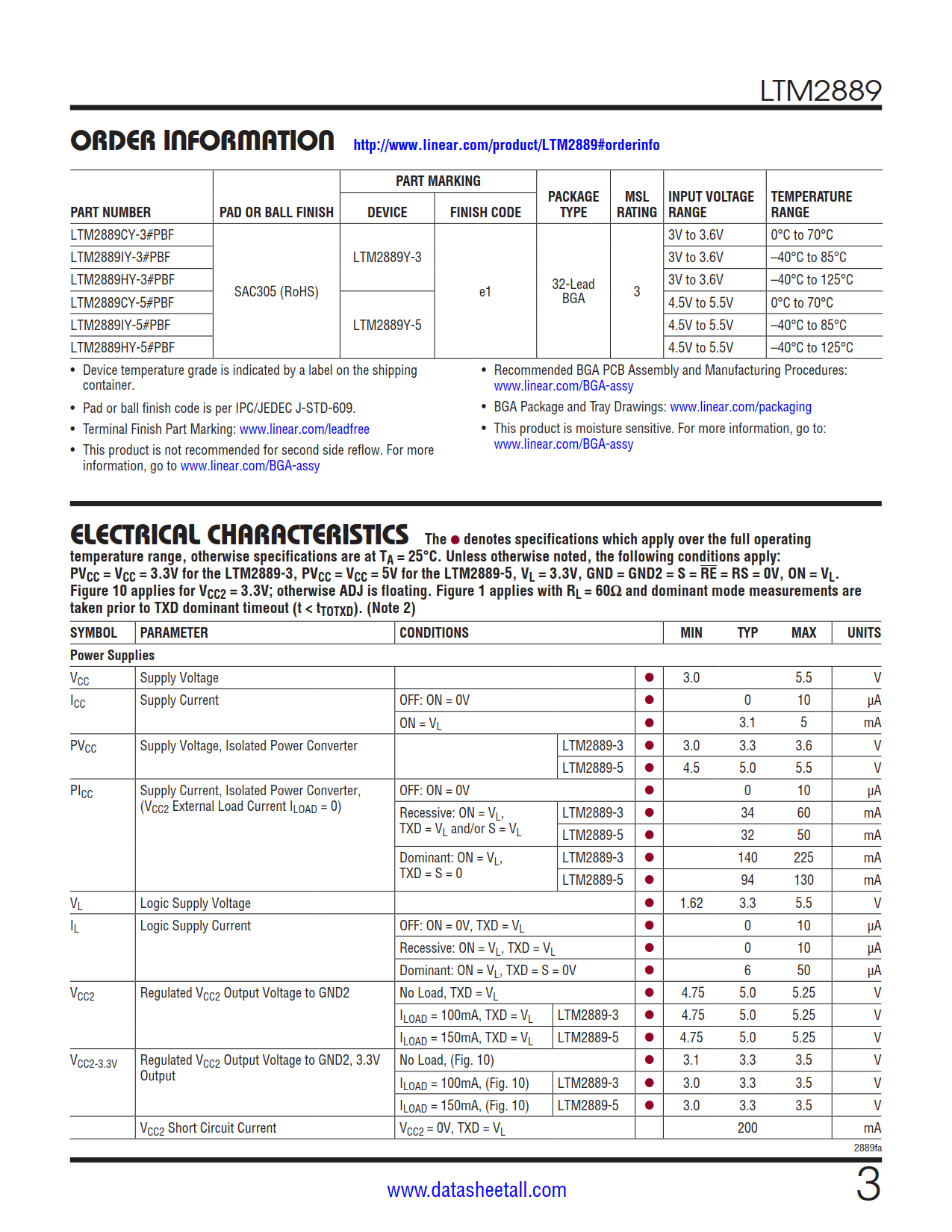

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTM2889CY-3#PBF Tray 119 LTM2889Y-3 3 32 0°C ~ 70°C 32-Lead BGA (15mm x 11.25mm x 3.42mm)
LTM2889IY-3#PBF Tray 119 LTM2889Y-3 3 32 -40°C ~ 85°C 32-Lead BGA (15mm x 11.25mm x 3.42mm)
LTM2889HY-3#PBF Tray 119 LTM2889Y-3 3 32 -40°C ~ 125°C 32-Lead BGA (15mm x 11.25mm x 3.42mm)
LTM2889CY-5#PBF Tray 119 LTM2889Y-5 3 32 0°C ~ 70°C 32-Lead BGA (15mm x 11.25mm x 3.42mm)
LTM2889IY-5#PBF Tray 119 LTM2889Y-5 3 32 -40°C ~ 85°C 32-Lead BGA (15mm x 11.25mm x 3.42mm)
LTM2889HY-5#PBF Tray 119 LTM2889Y-5 3 32 -40°C ~ 125°C 32-Lead BGA (15mm x 11.25mm x 3.42mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTM2889 Datasheet(PDF)

LTM2889 Datasheet(Picture)

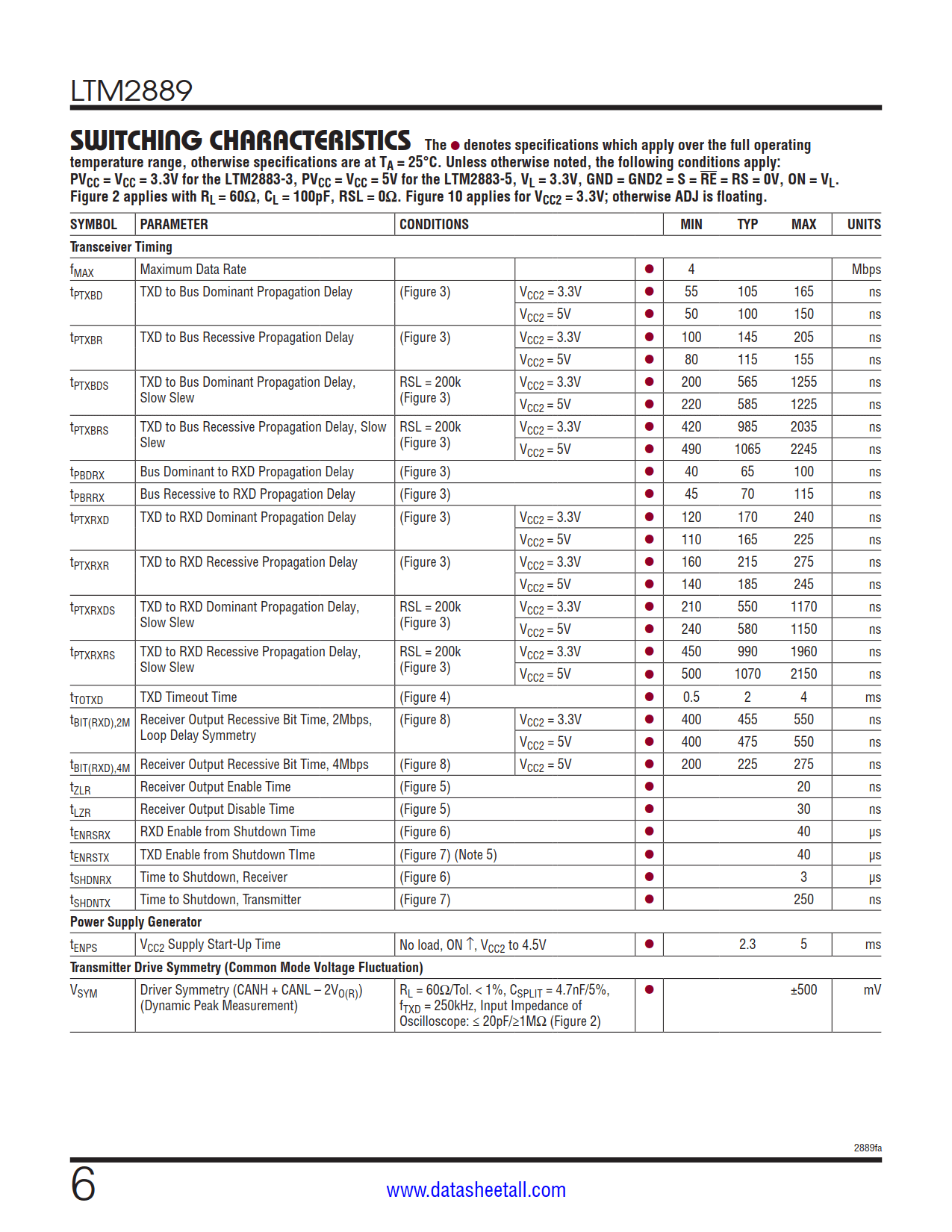

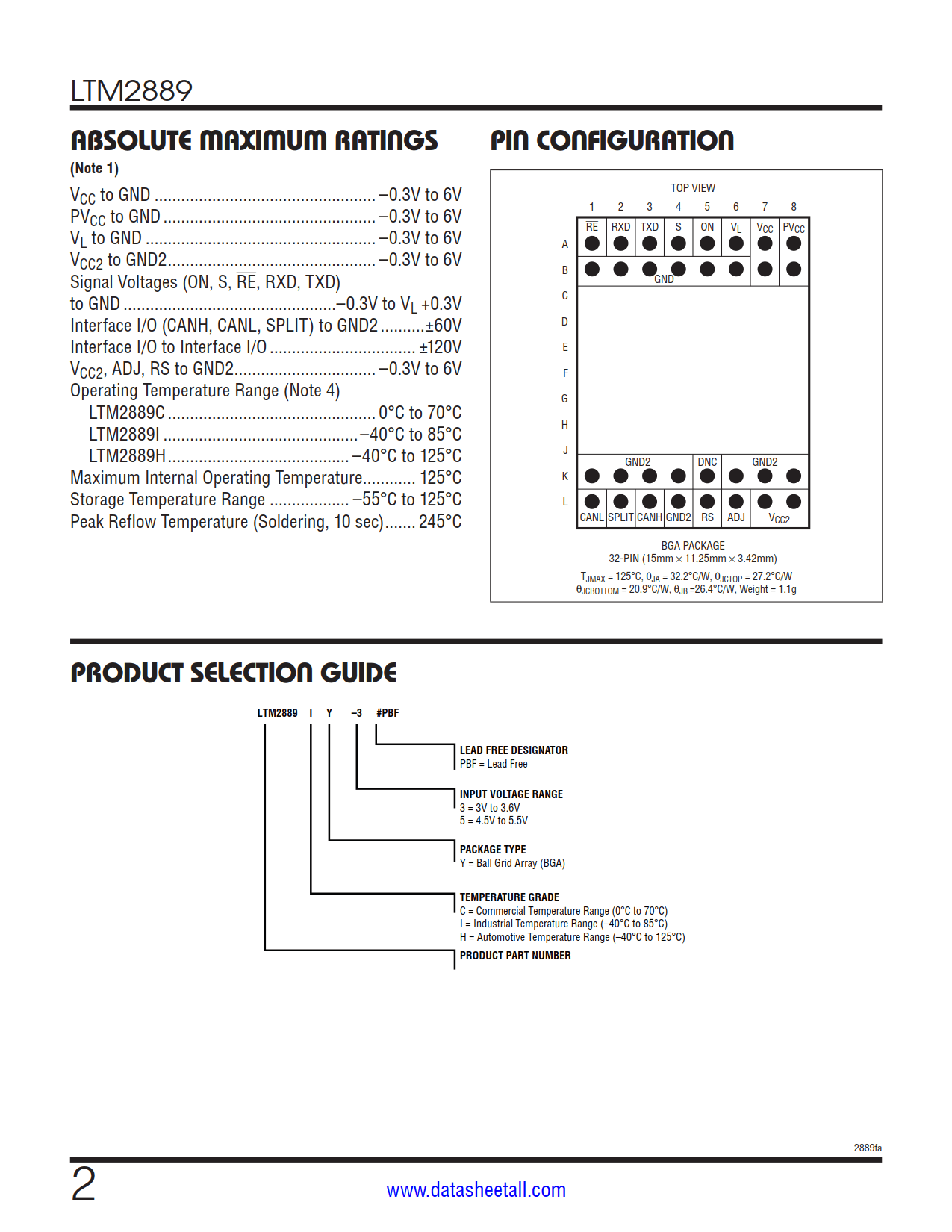

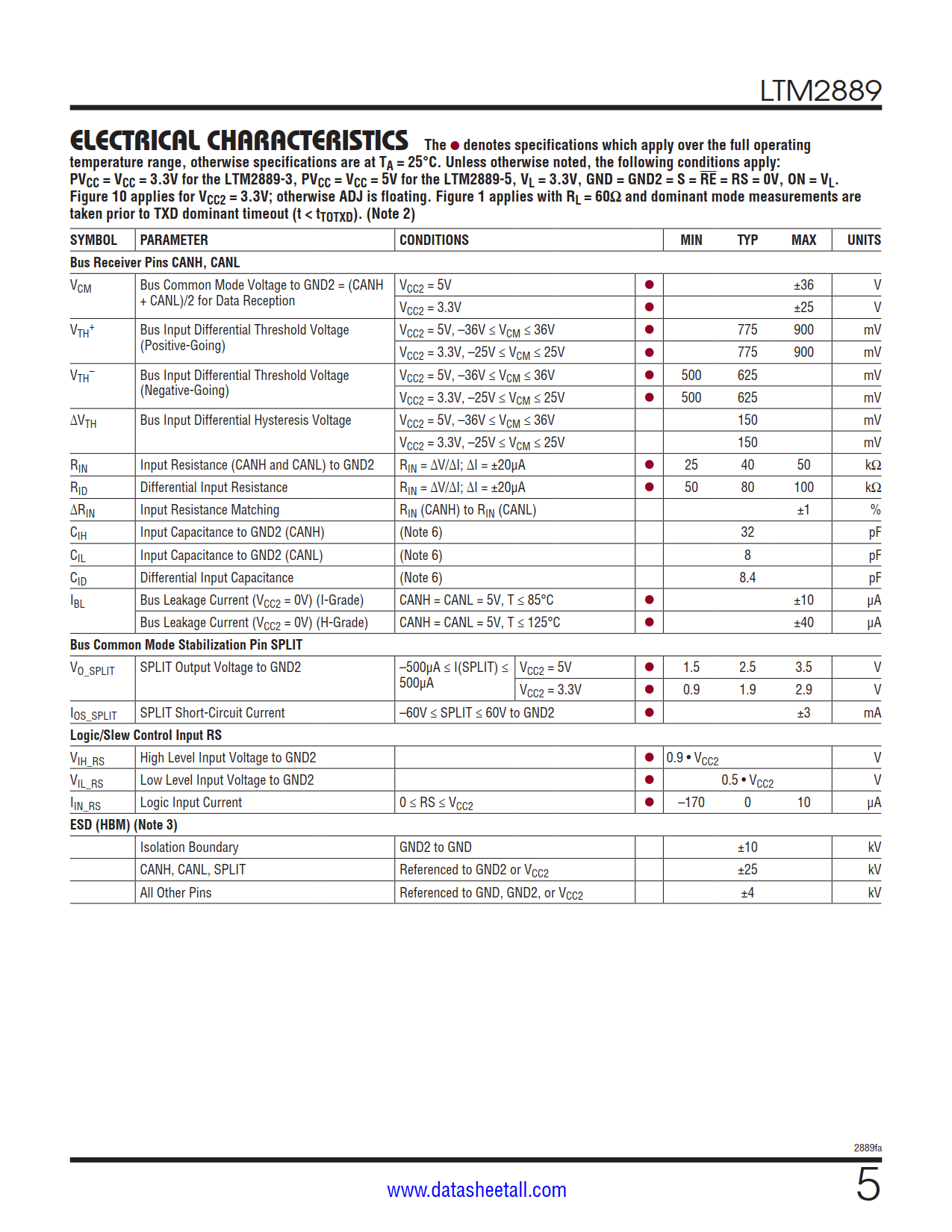

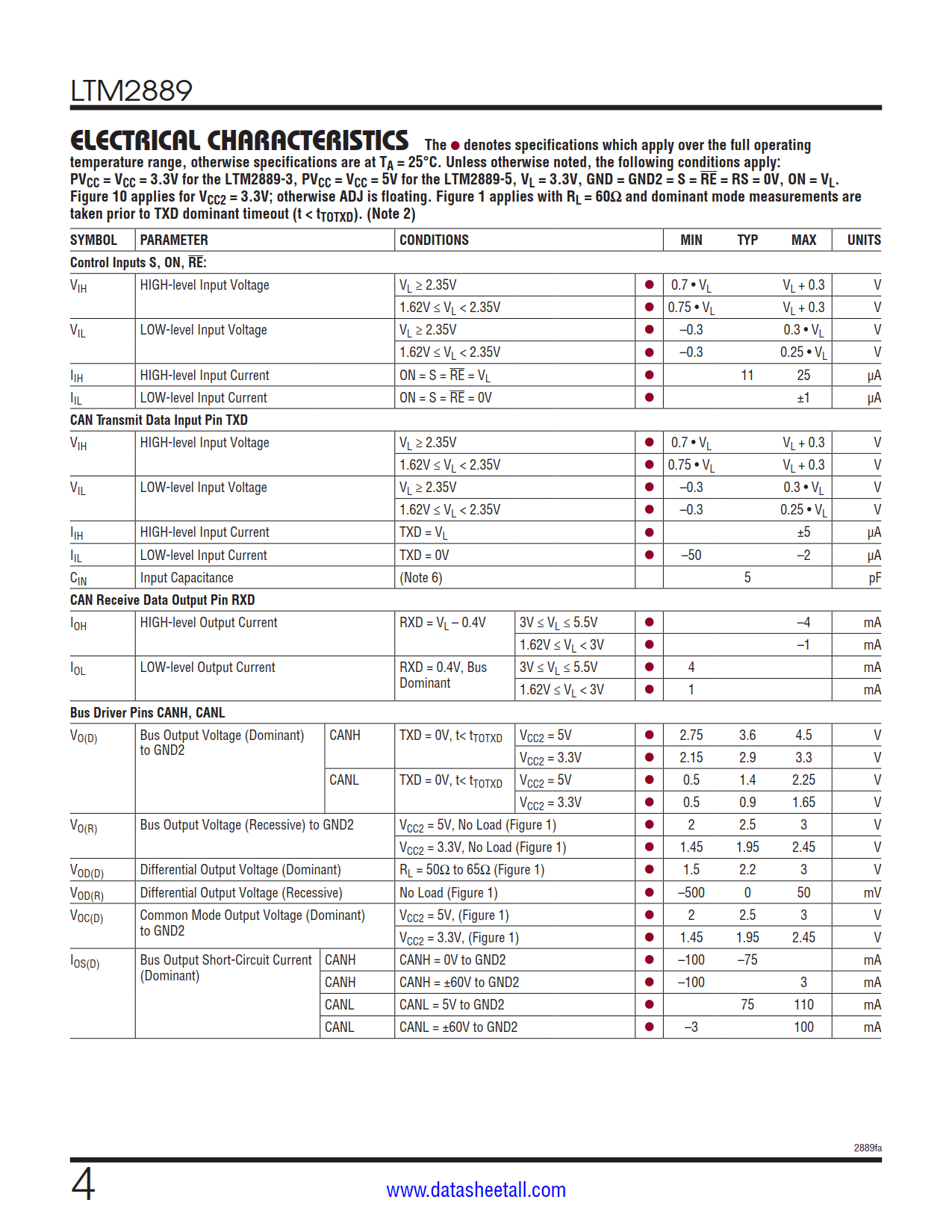

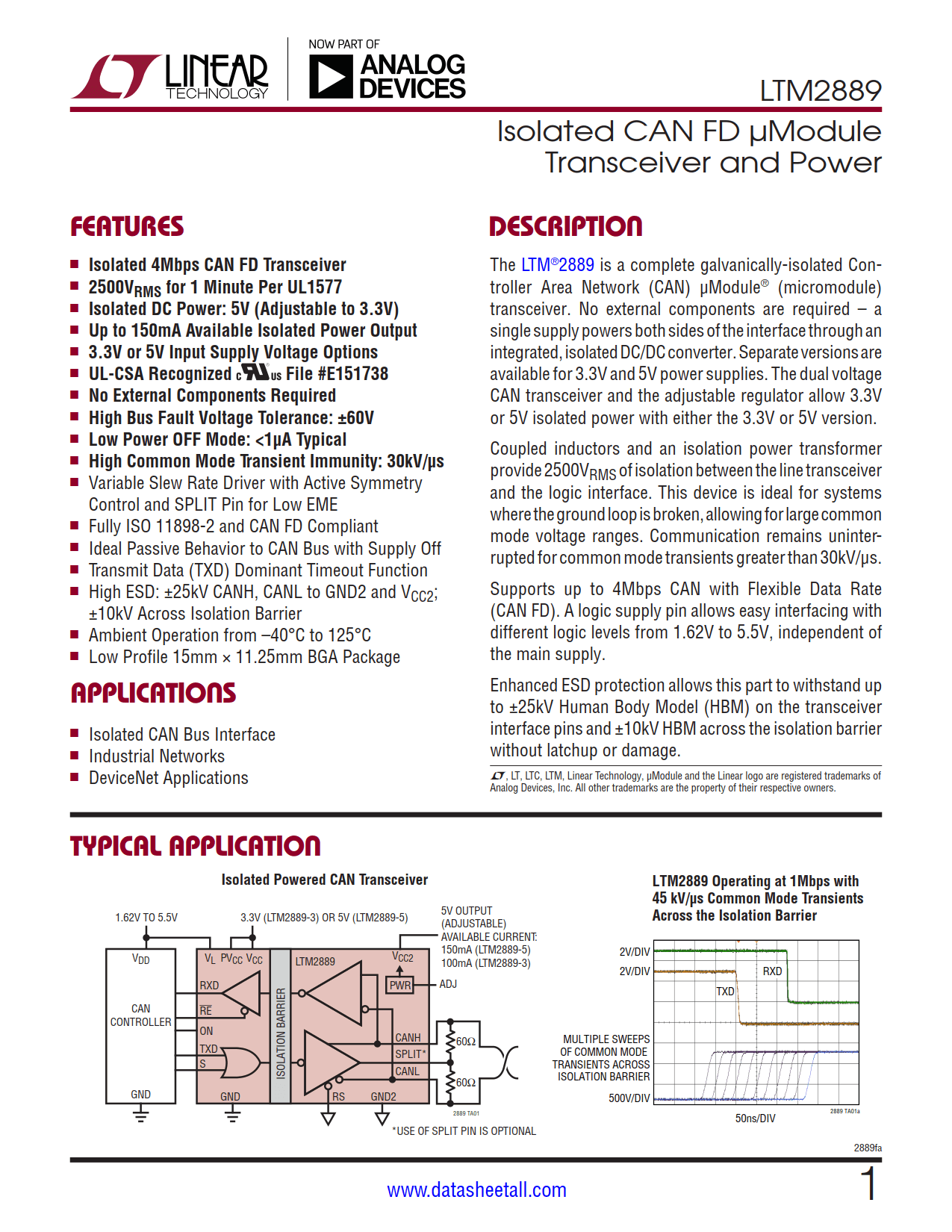

LTM2889 Features

  • Isolated 4Mbps CAN FD Transceiver
  • 2500VRMS for 1 Minute Per UL1577
  • Isolated DC Power: 5V (Adjustable to 3.3V)
  • Up to 150mA Available Isolated Power Output
  • 3.3V or 5V Input Supply Voltage Options
  • UL-CSA Recognized File #E151738
  • No External Components Required
  • High Bus Fault Voltage Tolerance: ±60V
  • Low Power OFF Mode: <1µA Typical
  • High Common Mode Transient Immunity: 30kV/µs
  • Variable Slew Rate Driver with Active Symmetry Control and SPLIT Pin for Low EME
  • Fully ISO 11898-2 and CAN FD Compliant
  • Ideal Passive Behavior to CAN Bus with Supply Off
  • Transmit Data (TXD) Dominant Timeout Function
  • High ESD: ±25kV CANH, CANL to GND2 and VCC2; ±10kV Across Isolation Barrier
  • Ambient Operation from –40°C to 125°C
  • Low Profile 15mm × 11.25mm BGA Package

LTM2889 Applications

  • Isolated CAN Bus Interface
  • Industrial Networks
  • DeviceNet Applications

LTM2889 Description

The LTM2889 is a complete galvanically-isolated Controller Area Network (CAN) μModule® (micromodule) transceiver. No external components are required – a single supply powers both sides of the interface through an integrated, isolated DC/DC converter. Separate versions are available for 3.3V and 5V power supplies. The dual voltage CAN transceiver and the adjustable regulator allow 3.3V or 5V isolated power with either the 3.3V or 5V version.

Coupled inductors and an isolation power transformer provide 2500VRMS of isolation between the line transceiver and the logic interface. This device is ideal for systems where the ground loop is broken, allowing for large common mode voltage ranges. Communication remains uninterrupted for common mode transients greater than 30kV/μs.

Supports up to 4Mbps CAN with Flexible Data Rate (CAN FD). A logic supply pin allows easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply.

Enhanced ESD protection allows this part to withstand up to ±25kV Human Body Model (HBM) on the transceiver interface pins and ±10kV HBM across the isolation barrier without latchup or damage.
