| Part No.： | LTM2882 |
| Page： | 22 Pages |
| Size： | 616 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 0 |
| Update Time： | 2024-12-11 21:25:43 |
| DataSheet： | Download |

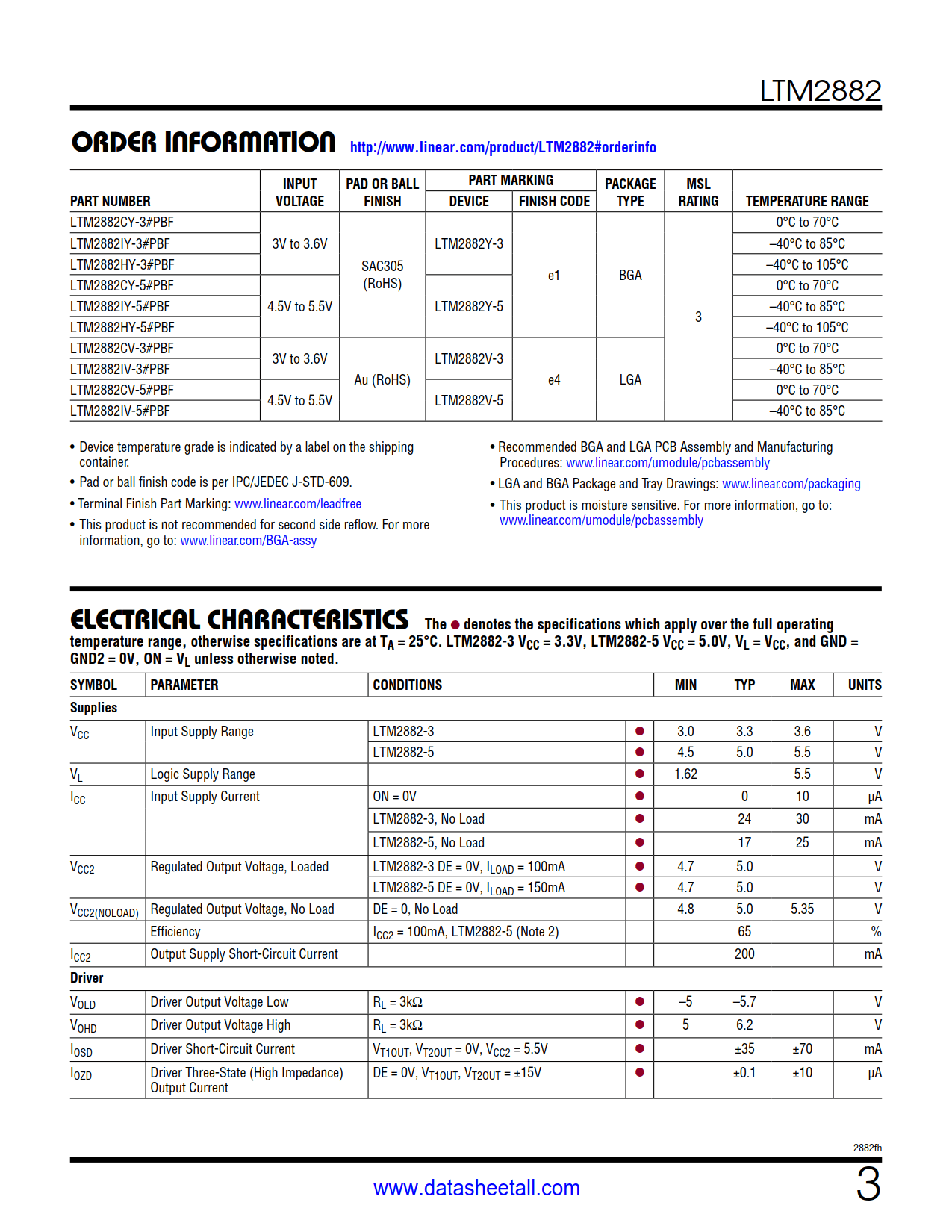

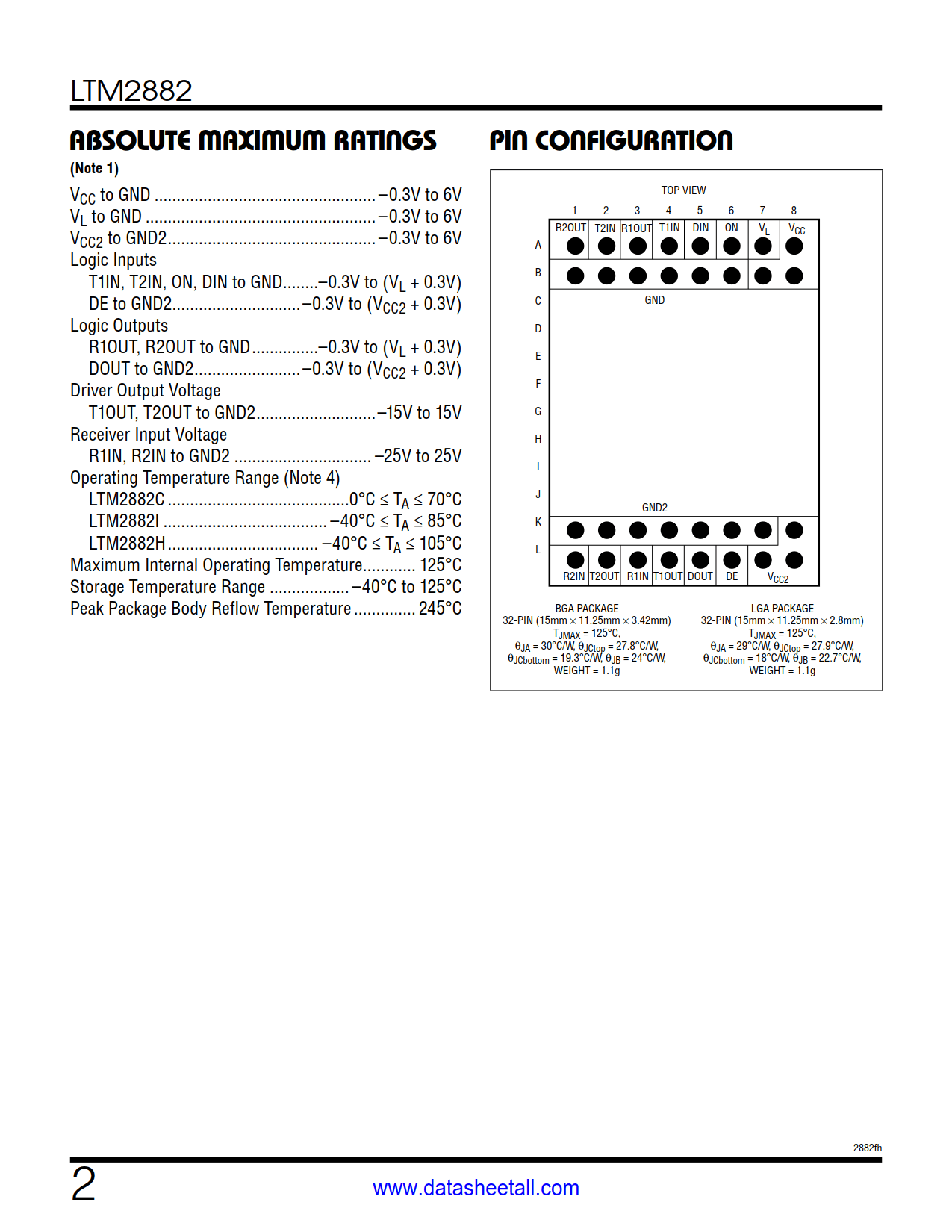

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTM2882CY-3#PBF | Tray | 119 | LTM2882Y-3 | 3 | 32 | 0°C ~ 70°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2882IY-3#PBF | Tray | 119 | LTM2882Y-3 | 3 | 32 | -40°C ~ 85°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2882HY-3#PBF | Tray | 119 | LTM2882Y-3 | 3 | 32 | -40°C ~ 105°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2882CY-5#PBF | Tray | 119 | LTM2882Y-5 | 3 | 32 | 0°C ~ 70°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2882IY-5#PBF | Tray | 119 | LTM2882Y-5 | 3 | 32 | -40°C ~ 85°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2882HY-5#PBF | Tray | 119 | LTM2882Y-5 | 3 | 32 | -40°C ~ 105°C | 32-Lead BGA (15mm x 11.25mm x 3.42mm) | |
| LTM2882CV-3#PBF | Tray | 119 | LTM2882V-3 | 3 | 32 | 0°C ~ 70°C | 32-Lead LGA (15mm x 11.25mm x 2.82mm) | |
| LTM2882IV-3#PBF | Tray | 119 | LTM2882V-3 | 3 | 32 | -40°C ~ 85°C | 32-Lead LGA (15mm x 11.25mm x 2.82mm) | |
| LTM2882CV-5#PBF | Tray | 119 | LTM2882V-5 | 3 | 32 | 0°C ~ 70°C | 32-Lead LGA (15mm x 11.25mm x 2.82mm) | |
| LTM2882IV-5#PBF | Tray | 119 | LTM2882V-5 | 3 | 32 | -40°C ~ 85°C | 32-Lead LGA (15mm x 11.25mm x 2.82mm) |

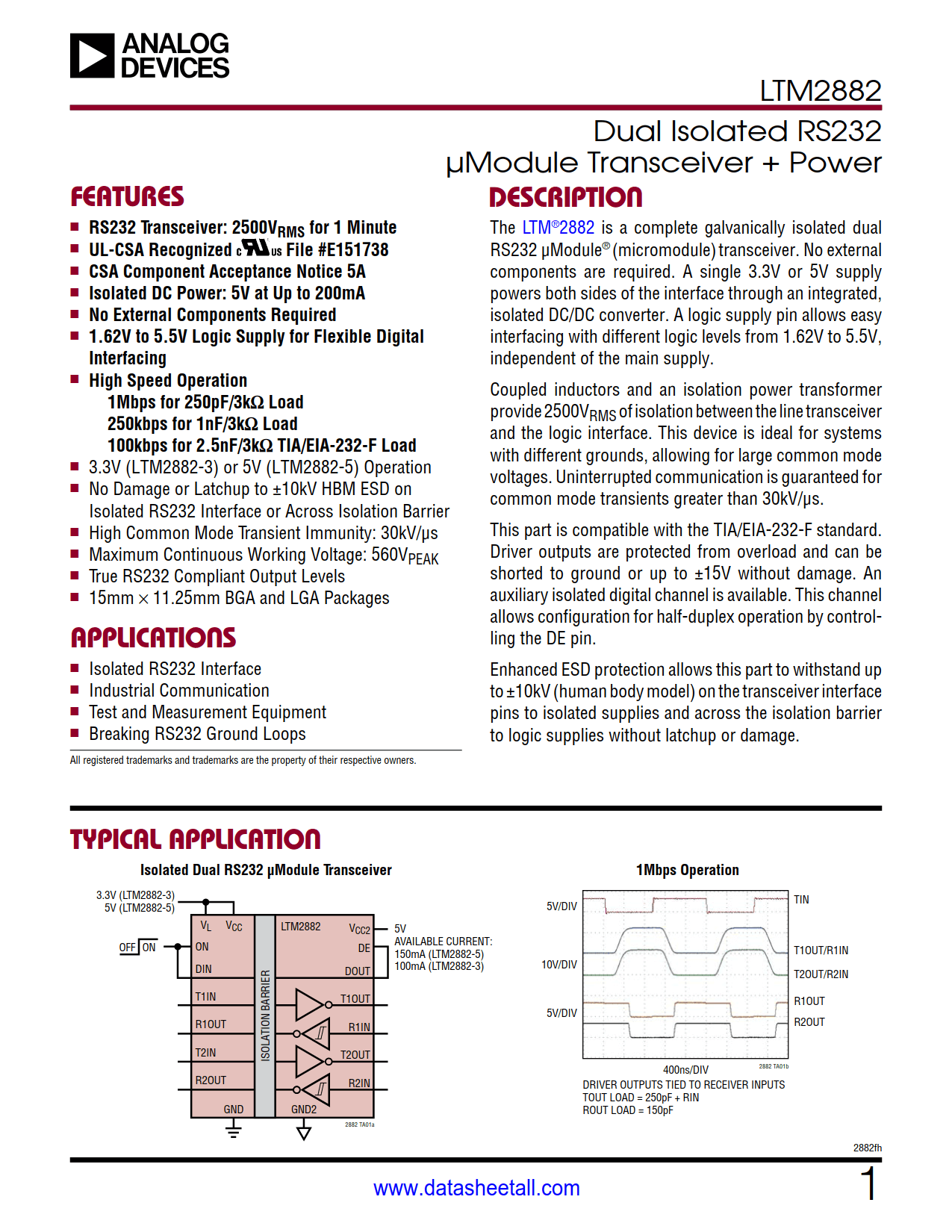

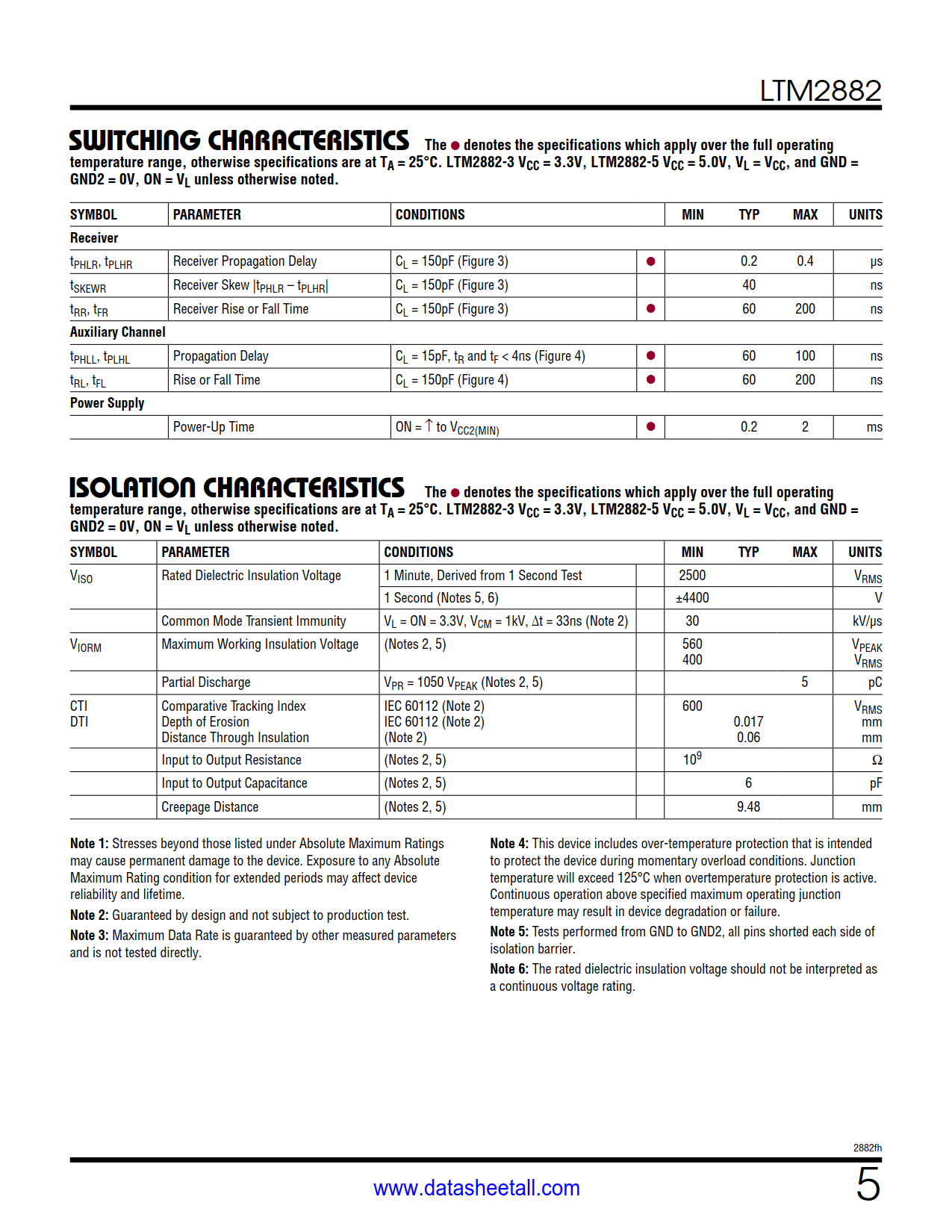

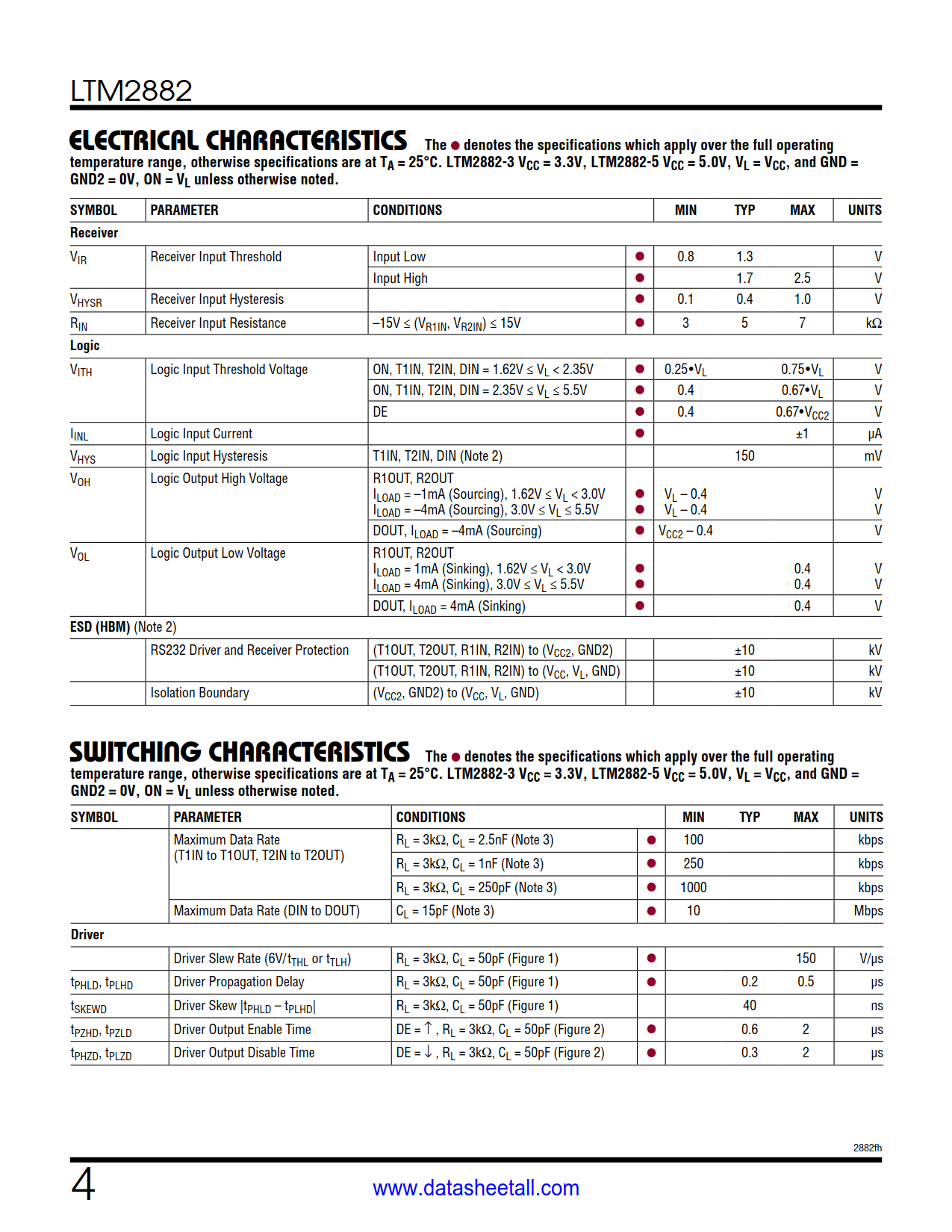

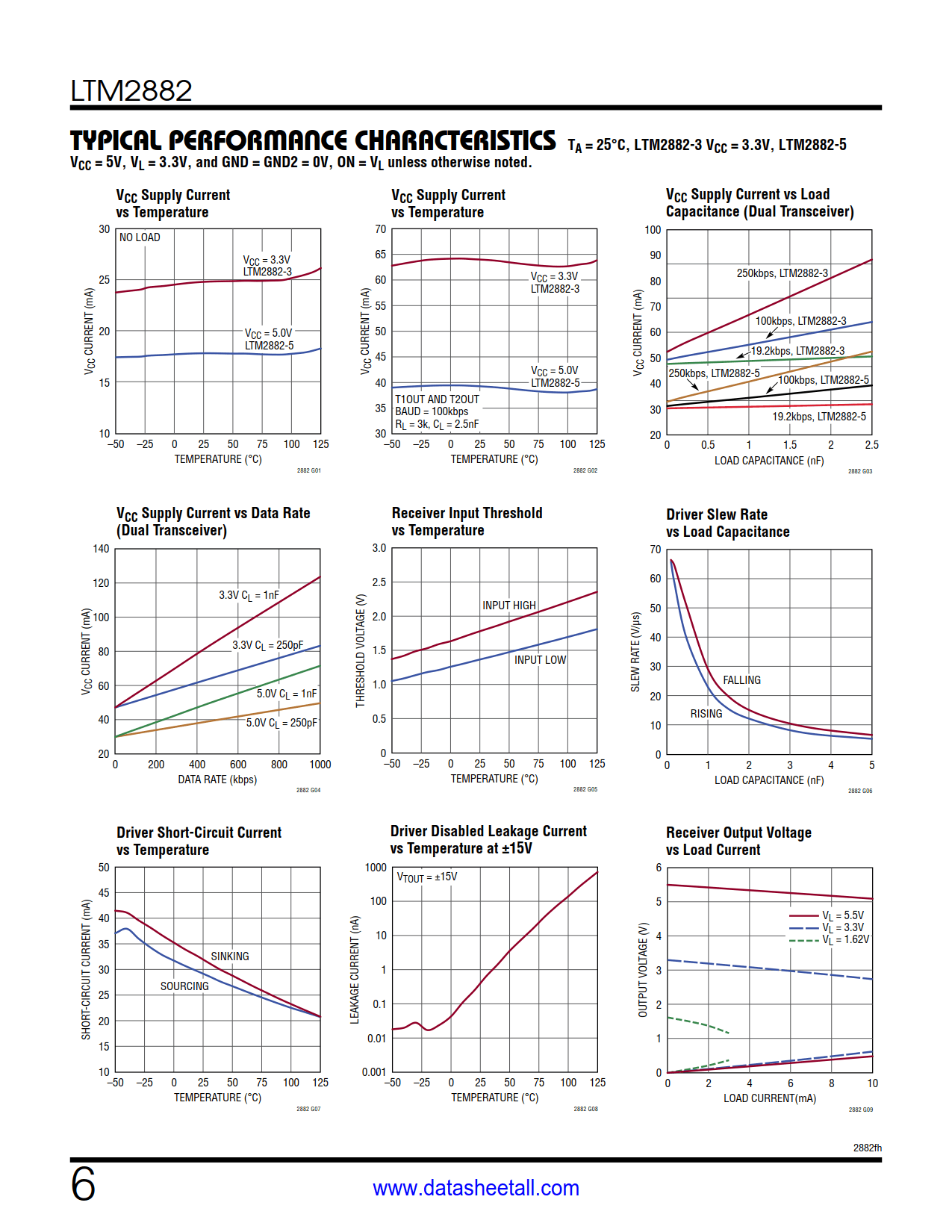

The LTM2882 is a complete galvanically isolated dual RS232 μModule® (micromodule) transceiver. No external components are required. A single 3.3V or 5V supply powers both sides of the interface through an integrated, isolated DC/DC converter. A logic supply pin allows easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply.
Coupled inductors and an isolation power transformer provide 2500VRMS of isolation between the line transceiver and the logic interface. This device is ideal for systems with different grounds, allowing for large common mode voltages. Uninterrupted communication is guaranteed for common mode transients greater than 30kV/μs.
This part is compatible with the TIA/EIA-232-F standard. Driver outputs are protected from overload and can be shorted to ground or up to ±15V without damage. An auxiliary isolated digital channel is available. This channel allows configuration for half-duplex operation by controlling the DE pin.
Enhanced ESD protection allows this part to withstand up to ±10kV (human body model) on the transceiver interface pins to isolated supplies and across the isolation barrier to logic supplies without latch-up or damage.
