LTC7862 Datasheet

LTC7862 Datasheet

140V High Efficiency Switching Surge Stopper
Part No.: LTC7862
Page: 32 Pages
Size: 1651 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-17 13:55:56
DataSheet: Download

LTC7862 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC7862EFE#PBF Tube 74 LTC7862FE 1 20 -40°C ~125°C 20-Lead Plastic TSSOP
LTC7862EFE#TRPBF Reel 2500 LTC7862FE 1 20 -40°C ~125°C 20-Lead Plastic TSSOP
LTC7862EFE#TRMPBF Reel 500 LTC7862FE 1 20 -40°C ~125°C 20-Lead Plastic TSSOP
LTC7862IFE#PBF Tube 74 LTC7862FE 1 20 -40°C ~125°C 20-Lead Plastic TSSOP
LTC7862IFE#TRPBF Reel 2500 LTC7862FE 1 20 -40°C ~125°C 20-Lead Plastic TSSOP
LTC7862IFE#TRMPBF Reel 500 LTC7862FE 1 20 -40°C ~125°C 20-Lead Plastic TSSOP
LTC7862HFE#PBF Tube 74 LTC7862FE 1 20 -40°C ~150°C 20-Lead Plastic TSSOP
LTC7862HFE#TRPBF Reel 2500 LTC7862FE 1 20 -40°C ~150°C 20-Lead Plastic TSSOP
LTC7862HFE#TRMPBF Reel 500 LTC7862FE 1 20 -40°C ~150°C 20-Lead Plastic TSSOP
LTC7862EUFD#PBF Tube 73 7862 1 20 -40°C ~125°C 20-Lead (4mm × 5mm) Plastic QFN
LTC7862EUFD#TRPBF Reel 2500 7862 1 20 -40°C ~125°C 20-Lead (4mm × 5mm) Plastic QFN
LTC7862EUFD#TRMPBF Reel 500 7862 1 20 -40°C ~125°C 20-Lead (4mm × 5mm) Plastic QFN
LTC7862IUFD#PBF Tube 73 7862 1 20 -40°C ~125°C 20-Lead (4mm × 5mm) Plastic QFN
LTC7862IUFD#TRPBF Reel 2500 7862 1 20 -40°C ~125°C 20-Lead (4mm × 5mm) Plastic QFN
LTC7862IUFD#TRMPBF Reel 500 7862 1 20 -40°C ~125°C 20-Lead (4mm × 5mm) Plastic QFN
LTC7862HUFD#WPBF Tube 73 7862 1 20 -40°C ~150°C 20-Lead (4mm × 5mm) Plastic QFN
LTC7862HUFD#WTRPBF Reel 2500 7862 1 20 -40°C ~150°C 20-Lead (4mm × 5mm) Plastic QFN
LTC7862HUFD#WTRMPBF Reel 500 7862 1 20 -40°C ~150°C 20-Lead (4mm × 5mm) Plastic QFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC7862 Datasheet(PDF)

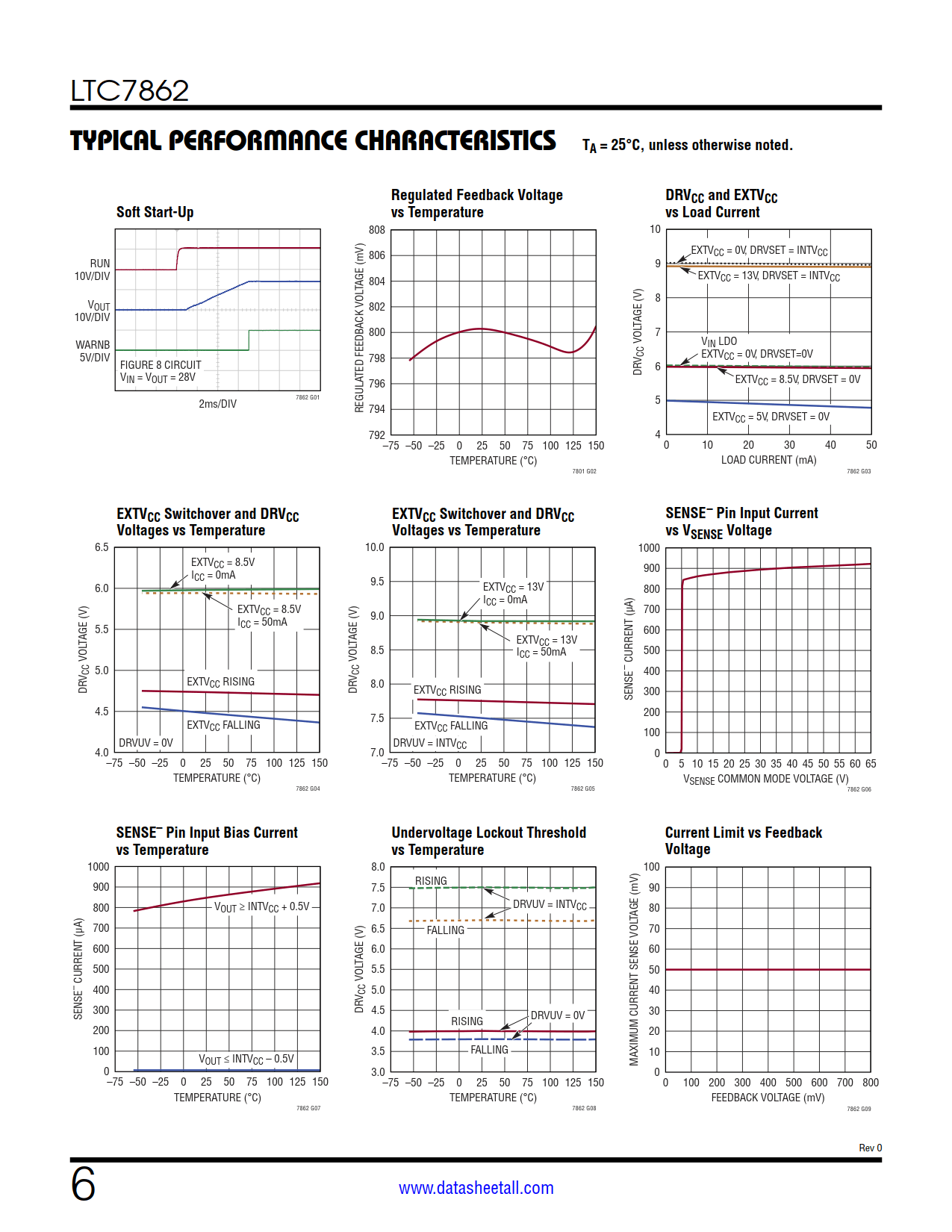

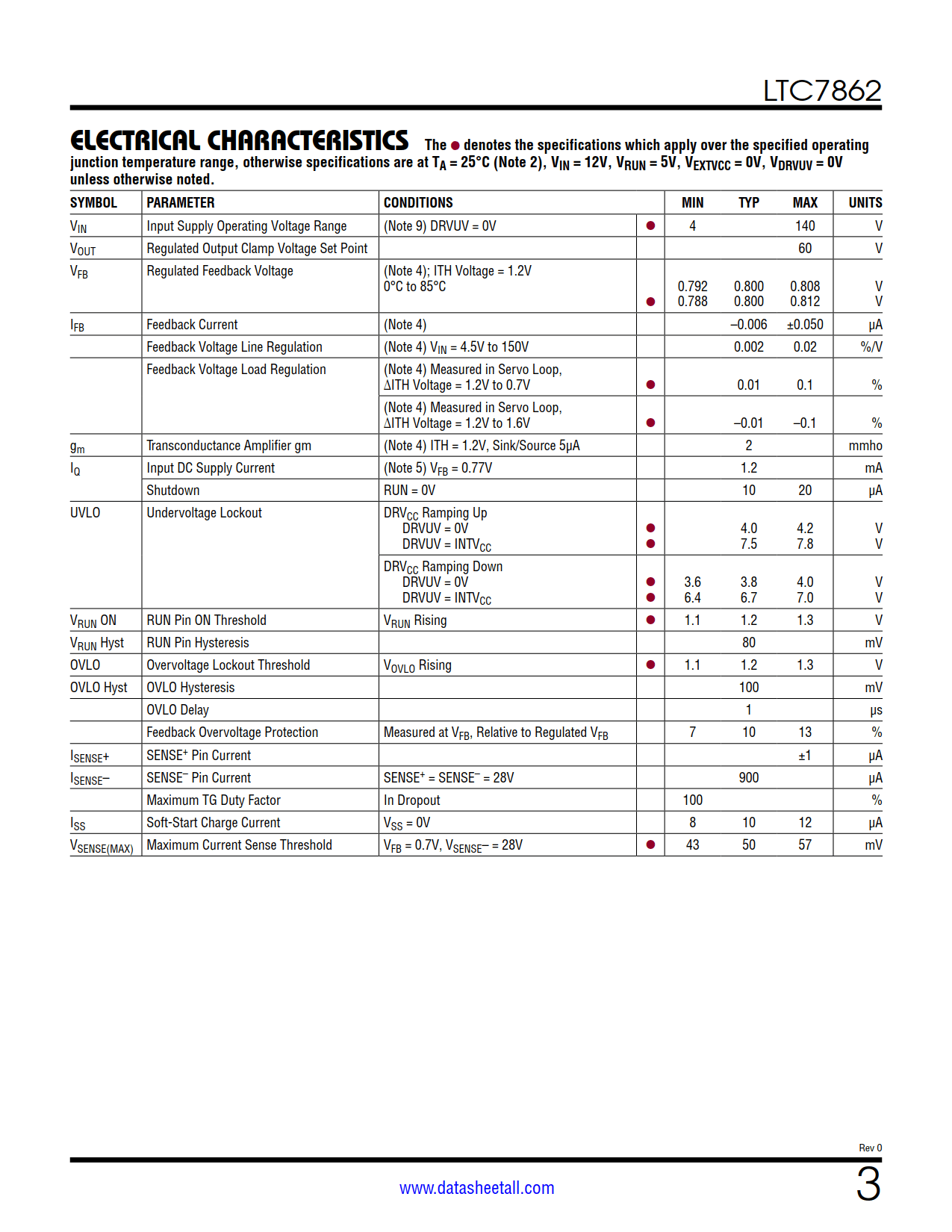

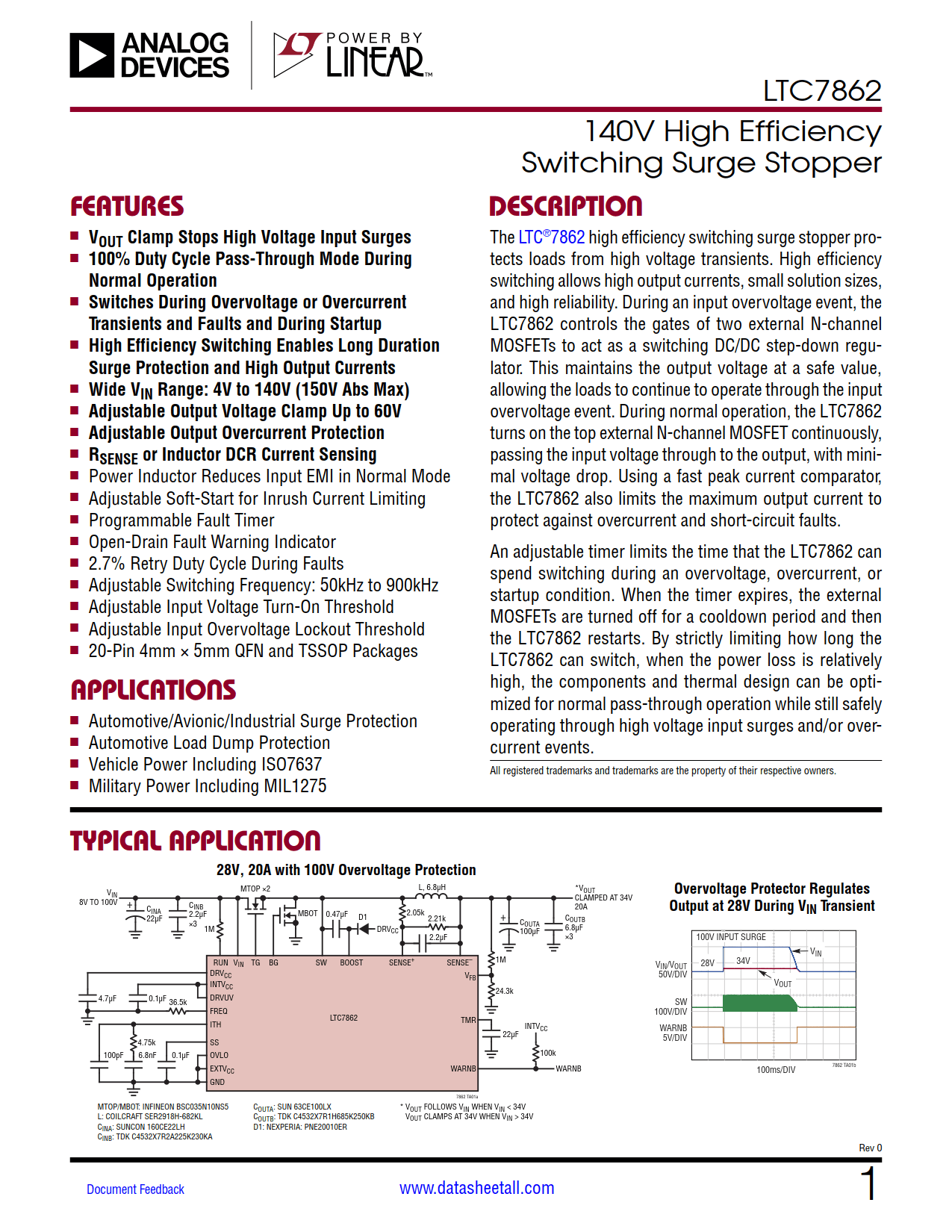

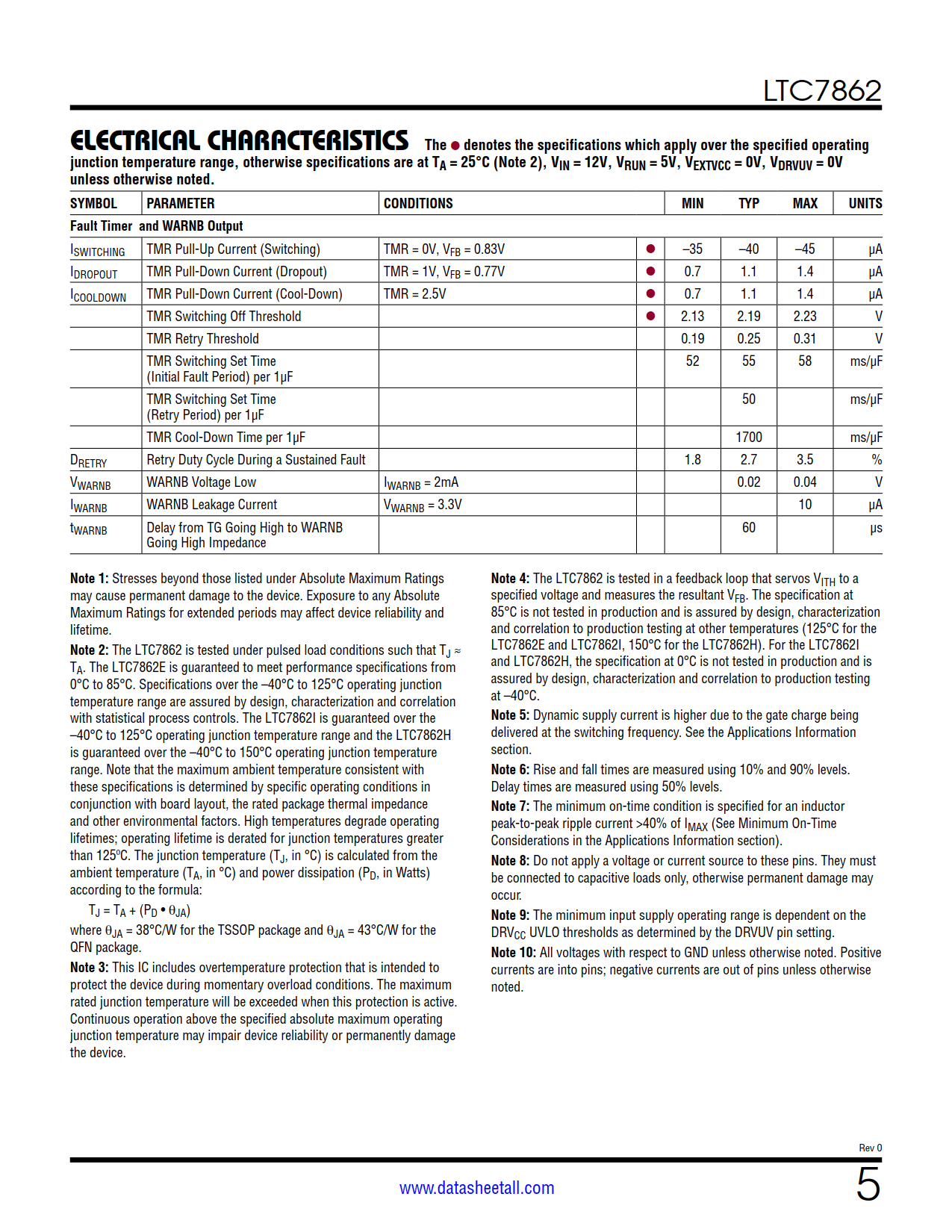

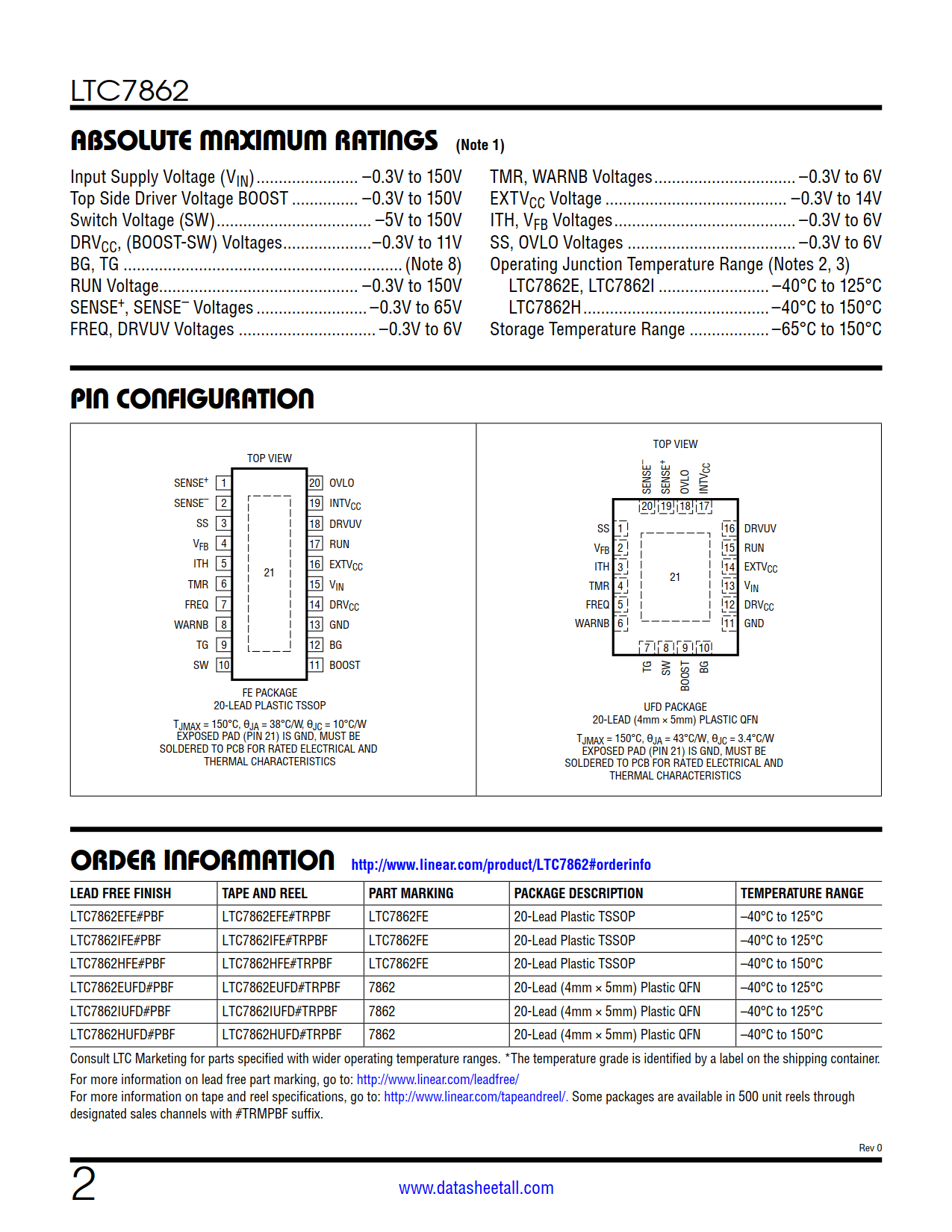

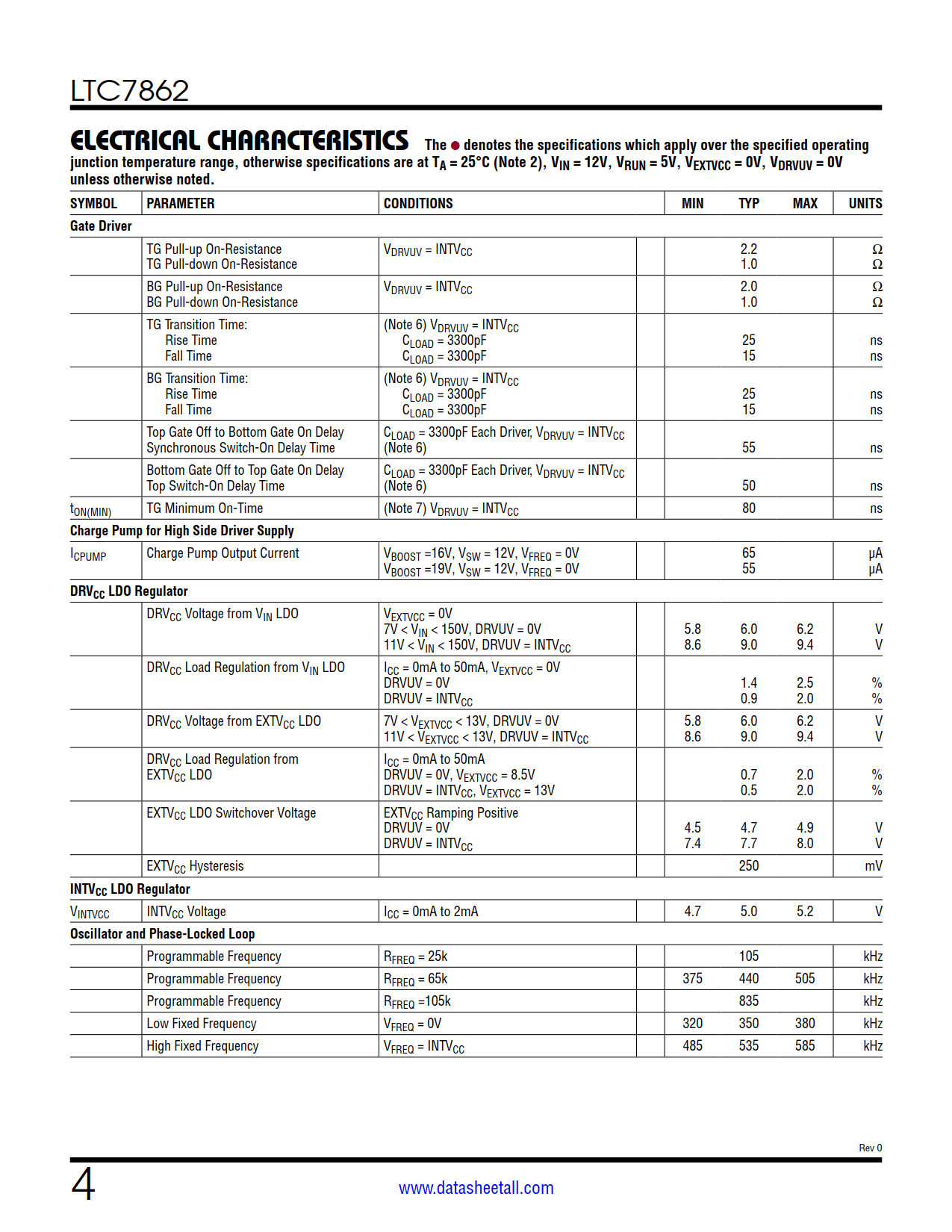

LTC7862 Datasheet(Picture)

LTC7862 Features

  • VOUT Clamp Stops High Voltage Input Surges
  • 100% Duty Cycle Pass-Through Mode During Normal Operation
  • Switches During Overvoltage or Overcurrent Transients and Faults and During Startup
  • High Efficiency Switching Enables Long Duration Surge Protection and High Output Currents
  • Wide VIN Range: 4V to 140V (150V Abs Max)
  • Adjustable Output Voltage Clamp Up to 60V
  • Adjustable Output Overcurrent Protection
  • RSENSE or Inductor DCR Current Sensing
  • Power Inductor Reduces Input EMI in Normal Mode
  • Adjustable Soft-Start for Inrush Current Limiting
  • Programmable Fault Timer
  • Open-Drain Fault Warning Indicator
  • 2.7% Retry Duty Cycle During Faults
  • Adjustable Switching Frequency: 50kHz to to 900kHz
  • Adjustable Input Voltage Turn-On Threshold
  • Adjustable Input Overvoltage Lockout Threshold
  • 20-Pin 4mm × 5mm QFN and TSSOP Packages

LTC7862 Applications

  • Automotive/Avionic/Industrial Surge Protection
  • Automotive Load Dump Protection
  • Vehicle Power Including ISO7637
  • Military Power Including MIL1275

LTC7862 Description

The LTC7862 high efficiency switching surge stopper protects loads from high voltage transients. High efficiency switching allows high output currents, small solution sizes, and high reliability. During an input overvoltage event, the LTC7862 controls the gates of two external N-channel MOSFETs to act as a switching DC/DC step-down regulator. This maintains the output voltage at a safe value, allowing the loads to continue to operate through the input overvoltage event. During normal operation, the LTC7862 turns on the top external N-channel MOSFET continuously, passing the input voltage through to the output, with minimal voltage drop. Using a fast peak current comparator, the LTC7862 also limits the maximum output current to protect against overcurrent and short-circuit faults.

An adjustable timer limits the time that the LTC7862 can spend switching during an overvoltage, overcurrent, or startup condition. When the timer expires, the external MOSFETs are turned off for a cooldown period and then the LTC7862 restarts. By strictly limiting how long the LTC7862 can switch, when the power loss is relatively high, the components and thermal design can be optimized for normal pass-through operation while still safely operating through high voltage input surges and/or overcurrent events.
