LTC6994-1 Datasheet

LTC6994-1 Datasheet

TimerBlox: Delay Block/Debouncer
Part No.: LTC6994-1
Page: 28 Pages
Size: 710 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-10-26 16:04:10
DataSheet: Download

LTC6994-1 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC6994CDCB-1#PBF Tube 100 LFCT 1 6 0°C ~ 70°C 6-Lead (2mm x 3mm) Plastic DFN
LTC6994CDCB-1#TRPBF Reel 2500 LFCT 1 6 0°C ~ 70°C 6-Lead (2mm x 3mm) Plastic DFN
LTC6994CDCB-1#TRMPBF Reel 500 LFCT 1 6 0°C ~ 70°C 6-Lead (2mm x 3mm) Plastic DFN
LTC6994IDCB-1#TRPBF Reel 2500 LFCT 1 6 -40°C ~ 85°C 6-Lead (2mm x 3mm) Plastic DFN
LTC6994IDCB-1#TRMPBF Reel 500 LFCT 1 6 -40°C ~ 85°C 6-Lead (2mm x 3mm) Plastic DFN
LTC6994HDCB-1#PBF Tube 100 LFCT 1 6 -40°C ~ 125°C 6-Lead (2mm x 3mm) Plastic DFN
LTC6994HDCB-1#TRPBF Reel 2500 LFCT 1 6 -40°C ~ 125°C 6-Lead (2mm x 3mm) Plastic DFN
LTC6994HDCB-1#TRMPBF Reel 500 LFCT 1 6 -40°C ~ 125°C 6-Lead (2mm x 3mm) Plastic DFN
LTC6994CS6-1#PBF Tube 100 LTFCV 1 6 0°C ~ 70°C 6-Lead Plastic TSOT-23
LTC6994CS6-1#TRPBF Reel 2500 LTFCV 1 6 0°C ~ 70°C 6-Lead Plastic TSOT-23
LTC6994CS6-1#TRMPBF Reel 500 LTFCV 1 6 0°C ~ 70°C 6-Lead Plastic TSOT-23
LTC6994IS6-1#TRPBF Reel 2500 LTFCV 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LTC6994IS6-1#TRMPBF Reel 500 LTFCV 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LTC6994HS6-1#PBF Tube 100 LTFCV 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC6994HS6-1#TRPBF Reel 2500 LTFCV 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC6994HS6-1#TRMPBF Reel 500 LTFCV 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC6994MPS6-1#TRPBF Reel 2500 LTFCV 1 6 -55°C ~ 125°C 6-Lead Plastic TSOT-23
LTC6994MPS6-1#TRMPBF Reel 500 LTFCV 1 6 -55°C ~ 125°C 6-Lead Plastic TSOT-23
LTC6994IS6-1#WTRPBF Reel 2500 LTFCV 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LTC6994IS6-1#WTRMPBF Reel 500 LTFCV 1 6 -40°C ~ 85°C 6-Lead Plastic TSOT-23
LTC6994HS6-1#WTRPBF Reel 2500 LTFCV 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC6994HS6-1#WTRMPBF Reel 500 LTFCV 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC6994-1 Datasheet(PDF)

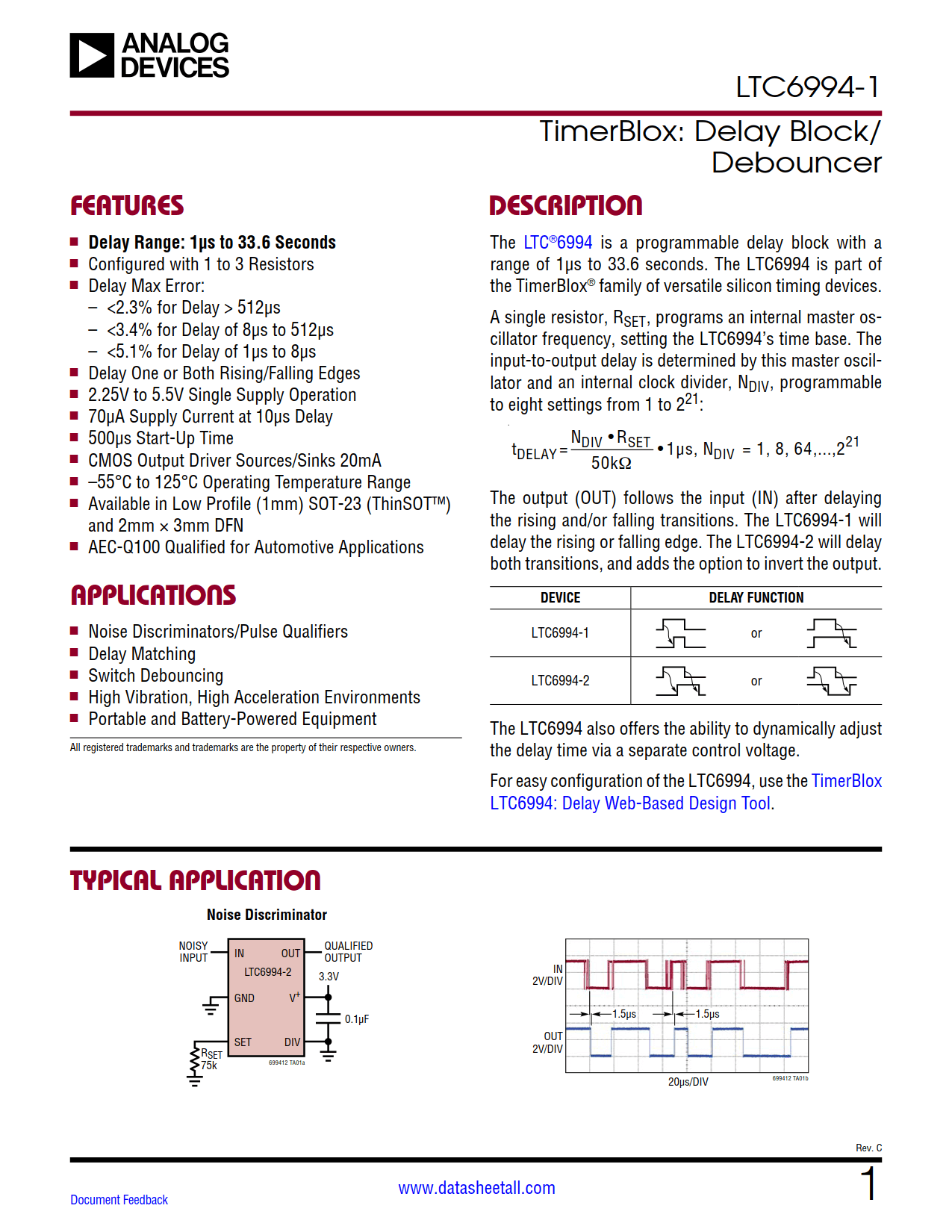

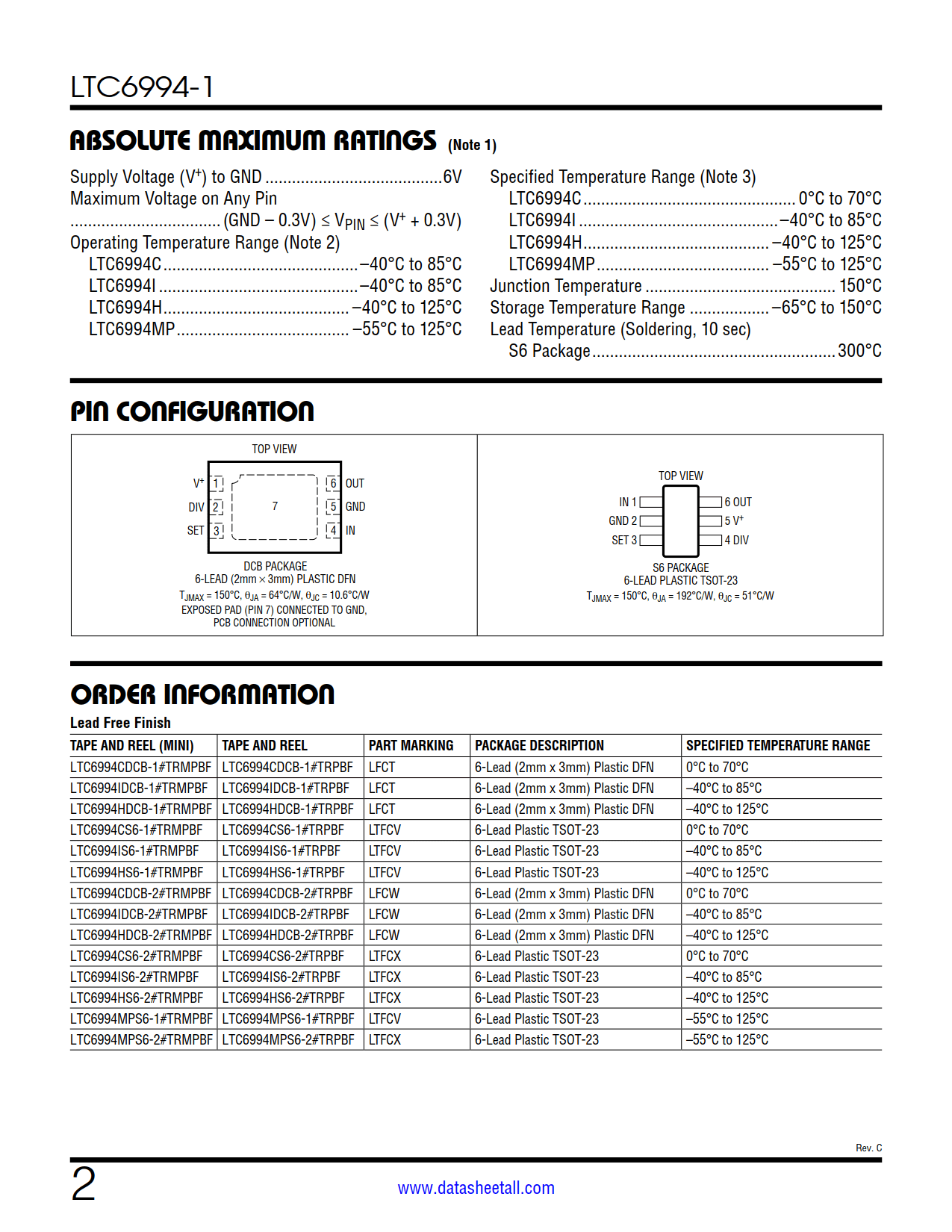

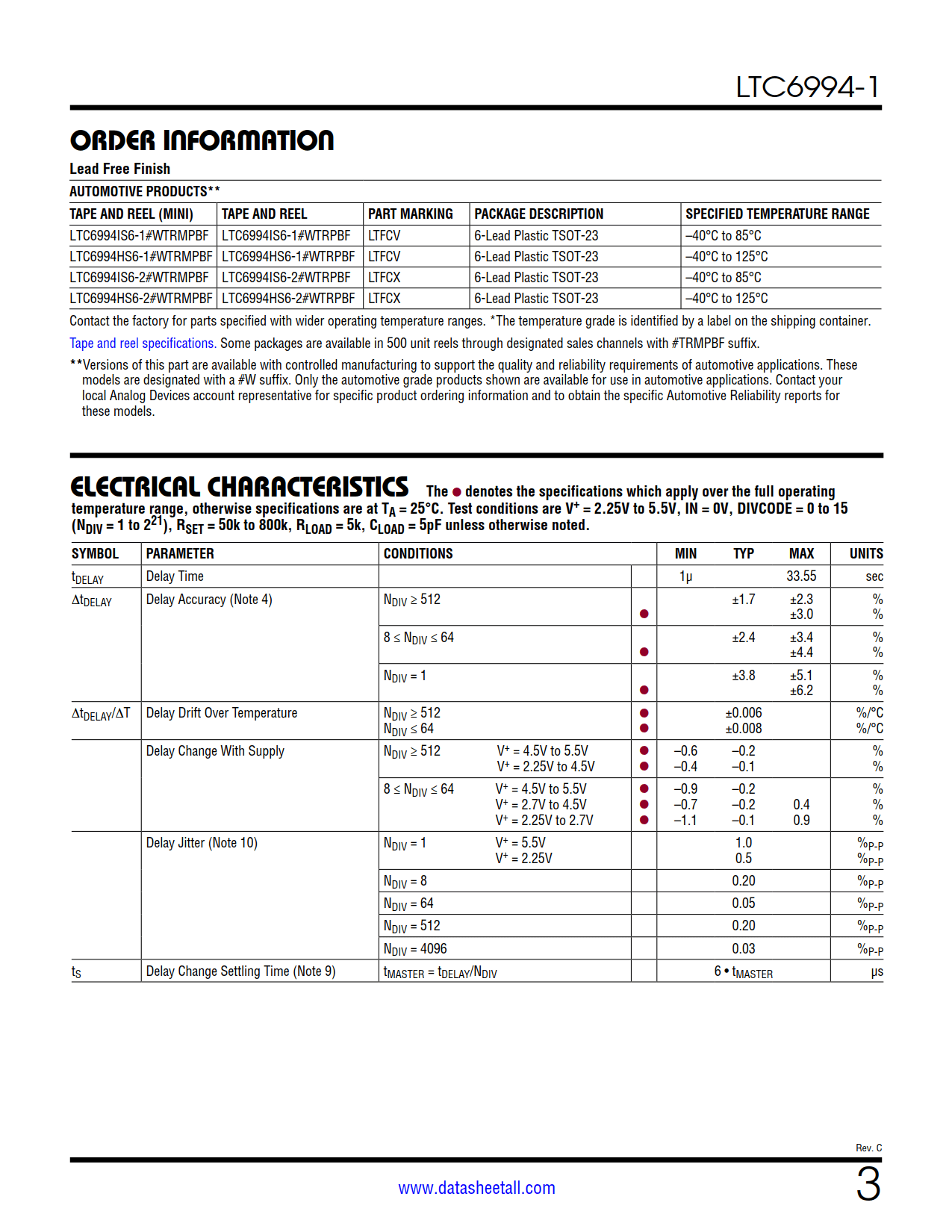

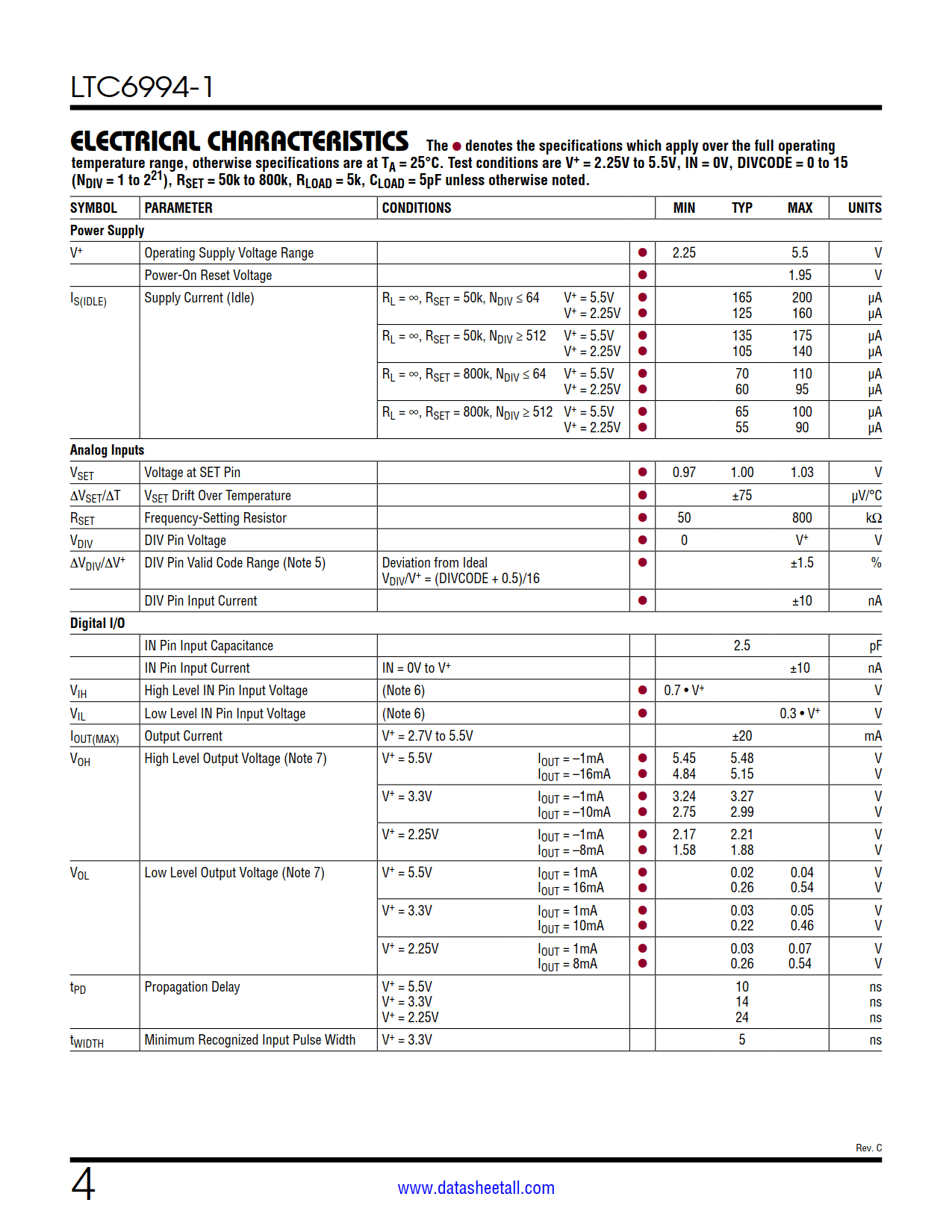

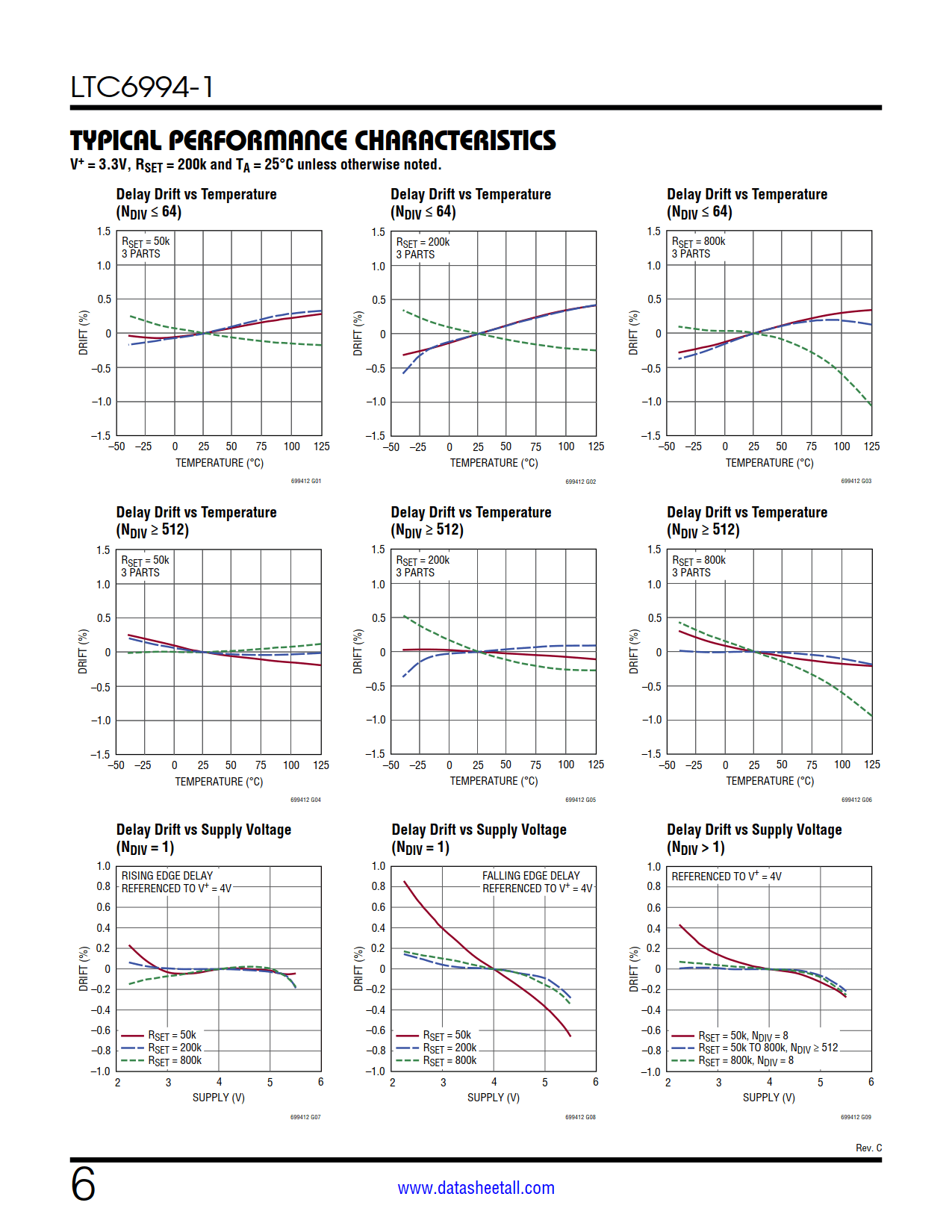

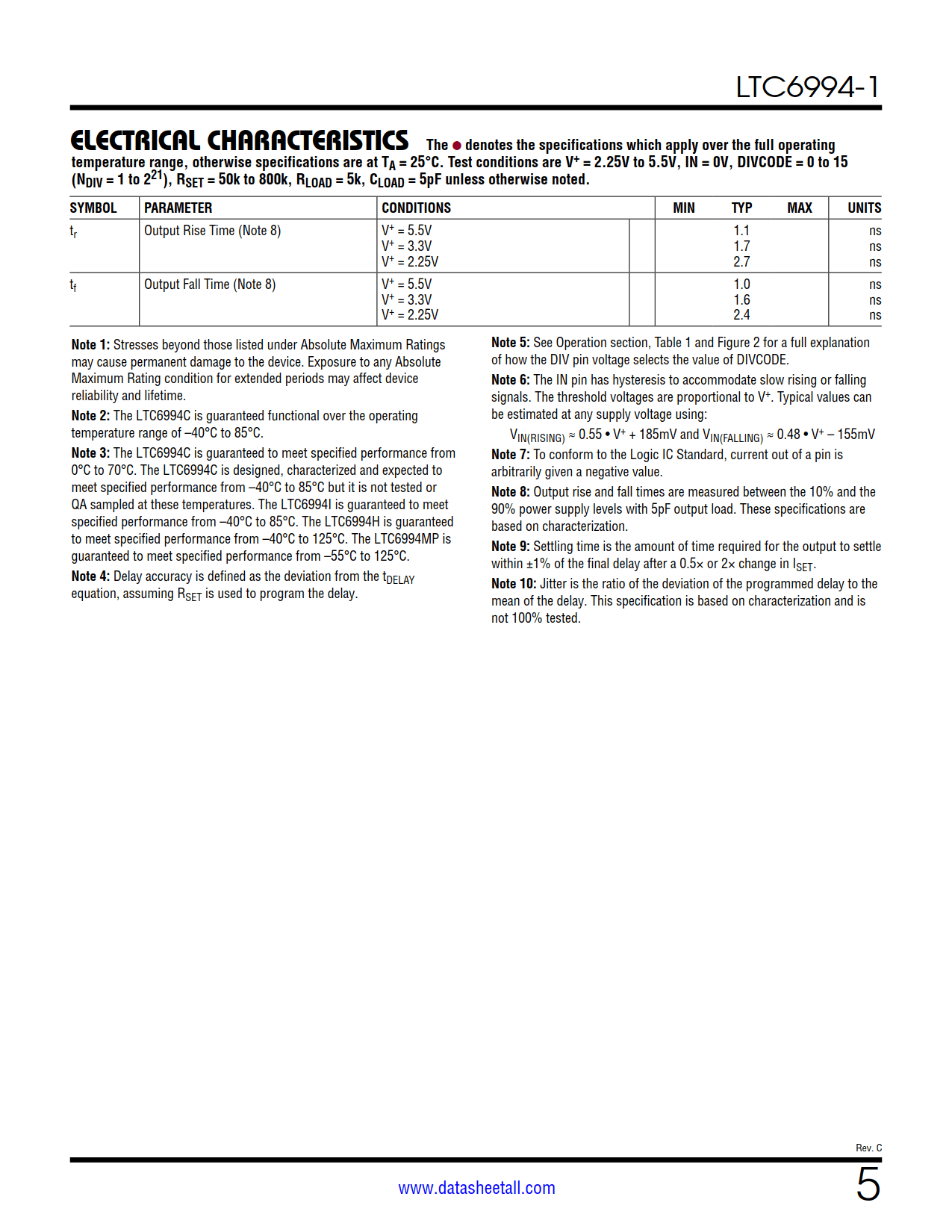

LTC6994-1 Datasheet(Picture)

LTC6994-1 Features

  • Delay Range: 1µs to 33.6 Seconds
  • Configured with 1 to 3 Resistors
  • Delay Max Error:
    • <2.3% for Delay > 512µs
    • <3.4% for Delay of 8µs to 512µs
    • <5.1% for Delay of 1µs to 8µs
  • Delay One or Both Rising/Falling Edges
  • 2.25V to 5.5V Single Supply Operation
  • 70µA Supply Current at 10µs Delay
  • 500µs Start-Up Time
  • CMOS Output Driver Sources/Sinks 20mA
  • –55°C to 125°C Operating Temperature Range
  • Available in Low Profile (1mm) SOT-23 (ThinSOT) and 2mm × 3mm DFN
  • AEC-Q100 Qualified for Automotive Applications

LTC6994-1 Applications

  • Noise Discriminators/Pulse Qualifiers
  • Delay Matching
  • Switch Debouncing
  • High Vibration, High Acceleration Environments
  • Portable and Battery-Powered Equipment

LTC6994-1 Description

The LTC6994 is a programmable delay block with a range of 1µs to 33.6 seconds. The LTC6994 is part of the TimerBlox® family of versatile silicon timing devices.

A single resistor, RSET, programs an internal master oscillator frequency, setting the LTC6994’s time base. The input-to-output delay is determined by this master oscillator and an internal clock divider, NDIV, programmable to eight settings from 1 to 221.

The output (OUT) follows the input (IN) after delaying the rising and/or falling transitions. The LTC6994-1 will delay the rising or falling edge.

The LTC6994 also offers the ability to dynamically adjust the delay time via a separate control voltage.
