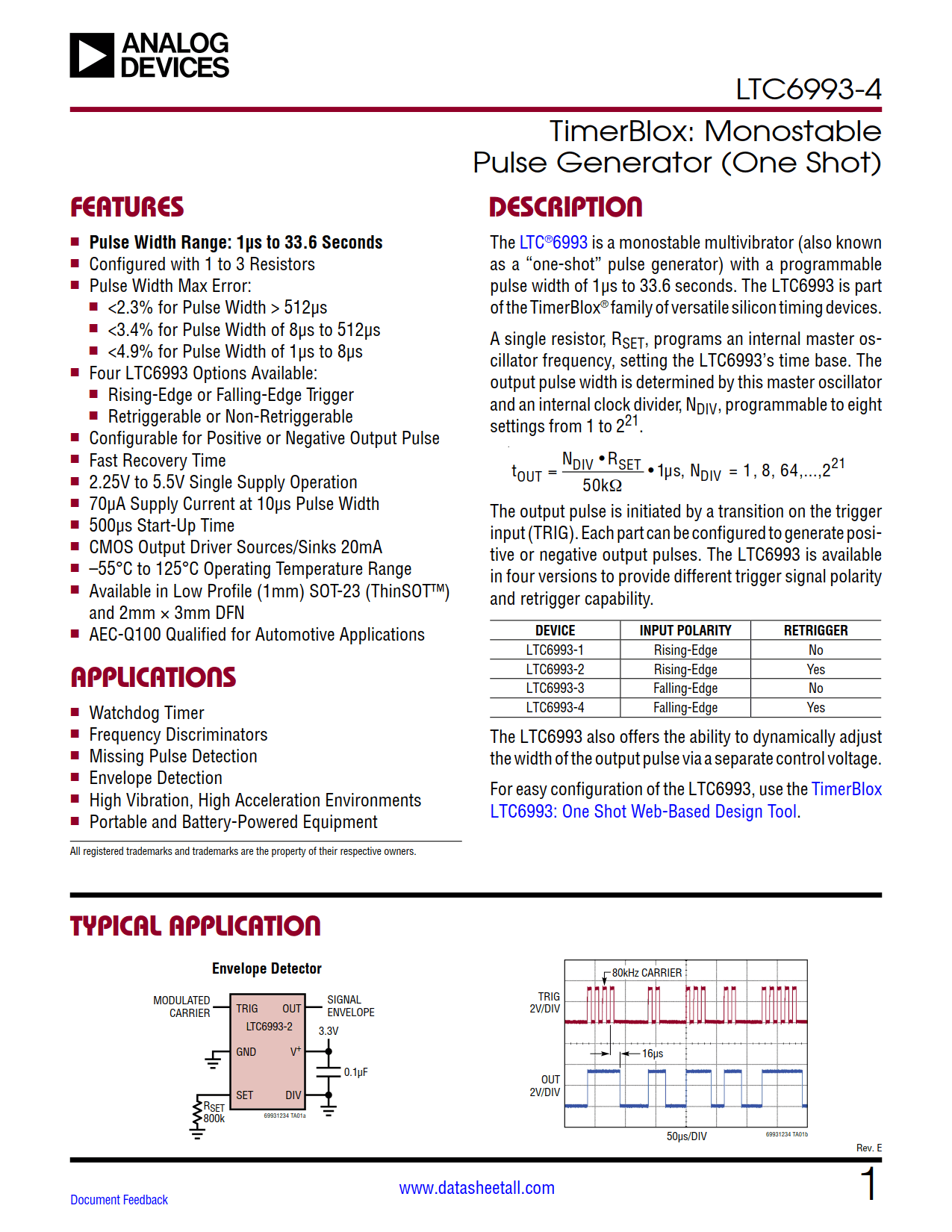

The LTC6993-4 is a monostable multivibrator (also known as a “one-shot” pulse generator) with a programmable pulse width of 1µs to 33.6 seconds. The LTC6993-4 is part of the TimerBlox® family of versatile silicon timing devices.

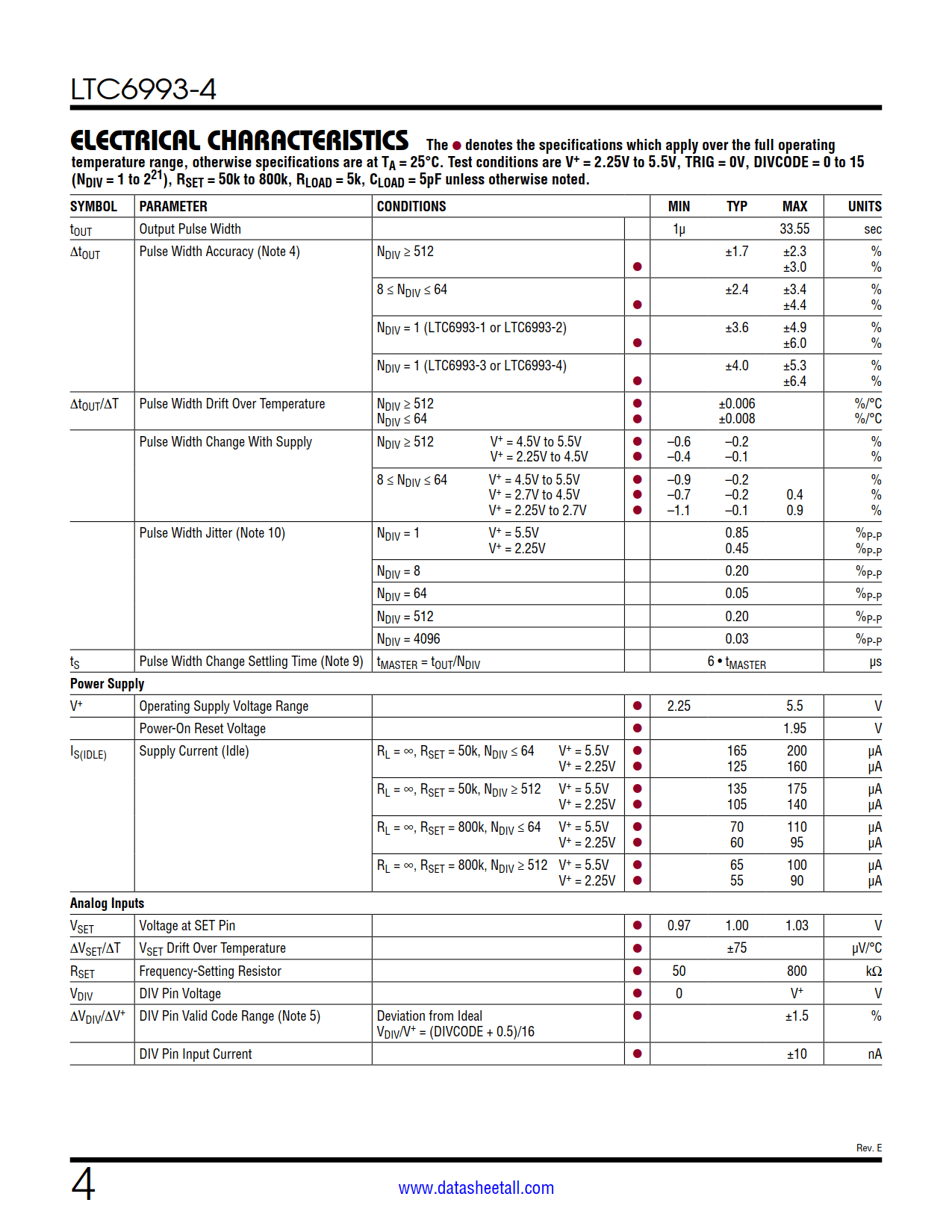

A single resistor, RSET, programs an internal master oscillator frequency, setting the LTC6993-4’s time base. The output pulse width is determined by this master oscillator and an internal clock divider, NDIV, programmable to eight settings from 1 to 221.

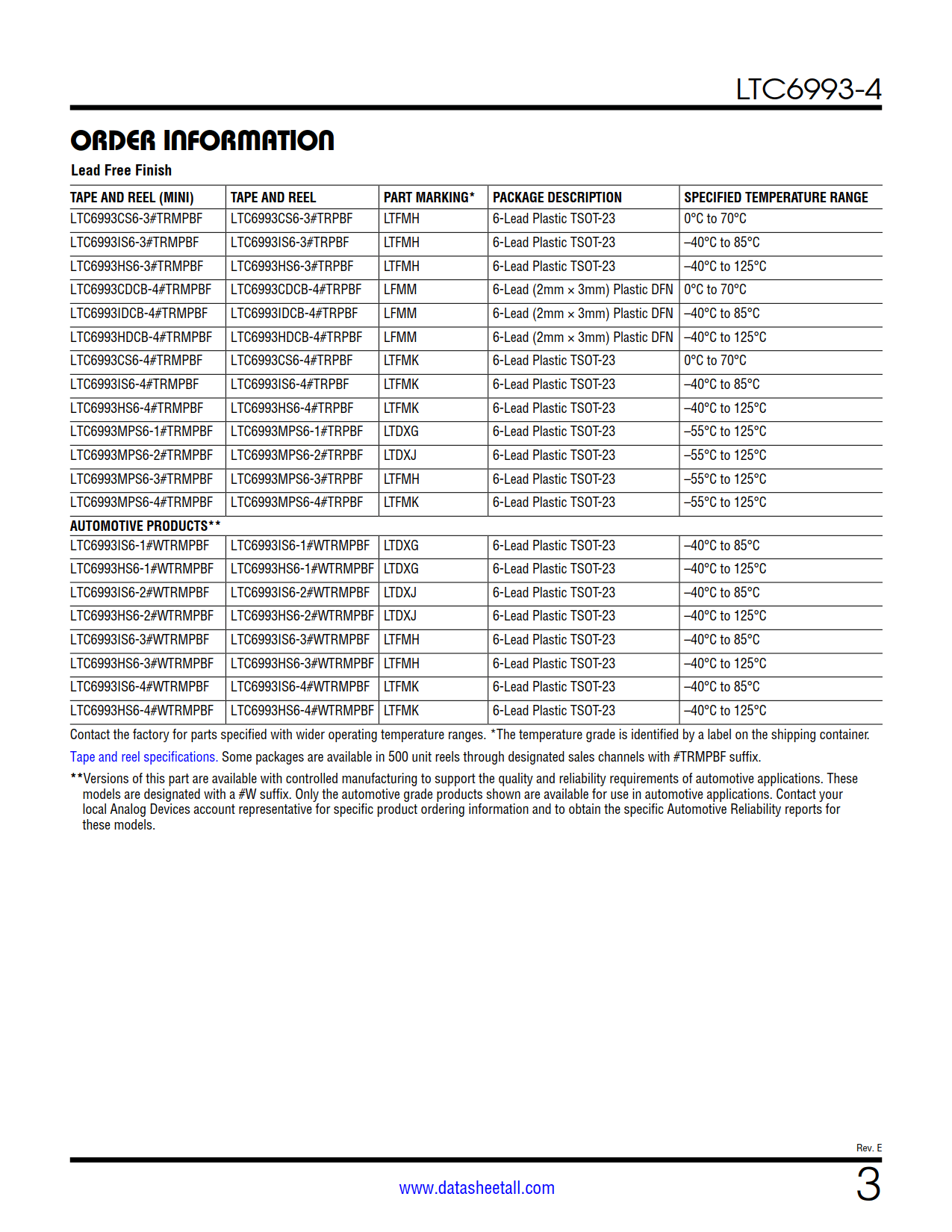

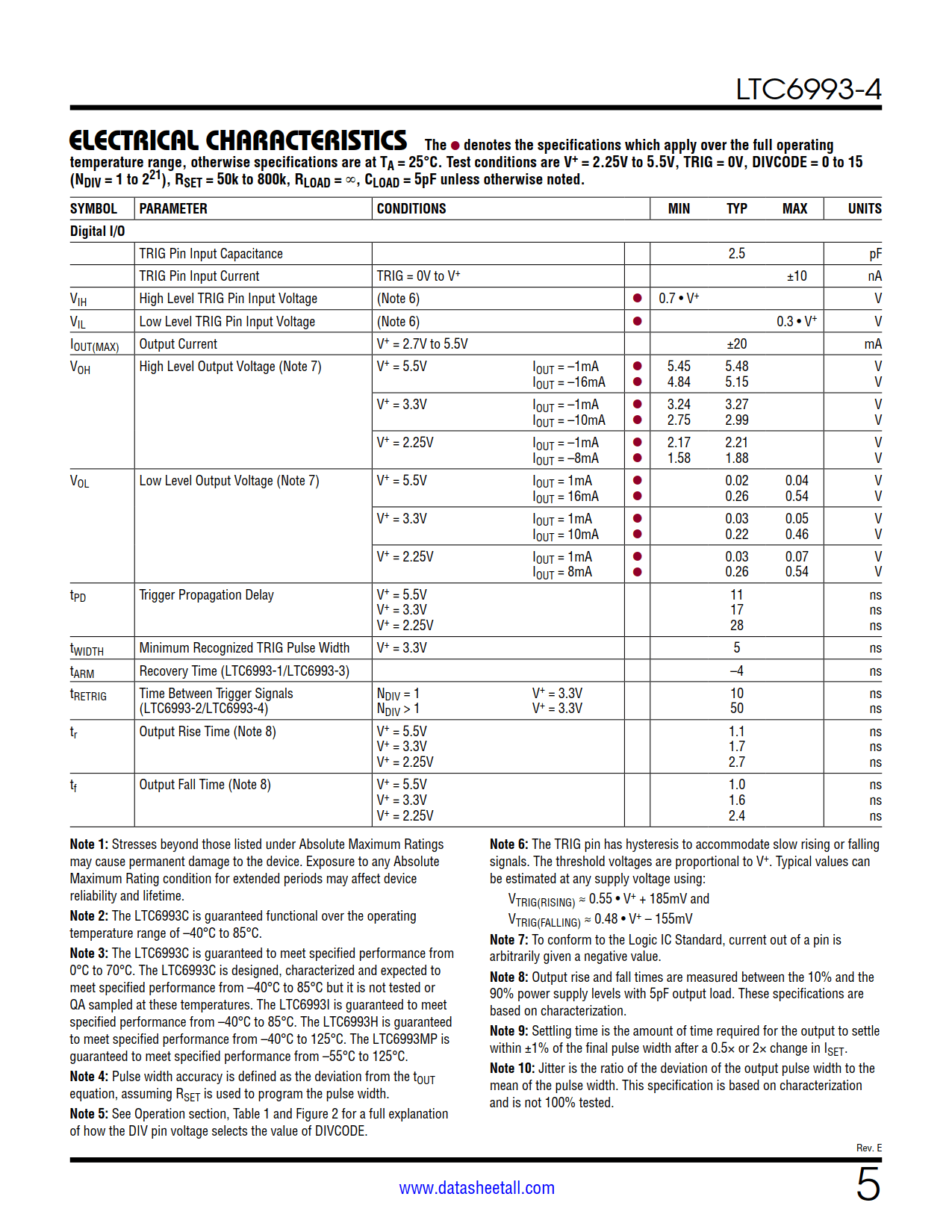

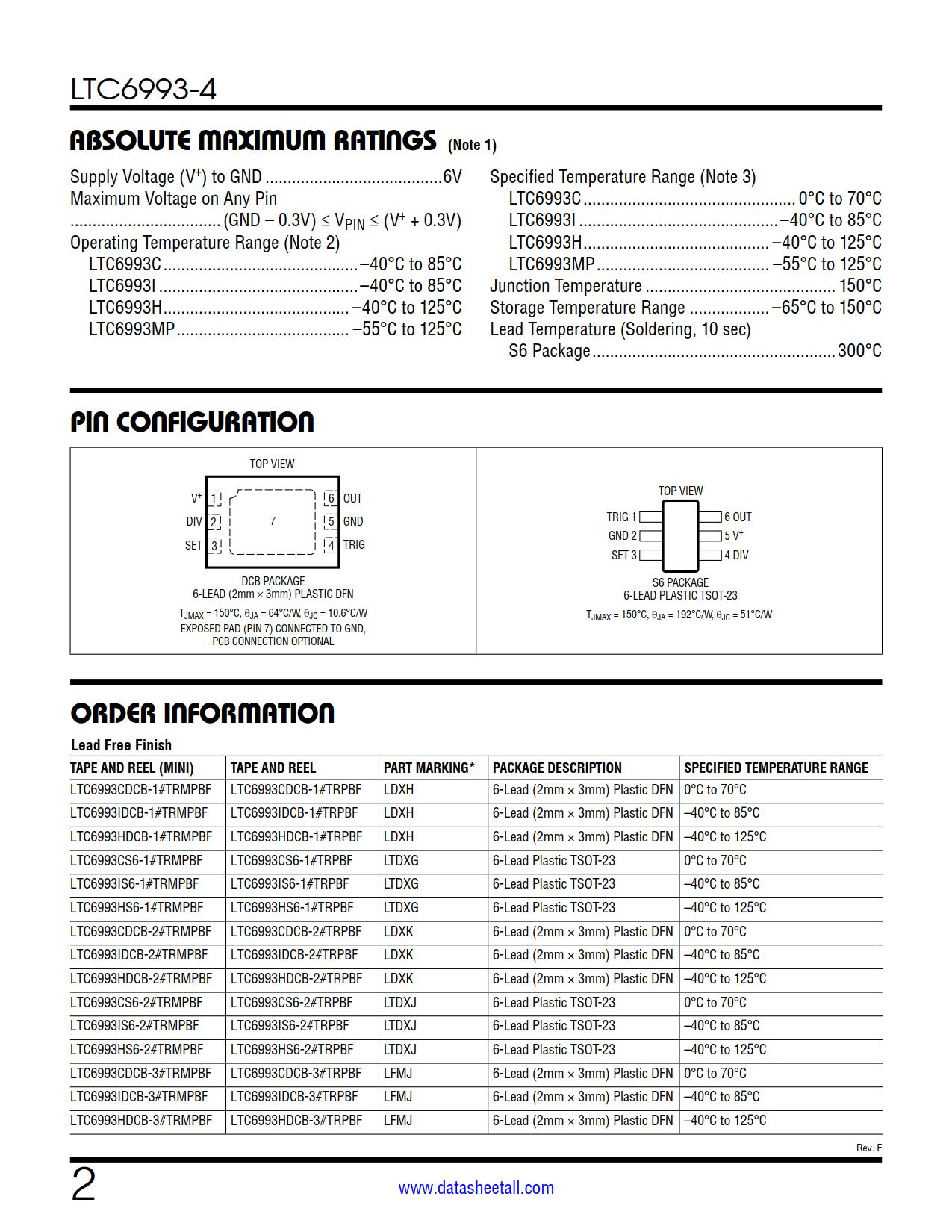

The output pulse is initiated by a transition on the trigger input (TRIG). Each part can be configured to generate positive or negative output pulses. The LTC6993-4 is available in four versions to provide different trigger signal polarity and retrigger capability.

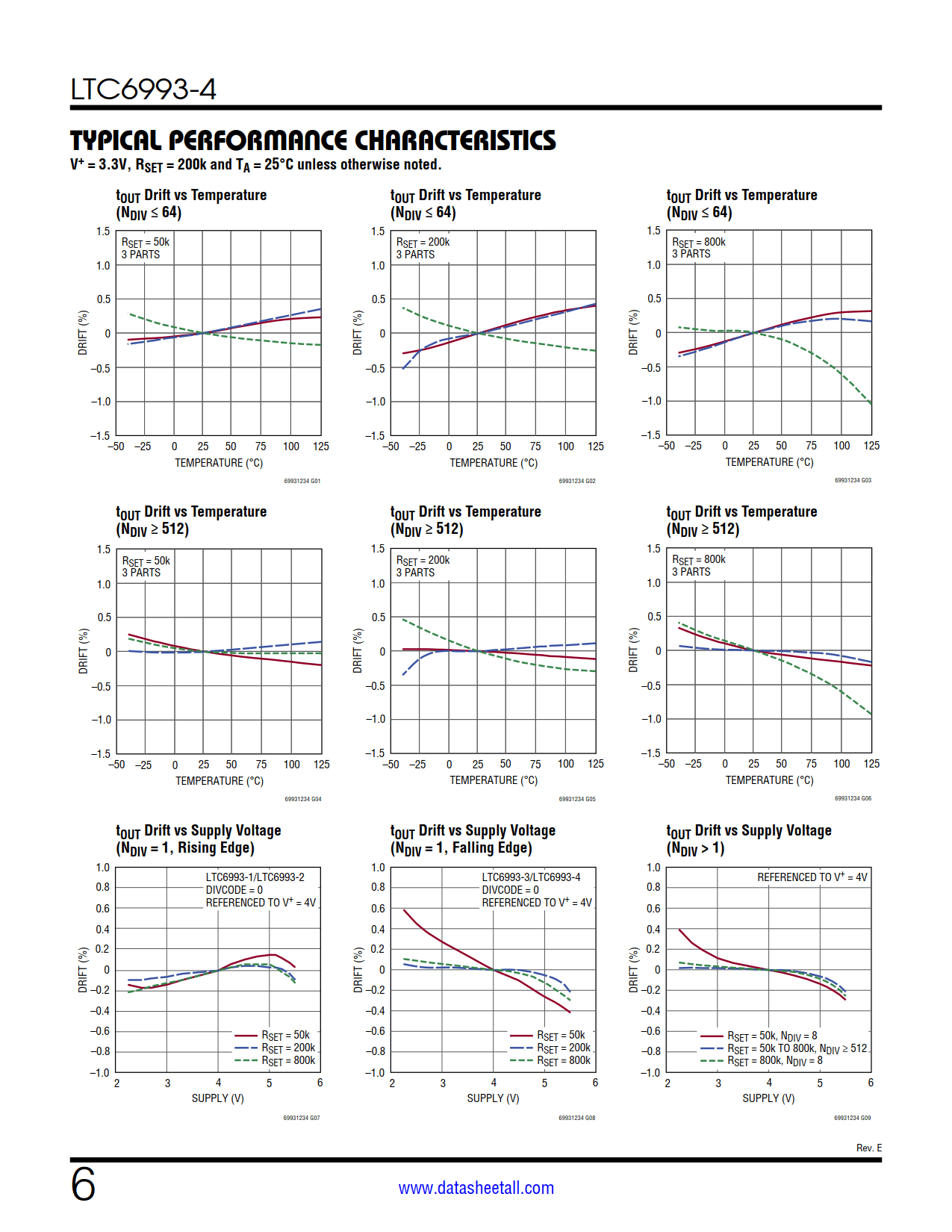

The LTC6993-4 also offers the ability to dynamically adjust the width of the output pulse via a separate control voltage.
