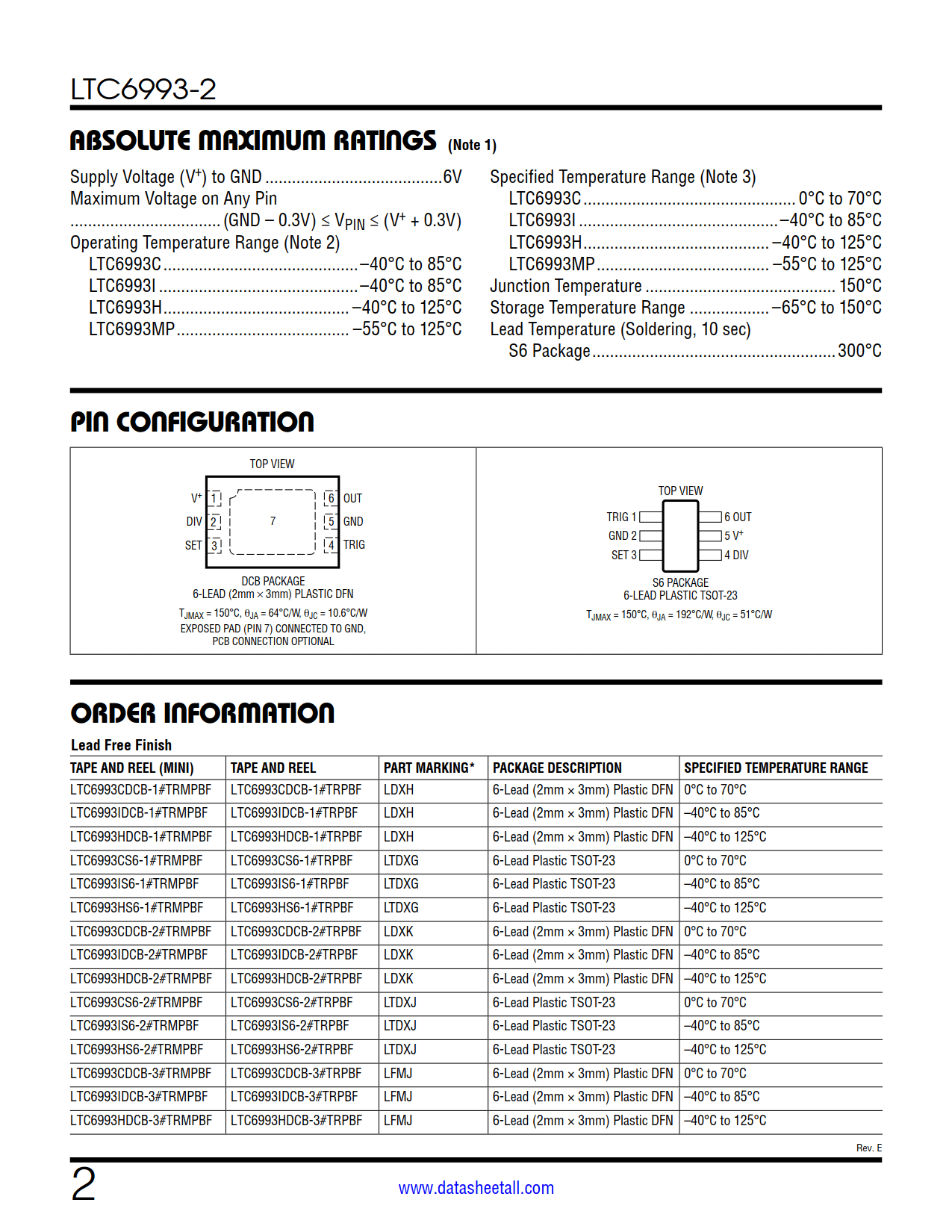

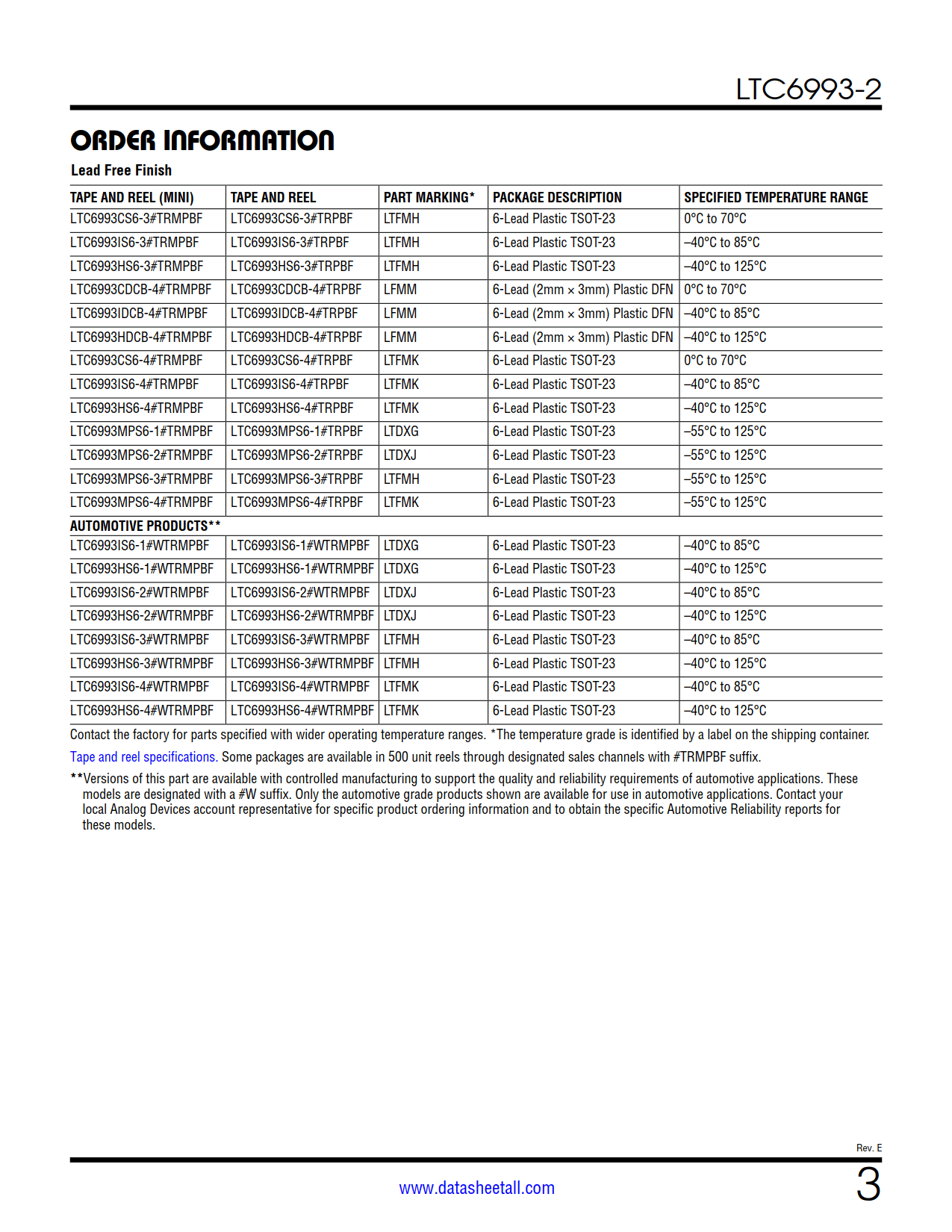

| Part No.： | LTC6993-2 |
| Page： | 28 Pages |
| Size： | 856 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-01-17 11:10:14 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC6993CDCB-2#PBF | Tube | LDXK | 1 | 6 | 0°C ~70°C | 6-Lead (2mm × 3mm) Plastic DFN | ||
| LTC6993CDCB-2#TRPBF | Reel | 2500 | LDXK | 1 | 6 | 0°C ~70°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6993CDCB-2#TRMPBF | Reel | 500 | LDXK | 1 | 6 | 0°C ~70°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6993IDCB-2#PBF | Tube | LDXK | 1 | 6 | -40°C ~85°C | 6-Lead (2mm × 3mm) Plastic DFN | ||
| LTC6993IDCB-2#TRPBF | Reel | 2500 | LDXK | 1 | 6 | -40°C ~85°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6993IDCB-2#TRMPBF | Reel | 500 | LDXK | 1 | 6 | -40°C ~85°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6993HDCB-2#PBF | Tube | LDXK | 1 | 6 | -40°C ~125°C | 6-Lead (2mm × 3mm) Plastic DFN | ||
| LTC6993HDCB-2#TRPBF | Reel | 2500 | LDXK | 1 | 6 | -40°C ~125°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6993HDCB-2#TRMPBF | Reel | 500 | LDXK | 1 | 6 | -40°C ~125°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6993CS6-2#PBF | Tube | LTDXJ | 1 | 6 | 0°C ~70°C | 6-Lead Plastic TSOT-23 | ||
| LTC6993CS6-2#TRPBF | Reel | 2500 | LTDXJ | 1 | 6 | 0°C ~70°C | 6-Lead Plastic TSOT-23 | |
| LTC6993CS6-2#TRMPBF | Reel | 500 | LTDXJ | 1 | 6 | 0°C ~70°C | 6-Lead Plastic TSOT-23 | |
| LTC6993IS6-2#PBF | Tube | LTDXJ | 1 | 6 | -40°C ~85°C | 6-Lead Plastic TSOT-23 | ||
| LTC6993IS6-2#TRPBF | Reel | 2500 | LTDXJ | 1 | 6 | -40°C ~85°C | 6-Lead Plastic TSOT-23 | |
| LTC6993IS6-2#TRMPBF | Reel | 500 | LTDXJ | 1 | 6 | -40°C ~85°C | 6-Lead Plastic TSOT-23 | |
| LTC6993HS6-2#PBF | Tube | LTDXJ | 1 | 6 | -40°C ~125°C | 6-Lead Plastic TSOT-23 | ||
| LTC6993HS6-2#TRPBF | Reel | 2500 | LTDXJ | 1 | 6 | -40°C ~125°C | 6-Lead Plastic TSOT-23 | |
| LTC6993HS6-2#TRMPBF | Reel | 500 | LTDXJ | 1 | 6 | -40°C ~125°C | 6-Lead Plastic TSOT-23 | |
| LTC6993MPS6-2#PBF | Tube | LTDXJ | 1 | 6 | -55°C ~125°C | 6-Lead Plastic TSOT-23 | ||
| LTC6993MPS6-2#TRPBF | Reel | 2500 | LTDXJ | 1 | 6 | -55°C ~125°C | 6-Lead Plastic TSOT-23 | |
| LTC6993MPS6-2#TRMPBF | Reel | 500 | LTDXJ | 1 | 6 | -55°C ~125°C | 6-Lead Plastic TSOT-23 | |
| LTC6993IS6-2#WPBF | Tube | LTDXJ | 1 | 6 | -40°C ~85°C | 6-Lead Plastic TSOT-23 | ||
| LTC6993IS6-2#WTRPBF | Reel | 2500 | LTDXJ | 1 | 6 | -40°C ~85°C | 6-Lead Plastic TSOT-23 | |
| LTC6993IS6-2#WTRMPBF | Reel | 500 | LTDXJ | 1 | 6 | -40°C ~85°C | 6-Lead Plastic TSOT-23 | |
| LTC6993HS6-2#WPBF | Tube | LTDXJ | 1 | 6 | -40°C ~125°C | 6-Lead Plastic TSOT-23 | ||
| LTC6993HS6-2#WTRPBF | Reel | 2500 | LTDXJ | 1 | 6 | -40°C ~125°C | 6-Lead Plastic TSOT-23 | |
| LTC6993HS6-2#WTRMPBF | Reel | 500 | LTDXJ | 1 | 6 | -40°C ~125°C | 6-Lead Plastic TSOT-23 |

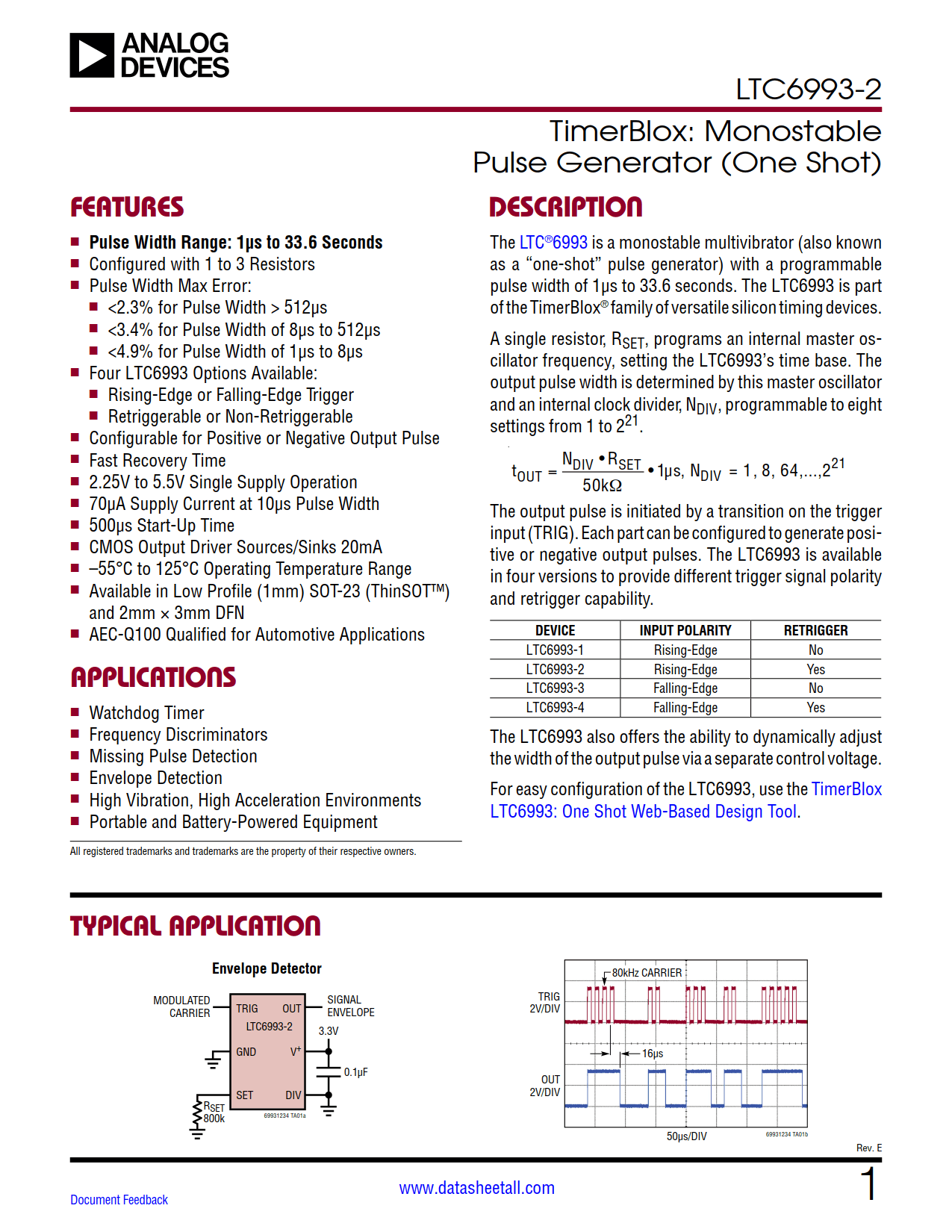

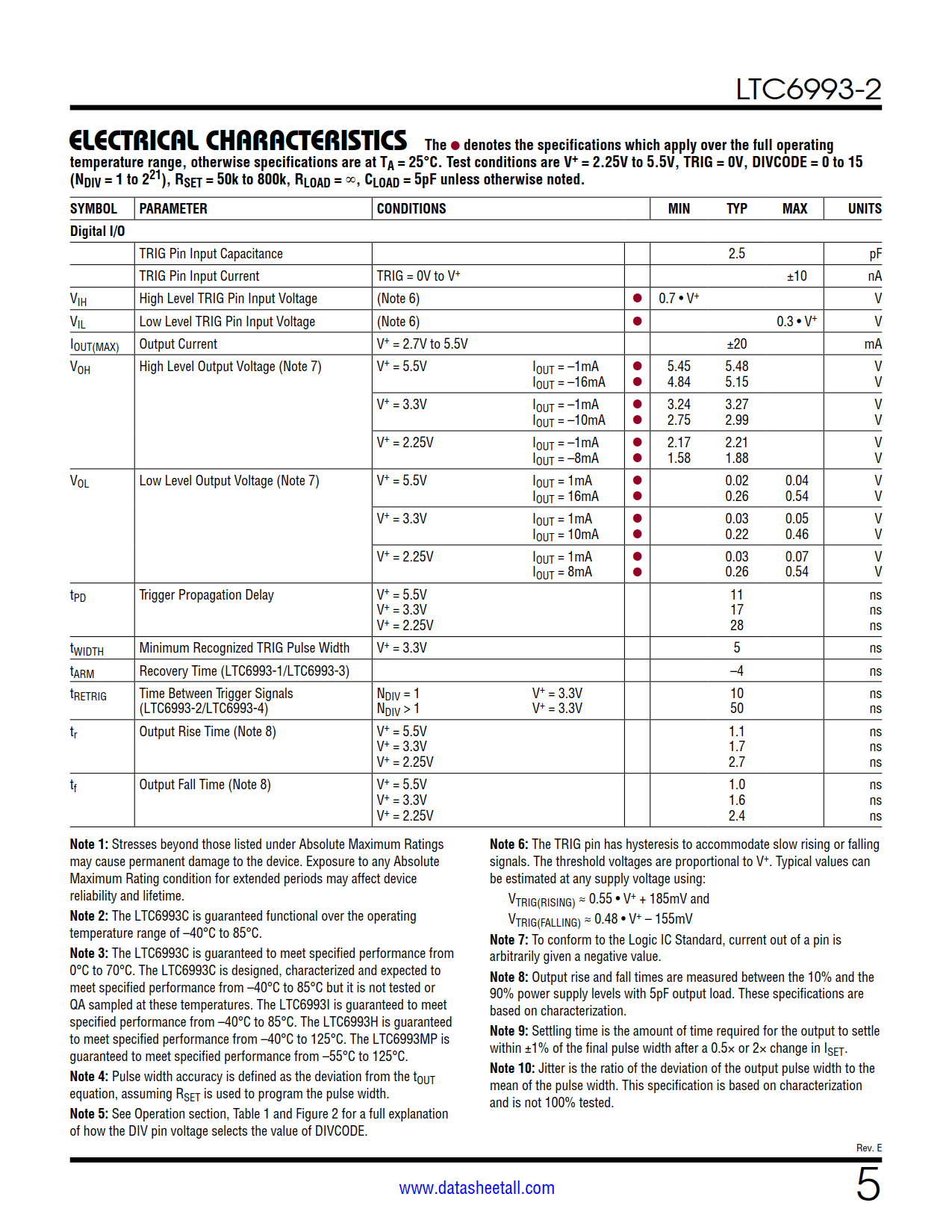

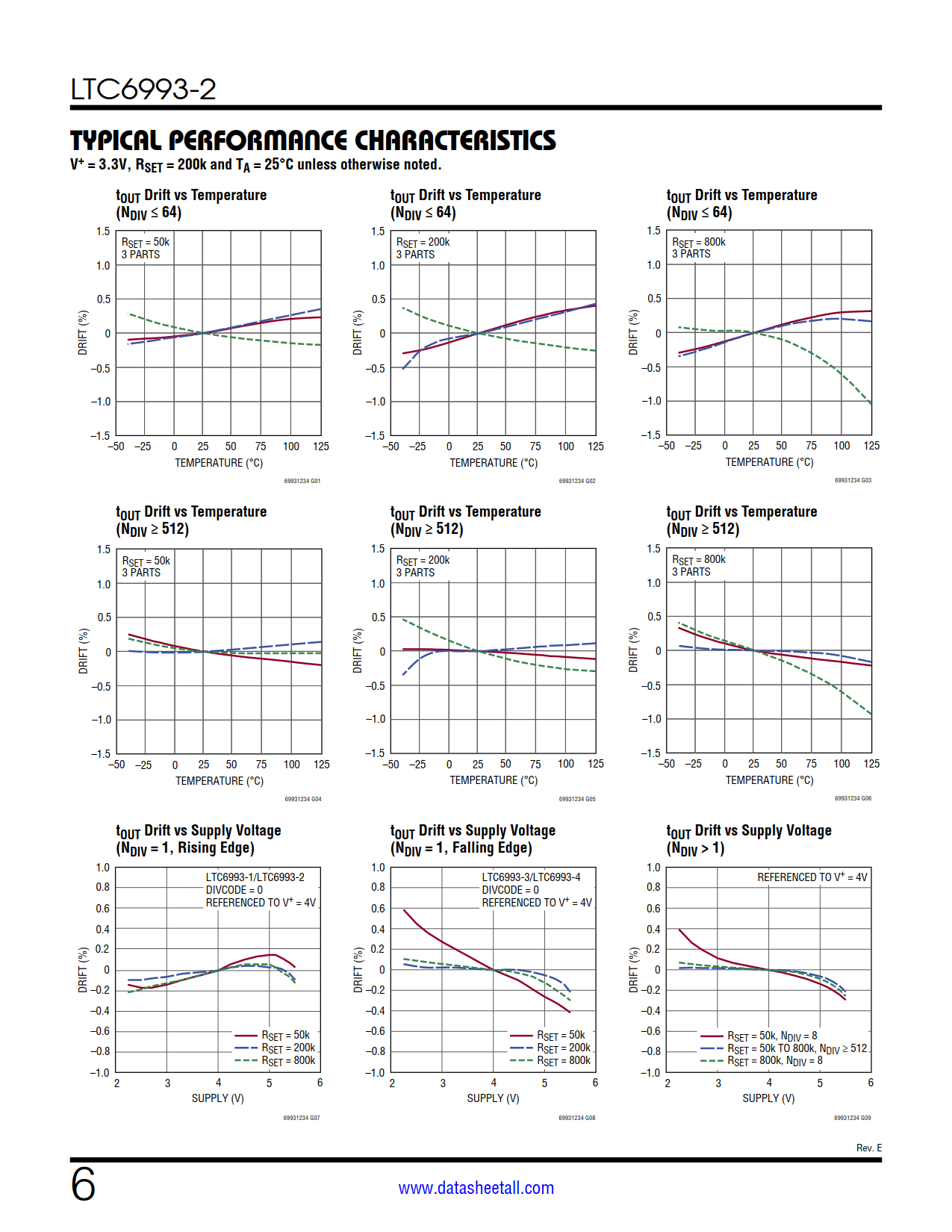

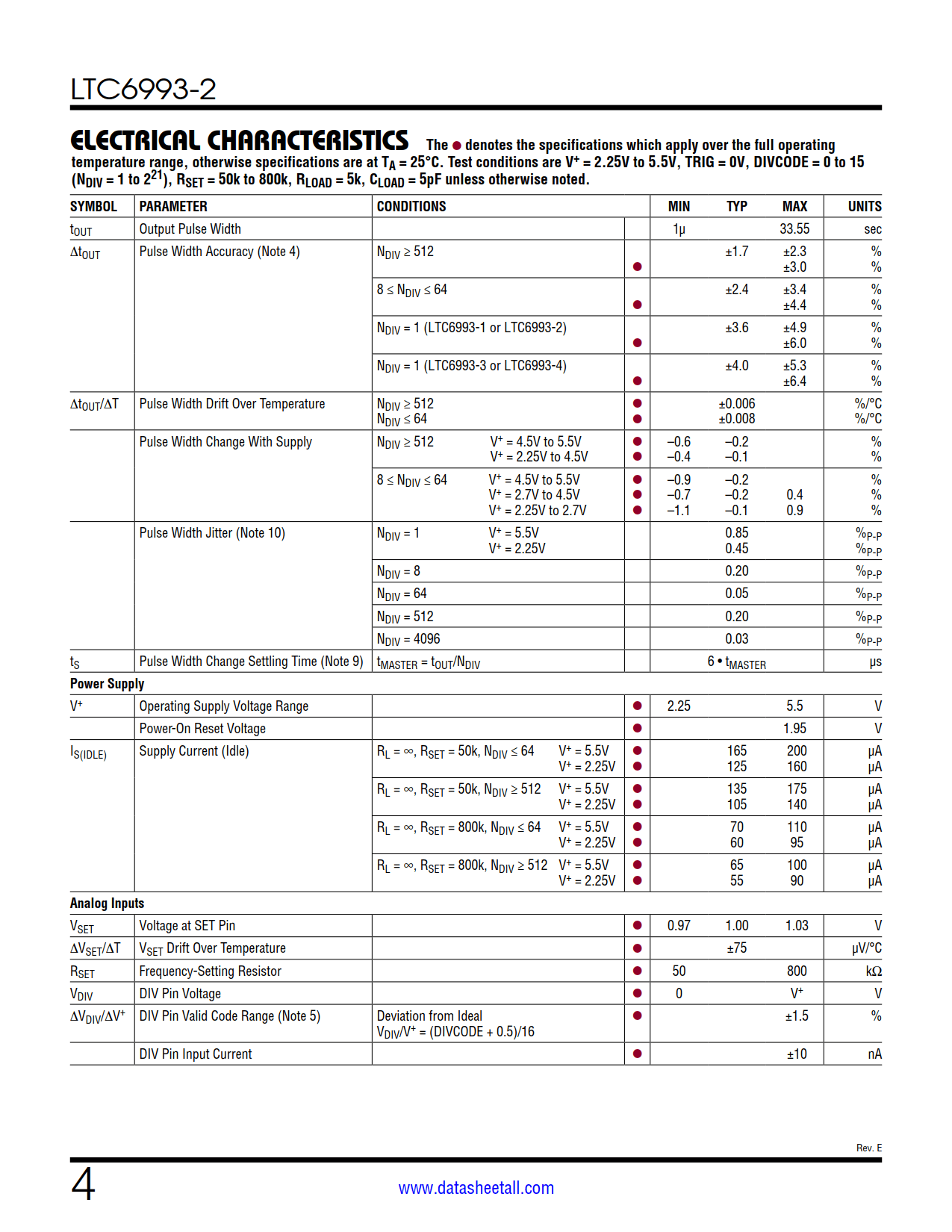

The LTC6993-2 is a monostable multivibrator (also known as a “one-shot” pulse generator) with a programmable pulse width of 1µs to 33.6 seconds. The LTC6993 is part of the TimerBlox® family of versatile silicon timing devices.
A single resistor, RSET, programs an internal master oscillator frequency, setting the LTC6993-2’s time base. The output pulse width is determined by this master oscillator and an internal clock divider, NDIV, programmable to eight settings from 1 to 221.
The output pulse is initiated by a transition on the trigger input (TRIG). Each part can be configured to generate positive or negative output pulses. The LTC6993-2 is available in four versions to provide different trigger signal polarity and retrigger capability.
The LTC6993-2 also offers the ability to dynamically adjust the width of the output pulse via a separate control voltage.
