LTC6993-1 Datasheet

LTC6993-1 Datasheet

TimerBlox: Monostable Pulse Generator (One Shot)
Part No.: LTC6993-1
Page: 28 Pages
Size: 856 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-17 11:25:11
DataSheet: Download

LTC6993-1 Datasheet Applicable Part

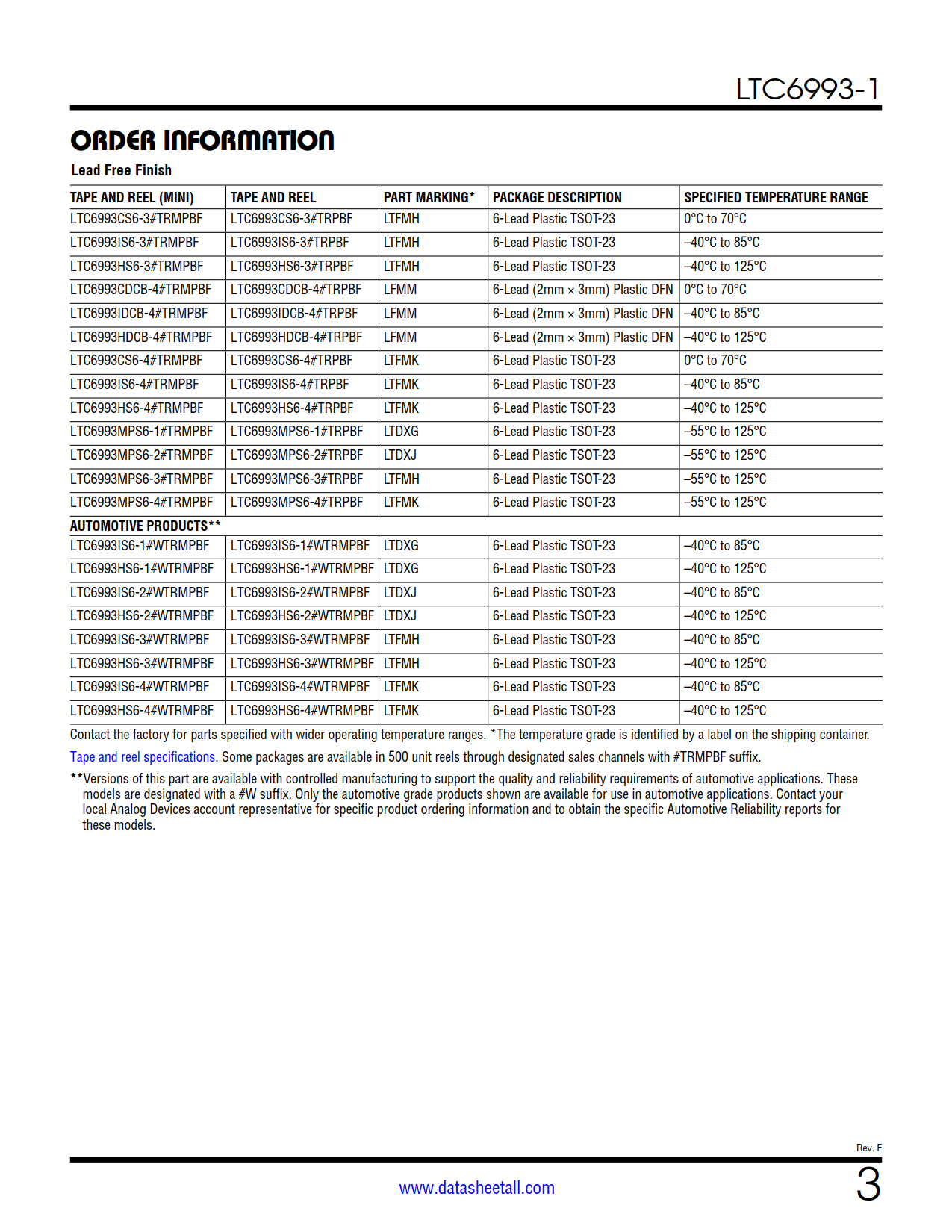

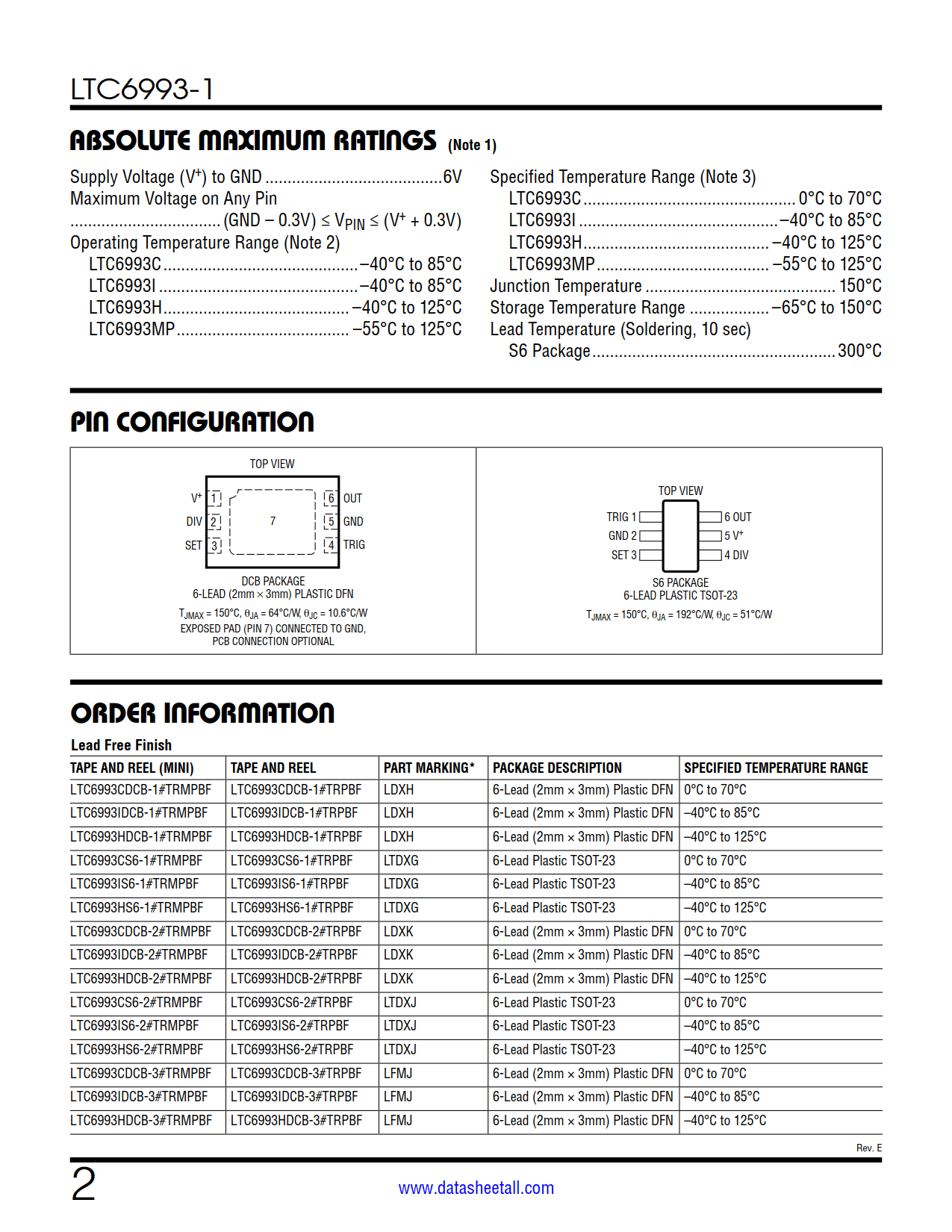

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC6993CDCB-1#PBF Tube   LDXH 1 6 0°C ~70°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6993CDCB-1#TRPBF Reel 2500 LDXH 1 6 0°C ~70°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6993CDCB-1#TRMPBF Reel 500 LDXH 1 6 0°C ~70°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6993IDCB-1#PBF Tube   LDXH 1 6 -40°C ~85°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6993IDCB-1#TRPBF Reel 2500 LDXH 1 6 -40°C ~85°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6993IDCB-1#TRMPBF Reel 500 LDXH 1 6 -40°C ~85°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6993HDCB-1#PBF Tube   LDXH 1 6 -40°C ~125°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6993HDCB-1#TRPBF Reel 2500 LDXH 1 6 -40°C ~125°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6993HDCB-1#TRMPBF Reel 500 LDXH 1 6 -40°C ~125°C 6-Lead (2mm × 3mm) Plastic DFN
LTC6993CS6-1#PBF Tube   LTDXG 1 6 0°C ~70°C 6-Lead Plastic TSOT-23
LTC6993CS6-1#TRPBF Reel 2500 LTDXG 1 6 0°C ~70°C 6-Lead Plastic TSOT-23
LTC6993CS6-1#TRMPBF Reel 500 LTDXG 1 6 0°C ~70°C 6-Lead Plastic TSOT-23
LTC6993IS6-1#PBF Tube   LTDXG 1 6 -40°C ~85°C 6-Lead Plastic TSOT-23
LTC6993IS6-1#TRPBF Reel 2500 LTDXG 1 6 -40°C ~85°C 6-Lead Plastic TSOT-23
LTC6993IS6-1#TRMPBF Reel 500 LTDXG 1 6 -40°C ~85°C 6-Lead Plastic TSOT-23
LTC6993HS6-1#PBF Tube   LTDXG 1 6 -40°C ~125°C 6-Lead Plastic TSOT-23
LTC6993HS6-1#TRPBF Reel 2500 LTDXG 1 6 -40°C ~125°C 6-Lead Plastic TSOT-23
LTC6993HS6-1#TRMPBF Reel 500 LTDXG 1 6 -40°C ~125°C 6-Lead Plastic TSOT-23
LTC6993MPS6-1#PBF Tube   LTDXG 1 6 -55°C ~125°C 6-Lead Plastic TSOT-23
LTC6993MPS6-1#TRPBF Reel 2500 LTDXG 1 6 -55°C ~125°C 6-Lead Plastic TSOT-23
LTC6993MPS6-1#TRMPBF Reel 500 LTDXG 1 6 -55°C ~125°C 6-Lead Plastic TSOT-23
LTC6993IS6-1#WPBF Tube   LTDXG 1 6 -40°C ~85°C 6-Lead Plastic TSOT-23
LTC6993IS6-1#WTRPBF Reel 2500 LTDXG 1 6 -40°C ~85°C 6-Lead Plastic TSOT-23
LTC6993IS6-1#WTRMPBF Reel 500 LTDXG 1 6 -40°C ~85°C 6-Lead Plastic TSOT-23
LTC6993HS6-1#WPBF Tube   LTDXG 1 6 -40°C ~125°C 6-Lead Plastic TSOT-23
LTC6993HS6-1#WTRPBF Reel 2500 LTDXG 1 6 -40°C ~125°C 6-Lead Plastic TSOT-23
LTC6993HS6-1#WTRMPBF Reel 500 LTDXG 1 6 -40°C ~125°C 6-Lead Plastic TSOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC6993-1 Datasheet(PDF)

LTC6993-1 Datasheet(Picture)

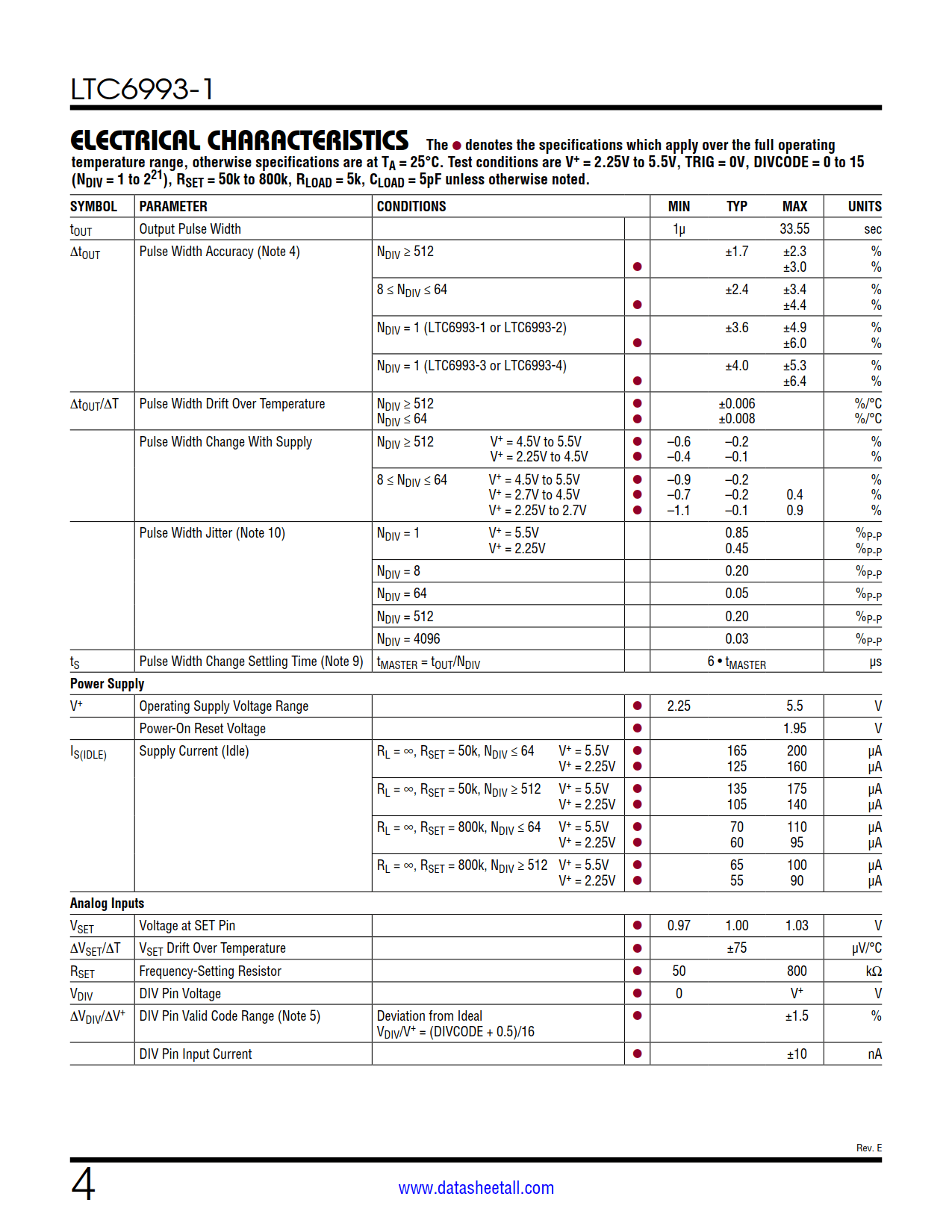

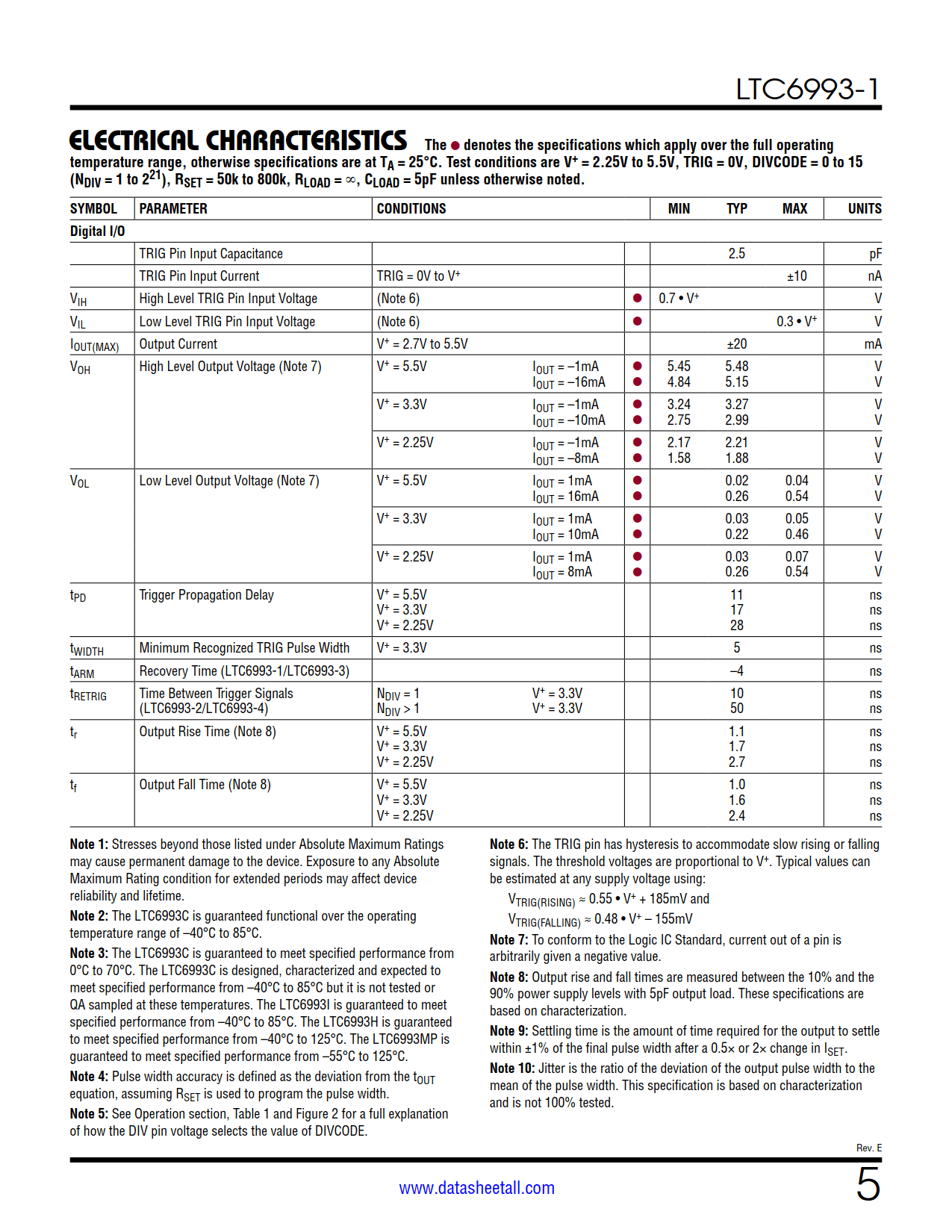

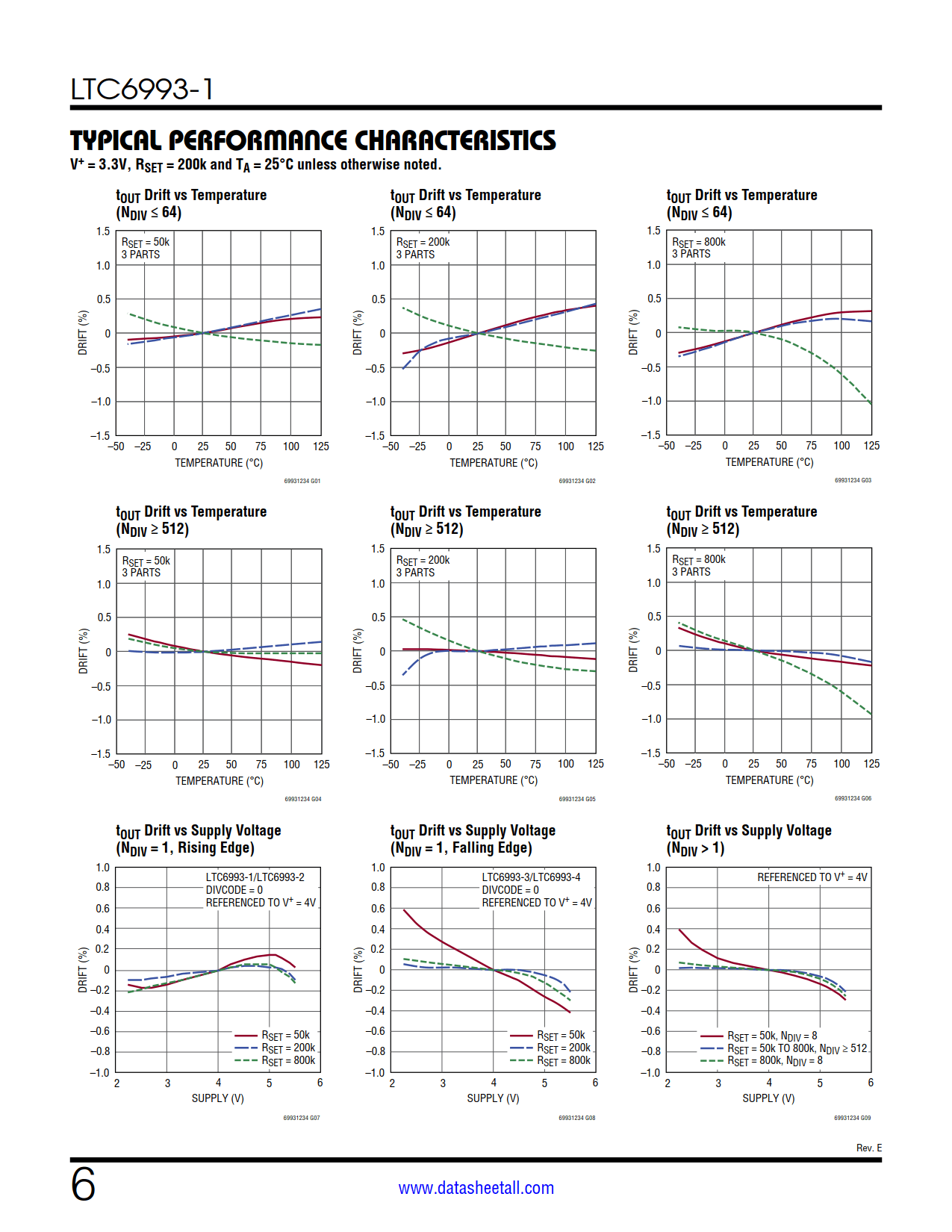

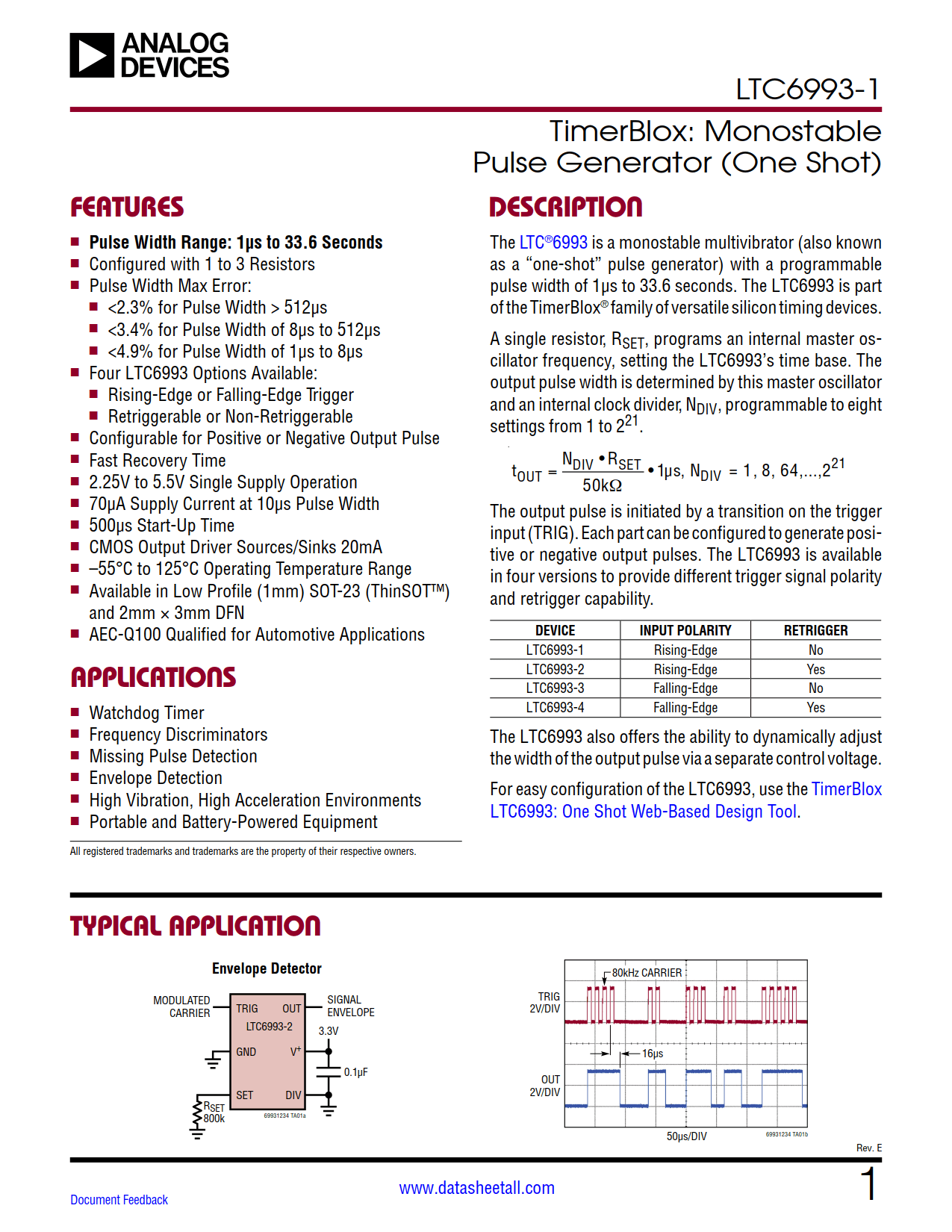

LTC6993-1 Features

  • Pulse Width Range: 1µs to 33.6 Seconds
  • Configured with 1 to 3 Resistors
  • Pulse Width Max Error:
    • <2.3% for Pulse Width > 512µs
    • <3.4% for Pulse Width of 8µs to 512µs
    • <4.9% for Pulse Width of 1µs to 8µs
  • Four LTC6993 Options Available:
    • Rising-Edge or Falling-Edge Trigger
    • Retriggerable or Non-Retriggerable
  • Configurable for Positive or Negative Output Pulse
  • Fast Recovery Time
  • 2.25V to 5.5V Single Supply Operation
  • 70µA Supply Current at 10µs Pulse Width
  • 500µs Start-Up Time
  • CMOS Output Driver Sources/Sinks 20mA
  • –55°C to 125°C Operating Temperature Range
  • Available in Low Profile (1mm) SOT-23 (ThinSOT) and 2mm × 3mm DFN
  • AEC-Q100 Qualified for Automotive Applications

LTC6993-1 Applications

  • Watchdog Timer
  • Frequency Discriminators
  • Missing Pulse Detection
  • Envelope Detection
  • High Vibration, High Acceleration Environments
  • Portable and Battery-Powered Equipment

LTC6993-1 Description

The LTC6993-1 is a monostable multivibrator (also known as a “one-shot” pulse generator) with a programmable pulse width of 1µs to 33.6 seconds. The LTC6993-1 is part of the TimerBlox® family of versatile silicon timing devices.

A single resistor, RSET, programs an internal master oscillator frequency, setting the LTC6993-1’s time base. The output pulse width is determined by this master oscillator and an internal clock divider, NDIV, programmable to eight settings from 1 to 221.

The output pulse is initiated by a transition on the trigger input (TRIG). Each part can be configured to generate positive or negative output pulses. The LTC6993-1 is available in four versions to provide different trigger signal polarity and retrigger capability.

The LTC6993-1 also offers the ability to dynamically adjust the width of the output pulse via a separate control voltage.
