| Part No.： | LTC6992-3 |
| Page： | 34 Pages |
| Size： | 1141 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-10-26 17:18:37 |
| DataSheet： | Download |

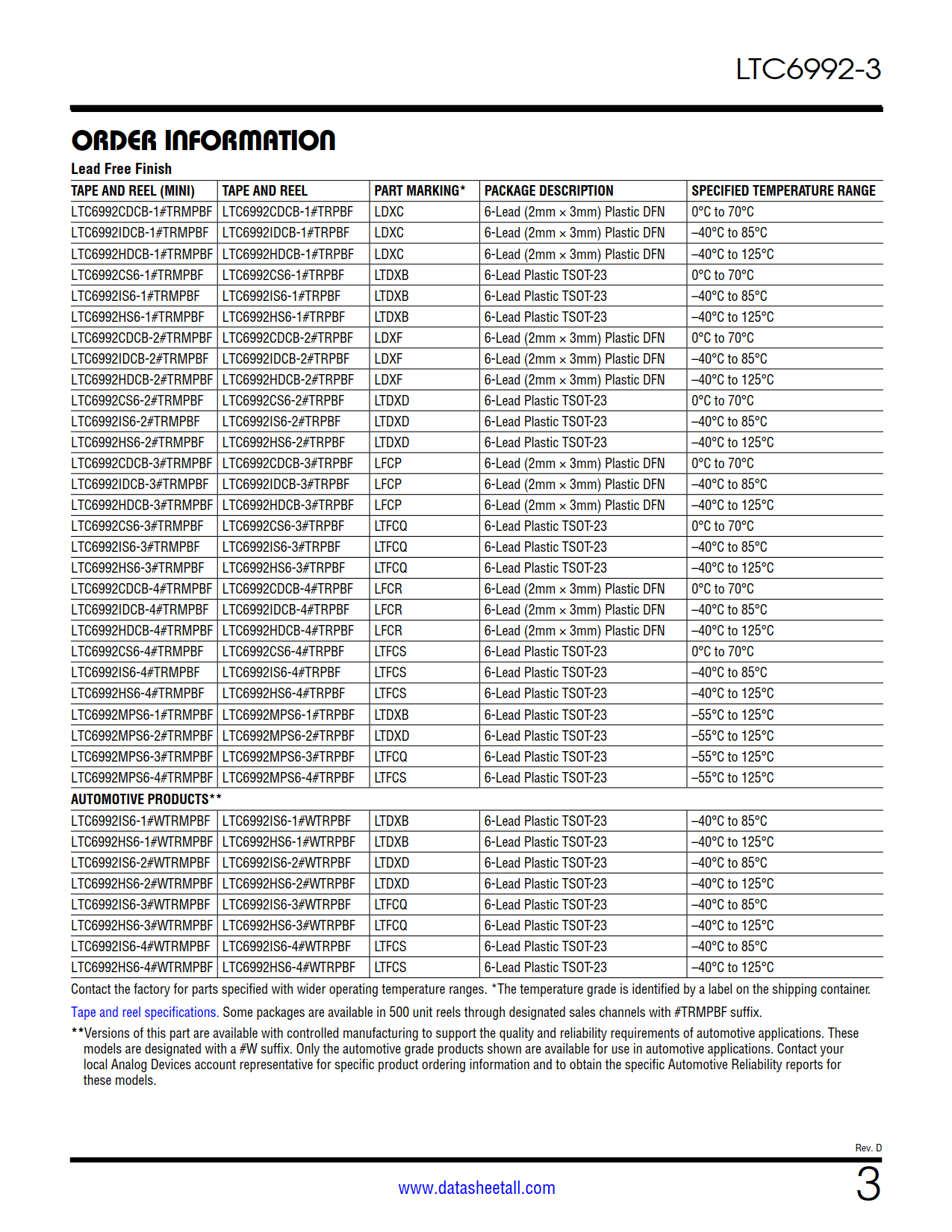

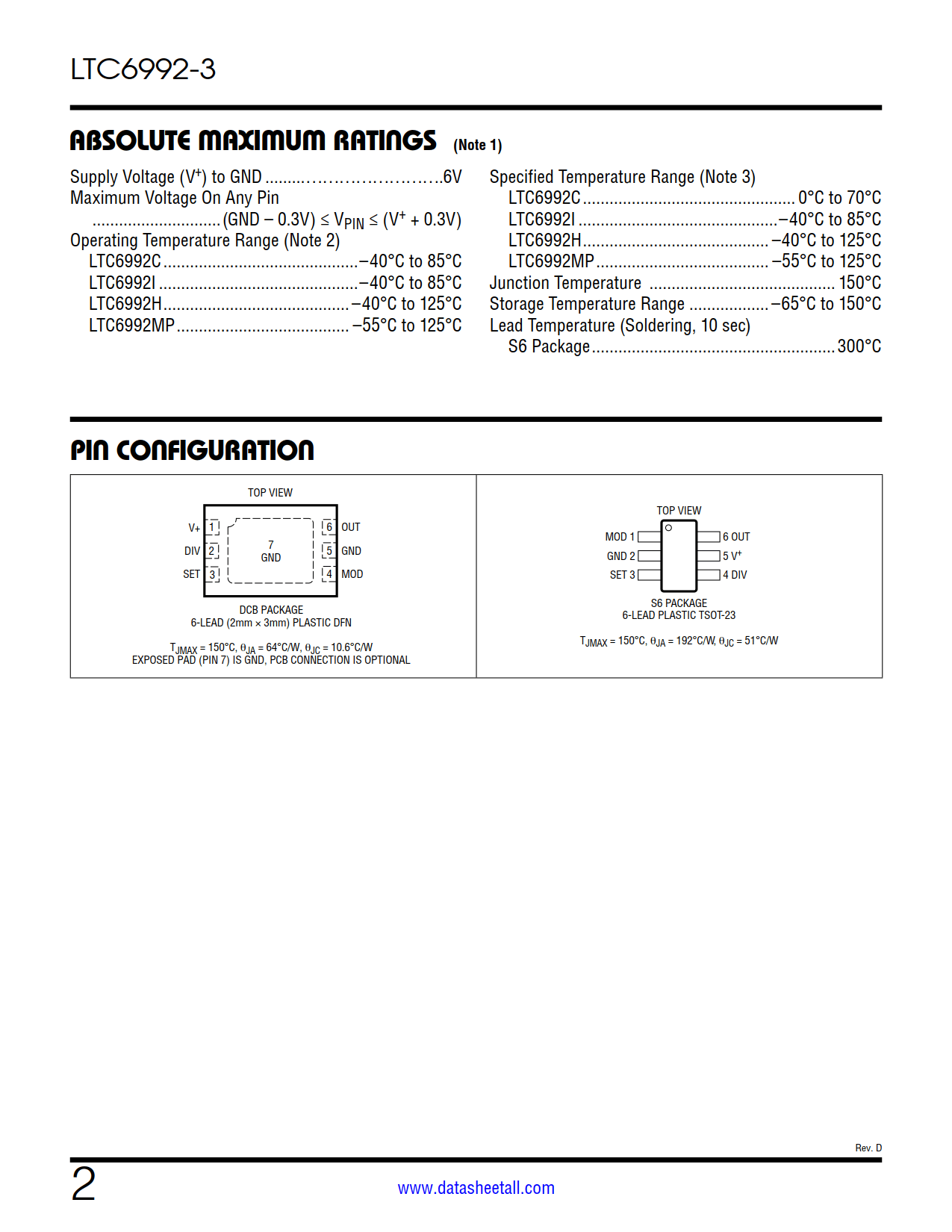

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC6992CDCB-3#TRPBF | Reel | 2500 | LFCP | 1 | 6 | 0°C ~ 70°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6992CDCB-3#TRMPBF | Reel | 500 | LFCP | 1 | 6 | 0°C ~ 70°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6992IDCB-3#TRPBF | Reel | 2500 | LFCP | 1 | 6 | -40°C ~ 85°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6992IDCB-3#TRMPBF | Reel | 500 | LFCP | 1 | 6 | -40°C ~ 85°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6992HDCB-3#TRPBF | Reel | 2500 | LFCP | 1 | 6 | -40°C ~ 125°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6992HDCB-3#TRMPBF | Reel | 500 | LFCP | 1 | 6 | -40°C ~ 125°C | 6-Lead (2mm × 3mm) Plastic DFN | |
| LTC6992CS6-3#TRPBF | Reel | 2500 | LTFCQ | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic TSOT-23 | |
| LTC6992CS6-3#TRMPBF | Reel | 500 | LTFCQ | 1 | 6 | 0°C ~ 70°C | 6-Lead Plastic TSOT-23 | |
| LTC6992IS6-3#TRPBF | Reel | 2500 | LTFCQ | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
| LTC6992IS6-3#TRMPBF | Reel | 500 | LTFCQ | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
| LTC6992HS6-3#TRPBF | Reel | 2500 | LTFCQ | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
| LTC6992HS6-3#TRMPBF | Reel | 500 | LTFCQ | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
| LTC6992MPS6-3#TRPBF | Reel | 2500 | LTFCQ | 1 | 6 | -55°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
| LTC6992MPS6-3#TRMPBF | Reel | 500 | LTFCQ | 1 | 6 | -55°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
| LTC6992IS6-3#WTRPBF | Reel | 2500 | LTFCQ | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
| LTC6992IS6-3#WTRMPBF | Reel | 500 | LTFCQ | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
| LTC6992HS6-3#WTRPBF | Reel | 2500 | LTFCQ | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
| LTC6992HS6-3#WTRMPBF | Reel | 500 | LTFCQ | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 |

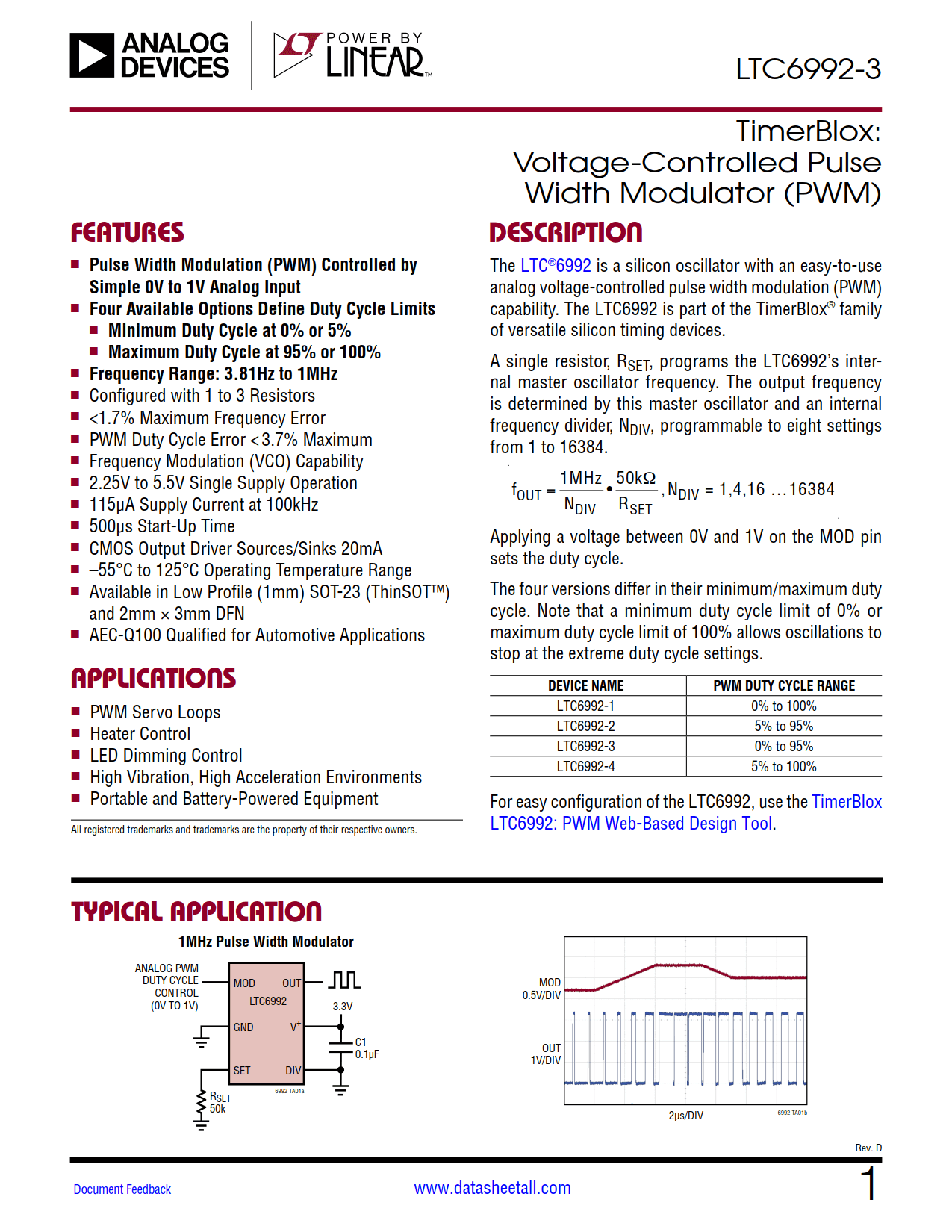

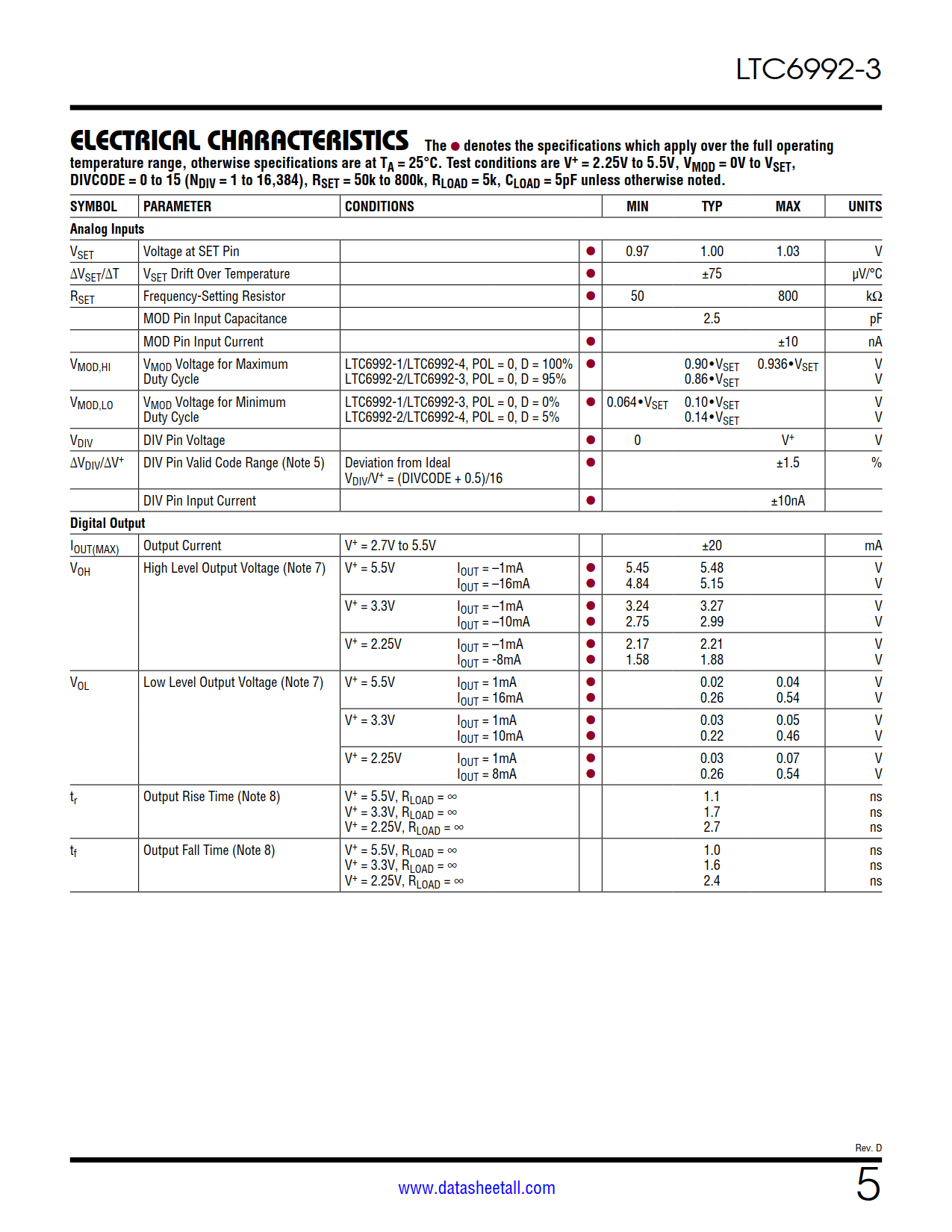

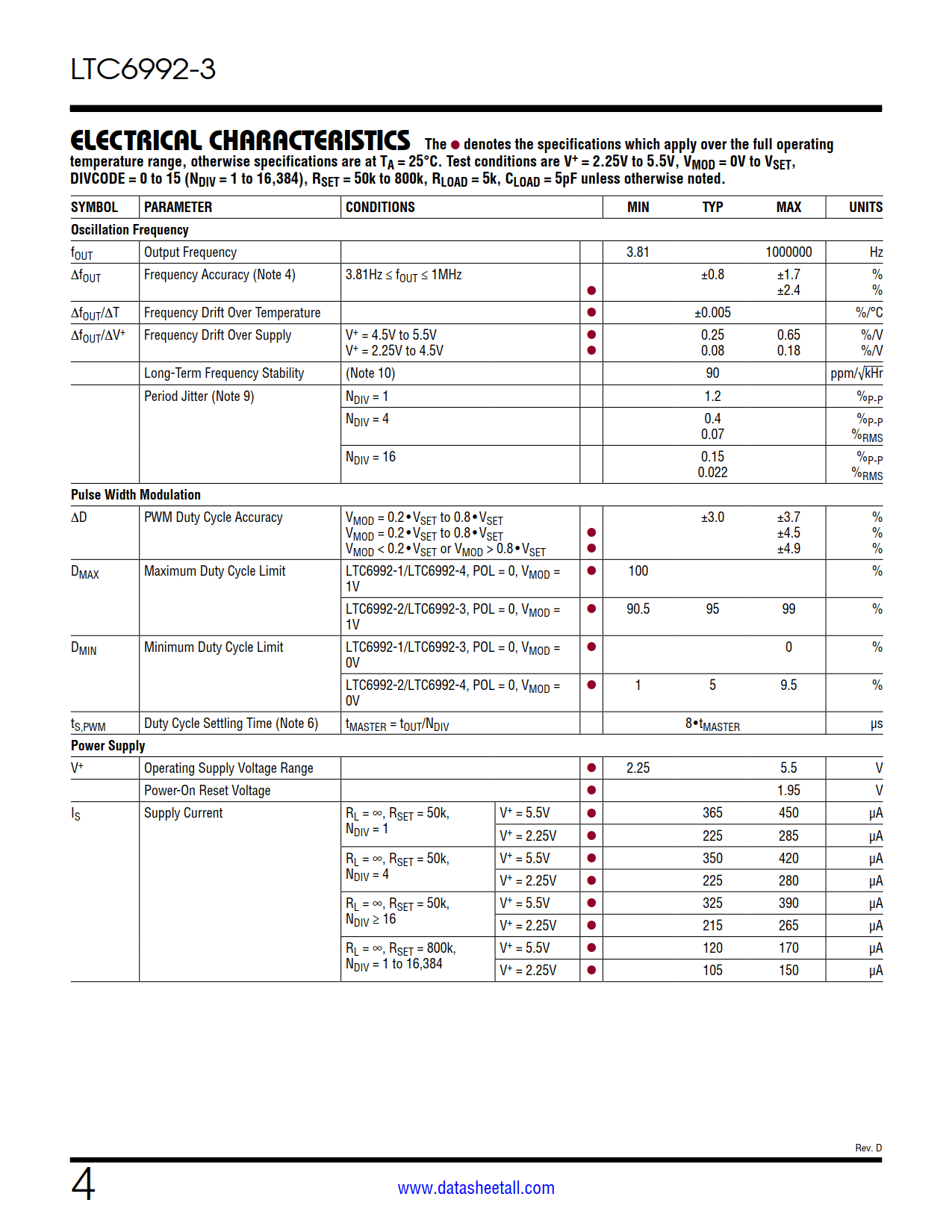

The LTC6992 is a silicon oscillator with an easy-to-use analog voltage-controlled pulse width modulation (PWM) capability. The LTC6992 is part of the TimerBlox® family of versatile silicon timing devices.

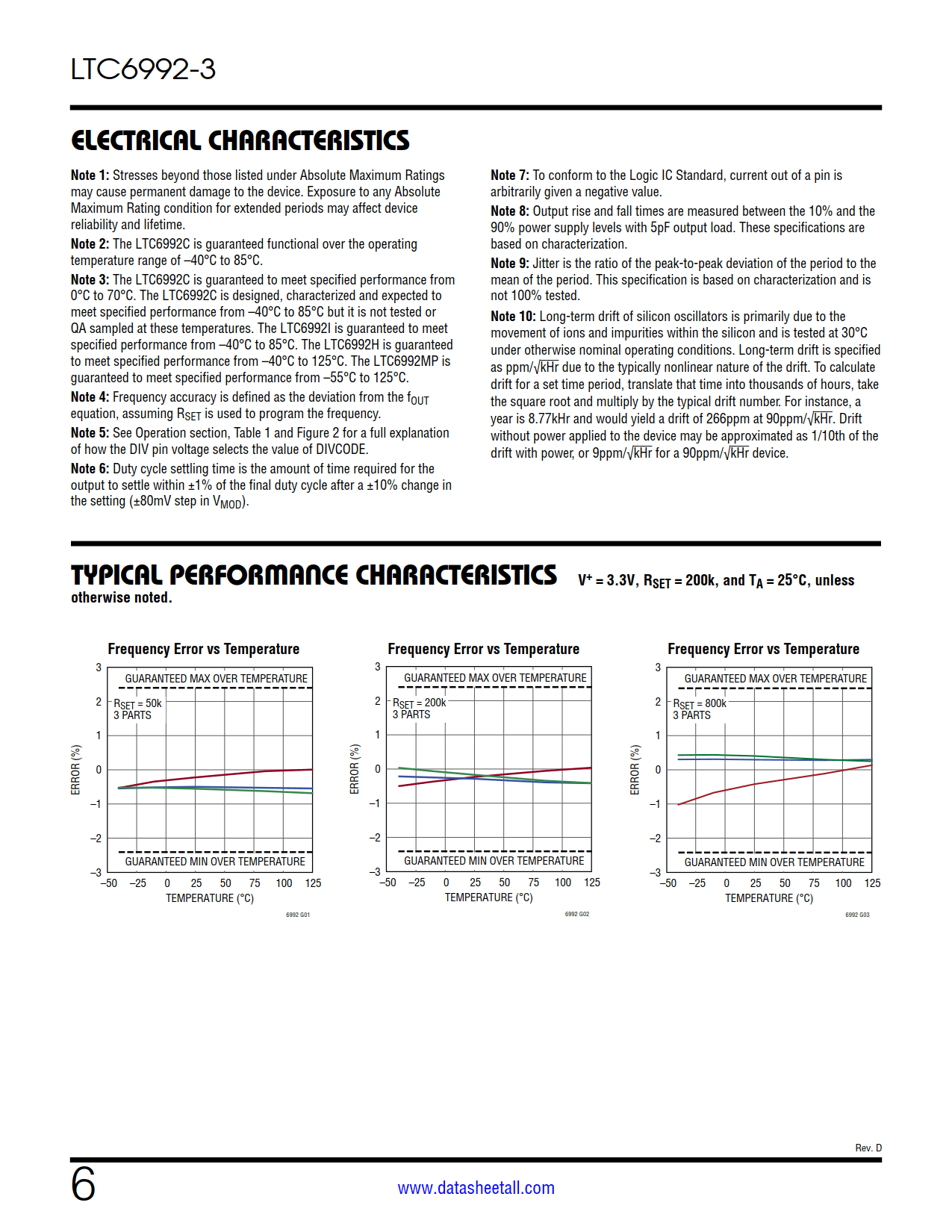

A single resistor, RSET, programs the LTC6992’s internal master oscillator frequency. The output frequency is determined by this master oscillator and an internal frequency divider, NDIV, programmable to eight settings from 1 to 16384.
Applying a voltage between 0V and 1V on the MOD pin sets the duty cycle.
The four versions differ in their minimum/maximum duty cycle. Note that a minimum duty cycle limit of 0% or maximum duty cycle limit of 100% allows oscillations to stop at the extreme duty cycle settings.
