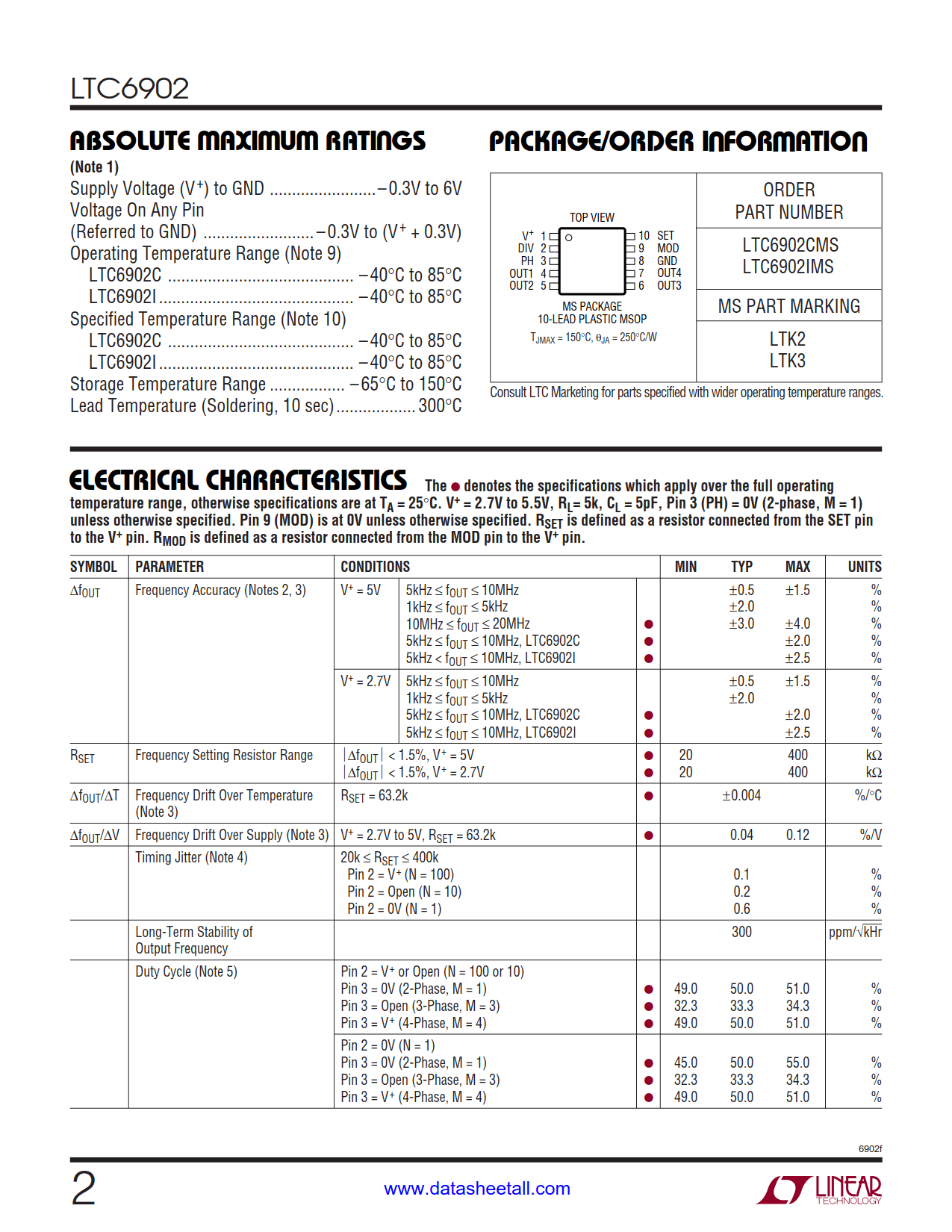

| Part No.： | LTC6902 |
| Page： | 16 Pages |
| Size： | 186 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 2 |
| Update Time： | 2024-04-22 13:57:47 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC6902CMS#PBF | Tube | 50 | LTK2 | 1 | 10 | 0°C ~70°C | 10-Lead MSOP | |
| LTC6902CMS#TRPBF | Reel | 2000 | LTK2 | 1 | 10 | 0°C ~70°C | 10-Lead MSOP | |
| LTC6902CMS#TRMPBF | Reel | 500 | LTK2 | 1 | 10 | 0°C ~70°C | 10-Lead MSOP | |
| LTC6902IMS#PBF | Tube | 50 | LTK3 | 1 | 10 | -40°C ~85°C | 10-Lead MSOP | |
| LTC6902IMS#TRPBF | Reel | 2000 | LTK3 | 1 | 10 | -40°C ~85°C | 10-Lead MSOP | |
| LTC6902IMS#TRMPBF | Reel | 500 | LTK3 | 1 | 10 | -40°C ~85°C | 10-Lead MSOP |

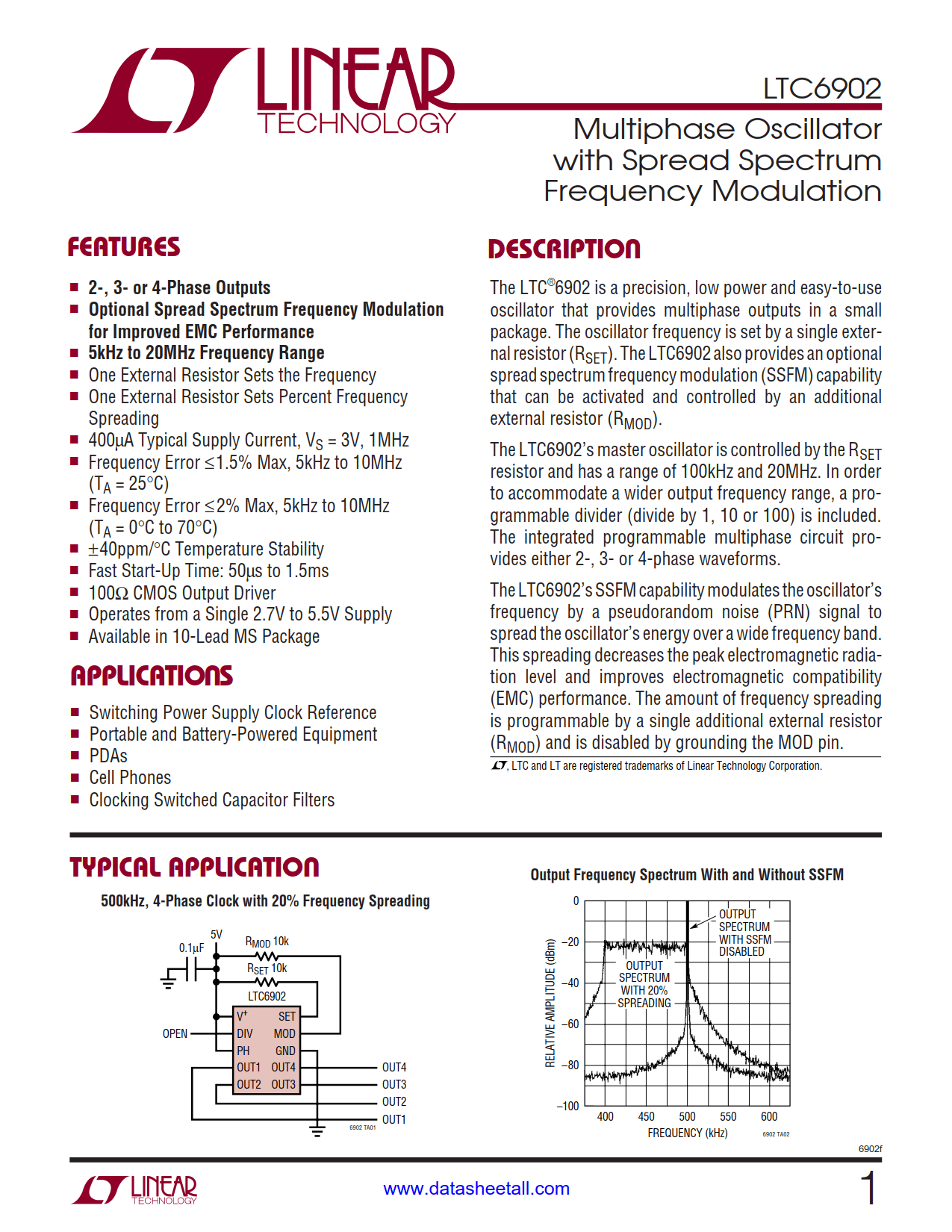

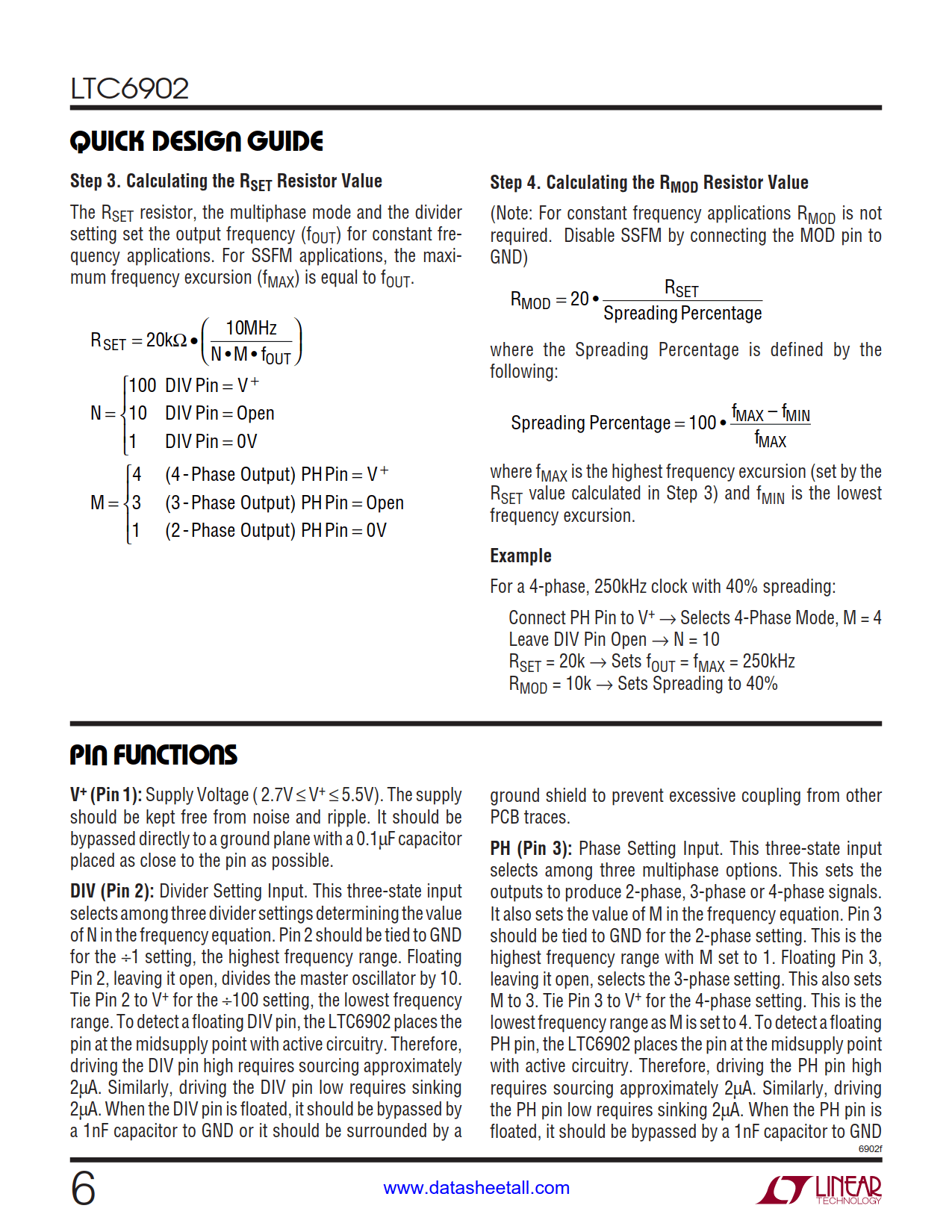

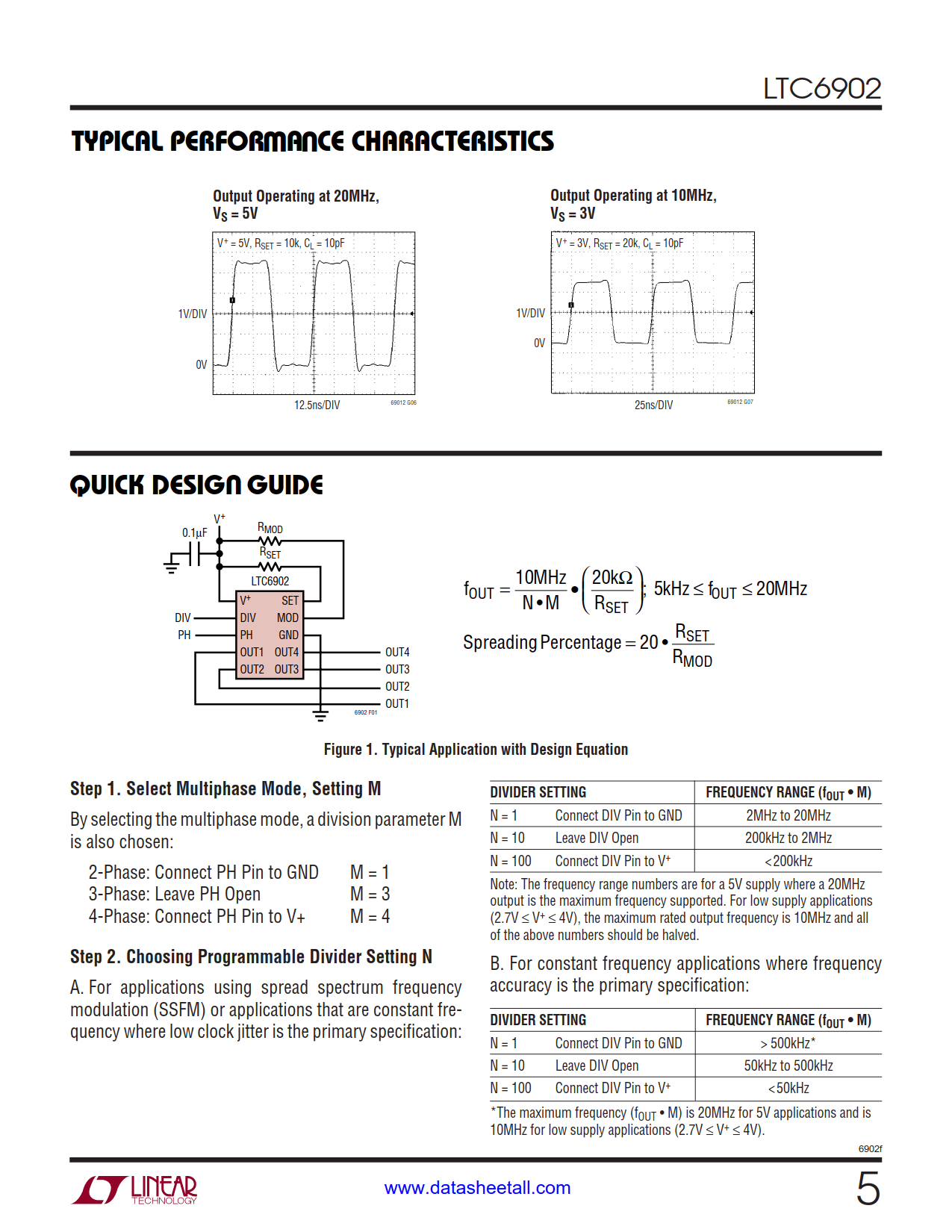

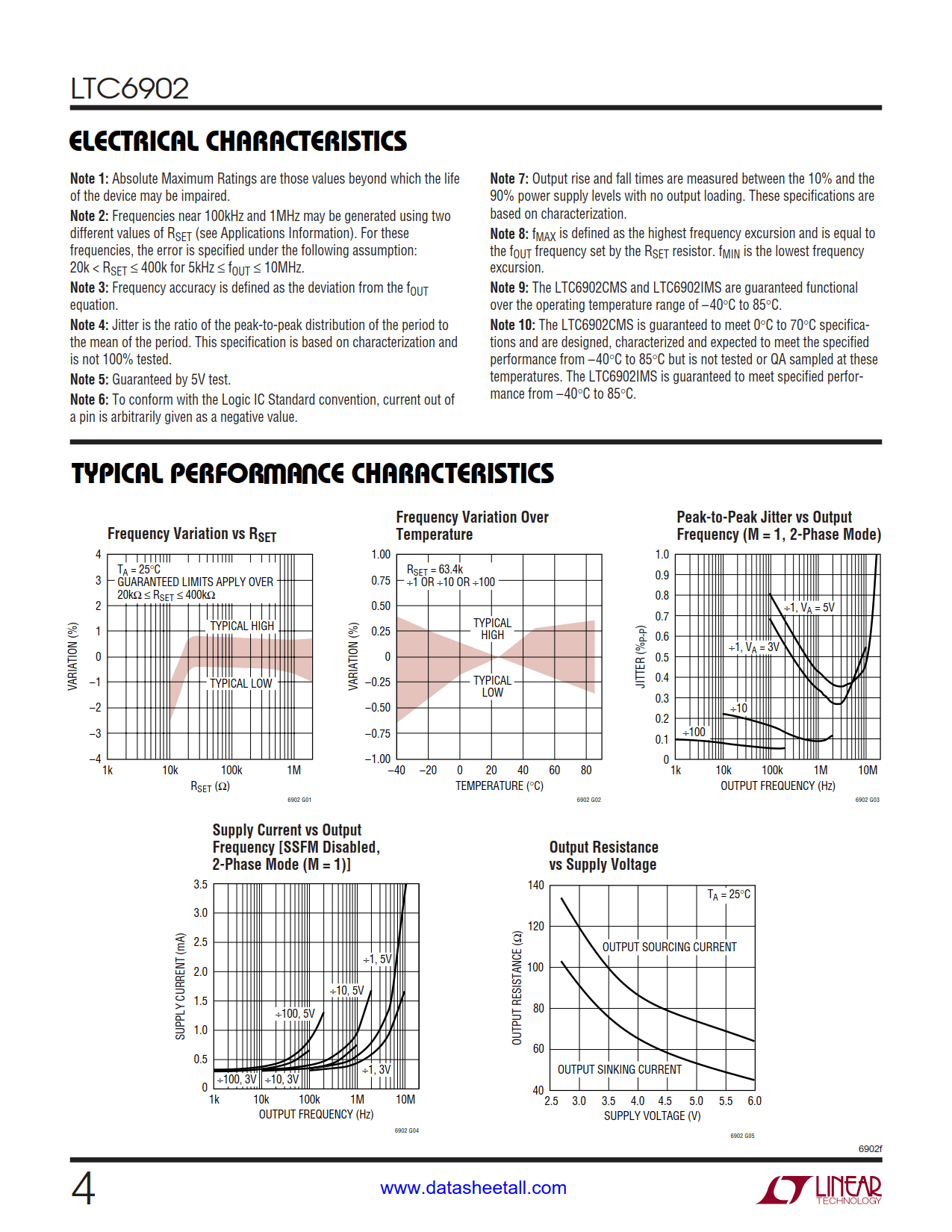

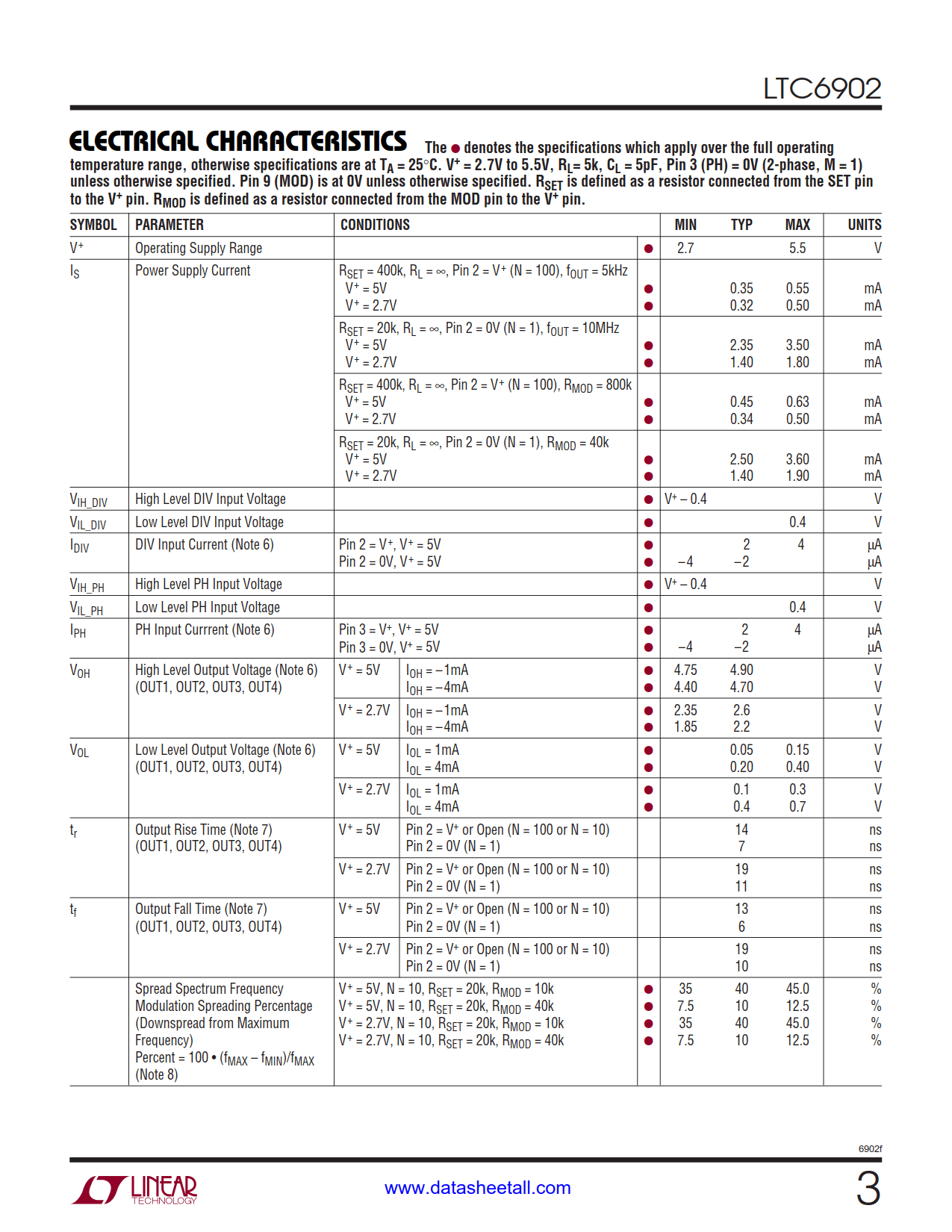

The LTC6902 is a precision, low power and easy-to-use oscillator that provides multiphase outputs in a small package. The oscillator frequency is set by a single external resistor (RSET). The LTC6902 also provides an optional spread spectrum frequency modulation (SSFM) capability that can be activated and controlled by an additional external resistor (RMOD).
The LTC6902's master oscillator is controlled by the RSET resistor and has a range of 100kHz and 20MHz. In order to accommodate a wider output frequency range, a programmable divider (divide by 1, 10 or 100) is included. The integrated programmable multiphase circuit provides either 2-, 3- or 4-phase waveforms.
The LTC6902's SSFM capability modulates the oscillator's frequency by a pseudorandom noise (PRN) signal to spread the oscillator's energy over a wide frequency band. This spreading decreases the peak electromagnetic radiation level and improves electromagnetic compatibility (EMC) performance. The amount of frequency spreading is programmable by a single additional external resistor (RMOD) and is disabled by grounding the MOD pin.
