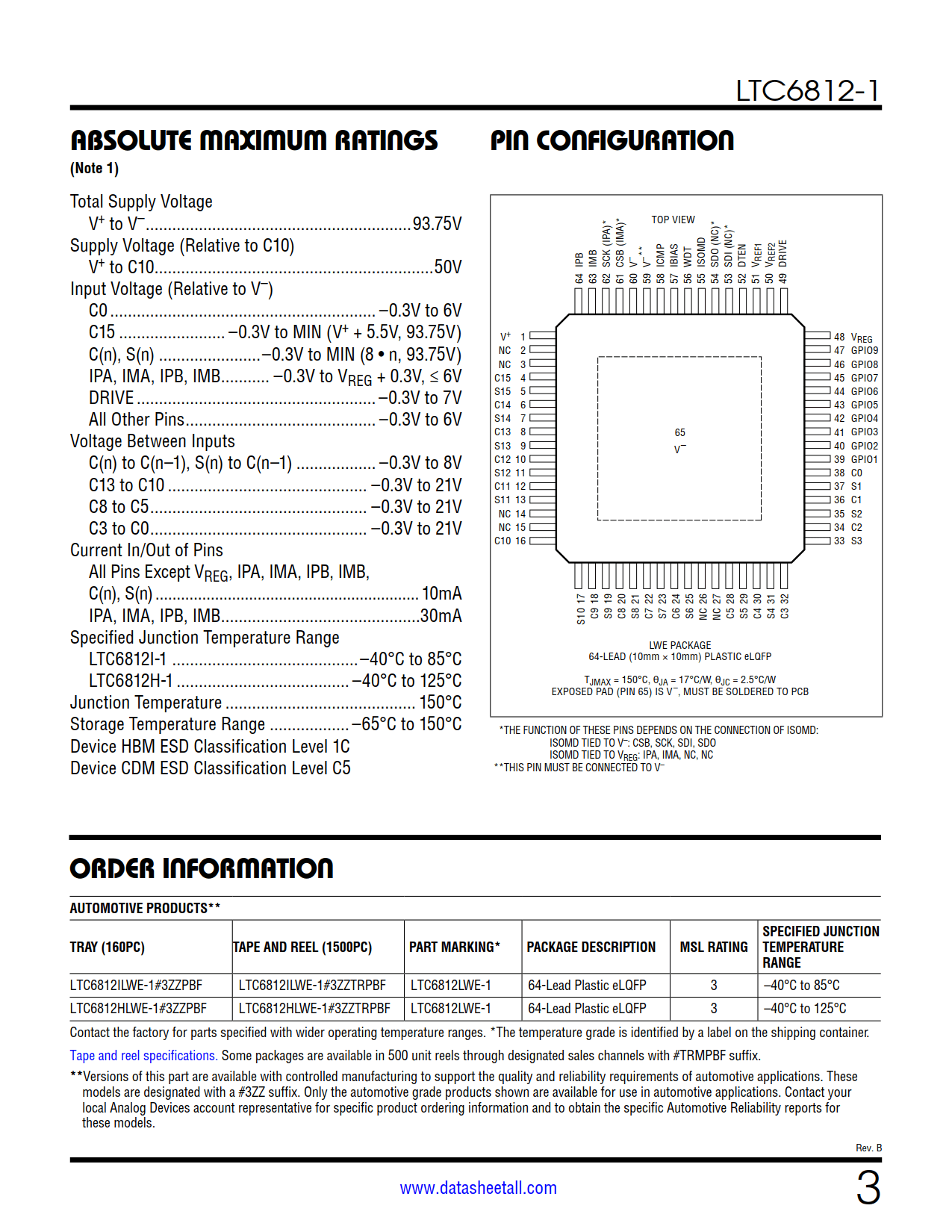

| Part No.： | LTC6812-1 |
| Page： | 90 Pages |
| Size： | 3693 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-09-21 11:07:12 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC6812ILWE-1#3ZZPBF | Tray | 160 | LTC6812LWE-1 | 3 | 64 | -40°C ~ 85°C | 64-Lead Plastic eLQFP | |
| LTC6812ILWE-1#3ZZTRPBF | Reel | 1500 | LTC6812LWE-1 | 3 | 64 | -40°C ~ 85°C | 64-Lead Plastic eLQFP | |
| LTC6812ILWE-1#3ZZTRMPBF | Reel | 500 | LTC6812LWE-1 | 3 | 64 | -40°C ~ 85°C | 64-Lead Plastic eLQFP | |
| LTC6812HLWE-1#3ZZPBF | Tray | 160 | LTC6812LWE-1 | 3 | 64 | -40°C ~ 125°C | 64-Lead Plastic eLQFP | |
| LTC6812HLWE-1#3ZZTRPBF | Reel | 1500 | LTC6812LWE-1 | 3 | 64 | -40°C ~ 125°C | 64-Lead Plastic eLQFP | |
| LTC6812HLWE-1#3ZZTRMPBF | Reel | 500 | LTC6812LWE-1 | 3 | 64 | -40°C ~ 125°C | 64-Lead Plastic eLQFP |

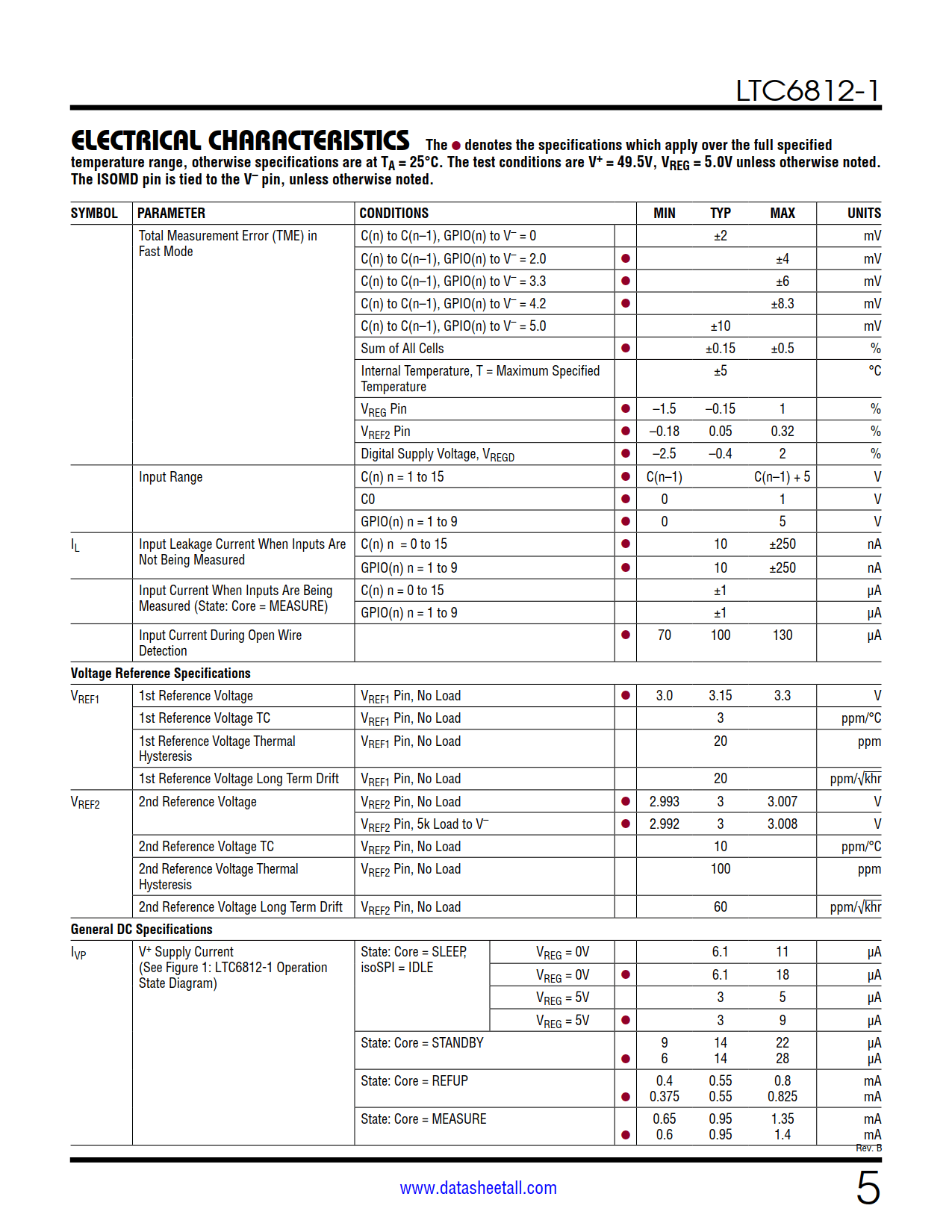

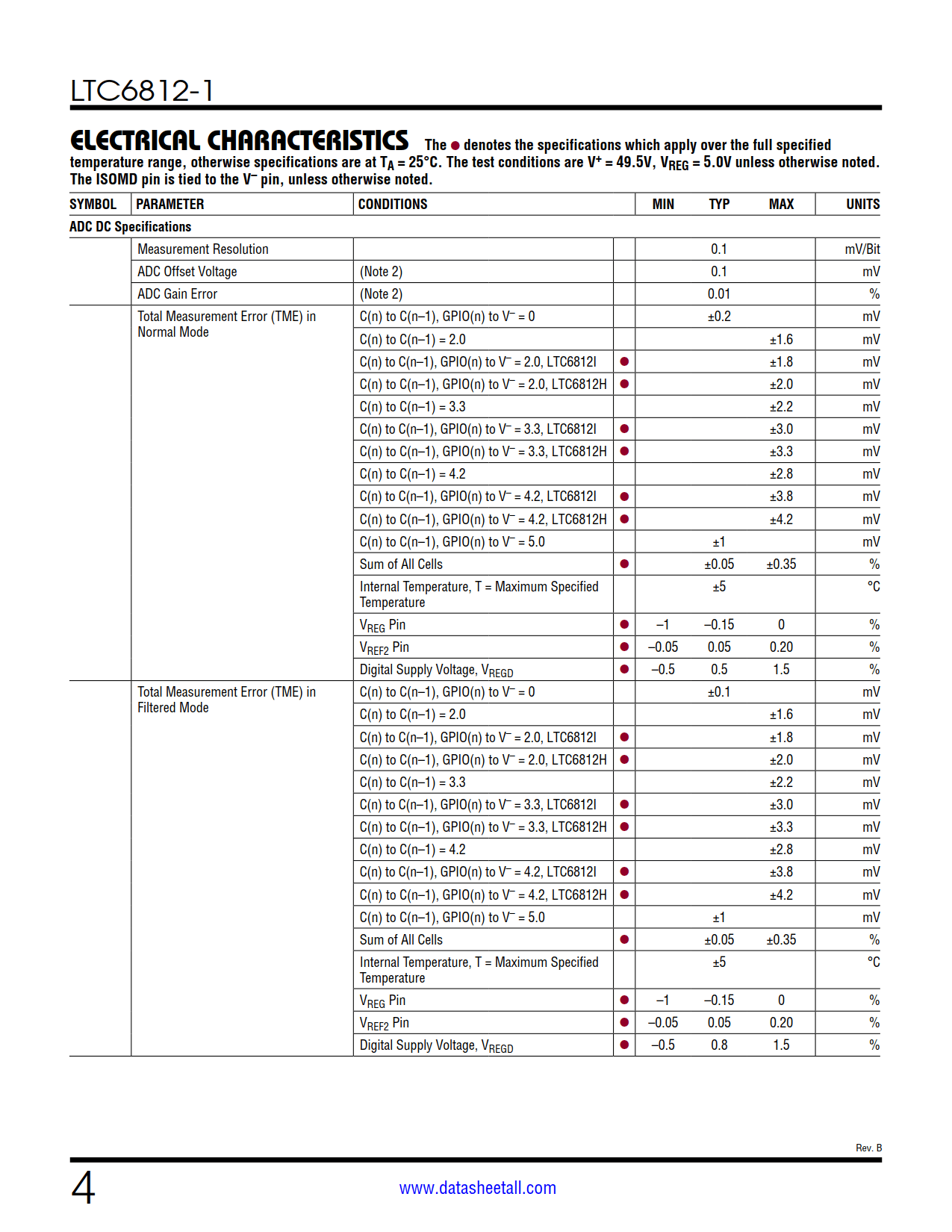

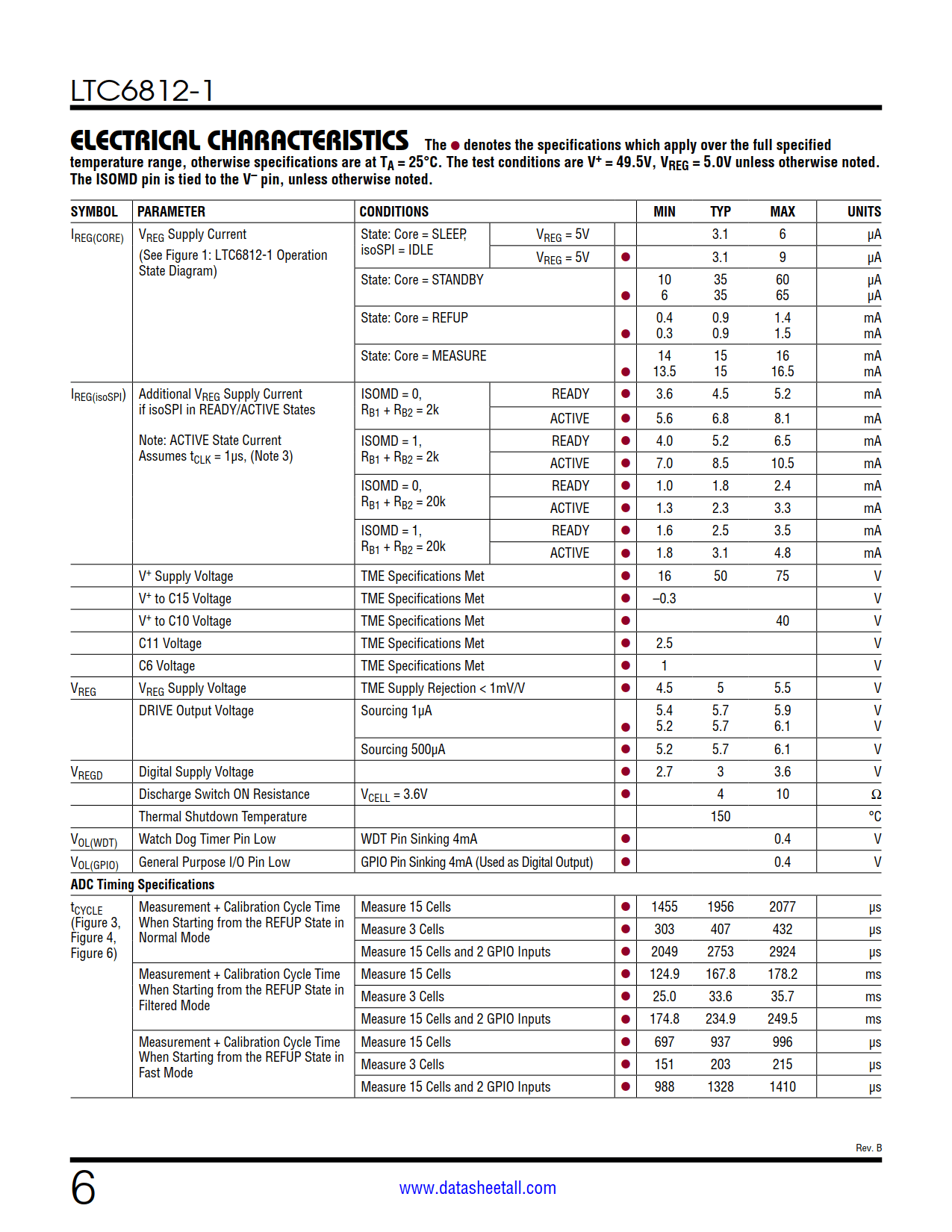

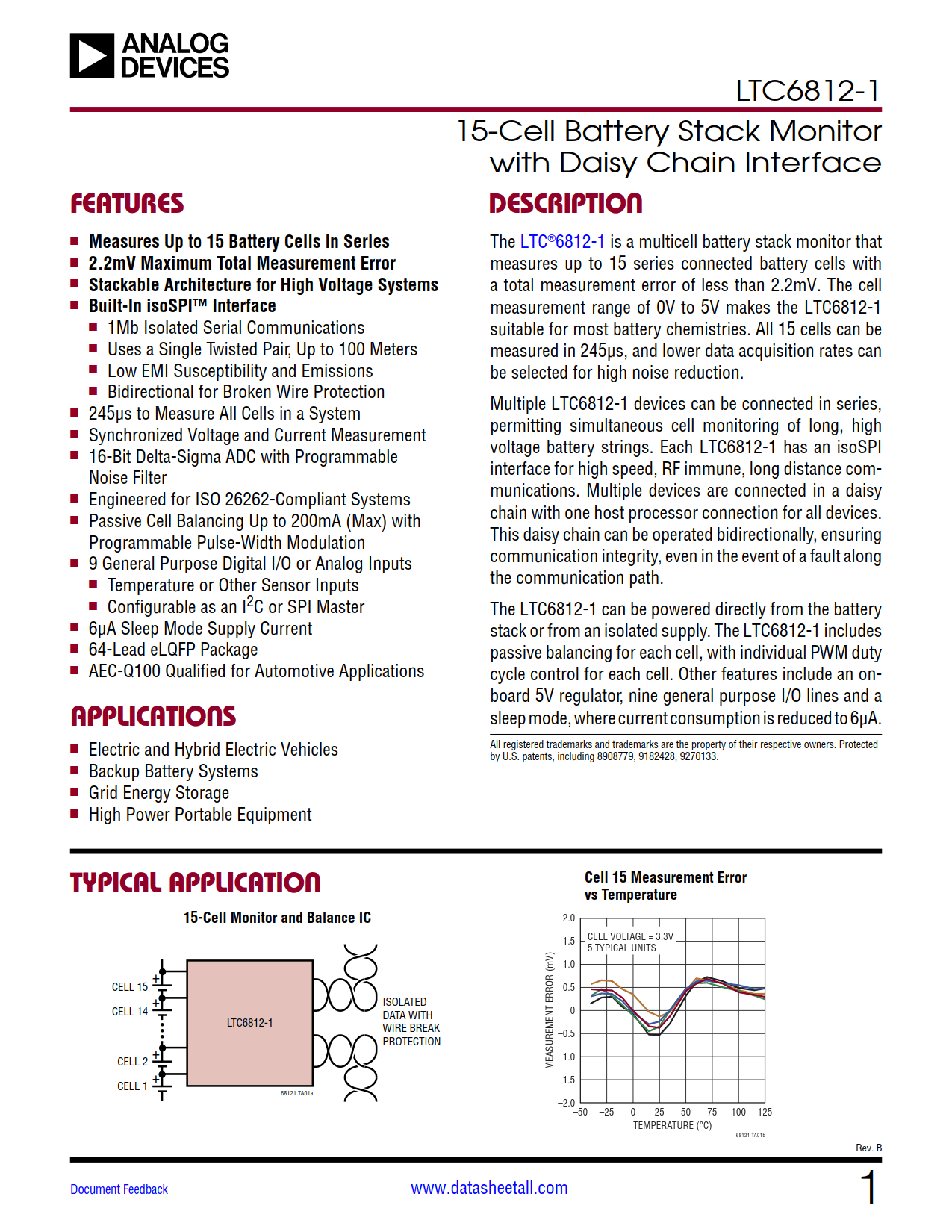

The LTC6812-1 is a multicell battery stack monitor that measures up to 15 series connected battery cells with a total measurement error of less than 2.2mV. The cell measurement range of 0V to 5V makes the LTC6812-1 suitable for most battery chemistries. All 15 cells can be measured in 245μs, and lower data acquisition rates can be selected for high noise reduction.
Multiple LTC6812-1 devices can be connected in series, permitting simultaneous cell monitoring of long, high voltage battery strings. Each LTC6812-1 has an isoSPI interface for high speed, RF immune, long distance communications. Multiple devices are connected in a daisy chain with one host processor connection for all devices. This daisy chain can be operated bidirectionally, ensuring communication integrity, even in the event of a fault along the communication path.
The LTC6812-1 can be powered directly from the battery stack or from an isolated supply. The LTC6812-1 includes passive balancing for each cell, with individual PWM duty cycle control for each cell. Other features include an onboard 5V regulator, nine general purpose I/O lines and a sleep mode, where current consumption is reduced to 6μA.
