| Part No.： | LTC6800 |
| Page： | 14 Pages |
| Size： | 1256 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-11-20 10:33:59 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC6800HDD#PBF | Tube | 121 | LAEP | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6800HDD#TRPBF | Reel | 2500 | LAEP | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6800HDD#TRMPBF | Reel | 500 | LAEP | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6800HMS8#PBF | Tube | 50 | LTADE | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LTC6800HMS8#TRPBF | Reel | 2500 | LTADE | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LTC6800HMS8#TRMPBF | Reel | 500 | LTADE | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP |

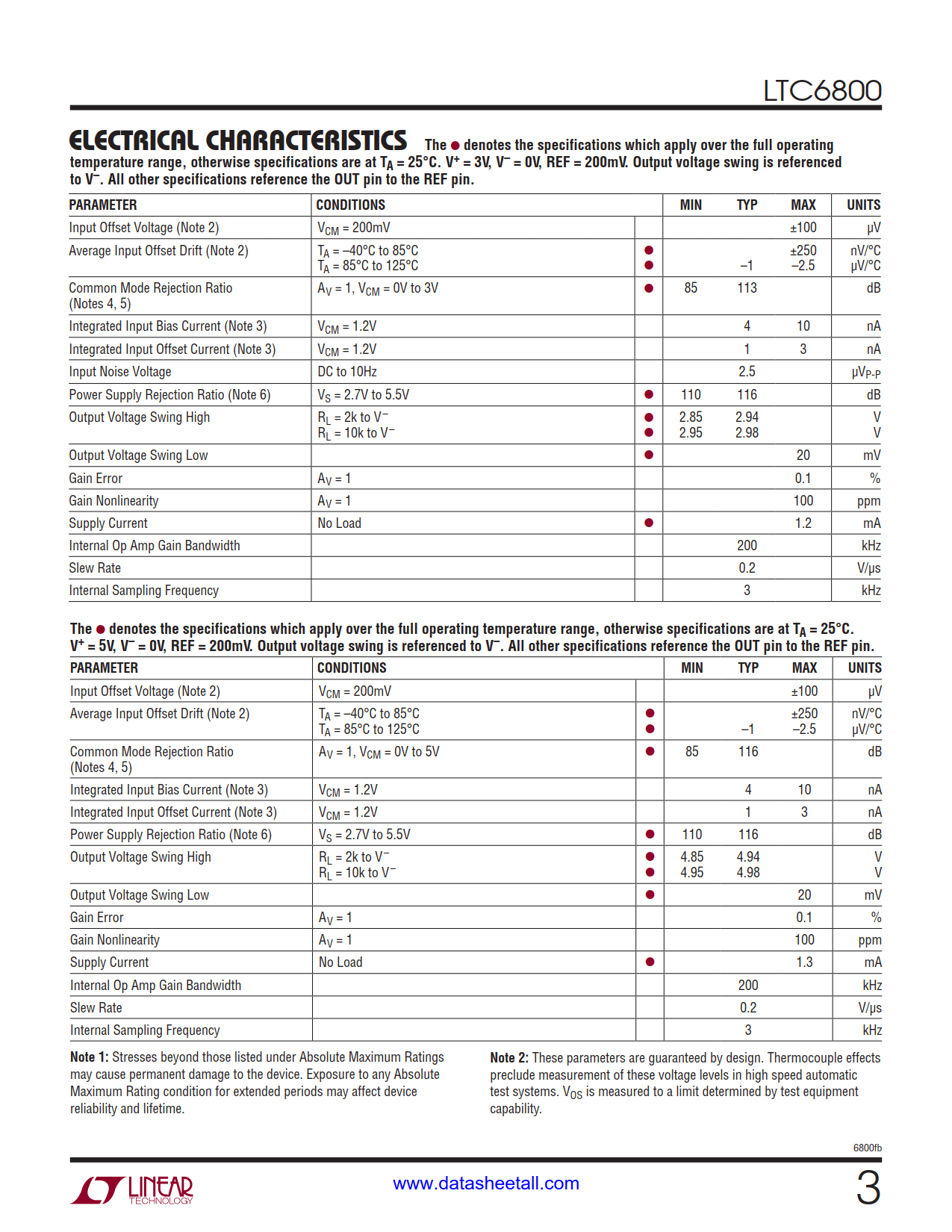

The LTC6800 is a precision instrumentation amplifier. The CMRR is typically 116dB with a single 5V supply and is independent of gain. The input offset voltage is guaranteed below 100μV with a temperature drift of less than 250nV/°C. The LTC6800 is easy to use; the gain is adjustable with two external resistors, like a traditional op amp.
The LTC6800 uses charge balanced sampled data techniques to convert a differential input voltage into a single ended signal that is in turn amplified by a zero-drift operational amplifier.
The differential inputs operate from rail-to-rail and the single ended output swings from rail-to-rail. The LTC6800 is available in an MS8 surface mount package. For space limited applications, the LTC6800 is available in a 3mm × 3mm × 0.8mm dual fine pitch leadless package (DFN).
