LTC6560 Datasheet

LTC6560 Datasheet

Single Channel Transimpedance Amplifier with Output Multiplexing
Part No.: LTC6560
Page: 22 Pages
Size: 2080 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-01 10:49:42
DataSheet: Download

LTC6560 Datasheet Applicable Part

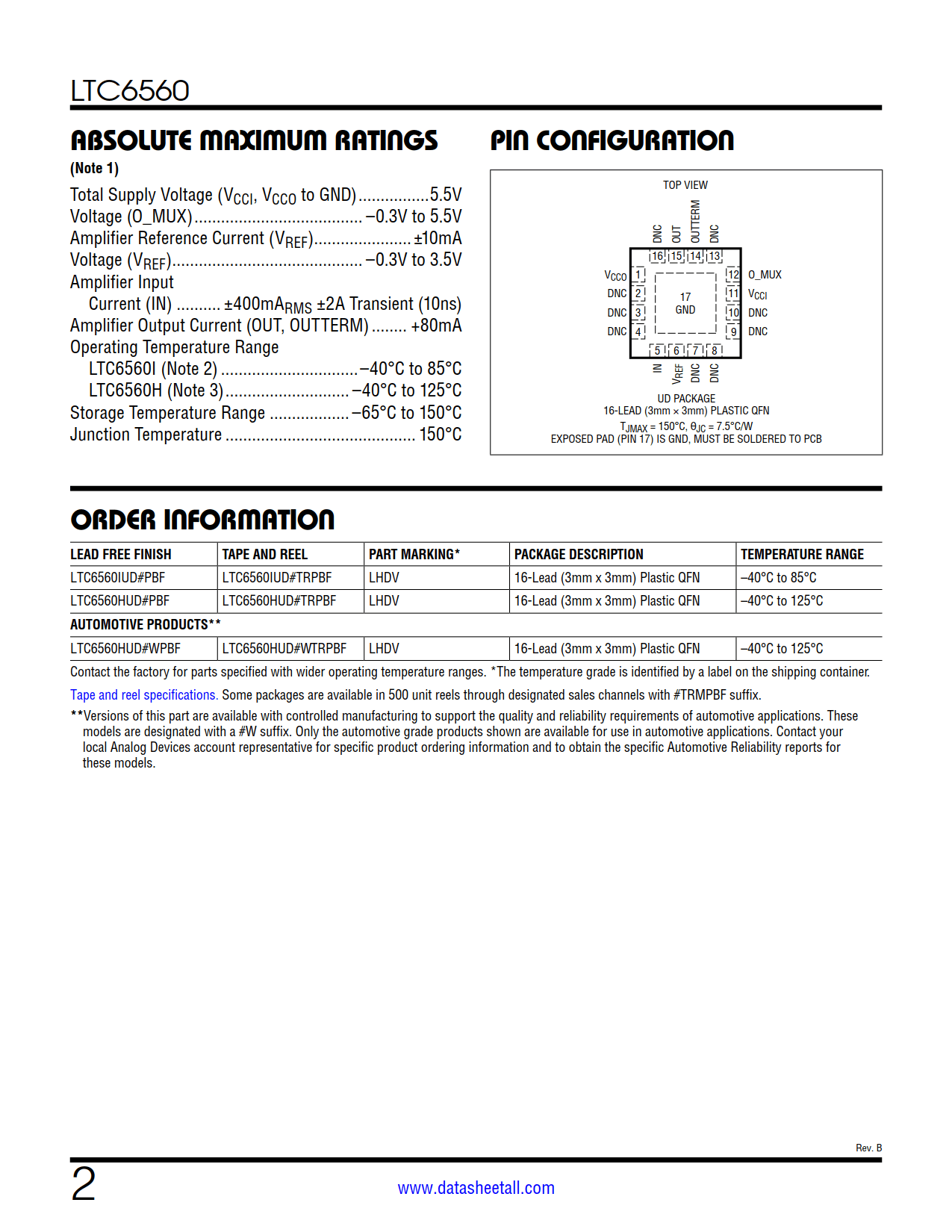

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC6560IUD#PBF Tube 121 LHDV 1 16 -40°C ~ 85°C 16-Lead (3mm x 3mm) Plastic QFN
LTC6560IUD#TRPBF Reel 2500 LHDV 1 16 -40°C ~ 85°C 16-Lead (3mm x 3mm) Plastic QFN
LTC6560IUD#TRMPBF Reel 500 LHDV 1 16 -40°C ~ 85°C 16-Lead (3mm x 3mm) Plastic QFN
LTC6560HUD#PBF Tube 121 LHDV 1 16 -40°C ~ 125°C 16-Lead (3mm x 3mm) Plastic QFN
LTC6560HUD#TRPBF Reel 2500 LHDV 1 16 -40°C ~ 125°C 16-Lead (3mm x 3mm) Plastic QFN
LTC6560HUD#TRMPBF Reel 500 LHDV 1 16 -40°C ~ 125°C 16-Lead (3mm x 3mm) Plastic QFN
LTC6560HUD#WPBF Tube 121 LHDV 1 16 -40°C ~ 125°C 16-Lead (3mm x 3mm) Plastic QFN
LTC6560HUD#WTRPBF Reel 2500 LHDV 1 16 -40°C ~ 125°C 16-Lead (3mm x 3mm) Plastic QFN
LTC6560HUD#WTRMPBF Reel 500 LHDV 1 16 -40°C ~ 125°C 16-Lead (3mm x 3mm) Plastic QFN
LTC6560DICE WafflePack 270     0   CHIPS OR DIE
LTC6560DWF Wafer 15273     0   UNSAWN DIE/WAFER SALES
LTC6560HUD#2NJPBF Reel 2500   1 16 -40°C ~ 125°C 16-Lead QFN (3mm x 3mm x 0.75mm)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC6560 Datasheet(PDF)

LTC6560 Datasheet(Picture)

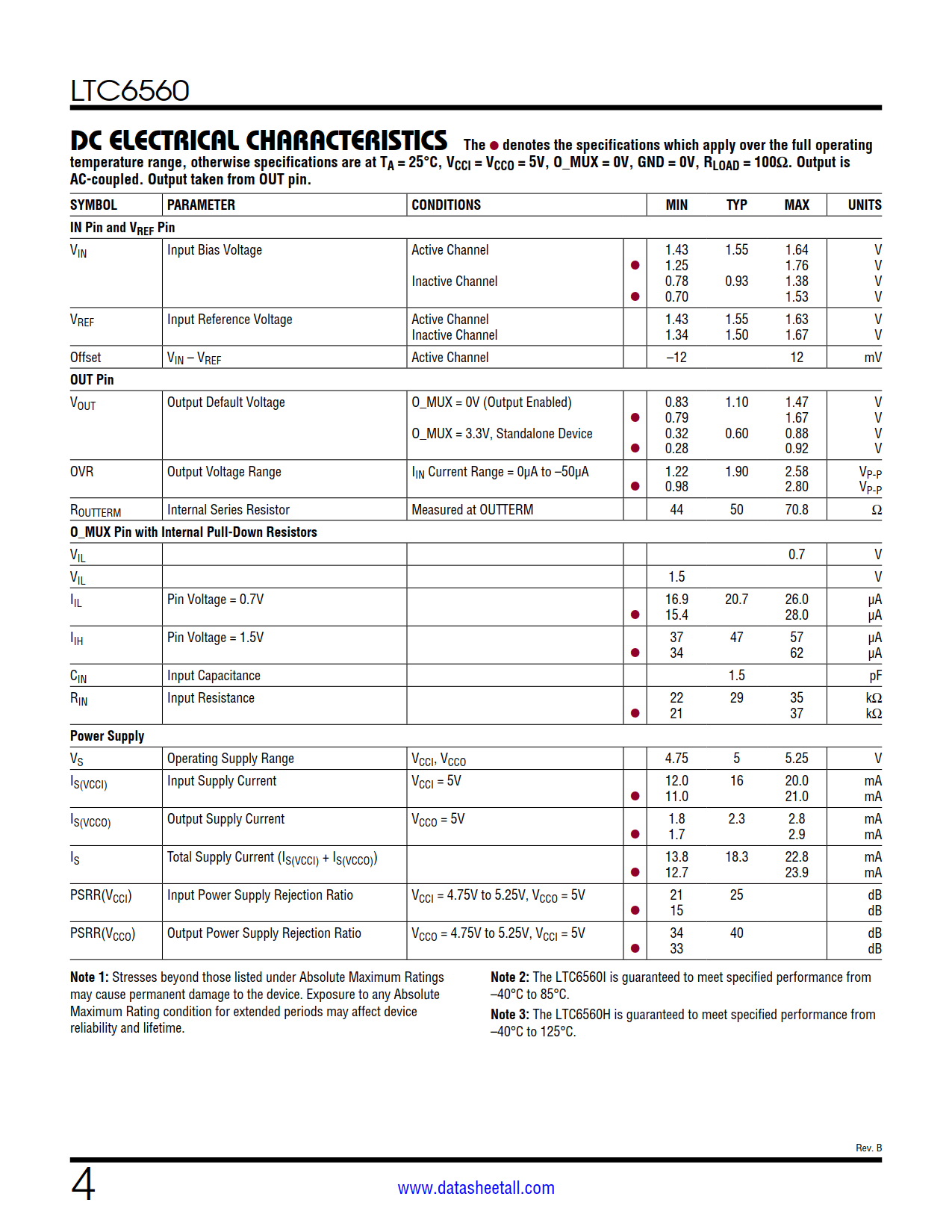

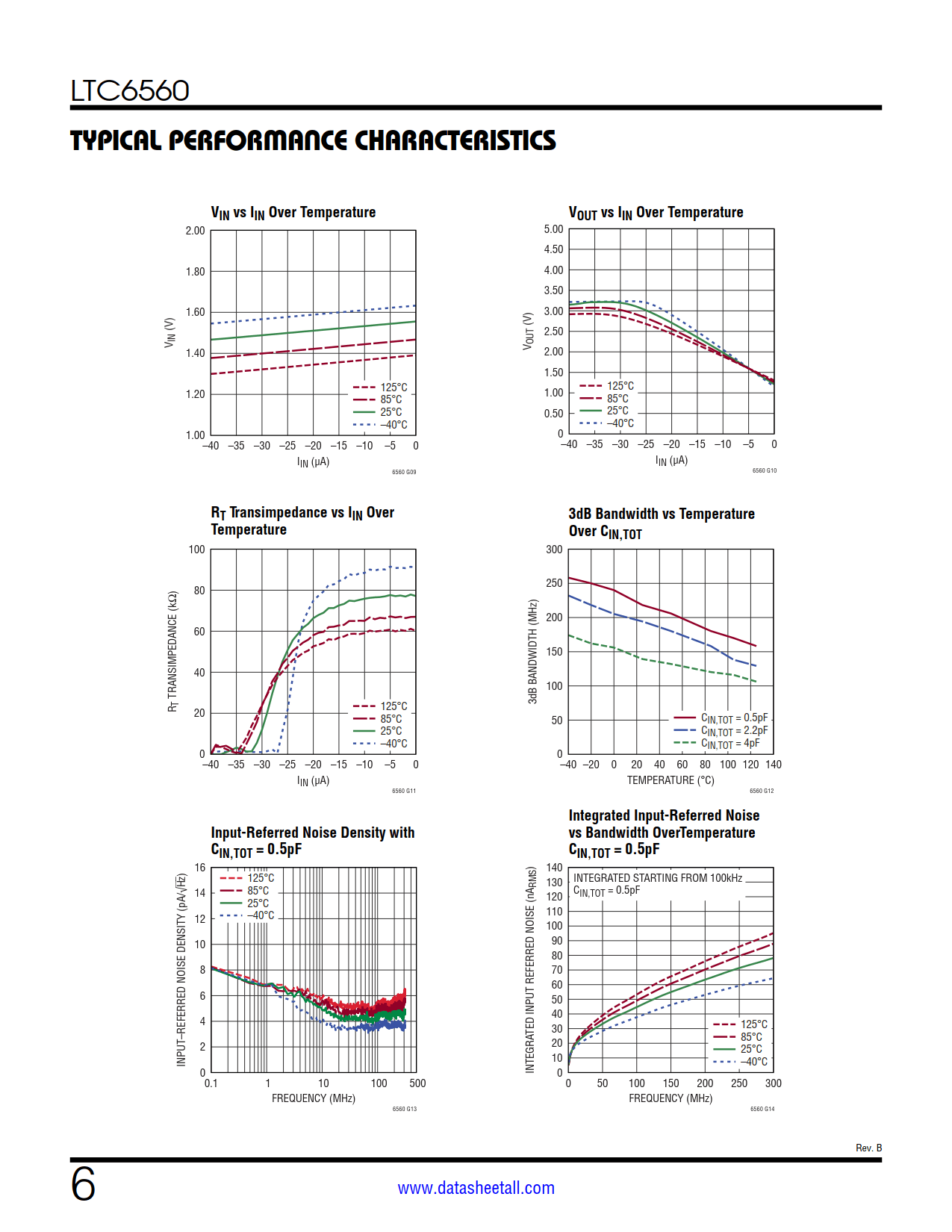

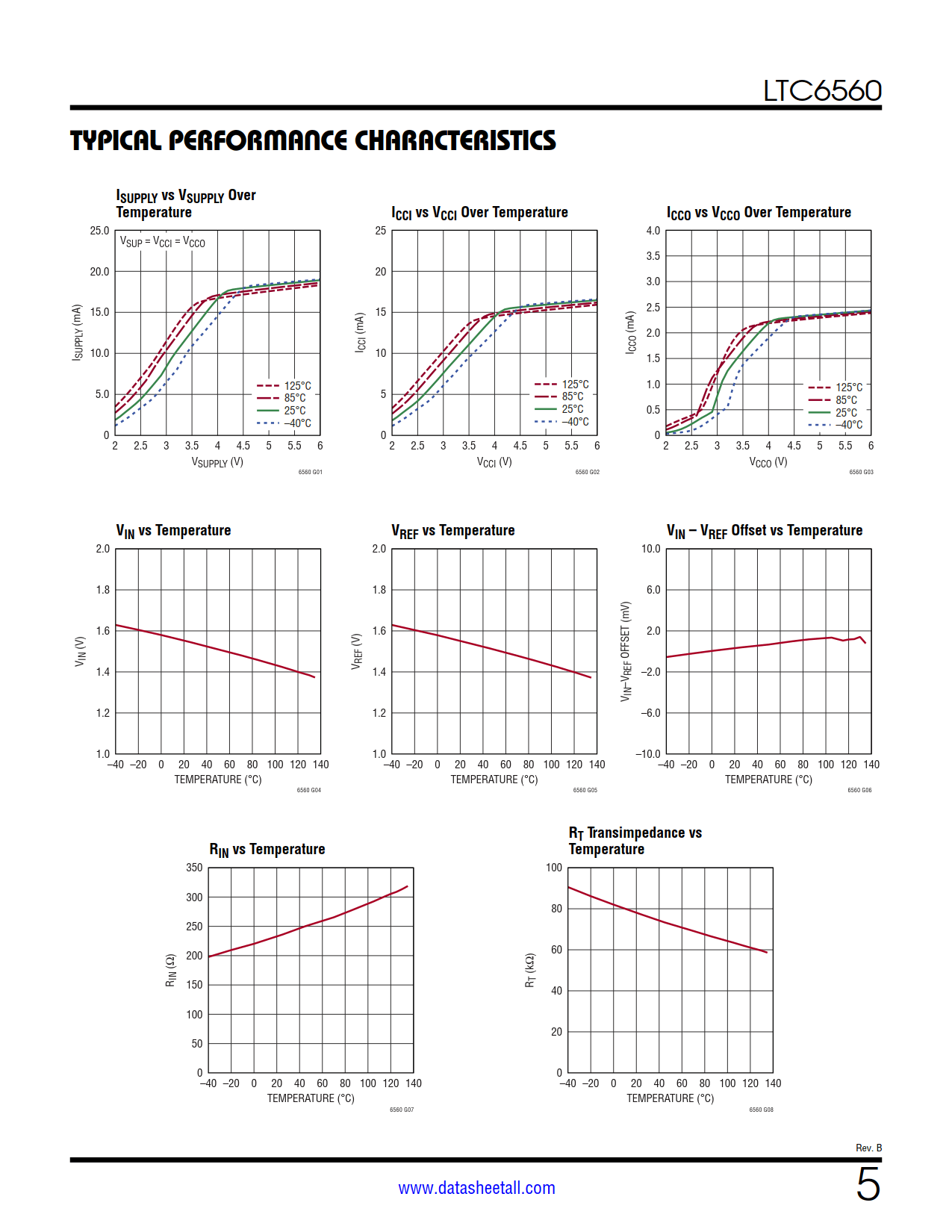

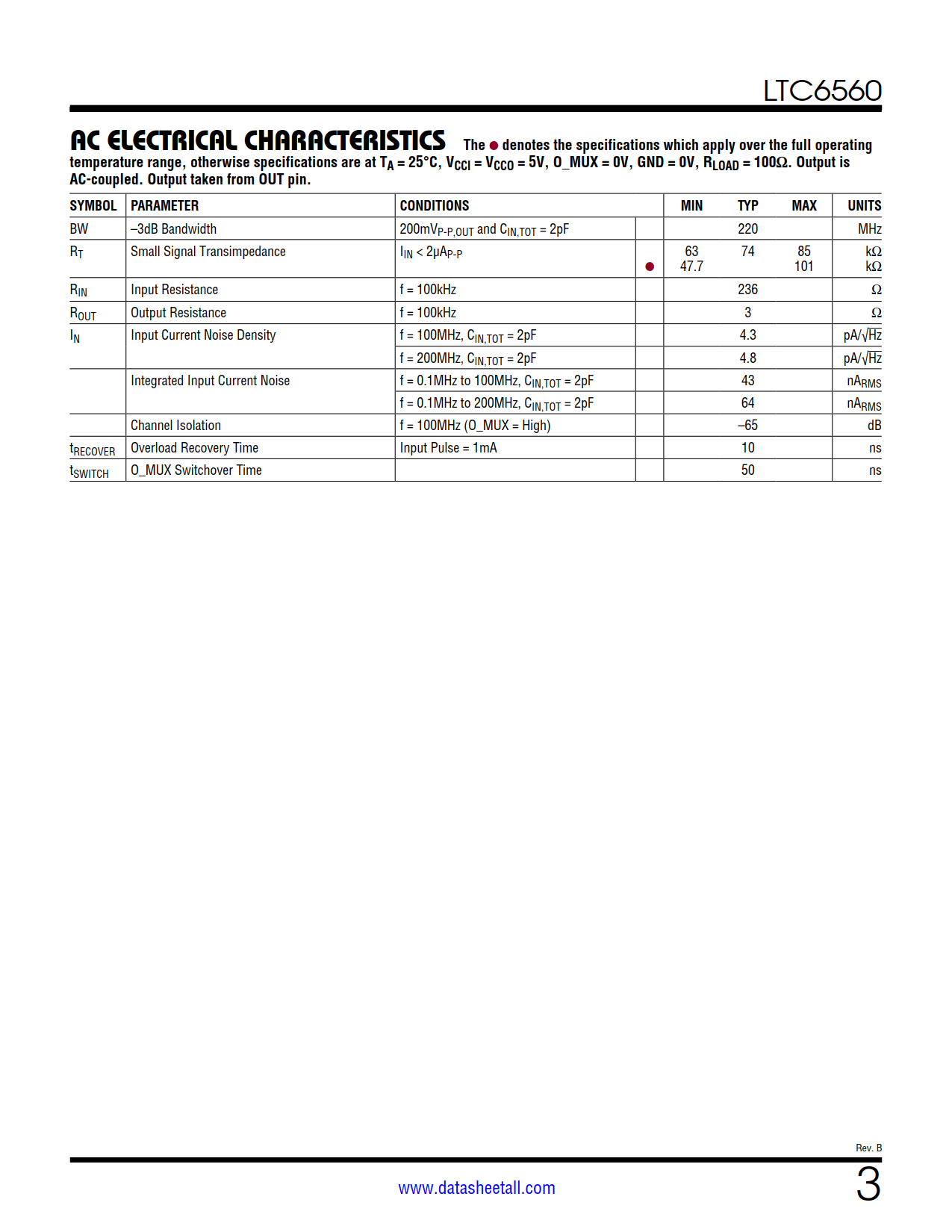

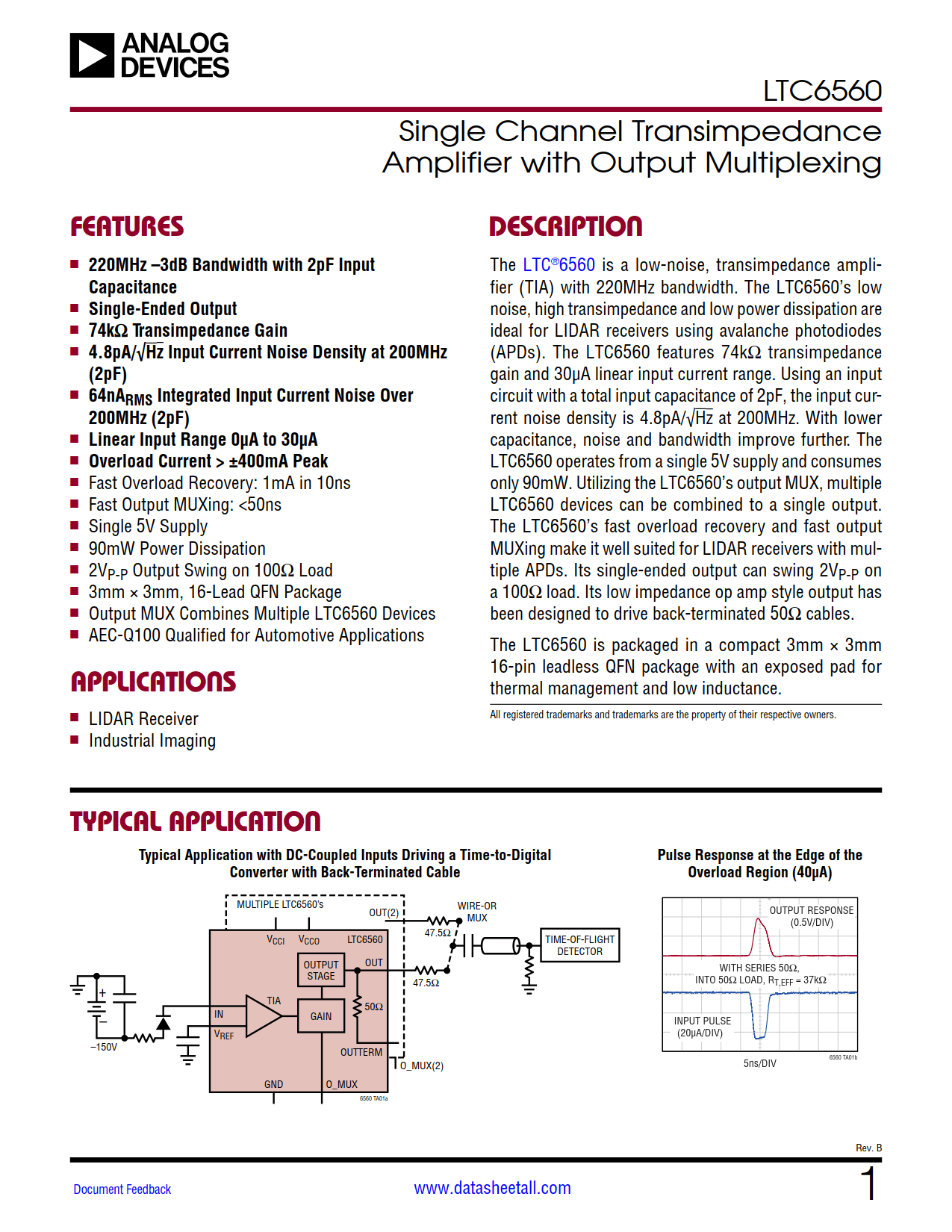

LTC6560 Features

  • 220MHz –3dB Bandwidth with 2pF Input Capacitance
  • Single-Ended Output
  • 74kΩ Transimpedance Gain
  • 4.8pA/√Hz Input Current Noise Density at 200MHz (2pF)
  • 64nARMS Integrated Input Current Noise Over 200MHz (2pF)
  • Linear Input Range 0µA to 30µA
  • Overload Current > ±400mA Peak
  • Fast Overload Recovery: 1mA in 10ns
  • Fast Output MUXing: <50ns
  • Single 5V Supply
  • 90mW Power Dissipation
  • 2VP-P Output Swing on 100Ω Load
  • 3mm × 3mm, 16-Lead QFN Package
  • Output MUX Combines Multiple LTC6560 Devices
  • AEC-Q100 Qualified for Automotive Applications

LTC6560 Applications

  • LIDAR Receiver
  • Industrial Imaging

LTC6560 Description

The LTC6560 is a low-noise, transimpedance amplifier (TIA) with 220MHz bandwidth. The LTC6560’s low noise, high transimpedance and low power dissipation are ideal for LIDAR receivers using avalanche photodiodes (APDs). The LTC6560 features 74kΩ transimpedance gain and 30µA linear input current range. Using an input circuit with a total input capacitance of 2pF, the input current noise density is 4.8pA/√Hz at 200MHz. With lower capacitance, noise and bandwidth improve further. The LTC6560 operates from a single 5V supply and consumes only 90mW. Utilizing the LTC6560’s output MUX, multiple LTC6560 devices can be combined to a single output. The LTC6560’s fast overload recovery and fast output MUXing make it well suited for LIDAR receivers with multiple APDs. Its single-ended output can swing 2VP-P on a 100Ω load. Its low impedance op amp style output has been designed to drive back-terminated 50Ω cables.

The LTC6560 is packaged in a compact 3mm × 3mm 16-pin leadless QFN package with an exposed pad for thermal management and low inductance.
