Part No.: | LTC6269-10 |
Page: | 22 Pages |
Size: | 831 KB |
Manufacturer: | Linear Technology |
Logo: | |
Views: | 2 |
Update Time: | 2023-10-16 10:17:54 |
DataSheet: | Download |
Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
LTC6269IMS8E-10#PBF | Tube | 50 | LTGRM | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
LTC6269IMS8E-10#TRPBF | Reel | 2500 | LTGRM | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
LTC6269IMS8E-10#TRMPBF | Reel | 500 | LTGRM | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
LTC6269HMS8E-10#PBF | Tube | 50 | LTGRM | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
LTC6269HMS8E-10#TRPBF | Reel | 2500 | LTGRM | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
LTC6269HMS8E-10#TRMPBF | Reel | 500 | LTGRM | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
LTC6269IDD-10#PBF | Tube | 121 | LGRK | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic DD | |
LTC6269IDD-10#TRPBF | Reel | 2500 | LGRK | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic DD | |
LTC6269IDD-10#TRMPBF | Reel | 500 | LGRK | 1 | 10 | -40°C ~ 85°C | 10-Lead Plastic DD | |
LTC6269HDD-10#PBF | Tube | 121 | LGRK | 1 | 10 | -40°C ~ 125°C | 10-Lead Plastic DD | |
LTC6269HDD-10#TRPBF | Reel | 2500 | LGRK | 1 | 10 | -40°C ~ 125°C | 10-Lead Plastic DD | |
LTC6269HDD-10#TRMPBF | Reel | 500 | LGRK | 1 | 10 | -40°C ~ 125°C | 10-Lead Plastic DD | |
LTC6269-10DICE | WafflePack | 100 | 0 | CHIPS OR DIE |

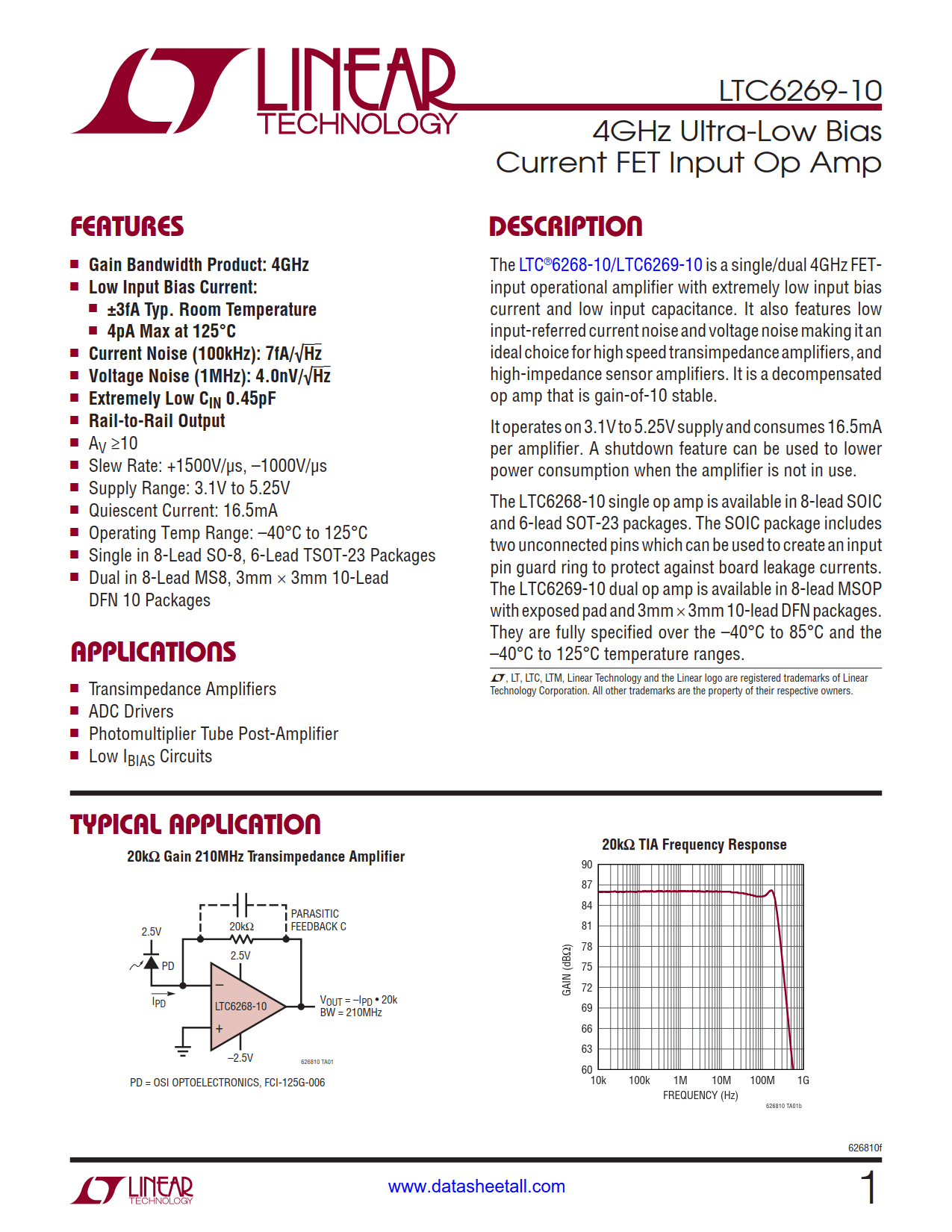

The LTC6269-10 is a dual 4GHz FET-input operational amplifier with extremely low input bias current and low input capacitance. It also features low input-referred current noise and voltage noise making it an ideal choice for high speed transimpedance amplifiers, and high-impedance sensor amplifiers. It is a decompensated op amp that is gain-of-10 stable.
It operates on 3.1V to 5.25V supply and consumes 16.5mA per amplifier. A shutdown feature can be used to lower power consumption when the amplifier is not in use.
The LTC6269-10 dual op amp is available in 8-lead MSOP with exposed pad and 3mm × 3mm 10-lead DFN packages. The LTC6269-10 is fully specified over the –40°C to 85°C and the –40°C to 125°C temperature ranges.
