Part No.: | LTC6268-10 |
Page: | 22 Pages |
Size: | 831 KB |
Manufacturer: | Linear Technology |
Logo: | |
Views: | 3 |
Update Time: | 2023-10-16 10:01:41 |
DataSheet: | Download |
Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
LTC6268IS6-10#PBF | Tube | LTGQT | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | ||
LTC6268IS6-10#TRPBF | Reel | 2500 | LTGQT | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
LTC6268IS6-10#TRMPBF | Reel | 500 | LTGQT | 1 | 6 | -40°C ~ 85°C | 6-Lead Plastic TSOT-23 | |
LTC6268HS6-10#PBF | Tube | LTGQT | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | ||
LTC6268HS6-10#TRPBF | Reel | 2500 | LTGQT | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
LTC6268HS6-10#TRMPBF | Reel | 500 | LTGQT | 1 | 6 | -40°C ~ 125°C | 6-Lead Plastic TSOT-23 | |
LTC6268IS8-10#PBF | Tube | 100 | 626810 | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SOIC | |
LTC6268IS8-10#TRPBF | Reel | 2500 | 626810 | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SOIC | |
LTC6268IS8-10#TRMPBF | Reel | 500 | 626810 | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SOIC | |
LTC6268HS8-10#PBF | Tube | 100 | 626810 | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic SOIC | |
LTC6268HS8-10#TRPBF | Reel | 2500 | 626810 | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic SOIC | |
LTC6268HS8-10#TRMPBF | Reel | 500 | 626810 | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic SOIC | |
LTC6268-10DICE | WafflePack | 400 | 0 | CHIPS OR DIE |

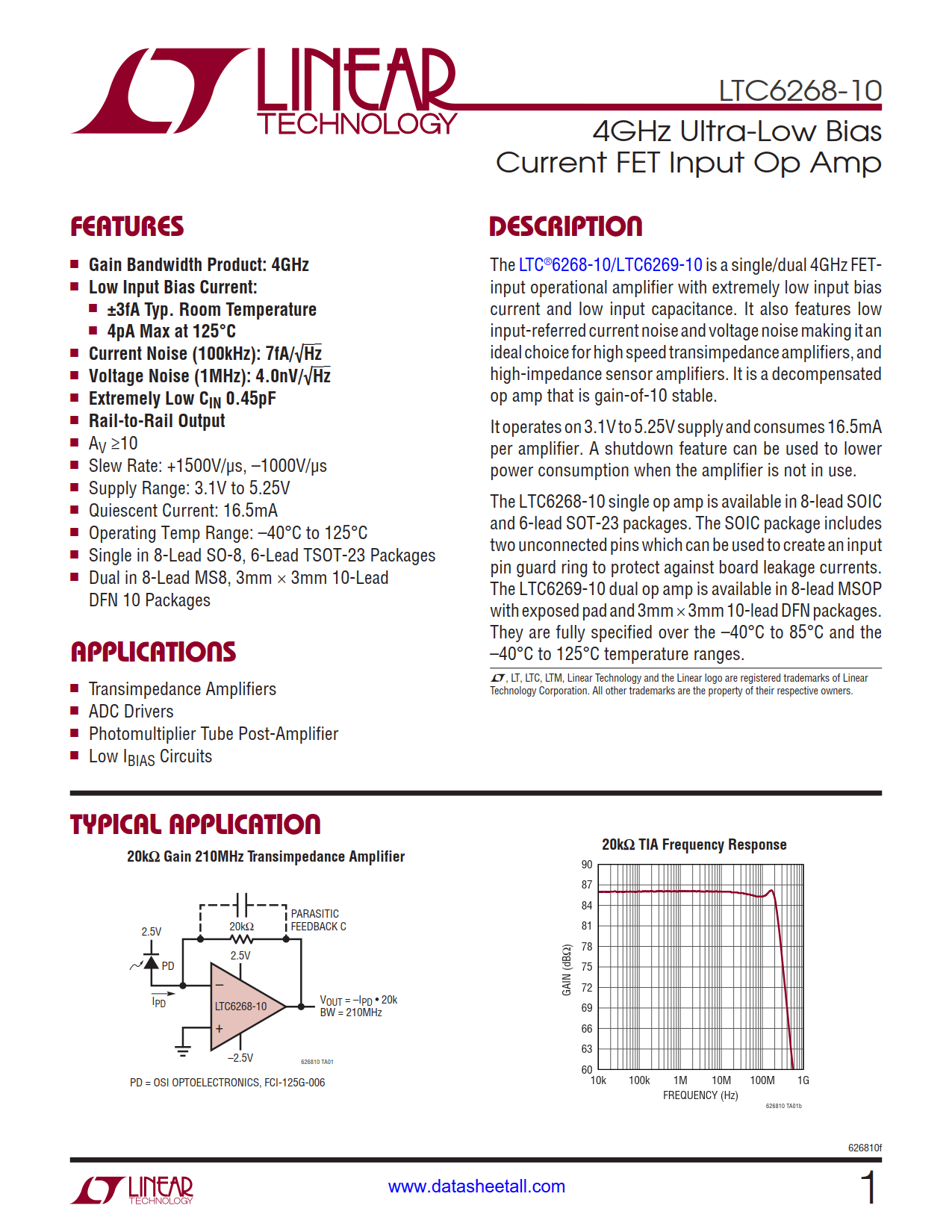

The LTC6268-10 is a single 4GHz FET-input operational amplifier with extremely low input bias current and low input capacitance. It also features low input-referred current noise and voltage noise making it an ideal choice for high speed transimpedance amplifiers, and high-impedance sensor amplifiers. It is a decompensated op amp that is gain-of-10 stable.
It operates on 3.1V to 5.25V supply and consumes 16.5mA per amplifier. A shutdown feature can be used to lower power consumption when the amplifier is not in use.
The LTC6268-10 single op amp is available in 8-lead SOIC and 6-lead SOT-23 packages. The SOIC package includes two unconnected pins which can be used to create an input pin guard ring to protect against board leakage currents. The LTC6268-10 is fully specified over the –40°C to 85°C and the –40°C to 125°C temperature ranges.
