LTC6252 Datasheet

LTC6252 Datasheet

Single, 720MHz, 3.5mA Power Efficient Rail-to-Rail I/O Op Amps
Part No.: LTC6252
Page: 26 Pages
Size: 859 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-16 14:58:38
DataSheet: Download

LTC6252 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC6252CS6#PBF Tube   LTFRW 1 6 0°C ~70°C 6-Lead Plastic TSOT-23
LTC6252CS6#TRPBF Reel 2500 LTFRW 1 6 0°C ~70°C 6-Lead Plastic TSOT-23
LTC6252CS6#TRMPBF Reel 500 LTFRW 1 6 0°C ~70°C 6-Lead Plastic TSOT-23
LTC6252IS6#PBF Tube   LTFRW 1 6 -40°C ~85°C 6-Lead Plastic TSOT-23
LTC6252IS6#TRPBF Reel 2500 LTFRW 1 6 -40°C ~85°C 6-Lead Plastic TSOT-23
LTC6252IS6#TRMPBF Reel 500 LTFRW 1 6 -40°C ~85°C 6-Lead Plastic TSOT-23
LTC6252HS6#PBF Tube   LTFRW 1 6 -40°C ~125°C 6-Lead Plastic TSOT-23
LTC6252HS6#TRPBF Reel 2500 LTFRW 1 6 -40°C ~125°C 6-Lead Plastic TSOT-23
LTC6252HS6#TRMPBF Reel 500 LTFRW 1 6 -40°C ~125°C 6-Lead Plastic TSOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC6252 Datasheet(PDF)

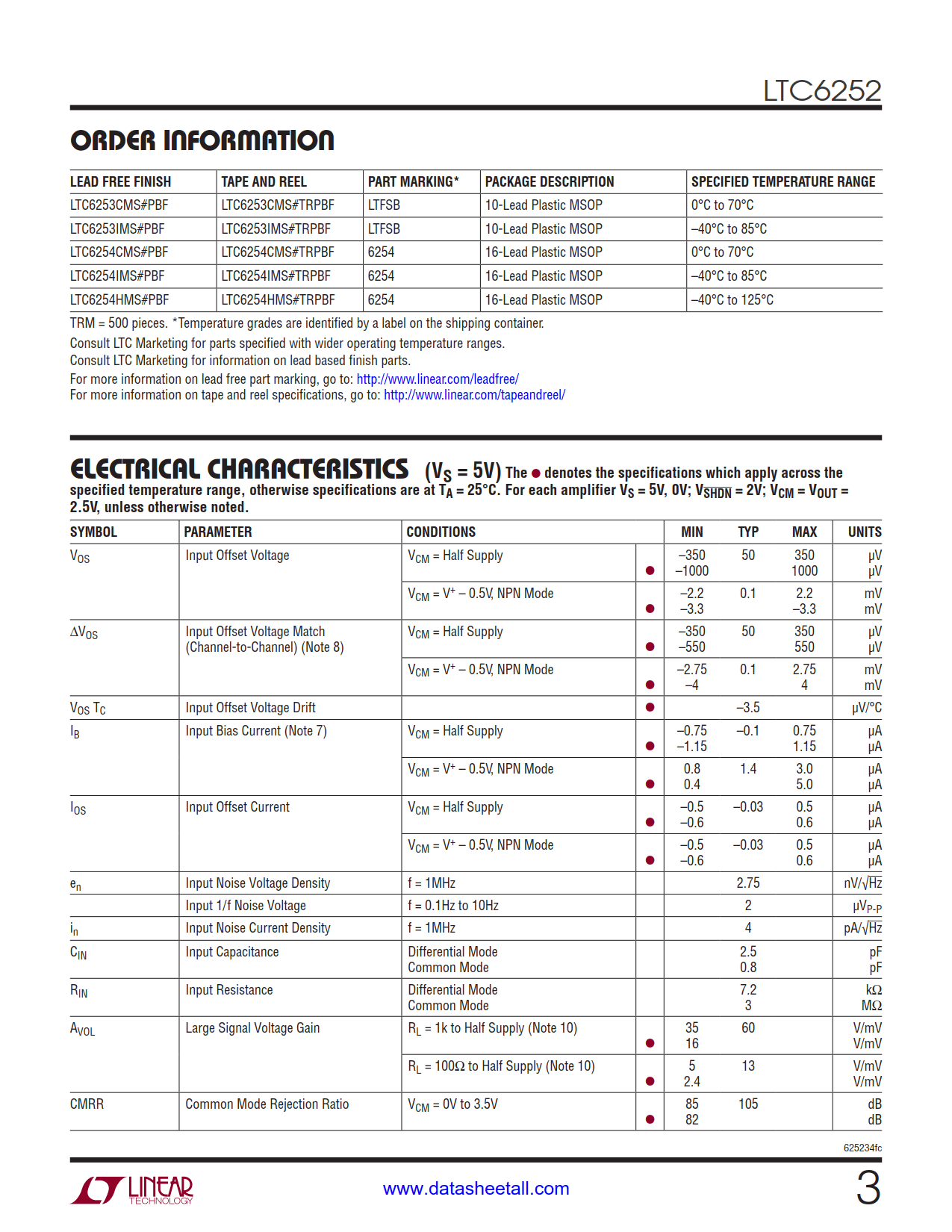

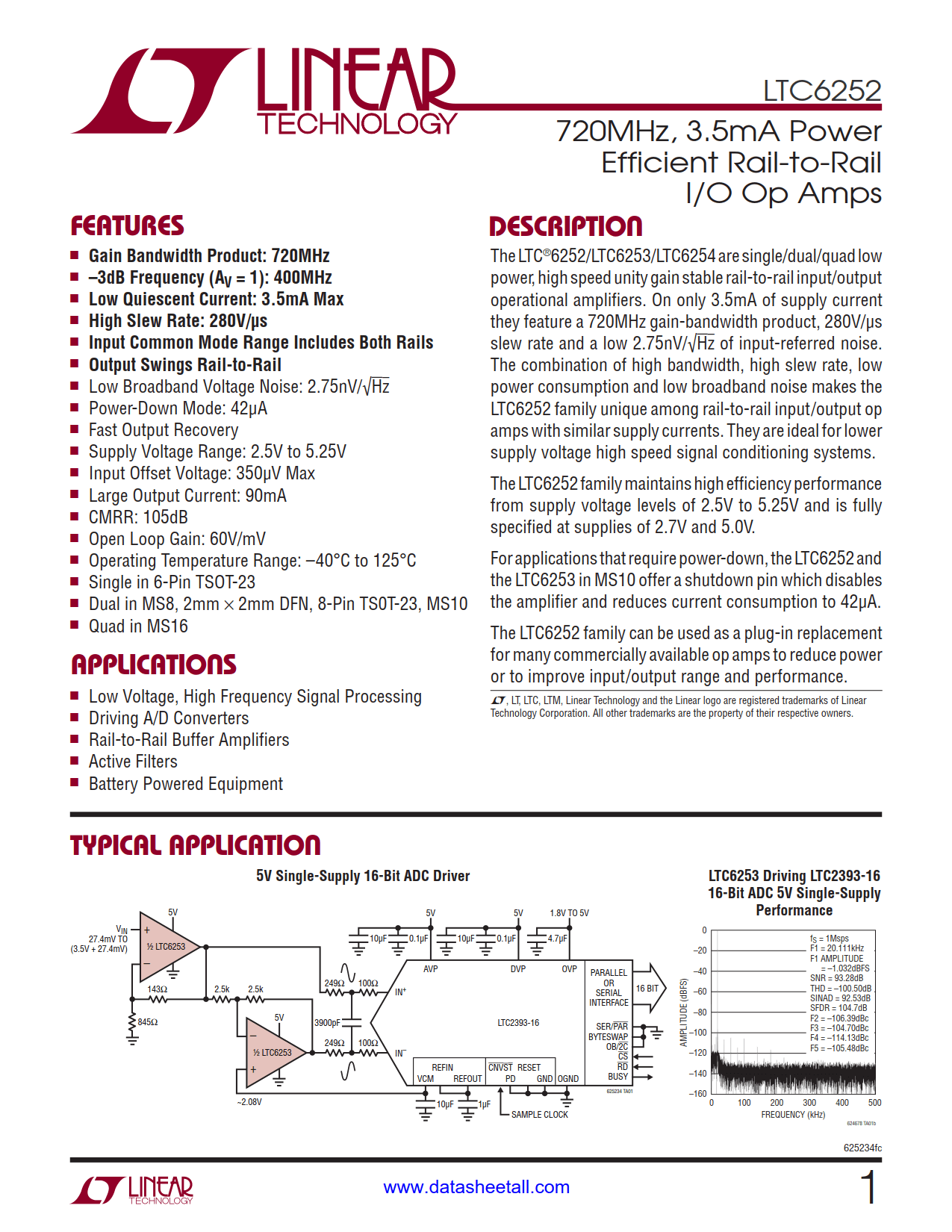

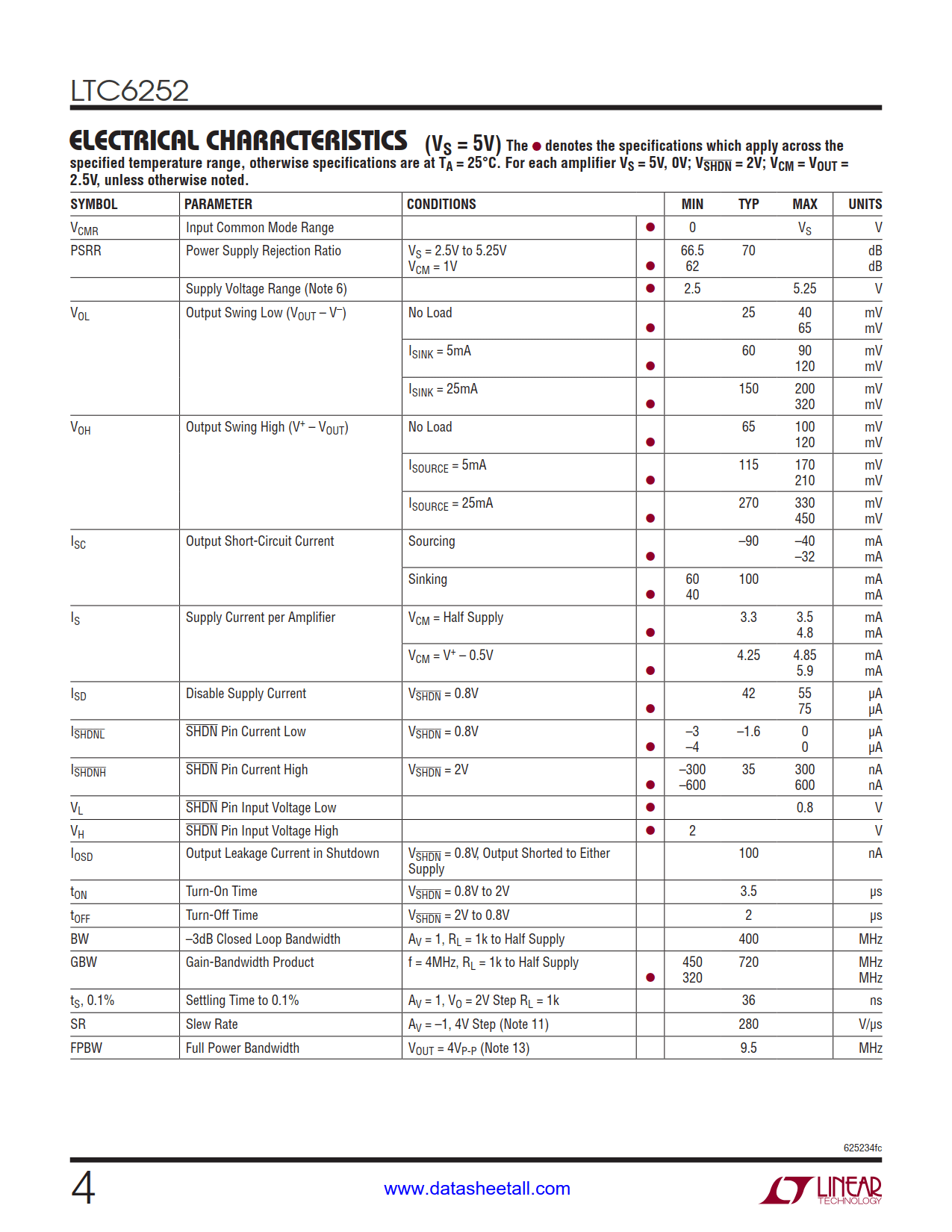

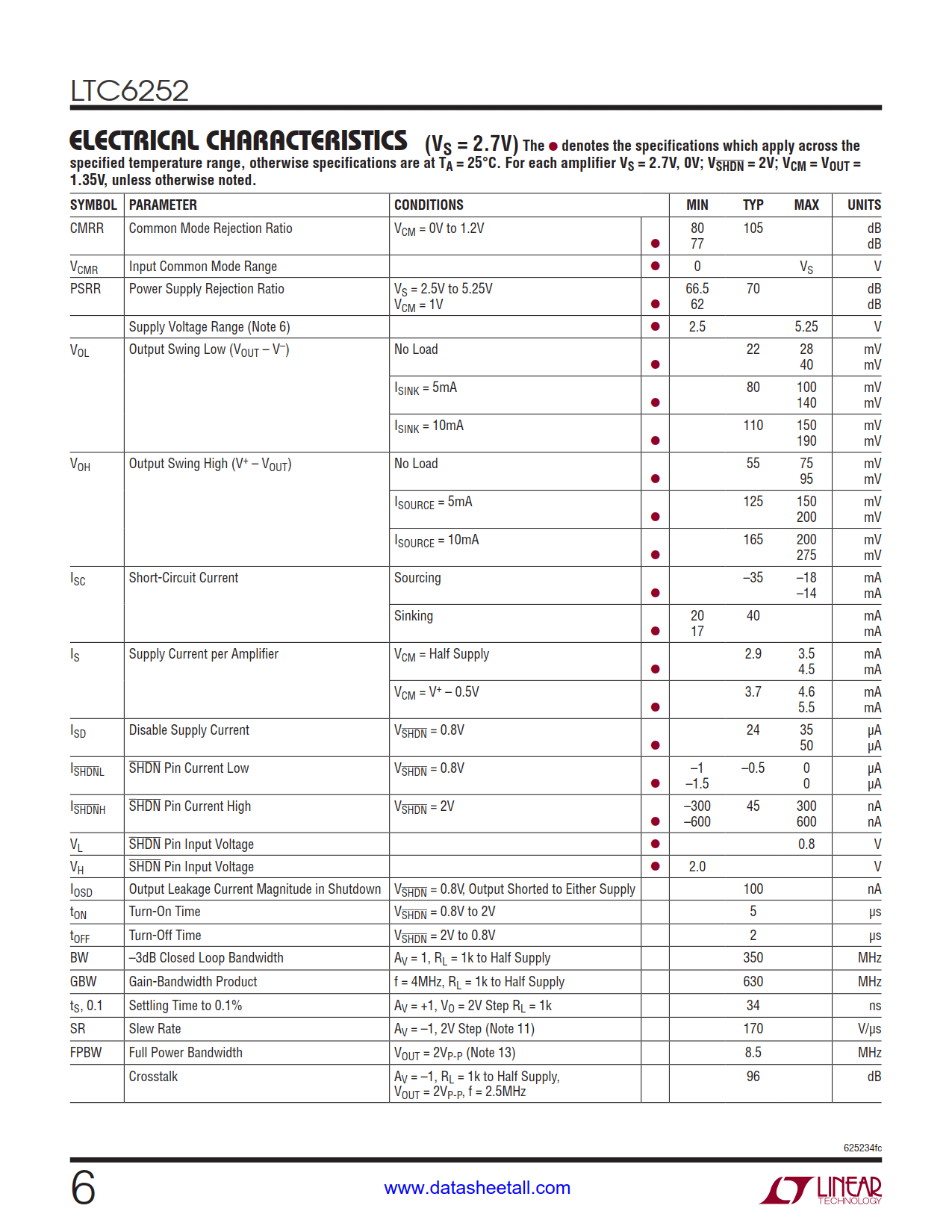

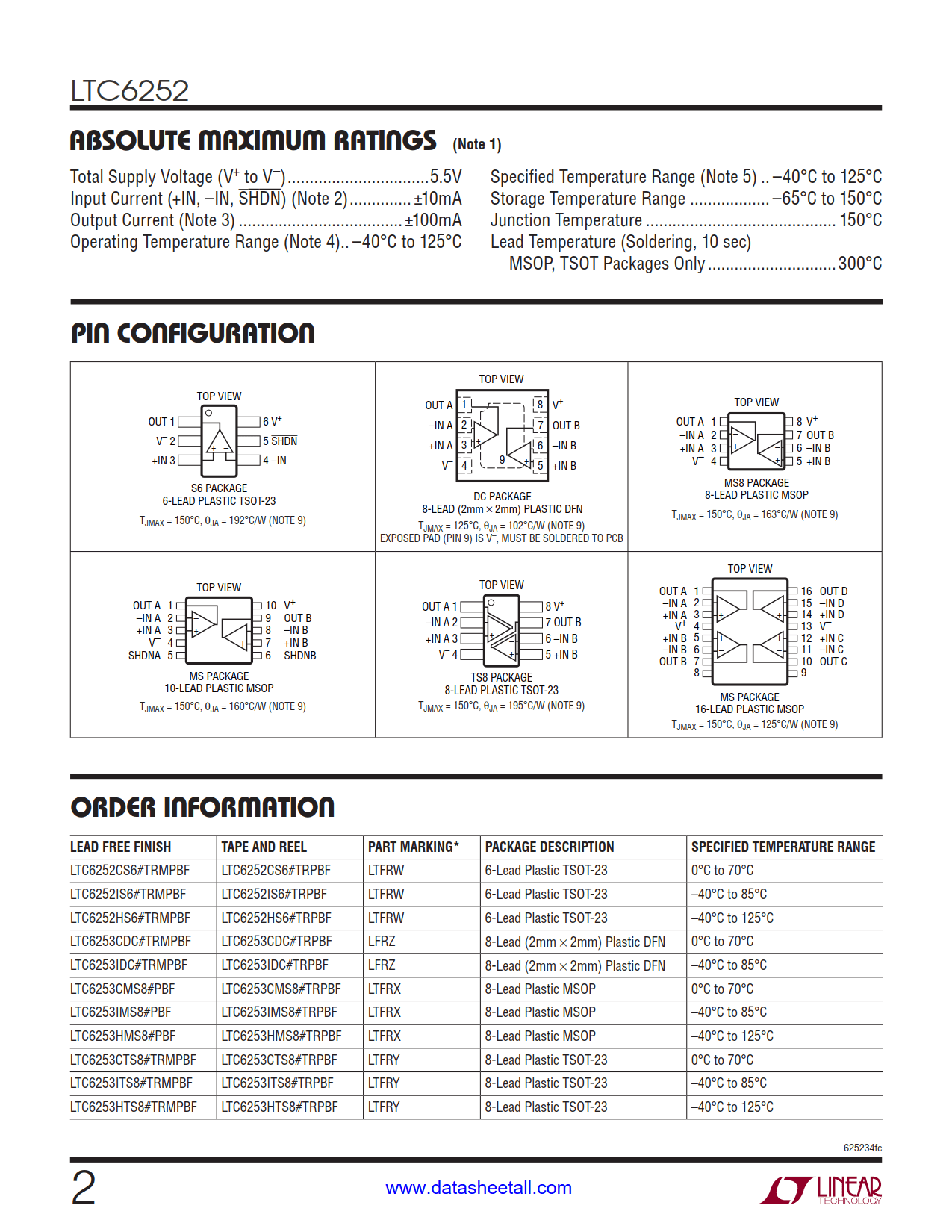

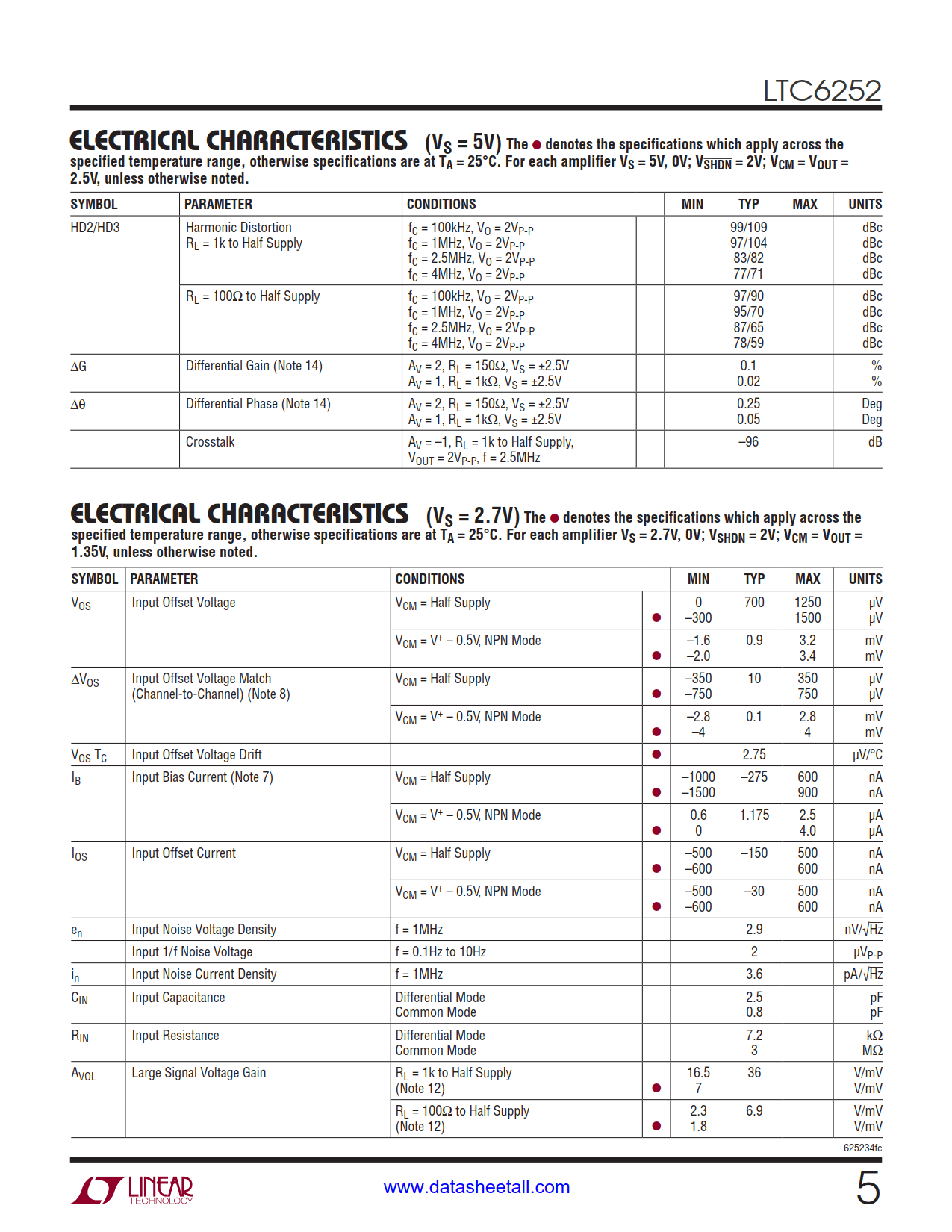

LTC6252 Datasheet(Picture)

LTC6252 Features

  • Gain Bandwidth Product: 720MHz
  • –3dB Frequency (AV = 1): 400MHz
  • Low Quiescent Current: 3.5mA Max
  • High Slew Rate: 280V/μs
  • Input Common Mode Range Includes Both Rails
  • Output Swings Rail-to-Rail
  • Low Broadband Voltage Noise: 2.75nV/√Hz
  • Power-Down Mode: 42μA
  • Fast Output Recovery
  • Supply Voltage Range: 2.5V to 5.25V
  • Input Offset Voltage: 350μV Max
  • Large Output Current: 90mA
  • CMRR: 105dB
  • Open Loop Gain: 60V/mV
  • Operating Temperature Range: –40°C to 125°C
  • Single in 6-Pin TSOT-23

LTC6252 Applications

  • Low Voltage, High Frequency Signal Processing
  • Driving A/D Converters
  • Rail-to-Rail Buffer Amplifiers
  • Active Filters
  • Battery Powered Equipment

LTC6252 Description

The LTC6252 are single low power, high speed unity gain stable rail-to-rail input/output operational amplifiers. On only 3.5mA of supply current they feature a 720MHz gain-bandwidth product, 280V/μs slew rate and a low 2.75nV/√Hz of input-referred noise. The combination of high bandwidth, high slew rate, low power consumption and low broadband noise makes the LTC6252 family unique among rail-to-rail input/output op amps with similar supply currents. They are ideal for lower supply voltage high speed signal conditioning systems.

The LTC6252 family maintains high efficiency performance from supply voltage levels of 2.5V to 5.25V and is fully specified at supplies of 2.7V and 5.0V.

For applications that require power-down, the LTC6252 in MS10 offer a shutdown pin which disables the amplifier and reduces current consumption to 42μA.

The LTC6252 family can be used as a plug-in replacement for many commercially available op amps to reduce power or to improve input/output range and performance.
