LTC6102HV Datasheet

LTC6102HV Datasheet

Precision Zero Drift Current Sense Amplifier
Part No.: LTC6102HV
Page: 26 Pages
Size: 346 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2024-12-04 21:34:14
DataSheet: Download

LTC6102HV Datasheet Applicable Part

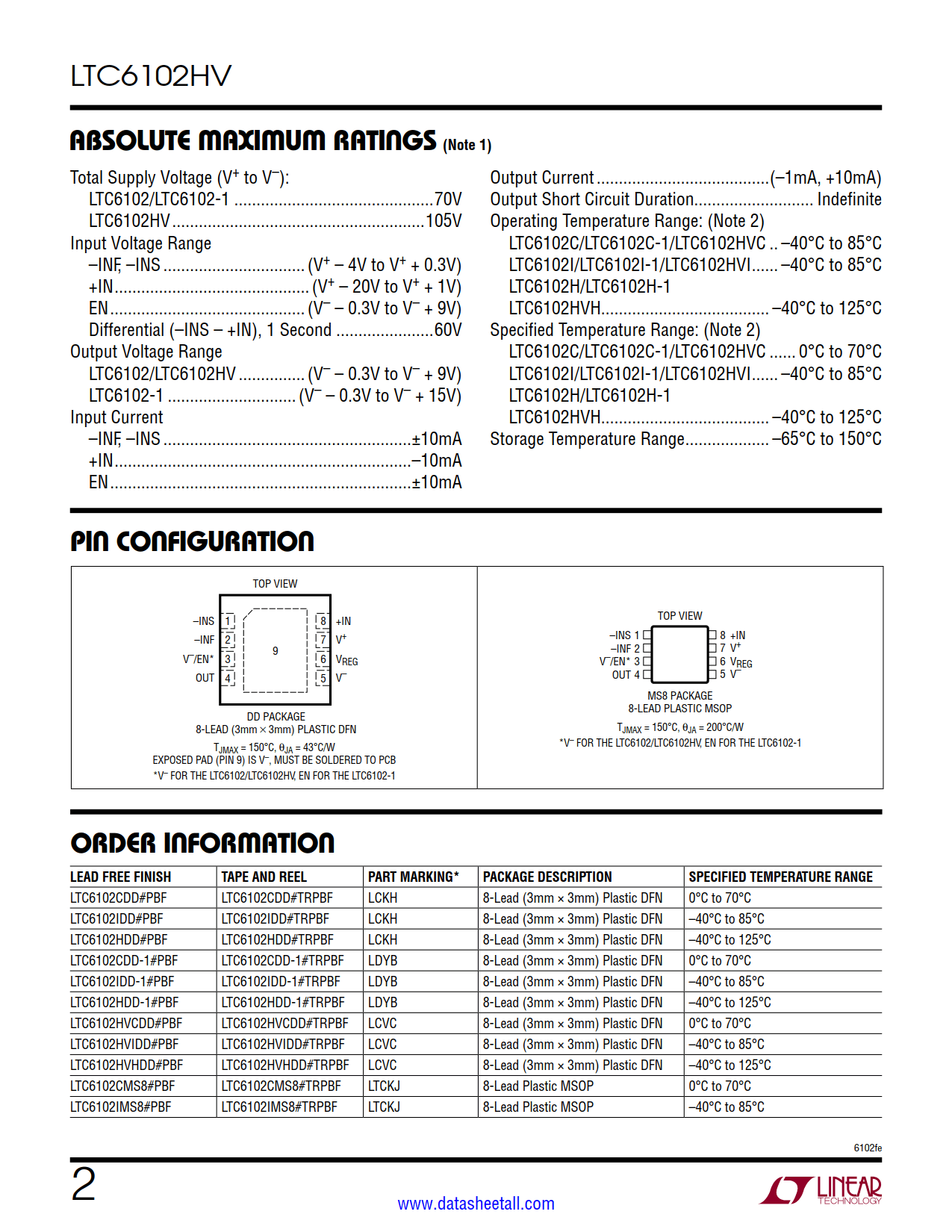

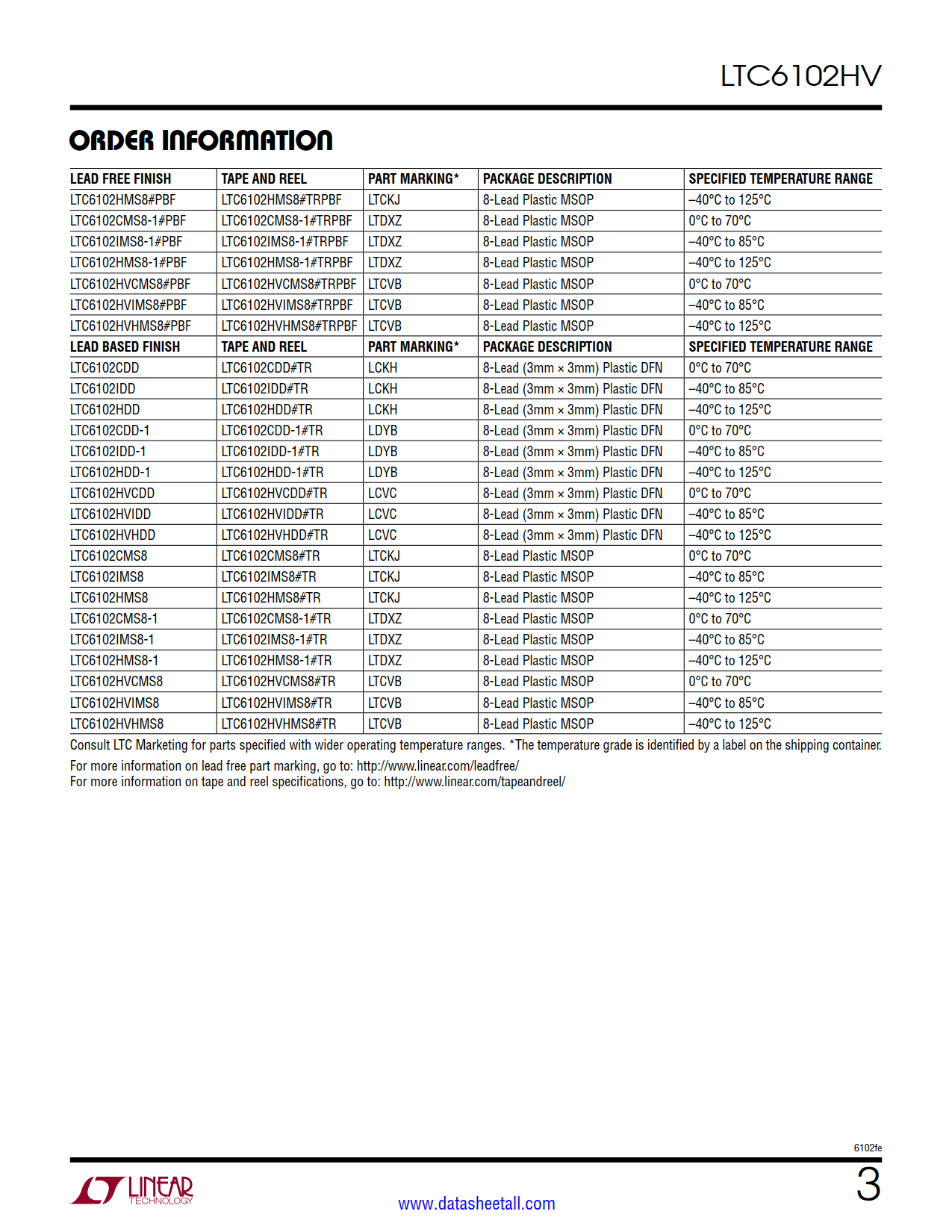

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC6102HVCDD#PBF Tube 121 LCVC 1 8 0°C ~ 70°C 8-Lead (3mm × 3mm) Plastic DFN
LTC6102HVCDD#TRPBF Reel 2500 LCVC 1 8 0°C ~ 70°C 8-Lead (3mm × 3mm) Plastic DFN
LTC6102HVCDD#TRMPBF Reel 500 LCVC 1 8 0°C ~ 70°C 8-Lead (3mm × 3mm) Plastic DFN
LTC6102HVIDD#PBF Tube 121 LCVC 1 8 -40°C ~ 85°C 8-Lead (3mm × 3mm) Plastic DFN
LTC6102HVIDD#TRPBF Reel 2500 LCVC 1 8 -40°C ~ 85°C 8-Lead (3mm × 3mm) Plastic DFN
LTC6102HVIDD#TRMPBF Reel 500 LCVC 1 8 -40°C ~ 85°C 8-Lead (3mm × 3mm) Plastic DFN
LTC6102HVHDD#PBF Tube 121 LCVC 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC6102HVHDD#TRPBF Reel 2500 LCVC 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC6102HVHDD#TRMPBF Reel 500 LCVC 1 8 -40°C ~ 125°C 8-Lead (3mm × 3mm) Plastic DFN
LTC6102HVCMS8#PBF Tube 50 LTCVB 1 8 0°C ~ 70°C 8-Lead Plastic MSOP
LTC6102HVCMS8#TRPBF Reel 2500 LTCVB 1 8 0°C ~ 70°C 8-Lead Plastic MSOP
LTC6102HVCMS8#TRMPBF Reel 500 LTCVB 1 8 0°C ~ 70°C 8-Lead Plastic MSOP
LTC6102HVIMS8#PBF Tube 50 LTCVB 1 8 -40°C ~ 85°C 8-Lead Plastic MSOP
LTC6102HVIMS8#TRPBF Reel 2500 LTCVB 1 8 -40°C ~ 85°C 8-Lead Plastic MSOP
LTC6102HVIMS8#TRMPBF Reel 500 LTCVB 1 8 -40°C ~ 85°C 8-Lead Plastic MSOP
LTC6102HVHMS8#PBF Tube 50 LTCVB 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6102HVHMS8#TRPBF Reel 2500 LTCVB 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC6102HVHMS8#TRMPBF Reel 500 LTCVB 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC6102HV Datasheet(PDF)

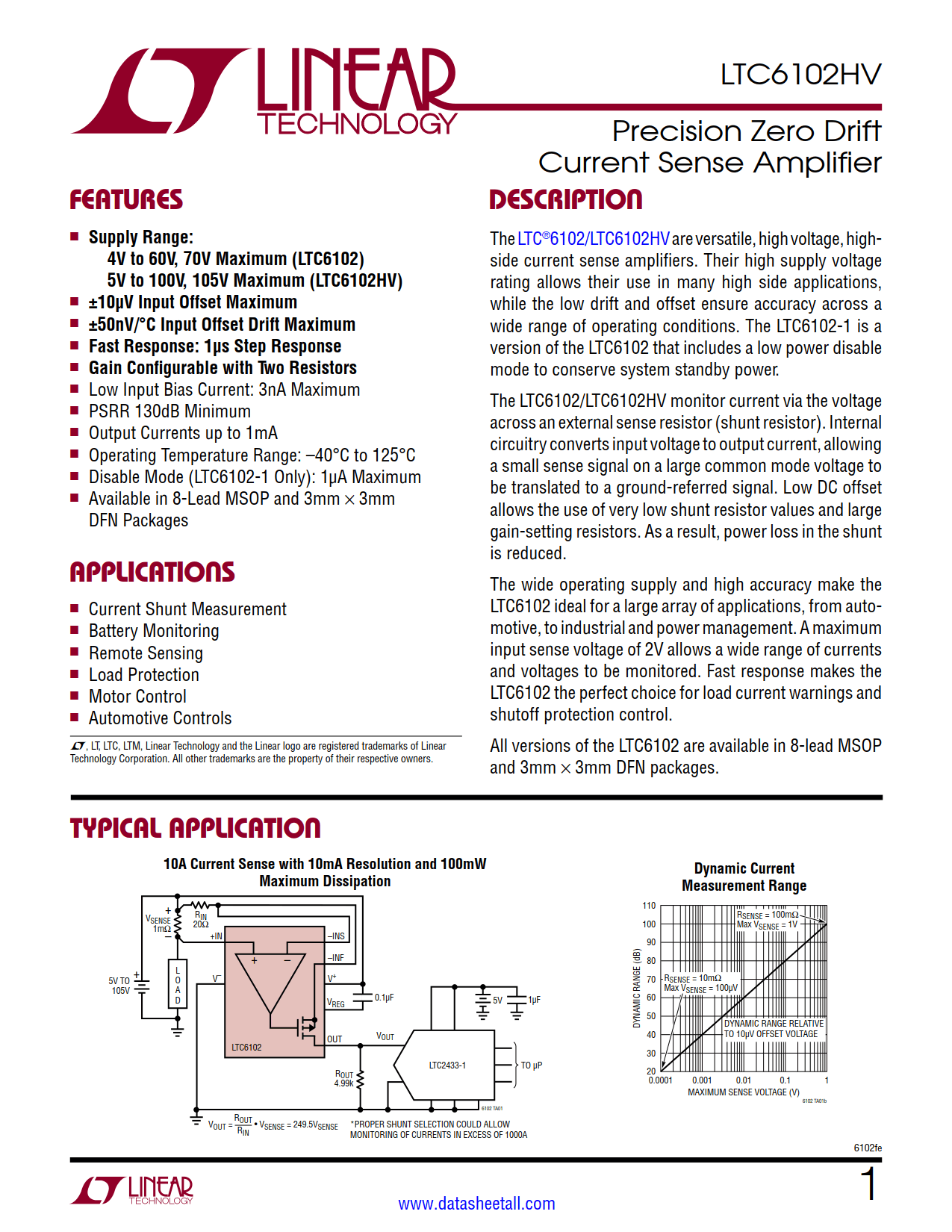

LTC6102HV Datasheet(Picture)

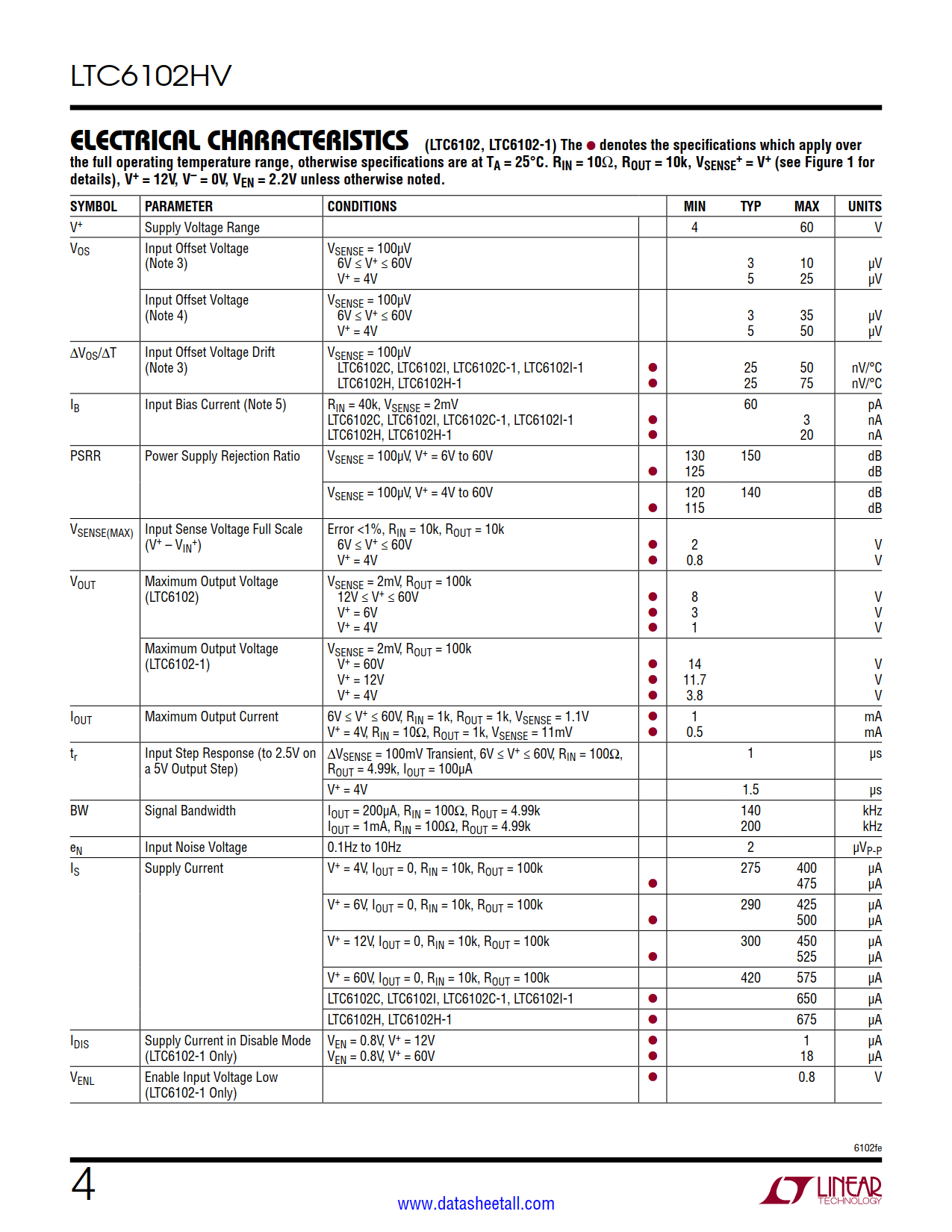

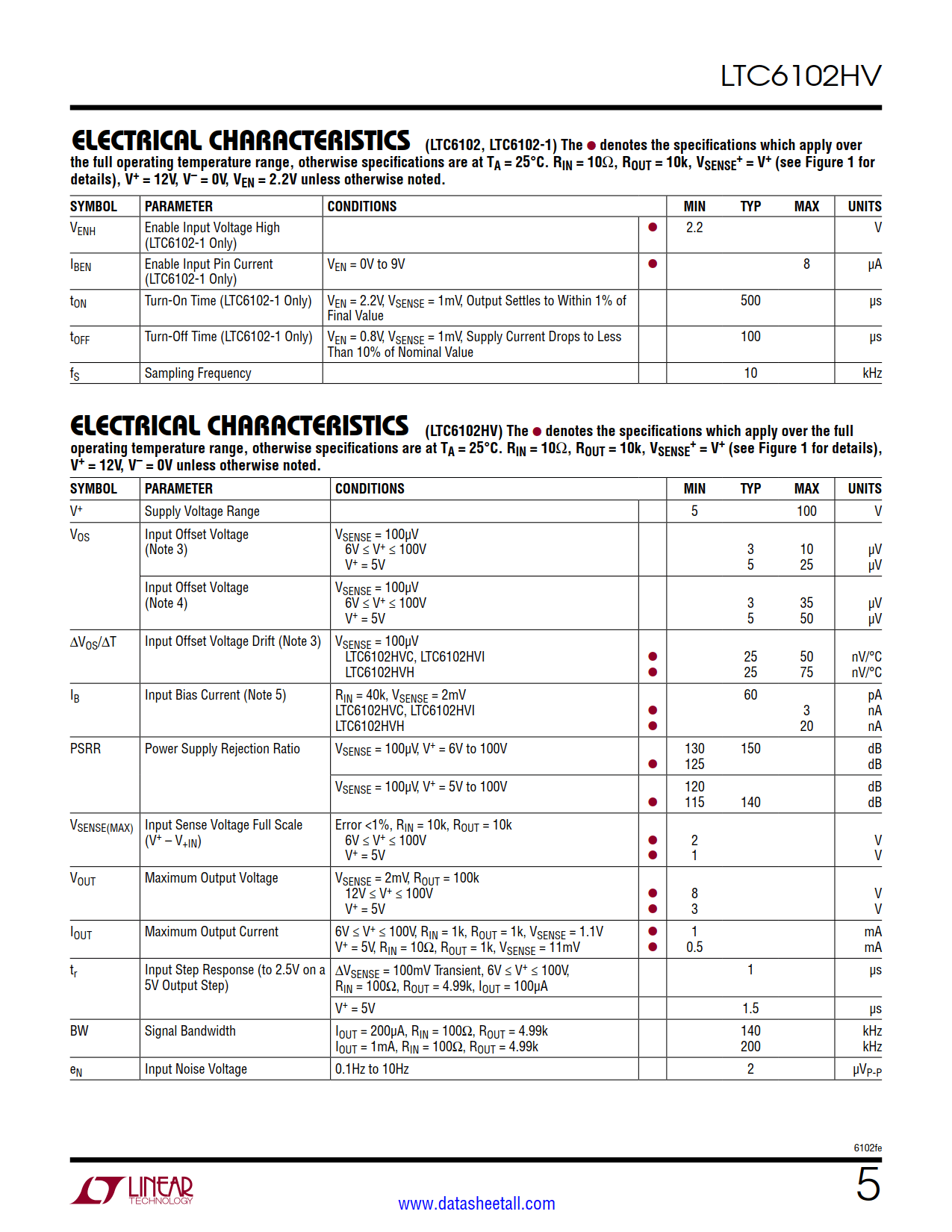

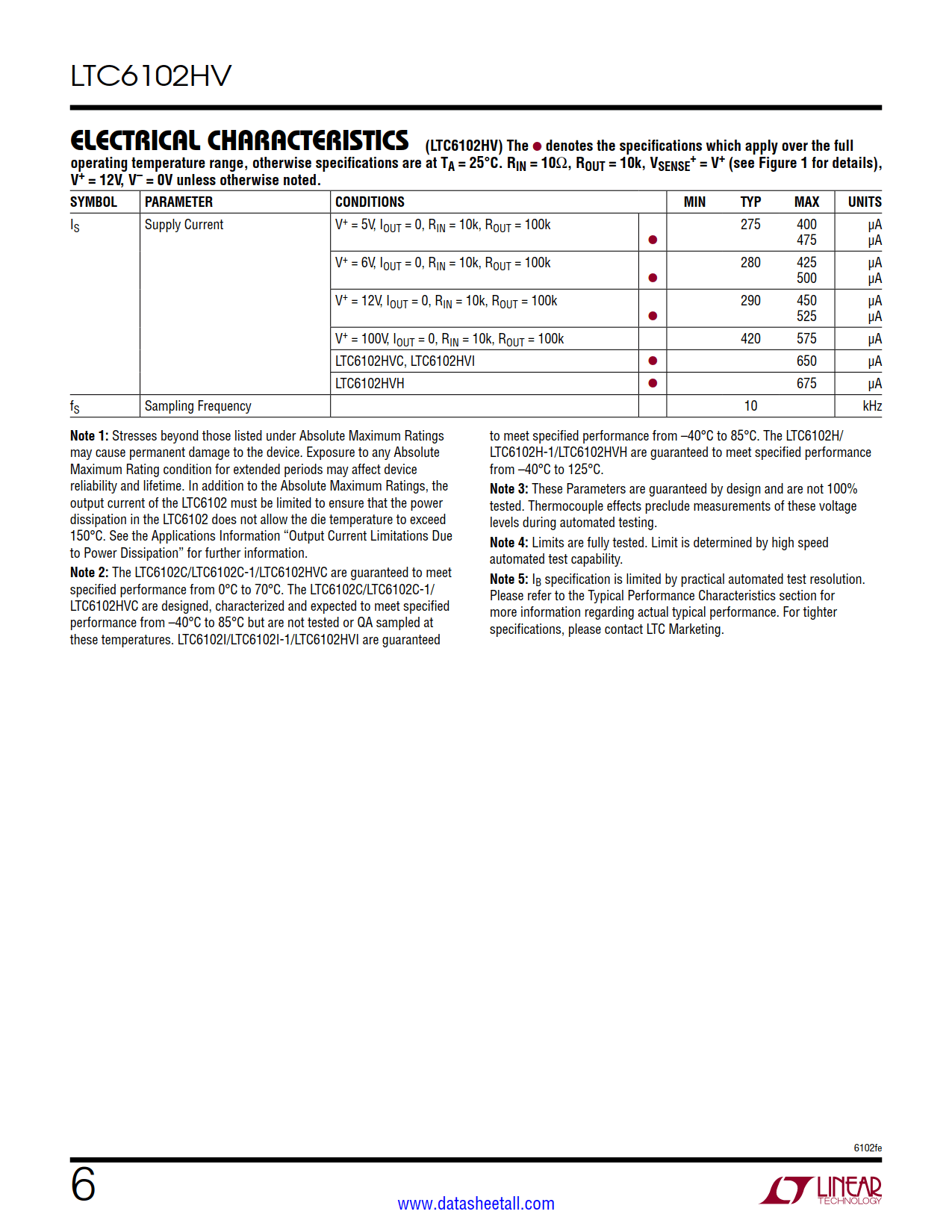

LTC6102HV Features

  • Supply Range: 5V to 100V, 105V Maximum
  • ±10μV Input Offset Maximum
  • ±50nV/°C Input Offset Drift Maximum
  • Fast Response: 1μs Step Response
  • Gain Configurable with Two Resistors
  • Low Input Bias Current: 3nA Maximum
  • PSRR 130dB Minimum
  • Output Currents up to 1mA
  • Operating Temperature Range: –40°C to 125°C
  • Available in 8-Lead MSOP and 3mm × 3mm DFN Packages

LTC6102HV Applications

  • Current Shunt Measurement
  • Battery Monitoring
  • Remote Sensing
  • Load Protection
  • Motor Control
  • Automotive Controls

LTC6102HV Description

The LTC6102HV is versatile, high voltage, highside current sense amplifiers. Their high supply voltage rating allows their use in many high side applications, while the low drift and offset ensure accuracy across a wide range of operating conditions.

The LTC6102HV monitor current via the voltage across an external sense resistor (shunt resistor). Internal circuitry converts input voltage to output current, allowing a small sense signal on a large common mode voltage to be translated to a ground-referred signal. Low DC offset allows the use of very low shunt resistor values and large gain-setting resistors. As a result, power loss in the shunt is reduced.

The wide operating supply and high accuracy make the LTC6102HV ideal for a large array of applications, from automotive, to industrial and power management. A maximum input sense voltage of 2V allows a wide range of currents and voltages to be monitored. Fast response makes the LTC6102HV the perfect choice for load current warnings and shutoff protection control.

The LTC6102HV is available in 8-lead MSOP and 3mm × 3mm DFN packages.
