| Part No.： | LTC6102-1 |
| Page： | 26 Pages |
| Size： | 346 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 3 |
| Update Time： | 2024-12-04 21:33:09 |
| DataSheet： | Download |

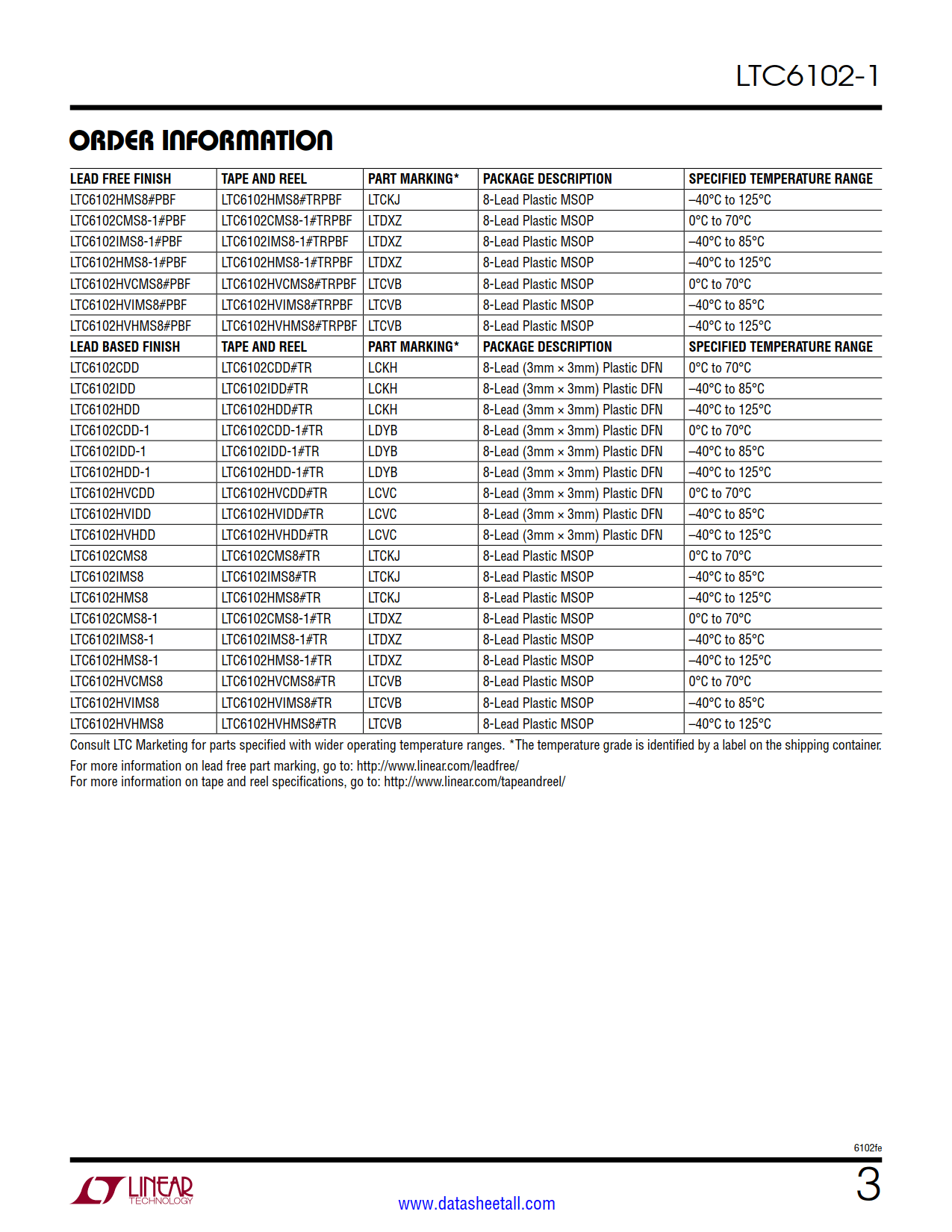

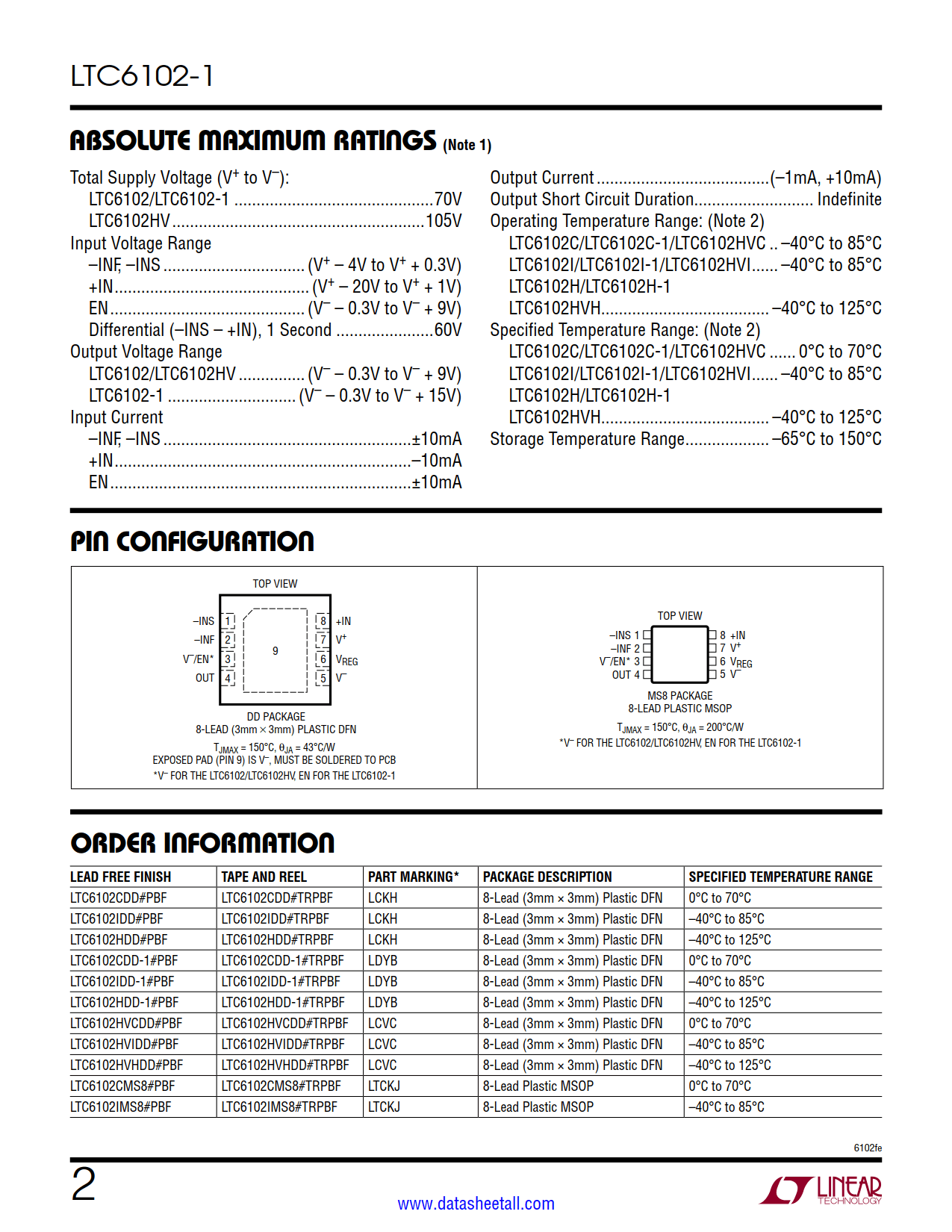

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC6102CDD-1#PBF | Tube | 121 | LDYB | 1 | 8 | 0°C ~ 70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6102CDD-1#TRPBF | Reel | 2500 | LDYB | 1 | 8 | 0°C ~ 70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6102CDD-1#TRMPBF | Reel | 500 | LDYB | 1 | 8 | 0°C ~ 70°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6102IDD-1#PBF | Tube | 121 | LDYB | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6102IDD-1#TRPBF | Reel | 2500 | LDYB | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6102IDD-1#TRMPBF | Reel | 500 | LDYB | 1 | 8 | -40°C ~ 85°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6102HDD-1#PBF | Tube | 121 | LDYB | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6102HDD-1#TRPBF | Reel | 2500 | LDYB | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6102HDD-1#TRMPBF | Reel | 500 | LDYB | 1 | 8 | -40°C ~ 125°C | 8-Lead (3mm × 3mm) Plastic DFN | |
| LTC6102CMS8-1#PBF | Tube | 50 | LTDXZ | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic MSOP | |
| LTC6102CMS8-1#TRPBF | Reel | 2500 | LTDXZ | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic MSOP | |
| LTC6102CMS8-1#TRMPBF | Reel | 500 | LTDXZ | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic MSOP | |
| LTC6102IMS8-1#PBF | Tube | 50 | LTDXZ | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LTC6102IMS8-1#TRPBF | Reel | 2500 | LTDXZ | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LTC6102IMS8-1#TRMPBF | Reel | 500 | LTDXZ | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic MSOP | |
| LTC6102HMS8-1#PBF | Tube | 50 | LTDXZ | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LTC6102HMS8-1#TRPBF | Reel | 2500 | LTDXZ | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP | |
| LTC6102HMS8-1#TRMPBF | Reel | 500 | LTDXZ | 1 | 8 | -40°C ~ 125°C | 8-Lead Plastic MSOP |

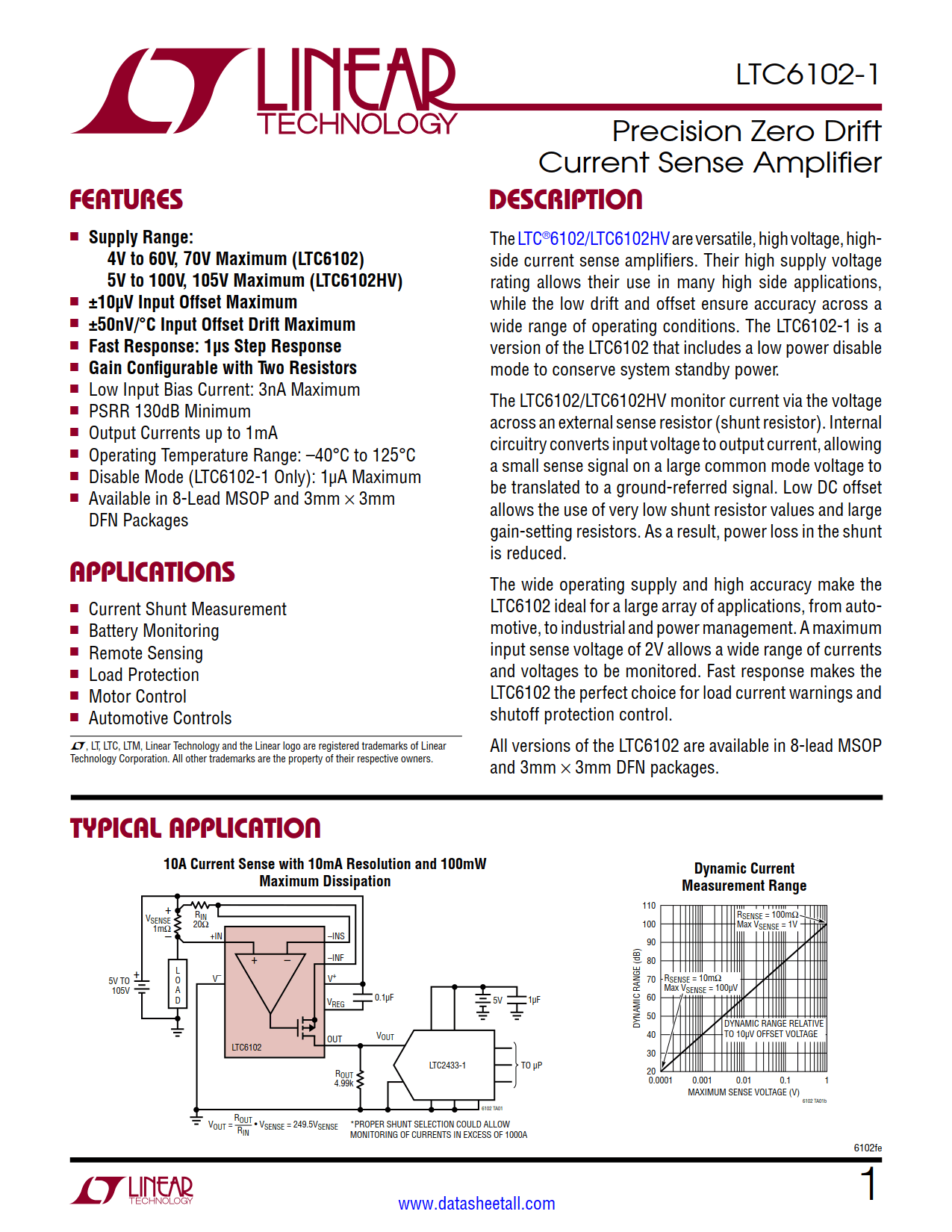

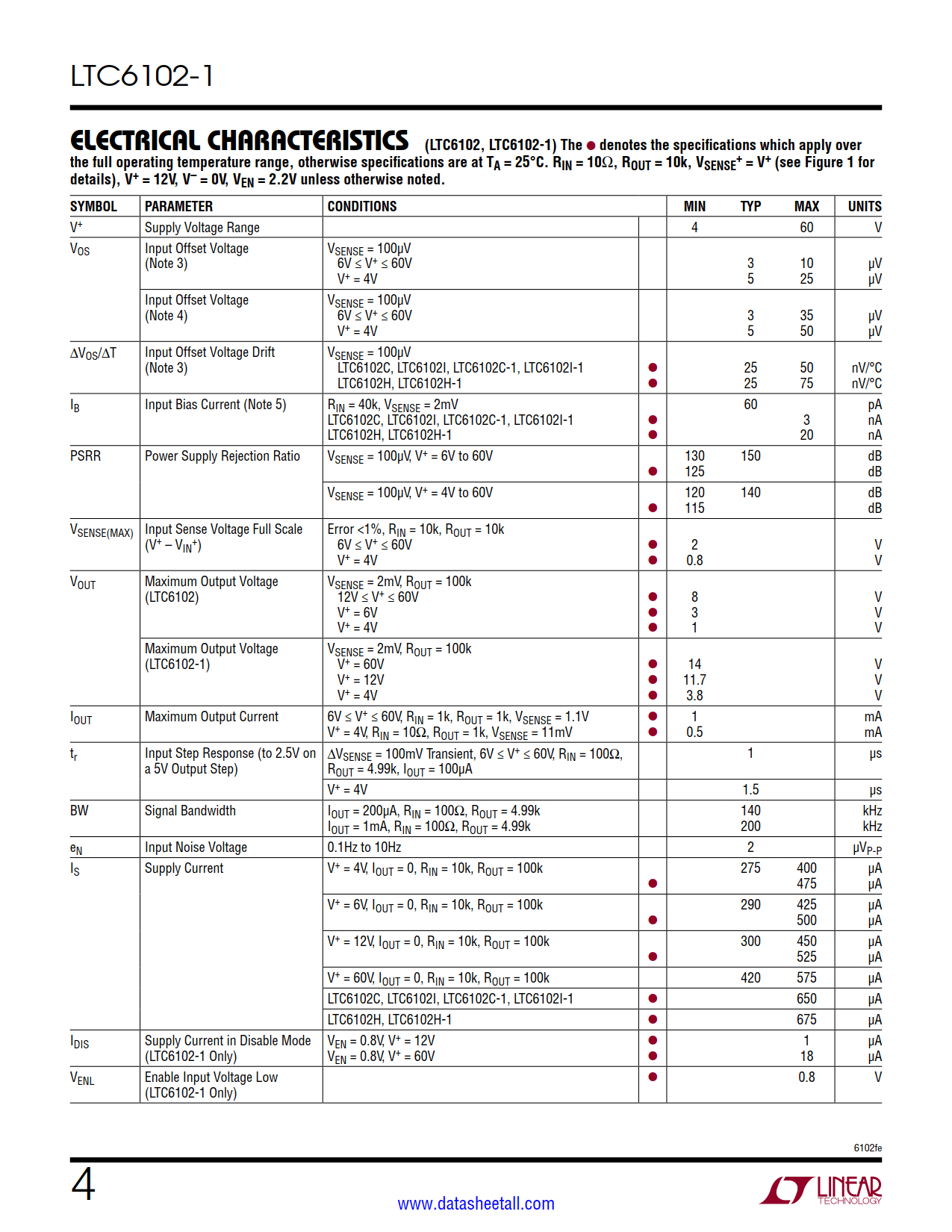

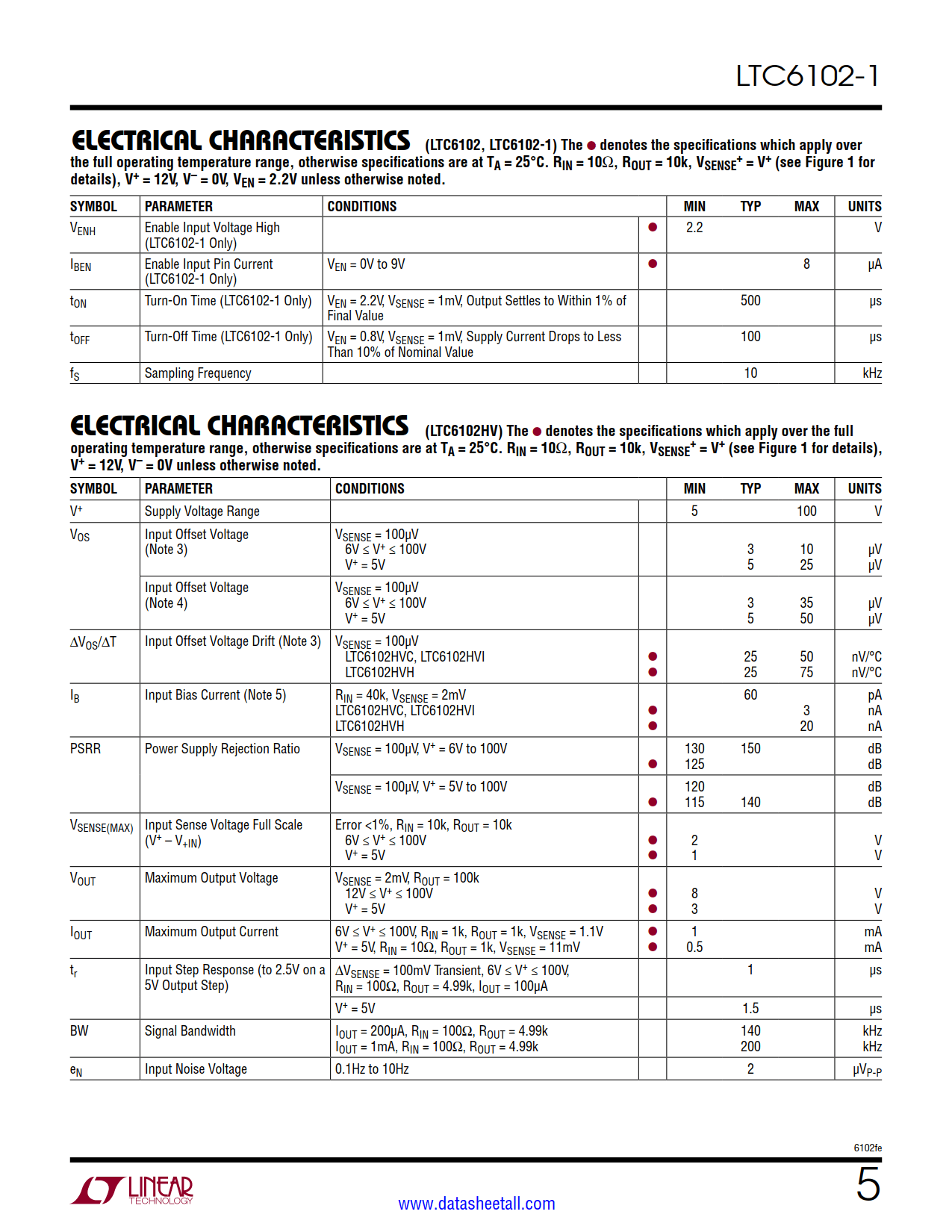

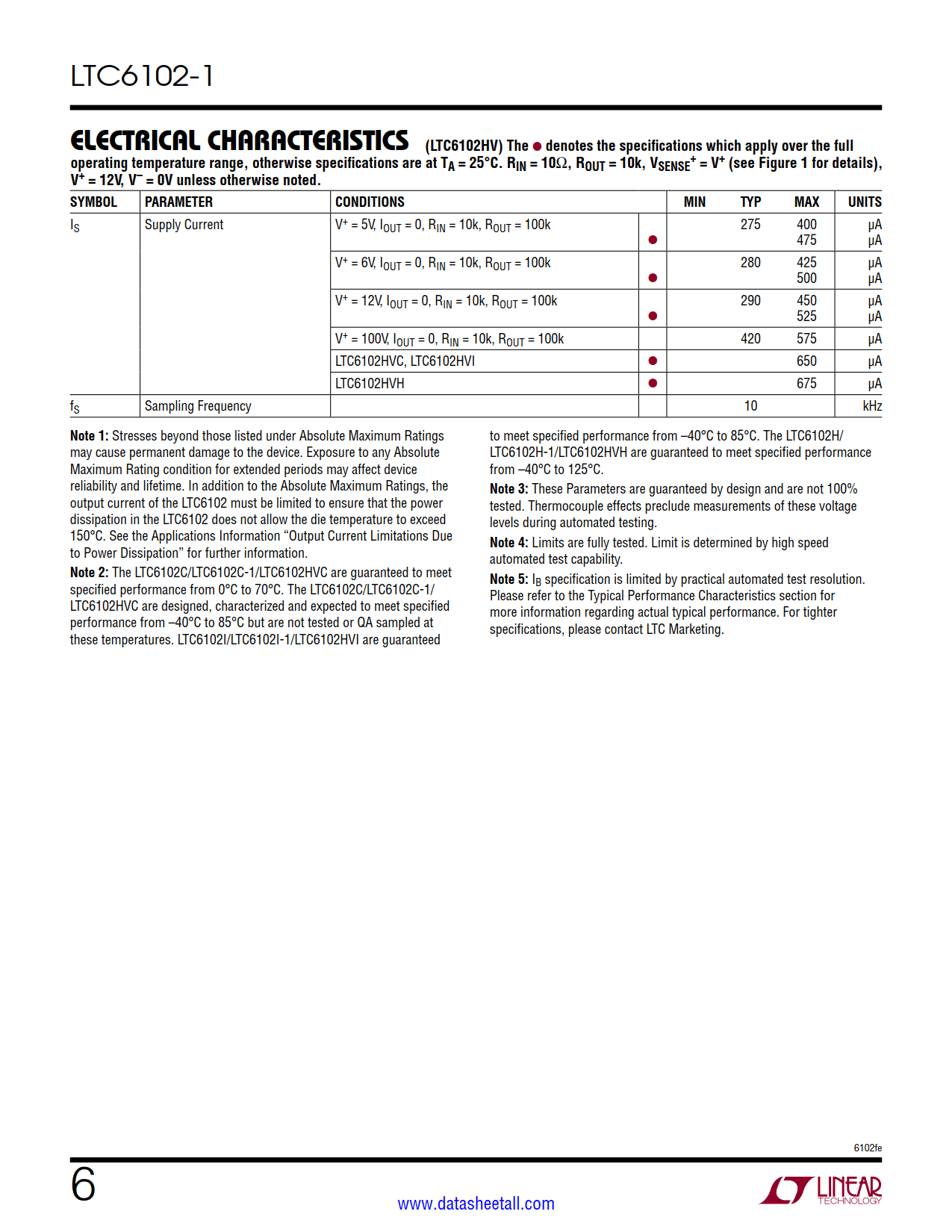

The LTC6102-1 is versatile, high voltage, highside current sense amplifiers. Their high supply voltage rating allows their use in many high side applications, while the low drift and offset ensure accuracy across a wide range of operating conditions. The LTC6102-1 is a version of the LTC6102 that includes a low power disable mode to conserve system standby power.
The LTC6102-1 monitor current via the voltage across an external sense resistor (shunt resistor). Internal circuitry converts input voltage to output current, allowing a small sense signal on a large common mode voltage to be translated to a ground-referred signal. Low DC offset allows the use of very low shunt resistor values and large gain-setting resistors. As a result, power loss in the shunt is reduced.
The wide operating supply and high accuracy make the LTC6102-1 ideal for a large array of applications, from automotive, to industrial and power management. A maximum input sense voltage of 2V allows a wide range of currents and voltages to be monitored. Fast response makes the LTC6102-1 the perfect choice for load current warnings and shutoff protection control.
The LTC6102-1 is available in 8-lead MSOP and 3mm × 3mm DFN packages.
