LTC491 Datasheet

LTC491 Datasheet

Differential Driver and Receiver Pair
Part No.: LTC491
Page: 12 Pages
Size: 164 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-10-25 14:58:00
DataSheet: Download

LTC491 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC491CN#PBF Tube 25   1 8 0°C ~ 70°C 14-Lead PDIP
LTC491CS#PBF Tube 55   1 8 0°C ~ 70°C 14-Lead SOIC
LTC491CS#TRPBF Reel 2500   1 8 0°C ~ 70°C 14-Lead SOIC
LTC491CS#TRMPBF Reel 500   1 8 0°C ~ 70°C 14-Lead SOIC
LTC491IN#PBF Tube 25   1 8 -40°C ~ 85°C 14-Lead PDIP
LTC491IS#PBF Tube 55   1 8 -40°C ~ 85°C 14-Lead SOIC
LTC491IS#TRPBF Reel 2500   1 8 -40°C ~ 85°C 14-Lead SOIC
LTC491IS#TRMPBF Reel 500   1 8 -40°C ~ 85°C 14-Lead SOIC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC491 Datasheet(PDF)

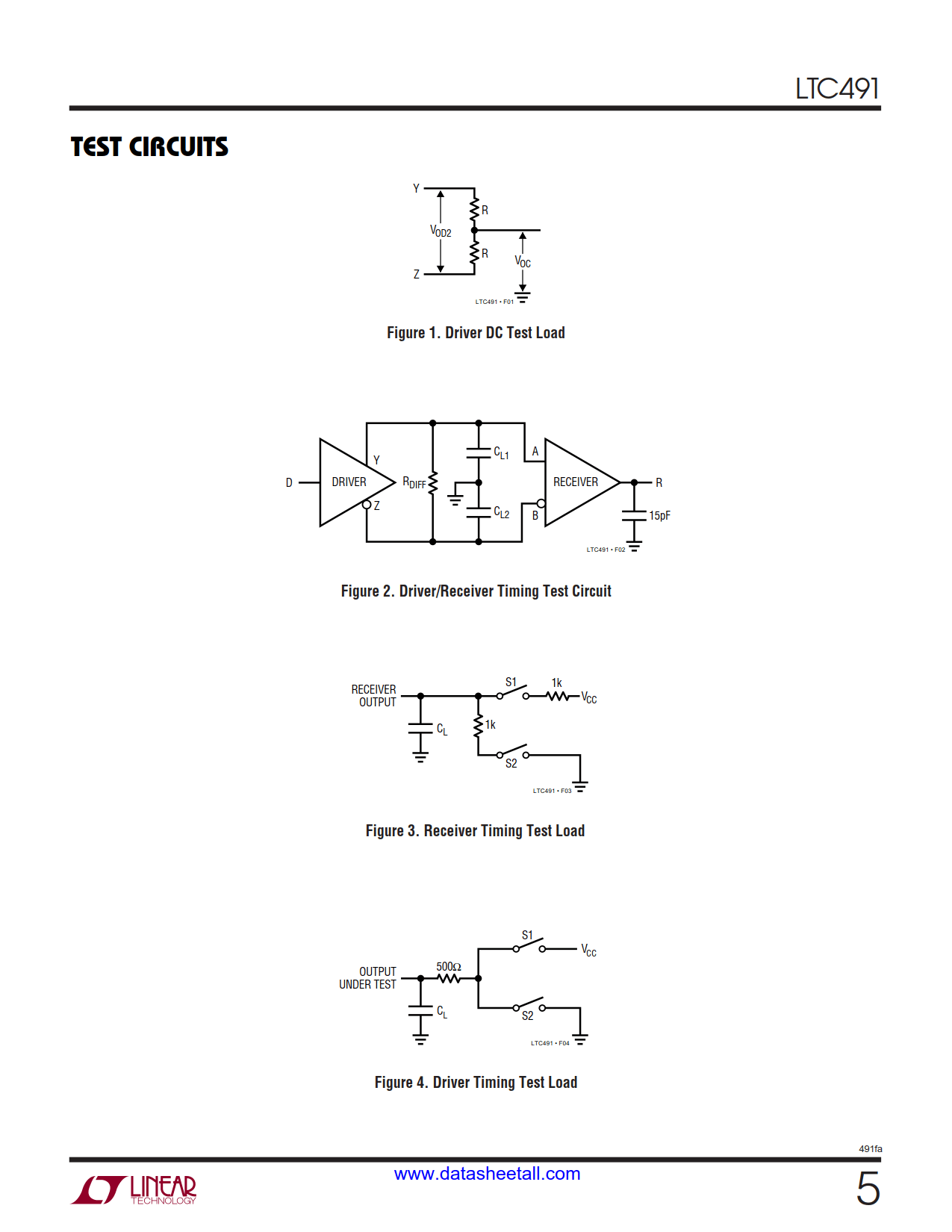

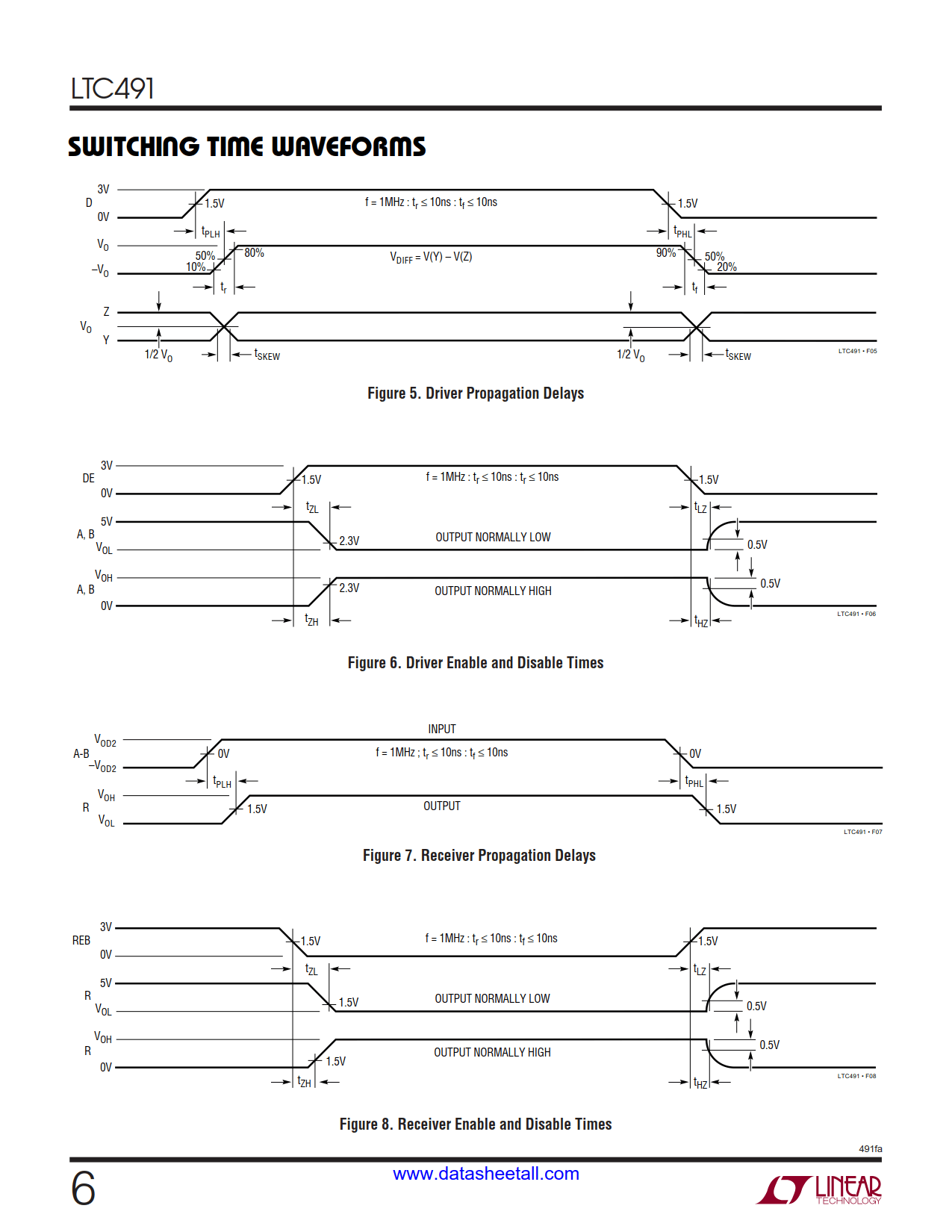

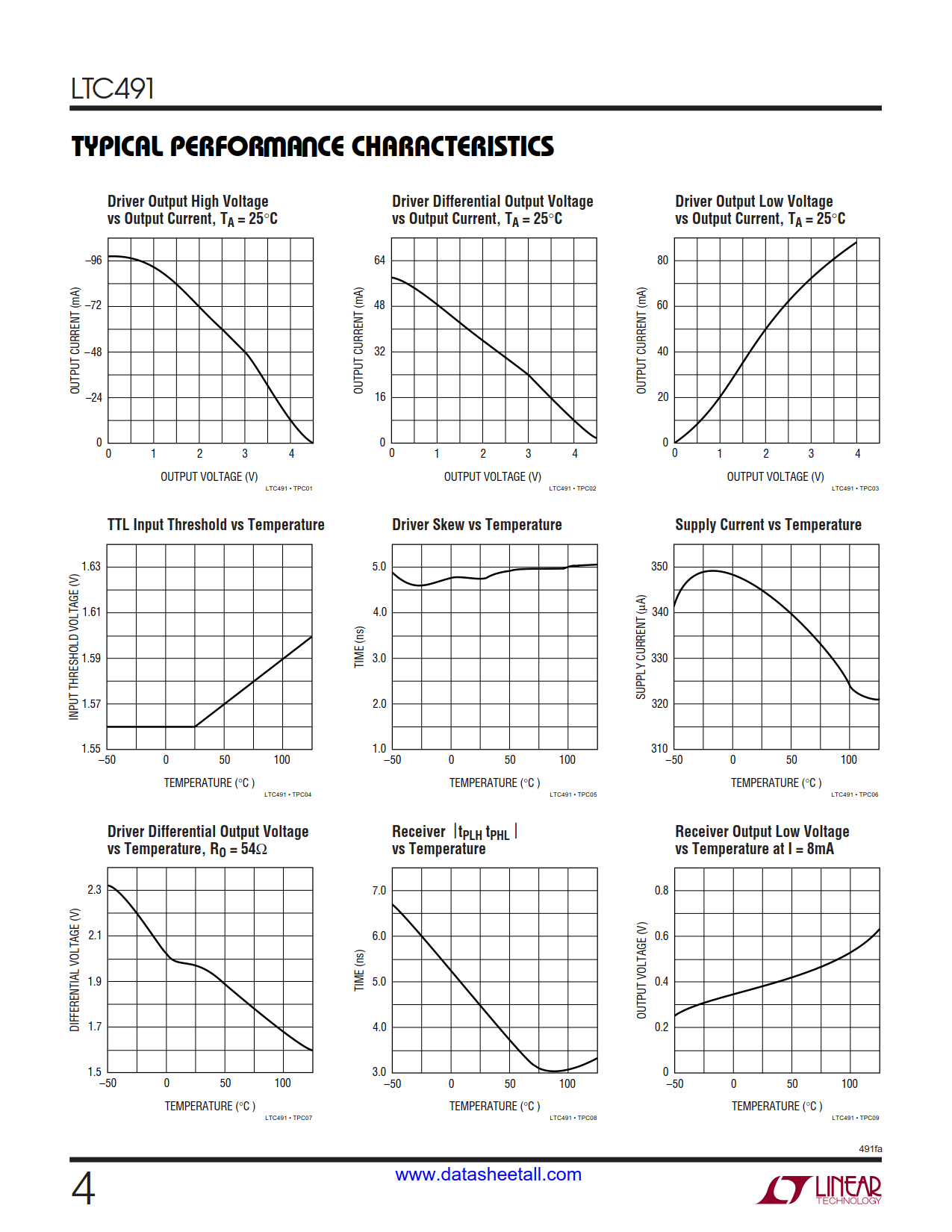

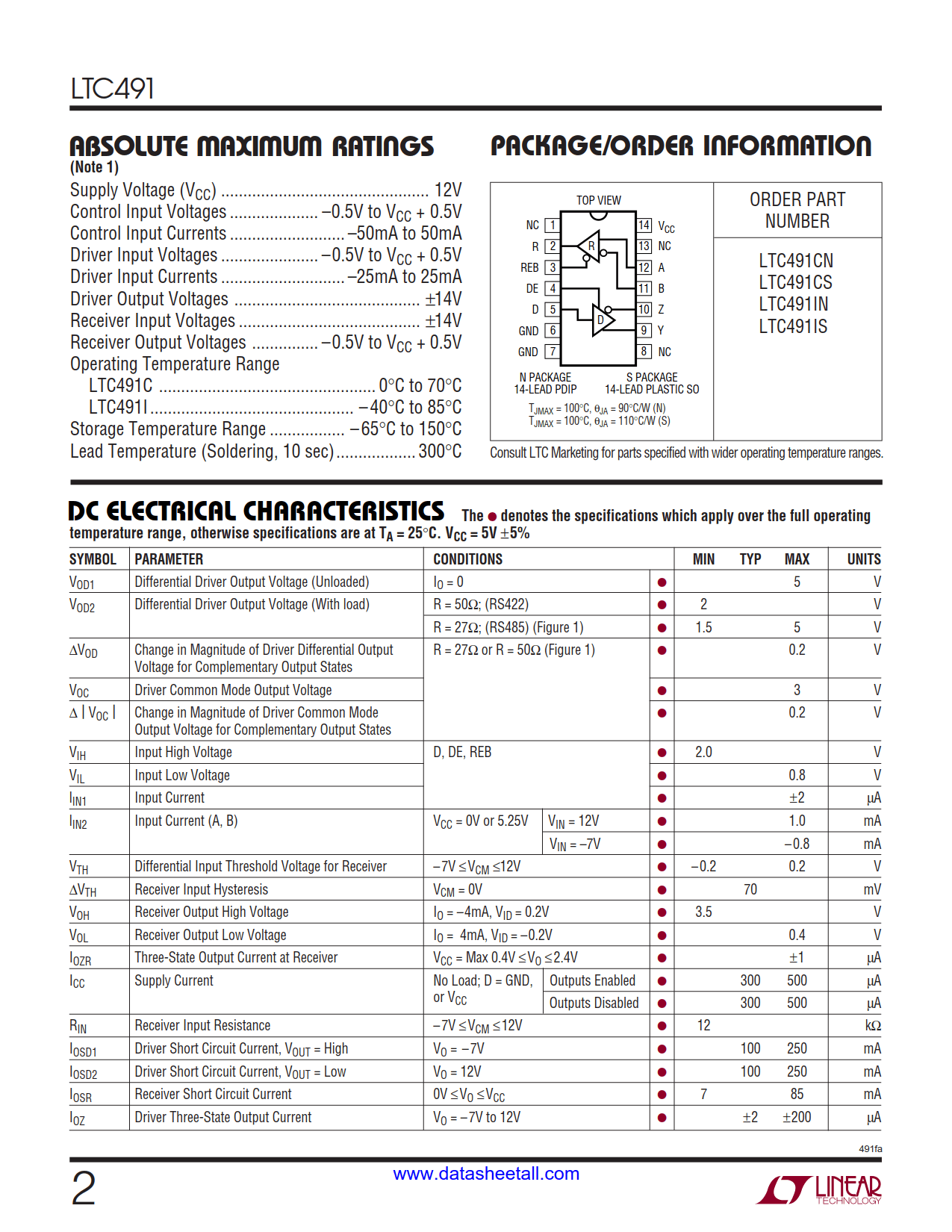

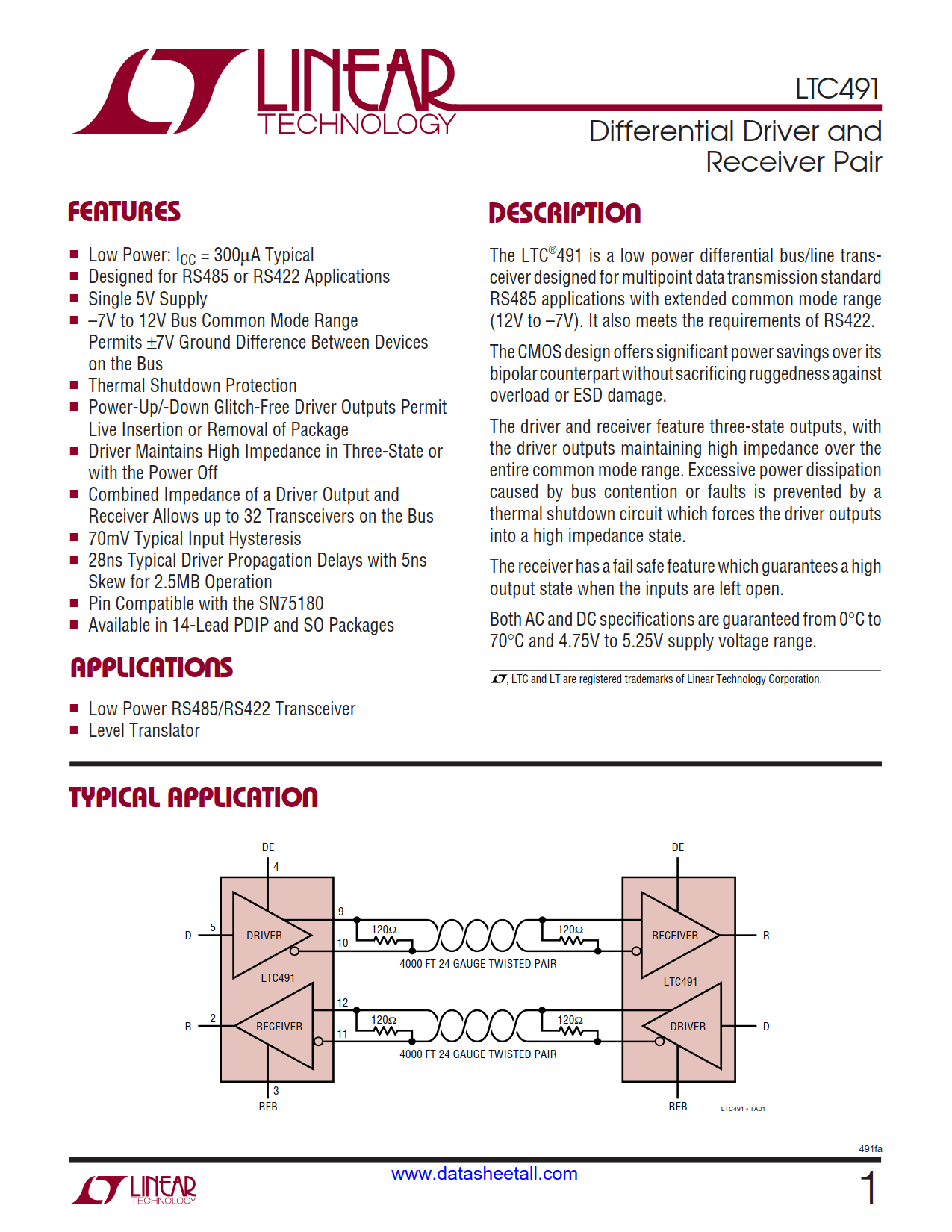

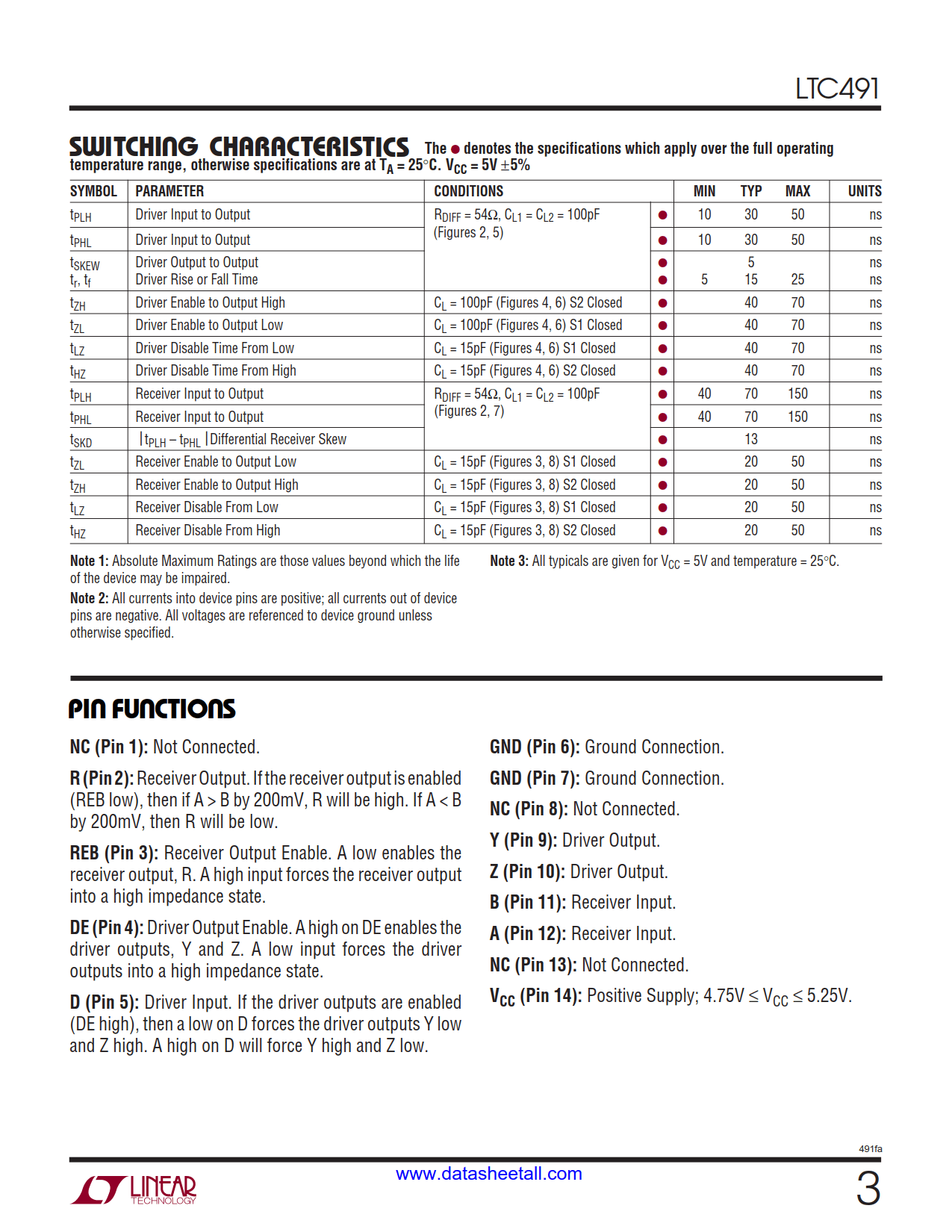

LTC491 Datasheet(Picture)

LTC491 Features

  • Low Power: ICC = 300µA Typical
  • Designed for RS485 or RS422 Applications
  • Single 5V Supply
  • -7V to 12V Bus Common Mode Range Permits ±7V Ground Difference Between Devices on the Bus
  • Thermal Shutdown Protection
  • Power-Up/Down Glitch-Free Driver Outputs Permit Live Insertion or Removal of Package
  • Driver Maintains High Impedance in Three-State or with the Power Off
  • Combined Impedance of a Driver Output and Receiver Allows up to 32 Transceivers on the Bus
  • 70mV Typical Input Hysteresis
  • 28ns Typical Driver Propagation Delays with 5ns Skew for 2.5MB Operation
  • Pin Compatible with the SN75180
  • Available in 14-Lead PDIP and SO Packages

LTC491 Applications

  • Low Power RS485/RS422 Transceiver
  • Level Translator

LTC491 Description

The LTC491 is a low power differential bus/line transceiver designed for multipoint data transmission standard RS485 applications with extended common mode range (12V to –7V). It also meets the requirements of RS422.

The CMOS design offers significant power savings over its bipolar counterpart without sacrificing ruggedness against overload or ESD damage.

The driver and receiver feature three-state outputs, with the driver outputs maintaining high impedance over the entire common mode range. Excessive power dissipation caused by bus contention or faults is prevented by a thermal shutdown circuit which forces the driver outputs into a high impedance state.

The receiver has a fail safe feature which guarantees a high output state when the inputs are left open.

Both AC and DC specifications are guaranteed from 0°C to 70°C and 4.75V to 5.25V supply voltage range.
