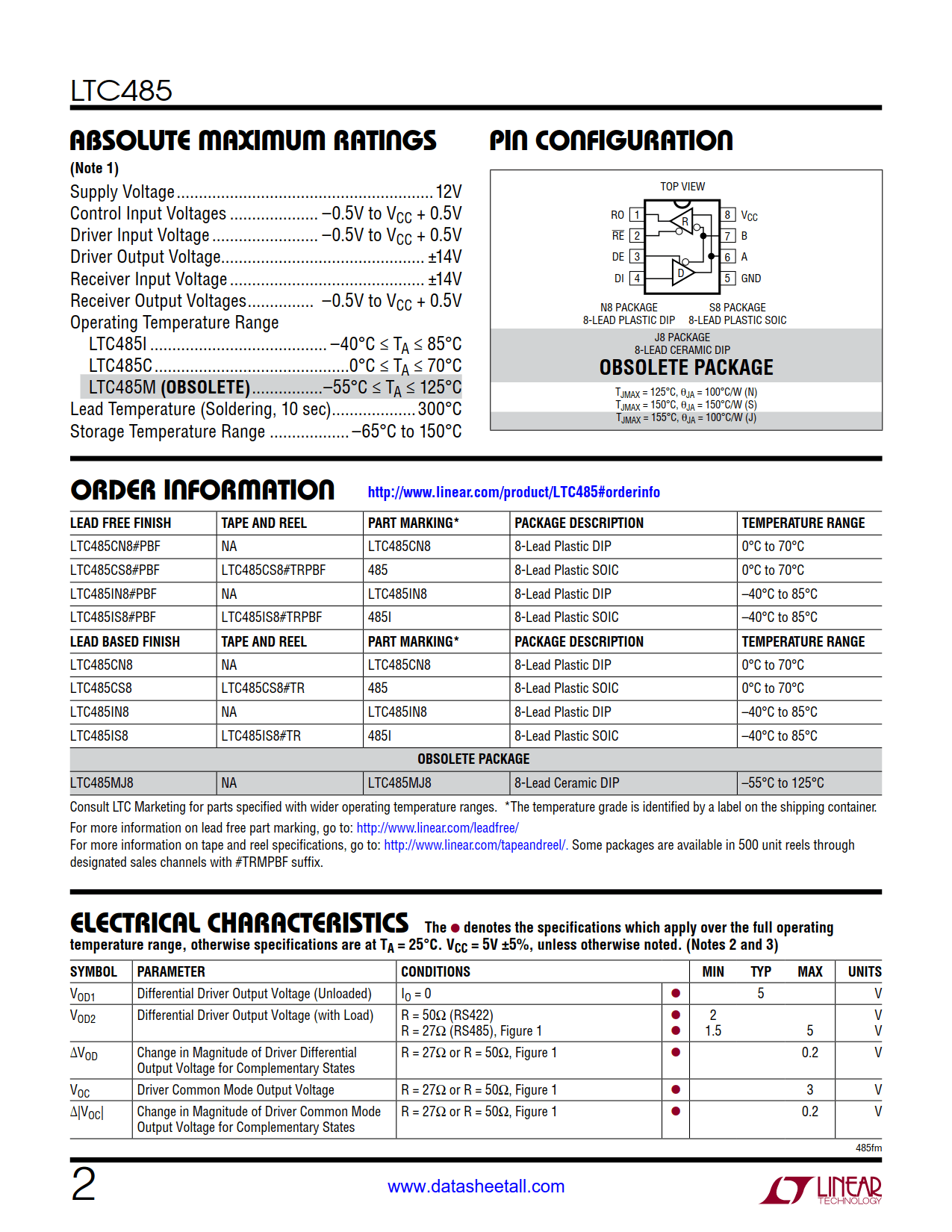

| Part No.： | LTC485 |
| Page： | 14 Pages |
| Size： | 974 KB |
| Manufacturer： | Linear Technology |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-10-25 14:51:51 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC485CN8#PBF | Tube | 50 | LTC485CN8 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic DIP | |
| LTC485CS8#PBF | Tube | 100 | 485 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SOIC | |
| LTC485CS8#TRPBF | Reel | 2500 | 485 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SOIC | |
| LTC485CS8#TRMPBF | Reel | 500 | 485 | 1 | 8 | 0°C ~ 70°C | 8-Lead Plastic SOIC | |
| LTC485IN8#PBF | Tube | 50 | LTC485IN8 | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic DIP | |
| LTC485IS8#PBF | Tube | 100 | 485I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SOIC | |
| LTC485IS8#TRPBF | Reel | 2500 | 485I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SOIC | |
| LTC485IS8#TRMPBF | Reel | 500 | 485I | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SOIC |

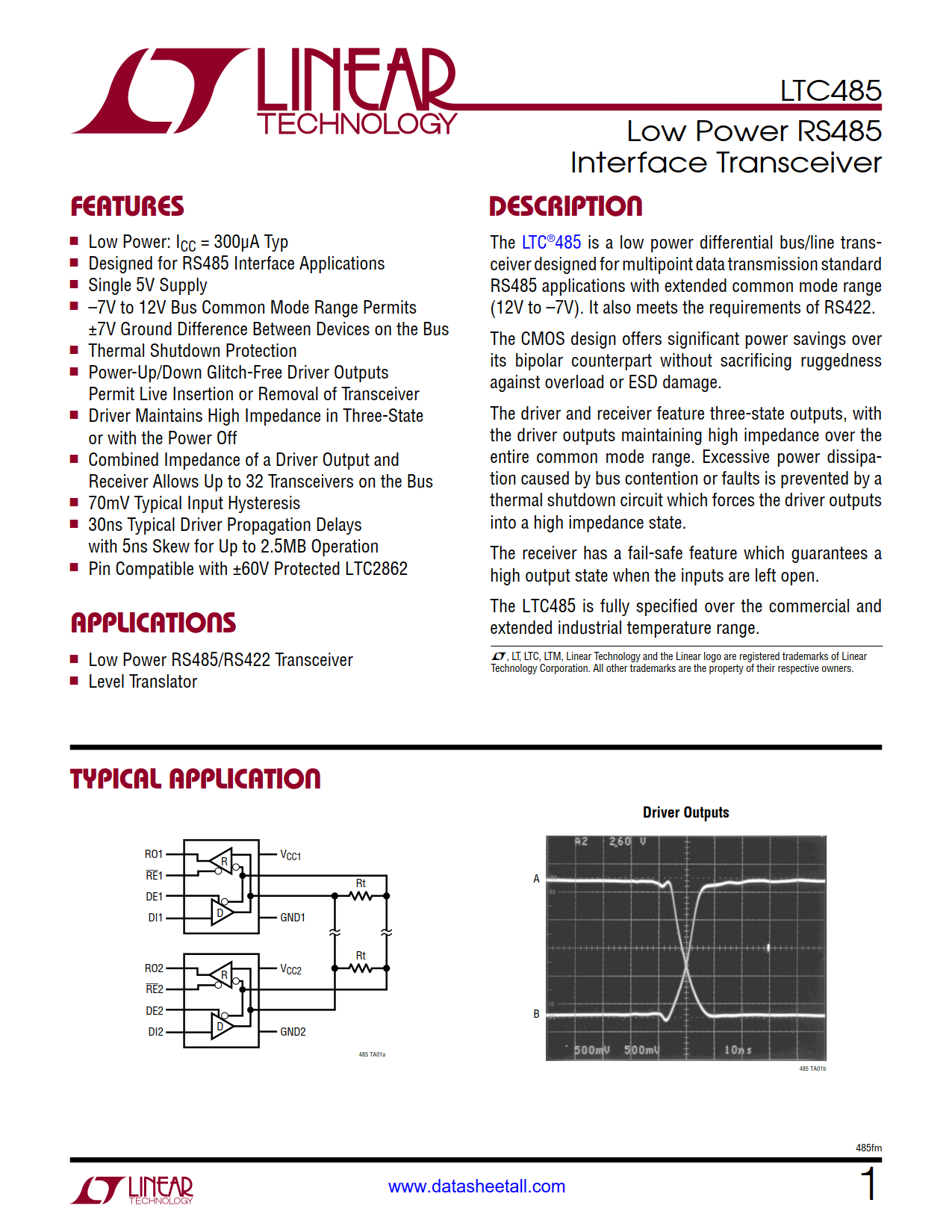

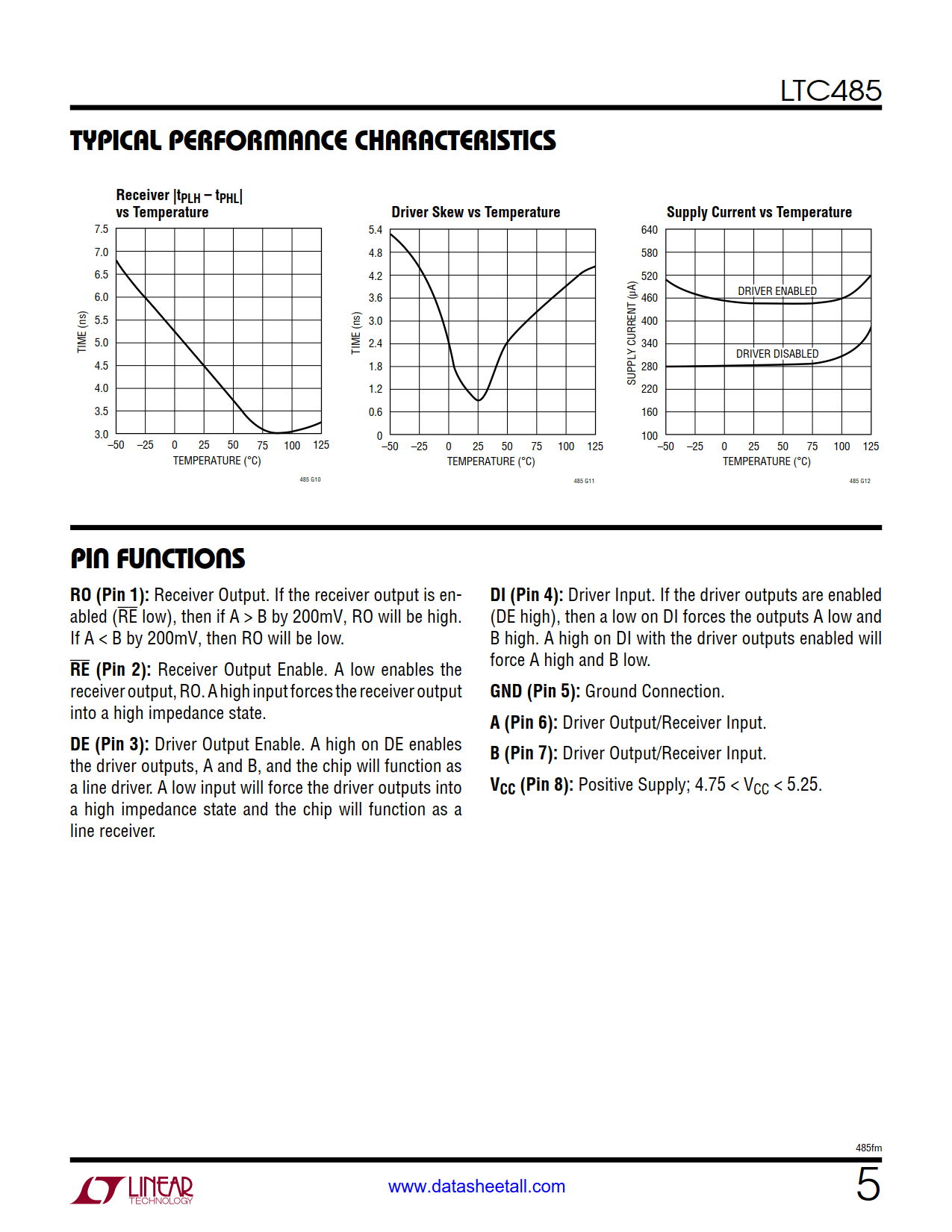

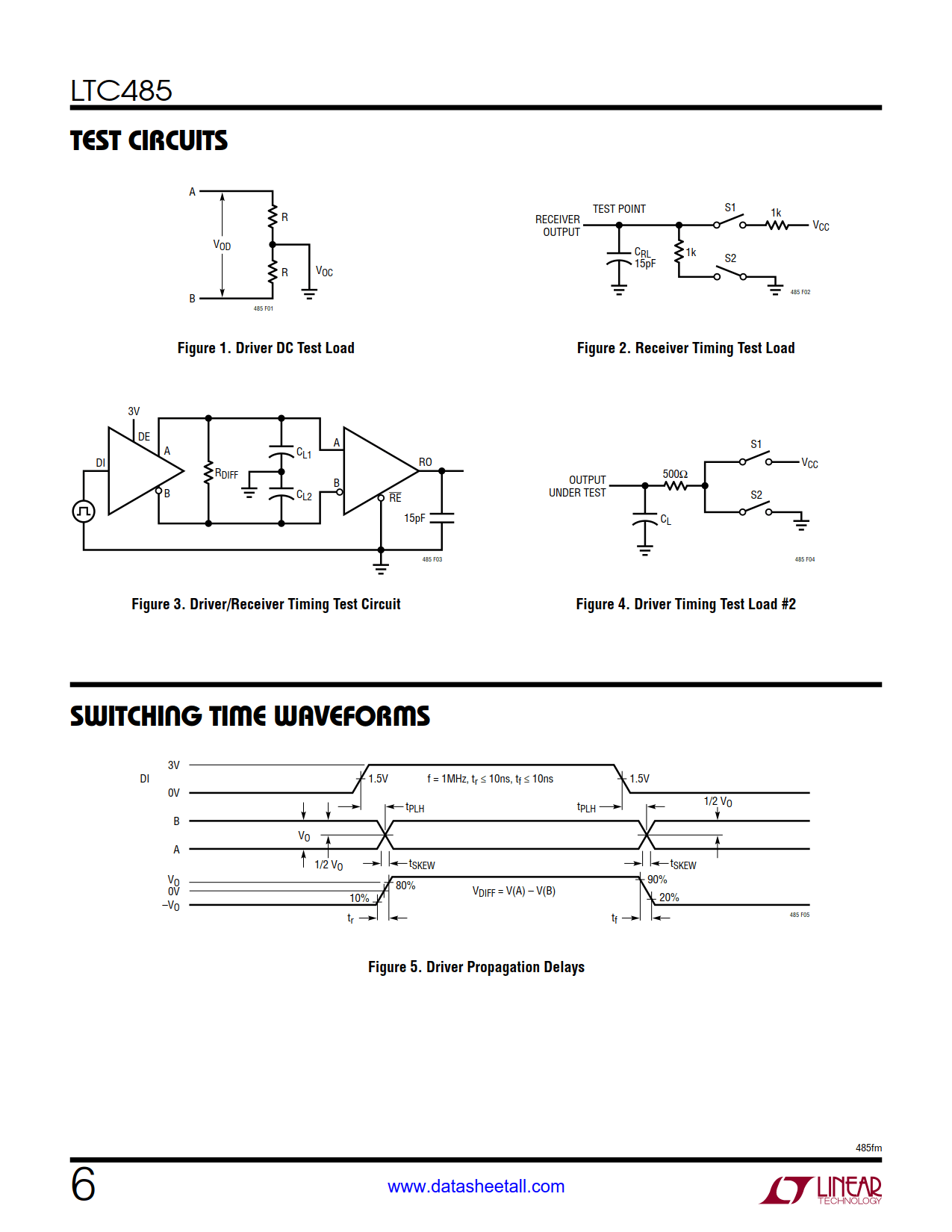

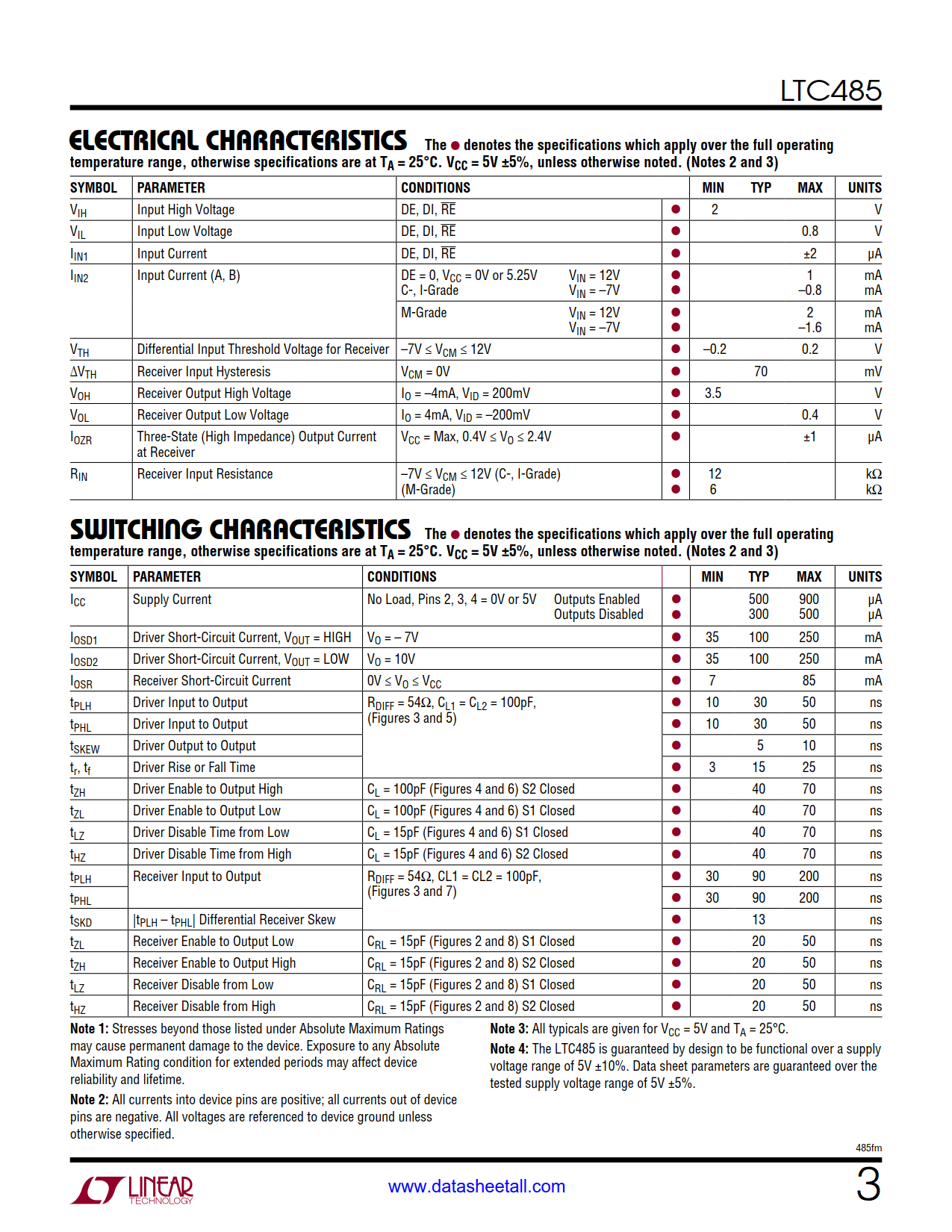

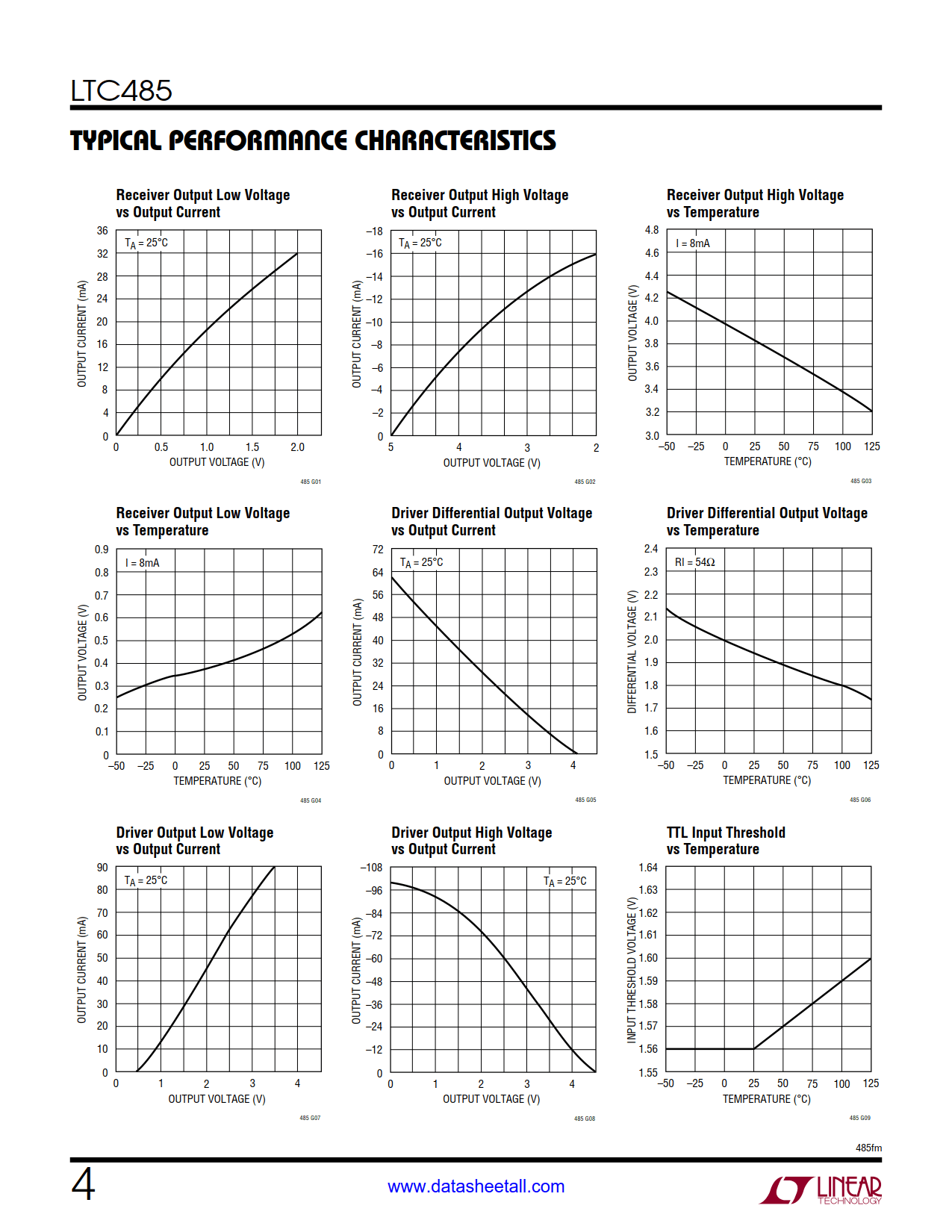

The LTC485 is a low power differential bus/line transceiver designed for multipoint data transmission standard RS485 applications with extended common mode range (12V to –7V). It also meets the requirements of RS422.
The CMOS design offers significant power savings over its bipolar counterpart without sacrificing ruggedness against overload or ESD damage.
The driver and receiver feature three-state outputs, with the driver outputs maintaining high impedance over the entire common mode range. Excessive power dissipation caused by bus contention or faults is prevented by a thermal shutdown circuit which forces the driver outputs into a high impedance state.
The receiver has a fail-safe feature which guarantees a high output state when the inputs are left open.
The LTC485 is fully specified over the commercial and extended industrial temperature range.
