LTC4444 Datasheet

LTC4444 Datasheet

High Voltage Synchronous N-Channel MOSFET Driver
Part No.: LTC4444
Page: 14 Pages
Size: 829 KB
Manufacturer: Linear Technology
Logo:
Views: 2
Update Time: 2023-11-02 09:40:12
DataSheet: Download

LTC4444 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC4444EMS8E#PBF Tube 50 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444EMS8E#TRPBF Reel 2500 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444EMS8E#TRMPBF Reel 500 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444IMS8E#PBF Tube 50 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444IMS8E#TRPBF Reel 2500 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444IMS8E#TRMPBF Reel 500 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444HMS8E#PBF Tube 50 LTDBF 1 8 -40°C ~ 150°C 8-Lead Plastic MSOP
LTC4444HMS8E#TRPBF Reel 2500 LTDBF 1 8 -40°C ~ 150°C 8-Lead Plastic MSOP
LTC4444HMS8E#TRMPBF Reel 500 LTDBF 1 8 -40°C ~ 150°C 8-Lead Plastic MSOP
LTC4444MPMS8E#PBF Tube 50 LTDBF 1 8 -55°C ~ 150°C 8-Lead Plastic MSOP
LTC4444MPMS8E#TRPBF Reel 2500 LTDBF 1 8 -55°C ~ 150°C 8-Lead Plastic MSOP
LTC4444MPMS8E#TRMPBF Reel 500 LTDBF 1 8 -55°C ~ 150°C 8-Lead Plastic MSOP
LTC4444EMS8E#WPBF Tube 50 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444EMS8E#WTRPBF Reel 2500 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444EMS8E#WTRMPBF Reel 500 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444IMS8E#WPBF Tube 50 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444IMS8E#WTRPBF Reel 2500 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444IMS8E#WTRMPBF Reel 500 LTDBF 1 8 -40°C ~ 125°C 8-Lead Plastic MSOP
LTC4444HMS8E#WPBF Tube 50 LTDBF 1 8 -40°C ~ 150°C 8-Lead Plastic MSOP
LTC4444HMS8E#WTRPBF Reel 2500 LTDBF 1 8 -40°C ~ 150°C 8-Lead Plastic MSOP
LTC4444HMS8E#WTRMPBF Reel 500 LTDBF 1 8 -40°C ~ 150°C 8-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC4444 Datasheet(PDF)

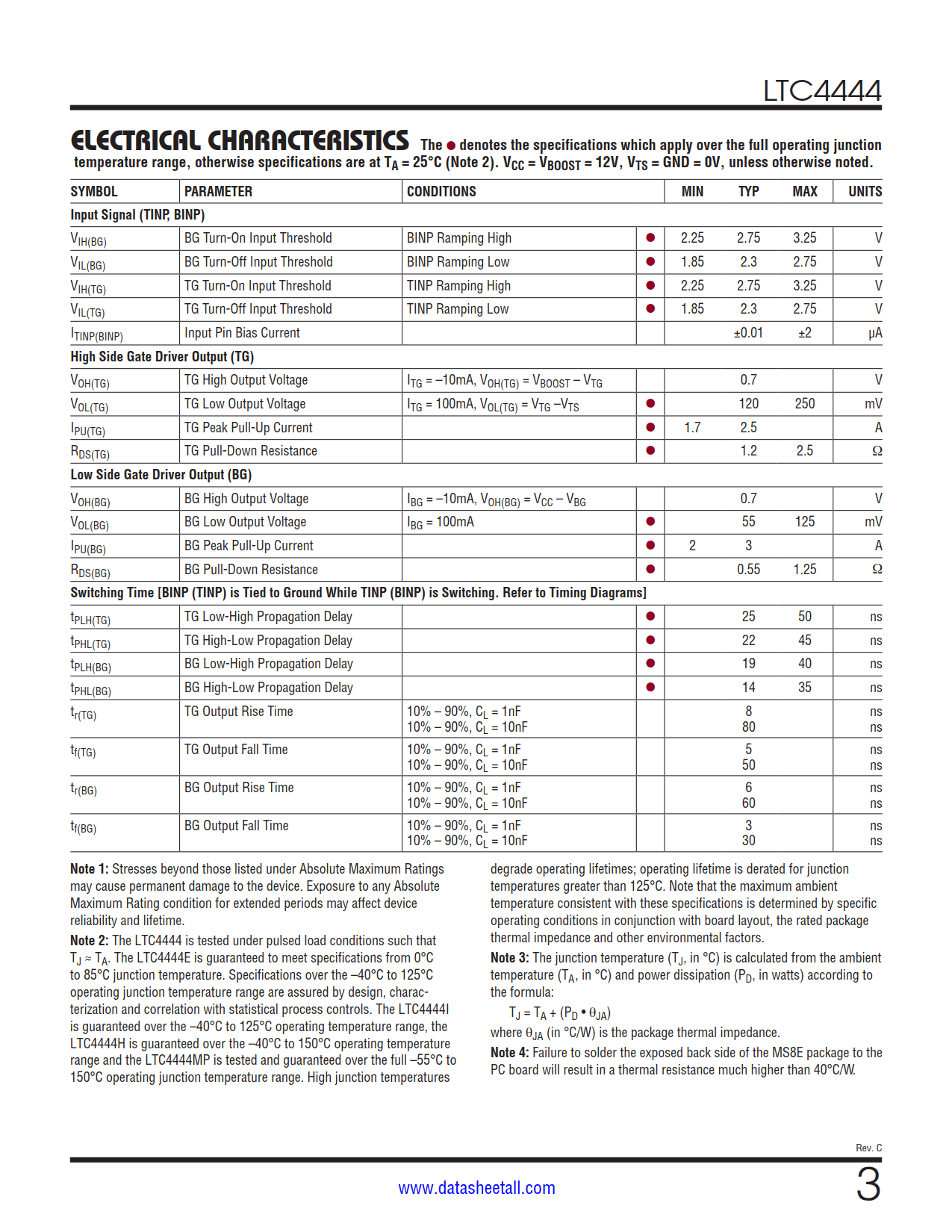

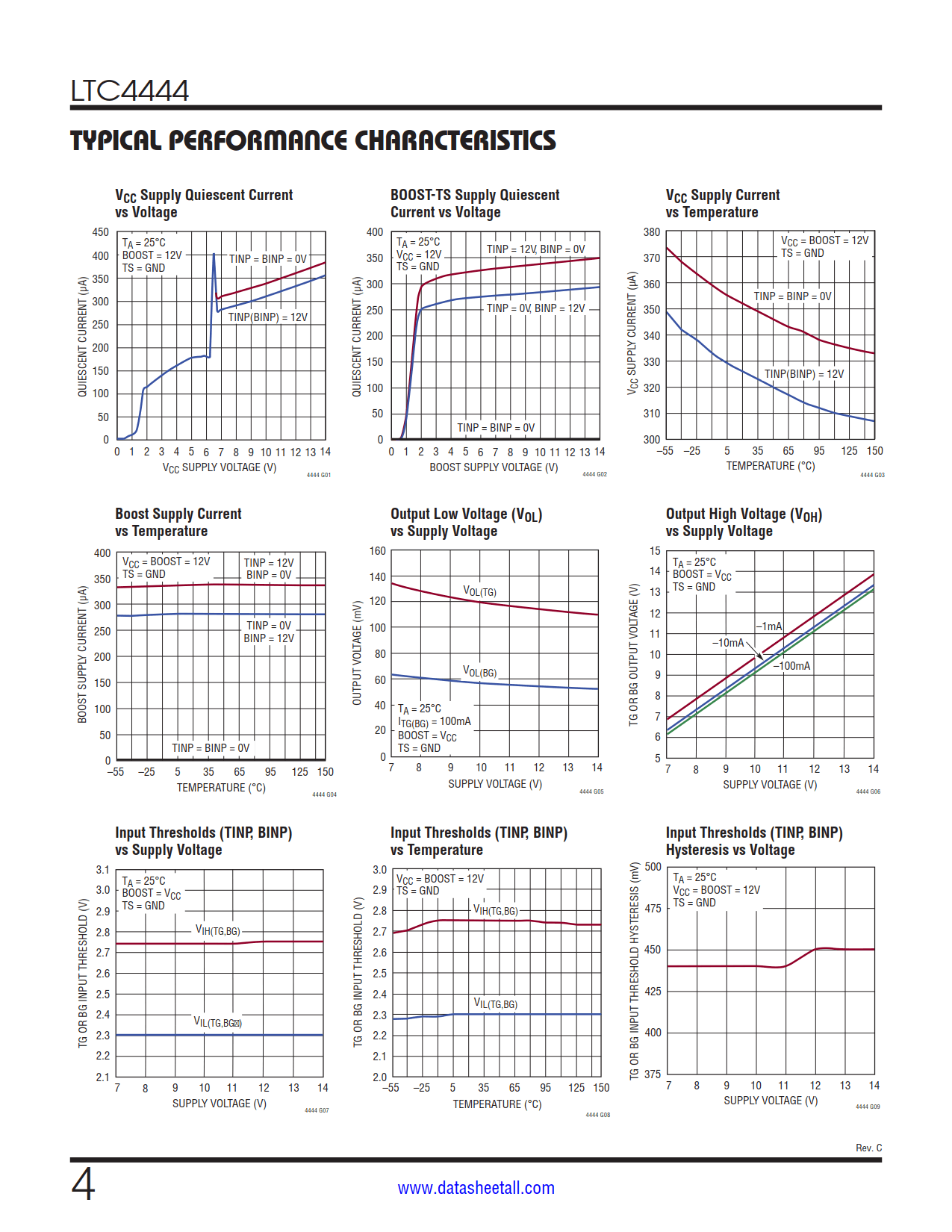

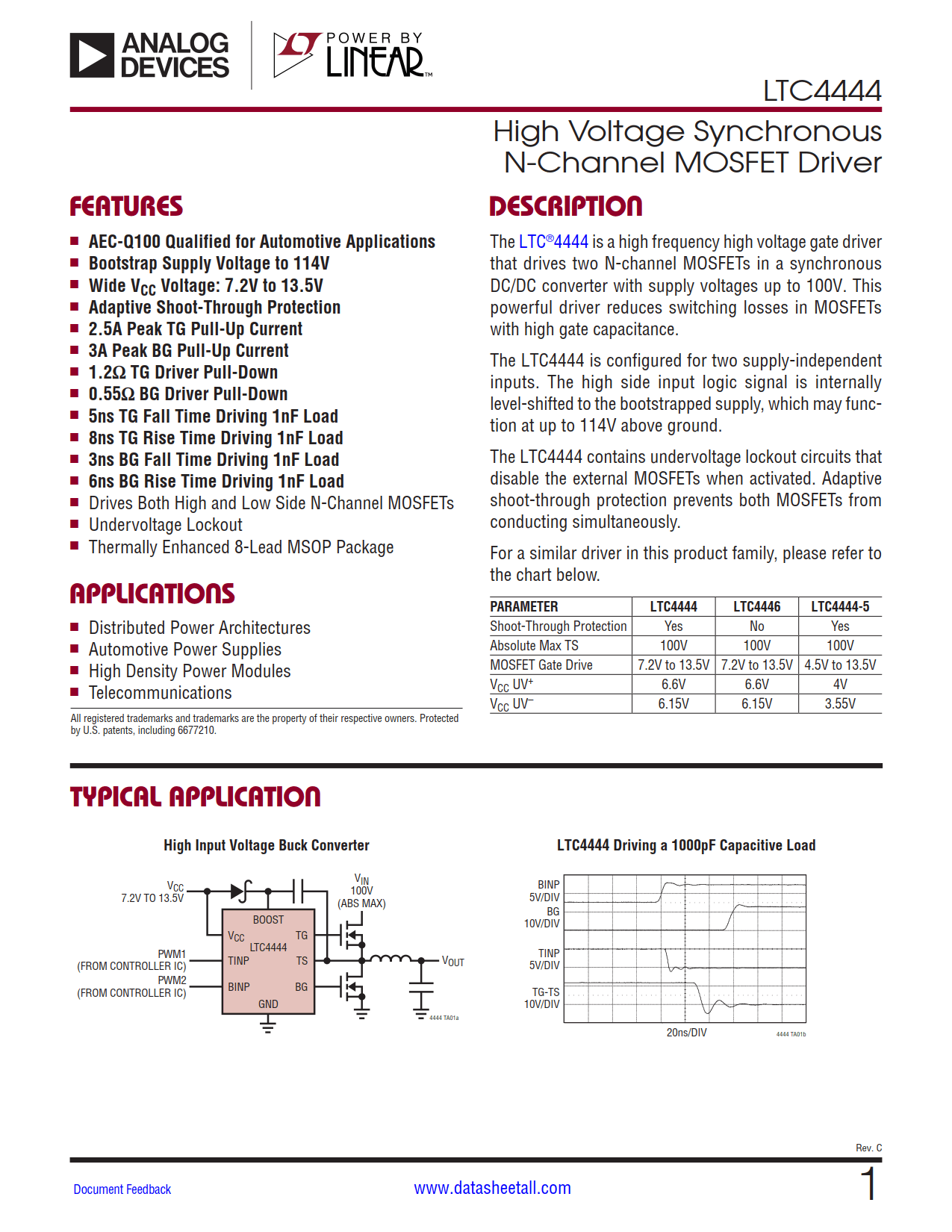

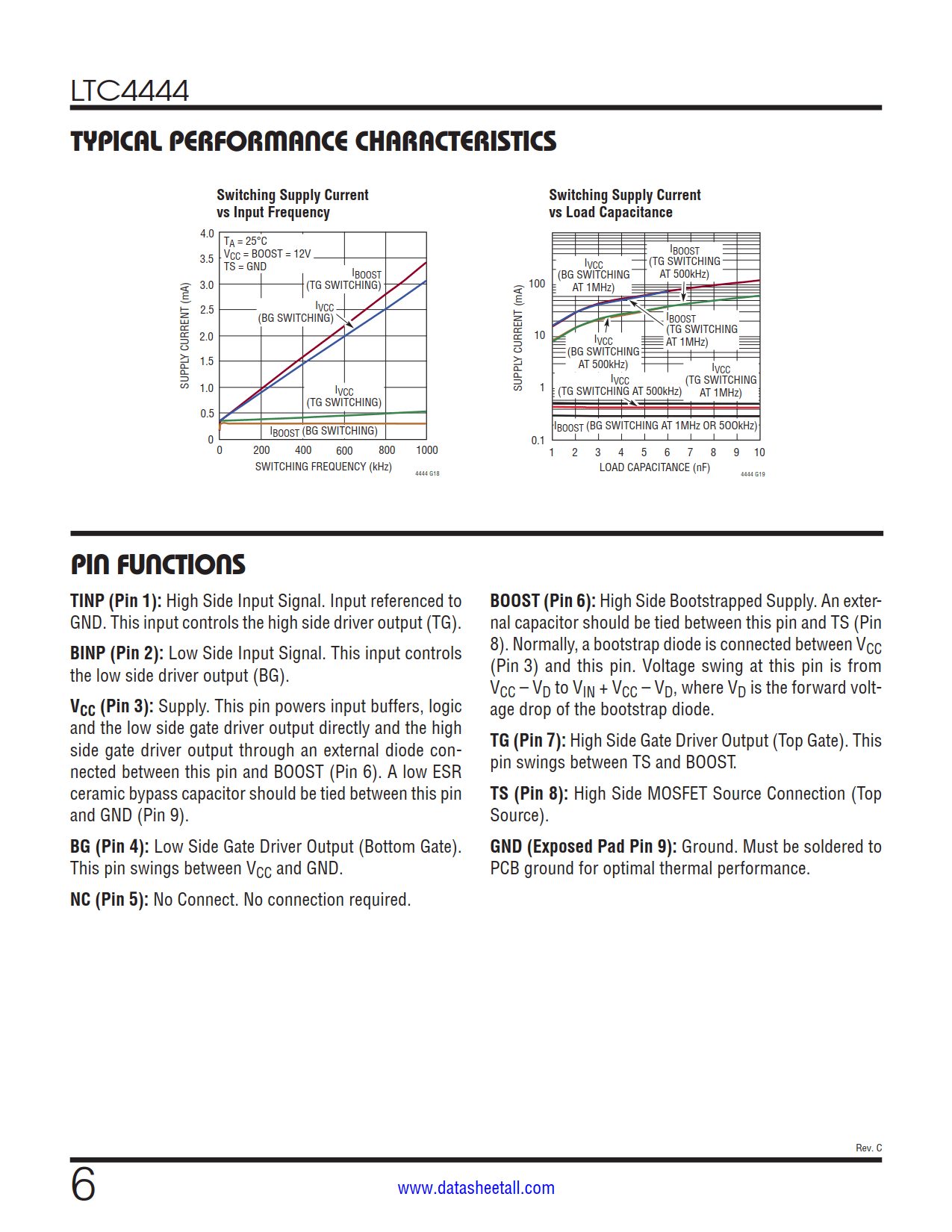

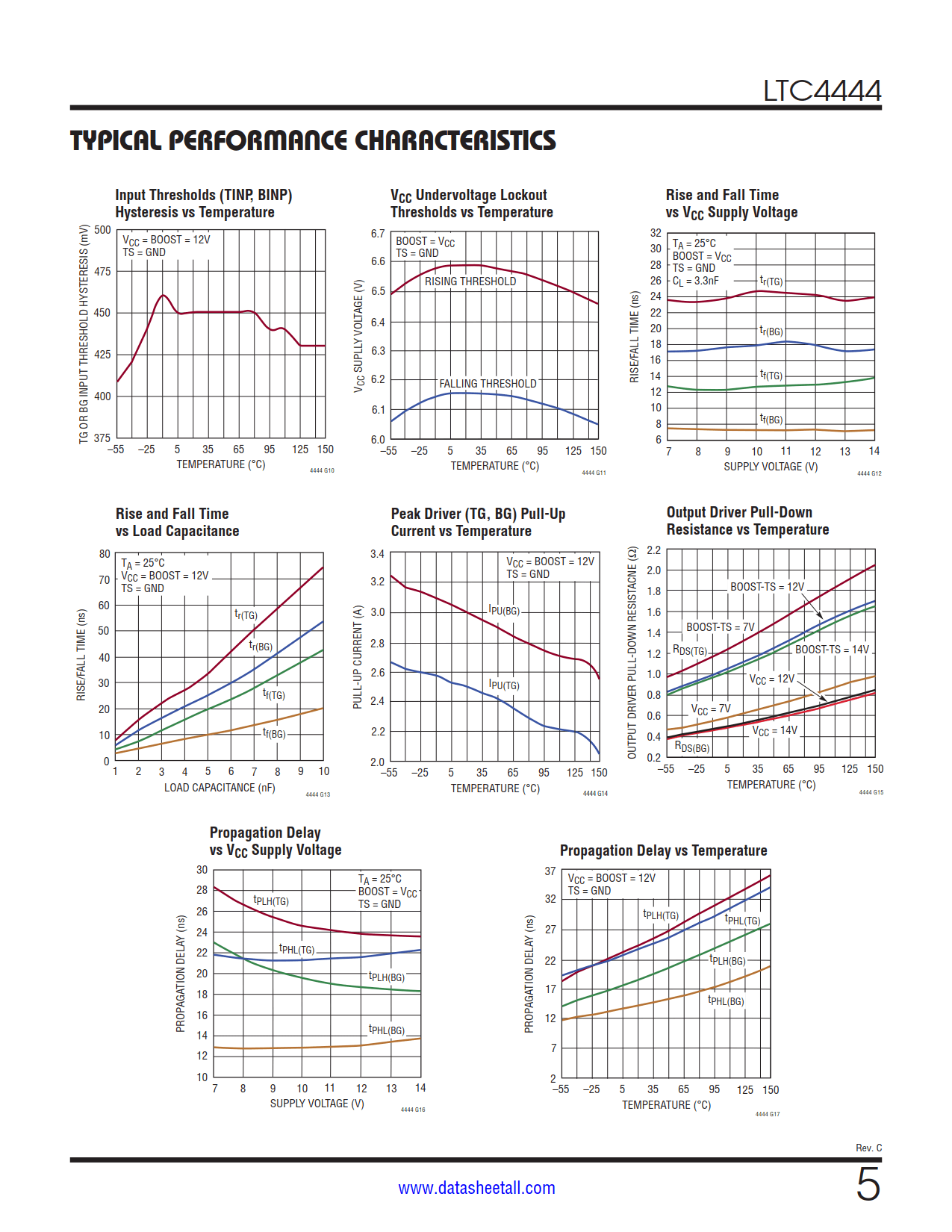

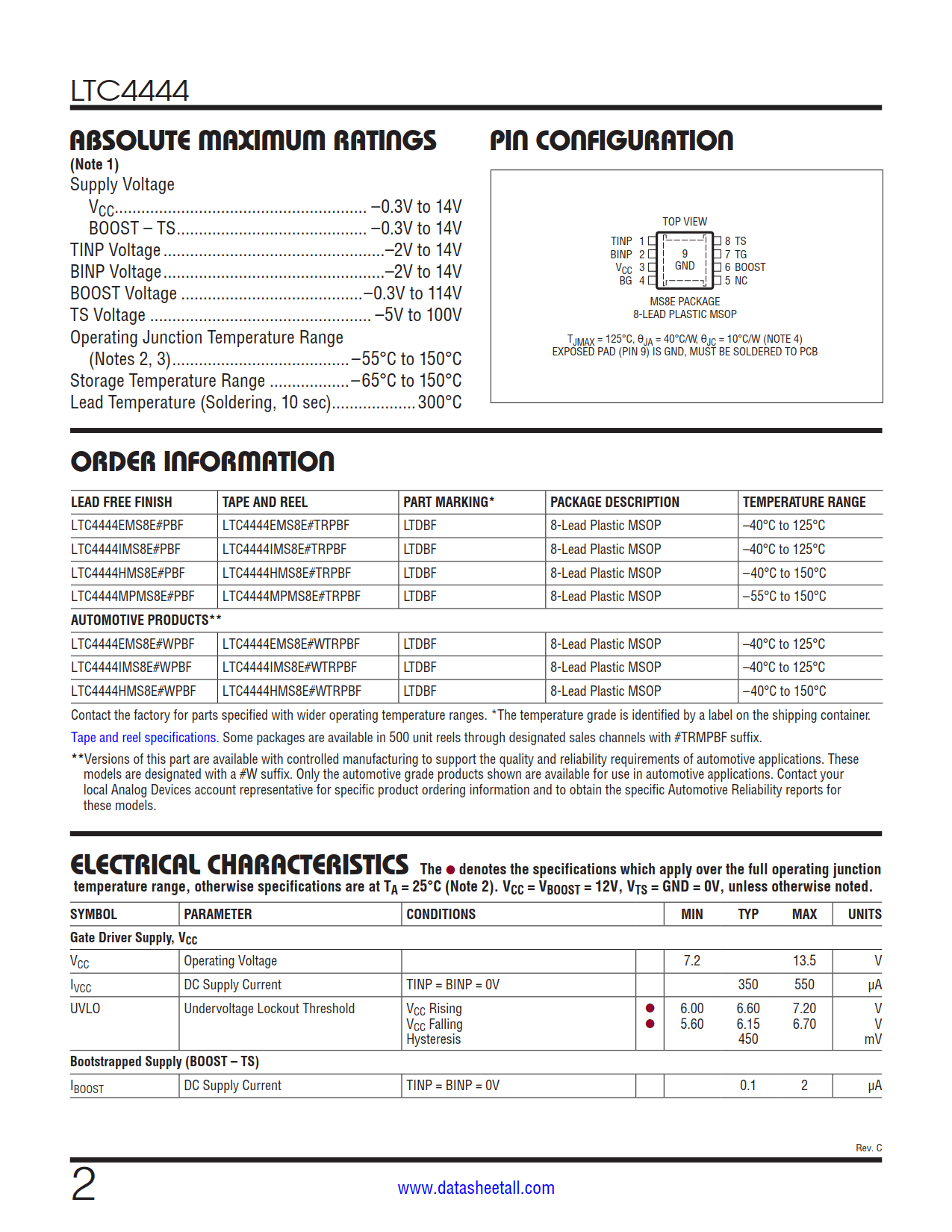

LTC4444 Datasheet(Picture)

LTC4444 Features

  • AEC-Q100 Qualified for Automotive Applications
  • Bootstrap Supply Voltage to 114V
  • Wide VCC Voltage: 7.2V to 13.5V
  • Adaptive Shoot-Through Protection
  • 2.5A Peak TG Pull-Up Current
  • 3A Peak BG Pull-Up Current
  • 1.2Ω TG Driver Pull-Down
  • 0.55Ω BG Driver Pull-Down
  • 5ns TG Fall Time Driving 1nF Load
  • 8ns TG Rise Time Driving 1nF Load
  • 3ns BG Fall Time Driving 1nF Load
  • 6ns BG Rise Time Driving 1nF Load
  • Drives Both High and Low Side N-Channel MOSFETs
  • Undervoltage Lockout
  • Thermally Enhanced 8-Lead MSOP Package

LTC4444 Applications

  • Distributed Power Architectures
  • Automotive Power Supplies
  • High Density Power Modules
  • Telecommunications

LTC4444 Description

The LTC4444 is a high frequency high voltage gate driver that drives two N-channel MOSFETs in a synchronous DC/DC converter with supply voltages up to 100V. This powerful driver reduces switching losses in MOSFETs with high gate capacitance.

The LTC4444 is configured for two supply-independent inputs. The high side input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 114V above ground.

The LTC4444 contains undervoltage lockout circuits that disable the external MOSFETs when activated. Adaptive shoot-through protection prevents both MOSFETs from conducting simultaneously.
