LTC4440A-5 Datasheet

LTC4440A-5 Datasheet

High Speed, High Voltage, High Side Gate Driver
Part No.: LTC4440A-5
Page: 12 Pages
Size: 346 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-11-27 11:18:50
DataSheet: Download

LTC4440A-5 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC4440AIMS8E-5#PBF Tube 50 LTGKP 1 8 -40°C ~125°C 8-Lead Plastic MSOP
LTC4440AIMS8E-5#TRPBF Reel 2500 LTGKP 1 8 -40°C ~125°C 8-Lead Plastic MSOP
LTC4440AIMS8E-5#TRMPBF Reel 500 LTGKP 1 8 -40°C ~125°C 8-Lead Plastic MSOP
LTC4440AHMS8E-5#PBF Tube 50 LTGKP 1 8 -40°C ~150°C 8-Lead Plastic MSOP
LTC4440AHMS8E-5#TRPBF Reel 2500 LTGKP 1 8 -40°C ~150°C 8-Lead Plastic MSOP
LTC4440AHMS8E-5#TRMPBF Reel 500 LTGKP 1 8 -40°C ~150°C 8-Lead Plastic MSOP
LTC4440AMPMS8E-5#PBF Tube 50 LTGKP 1 8 -55°C ~150°C 8-Lead Plastic MSOP
LTC4440AMPMS8E-5#TRPBF Reel 2500 LTGKP 1 8 -55°C ~150°C 8-Lead Plastic MSOP
LTC4440AMPMS8E-5#TRMPBF Reel 500 LTGKP 1 8 -55°C ~150°C 8-Lead Plastic MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC4440A-5 Datasheet(PDF)

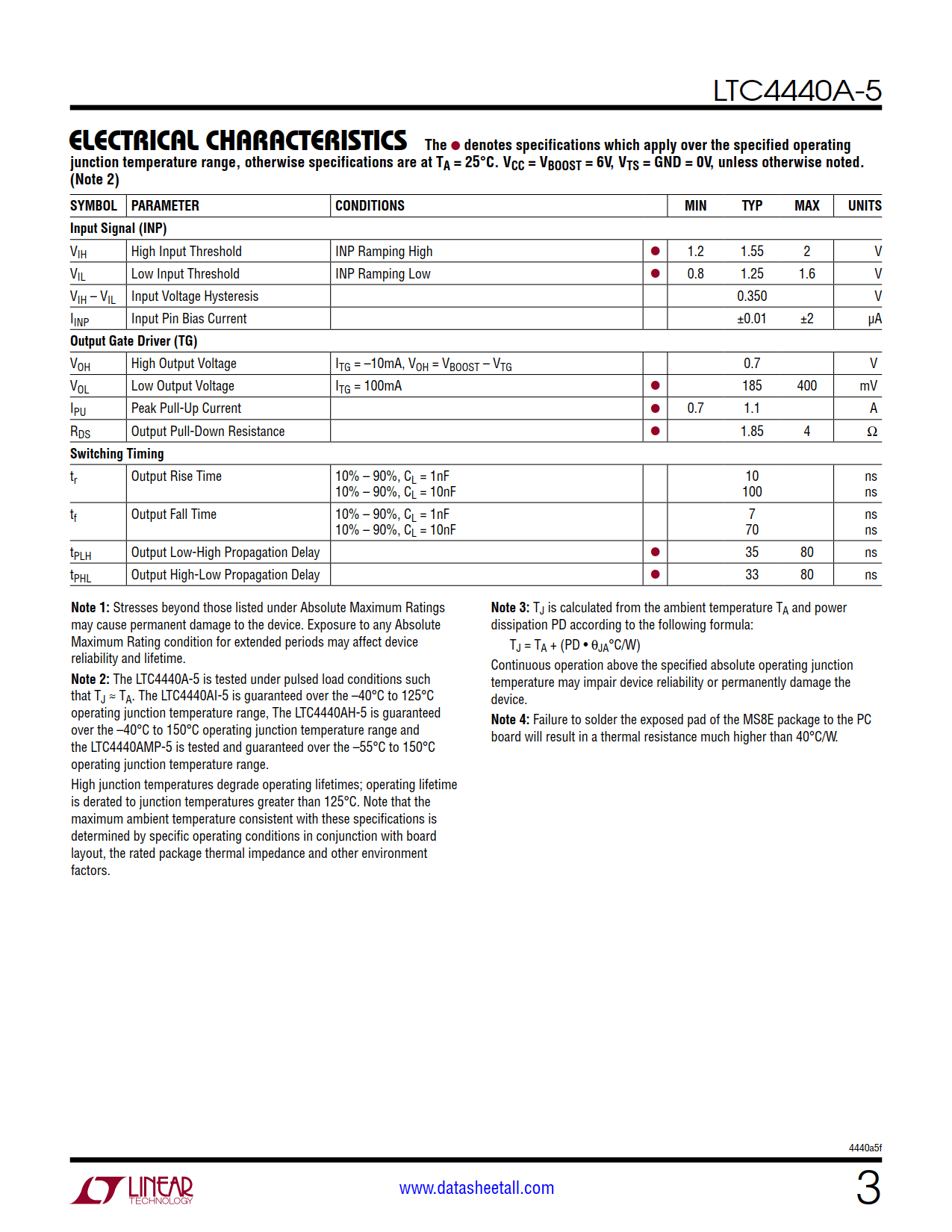

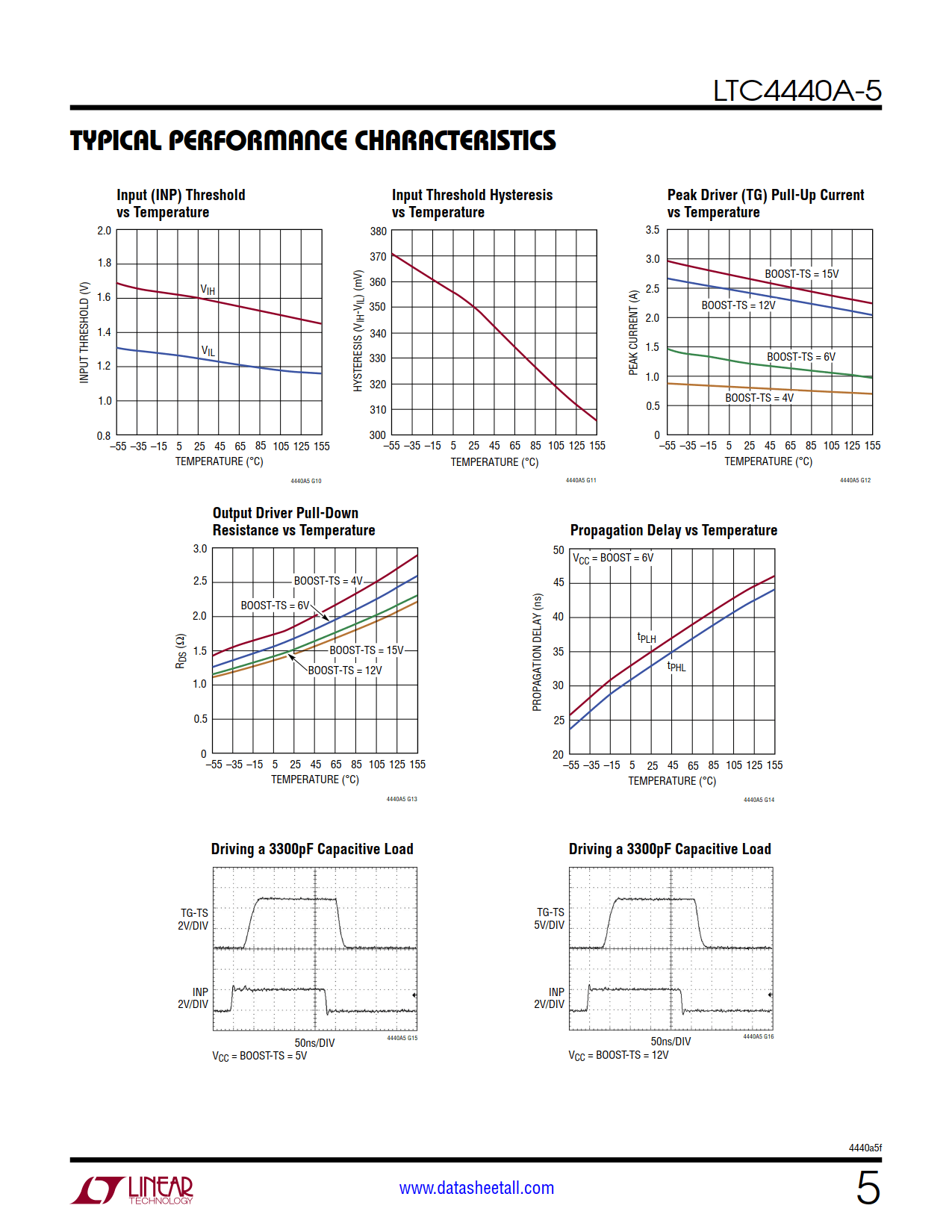

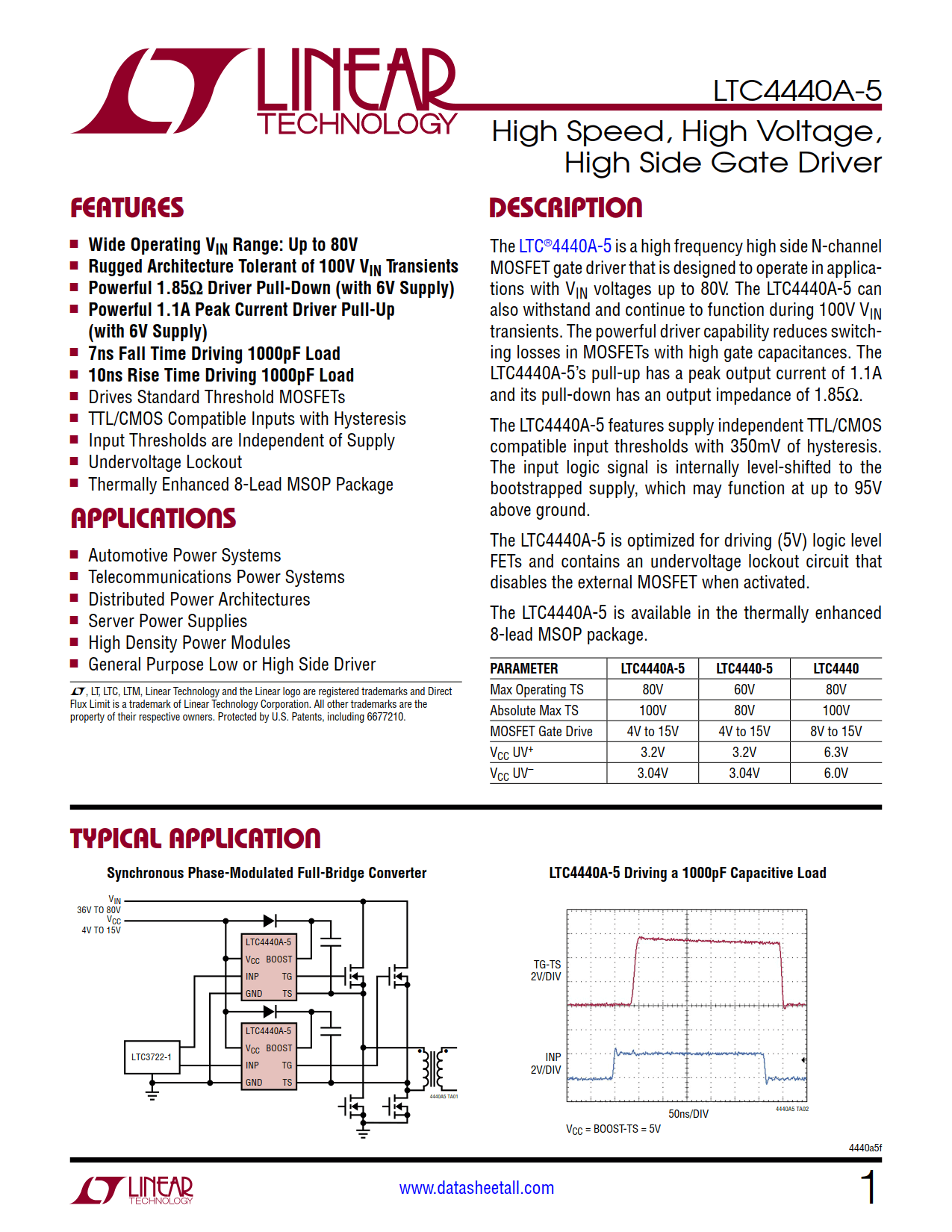

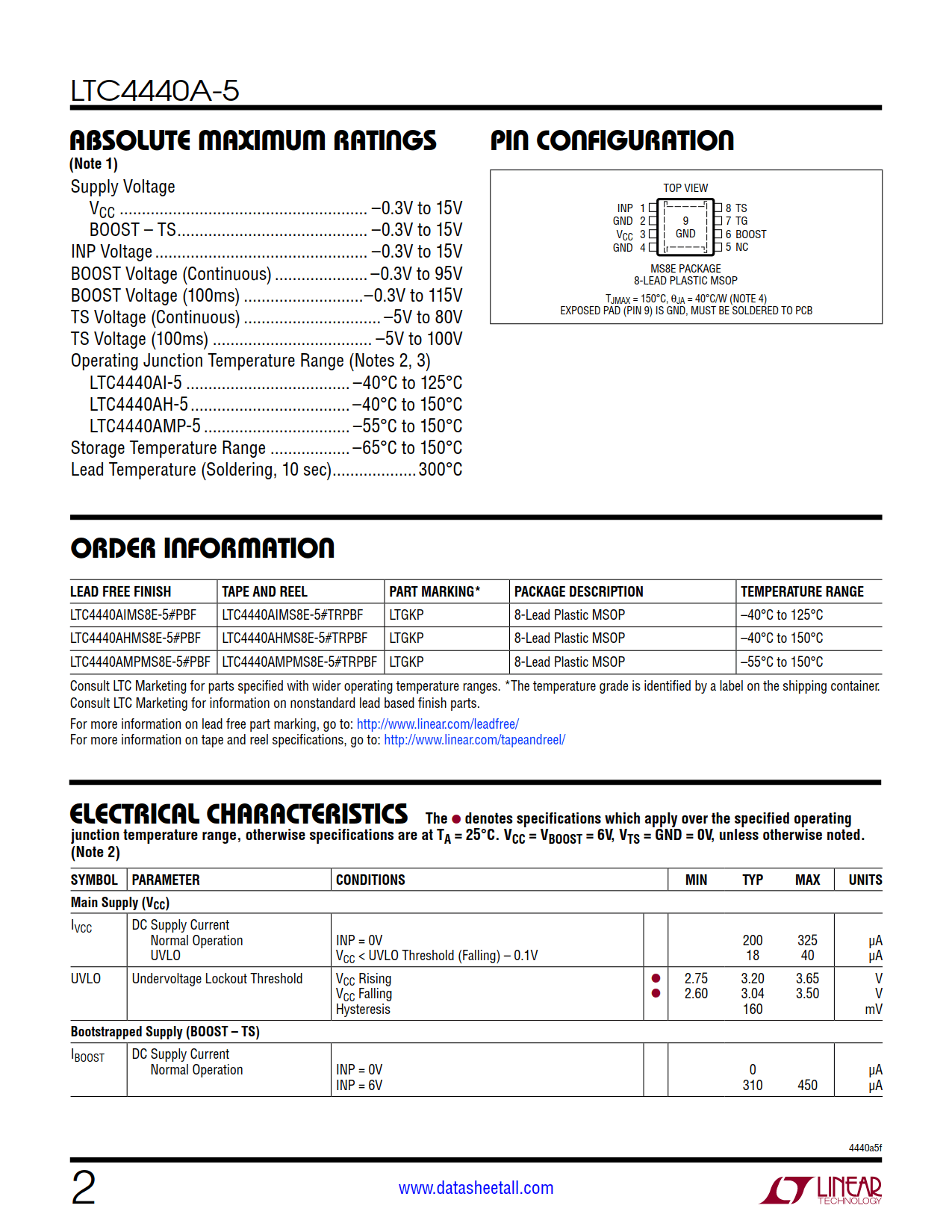

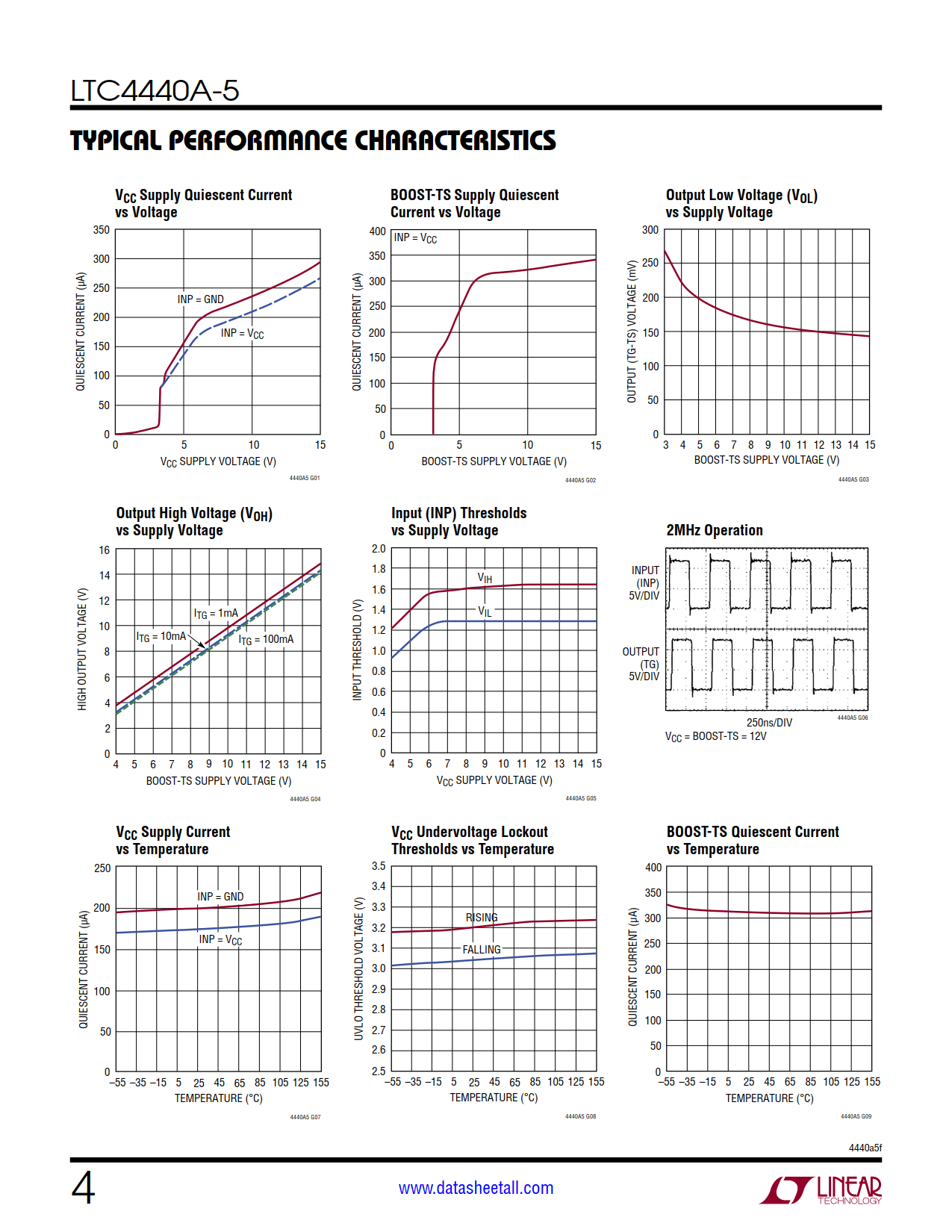

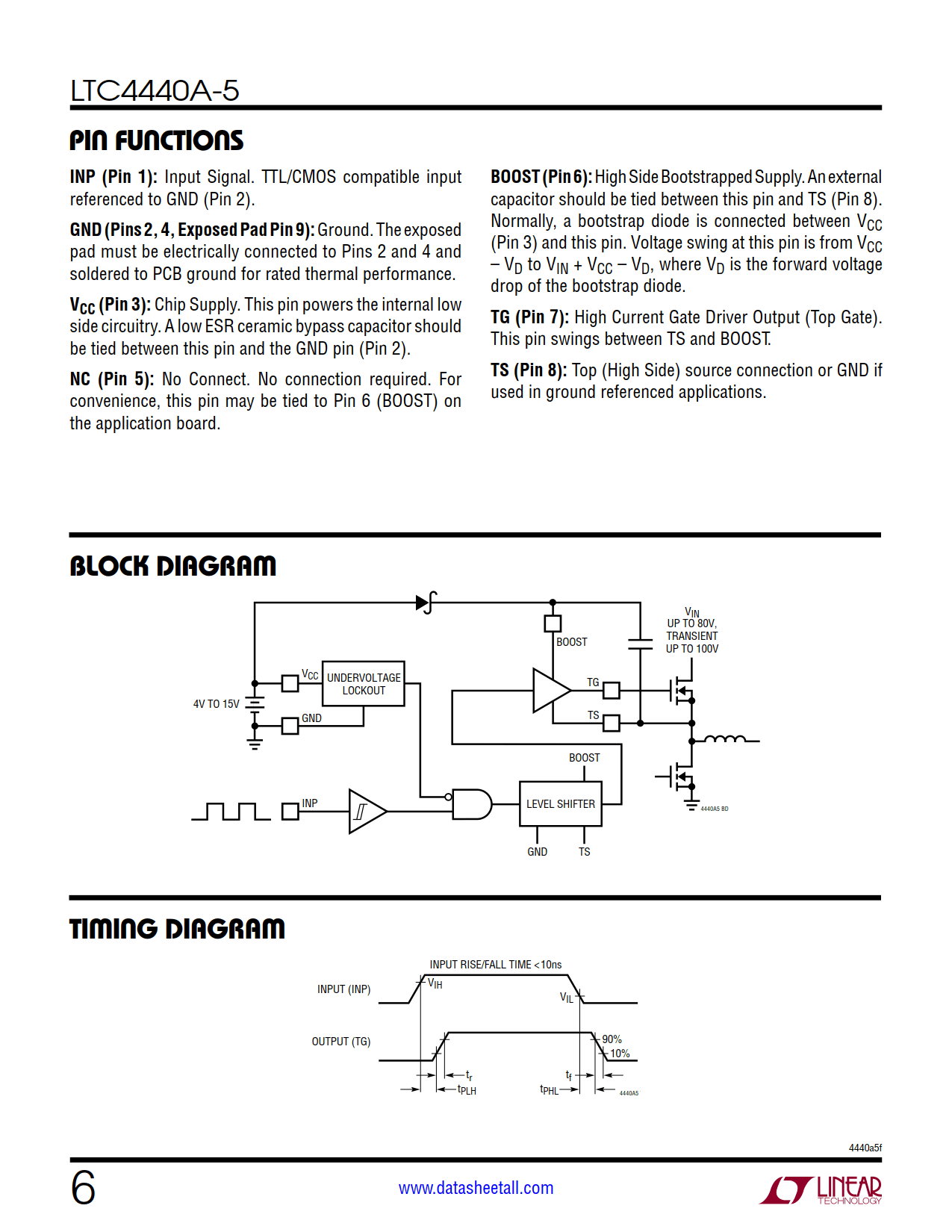

LTC4440A-5 Datasheet(Picture)

LTC4440A-5 Features

  • Wide Operating VIN Range: Up to 80V
  • Rugged Architecture Tolerant of 100V VIN Transients
  • Powerful 1.85Ω Driver Pull-Down (with 6V Supply)
  • Powerful 1.1A Peak Current Driver Pull-Up (with 6V Supply)
  • 7ns Fall Time Driving 1000pF Load
  • 10ns Rise Time Driving 1000pF Load
  • Drives Standard Threshold MOSFETs
  • TTL/CMOS Compatible Inputs with Hysteresis
  • Input Thresholds are Independent of Supply
  • Undervoltage Lockout
  • Thermally Enhanced 8-Lead MSOP Package

LTC4440A-5 Applications

  • Automotive Power Systems
  • Telecommunications Power Systems
  • Distributed Power Architectures
  • Server Power Supplies
  • High Density Power Modules
  • General Purpose Low or High Side Driver

LTC4440A-5 Description

The LTC4440A-5 is a high frequency high side N-channel MOSFET gate driver that is designed to operate in applications with VIN voltages up to 80V. The LTC4440A-5 can also withstand and continue to function during 100V VIN transients. The powerful driver capability reduces switching losses in MOSFETs with high gate capacitances. The LTC4440A-5’s pull-up has a peak output current of 1.1A and its pull-down has an output impedance of 1.85Ω.

The LTC4440A-5 features supply independent TTL/CMOS compatible input thresholds with 350mV of hysteresis. The input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 95V above ground.

The LTC4440A-5 is optimized for driving (5V) logic level FETs and contains an undervoltage lockout circuit that disables the external MOSFET when activated.

The LTC4440A-5 is available in the thermally enhanced 8-lead MSOP package.
