LTC4412HV Datasheet

LTC4412HV Datasheet

36V, Low Loss PowerPath™ Controller in ThinSOT
Part No.: LTC4412HV
Page: 14 Pages
Size: 398 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2023-11-02 09:50:09
DataSheet: Download

LTC4412HV Datasheet Applicable Part

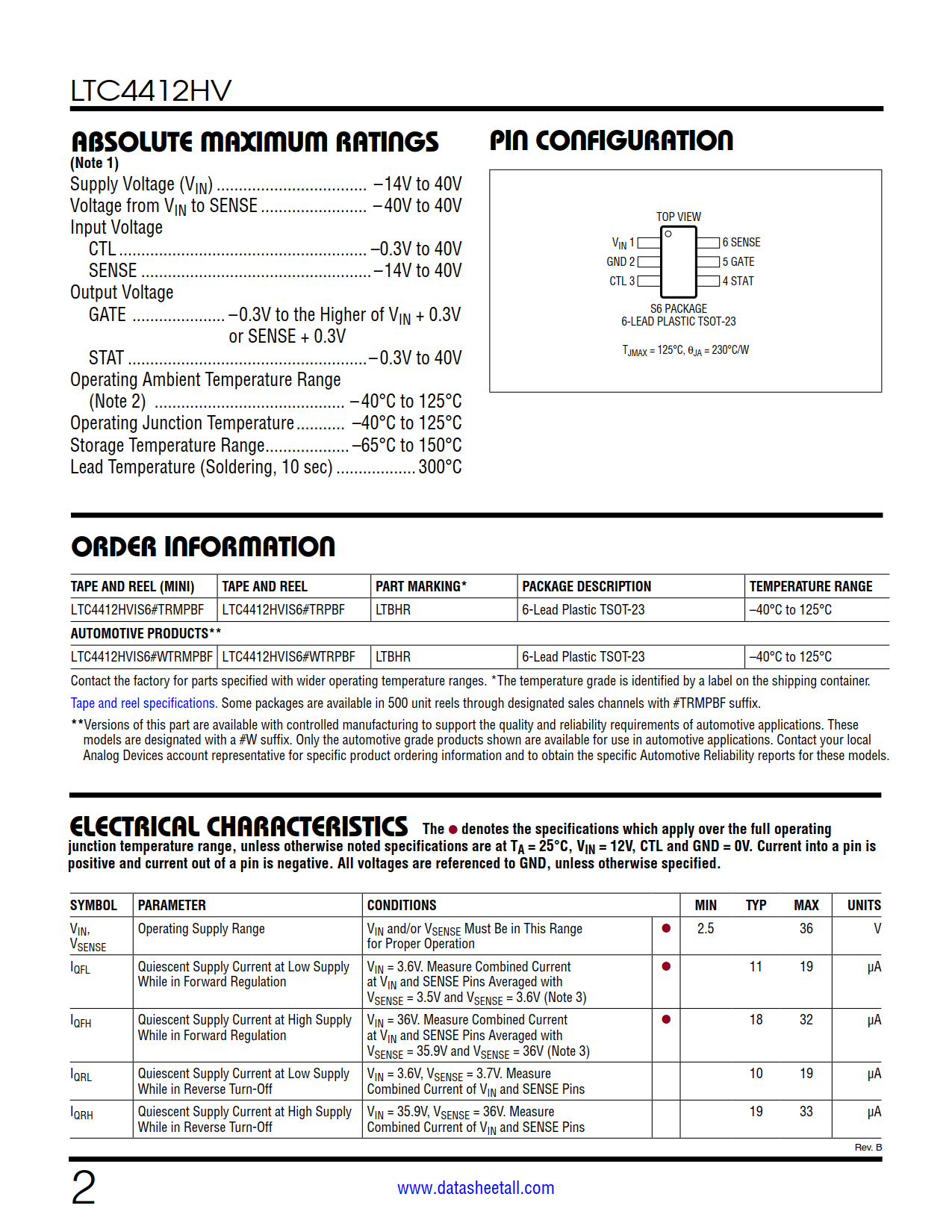

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC4412HVIS6#PBF Tube   LTBHR 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC4412HVIS6#TRPBF Reel 2500 LTBHR 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC4412HVIS6#TRMPBF Reel 500 LTBHR 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC4412HVIS6#WPBF Tube   LTBHR 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC4412HVIS6#WTRPBF Reel 2500 LTBHR 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
LTC4412HVIS6#WTRMPBF Reel 500 LTBHR 1 6 -40°C ~ 125°C 6-Lead Plastic TSOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC4412HV Datasheet(PDF)

LTC4412HV Datasheet(Picture)

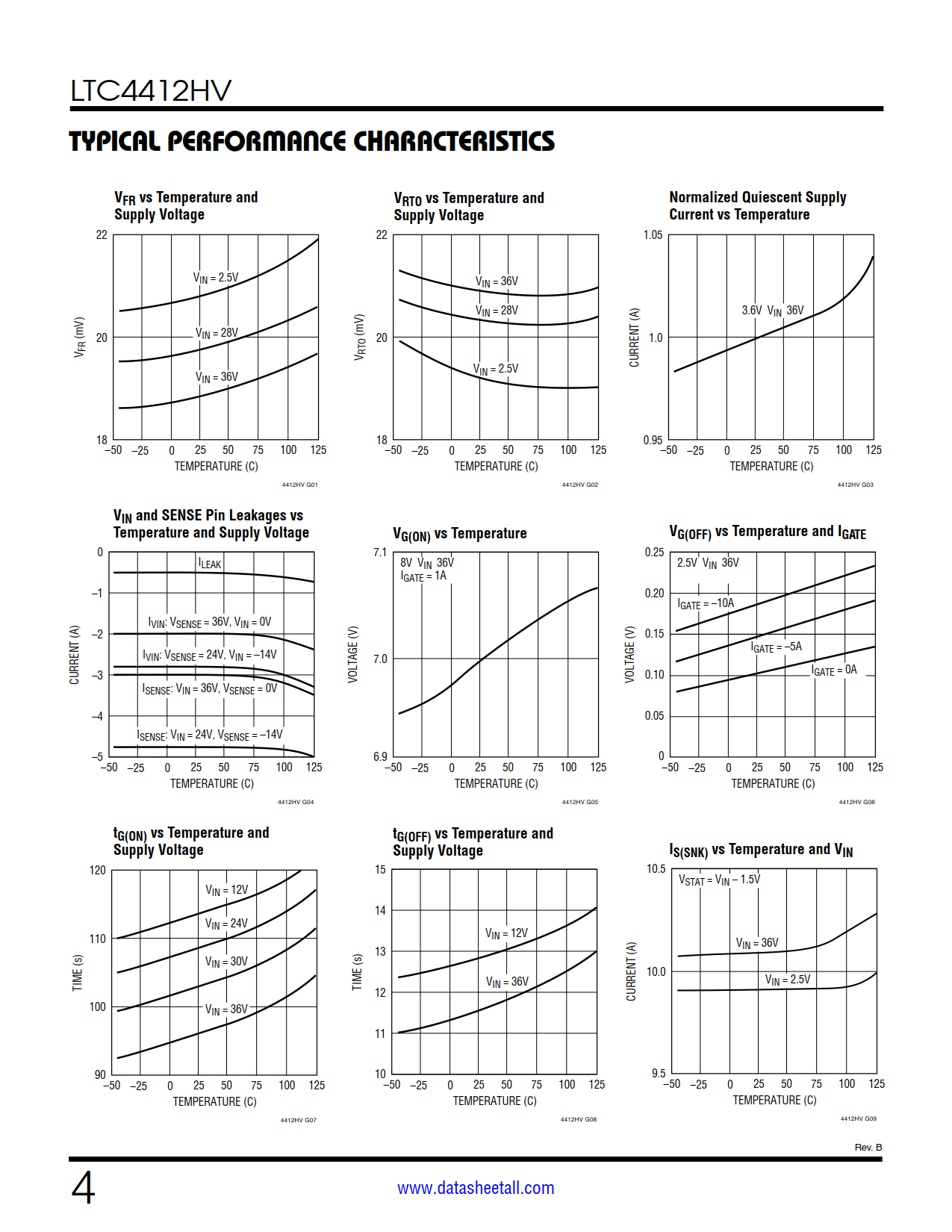

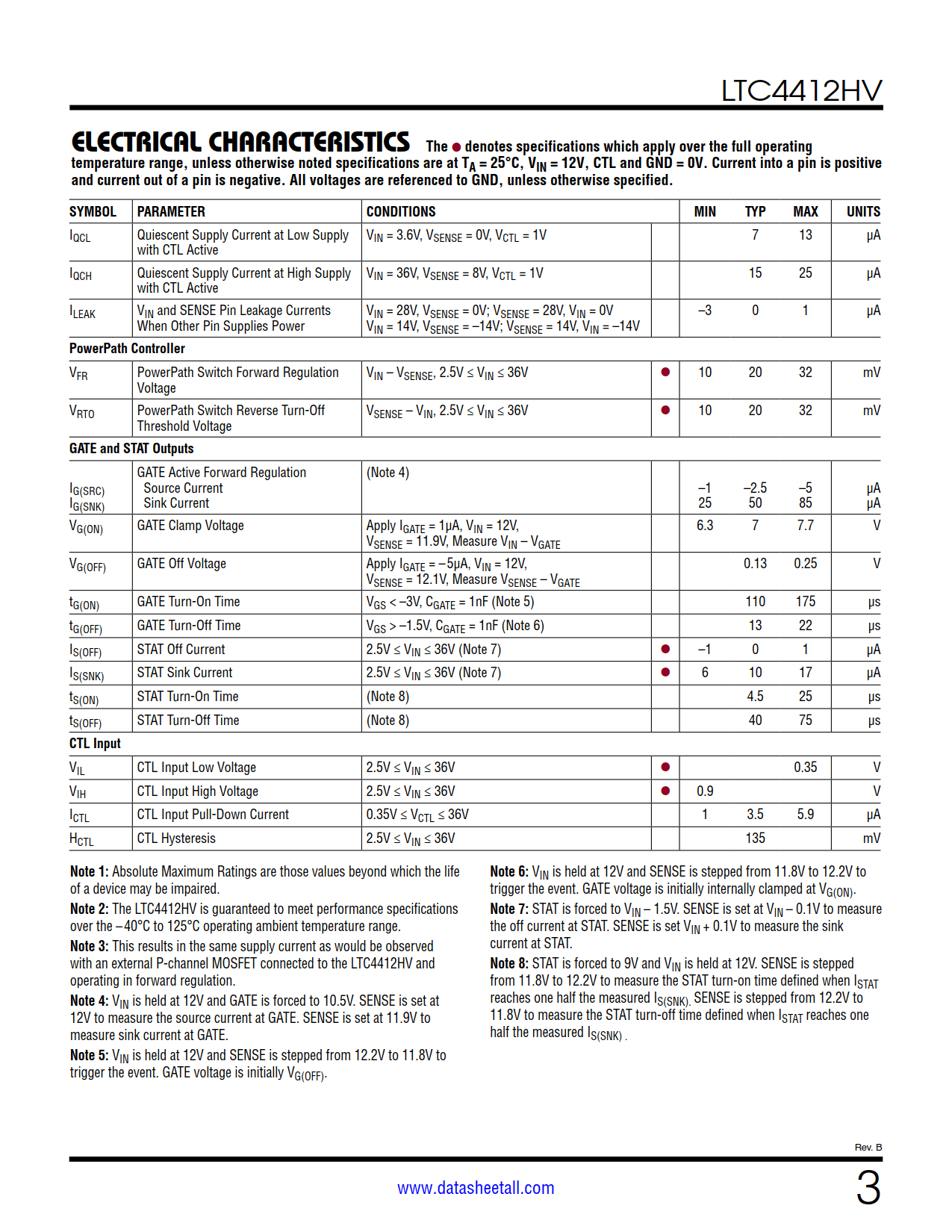

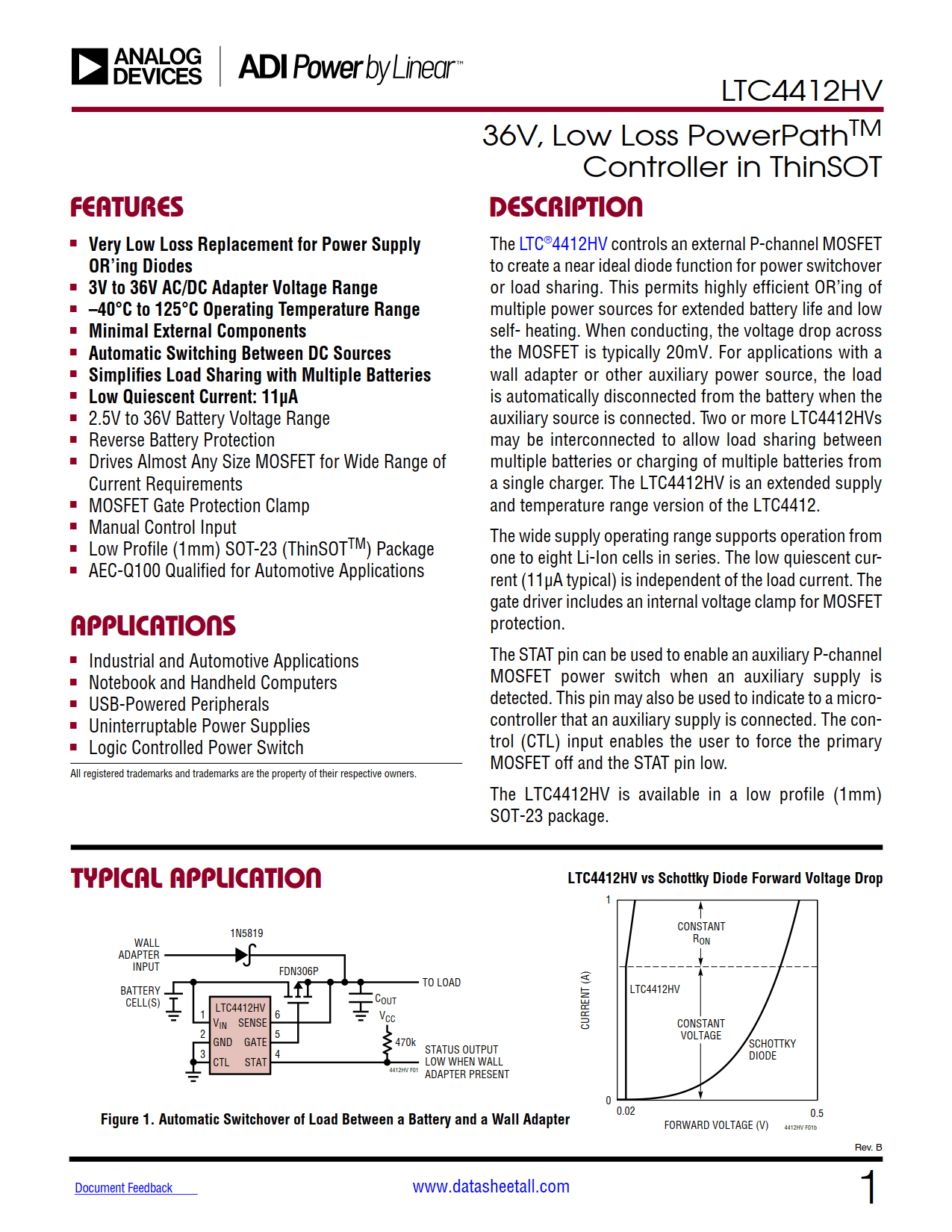

LTC4412HV Features

  • Very Low Loss Replacement for Power Supply OR’ing Diodes
  • 3V to 36V AC/DC Adapter Voltage Range
  • –40°C to 125°C Operating Temperature Range
  • Minimal External Components
  • Automatic Switching Between DC Sources
  • Simplifies Load Sharing with Multiple Batteries
  • Low Quiescent Current: 11µA
  • 2.5V to 36V Battery Voltage Range
  • Reverse Battery Protection
  • Drives Almost Any Size MOSFET for Wide Range of Current Requirements
  • MOSFET Gate Protection Clamp
  • Manual Control Input
  • Low Profile (1mm) SOT-23 (ThinSOT) Package
  • AEC-Q100 Qualified for Automotive Applications

LTC4412HV Applications

  • Industrial and Automotive Applications
  • Notebook and Handheld Computers
  • USB-Powered Peripherals
  • Uninterruptible Power Supplies
  • Logic Controlled Power Switch

LTC4412HV Description

The LTC4412HV controls an external P-channel MOSFET to create a near ideal diode function for power switchover or load sharing. This permits highly efficient OR’ing of multiple power sources for extended battery life and low selfheating. When conducting, the voltage drop across the MOSFET is typically 20mV. For applications with a wall adapter or other auxiliary power source, the load is automatically disconnected from the battery when the auxiliary source is connected. Two or more LTC4412HVs may be interconnected to allow load sharing between multiple batteries or charging of multiple batteries from a single charger. The LTC4412HV is an extended supply and temperature range version of the LTC4412.

The wide supply operating range supports operation from one to eight Li-Ion cells in series. The low quiescent current (11µA typical) is independent of the load current. The gate driver includes an internal voltage clamp for MOSFET protection.

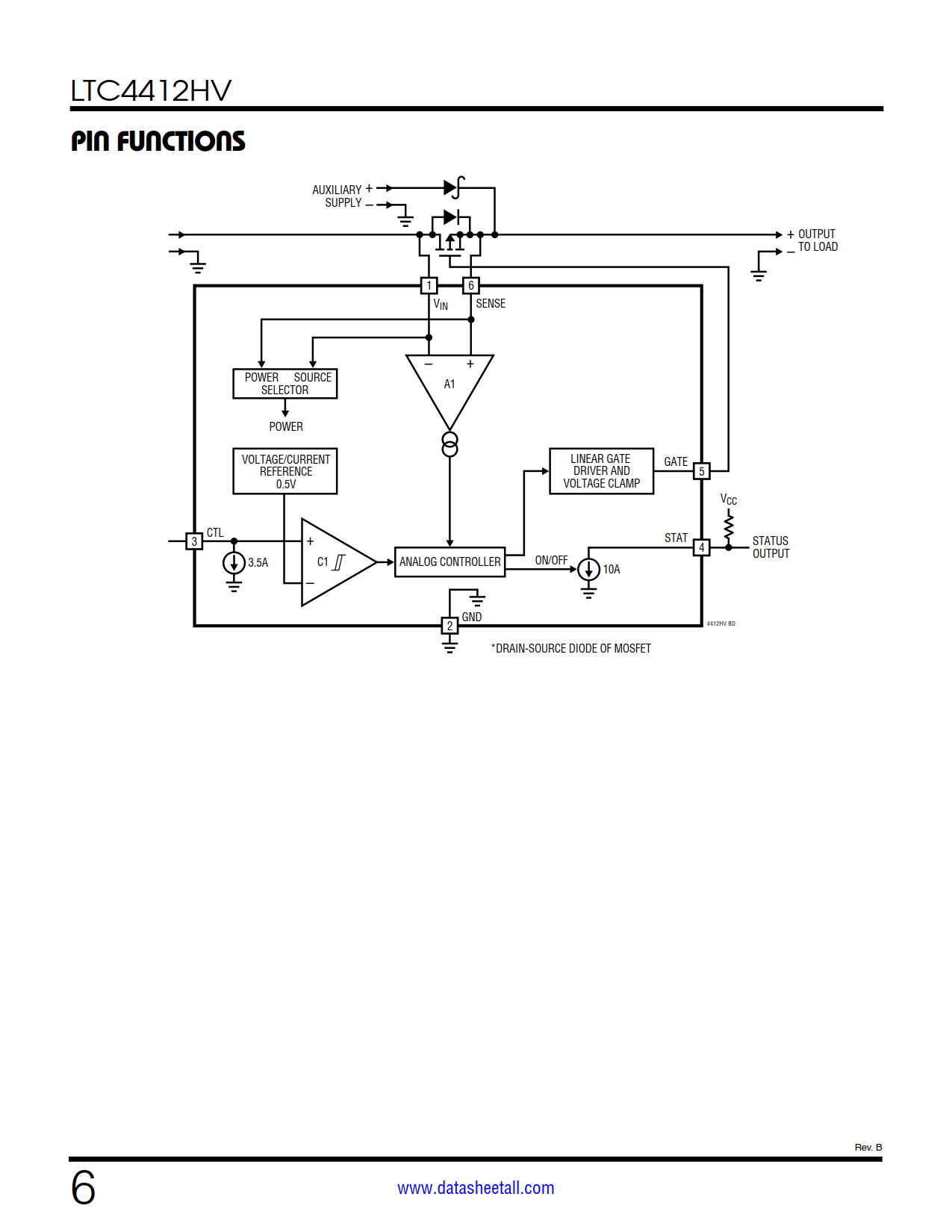

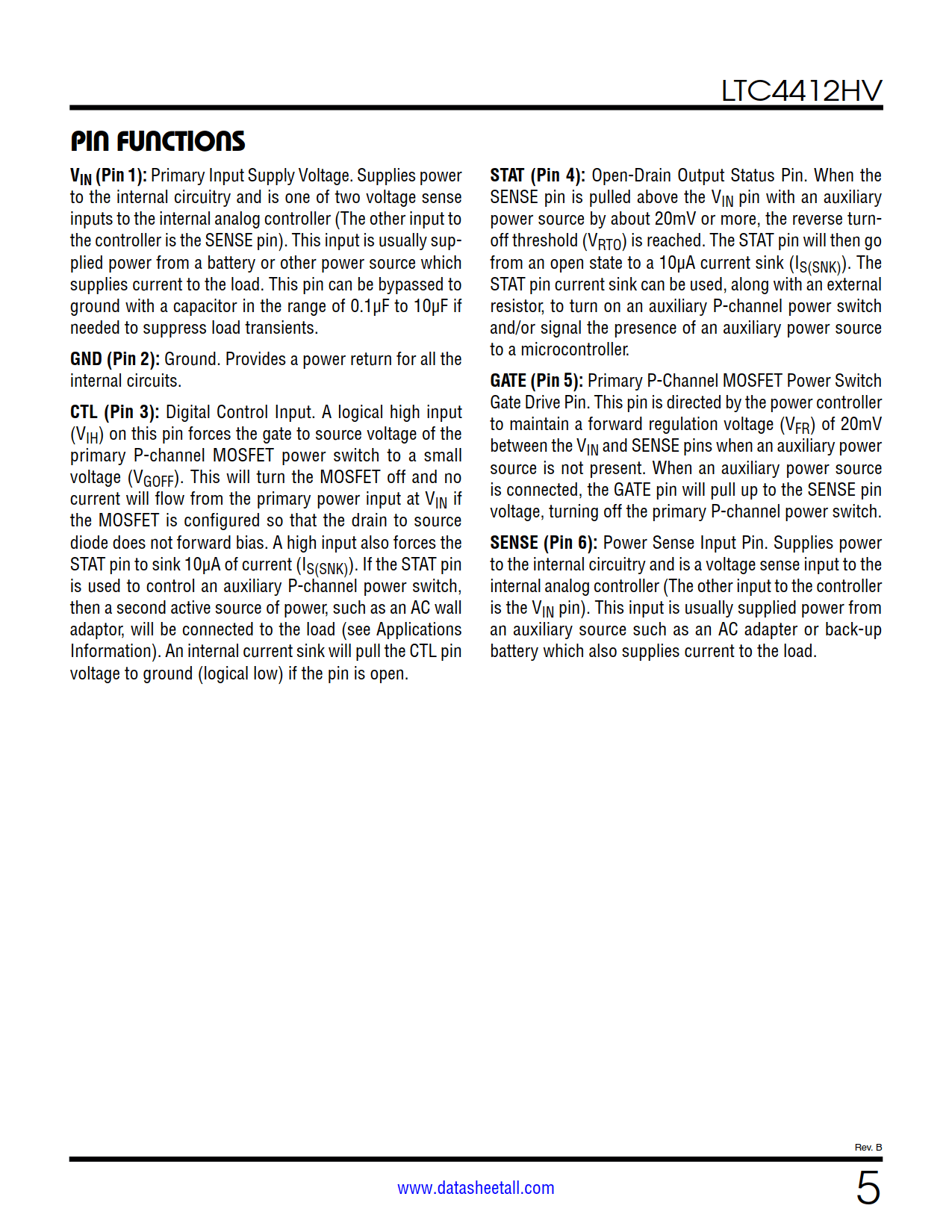

The STAT pin can be used to enable an auxiliary P-channel MOSFET power switch when an auxiliary supply is detected. This pin may also be used to indicate to a microcontroller that an auxiliary supply is connected. The control (CTL) input enables the user to force the primary MOSFET off and the STAT pin low.

The LTC4412HV is available in a low profile (1mm) SOT-23 package.
