LTC4366 Datasheet

LTC4366 Datasheet

High Voltage Surge Stopper
Part No.: LTC4366
Page: 24 Pages
Size: 300 KB
Manufacturer: Linear Technology
Logo:
Views: 1
Update Time: 2024-01-22 17:00:09
DataSheet: Download

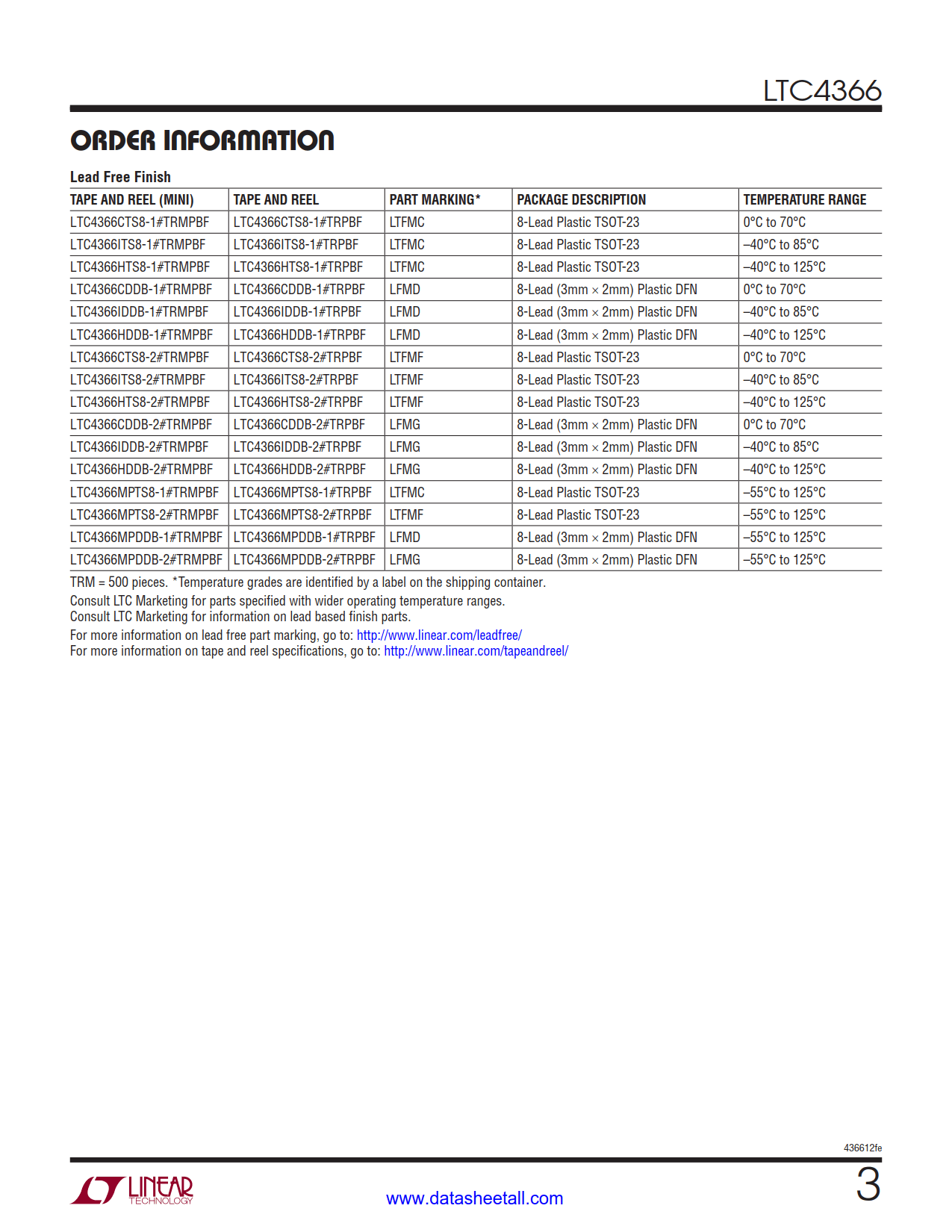

LTC4366 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC4366CTS8-1#PBF Tube   LTFMC 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC4366CTS8-1#TRPBF Reel 2500 LTFMC 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC4366CTS8-1#TRMPBF Reel 500 LTFMC 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC4366ITS8-1#PBF Tube   LTFMC 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
LTC4366ITS8-1#TRPBF Reel 2500 LTFMC 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
LTC4366ITS8-1#TRMPBF Reel 500 LTFMC 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
LTC4366HTS8-1#PBF Tube   LTFMC 1 8 -40°C ~125°C 8-Lead Plastic TSOT-23
LTC4366HTS8-1#TRPBF Reel 2500 LTFMC 1 8 -40°C ~125°C 8-Lead Plastic TSOT-23
LTC4366HTS8-1#TRMPBF Reel 500 LTFMC 1 8 -40°C ~125°C 8-Lead Plastic TSOT-23
LTC4366CDDB-1#PBF Tube   LFMD 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366CDDB-1#TRPBF Reel 2500 LFMD 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366CDDB-1#TRMPBF Reel 500 LFMD 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366IDDB-1#PBF Tube   LFMD 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366IDDB-1#TRPBF Reel 2500 LFMD 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366IDDB-1#TRMPBF Reel 500 LFMD 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366HDDB-1#PBF Tube   LFMD 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366HDDB-1#TRPBF Reel 2500 LFMD 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366HDDB-1#TRMPBF Reel 500 LFMD 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366CTS8-2#PBF Tube   LTFMF 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC4366CTS8-2#TRPBF Reel 2500 LTFMF 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC4366CTS8-2#TRMPBF Reel 500 LTFMF 1 8 0°C ~70°C 8-Lead Plastic TSOT-23
LTC4366ITS8-2#PBF Tube   LTFMF 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
LTC4366ITS8-2#TRPBF Reel 2500 LTFMF 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
LTC4366ITS8-2#TRMPBF Reel 500 LTFMF 1 8 -40°C ~85°C 8-Lead Plastic TSOT-23
LTC4366HTS8-2#PBF Tube   LTFMF 1 8 -40°C ~125°C 8-Lead Plastic TSOT-23
LTC4366HTS8-2#TRPBF Reel 2500 LTFMF 1 8 -40°C ~125°C 8-Lead Plastic TSOT-23
LTC4366HTS8-2#TRMPBF Reel 500 LTFMF 1 8 -40°C ~125°C 8-Lead Plastic TSOT-23
LTC4366CDDB-2#PBF Tube   LFMG 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366CDDB-2#TRPBF Reel 2500 LFMG 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366CDDB-2#TRMPBF Reel 500 LFMG 1 8 0°C ~70°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366IDDB-2#PBF Tube   LFMG 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366IDDB-2#TRPBF Reel 2500 LFMG 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366IDDB-2#TRMPBF Reel 500 LFMG 1 8 -40°C ~85°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366HDDB-2#PBF Tube   LFMG 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366HDDB-2#TRPBF Reel 2500 LFMG 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366HDDB-2#TRMPBF Reel 500 LFMG 1 8 -40°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366MPTS8-1#PBF Tube   LTFMC 1 8 -55°C ~125°C 8-Lead Plastic TSOT-23
LTC4366MPTS8-1#TRPBF Reel 2500 LTFMC 1 8 -55°C ~125°C 8-Lead Plastic TSOT-23
LTC4366MPTS8-1#TRMPBF Reel 500 LTFMC 1 8 -55°C ~125°C 8-Lead Plastic TSOT-23
LTC4366MPTS8-2#PBF Tube   LTFMF 1 8 -55°C ~125°C 8-Lead Plastic TSOT-23
LTC4366MPTS8-2#TRPBF Reel 2500 LTFMF 1 8 -55°C ~125°C 8-Lead Plastic TSOT-23
LTC4366MPTS8-2#TRMPBF Reel 500 LTFMF 1 8 -55°C ~125°C 8-Lead Plastic TSOT-23
LTC4366MPDDB-1#PBF Tube   LFMD 1 8 -55°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366MPDDB-1#TRPBF Reel 2500 LFMD 1 8 -55°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366MPDDB-1#TRMPBF Reel 500 LFMD 1 8 -55°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366MPDDB-2#PBF Tube   LFMG 1 8 -55°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366MPDDB-2#TRPBF Reel 2500 LFMG 1 8 -55°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
LTC4366MPDDB-2#TRMPBF Reel 500 LFMG 1 8 -55°C ~125°C 8-Lead (3mm × 2mm) Plastic DFN
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC4366 Datasheet(PDF)

LTC4366 Datasheet(Picture)

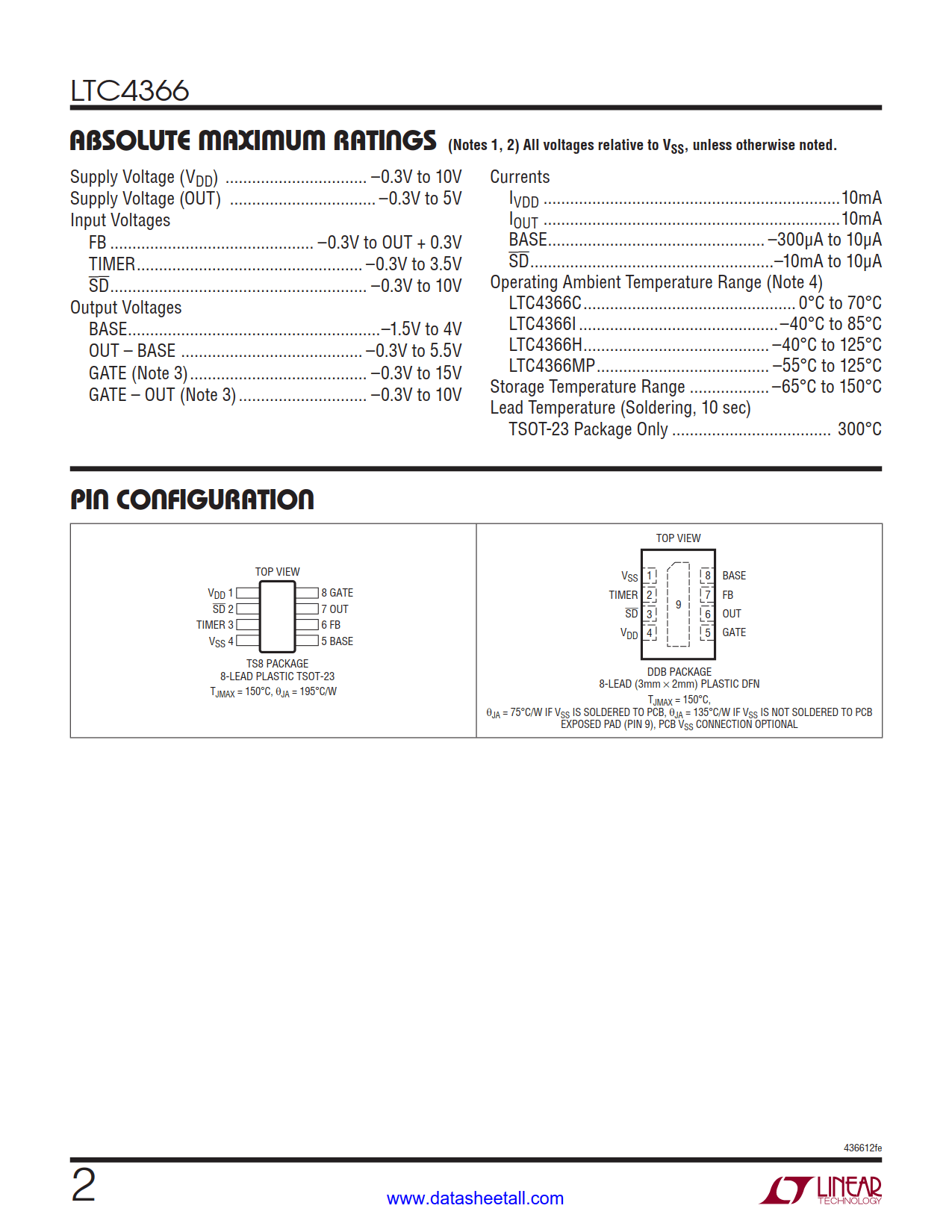

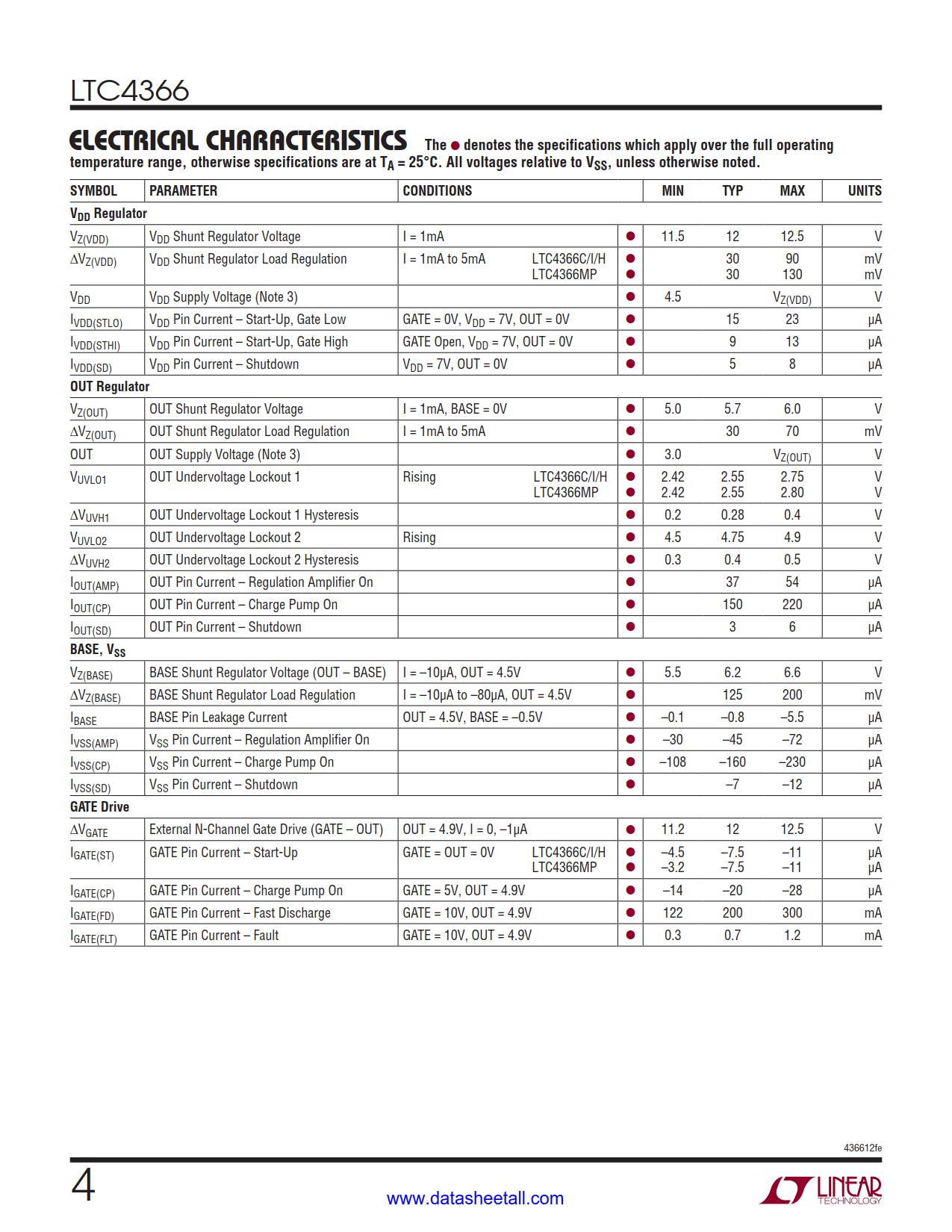

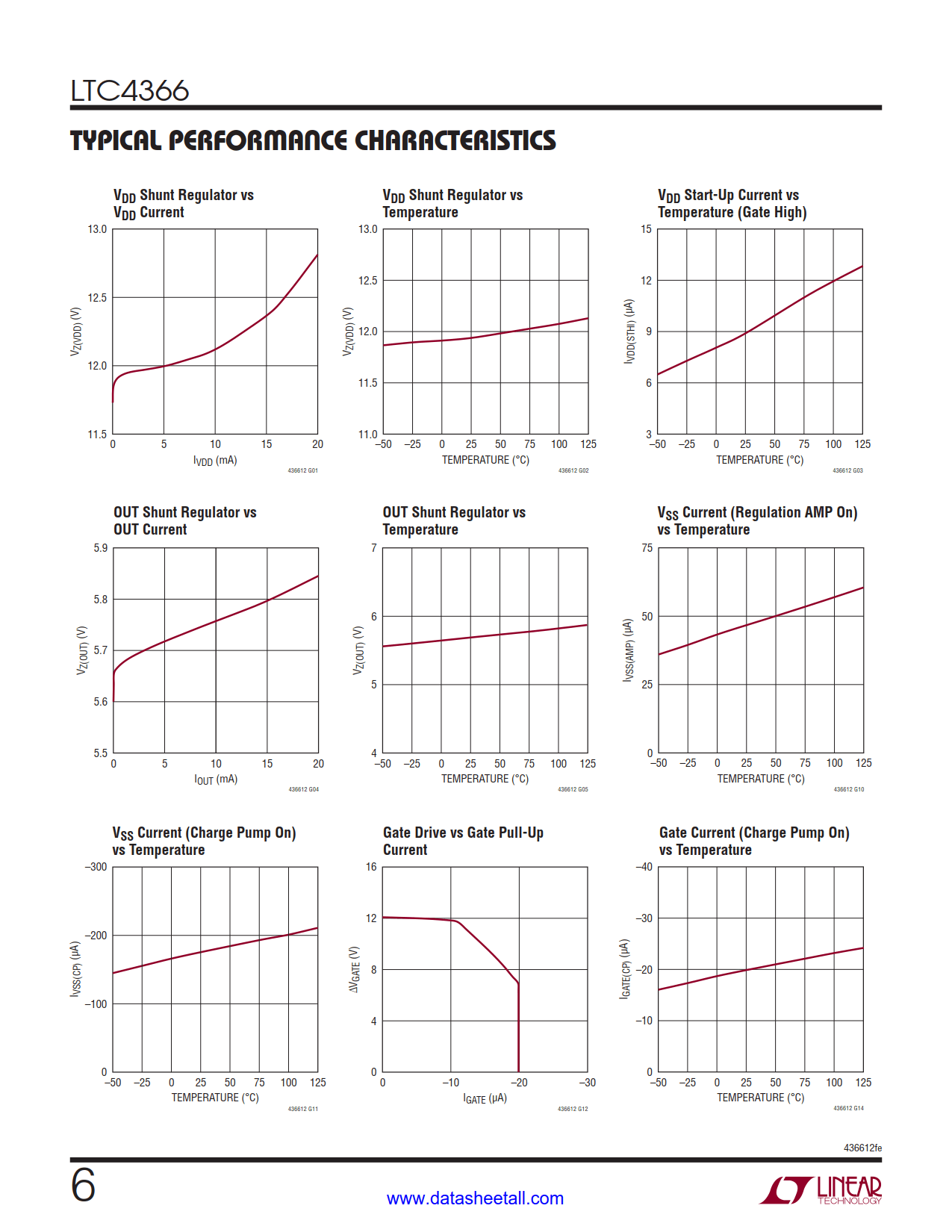

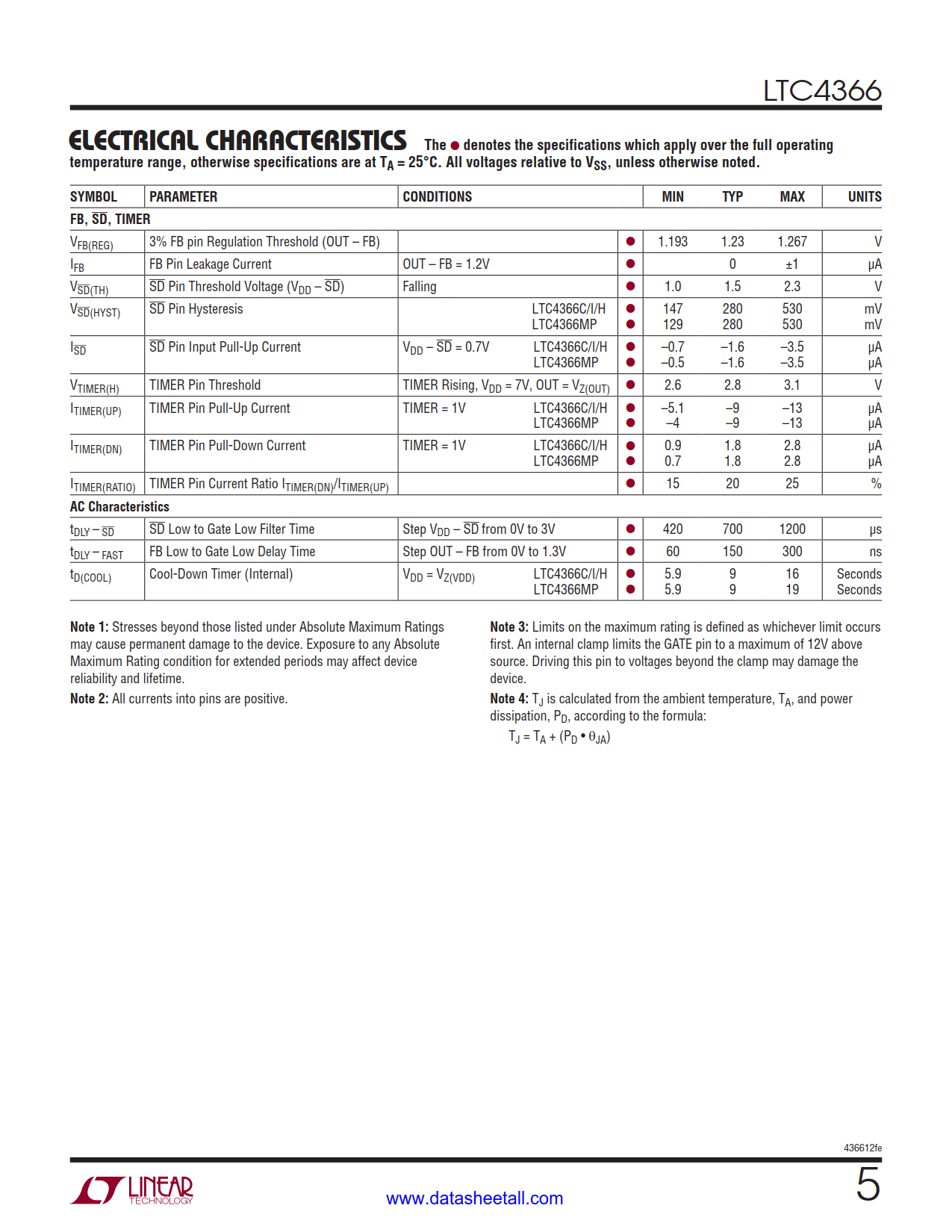

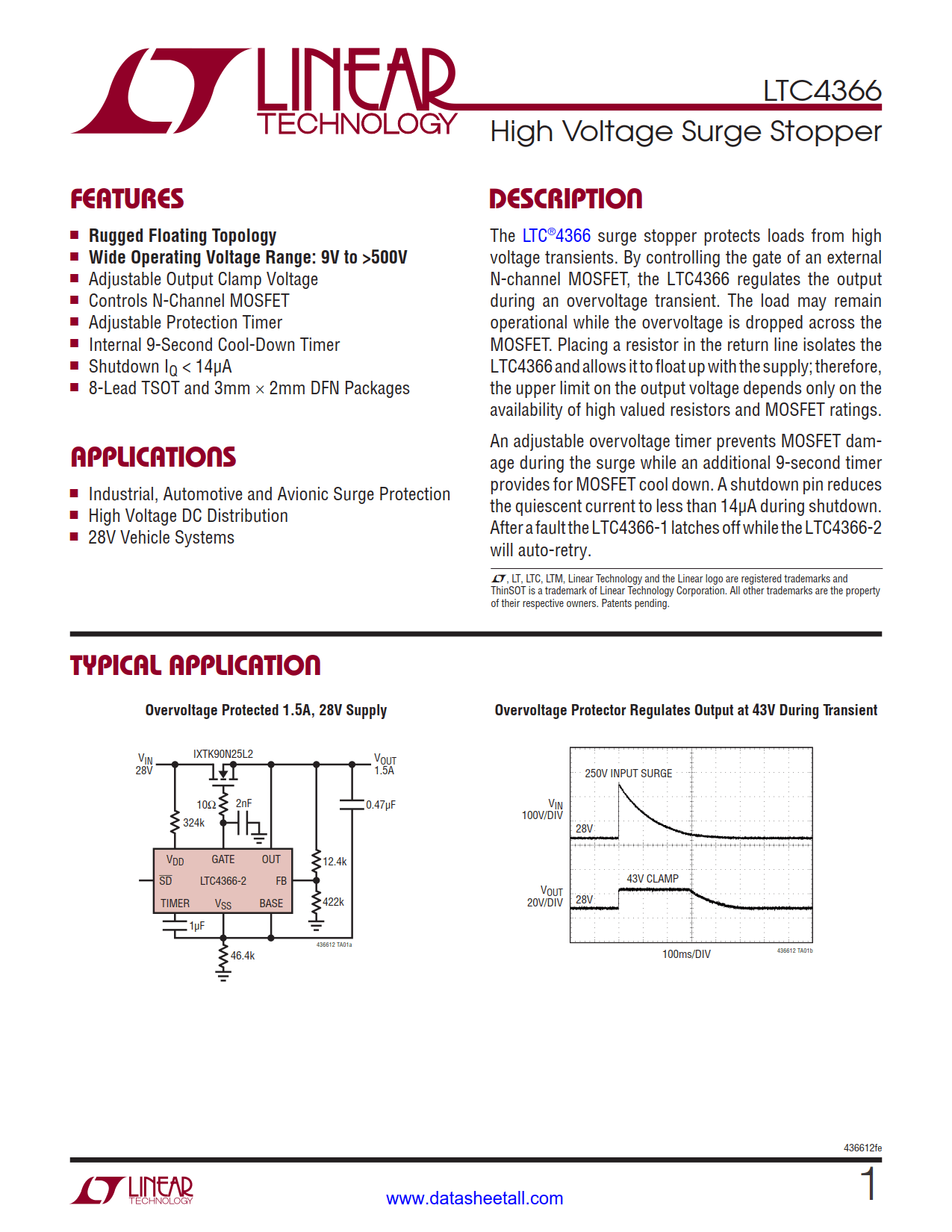

LTC4366 Features

  • Rugged Floating Topology
  • Wide Operating Voltage Range: 9V to >500V
  • Adjustable Output Clamp Voltage
  • Controls N-Channel MOSFET
  • Adjustable Protection Timer
  • Internal 9 Second Cool-Down Timer
  • Shutdown IQ < 14μA
  • Available in 8-Lead TSOT and 8-Lead 3mm × 2mm DFN Packages

LTC4366 Applications

  • Industrial, Automotive and Avionic Surge Protection
  • High Voltage DC Distribution
  • 28V Vehicle Systems

LTC4366 Description

The LTC4366 surge stopper protects loads from high voltage transients. By controlling the gate of an external N-channel MOSFET, the LTC4366 regulates the output during an overvoltage transient. The load may remain operational while the overvoltage is dropped across the MOSFET. Placing a resistor in the return line isolates the LTC4366 and allows it to float up with the supply; therefore, the upper limit on the output voltage depends only on the availability of high valued resistors and MOSFET ratings.

An adjustable overvoltage timer prevents MOSFET damage during the surge while an additional 9-second timer provides for MOSFET cool down. A shutdown pin reduces the quiescent current to less than 14μA during shutdown. After a fault the LTC4366-1 latches off while the LTC4366-2 will auto-retry.

LTC4366 Datasheet Related Parts
