Low Offset Hot Swappable 2-Wire Bus Buffer with Stuck Bus Recovery
Part No.: LTC4307
Page: 16 Pages
Size: 178 KB
Manufacturer: Linear Technology
Logo:
Views: 3
Update Time: 2024-04-26 14:10:17
DataSheet: Download

LTC4307 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
LTC4307CDD#PBF Tube 121 LBTW 1 8 0°C ~70°C 8-Lead DFN (3mm x 3mm x 0.75mm)
LTC4307CDD#TRPBF Reel 2500 LBTW 1 8 0°C ~70°C 8-Lead DFN (3mm x 3mm x 0.75mm)
LTC4307CDD#TRMPBF Reel 500 LBTW 1 8 0°C ~70°C 8-Lead DFN (3mm x 3mm x 0.75mm)
LTC4307IDD#PBF Tube 121 LBTW 1 8 -40°C ~85°C 8-Lead DFN (3mm x 3mm x 0.75mm)
LTC4307IDD#TRPBF Reel 2500 LBTW 1 8 -40°C ~85°C 8-Lead DFN (3mm x 3mm x 0.75mm)
LTC4307IDD#TRMPBF Reel 500 LBTW 1 8 -40°C ~85°C 8-Lead DFN (3mm x 3mm x 0.75mm)
LTC4307CMS8#PBF Tube 50 LTBTV 1 8 0°C ~70°C 8-Lead MSOP
LTC4307CMS8#TRPBF Reel 2500 LTBTV 1 8 0°C ~70°C 8-Lead MSOP
LTC4307CMS8#TRMPBF Reel 500 LTBTV 1 8 0°C ~70°C 8-Lead MSOP
LTC4307IMS8#PBF Tube 50 LTBTV 1 8 -40°C ~85°C 8-Lead MSOP
LTC4307IMS8#TRPBF Reel 2500 LTBTV 1 8 -40°C ~85°C 8-Lead MSOP
LTC4307IMS8#TRMPBF Reel 500 LTBTV 1 8 -40°C ~85°C 8-Lead MSOP
LTC4307IMS8#3ZZPBF Tube 50 LTBTV 1 8 -40°C ~85°C 8-Lead MSOP
LTC4307IMS8#3ZZTRPBF Reel 2500 LTBTV 1 8 -40°C ~85°C 8-Lead MSOP
LTC4307IMS8#3ZZTRMPBF Reel 500 LTBTV 1 8 -40°C ~85°C 8-Lead MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

LTC4307 Datasheet(PDF)

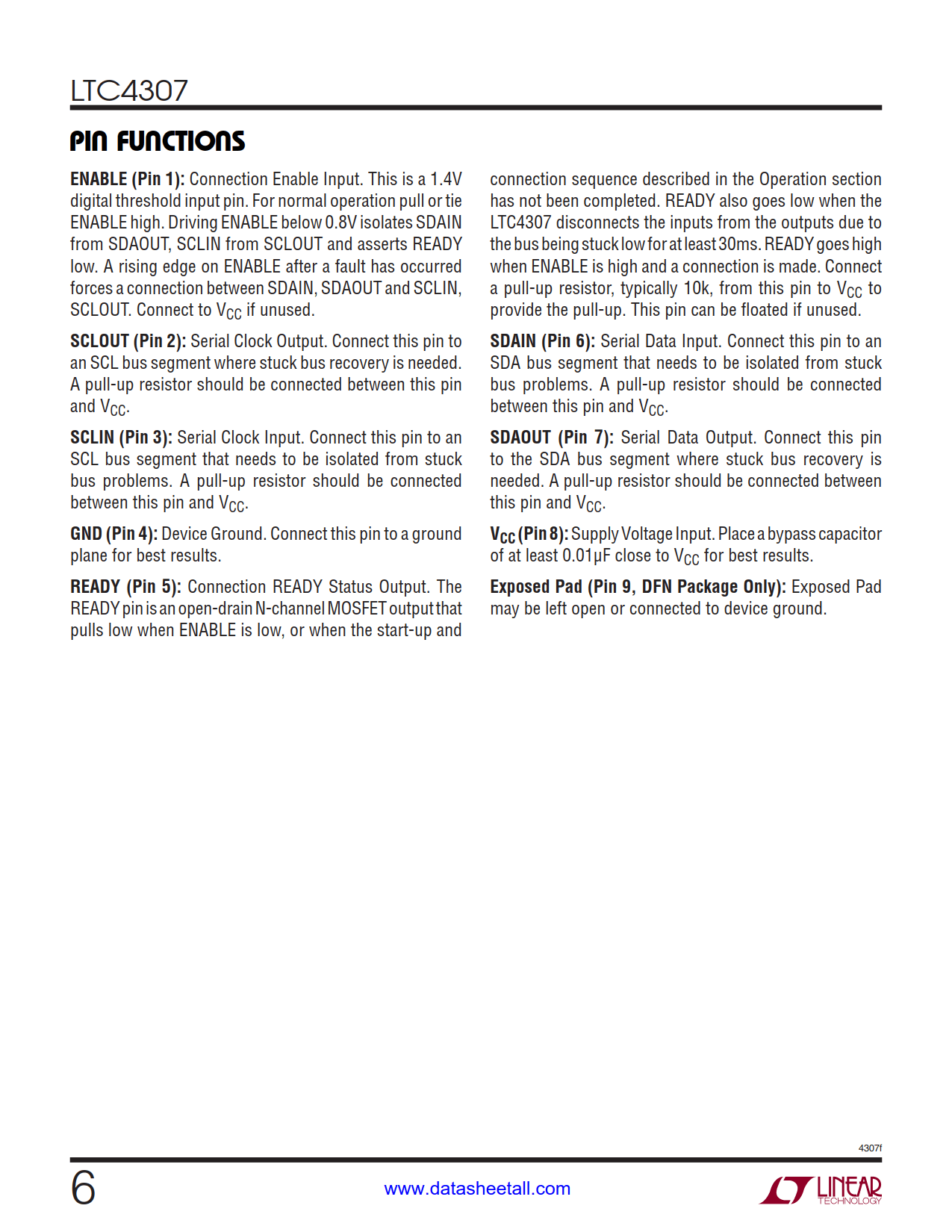

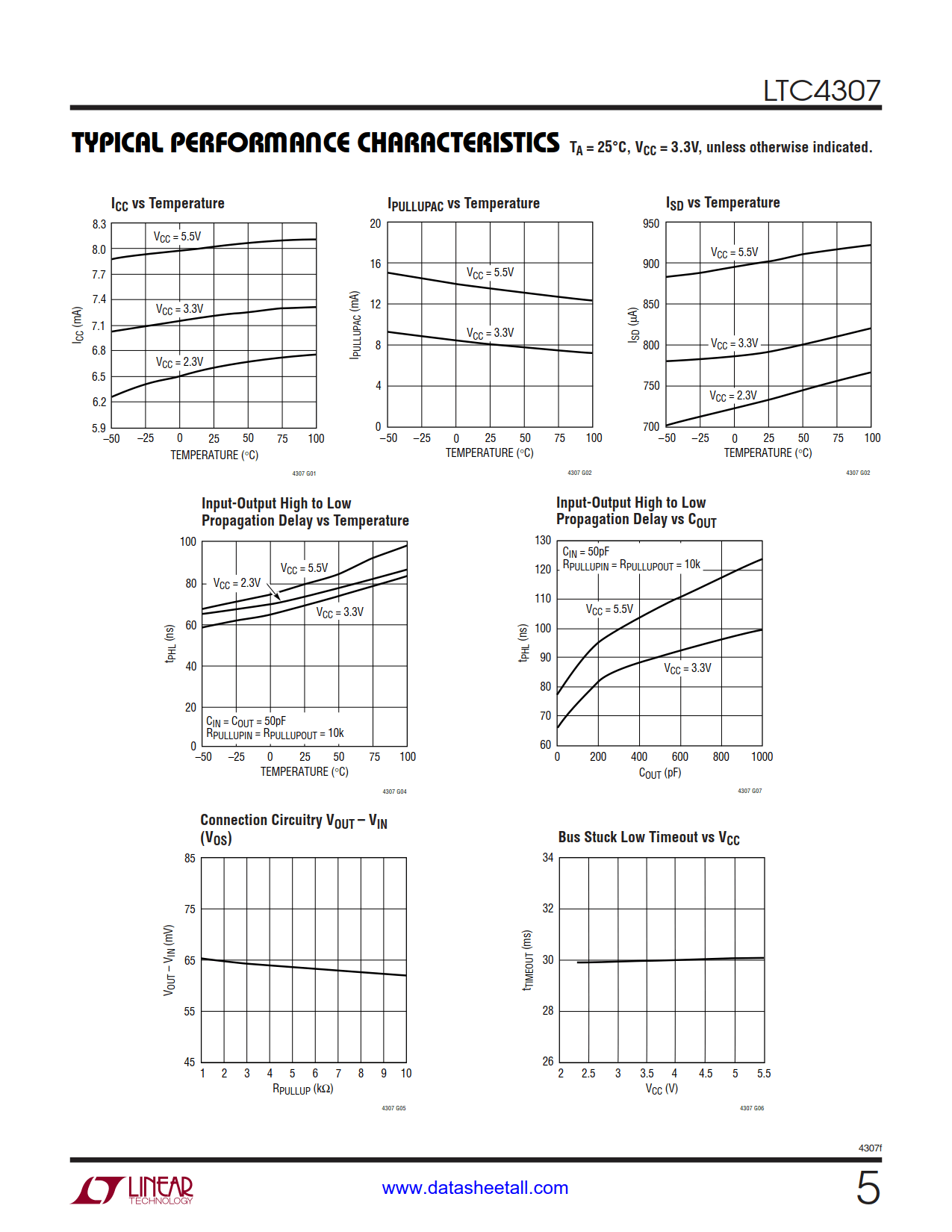

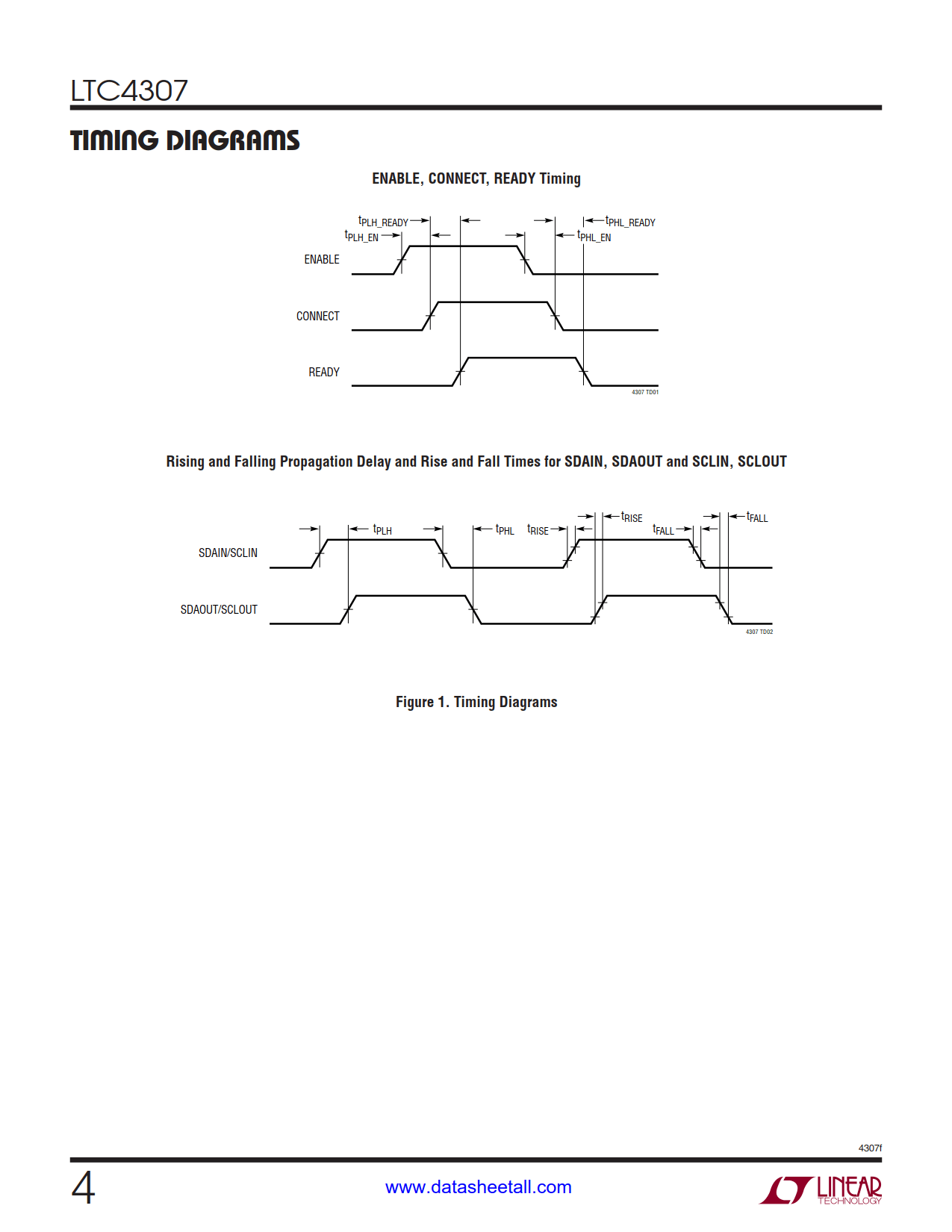

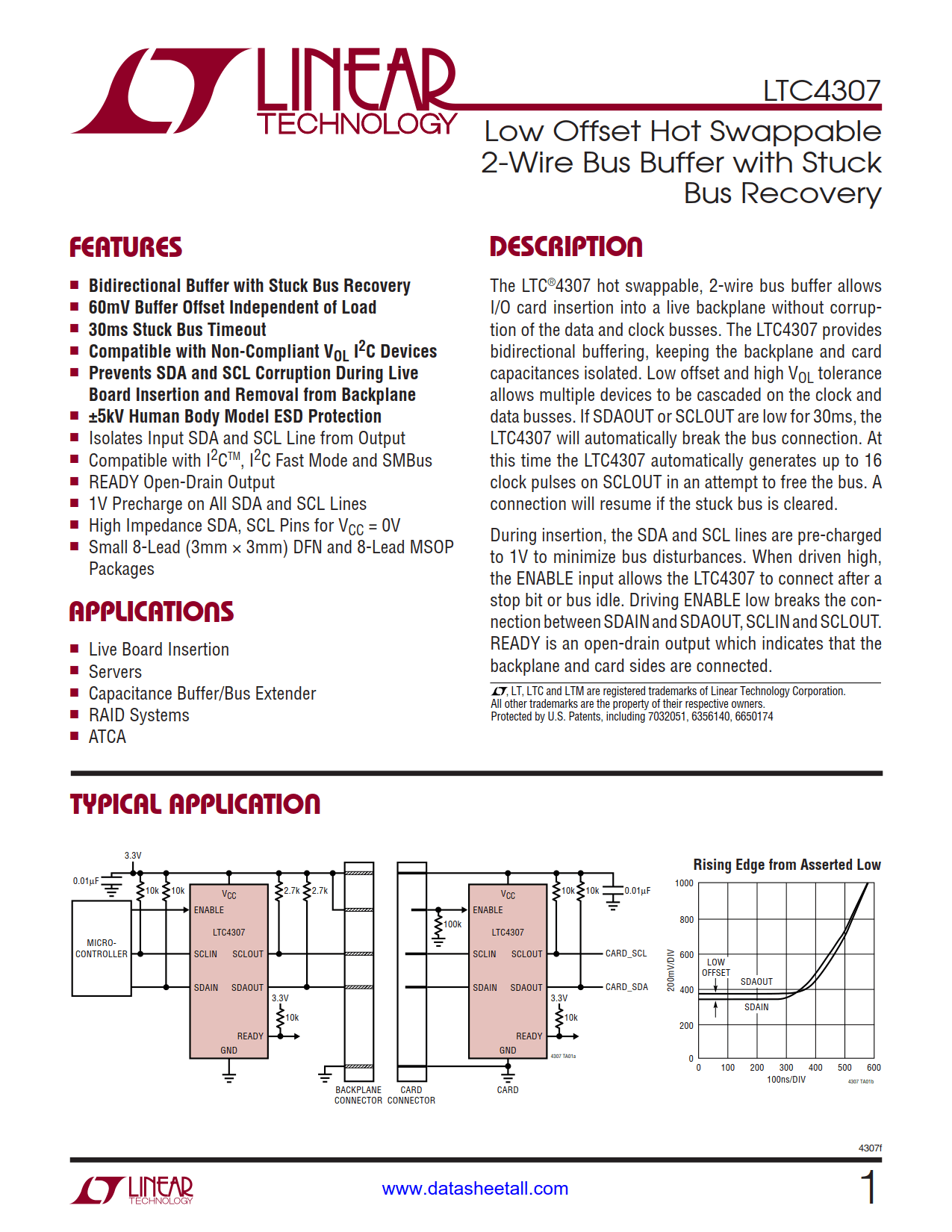

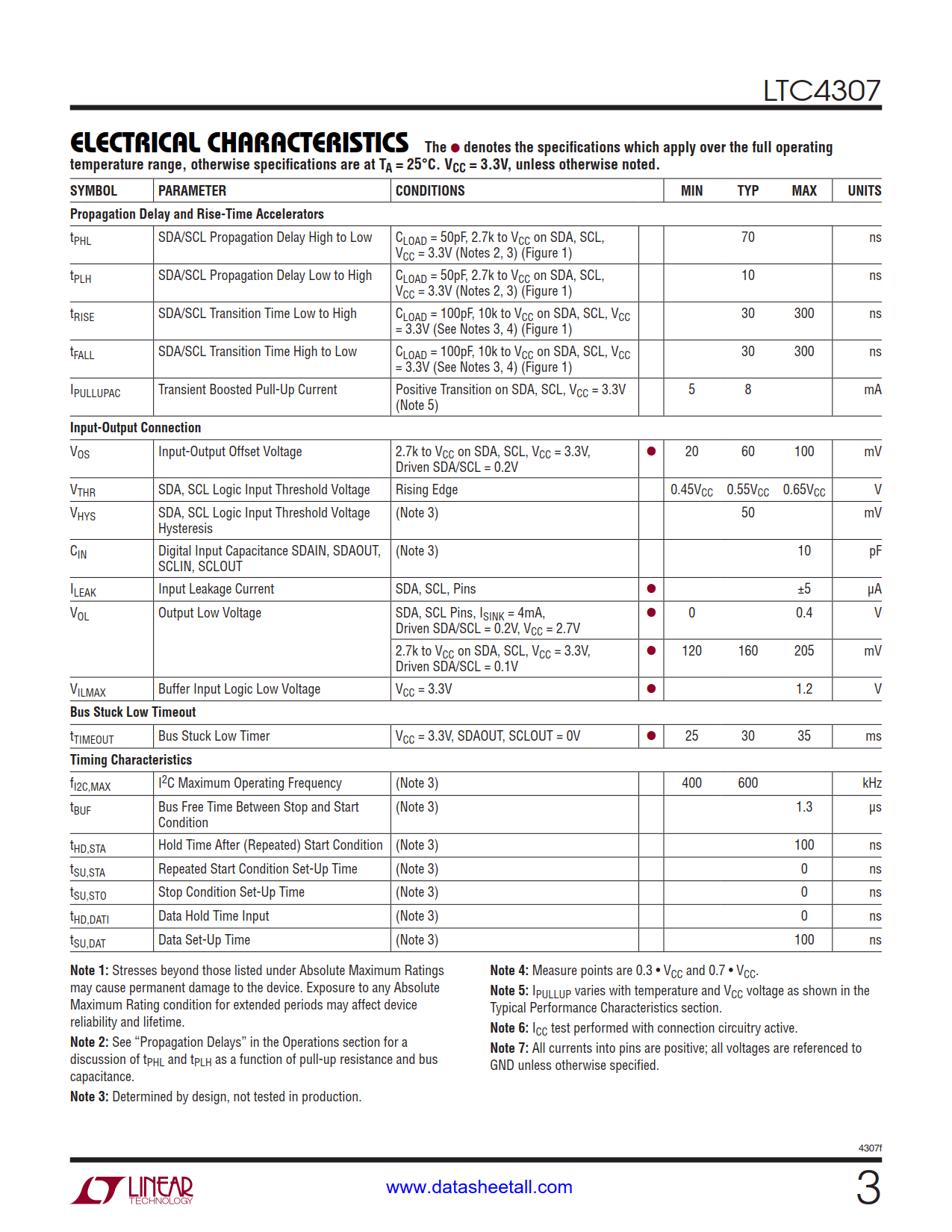

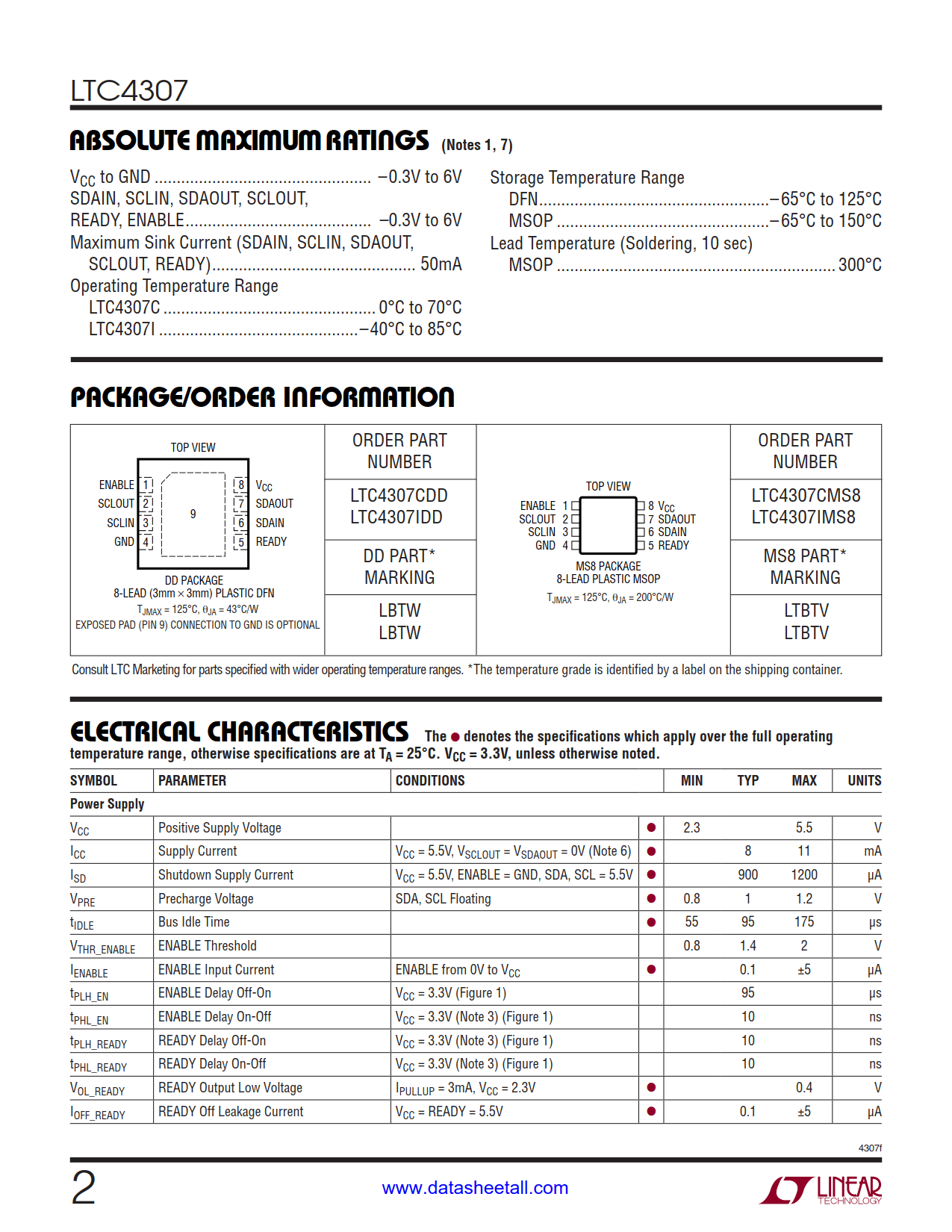

LTC4307 Datasheet(Picture)

LTC4307 Features

  • Bidirectional Buffer with Stuck Bus Recovery
  • 60mV Buffer Offset Independent of Load
  • 30ms Stuck Bus Timeout
  • Compatible with Non-Compliant VOL I2C Devices
  • Prevents SDA and SCL Corruption During Live Board Insertion and Removal from Backplane
  • ±5kV Human Body Model ESD Protection
  • Isolates Input SDA and SCL Line from Output
  • Compatible with I2C, I2C Fast Mode and SMBus
  • READY Open-Drain Output
  • 1V Precharge on All SDA and SCL Lines
  • High Impedance SDA, SCL Pins for VCC = 0V
  • Small 8-Lead (3mm × 3mm) DFN and 8-Lead MSOP Packages

LTC4307 Applications

  • Live Board Insertion
  • Servers
  • Capacitance Buffer/Bus Extender
  • RAID Systems
  • ATCA

LTC4307 Description

The LTC4307 hot swappable, 2-wire bus buffer allows I/O card insertion into a live backplane without corruption of the data and clock busses. The LTC4307 provides bidirectional buffering, keeping the backplane and card capacitances isolated. Low offset and high VOL tolerance allows multiple devices to be cascaded on the clock and data busses. If SDAOUT or SCLOUT are low for 30ms, the LTC4307 will automatically break the bus connection. At this time the LTC4307 automatically generates up to 16 clock pulses on SCLOUT in an attempt to free the bus. A connection will resume if the stuck bus is cleared.

During insertion, the SDA and SCL lines are pre-charged to 1V to minimize bus disturbances. When driven high, the ENABLE input allows the LTC4307 to connect after a stop bit or bus idle. Driving ENABLE low breaks the connection between SDAIN and SDAOUT, SCLIN and SCLOUT. READY is an open-drain output which indicates that the backplane and card sides are connected.
